This European Standard specifies requirements for:
a) routine inspection, periodic inspection and requalification of fixed LPG storage pressure vessels of sizes greater than 13 m3, and associated fittings;
b) marking pressure vessels and/or keeping records, as appropriate, as a result of routine inspection, periodic inspection and requalification.
This European Standard excludes refrigerated storage.
Flüssiggas-Geräte und Ausrüstungsteile - Inspektion und wiederkehrende Prüfung von Druckbehältern für Flüssiggas (LPG) mit einem Fassungsraum größer als 13 m³
Diese Europäische Norm legt Anforderungen fest für:
a) die regelmäßige Inspektion, wiederkehrende Inspektion und erneute Qualifizierung von ortsfesten LPG-Lagerbehältern mit einem Fassungsraum größer als 13 m3 sowie der zugehörigen Ausrüstung;
b) die Kennzeichnung von Druckbehältern und/oder Aufbewahrung der Aufzeichnungen über Ergebnisse aus der regelmäßigen Inspektion, wiederkehrenden Inspektion und erneuten Qualifizierung, soweit angemessen.
Diese Europäische Norm gilt nicht für die tiefkalte Lagerung.
Équipements et accessoires GPL - Inspection et requalification des réservoirs GPL d’un volume supérieur à 13 m3 pour gaz de pétrole liquéfiés (GPL)
Le présent document spécifie les exigences concernant les points suivants :
a) l’inspection de routine, l’inspection périodique et la requalification des réservoirs fixes de stockage de gaz de pétrole liquéfiés, d’une capacité supérieure à 13 m3, et des équipements associés ;
b) le marquage des réservoirs et/ou les informations à conserver, en tant que de besoin, au terme de l’inspection de routine, de l’inspection périodique et de la requalification.
Le présent document exclut les stockages réfrigérés.
Oprema in pribor za utekočinjeni naftni plin (UNP) - Pregledi in periodični preskusi tlačnih posod za UNP s prostornino nad 13 m³
Ta evropski standard določa zahteve za:
a) redne preglede, periodične preglede in periodične preskuse tlačnih posod za hranjenje utekočinjenega naftnega plina (UNP) s prostornino nad 13 m³ ter povezanih fitingov;
b) označevanje tlačnih posod in/ali vodenje evidence, kot je primerno, kot rezultat rednih pregledov, periodičnih pregledov in periodičnih preskusov.
Ta evropski standard ne zajema hlajenega shranjevanja.
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
SIST EN 12819:2019
01-junij-2019
Nadomešča:
SIST EN 12819:2010
Oprema in pribor za utekočinjeni naftni plin (UNP) - Pregledi in periodični preskusi
tlačnih posod za UNP s prostornino nad 13 m³
LPG equipment and accessories - Inspection and requalification of LPG pressure
vessels greater than 13 m³
Flüssiggas-Geräte und Ausrüstungsteile - Inspektion und wiederkehrende Prüfung von
Druckbehältern für Flüssiggas (LPG) mit einem Fassungsraum größer als 13 m³
Équipements et accessoires GPL - Inspection et requalification des réservoirs GPL d’un
volume supérieur à 13 m3 pour gaz de pétrole liquéfiés (GPL)
Ta slovenski standard je istoveten z: EN 12819:2019
ICS:
23.020.32 Tlačne posode Pressure vessels
SIST EN 12819:2019 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN 12819:2019
---------------------- Page: 2 ----------------------
SIST EN 12819:2019
EN 12819
EUROPEAN STANDARD
NORME EUROPÉENNE
March 2019
EUROPÄISCHE NORM
ICS 23.020.35 Supersedes EN 12819:2009
English Version
LPG equipment and accessories - Inspection and
requalification of LPG pressure vessels greater than 13 m³
Équipements et accessoires GPL - Inspection et Flüssiggas-Geräte und Ausrüstungsteile - Inspektion
requalification des réservoirs de capacité supérieure à und wiederkehrende Prüfung von Druckbehältern für
13 m³ pour gaz de pétrole liquéfiés (GPL) Flüssiggas (LPG) mit einem Fassungsraum größer als
13 m³
This European Standard was approved by CEN on 9 December 2018.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 12819:2019 E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 12819:2019
EN 12819:2019 (E)

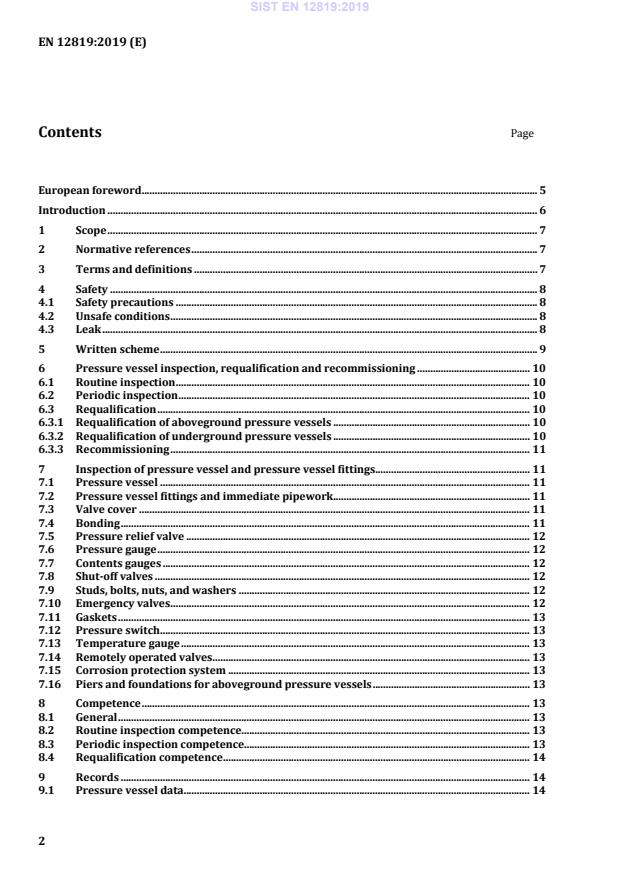

Contents Page
European foreword . 5
Introduction . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 7
4 Safety . 8
4.1 Safety precautions . 8
4.2 Unsafe conditions . 8
4.3 Leak . 8
5 Written scheme . 9
6 Pressure vessel inspection, requalification and recommissioning . 10
6.1 Routine inspection . 10
6.2 Periodic inspection . 10
6.3 Requalification . 10
6.3.1 Requalification of aboveground pressure vessels . 10
6.3.2 Requalification of underground pressure vessels . 10
6.3.3 Recommissioning . 11
7 Inspection of pressure vessel and pressure vessel fittings. 11
7.1 Pressure vessel . 11
7.2 Pressure vessel fittings and immediate pipework. 11
7.3 Valve cover . 11
7.4 Bonding . 11
7.5 Pressure relief valve . 12
7.6 Pressure gauge . 12
7.7 Contents gauges . 12
7.8 Shut-off valves . 12
7.9 Studs, bolts, nuts, and washers . 12
7.10 Emergency valves . 12
7.11 Gaskets . 13
7.12 Pressure switch . 13
7.13 Temperature gauge . 13
7.14 Remotely operated valves . 13
7.15 Corrosion protection system . 13
7.16 Piers and foundations for aboveground pressure vessels . 13
8 Competence . 13
8.1 General . 13
8.2 Routine inspection competence. 13
8.3 Periodic inspection competence. 13
8.4 Requalification competence . 14
9 Records . 14
9.1 Pressure vessel data . 14
2
---------------------- Page: 4 ----------------------
SIST EN 12819:2019
EN 12819:2019 (E)
9.2 Reports . 14
Annex A (informative) Visual inspection . 15
A.1 Internal and external visual inspections . 15
A.2 Inspection techniques . 15
A.2.1 External visual inspection . 15
A.2.2 Internal visual inspection . 15
A.2.3 Records . 15
A.3 Additional inspection . 15
Annex B (normative) Hydraulic pressure test . 17
Annex C (normative) Acoustic emission testing . 18
C.1 Scope . 18
C.2 Testing procedure . 18
C.3 Instrumentation . 18
C.3.1 Sensors . 18
C.3.2 Acquisition and evaluation system . 18
C.4 Testing . 18
C.4.1 Test instruction . 18
C.4.2 Safety precautions . 18
C.5 Sensor location . 19
C.5.1 Overground pressure vessels . 19
C.5.2 Underground or mounded pressure vessels . 19
C.5.3 Pressurization . 21
C.6 Data evaluation and analysis . 22
C.6.1 Evaluation criteria . 22
C.6.1.1 General . 22
C.6.1.2 Overground pressure vessels . 22
C.6.1.3 Underground and mounded pressure vessels . 22
C.6.2 Real time control and stop criteria . 22
C.6.2.1 Overground pressure vessels . 22
C.6.2.2 Underground and mounded pressure vessels . 23
C.6.3 Post test analysis . 23
C.6.4 Pressure vessel grading . 23
C.7 Data storage and reporting . 24
Annex D (informative) Ultrasonic thickness test . 25
D.1 General . 25
D.2 Apparatus setting . 25
3
---------------------- Page: 5 ----------------------
SIST EN 12819:2019
EN 12819:2019 (E)
D.3 Control measurement . 25
D.4 Shell thickness measurements . 25
D.5 End thickness measurements . 25
D.6 Interpretation . 25
D.7 Rejection criteria . 25
Annex E (informative) Monitoring cathodic protection with sacrificial anodes for
underground pressure vessels . 26
E.1 General . 26
E.2 Records . 26
E.3 Procedure. 26
E.4 Measurement of the galvanic current . 26
E.5 Measurement of the potential difference of the pressure vessel to the reference
electrode . 26
E.6 Results . 27
Annex F (informative) Evaluation of coating condition of underground pressure vessels
(cathodic protection by impressed current) . 28
F.1 General . 28
F.2 Apparatus . 28
F.3 Conditions . 28
F.4 Isolation resistance of the coating . 28
F.4.1 Procedure. 28
F.4.2 Calculation . 29
F.5 Results . 29
F.6 Checking intervals . 29
Annex G (informative) A-deviations . 30
Bibliography . 31
4
---------------------- Page: 6 ----------------------
SIST EN 12819:2019
EN 12819:2019 (E)
European foreword
This document (EN 12819:2019) has been prepared by Technical Committee CEN/TC 286 “Liquefied
petroleum gas equipment and accessories”, the secretariat of which is held by NSAI.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by September 2019, and conflicting national standards shall
be withdrawn at the latest by September 2019.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 12819:2009.
This document was thereby technically revised.
In using this document, prepared in the field of application of Article 153 of the treaty on the functioning
of the European Union, users are aware that standards have no formal legal relationship with Directives
that may have been made under Article 153 of the treaty on the functioning of the European Union. In
addition, national legislation in the Member states may contain more stringent requirements than the
minimum requirements of a Directive based on Article 153. Information on the relationship between the
national legislation implementing Directives based on Article 153 and this EN may be given in a national
foreword of the national standard implementing this EN.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands,
Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
the United Kingdom.
5
---------------------- Page: 7 ----------------------
SIST EN 12819:2019
EN 12819:2019 (E)
Introduction
3
Inspection and requalification regimes for pressure vessels greater than 13 m have developed in various
countries in different ways that range from defined to variable inspection periods with requalification
regimes achieved by various methods. This European Standard for inspection and requalification is based
on European countries’ legislation and codes of practice and industries’ codes of practice. In addition, use
of LPG in different applications has encouraged the industry to approach the requirements for inspection
and requalification in different ways for each application.
This document calls for the use of substances and procedures that can be injurious to health if adequate
precautions are not taken. It refers only to technical suitability and does not absolve the user from legal
obligations relating to health and safety at any stage.
Protection of the environment is a key political issue in Europe and elsewhere, for CEN/TC 286 this is
covered in CEN/TS 16765 [1], and this document should be read in conjunction with this standard.
It has been assumed in the drafting of this document that execution of its provisions is entrusted to
appropriately qualified and experienced people.
6
---------------------- Page: 8 ----------------------
SIST EN 12819:2019
EN 12819:2019 (E)
1 Scope
This document specifies requirements for:
a) routine inspection, periodic inspection and requalification of fixed LPG pressure vessels of sizes
3
greater than 13 m , and associated fittings;
b) marking pressure vessels and/or keeping records, as appropriate, as a result of routine inspection,
periodic inspection and requalification.
This document excludes refrigerated storage.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 1330-9, Non-destructive testing - Terminology - Part 9: Terms used in acoustic emission testing
EN 13477-1, Non-destructive testing - Acoustic emission - Equipment characterisation - Part 1: Equipment
description
EN 13477-2, Non-destructive testing - Acoustic emission - Equipment characterisation - Part 2: Verification
of operating characteristic
EN 13554, Non-destructive testing - Acoustic emission testing - General principles
EN 14129, LPG Equipment and accessories - Pressure relief valves for LPG pressure vessels
EN 14584, Non-destructive testing - Acoustic emission testing - Examination of metallic pressure equipment
during proof testing - Planar location of AE sources
EN 16631, LPG equipment and accessories - Pressure relief valves for LPG pressure vessels - Reconditioning
requirements
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
periodic inspection
external inspection of the visible parts of a pressure vessel and its fittings at defined intervals
3.2
routine inspection
external inspection of the visible parts of a pressure vessel and its fittings, carried out more frequently
than periodic inspections
7
---------------------- Page: 9 ----------------------
SIST EN 12819:2019
EN 12819:2019 (E)
3.3
requalification
test carried out at defined intervals, as part of the scheme, to confirm that a pressure vessel is fit for a
further period of service
3.4
inspection body
independent inspection and testing body approved by the competent authority
3.5
competent person
person which by combination of appropriate qualification, training, experience, and resources, is able to
make objective judgments on the subject
3.6
competent authority
authority or authorities or any other body or bodies designated as such in each State and in each specific
case in accordance with domestic law
3.7
commissioning
preparation for safe service
3.8
decommissioning
removing from service and preparing safely for inspection/test
3.9
Liquefied Petroleum Gas
LPG
low pressure liquefied gas composed of one or more light hydrocarbons which are assigned to UN 1011,
UN 1075, UN 1965, UN 1969 or UN 1978 only and which consists mainly of propane, propene, butane,
butane isomers, butene with traces of other hydrocarbon gases
4 Safety
4.1 Safety precautions
Appropriate safety precautions shall be taken during decommissioning, commissioning and
inspection/requalification of a pressure vessel and its fittings.
4.2 Unsafe conditions
Any unsafe condition observed by a competent person on the site of an LPG storage pressure vessel shall
be reported to the person responsible for safe operation of the pressure vessel /site, as appropriate, and
action taken.
4.3 Leak
Any leak discovered from the pressure vessel or its fittings shall be reported immediately to the person
responsible for safe operation of the pressure vessel.
Action to make the pressure vessel or its fittings safe shall be taken by a competent person.
NOTE Methods for detecting leaks include:
8
---------------------- Page: 10 ----------------------
SIST EN 12819:2019
EN 12819:2019 (E)
— visual inspection;
— smell;
— listening;
— use of gas detectors;
— leak detection fluid.
5 Written scheme
5.1 Each pressure vessel and its fittings shall be included in a written scheme, prepared by a competent
person, containing inspection and testing information, taking into account the requirements of Clauses 6
to 8.
5.2 If duties are shared between different parties then the written scheme shall clearly identify the
respective areas of responsibility.
5.3 Intervals between inspections shall be parts of the written scheme and shall be determined by
consideration of the following:
— the design specification of the pressure vessel and its equipment;
— the corrosion protection system on the pressure vessel;
— the system used to ensure that the LPG quality conforms to its specifications/standards, and that it
does not contain components damaging to the material of the pressure vessel or its fittings;
— the maintenance program of the pressure vessel.
NOTE The requirements for the written scheme can also be determined by national regulations.
5.4 The written scheme shall contain the following information:
— the maximum interval between inspections;
— the parts to be inspected;
— the nature of the inspection;
— the critical parts that, if modified or repaired, shall be inspected by a competent person/body before
they can be put back into service;
— the requirements for pressure relief valves (see 7.5.1);
— the name of the competent person preparing the written scheme;
— the date of issue of the written scheme.
9
---------------------- Page: 11 ----------------------
SIST EN 12819:2019
EN 12819:2019 (E)
6 Pressure vessel inspection, requalification and recommissioning
6.1 Routine inspection
6.1.1 Each pressure vessel and its fittings shall be routinely inspected at intervals defined in the written
scheme.
6.1.2 Routine inspections shall include 7.1, 7.2, 7.3, 7.4, 7.5.2, 7.5.3, 7.5.4, 7.7, 7.14 and 7.16.
6.2 Periodic inspection
6.2.1 Each pressure vessel and its fittings shall be periodically inspected at intervals defined in the
written scheme.
6.2.2 Periodic inspections shall include 6.1.2, 7.6, 7.8, 7.12, 7.13 and 7.15.
6.2.3 For aboveground pressure vessels, a visual inspection of external surfaces shall be carried out
(see Annex A). If pressure vessels are provided with fixed passive fire protection, which prevents the full
external visual inspection according to Annex A, the written scheme shall specify alternative techniques
to identify the presence of defects (e.g. the presence of corrosion).
NOTE Periodic inspection can also be referred to as intermediate inspection.
6.3 R
...
SLOVENSKI STANDARD
SIST EN 12819:2019
01-junij-2019
Nadomešča:
SIST EN 12819:2010
Oprema in pribor za utekočinjeni naftni plin (UNP) - Pregledi in periodični preskusi
tlačnih posod za UNP s prostornino nad 13 m³
LPG equipment and accessories - Inspection and requalification of LPG pressure
vessels greater than 13 m³
Flüssiggas-Geräte und -Ausrüstungsteile - Überprüfung und erneute Qualifizierung von
Behältern für Flüssiggas (LPG) größer als 13 m³
Équipements et accessoires GPL - Inspection et requalification des réservoirs GPL d’un
volume supérieur à 13 m3 pour gaz de pétrole liquéfiés (GPL)
Ta slovenski standard je istoveten z: EN 12819:2019
ICS:
23.020.32 Tlačne posode Pressure vessels
SIST EN 12819:2019 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN 12819:2019
---------------------- Page: 2 ----------------------
SIST EN 12819:2019
EN 12819
EUROPEAN STANDARD
NORME EUROPÉENNE
March 2019
EUROPÄISCHE NORM
ICS 23.020.35 Supersedes EN 12819:2009
English Version
LPG equipment and accessories - Inspection and
requalification of LPG pressure vessels greater than 13 m³
Équipements et accessoires GPL - Inspection et Flüssiggas-Geräte und Ausrüstungsteile - Inspektion
requalification des réservoirs de capacité supérieure à und wiederkehrende Prüfung von Druckbehältern für
13 m³ pour gaz de pétrole liquéfiés (GPL) Flüssiggas (LPG) mit einem Fassungsraum größer als
13 m³
This European Standard was approved by CEN on 9 December 2018.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 12819:2019 E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 12819:2019
EN 12819:2019 (E)
Contents Page
European foreword . 5
Introduction . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 7
4 Safety . 8
4.1 Safety precautions . 8
4.2 Unsafe conditions . 8
4.3 Leak . 8
5 Written scheme . 9
6 Pressure vessel inspection, requalification and recommissioning . 10
6.1 Routine inspection . 10
6.2 Periodic inspection . 10
6.3 Requalification . 10
6.3.1 Requalification of aboveground pressure vessels . 10
6.3.2 Requalification of underground pressure vessels . 10
6.3.3 Recommissioning . 11
7 Inspection of pressure vessel and pressure vessel fittings. 11
7.1 Pressure vessel . 11
7.2 Pressure vessel fittings and immediate pipework. 11
7.3 Valve cover . 11
7.4 Bonding . 11
7.5 Pressure relief valve . 12
7.6 Pressure gauge . 12
7.7 Contents gauges . 12
7.8 Shut-off valves . 12
7.9 Studs, bolts, nuts, and washers . 12
7.10 Emergency valves . 12
7.11 Gaskets . 13
7.12 Pressure switch . 13
7.13 Temperature gauge . 13
7.14 Remotely operated valves . 13
7.15 Corrosion protection system . 13
7.16 Piers and foundations for aboveground pressure vessels . 13
8 Competence . 13
8.1 General . 13
8.2 Routine inspection competence. 13
8.3 Periodic inspection competence. 13
8.4 Requalification competence . 14
9 Records . 14
9.1 Pressure vessel data . 14
2
---------------------- Page: 4 ----------------------
SIST EN 12819:2019
EN 12819:2019 (E)
9.2 Reports . 14
Annex A (informative) Visual inspection . 15
A.1 Internal and external visual inspections . 15
A.2 Inspection techniques . 15
A.2.1 External visual inspection . 15
A.2.2 Internal visual inspection . 15
A.2.3 Records . 15
A.3 Additional inspection . 15
Annex B (normative) Hydraulic pressure test . 17
Annex C (normative) Acoustic emission testing . 18
C.1 Scope . 18
C.2 Testing procedure . 18
C.3 Instrumentation . 18
C.3.1 Sensors . 18
C.3.2 Acquisition and evaluation system . 18
C.4 Testing . 18
C.4.1 Test instruction . 18
C.4.2 Safety precautions . 18
C.5 Sensor location . 19
C.5.1 Overground pressure vessels . 19
C.5.2 Underground or mounded pressure vessels . 19
C.5.3 Pressurization . 21
C.6 Data evaluation and analysis . 22
C.6.1 Evaluation criteria . 22
C.6.1.1 General . 22
C.6.1.2 Overground pressure vessels . 22
C.6.1.3 Underground and mounded pressure vessels . 22
C.6.2 Real time control and stop criteria . 22
C.6.2.1 Overground pressure vessels . 22
C.6.2.2 Underground and mounded pressure vessels . 23
C.6.3 Post test analysis . 23
C.6.4 Pressure vessel grading . 23
C.7 Data storage and reporting . 24
Annex D (informative) Ultrasonic thickness test . 25
D.1 General . 25
D.2 Apparatus setting . 25
3
---------------------- Page: 5 ----------------------
SIST EN 12819:2019
EN 12819:2019 (E)
D.3 Control measurement . 25
D.4 Shell thickness measurements . 25
D.5 End thickness measurements . 25
D.6 Interpretation . 25
D.7 Rejection criteria . 25
Annex E (informative) Monitoring cathodic protection with sacrificial anodes for
underground pressure vessels . 26
E.1 General . 26
E.2 Records . 26
E.3 Procedure. 26
E.4 Measurement of the galvanic current . 26
E.5 Measurement of the potential difference of the pressure vessel to the reference
electrode . 26
E.6 Results . 27
Annex F (informative) Evaluation of coating condition of underground pressure vessels
(cathodic protection by impressed current) . 28
F.1 General . 28
F.2 Apparatus . 28
F.3 Conditions . 28
F.4 Isolation resistance of the coating . 28
F.4.1 Procedure. 28
F.4.2 Calculation . 29
F.5 Results . 29
F.6 Checking intervals . 29
Annex G (informative) A-deviations . 30
Bibliography . 31
4
---------------------- Page: 6 ----------------------
SIST EN 12819:2019
EN 12819:2019 (E)
European foreword
This document (EN 12819:2019) has been prepared by Technical Committee CEN/TC 286 “Liquefied
petroleum gas equipment and accessories”, the secretariat of which is held by NSAI.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by September 2019, and conflicting national standards shall
be withdrawn at the latest by September 2019.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 12819:2009.
This document was thereby technically revised.
In using this document, prepared in the field of application of Article 153 of the treaty on the functioning
of the European Union, users are aware that standards have no formal legal relationship with Directives
that may have been made under Article 153 of the treaty on the functioning of the European Union. In
addition, national legislation in the Member states may contain more stringent requirements than the
minimum requirements of a Directive based on Article 153. Information on the relationship between the
national legislation implementing Directives based on Article 153 and this EN may be given in a national
foreword of the national standard implementing this EN.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands,
Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
the United Kingdom.
5
---------------------- Page: 7 ----------------------
SIST EN 12819:2019
EN 12819:2019 (E)
Introduction
3
Inspection and requalification regimes for pressure vessels greater than 13 m have developed in various
countries in different ways that range from defined to variable inspection periods with requalification
regimes achieved by various methods. This European Standard for inspection and requalification is based
on European countries’ legislation and codes of practice and industries’ codes of practice. In addition, use
of LPG in different applications has encouraged the industry to approach the requirements for inspection
and requalification in different ways for each application.
This document calls for the use of substances and procedures that can be injurious to health if adequate
precautions are not taken. It refers only to technical suitability and does not absolve the user from legal
obligations relating to health and safety at any stage.
Protection of the environment is a key political issue in Europe and elsewhere, for CEN/TC 286 this is
covered in CEN/TS 16765 [1], and this document should be read in conjunction with this standard.
It has been assumed in the drafting of this document that execution of its provisions is entrusted to
appropriately qualified and experienced people.
6
---------------------- Page: 8 ----------------------
SIST EN 12819:2019
EN 12819:2019 (E)
1 Scope
This document specifies requirements for:
a) routine inspection, periodic inspection and requalification of fixed LPG pressure vessels of sizes
3
greater than 13 m , and associated fittings;
b) marking pressure vessels and/or keeping records, as appropriate, as a result of routine inspection,
periodic inspection and requalification.
This document excludes refrigerated storage.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 1330-9, Non-destructive testing - Terminology - Part 9: Terms used in acoustic emission testing
EN 13477-1, Non-destructive testing - Acoustic emission - Equipment characterisation - Part 1: Equipment
description
EN 13477-2, Non-destructive testing - Acoustic emission - Equipment characterisation - Part 2: Verification
of operating characteristic
EN 13554, Non-destructive testing - Acoustic emission testing - General principles
EN 14129, LPG Equipment and accessories - Pressure relief valves for LPG pressure vessels
EN 14584, Non-destructive testing - Acoustic emission testing - Examination of metallic pressure equipment
during proof testing - Planar location of AE sources
EN 16631, LPG equipment and accessories - Pressure relief valves for LPG pressure vessels - Reconditioning
requirements
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
periodic inspection
external inspection of the visible parts of a pressure vessel and its fittings at defined intervals
3.2
routine inspection
external inspection of the visible parts of a pressure vessel and its fittings, carried out more frequently
than periodic inspections
7
---------------------- Page: 9 ----------------------
SIST EN 12819:2019
EN 12819:2019 (E)
3.3
requalification
test carried out at defined intervals, as part of the scheme, to confirm that a pressure vessel is fit for a
further period of service
3.4
inspection body
independent inspection and testing body approved by the competent authority
3.5
competent person
person which by combination of appropriate qualification, training, experience, and resources, is able to
make objective judgments on the subject
3.6
competent authority
authority or authorities or any other body or bodies designated as such in each State and in each specific
case in accordance with domestic law
3.7
commissioning
preparation for safe service
3.8
decommissioning
removing from service and preparing safely for inspection/test
3.9
Liquefied Petroleum Gas
LPG
low pressure liquefied gas composed of one or more light hydrocarbons which are assigned to UN 1011,
UN 1075, UN 1965, UN 1969 or UN 1978 only and which consists mainly of propane, propene, butane,
butane isomers, butene with traces of other hydrocarbon gases
4 Safety
4.1 Safety precautions
Appropriate safety precautions shall be taken during decommissioning, commissioning and
inspection/requalification of a pressure vessel and its fittings.
4.2 Unsafe conditions
Any unsafe condition observed by a competent person on the site of an LPG storage pressure vessel shall
be reported to the person responsible for safe operation of the pressure vessel /site, as appropriate, and
action taken.
4.3 Leak
Any leak discovered from the pressure vessel or its fittings shall be reported immediately to the person
responsible for safe operation of the pressure vessel.
Action to make the pressure vessel or its fittings safe shall be taken by a competent person.
NOTE Methods for detecting leaks include:
8
---------------------- Page: 10 ----------------------
SIST EN 12819:2019
EN 12819:2019 (E)
— visual inspection;
— smell;
— listening;
— use of gas detectors;
— leak detection fluid.
5 Written scheme
5.1 Each pressure vessel and its fittings shall be included in a written scheme, prepared by a competent
person, containing inspection and testing information, taking into account the requirements of Clauses 6
to 8.
5.2 If duties are shared between different parties then the written scheme shall clearly identify the
respective areas of responsibility.
5.3 Intervals between inspections shall be parts of the written scheme and shall be determined by
consideration of the following:
— the design specification of the pressure vessel and its equipment;
— the corrosion protection system on the pressure vessel;
— the system used to ensure that the LPG quality conforms to its specifications/standards, and that it
does not contain components damaging to the material of the pressure vessel or its fittings;
— the maintenance program of the pressure vessel.
NOTE The requirements for the written scheme can also be determined by national regulations.
5.4 The written scheme shall contain the following information:
— the maximum interval between inspections;
— the parts to be inspected;
— the nature of the inspection;
— the critical parts that, if modified or repaired, shall be inspected by a competent person/body before
they can be put back into service;
— the requirements for pressure relief valves (see 7.5.1);
— the name of the competent person preparing the written scheme;
— the date of issue of the written scheme.
9
---------------------- Page: 11 ----------------------
SIST EN 12819:2019
EN 12819:2019 (E)
6 Pressure vessel inspection, requalification and recommissioning
6.1 Routine inspection
6.1.1 Each pressure vessel and its fittings shall be routinely inspected at intervals defined in the written
scheme.
6.1.2 Routine inspections shall include 7.1, 7.2, 7.3, 7.4, 7.5.2, 7.5.3, 7.5.4, 7.7, 7.14 and 7.16.
6.2 Periodic inspection
6.2.1 Each pressure vessel and its fittings shall be periodically inspected at intervals defined in the
written scheme.
6.2.2 Periodic inspections shall include 6.1.2, 7.6, 7.8, 7.12, 7.13 and 7.15.
6.2.3 For aboveground pressure vessels, a visual inspection of external surfaces shall be carried out
(see Annex A). If pressure vessels are provided with fixed passive fire protection, which prevents the full
external visual inspection according to Annex A, the written scheme shall specify alternative techniques
to identify the presence of defects (e.g. the presence of corrosion).
NOTE Periodic inspection can also be referred to as intermediate inspection.
6.3 Requa
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
