SIST EN 13050:2011

Curtain Walling - Watertightness - Laboratory test under dynamic condition of air pressure and water spray

This European Standard defines an additional test method which may be used when assessing the watertightness of curtain walling, both its fixed and openable parts. It is a supplementary test, not required for classification purposes, and it should be used only when the project specifier has determined its necessity.
It describes how the outside face of a curtain walling specimen should be subjected to a continuous spray of water and a turbulent airflow, with continuous pulses of positive air pressure on the outside of the test specimen generated from within the chamber.
This standard applies to any curtain walling product as defined in EN 13830.

Vorhangfassaden - Schlagregendichtheit - Laborprüfung mit wechselndem Luftdruck und Besprühen mit Wasser

Diese Europäische Norm legt ein zusätzliches Prüfverfahren fest, das zur Beurteilung der
Schlagregendichtheit von Vorhangfassaden, sowohl von ortsfesten als auch zu öffnenden Teilen, angewendet
werden kann. Bei der Prüfung handelt es sich um eine ergänzende Prüfung, die nicht für
Klassifizierungszwecke gefordert wird, und sie sollte nur dann angewendet werden, wenn der Projektmanager
deren Notwendigkeit festgelegt hat.
Sie beschreibt, wie die Außenseite des Prüfkörpers einer Vorhangfassade kontinuierlich mit Wasser besprüht
und einem turbulenten Luftstrom, einschließlich kontinuierlich im Innern der Kammer erzeugten positiven
Luftdruckstößen an der Außenseite des Prüfkörpers, ausgesetzt werden sollte.
Diese Norm gilt für jede Art von Vorhangfassaden, wie sie in EN 13830 festgelegt sind.

Façades rideaux - Etanchéité à l'eau - Essai en laboratoire sous pression d'air dynamique et projection d'eau

La présente Norme européenne définit une autre méthode d'essai qui peut être utilisée pour évaluer l'étanchéité à l'eau des façades rideaux et de leurs parties fixes et manoeuvrables. Il s'agit d'un essai supplémentaire qui n'est pas requis à des fins de classification et qu'il convient d'utiliser uniquement lorsque le prescripteur du projet en a défini la nécessité.
Elle décrit la façon dont il convient que la face externe d'une façade rideau soit soumise à une projection continue d'eau et à un courant d'air turbulent avec impulsions continues de pression d'air positive sur la face externe du corps d’épreuve, générées depuis l'intérieur de la chambre.
Cette Norme s'applique à tous les produits de façades rideaux suivant la définition donnée dans l’EN 13830.

Obešene fasade - Neprepustnost za vodo - Laboratorijski preskus pri dinamičnem tlaku

Ta evropski standard določa dodatne preskusne metode, ki se lahko uporabijo, kadar ocenjujemo neprepustnost za vodo fasade, obešene s pritrjenimi in delno pritrjenimi deli. Gre za dodaten preskus, ki ni potreben za klasifikacijo in ki naj se uporablja samo takrat, kadar določevalec načrta ugotovi, da je potreben. Ta evropski standard opisuje, kako naj bo pročelje vzorca obešene fasade izpostavljeno neprekinjenemu pršenju vode in turbulentnemu zračnemu toku z neprekinjenimi sunki pozitivnega zračnega pritiska na zunanji strani preskusnega vzorca, ustvarjenimi v komori. Ta evropski standard velja za vse proizvode obešenih fasad, kot je določeno v EN 13830.

General Information

• Status: Published
• Public Enquiry End Date: 14-May-2011
• Publication Date: 13-Sep-2011
• ICS: 91.060.10 - Walls. Partitions. Facades
• Technical Committee: ISTP - Doors and windows
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 06-Sep-2011
• Due Date: 11-Nov-2011
• Completion Date: 14-Sep-2011
• Ref Project: EN 13050:2011 - Curtain Walling - Watertightness - Laboratory test under dynamic condition of air pressure and water spray

Relations

• Replaces: SIST ENV 13050:2001 - Curtain walling - Watertightness - Laboratory test under dynamic condition of air pressure and water spray
• Effective Date: 01-Oct-2011

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.WODNXVorhangfassaden - Schlagregendichtheit - Laborprüfung mit wechselndem Luftdruck und Besprühen mit WasserFaçades rideaux - Etanchéité à l'eau - Essai en laboratoire sous pression d'air dynamique et projection d'eauCurtain Walling - Watertightness - Laboratory test under dynamic condition of air pressure and water spray91.060.10Stene. Predelne stene. FasadeWalls. Partitions. FacadesICS:Ta slovenski standard je istoveten z:EN 13050:2011SIST EN 13050:2011en,de01-oktober-2011SIST EN 13050:2011SLOVENSKI
STANDARDSIST ENV 13050:20011DGRPHãþD



SIST EN 13050:2011



EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13050
July 2011 ICS 91.060.10 Supersedes ENV 13050:2000English Version
Curtain Walling - Watertightness - Laboratory test under dynamic condition of air pressure and water spray
Façades rideaux - Etanchéité à l'eau - Essai en laboratoire sous pression d'air dynamique et projection d'eau
Vorhangfassaden - Schlagregendichtheit - Laborprüfung mit wechselndem Luftdruck und Besprühen mit Wasser This European Standard was approved by CEN on 10 June 2011.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2011 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 13050:2011: ESIST EN 13050:2011

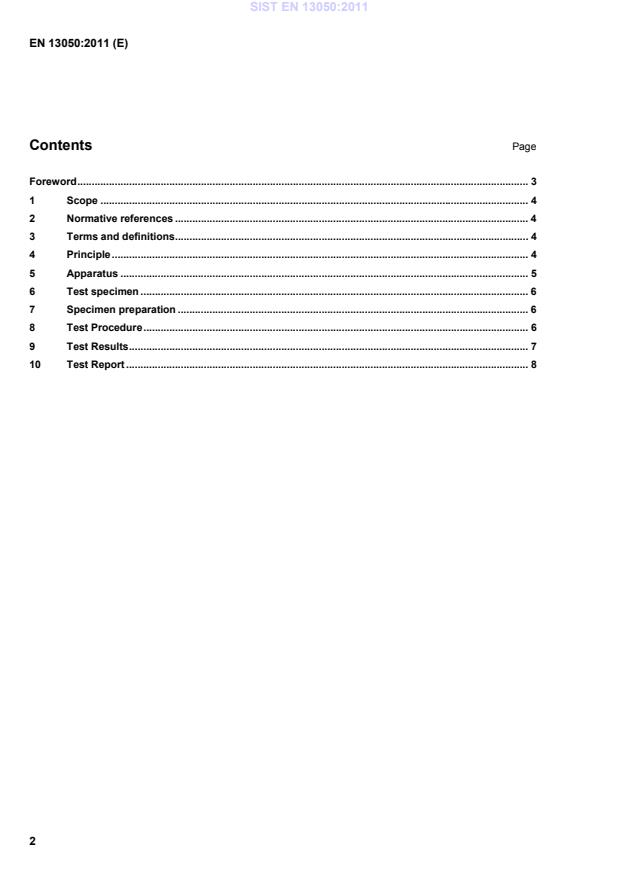

EN 13050:2011 (E) 2 Contents Page Foreword . 31Scope . 42Normative references . 43Terms and definitions . 44Principle . 45Apparatus . 56Test specimen . 67Specimen preparation . 68Test Procedure . 69Test Results . 710Test Report . 8 SIST EN 13050:2011



EN 13050:2011 (E) 3 Foreword This document (EN 13050:2011) has been prepared by Technical Committee CEN/TC 33 "Doors, windows, shutters, building hardware and curtain walling", the secretariat of which is held by AFNOR. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by January 2012, and conflicting national standards shall be withdrawn at the latest by January 2012. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document supersedes ENV 13050:2000. According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and the United Kingdom.
SIST EN 13050:2011



EN 13050:2011 (E) 4 1 Scope This European Standard defines an additional test method which may be used when assessing the watertightness of curtain walling, both its fixed and openable parts. It is a supplementary test, not required for classification purposes, and it should be used only when the project specifier has determined its necessity. This European Standard describes how the outside face of a curtain walling specimen should be subjected to a continuous spray of water and a turbulent airflow, with continuous pulses of positive air pressure on the outside of the test specimen generated from within the chamber. This European Standard applies to any curtain walling product as defined in EN 13830. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 13119:2007, Curtain walling - Terminology 3 Terms and definitions For the purposes of this document, the terms and definitions given in EN 13119:2007 and the following apply. 3.1 test pressure difference between the static air pressures on the outside and inside faces of the test specimen, which is expressed in Pascals (Pa) 3.2 positive test pressure when the static air pressure is greater on the outside face of the test specimen than on the inside face 3.3 watertightness ability of the curtain walling specimen to resist water leakage 3.4 water leakage penetration of water that continuously or repeatedly wet parts of : 1) the inside face of the specimen 2) any parts of the specimen not intended to be wetted as part of the system of water drainage to the outside 4 Principle The application of a constant and specified quantity of water in a spray combined with a specified turbulent airflow and continuous regular pulses of positive test pressure, on to the outside face of the specimen, while inspecting for water leakage. SIST EN 13050:2011



EN 13050:2011 (E) 5 5 Apparatus 5.1 A chamber with an opening into which the test specimen can be fitted.
This chamber shall be of sufficient strength and rigidity to withstand the test pressures likely to be imposed during the tests. It shall not deflect under test pressure to any extent which would affect the performance of the test specimen (Figure 2). Adequately representative structural supports shall be provided to which the specimen shall be attached in accordance with the conditions of use in the works (see also Clause 6). 5.2 A means for applying controlled positive test pressures to the specimen arranged such that the air does not impinge directly on the specimen with any significant velocity. 5.3 A means by which rapidly controlled changes of test pressure may be produced within defined limits. 5.4 A means of measuring the applied test pressures, steady or fluctuation, calibrated within an accuracy of ± 5 %. 5.5 An adjustable device for spraying water at a minimum of 2 l/m²·min so that a constant and continuous film is applied to the outside surface of the specimen. The water spraying device shall have nozzles spaced on a regular grid and at a uniform distance from the outside surface of the specimen (see Figures 3 and 4). The local mains water supply will be an acceptable source providing it is clean enough to allow the spray nozzles to function properly throughout the test. The nozzles shall include the following features:  Circular full cone spray;  Spray angle minimum 90° to maximum 120°;  Working pressure range two to three bars according to the manufacturer’s specification. 5.6 A means of measuring the total amount of water supplied within an
...

SLOVENSKI STANDARD
kSIST FprEN 13050:2011
01-maj-2011
2EHãHQHIDVDGH1HSUHSXVWQRVW]DYRGR/DERUDWRULMVNLSUHVNXVSULGLQDPLþQHP
WODNX
Curtain Walling - Watertightness - Laboratory test under dynamic condition of air
pressure and water spray
Vorhangfassaden - Schlagregendichtheit - Laborprüfung mit wechselndem Luftdruck und
Besprühen mit Wasser
Façades rideaux - Etanchéité à l'eau - Essai en laboratoire sous pression d'air
dynamique et projection d'eau
Ta slovenski standard je istoveten z: FprEN 13050
ICS:
91.060.10 Stene. Predelne stene. Walls. Partitions. Facades
Fasade
kSIST FprEN 13050:2011 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
kSIST FprEN 13050:2011

---------------------- Page: 2 ----------------------
kSIST FprEN 13050:2011


EUROPEAN STANDARD
FINAL DRAFT
FprEN 13050
NORME EUROPÉENNE

EUROPÄISCHE NORM

December 2010
ICS 91.060; 91.060.10 Will supersede ENV 13050:2000
English Version
Curtain Walling - Watertightness - Laboratory test under
dynamic condition of air pressure and water spray
Façades rideaux - Etanchéité à l'eau - Essai en laboratoire Vorhangfassaden - Schlagregendichtheit - Laborprüfung
sous pression d'air dynamique et projection d'eau mit wechselndem Luftdruck und Besprühen mit Wasser
This draft European Standard is submitted to CEN members for unique acceptance procedure. It has been drawn up by the Technical
Committee CEN/TC 33.

If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the
same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.


EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2010 CEN All rights of exploitation in any form and by any means reserved Ref. No. FprEN 13050:2010: E
worldwide for CEN national Members.

---------------------- Page: 3 ----------------------
kSIST FprEN 13050:2011
FprEN 13050:2010 (E)
Contents Page
Foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 Principle . 5
5 Apparatus . 5
6 Test Specimen . 6
7 Specimen Preparation . 6
8 Test Procedure . 6
9 Test Results . 7
10 Test Report . 8
Bibliography . 13

2

---------------------- Page: 4 ----------------------
kSIST FprEN 13050:2011
FprEN 13050:2010 (E)
Foreword
This document (FprEN 13050:2010) has been prepared by Technical Committee CEN/TC 033 “Doors, windows,
shutters, building hardware and curtain walling”, the secretariat of which is held by AFNOR.
This document is currently submitted to the Unique Acceptance Procedure.
This document will supersede ENV 13050:2000.


3

---------------------- Page: 5 ----------------------
kSIST FprEN 13050:2011
FprEN 13050:2010 (E)

1 Scope
This European Standard defines an additional test method which may be used when assessing the
watertightness of curtain walling, both its fixed and openable parts. It is a supplementary test, not required for
classification purposes, and it should be used only when the project specifier has determined its necessity.
It describes how the outside face of a curtain walling specimen should be subjected to a continuous spray of
water and a turbulent airflow, with continuous pulses of positive air pressure on the outside of the test specimen
generated from within the chamber.
This standard applies to any curtain walling product as defined in EN 13830.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced document
(including any amendments) applies.
EN 13119, Curtain Walling - Terminology
EN 13830, Curtain Walling - Product standard
3 Terms and definitions
For the purposes of this European Standard, the terms and definitions given in EN 13119 and the following apply.
3.1
test pressure
difference between the static air pressures on the outside and inside faces of the test specimen. It is expressed
in Pascals (Pa)

3.2
positive test pressure
when the static air pressure is greater on the outside face of the test specimen than on the inside face

3.3
watertightness
ability of the curtain walling specimen to resist water leakage

3.4
water leakage
penetration of water that continuously or repeatedly wet parts of :
1. the inside face of the specimen
2. any parts of the specimen not intended to be wetted as part of the system of water drainage to the outside

4

---------------------- Page: 6 ----------------------
kSIST FprEN 13050:2011
FprEN 13050:2010 (E)
4 Principle
The application of a constant and specified quantity of water in a spray combined with a specified turbulent
airflow and continuous regular pulses of positive test pressure, on to the outside face of the specimen, while
inspecting for water leakage.
5 Apparatus
5.1 A chamber with an opening into which the test specimen can be fitted. This chamber shall be of sufficient
strength and rigidity to withstand the test pressures likely to be imposed during the tests. It shall not deflect
under test pressure to any extent which would affect the performance of the test specimen (Figure 2).

Adequately representative structural supports shall be provided to which the specimen shall be attached in
accordance with the conditions of use in the works (see also Clause 6).

5.2 A means for applying controlled positive test pressures to the specimen arranged such that the air does not
impinge directly on the specimen with any significant velocity.

5.3  A means by which rapidly controlled changes of test pressure may be produced within defined limits.

5.4  A means of measuring the applied test pressures, steady or fluctuation, calibrated within an accuracy of
± 5 %.

5.5  An adjustable device for spraying water at a minimum of 2 l/m²·min so that a constant and continuous film is
applied to the outside surface of the specimen.

The water spraying device shall have nozzles spaced on a regular grid and at a uniform distance from the
outside surface of the specimen (see Figures 3 and 4).

The local mains water supply will be an acceptable source providing it is clean enough to allow the spray nozzles
to function properly throughout the test.

The nozzles shall include the following features:

− Circular full cone spray;

− Spray angle minimum 90° to maximum 120°;

− Working pressure range two to three bars according to the manufacturer’s specification.

5.6 A means of measuring the total amount of water supplied within an accuracy of 10 %.

5.7 A drain for the sprayed water which will not interfere with the drainage of the specimen frame.

5.8 A mobile wind gener
...
