ASTM D7372-21

Standard Guide for Analysis and Interpretation of Proficiency Test Program Results

SIGNIFICANCE AND USE
5.1 This guide can be used to evaluate the performance of a laboratory or group of laboratories participating in a proficiency test (PT) program involving petroleum and petroleum products.
5.2 Data accrued, using the techniques included in this guide, provide the ability to monitor analytical measurement system precision and bias. These data are useful for updating standard test methods, as well as for indicating areas of potential measurement system improvement for action by the laboratory. This guide serves both the individual participating laboratory and the responsible standards development group as follows:
5.2.1 Tools and Approaches for Participating Laboratories.
Administrative Reviews
Flagged Data and Investigations
Data Normality Checks
QQ Plots
Histograms
Bias (Deviation from Mean)
Run-Sum
Z-Scores, Z′-Scores Trends
Precision Performance—TPIIND, F-test
Comparison of PTP and Individual Laboratory Site Precision
5.2.2 Tools and Approaches for Responsible Standards Development Groups.
TPI and precision trends
Bias and precision comparisons via box & whisker plots
Normality evaluations
Relative standard deviations
Uncontrolled variables
5.3 Reference is made in this guide to the ASTM International Proficiency Test Program on Petroleum Products, Liquid Fuels, and Lubricants, version PTP 2.0 implemented in 2016–2017. Program reports containing similarly displayed results and statistical treatments may be available in other PT programs. Appendix X2 summarizes the statistical tools referenced in this guide and Appendix X3 is a collection of examples covering QQ plots, histograms, and Run-Sum described in this guide.
SCOPE
1.1 This guide covers the evaluation and interpretation of proficiency test program (PTP) results. For proficiency test program participants, this guide describes procedures for assessing participants’ results relative to the collective PT program results and potentially improving the laboratory’s testing performance based on the assessment of findings and insights. For the committees responsible for the test methods included in PT programs, this guide describes procedures for assessing industry’s ability to perform test methods and for potentially identifying opportunities for improvements.
1.2 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.3 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

• Status: Published
• Publication Date: 30-Apr-2021
• ICS: 11.100.01 - Laboratory medicine in general
• Technical Committee: D02 - Petroleum Products, Liquid Fuels, and Lubricants
• Drafting Committee: D02.94 - Coordinating Subcommittee on Quality Assurance and Statistics

Relations

• Refers: ASTM D4175-23a - Standard Terminology Relating to Petroleum Products, Liquid Fuels, and Lubricants
• Effective Date: 15-Dec-2023
• Refers: ASTM D6299-23a - Standard Practice for Applying Statistical Quality Assurance and Control Charting Techniques to Evaluate Analytical Measurement System Performance
• Effective Date: 01-Dec-2023
• Refers: ASTM D6792-23c - Standard Practice for Quality Management Systems in Petroleum Products, Liquid Fuels, and Lubricants Testing Laboratories
• Effective Date: 01-Nov-2023
• Refers: ASTM D6792-23b - Standard Practice for Quality Management Systems in Petroleum Products, Liquid Fuels, and Lubricants Testing Laboratories
• Effective Date: 01-Oct-2023
• Refers: ASTM D4175-23e1 - Standard Terminology Relating to Petroleum Products, Liquid Fuels, and Lubricants
• Effective Date: 01-Jul-2023
• Refers: ASTM E456-13a(2022)e1 - Standard Terminology Relating to Quality and Statistics
• Effective Date: 01-Apr-2022
• Refers: ASTM E2655-14(2020) - Standard Guide for Reporting Uncertainty of Test Results and Use of the Term Measurement Uncertainty in ASTM Test Methods
• Effective Date: 01-Jan-2020
• Refers: ASTM E2586-19e1 - Standard Practice for Calculating and Using Basic Statistics
• Effective Date: 01-Apr-2019
• Refers: ASTM D6299-17b - Standard Practice for Applying Statistical Quality Assurance and Control Charting Techniques to Evaluate Analytical Measurement System Performance
• Effective Date: 15-Dec-2017
• Refers: ASTM D6299-17a - Standard Practice for Applying Statistical Quality Assurance and Control Charting Techniques to Evaluate Analytical Measurement System Performance
• Effective Date: 15-Nov-2017
• Refers: ASTM E456-13A(2017)e3 - Standard Terminology Relating to Quality and Statistics
• Effective Date: 01-Oct-2017
• Refers: ASTM E456-13A(2017)e1 - Standard Terminology Relating to Quality and Statistics
• Effective Date: 01-Oct-2017
• Refers: ASTM D6299-17 - Standard Practice for Applying Statistical Quality Assurance and Control Charting Techniques to Evaluate Analytical Measurement System Performance
• Effective Date: 01-Jan-2017
• Refers: ASTM E2586-14 - Standard Practice for Calculating and Using Basic Statistics
• Effective Date: 01-Jun-2014
• Refers: ASTM D7915-14 - Standard Practice for Application of Generalized Extreme Studentized Deviate (GESD) Technique to Simultaneously Identify Multiple Outliers in a Data Set
• Effective Date: 01-May-2014

Overview

ASTM D7372-21: Standard Guide for Analysis and Interpretation of Proficiency Test Program Results is a comprehensive guide developed by ASTM International for evaluating and analyzing proficiency test program (PTP) results, particularly in the context of petroleum products, liquid fuels, and lubricants testing laboratories. This standard provides guidance to laboratories participating in proficiency testing as well as standards development groups responsible for industry test methods, helping both to assess performance, identify potential improvements, and maintain measurement quality.

Key Topics

• Performance Evaluation: The guide outlines procedures for laboratories to assess their test results relative to collective PT program data, allowing laboratories to monitor and enhance analytical measurement system precision and bias.
• Statistical Tools and Techniques: Key statistical approaches include:
  • Administrative Review of PT Data: Checking accuracy, consistency of data, and investigating discrepancies.
  • Flagged Data Investigation: Procedures for responding to data flagged during PT result analysis.
  • Data Normality Checks: Utilization of Anderson-Darling and ADrs (resolution-sensitive) statistics to confirm or refute normality assumptions.
  • Graphical Analysis: Use of histograms, QQ plots, and box-and-whisker plots to visualize data distribution, bias, and precision.
  • Bias and Precision Metrics: Application of Z-score, Z'-score, and modified Z-score methods to identify outliers, trends, and systemic bias.
  • Precision Performance Assessment: Comparison of laboratory site precision to PT results and published ASTM reproducibility measures using statistical indexes such as TPI (Test Performance Index) and F-tests.
• Continuous Improvement: Provides methodologies to update standard test methods and focus corrective actions where measurement systems may show deviations or trends hinting at systematic problems.

Applications

• Quality Assurance in Laboratories: ASTM D7372-21 enables testing laboratories in the petroleum and fuels industries to routinely monitor, assess, and document their analytical performance, aiding compliance with international quality management systems.
• Identification of Improvement Areas: The standard assists laboratories to pinpoint sources of analytical bias or excessive variability, resulting in targeted investigations and corrective actions.
• Support for Standards Development: Standards development groups use the guide’s analyses to determine whether industry test methods are robust or need revision, based on collective PT program data.
• Regulatory and Accreditation Support: Participation in PT programs as guided by ASTM D7372-21 helps laboratories demonstrate technical competence during audits or accreditations, supporting both ISO/IEC 17025 requirements and industry best practices.

Practical applications in the oil, gas, and lubricants sectors include:

• Monitoring repeatability and reproducibility for critical properties in fuels and lubricants.
• Ensuring laboratory results fall within accepted industry ranges.
• Using PT outcome data to defend or improve standard test methods.

Related Standards

ASTM D7372-21 references several other ASTM standards fundamental to quality and statistical analysis in laboratory settings, including:

• ASTM D4175 – Terminology Relating to Petroleum Products, Liquid Fuels, and Lubricants
• ASTM D6259 – Practice for Determination of a Pooled Limit of Quantitation for a Test Method
• ASTM D6299 – Practice for Applying Statistical Quality Assurance and Control Charting Techniques
• ASTM D6617 – Practice for Laboratory Bias Detection Using a Single Test Result
• ASTM D6792 – Practice for Quality Management Systems in Testing Laboratories
• ASTM E177, E456, E2586, E2655 – Various standards addressing precision, bias, uncertainty, and statistical terminology

Referencing these related standards in conjunction with ASTM D7372-21 helps laboratories and industry groups establish robust quality control environments, aiding in the accurate interpretation and continual improvement of proficiency test program outcomes.

Keywords: ASTM D7372-21, proficiency test program, laboratory quality assurance, petroleum products testing, data analysis, statistical quality control, Z-score, bias detection, test method precision, ASTM standards, PT program results.

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

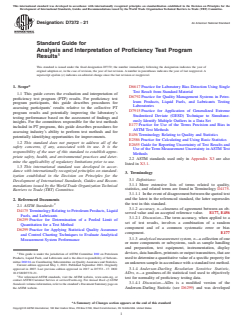

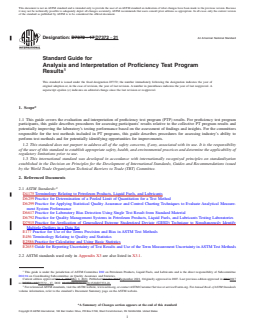

Designation:D7372 −21 An American National Standard
Standard Guide for
Analysis and Interpretation of Proficiency Test Program
Results
This standard is issued under the fixed designation D7372; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope* D6617 Practice for Laboratory Bias Detection Using Single
Test Result from Standard Material
1.1 This guide covers the evaluation and interpretation of
D6792 Practice for Quality Management Systems in Petro-
proficiency test program (PTP) results. For proficiency test
leum Products, Liquid Fuels, and Lubricants Testing
program participants, this guide describes procedures for
Laboratories
assessing participants’ results relative to the collective PT
D7915 Practice for Application of Generalized Extreme
program results and potentially improving the laboratory’s
Studentized Deviate (GESD) Technique to Simultane-
testing performance based on the assessment of findings and
ously Identify Multiple Outliers in a Data Set
insights. For the committees responsible for the test methods
E177 Practice for Use of the Terms Precision and Bias in
included in PT programs, this guide describes procedures for
ASTM Test Methods
assessing industry’s ability to perform test methods and for
E456 Terminology Relating to Quality and Statistics
potentially identifying opportunities for improvements.
E2586 Practice for Calculating and Using Basic Statistics
1.2 This standard does not purport to address all of the
E2655 Guide for Reporting Uncertainty of Test Results and
safety concerns, if any, associated with its use. It is the
Use of the Term Measurement Uncertainty inASTM Test
responsibility of the user of this standard to establish appro-
Methods
priate safety, health, and environmental practices and deter-
2.2 ASTM standards used only in Appendix X3 are also
mine the applicability of regulatory limitations prior to use.
listed in X3.1.
1.3 This international standard was developed in accor-
dance with internationally recognized principles on standard-

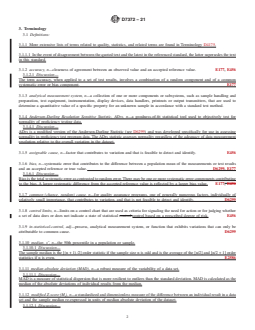

3. Terminology
ization established in the Decision on Principles for the
3.1 Definitions:
Development of International Standards, Guides and Recom-
3.1.1 More extensive lists of terms related to quality,
mendations issued by the World Trade Organization Technical
statistics, and related terms are found in Terminology D4175.
Barriers to Trade (TBT) Committee.
3.1.1.1 Intheeventofdisagreementbetweenthequotedtext
and the latest in the referenced standard, the latter supersedes
2. Referenced Documents
the text in this standard.
2.1 ASTM Standards:
3.1.2 accuracy, n—closeness of agreement between an ob-
D4175 Terminology Relating to Petroleum Products, Liquid
served value and an accepted reference value. E177, E456
Fuels, and Lubricants
3.1.2.1 Discussion—The term accuracy, when applied to a
D6259 Practice for Determination of a Pooled Limit of
set of test results, involves a combination of a random
Quantitation for a Test Method
component and of a common systematic error or bias
D6299 Practice for Applying Statistical Quality Assurance
component. E177
and Control Charting Techniques to Evaluate Analytical
3.1.3 analytical measurement system, n—a collection of one
Measurement System Performance
or more components or subsystems, such as sample handling
and preparation, test equipment, instrumentation, display
devices, data handlers, printouts or output transmitters, that are
This guide is under the jurisdiction of ASTM Committee D02 on Petroleum
Products, Liquid Fuels, and Lubricants and is the direct responsibility of Subcom- usedtodetermineaquantitativevalueofaspecificpropertyfor
mittee D02.94 on Coordinating Subcommittee on Quality Assurance and Statistics.
an unknown sample in accordance with a standard test method.
Current edition approved May 1, 2021. Published September 2021. Originally
3.1.4 Anderson-Darling Resolution Sensitive Statistic,
approved in 2007. Last previous edition approved in 2017 as D7372 – 17. DOI:
10.1520/D7372-21.
ADrs, n—a goodness-of-fit statistical tool used to objectively
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
test for normality of proficiency testing data.
contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM
3.1.4.1 Discussion—ADrs is a modified version of the
Standards volume information, refer to the standard’s Document Summary page on
the ASTM website. Anderson-Darling Statistic (see D6299) and was developed
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

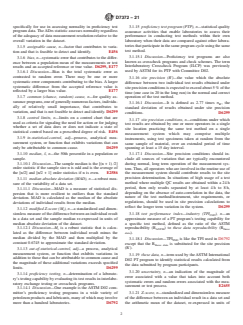

D7372−21
specifically for use in assessing normality in proficiency test 3.1.15 proficiency test program (PTP), n—statistical quality
program data. TheADrs statistic assesses normality regardless assurance activities that enable laboratories to assess their
of the adequacy of data measurement resolution relative to the
performance in conducting test methods within their own
overall variation in the dataset. laboratory when their data are compared against other labora-
toriesthatparticipateinthesameprogramcycleusingthesame
3.1.5 assignable cause, n—factor that contributes to varia-
test method.
tion and that is feasible to detect and identify. E456
3.1.15.1 Discussion—Proficiency test programs are also
3.1.6 bias, n—systematic error that contributes to the differ-
known as crosscheck programs and check schemes. The term
ence between a population mean of the measurements or test
Interlaboratory Crosscheck Program (ILCP) was previously
results and an accepted reference or true value. D6299, E177
used by ASTM for its PTP with Committee D02.
3.1.6.1 Discussion—Bias is the total systematic error as
contrasted to random error. There may be one or more
3.1.16 site precision (R')—the value which the absolute
systematic error components contributing to the bias. A larger
difference between two individual test results obtained under
systematic difference from the accepted reference value is
siteprecisionconditionsisexpectedtoexceedabout5 %ofthe
reflected by a larger bias value. E177
time (one case in 20 in the long run) in the normal and correct
3.1.7 common (chance, random) cause, n—for quality as- operation of the test method.
suranceprograms,oneofgenerallynumerousfactors,individu-
3.1.16.1 Discussion—It is defined as 2.77 times σ , the
R'
ally of relatively small importance, that contributes to
standard deviation of results obtained under site precision
variation, and that is not feasible to detect and identify. D6299
conditions. D6299
3.1.8 control limits, n—limits on a control chart that are
3.1.17 site precision conditions, n—conditions under which
used as criteria for signaling the need for action or for judging
test results are obtained by one or more operators in a single
whether a set of data does or does not indicate a state of
site location practicing the same test method on a single
statistical control based on a prescribed degree of risk. E456
measurement system which may comprise multiple
3.1.9 in-statistical-control, adj—process, analytical mea-
instruments, using test specimens taken at random from the
surement system, or function that exhibits variations that can
same sample of material, over an extended period of time
only be attributable to common cause. D6299
spanning at least a 15 day interval.
3.1.10 median, x˜, n—the 50th percentile in a population or
3.1.17.1 Discussion—Site precision conditions should in-
sample. clude all sources of variation that are typically encountered
3.1.10.1 Discussion—The sample median is the [(n + 1) ⁄2]
during normal, long term operation of the measurement sys-
order statistic if the sample size n is odd and is the average of tem. Thus, all operators who are involved in the routine use of
the [n/2] and [n/2 + 1] order statistics if n is even. E2586
the measurement system should contribute results to the site
precision determination. In situations of high usage of a test
3.1.11 median absolute deviation (MAD), n—a robust mea-
method where multiple QC results are obtained within a 24 h
sure of the variability of a data set.
period, then only results separated by at least 4 h to 8 h,
3.1.11.1 Discussion—MAD is a measure of statistical dis-
depending on the absence of auto-correlation in the data, the
persion that is more resilient to outliers than the standard
nature of the test method/instrument, site requirements, or
deviation. MAD is calculated as the median of the absolute
regulations, should be used in site precision calculations to
deviations of individual results from the median.
reflect the longer term variation in the system. D6299
3.1.12 modified Z-score (M), n—a standardized and dimen-
i
3.1.18 test performance index—industry (TPI ), n—an
sionless measure of the difference between an individual result
IND
in a data set and the sample median re-expressed in units of approximate measure of a PT program’s testing capability for
median absolute deviation of the dataset. a specific test method, defined as the ratio of the ASTM
3.1.12.1 Discussion—M is a robust statistic that is calcu- reproducibility (R )to these data reproducibility (R
ASTM these
i
lated as the difference between individual result minus the data).
median divided by the MAD and then multiplied by the
3.1.18.1 Discussion—TPI is like the TPI used in D6792
IND
constant 0.6745 to approximate the standard deviation.
except that the R is substituted for the site precision
these data
(R').
3.1.13 out-of-statistical-control, adj—a process, analytical
measurement system, or function that exhibits variations in
3.1.19 these data, n—term used by theASTM International
addition to those that can be attributable to common cause and
D02 PT program to identify statistical results calculated from
the magnitude of these additional variations exceeds specified
the data submitted by program participants.
limits. D6299
3.1.20 uncertainty, n—an indication of the magnitude of
3.1.14 proficiency testing, n—determination of a laborato-
error associated with a value that takes into account both
ry’s testing capability by evaluating its test results in interlabo-
systematic errors and random errors associated with the mea-
ratory exchange testing or crosscheck programs.
surement or test process. E2655
3.1.14.1 Discussion—One example is the ASTM D02 com-
mittee’s proficiency testing programs in a wide variety of 3.1.21 Z-score, n—standardized and dimensionless measure
petroleumproductsandlubricants,manyofwhichmayinvolve of the difference between an individual result in a data set and
more than a hundred laboratories. D6792 the arithmetic mean of the dataset, re-expressed in units of
D7372−21
standard deviation of the dataset (by dividing the actual results from a PTprogram.Techniques are presented to screen,
difference from the mean by the standard deviation for the data plot, and interpret test results in accordance with industry-
set). accepted practices.
3.1.21.1 Discussion—The Z-score term described here is
5. Significance and Use
equivalent to Eq. A1.3 in Practice D6299.
5.1 This guide can be used to evaluate the performance of a
3.1.22 Z'-score,n—standardizedanddimensionlessmeasure
laboratory or group of laboratories participating in a profi-
of the difference between an individual result in a data set and
ciency test (PT) program involving petroleum and petroleum
the arithmetic mean of the dataset, re-expressed in units of the
products.
individual laboratory site precision standard deviation of the
5.2 Data accrued, using the techniques included in this
dataset.
guide, provide the ability to monitor analytical measurement
¯
~ !
X 2 X
i
system precision and bias. These data are useful for updating
Z' 5
s
standard test methods, as well as for indicating areas of
these data
Πs' 1
S ~ ! S DD
potential measurement system improvement for action by the
n
laboratory. This guide serves both the individual participating
where:
laboratory and the responsible standards development group as
Z' = site precision adjusted Z-Score,
follows:
X = laboratory’s result,
i
5.2.1 Tools and Approaches for Participating Laboratories.
¯
X = PT average value,
Administrative Reviews
s' = site precision standard deviation estimate,
Flagged Data and Investigations
s = PT Program standard deviation estimate, and
these data
Data Normality Checks
n = number of non-outlier data.
QQ Plots
3.1.22.1 Discussion—This measure is like the Z-score ex- Histograms
Bias (Deviation from Mean)
cept that the PT program standard deviation is replaced with
one that takes into account the laboratory’s site precision. Run-Sum
Z-Scores, Z'-Scores Trends
3.1.22.2 Discussion—Z' is a valid approach when the labo-
Precision Performance—TPI , F-test
ratory’s site precision standard deviation is less than that for IND
Comparison of PTP and Individual Laboratory Site Preci-
the PT program (that is, these data standard deviation)or
sion
stated otherwise when the TPI > 1.
5.2.2 Tools and Approaches for Responsible Standards De-
3.1.22.3 Discussion—Z'-score described here is equivalent
velopment Groups.
to Eq. 2 in Practice D6299 for pre-treated results, when the
TPI and precision trends
“standard error ofARV” is expressed as “standard deviation of
Bias and precision comparisons via box & whisker plots
ARV/ √n.”
Normality evaluations
3.2 Symbols:
Relative standard deviations
3.2.1 ADrs—Anderson-Darling Resolution Sensitive Statis-
Uncontrolled variables
tic.
5.3 Reference is made in this guide to the ASTM Interna-
3.2.2 I—individual observation (as in I-chart).
tional ProficiencyTest Program on Petroleum Products, Liquid
Fuels, and Lubricants, version PTP 2.0 implemented in
3.2.3 M—Modified Z-score.
i
2016–2017. Program reports containing similarly displayed
3.2.4 R —published ASTM reproducibility.
ASTM
results and statistical treatments may be available in other PT
3.2.5 R'—site precision. programs. Appendix X2 summarizes the statistical tools refer-
enced in this guide and Appendix X3 is a collection of
3.2.6 R —reproducibility determined in PT program.
these data
examples covering QQ plots, histograms, and Run-Sum de-
3.2.7 x˜—median.
scribed in this guide.
3.3 Acronyms:
6. Procedure—Evaluation and Interpretation by
3.3.1 MAD—median absolute deviation
Participating Laboratories
3.3.2 PTP or PTP program—proficiency test program
6.1 Administrative Reviews—Laboratories should review
the results published for each proficiency test program and for
3.3.3 QC—quality control
each test method or parameter for which the laboratory
3.3.4 TPI —test performance index (industry)
IND
submitted data. The following cover the evaluations that the
laboratory should consider during their review of proficiency
4. Summary of Guide
test results.
4.1 Petroleum product, liquid fuel, and lubricant samples 6.1.1 Reported versus Submitted Data—Verify that the val-
are regularly analyzed by specified standard test methods as uesascribedtothelaboratoryintheproficiencytest(PT)report
part of a proficiency test program. This guide provides a agree with the values recorded by the laboratory in its PT
laboratory with the tools and procedures for evaluating their records. Report discrepancies to the respective PT program
D7372−21
contacts. Investigate, as appropriate, to determine the root appropriate to evaluate the data for normality. The Anderson-
cause of the problem. Darlingstatisticisagoodness-of-fittesttodetermineifthedata
6.1.2 Units for Results—Verify that the units for the data are from a normal distribution. This statistic is sensitive to
reported by your laboratory are the same as that requested by inadequate data measurement resolution relative to the overall
the PT program. Report discrepancies to the respective PT variation in the dataset. The ASTM D02 PT program uses
program contacts. Investigate, as appropriate, to determine the ADrs, a resolution-sensitive version of the Anderson-Darling
root cause of the problem. statistic. The ADrs is a special case of the Anderson-Darling
6.1.3 Missing Data—If data and corresponding results are statistic for dealing with step normal distributions. ADrs is
not present when they are clearly expected, then investigate to designed not to signal non-normality when presented with
determine the cause. In some cases it could be an error within normally distributed data that have poor resolution or are
the PT program data entry system, or it could be an omission coarsely rounded. The ADrs statistic is designed to assess the
on the part of the laboratory. normality of datasets regardless of the coarseness of the
reporting resolution.
6.2 Flagged Data and Investigations:
6.2.1 Rejected Data—Perform an investigation for each NOTE 2—See X2.1 for calculating ADrs.
instance where laboratory data are rejected by the PT program
6.3.1.1 Usethefollowingguidelinesforinterpretationofthe
data treatment processes. Investigations should consider the
ADrs statistic. This guide recognizes a range of ADrs values
entire analytical measurement system and not focus just on the
wherethedatacouldbeconsiderednormal,marginallynormal,
instruments used by the test method.Attempt to determine the
and not normal. The critical value for acceptance of normality
root cause and take corrective actions as needed. Document all
fortheADrsis0.752foralpha=0.05.Thepracticalupperlimit
such investigations and outcomes. Causes should be shared
for acceptance of marginal normality is 1.12 for alpha = 0.05.
with the laboratory staff performing the testing. Guidelines on
ADrs Range Interpretation
conducting these types of investigations are available in
Data are likely normally distributed; participants
< 0.75 Normal
Appendix X1. should take action to address all data flags.
6.2.2 Data Warnings/Alerts—The ASTM International PT
Marginally Data exhibit near normal behavior; participants
0.75 – 1.12
programs provide comments (that is, Warnings/Alerts 1 to 3 in
Normal should consider action to address all data flags.
results tables) that warn participants when their result is:
There is strong evidence that the data are not
Warning/Alert
> 1.12 Not Normal distributed normally; corrective actions for data
1—Test results outside ±3-sigma range for these data
flags should be considered with some caution.
2—Test results outside ±3-sigma range for ASTM reproducibility
3—Z-score outside range of –2 to 2 6.3.2 Median-basedApproachWhenDataareNotNormally
Distributed—When ADrs > 1.12 and the proficiency testing
Investigations should be conducted when any of these
data are thus not normally distributed, the usual data flags (see
warning situations occur. The priority for conducting investi-
6.2.2) should be used with caution and may not apply. In these
gations should be for Warning/Alert1>2>3. Note that 1
cases, median-based statistics can be used to identify data that
indicates that the laboratory is out-of-statistical-control with
need investigation. This approach uses the median-based
respect to the data set (with the rejected data removed), which
counterparts to the mean and standard deviation, namely the
is a potentially serious situation with respect to the quality
median (x˜) and the median absolute deviation (MAD). Using
control performance of the corresponding standard test
thesestatistics,aModifiedZ-score(M) canbedeterminedfor
method. A similar argument could also be made for Warning/
i
each result, M = 0.6745 (X – x˜)/MAD. Data are flagged for
Alert 2. Finally, Warning/Alert 3 is a less severe situation, but
i i
investigation when the corresponding |M| exceeds a critical
should be investigated from a continuous improvement stand-
i
value, D.Acritical value of 3.5 has been shown to flag results
point.
that would correspond to exceeding a 3-sigma limit. See X2.2
NOTE 1—If the user notices that the majority of laboratories providing
for computation of median, MAD and M.
i
datahavebeencitedwithaWarning/Alert2,thenaninvestigationmaynot
produce any meaningful corrective actions. This occurrence may be the
NOTE 3—The ASTM International D02 Proficiency Test Program is
result of the precision statement not accurately reflecting the variability of
considering implementing this approach to report median, MAD, and Mi
the test method and should be addressed by the subcommittee responsible
statistics along with corresponding flagged results.
for the method.Also, when theADrs statistic signals not normal (6.3.1.1),
6.4 QQ Plots—In addition, graphical tools are available for
then the Warning/Alert 2 may not be valid.
evaluating normality. For example, the ASTM PTP 2.0 uses a
6.2.3 Investigations—It is important to recognize statistical
normal probability or a QQ plot (an equivalent plot to the
outliers, but it is even more important to take action to identify
normal probability plot) to visually assess the validity of the
assignable causes (factors that contribute to variation and that
normality assumption and to identify data that are on the
are feasible to detect and identify). Investigations should
extremes of the distribution. Refer to Practice D6299 for
continue to identify root cause(s) and to implement corrective
and preventative measures. A checklist for investigating the
root cause of unsatisfactory analytical performance is provided
Supporting data have been filed at ASTM International Headquarters and may
as Appendix X1.
beobtainedbyrequestingResearchReportRR:D02-2023.ContactASTMCustomer
Service at [e-mail].
6.3 Data Normality Checks:
Boris Iglewicz and David Hoaglin (1993), “Volume 16: How to Detect and
6.3.1 Typical statistical evaluations of proficiency test re-
Handle Outliers,” The ASQC Basic References in Quality Control: Statistical
sults assume data are from normal distributions, so it is Techniques, Edward F. Mykytka, Ph.D., Editor.
D7372−21
guidance regarding the preparation and interpretation of nor- result versus the mean of the sample group (and standardized
mal probability plots. If data are normally distributed, the to the standard deviation of that data set). Z-score values
normal probability plot should be approximately linear. Major falling in the ranges of plus or minus 0 to 1, 1 to 2, 2 to 3, and
deviations from linearity are an indication of non-normal >3canbecomparedtocontrolchartvaluesfallingintheranges
distributions. The appearance of a series of steps in the plotted betweenthemeanand1-sigma,1to2-sigma,2to3-sigma,and
data rather than a smooth line is an indication that the data (or >3-sigma. For normally distributed data, there is an expecta-
measurement) resolution is too coarse relative to the precision tion that about 68 % of the data will lie in the –1 sigma to +1
of the test method.Afew examples of these normal probability sigma range, about 95 % in the –2 sigma to +2 sigma range,
plots are shown in parallel with histograms in X3.2. and 99 % in the –3 to +3 sigma range. The further a
laboratory’s Z-score is from zero, the greater the relative bias
6.5 Histograms:
and lower the probability that the data is considered within
6.5.1 Histograms are a useful graphical tool for viewing
statistical control. Conduct investigations to determine the
data distribution and variability. The ASTM PT programs
cause of any perceived bias as needed.
generatehistogramsforalldatasetswheren>20;andincludes
6.7.2 Z-score and Run-Sum—Collect the Z-scores or Z'-
the mean and the 1st and 99th percentile limits on the
scores for each test method (parameter) for successive PT
histogram for data sets with n > 100. These limits are based on
program cycles and determine the running sum for successive
“median 6 2.33 · Standard Deviation,” where 62.33 are
same sign scores. Each time the sign reverses (changes from +
respectively the first and 99th percentiles of the standard
to – or vice versa), restart the run-sum. Use the absolute value
normal distribution.
of the run-sum (|run-sum|) to evaluate the data for potential
6.5.2 PT program participants should review histograms
bias relative to the PT data set as shown below. In addition,
when available and note unusual data distributions. Partici-
6-in-a-row Z-scores or Z’-scores with the same sign (+ or -)
pantsshouldlocatewheretheirresultfallswithinthehistogram
signals statistical evidence of systemic bias. Plotting Z-scores
bins. Depending on the histogram, the location of data in
(6.7.3) along with Run-Sum is useful. See X3.3 for examples.
certain bins could indicate a potential issue such as bias.
|run-sum| Evaluation
Consider reviewing the histogram in parallel with correspond-
# 2.0 Generally acceptable performance
ing statistics such as the Z-score, AD statistic, TPI (Industry),
2.0 to < 4.0 Growing evidence that a bias is
and the normal probability (or deviate) plot. See X3.2 for
developing
4.0 to < 6.0 Stronger evidence suggesting that
examples.
data may be biased
6.6 Single Laboratory Bias (Deviation from Mean):
$ 6.0 Statistical evidence of systemic bias
6.6
...

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: D7372 − 17 D7372 − 21 An American National Standard
Standard Guide for
Analysis and Interpretation of Proficiency Test Program
Results
This standard is issued under the fixed designation D7372; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope*
1.1 This guide covers the evaluation and interpretation of proficiency test program (PTP) results. For proficiency test program
participants, this guide describes procedures for assessing participants’ results relative to the collective PT program results and
potentially improving the laboratory’s testing performance based on the assessment of findings and insights. For the committees
responsible for the test methods included in PT programs, this guide describes procedures for assessing industry’s ability to
perform test methods and for potentially identifying opportunities for improvements.
1.2 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of
regulatory limitations prior to use.
1.3 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
D4175 Terminology Relating to Petroleum Products, Liquid Fuels, and Lubricants
D6259 Practice for Determination of a Pooled Limit of Quantitation for a Test Method
D6299 Practice for Applying Statistical Quality Assurance and Control Charting Techniques to Evaluate Analytical Measure-
ment System Performance
D6617 Practice for Laboratory Bias Detection Using Single Test Result from Standard Material
D6792 Practice for Quality Management Systems in Petroleum Products, Liquid Fuels, and Lubricants Testing Laboratories
D7915 Practice for Application of Generalized Extreme Studentized Deviate (GESD) Technique to Simultaneously Identify
Multiple Outliers in a Data Set
E177 Practice for Use of the Terms Precision and Bias in ASTM Test Methods
E456 Terminology Relating to Quality and Statistics
E2586 Practice for Calculating and Using Basic Statistics
E2655 Guide for Reporting Uncertainty of Test Results and Use of the Term Measurement Uncertainty in ASTM Test Methods
2.2 ASTM standards used only in Appendix X3 are also listed in X3.1.
This guide is under the jurisdiction of ASTM Committee D02 on Petroleum Products, Liquid Fuels, and Lubricants and is the direct responsibility of Subcommittee
D02.94 on Coordinating Subcommittee on Quality Assurance and Statistics.
Current edition approved Oct. 1, 2017May 1, 2021. Published October 2017September 2021. Originally approved in 2007. Last previous edition approved in 20122017
as D7372 – 12.D7372 – 17. DOI: 10.1520/D7372-17.10.1520/D7372-21.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
D7372 − 21
3. Terminology
3.1 Definitions:
3.1.1 More extensive lists of terms related to quality, statistics, and related terms are found in Terminology D4175.
3.1.1.1 In the event of disagreement between the quoted text and the latest in the referenced standard, the latter supersedes the text
in this standard.
3.1.2 accuracy, n—closeness of agreement between an observed value and an accepted reference value. E177, E456
3.1.2.1 Discussion—
The term accuracy, when applied to a set of test results, involves a combination of a random component and of a common
systematic error or bias component. E177
3.1.3 analytical measurement system, n—a collection of one or more components or subsystems, such as sample handling and
preparation, test equipment, instrumentation, display devices, data handlers, printouts or output transmitters, that are used to
determine a quantitative value of a specific property for an unknown sample in accordance with a standard test method.
3.1.4 Anderson-Darling Resolution Sensitive Statistic, ADrs, n—a goodness-of-fit statistical tool used to objectively test for
normality of proficiency testing data.
3.1.4.1 Discussion—
ADrs is a modified version of the Anderson-Darling Statistic (see D6299) and was developed specifically for use in assessing
normality in proficiency test program data. The ADrs statistic assesses normality regardless of the adequacy of data measurement
resolution relative to the overall variation in the dataset.
3.1.5 assignable cause, n—factor that contributes to variation and that is feasible to detect and identify. E456
3.1.6 bias, n—systematic error that contributes to the difference between a population mean of the measurements or test results
and an accepted reference or true value. D6299, E177
3.1.6.1 Discussion—
Bias is the total systematic error as contrasted to random error. There may be one or more systematic error components contributing
to the bias. A larger systematic difference from the accepted reference value is reflected by a larger bias value. E177, E456
3.1.7 common (chance, random) cause, n—for quality assurance programs, one of generally numerous factors, individually of
relatively small importance, that contributes to variation, and that is not feasible to detect and identify. D6299
3.1.8 control limits, n—limits on a control chart that are used as criteria for signaling the need for action or for judging whether
a set of data does or does not indicate a state of statistical control.control based on a prescribed degree of risk. E456
3.1.9 in-statistical-control, adj—process, analytical measurement system, or function that exhibits variations that can only be
attributable to common cause. D6299
3.1.10 median, x˜, n—the 50th percentile in a population or sample.
3.1.10.1 Discussion—
The sample median is the [(n + 1) ⁄2] order statistic if the sample size n is odd and is the average of the [n/2] and [n/2 + 1] order
statistics if n is even. E2586
3.1.11 median absolute deviation (MAD), n—a robust measure of the variability of a data set.
3.1.11.1 Discussion—
MAD is a measure of statistical dispersion that is more resilient to outliers than the standard deviation. MAD is calculated as the
median of the absolute deviations of individual results from the median.
3.1.12 modified Z-score (M ), n—a standardized and dimensionless measure of the difference between an individual result in a data
i
set and the sample median re-expressed in units of median absolute deviation of the dataset.
3.1.12.1 Discussion—
D7372 − 21
M is a robust statistic that is calculated as the difference between individual result minus the median divided by the MAD and then
i
multiplied by the constant 0.6745 to approximate the standard deviation.
3.1.13 out-of-statistical-control, adj—a process, analytical measurement system, or function that exhibits variations in addition to
those that can be attributable to common cause and the magnitude of these additional variations exceeds specified limits. D6299
3.1.14 proficiency testing, n—determination of a laboratory’slaboratory’s testing capability by participation in an interlaboratory
proficiency test programevaluating its test results in interlaboratory exchange testing or crosscheck programs.
3.1.14.1 Discussion—
One example is the ASTM D02 committee’s proficiency testing programs in a wide variety of petroleum products and lubricants,
many of which may involve more than a hundred laboratories. D6299D6792
3.1.15 proficiency test program (PTP), n—statistical quality assurance activities that enable laboratories to assess their
performance in conducting test methods within their own laboratory when their data are compared against other laboratories that
participate in the same program cycle using the same test method.
3.1.15.1 Discussion—
Proficiency test programs are also known as crosscheck programs and check schemes. The term Interlaboratory Crosscheck
Program (ILCP) was previously used by ASTM for its PTP with Committee D02.
3.1.16 site precision (R')—the value which the absolute difference between two individual test results obtained under site precision
conditions is expected to exceed about 5 % of the time (one case in 20 in the long run) in the normal and correct operation of the
test method.
3.1.16.1 Discussion—
It is defined as 2.77 times σ , the standard deviation of results obtained under site precision conditions. D6299
R'
3.1.17 site precision conditions, n—conditions under which test results are obtained by one or more operators in a single site
location practicing the same test method on a single measurement system which may comprise multiple instruments, using test
specimens taken at random from the same sample of material, over an extended period of time spanning at least a 15 day interval.
3.1.17.1 Discussion—
Site precision conditions should include all sources of variation that are typically encountered during normal, long term operation
of the measurement system. Thus, all operators who are involved in the routine use of the measurement system should contribute
results to the site precision determination. In situations of high usage of a test method where multiple QC results are obtained
within a 24 h period, then only results separated by at least 4 h to 8 h, depending on the absence of auto-correlation in the data,
the nature of the test method/instrument, site requirements, or regulations, should be used in site precision calculations to reflect
the longer term variation in the system. D6299
3.1.18 test performance index—industry (TPI ), n—an approximate measure of a PT program’s testing capability for a specific
IND
test method, defined as the ratio of the ASTM reproducibility (R ) to these data reproducibility (R ).
ASTM these data
3.1.18.1 Discussion—
TPI is like the TPI used in D6792 except that the R is substituted for the site precision (R').
IND these data
3.1.19 these data, n—term used by the ASTM International D02 PT program to identify statistical results calculated from the data
submitted by program participants.
3.1.20 uncertainty, n—an indication of the magnitude of error associated with a value that takes into account both systematic errors
and random errors associated with the measurement or test process. E2655
3.1.21 Z-score, n—standardized and dimensionless measure of the difference between an individual result in a data set and the
arithmetic mean of the dataset, re-expressed in units of standard deviation of the dataset (by dividing the actual difference from
the mean by the standard deviation for the data set). D6299
3.1.21.1 Discussion—
The Z-score term described here is equivalent to Eq. A1.3 in Practice D6299.
3.1.22 Z'-score, n—measure similar to standardized and dimensionless measure of the Z-scoredifference except that the PT
program standard deviation is replaced with one that takes into account the site precision of the laboratory. Z' is a valid approach
when the laboratory’s between an individual result in a data set and the arithmetic mean of the dataset, re-expressed in units of
D7372 − 21

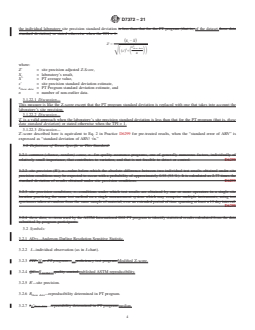

the individual laboratory site precision standard deviation is less than that for the PT program (that is, of the dataset.these data
standard deviation) or stated otherwise when the TPI > 1.
¯
~X 2 X!
i
Z'5
s
these data
ŒS ~s'! 1S DD
n
where:
Z' = site precision adjusted Z-Score,
X = laboratory’s result,
i
X¯ = PT average value,
s' = site precision standard deviation estimate,
s = PT Program standard deviation estimate, and
these data
n = number of non-outlier data.
3.1.22.1 Discussion—
This measure is like the Z-score except that the PT program standard deviation is replaced with one that takes into account the
laboratory’s site precision.
3.1.22.2 Discussion—
Z' is a valid approach when the laboratory’s site precision standard deviation is less than that for the PT program (that is, these
data standard deviation) or stated otherwise when the TPI > 1.
3.1.22.3 Discussion—
Z'-score described here is equivalent to Eq. 2 in Practice D6299 for pre-treated results, when the “standard error of ARV” is
expressed as “standard deviation of ARV/ √n.”
3.2 Definitions of Terms Specific to This Standard:
3.2.1 common (chance, random) cause, n—for quality assurance programs, one of generally numerous factors, individually of
relatively small importance, that contributes to variation, and that is not feasible to detect or control. D6299
3.2.2 site precision (R'), n—value below which the absolute difference between two individual test results obtained under site
precision conditions may be expected to occur with a probability of approximately 0.95 (95 %). It is calculated as 2.77 times the
standard deviation of results obtained under site precision conditions. D6299
3.2.3 site precision conditions, n—conditions under which test results are obtained by one or more operators in a single site
location practicing the same test method on a single measurement system which may comprise multiple instruments, using test
specimens taken at random from the same sample of material, over an extended period of time spanning at least a 15 day interval.
D6299
3.2.4 these data, n—term used by the ASTM International D02 PT program to identify statistical results calculated from the data
submitted by program participants.
3.2 Symbols:
3.2.1 ADrs—Anderson-Darling Resolution Sensitive Statistic.
3.2.2 I—individual observation (as in I-chart).
3.2.3 PTP M or PT program——proficiency test program.Modified Z-score.
i
3.2.4 QC—R —quality control.published ASTM reproducibility.
ASTM
3.2.5 R'—site precision.
3.2.6 R —reproducibility determined in PT program.
these data
3.2.7 rx˜ —repeatability determined in PT program.median.
these data
D7372 − 21
3.3.7 R —published ASTM reproducibility.
ASTM
3.3 Acronyms:
3.3.1 MAD—median absolute deviation
3.3.2 PTP or PTP program—proficiency test program
3.3.3 QC—quality control
3.3.4 TPI —test performance index (industry)
IND
4. Summary of Guide
4.1 Petroleum product, liquid fuel, and lubricant samples are regularly analyzed by specified standard test methods as part of a
proficiency test program. This guide provides a laboratory with the tools and procedures for evaluating their results from a PT
program. Techniques are presented to screen, plot, and interpret test results in accordance with industry-accepted practices.
5. Significance and Use
5.1 This guide can be used to evaluate the performance of a laboratory or group of laboratories participating in a proficiency test
(PT) program involving petroleum and petroleum products.
5.2 Data accrued, using the techniques included in this guide, provide the ability to monitor analytical measurement system
precision and bias. These data are useful for updating standard test methods, as well as for indicating areas of potential
measurement system improvement for action by the laboratory. This guide serves both the individual participating laboratory and
the responsible standards development group as follows:
5.2.1 Tools and Approaches for Participating Laboratories.
Administrative Reviews
Flagged Data and Investigations
Data Normality Checks
QQ Plots
Histograms
Bias (Deviation from Mean)
Run-Sum
Z-Scores, Z'-Scores Trends
Precision Performance—TPI , F-test
IND
Comparison of PTP and Individual Laboratory Site Precision
5.2.2 Tools and Approaches for Responsible Standards Development Groups.
TPI and precision trends
Bias and precision comparisons via box & whisker plots
Normality evaluations
Relative standard deviations
Uncontrolled variables
5.3 Reference is made in this guide to the ASTM International Proficiency Test Program on Petroleum Products, Liquid Fuels, and
Lubricants, version PTP 2.0 implemented in 2016–2017. Program reports containing similarly displayed results and statistical
treatments may be available in other PT programs. Appendix X2 summarizes the statistical tools referenced in this guide and
Appendix X3 is a collection of examples covering many of the approaches QQ plots, histograms, and Run-Sum described in this
guide.
6. Procedure—Evaluation and Interpretation by Participating Laboratories
6.1 Administrative Reviews—Laboratories should review the results published for each proficiency test program and for each test
D7372 − 21
method or parameter for which the laboratory submitted data. The following cover the evaluations that the laboratory should
consider during their review of proficiency test results.
6.1.1 Reported versus Submitted Data—Verify that the values ascribed to the laboratory in the proficiency test (PT) report agree
with the values recorded by the laboratory in its PT records. Report discrepancies to the respective PT program contacts.
Investigate, as appropriate, to determine the root cause of the problem.
6.1.2 Units for Results—Verify that the units for the data reported by your laboratory are the same as that requested by the PT
program. Report discrepancies to the respective PT program contacts. Investigate, as appropriate, to determine the root cause of
the problem.
6.1.3 Missing Data—If data and corresponding results are not present when they are clearly expected, then investigate to
determine the cause. In some cases it could be an error within the PT program data entry system, or it could be an omission on
the part of the laboratory.
6.2 Flagged Data and Investigations:
6.2.1 Rejected Data—Perform an investigation for each instance where laboratory data are rejected by the PT program data
treatment processes. Investigations should consider the entire analytical measurement system and not focus just on the instruments
used by the test method. Attempt to determine the root cause and take corrective actions as needed. Document all such
investigations and outcomes. Causes should be shared with the laboratory staff performing the testing. Guidelines on conducting
these types of investigations are available in Appendix X1.
6.2.2 Data Warnings/Alerts—The ASTM International PT programs provide comments (that is, Warnings/Alerts 1 to 3 in results
tables) that warn participants when their result is:
Warning/Alert
1—Test results outside ±3-sigma range for these data
2—Test results outside ±3-sigma range for ASTM reproducibility
3—Z-score outside range of –2 to 2
Investigations should be conducted when any of these warning situations occur. The priority for conducting investigations should
be for Warning/Alert 1 > 2 > 3. Note that 1 indicates that the laboratory is out-of-statistical-control with respect to the data set (with
the rejected data removed), which is a potentially serious situation with respect to the quality control performance of the
corresponding standard test method. A similar argument could also be made for Warning/Alert 2. Finally, Warning/Alert 3 is a less
severe situation, but should be investigated from a continuous improvement standpoint.
NOTE 1—If the user notices that the majority of the laboratories providing data have been cited with a Warning/Alert 2, then an investigation may not
produce any meaningful corrective actions. This occurrence may be the result of the precision statement not accurately reflecting the variability of the
test method and should be addressed by the subcommittee responsible for the method. Also, when the Anderson-Darling statistic or the ADrs statistic is
>1.3, ADrs statistic signals not normal (6.3.1.1), then the Warning/Alert 2 may not be valid.
6.2.3 Investigations—It is important to recognize statistical outliers, but it is even more important to take action to identify
assignable causes (factors that contribute to variation and that are feasible to detect and identify). Investigations should continue
to identify root cause(s) and to implement corrective and preventative measures. A checklist for investigating the root cause of
unsatisfactory analytical performance is provided as Appendix X1.
6.3 Data Normality Checks:
6.3.1 Typical statistical evaluations of proficiency test results assume data are from normal distributions, so it is appropriate to
evaluate the data for normality. The Anderson-Darling (AD) statistic is a goodness-of-fit test to determine if the data are from a
normal distribution. The AD This statistic is sensitive to inadequate data measurement resolution relative to the overall variation
in the dataset. Practice D6299 covers the calculation of the Anderson-Darling statistic. The ASTM D02 PTP 2.0 PT program uses
ADrs, a resolution-sensitive version of the Anderson-Darling statistic referred to as ADrs. The ADrs was developed for the ASTM
PT programs. The ADrs statistic. The ADrs is a special case of the ADAnderson-Darling statistic for dealing with step normal
distributions. ADrs is designed not to signal non-normality when presented with normally distributed data that have poor resolution
or are coarsely rounded. The ADrs statistic is designed to assess the normality of datasets regardless of the coarseness of the
reporting resolution.
D7372 − 21
NOTE 2—Until theSee X2.1 approach for calculating ADrs ADrs.is included in Practice D6299, this approach can be obtained from the ASTM
International PTP Office.
6.3.1.1 The ASTM PTP 2.0 program uses Use the following guidelines for interpretation of the AD and ADrs statistics.statistic.
This guide recognizes a range of AD and ADrs values where the data could be consider marginally normal.considered normal,
marginally normal, and not normal. The critical value for acceptance of normality for the ADrs is 0.752 for alpha = 0.05. The
practical upper limit for acceptance of marginal normality is 1.12 for alpha = 0.05.
ADrs Range Interpretation
Data are likely normally distributed and the
AD, AD
RS
Normal participants
<0.75
should take action to address all data flags.
Data are likely normally distributed; participants
< 0.75 Normal
should take action to address all data flags.
AD, AD Marginally Data exhibit near normal behavior, so participants
RS
0.75 – 1.3 Normal should consider action to address all data flags.
Marginally Data exhibit near normal behavior; participants
0.75 – 1.12
Normal should consider action to address all data flags.
There is strong evidence that the data are not
AD, AD
RS
No distributed normally, so corrective actions for data
>1.3
flags should be considered with some caution.
There is strong evidence that the data are not
>
Not Normal distributed normally; corrective actions for data
1.12
flags should be considered with some caution.
6.3.2 Median-based Approach When Data are Not Normally Distributed—When ADrs > 1.12 and the proficiency testing data are
thus not normally distributed, the usual data flags (see 6.2.2) should be used with caution and may not apply. In these cases,
median-based statistics can be used to identify data that need investigation. This approach uses the median-based counterparts to
the mean and standard deviation, namely the median (x˜) and the median absolute deviation (MAD). Using these statistics, a
Modified Z-score (M ) can be determined for each result, M = 0.6745 (X – x˜)/MAD. Data are flagged for investigation when
i i i
the corresponding |M | exceeds a critical value, D. A critical value of 3.5 has been shown to flag results that would correspond to
i
exceeding a 3-sigma limit. See X2.2 for computation of median, MAD and M .
i
NOTE 3—The ASTM International D02 Proficiency Test Program is considering implementing this approach to report median, MAD, and Mi statistics
along with corresponding flagged results.
6.4 QQ Plots—In addition, graphical tools are available for evaluating normality. For example, the ASTM PTP 2.0 uses a normal
probability or a QQ plot (an equivalent plot to the normal probability plot) to visually assess the validity of the normality
assumption and to identify data that are on the extremes of the distribution. Refer to Practice D6299 for guidance regarding the
preparation and interpretation of normal probability plots. If data are normally distributed, the normal probability plot should be
approximately linear. Major deviations from linearity are an indication of non-normal distributions. The appearance of a series of
steps in the plotted data rather than a smooth line is an indication that the data (or measurement) resolution is too coarse relative
to the precision of the test method. A few examples of these normal probability plots are shown in parallel with histograms in X3.2.
6.5 Histograms:
6.5.1 Histograms are a useful graphical tool for viewing data distribution and variability. The ASTM PT programs generate
histograms for all data sets where n > 20; and includes the mean and the 1st and 99th percentile limits on the histogram for data
sets with n > 100. These limits are based on “median 6 2.33 — Standard Deviation,” where 62.33 are respectively the first and
99th percentiles of the standard normal distribution.
6.5.2 PT program participants should review histograms when available and note unusual data distributions. Participants should
locate where their result falls within the histogram bins. Depending on the histogram, the location of data in certain bins could
indicate a potential issue such as bias. Consider reviewing the histogram in parallel with corresponding statistics such as the
Z-score, AD statistic, TPI (Industry), and the normal probability (or deviate) plot. See X3.2 for examples.
Supporting data have been filed at ASTM International Headquarters and may be obtained by requesting Research Report RR:D02-2023. Contact ASTM Customer
Service at [e-mail].
Boris Iglewicz and David Hoaglin (1993), “Volume 16: How to Detect and Handle Outliers,” The ASQC Basic References in Quality Control: Statistical Techniques,
Edward F. Mykytka, Ph.D., Editor.
D7372 − 21
6.6 Single Laboratory Bias (Deviation from Mean):
6.6.1 As mentioned in Practice D6299, subsection 7.6, it is appropriate for PTP partcipants to evaluate proficiency test results by
plotting the signed deviations from the mean for each result for each test cycle. Practice D6299 suggests plotting the signed
deviations on control charts. Laboratories would then apply the strategies outlined in that standard to identify outliers and other
issues such as long-term biases. The recommended control chart is a chart of individual observations (called an I-Chart) with an
exponentially weighted moving average (EWMA) overlaid on the data. See X3.3 for examples.
6.6.2 AnotherA graphical approach for monitoring bias involves use of box and whisker graphs. As is the case for reviewing
histograms, laboratories should use the box and whisker graphs to observe where their particular result lies in the graph relative
to the general distribution of results for the test method they used. Consider investigating any data outside the whisker end, if those
data were not flagged already for other causes. A review of the apparent distribution of results for each test method measuring the
same parameter may provide valuable insight regarding overall biases between methods. See 7.27.3 for more information on box
and whisker plots. See X3.4.
6.6.3 Another statistical approach for evaluating bias is described in Practice D6617. This guide estimates whether or not a single
test result is biased compared to the consensus value from the PT program.
6.7 Z-score, Z'-score Trends—The Z-score or Z'-score, or both, calculated for each datum submitted by the laboratory should be
reviewed with respect to the following:
6.7.1 Sign and Magnitude of Z-score—The sign (that is, “+” or “–”) of the statistic reflects the relative bias of the individual result
versus the mean of the sample group (and standardized to the standard deviation of that data set). Z-score values falling in the
ranges of plus or minus 0 to 1, 1 to 2, 2 to 3, and >3 can be compared to control chart values falling in the ranges between the
mean and 1-sigma, 1 to 2-sigma, 2 to 3-sigma, and >3-sigma. For normally distributed data, there is an expectation that about 68 %
of the data will lie in the –1 sigma to +1 sigma range, about 95 % in the –2 sigma to +2 sigma range, and 99 % in the –3 to +3
sigma range. The further a laboratory’s Z-score is from zero, the greater the relative bias and lower the probability that the data
is considered within statistical control. Conduct investigations to determine the cause of any perceived bias as needed.
6.7.2 Z-score and Run-Sum—Collect the Z-scores or Z'-scores for each test method (parameter) for successive PT program cycles
and determine the running sum for successive same sign scores. Each time the sign reverses (changes from + to – or vice versa),
restart the run-sum. Use the absolute value of the run-sum (|run-sum|) to evaluate the data for potential bias relative to the PT data
set as shown below. In addition, 6-in-a-row Z-scores or Z’-scores with the same sign (+ or -) signals statistical evidence of systemic
bias. Plotting Z-scores (6.7.3) along with Run-Sum is useful. See X3.3 for examples.
|run-sum| Evaluation
# 2.0 Generally acceptable performance
2.0 to < 4.0 Growing evidence that a bias is developing
4.0 to < 6.0 Stronger evidence suggesting that data may be biased
$ 6.0 Statistical evidence of systemic bias
Z-Score Evaluation
6-in-a-row on same side Statistical evidence of systemic bias
6.7.3 Z-scores and/or Z'-score Trends Using Data from Multiple PTP Cycles—Collect the Z-scores or Z'-scores values for each
test method (parameter) for successive PT program cycles on a control chart to show the trend over time. Plotting Z-scores or
Z'-scores is more practical than plotting the signed deviations from the mean (as in 6.2.1) especially when the magnitude of means
can vary considerably from PT cycle to cycle. It is recommended to use the run rules promulgated in Practice D6299 to evaluate
any observed trends. Conduct investigations to determine causes as needed. According to Practice D6299, Z-score and Z'-score
data for a PT program cycle and test method parameter are acceptable for trend analysis via control charts when two conditions
are met: first, there are at least 16 non-outlier data for the parameter and second, the PT cycle standard deviation is not statistically
greater than the reproducibility standard deviation for the test method (see F-test).
6.7.4 Average Z-score and Average Z'-score—Calculate the average Z-score or Z'-score for a series over a selected time period.
The sign and magnitude of this result is an indication of the long-term relative bias. Conduct investigations to determine the cause
of any perceived bias as needed.
D7372 − 21
6.8 Precision Performance:
6.8.1 TPI (Industry)—Assess the general capability of a test method using TPI alone or along with other tools such as Z-score,
IND
relative standard deviation (or coefficient of variance), and the ratio of mean to standard deviation (quantitation index). Note that
one can determine capability of one method versus another based using the published ASTM reproducibility, which provides the
accepted or target values, and the data from a PTP, which provides results as practiced by participating laboratories. In situations
when the TPI is not calculated in a PTP report, this statistic can be calculated by the user and interpreted as indicated below.
IND
6.8.1.1 General TPI Implications—Consider Table 1 for interpreting the TPI .
IND
6.8.1.2 Specific Implications Considering TPI and Z-score—Consider the TPI value calculated for the data set along with
IND IND
the corresponding Z-score for the laboratory’s result (reference Practice D6792). A TPI < 0.8 coupled with a Z-score >3 (or
IND
<–3) implies that the laboratory is likely a significant contributor to the group’s poor performance. This situation warrants an
investigation to look for potential causes of the apparent bias. When the TPI < 0.8 and the Z-score is between 2 and 3 (or –2
IND
and –3), then the laboratory should consider the situation a warning and consider an investigation to determine if there are any
assignable causes.
6.8.2 Precision Performance Based on F-Test—Precision performance, an indicator introduced in the ASTM PTP 2.0 reports, is
based on the outcome of the F-test. Precision performance is a quantitative estimate of the reproducibility standard deviation of
the PT program versus the published ASTM reproducibility standard deviation. For the F-test, the ratio of the standard deviations
squared (larger divided by smaller) is compared to the 95th percentile of Fisher’s F-distribution. These two standard deviations are
the published reproducibility standard deviation for the ASTM test method (s ) and the standard deviation for these data
ASTM R
(s ). For determining the F-distribution, the degrees of freedom for these data is the number of conforming data used in the
repro
calculation of the standard deviation and the degrees of freedom for the ASTM standard deviation is assumed to be 30. In the
ASTM PTP 2.0 program, the risk of Type I error is held to 5 % only if the distributions are nearly normal. This statistical test
evaluates whether or not the PT precision is better than, consistent with, or worse than the ASTM precision in accordance with
the following table:
F-Distribution PT Precision Performance
<0.025 Better
0.025 – 0.975 Consistent
>0.975 Worse
6.9 PTP and Site Precision Comparison—Compare the reproducibility standard deviation for the PT results versus the site
precision value derived from the laboratory’s corresponding quality control chart. The expectation is that in most cases the site
precision value should be less than the PT program standard deviation. If the laboratory’s site precision is greater than the PT
standard deviation, then the laboratory should investigate to determine the cause. The evaluation of site precision versus the
corresponding PT precision is best accomplished using the F-test and the approach described in 6.8.2.
7. Procedure—Analysis and Interpretation by Standards Development Group
7.1 This section covers the analysis and interpretation of proficiency test data by a committee, industry group, or individual
interested with determining the overall implications that the published PT results have with respect to the corresponding test
method or to the general users as a whole. The following cover the evaluations and analyses that any group should consider during
their review in addition to the approaches covered in the previous section.
7.2 TPI and Precision Trends—Compare precisions obtained over a reasonable number of rounds for a given PT program test
IND
TABLE 1 General TPI Implications
TPI (Industry) Result Implication
> 1.2 The performance of the group providing data is probably satisfactory relative to the corresponding ASTM published precision.
0.8 to 1.2 The performance of the group providing data may be marginal and each laboratory should consider reviewing the test
method procedures to identify opportunities for improvement.
< 0.8 The performance of the test method as practiced by the group is not consistent with the ASTM published precision and
laboratory method performance improvements should be investigated by all laboratories.
D7372 − 21
method (or parameter). Plotting such data series often shows the appearance of trends more clearly. The precision estimates that
may be followed TPI , standard deviations, or relative standard deviations.
IND
7.3 Bias via Box and Whisker Plots:
7.3.1 Box and whisker plots provide a convenient graphical representation of the means and relative data distributions for two or
more test methods that measure the same property in the PT cycle. Box and whisker plots group test data by quartiles with the
center box representing the middle 50 % of test data centered on the median. The horizontal line within the box represents the
median of the reported data. The whisker length is adjusted to the last data point that falls within 1.5 times the difference between
the upper and lower value of the center box. Data points above or below the whisker are included in the plot unless they are off
the Y-axis scale.
7.3.2 The size (length) of the box and whisker is a measure of the precision of the PT results. The position of one median relative
to that in another box is a measure of the relative bias among the test methods involved. The box and whisker plots, however, do
not estimate the significance of any bias observed. Further, these graphs represent the distribution of data only for one PTP cycle,
so observed biases and different data distributions observed for one cycle may not be supported in subsequent cycles.
7.4 Normality Evaluations—Plot the PT results as a QQ plot and consider the corresponding AD or ADrs statistic. Observe similar
plots for the historical data sets for a given test method (parameter). Investigate situations of non-normal data. QQ plots generally
are sensitive to situations where a small subset of laboratories perform the test method differently than the rest of the group. In
these cases, the QQ plot shows an indication of a bimodal distribution, which can also be confirmed by a review of the
corresponding histogram.
7.5 Relative Standard Deviations:
7.5.1 Relative standard deviation (RSD) (or the coefficient of variation, CV) expressed as a decimal or percent, is a convenient
statistic to generate and interpret. Generally, the percent relative standard deviation should be low, perhaps at 10 % or lower. To
establish a target, one can generate an expected percent RSD based on the published reproducibility. Several examples of plots and
interpretation of RSD data are provided in X3.9.
7.5.2 Another measure of test method capability is the quantitation index, the ratio of the mean to the standard deviation (that is,
the reciprocal of the RSD). The reason for using a quantitation index relates to the use of a similar expression in evaluating limits
of quantitation (that is, the point at which the ratio of mean concentration to repeatability standard deviation exceeds 10; see
Practice D6259). This concept is especially important in evaluating test method performance at the lowest end of their operating
ranges. See the example in X3.10.
7.6 Influence of Uncontrolled Variables on Robust Standard Deviations—Use auxiliary information or data to create subsets of the
PT data set and recalculate precisions and other statistics for each subset. Auxiliary information is the data/information collected
by the PT program from participating laboratories to support investigations and includes topics such as instrument type or
manufacturer, source of calibration standards, specific experimental conditions, etc. Contact the PT program administrator to
arrange for collection of such auxiliary information. Evaluate these results with the expectation of identifying causes and potential
corrective action steps.
7.7 Contribution of Individual Laboratory Bias to Poor Reproducibility—Identify the laboratories that are contributing to poor
reproducibility (for example, those laboratories with Z-score > 63) and evaluate the factors that may be contributing to this
performance. This may involve targeting laboratories with questionnaires to gather appropriate information.
7.8 Consultations—Investigations are generally more successful when product experts, test method experts, and qualified
statisticians are involved in the discussions.
8. Report
8.1 Laboratories and working groups should document their investigations. In the spirit of continuous improvement, laboratories
and working groups are encouraged to share their findings from their investigations and analyses.
D7372 − 21
9. Keywords
9.1 precision performance; proficiency testing; quality control; test performance index; Z-score
APPENDIXES
(Nonmandatory Information)
X1. CHECKLIST FOR INVESTIGATING THE ROOT CAUSE OF UNSATISFACTORY ANALYTICAL PERFORMANCE
X1.1 For a laboratory to identify why their data may have been considered a statistical outlier or to improve the precision, or both,
the following action items (not necessarily in the order of preference) are suggested. There may be additional ways to improve the
performance.
X1.1.1 Check the results for typos, calculation errors, and transcription errors.
X1.1.2 Reanalyze the sample; compare the difference between this result to the original submitted result to site precision, or, if
not available, test method repeatability.
X1.1.3 Review the test method, and ensure that the latest version of the ASTM test method is being used. Check the procedure
step by step with the analyst.
X1.1.4 Check the instrument calibration.
X1.1.5 Check the statistical quality control chart to see if the problem developed earlier.
X1.1.6 Check the quality of the reagents and standards used and whether or not they are expired or contaminated.
X1.1.7 Check the sample for homogeneity, contamination, or that a representative sample has been analyzed.
X1.1.8 Check the equipment for proper operation against the vendor’s operating manual.
X1.1.9 Perform maintenance or repairs, or both, on the equipment following guidelines established by the vendor.
X1.1.10 After the problem has been resolved, analyze a certified reference material, if one is available, or the laboratory quality
control sample, to ascertain that the analytical operation is under control.
X1.1.11 Provide training to new analysts as needed, and, if necessary, refresher training to experienced analysts.
X1.1.12 Document the incident and the learnings for use in the future if a similar problem occurs.
D7372 − 21
X2. STATISTICAL TOOLS
INTRODUCTION
The following are statistical tools available for analysis of proficiency testing program results.
X2.1 Anderson-Darling (AD) Statistic
X2.1.1 Calculate the AD statistic in accordance with Practice D6299 to determine if the data are normally distributed. If the data
are distributed normally (that is, AD < 0.75) or marginally normally (AD 0.75 to 1.3), then the equations below are applicable.
When the AD > 1.3, suggesting that the data are not normally distributed, then the tools described below should be used with
caution.
X2.1.2 Calculate the Anderson-Darling resolution sensitive (ADrs) statistic in accordance with the report referenced in the ASTM
PTP 2.0 program reports and available from the ASTM PTP Office. The same criteria for interpretation of the AD statistic above
applies to the ADrs.
X2.1 Standard Error of the MeanAnderson-Darling Resolution Sensitive (ADrs) Statistic
X2.1.1 ADrs statistic is applicable to ASTM D02 test methods where the unmodified Anderson-Darling statistic would flag PT
data as non-normal due to the relatively coarse reporting resolutions. In these cases, the coarse data resolution masks the actual
state of normality for the data. The ADrs statistic is designed to assess the normality of datasets regardless of the coarseness of
the reporting resolution.
X2.1.2 Calculate the ADrs statistic for numerical data sets, with outliers removed.
X2.1.3 Order the non-outlying results such that x ≤ x ≤ .x and round each value of X to that corresponding to the reporting
1 2 n i
resolution.
X2.1.4 Compute for each non-outlying result, Xi:
where:
B = Twice the number of results that preceded the specific result in the list and are equal to that result, plus 1. (Or equivalently
calculated as: twice the bin order minus 1),
C
...
