ASTM D7593-22

Standard Test Method for Determination of Fuel Dilution for In-Service Engine Oils by Gas Chromatography

SIGNIFICANCE AND USE
5.1 Some fuel dilution of in-service engine oil is normal under typical operating conditions. However, excessive fuel dilution can lead to decreased performance, premature wear, or sudden engine failure. This test method provides a means of quantifying the level of fuel dilution, allowing the user to take necessary action. This test method does not purport to accurately quantify the specific fuel present in the in-service lubricant samples due to limitations associated with the aging and degradation of the fuel in the crankcase. Rather, quantification of diesel fuel is normalized using a simulated aged fuel.
SCOPE
1.1 This test method covers the determination of fuel dilution for in-service engine oil by gas chromatography.
1.2 Analysis can be performed directly by this test method without pretreatment or dilution of the sample.
1.3 There is no limitation for the determination of the dilution range, provided the amount of sample is within the linear range of the gas chromatograph detector. However, sample dilution can add potential error to the result and may affect the precision obtained as compared to the values presented in Section 14, which were obtained with no dilution.
1.4 This test method covers a quantitation range up to 10 % (m/m) for diesel and biodiesel, and up to 5 % (m/m) for gasoline.
1.5 The values stated in SI units are to be regarded as standard. Where non-SI units are provided, they are shown in parentheses.
1.6 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.7 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

• Status: Published
• Publication Date: 30-Nov-2022
• ICS: 75.100 - Lubricants, industrial oils and related products
• ICS: 75.160.20 - Liquid fuels
• Technical Committee: D02 - Petroleum Products, Liquid Fuels, and Lubricants
• Drafting Committee: D02.96.02 - Chemistry for the Evaluation of In-Service Lubricants

Relations

• Refers: ASTM D4175-23a - Standard Terminology Relating to Petroleum Products, Liquid Fuels, and Lubricants
• Effective Date: 15-Dec-2023
• Refers: ASTM D86-23a - Standard Test Method for Distillation of Petroleum Products and Liquid Fuels at Atmospheric Pressure
• Effective Date: 01-Dec-2023
• Refers: ASTM D86-23ae1 - Standard Test Method for Distillation of Petroleum Products and Liquid Fuels at Atmospheric Pressure
• Effective Date: 01-Dec-2023
• Refers: ASTM D4175-23e1 - Standard Terminology Relating to Petroleum Products, Liquid Fuels, and Lubricants
• Effective Date: 01-Jul-2023
• Refers: ASTM E594-96(2019) - Standard Practice for Testing Flame Ionization Detectors Used in Gas or Supercritical Fluid Chromatography
• Effective Date: 01-Sep-2019
• Refers: ASTM D86-16 - Standard Test Method for Distillation of Petroleum Products and Liquid Fuels at Atmospheric Pressure
• Effective Date: 01-Jul-2016
• Refers: ASTM D3525-04(2016) - Standard Test Method for Gasoline Diluent in Used Gasoline Engine Oils by Gas Chromatography
• Effective Date: 01-Apr-2016
• Refers: ASTM D86-11b - Standard Test Method for Distillation of Petroleum Products at Atmospheric Pressure
• Effective Date: 01-Dec-2011
• Refers: ASTM E594-96(2011) - Standard Practice for Testing Flame Ionization Detectors Used in Gas or Supercritical Fluid Chromatography
• Effective Date: 01-Nov-2011
• Refers: ASTM D3525-04(2010) - Standard Test Method for Gasoline Diluent in Used Gasoline Engine Oils by Gas Chromatography
• Effective Date: 01-Oct-2010
• Refers: ASTM D86-09 - Standard Test Method for Distillation of Petroleum Products at Atmospheric Pressure
• Effective Date: 15-Apr-2009
• Refers: ASTM D86-08a - Standard Test Method for Distillation of Petroleum Products at Atmospheric Pressure
• Effective Date: 15-Dec-2008
• Refers: ASTM D86-08 - Standard Test Method for Distillation of Petroleum Products at Atmospheric Pressure
• Effective Date: 15-Nov-2008
• Refers: ASTM D86-07b - Standard Test Method for Distillation of Petroleum Products at Atmospheric Pressure
• Effective Date: 15-Nov-2007
• Refers: ASTM D86-07a - Standard Test Method for Distillation of Petroleum Products at Atmospheric Pressure
• Effective Date: 01-Apr-2007

Overview

ASTM D7593-22 specifies a standardized test method for the determination of fuel dilution in in-service engine oils using gas chromatography. Fuel dilution in lubricating oil can occur in engines operating under normal conditions, but elevated levels may lead to decreased performance, excessive wear, and even sudden engine failure. This standard enables laboratories and maintenance professionals to accurately quantify fuel contamination in used engine oil, providing essential data for proactive maintenance and reliability improvements.

This method is applicable to a variety of engine oil types, including those used with diesel, biodiesel, and gasoline fuels. Its robust approach ensures reliable monitoring of fuel dilution, supporting engine diagnostics, oil condition monitoring programs, and maintenance decisions.

Key Topics

• Fuel Dilution Measurement
  The test method determines the percentage of unburned fuel present in in-service lubricant samples. Quantitative analysis covers up to 10% by mass (m/m) for diesel and biodiesel, and up to 5% for gasoline.

• Direct Sample Analysis
  The gas chromatography technique used in ASTM D7593-22 allows analysis of oil samples without any pretreatment or prior dilution, reducing the risk of introducing additional errors and maintaining analytical precision.

• Normalization and Calibration
  The method normalizes diesel measurements with simulated aged fuel standards. While it quantifies fuel dilution, it does not distinguish between different types of fuel blends or account for the impact of aging and degradation in the engine crankcase.

• Instrumentation and Detection
  The procedure requires a gas chromatograph with a split capillary injector, a flame ionization detector (FID), and the capacity for back-flush operations. Marker peaks are used to distinguish fuel components from oil fractions.

• Precision and Reporting
  The standard outlines repeatability data for diesel, biodiesel, and gasoline, enhancing trust in results crucial for informed maintenance actions.

Applications

ASTM D7593-22 serves a vital role in a range of professional and industrial scenarios:

• Engine Condition Monitoring
  Detect excessive fuel dilution in engine oils to identify mechanical issues such as injector leaks or incomplete combustion.

• Predictive Maintenance
  Use fuel dilution data to schedule oil changes or engine repairs before significant wear or failure occurs.

• Quality Assurance
  Ensure lubricants used in fleets, heavy machinery, or critical systems meet operational standards throughout their service life.

• Laboratory Analysis
  Oil testing laboratories can adopt this method for consistent, reliable fuel dilution analysis in routine used oil analysis (UOA) programs.

• Environmental Compliance
  Monitor lubricant condition to optimize oil replacement intervals and minimize unnecessary waste oil disposal.

Related Standards

Several ASTM standards and terminology documents complement or reference ASTM D7593-22, including:

• ASTM D86: Distillation of Petroleum Products and Liquid Fuels at Atmospheric Pressure
• ASTM D3524: Diesel Fuel Diluent in Used Diesel Engine Oils by Gas Chromatography
• ASTM D3525: Gasoline Fuel Dilution in Used Gasoline Engine Oils by Wide-Bore Capillary Gas Chromatography
• ASTM D4175: Terminology Relating to Petroleum Products, Liquid Fuels, and Lubricants
• ASTM E355/E594/E1510: Practices for gas chromatography terms, flame ionization detector procedures, and column installation

These related documents support enhanced understanding, accurate testing, and broader implementation of oil analysis techniques using gas chromatography.

---

By following ASTM D7593-22, organizations can maintain engine health, optimize lubricant usage, and ensure compliance with both operational and environmental best practices through reliable in-service oil testing for fuel dilution.

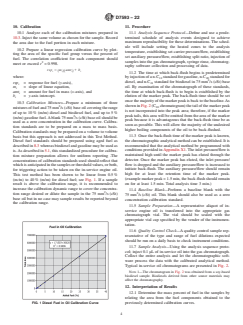

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
Designation: D7593 − 22
Standard Test Method for
Determination of Fuel Dilution for In-Service Engine Oils by
Gas Chromatography
This standard is issued under the fixed designation D7593; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope* D86 Test Method for Distillation of Petroleum Products and
Liquid Fuels at Atmospheric Pressure
1.1 This test method covers the determination of fuel
D3524 Test Method for Diesel Fuel Diluent in Used Diesel
dilution for in-service engine oil by gas chromatography.
Engine Oils by Gas Chromatography
1.2 Analysis can be performed directly by this test method
D3525 Test Method for Gasoline Fuel Dilution in Used
without pretreatment or dilution of the sample.
Gasoline Engine Oils by Wide-Bore Capillary Gas Chro-
1.3 There is no limitation for the determination of the matography
D4175 Terminology Relating to Petroleum Products, Liquid
dilution range, provided the amount of sample is within the
linear range of the gas chromatograph detector. However, Fuels, and Lubricants
E355 Practice for Gas Chromatography Terms and Relation-
sample dilution can add potential error to the result and may
affect the precision obtained as compared to the values pre- ships
E594 Practice for Testing Flame Ionization Detectors Used
sented in Section 14, which were obtained with no dilution.
in Gas or Supercritical Fluid Chromatography
1.4 This test method covers a quantitation range up to 10 %
E1510 Practice for Installing Fused Silica Open Tubular
(m/m) for diesel and biodiesel, and up to 5 % (m/m) for
Capillary Columns in Gas Chromatographs
gasoline.
1.5 The values stated in SI units are to be regarded as
3. Terminology
standard. Where non-SI units are provided, they are shown in
3.1 Definitions:
parentheses.
3.1.1 For definitions of terms used in this test method, refer
1.6 This standard does not purport to address all of the
to Terminology D4175.
safety concerns, if any, associated with its use. It is the
3.1.2 This test method makes reference to common gas
responsibility of the user of this standard to establish appro-
chromatographicprocedures,terms,andrelationships.Detailed
priate safety, health, and environmental practices and deter-
definitions of these can be found in Practices E355 and E594.
mine the applicability of regulatory limitations prior to use.
3.1.3 fuel diluent, n—in service oil analysis, is the unburned
1.7 This international standard was developed in accor-
fuel components that enter the engine crankcase causing
dance with internationally recognized principles on standard-
dilution of the oil.
ization established in the Decision on Principles for the
Development of International Standards, Guides and Recom-
3.1.4 fuel dilution, n—the amount, expressed as a
mendations issued by the World Trade Organization Technical
percentage, of engine fuel found in the in-service lubricating
Barriers to Trade (TBT) Committee.
oil.
3.1.5 in-service oil, n—lubricating oil that is present in a
2. Referenced Documents
machine that has been at operating temperature for at least one
2.1 ASTM Standards:
hour.
3.1.6 Marker Peak (MP), n—a marker peak is a chromato-
This test method is under the jurisdiction of ASTM Committee D02 on graphic peak used to differentiate sections of a chromatogram
Petroleum Products, Liquid Fuels, and Lubricants and is the direct responsibility of
by retention time.
Subcommittee D02.96.02 on Chemistry for the Evaluation of In-Service Lubricants.
3.1.6.1 Discussion—For example, components that elute
Current edition approved Dec. 1, 2022. Published January 2023. Originally
before this marker peak may be considered “fuel,” while
approved in 2013. Last previous edition approved in 2014 as D7593 – 14. DOI:
10.1520/D7593-22.
components that elute after this marker peak would be consid-
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
ered “oil.” This marker peak retention time could also serve as
contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM
thetimingforphysicalchangesinthechromatographicsystem,
Standards volume information, refer to the standard’s Document Summary page on
the ASTM website. such as the time to initiate a valve change or a back-flush.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
