ASTM D7507-23

Standard Specification for Woven High Stretch Fabrics Used in Apparel

SIGNIFICANCE AND USE
4.1 Upon mutual agreement between the purchaser and the supplier, woven high stretch fabrics used in apparel should meet all of the requirements listed in Table 1 of this specification. (A) See Note 3.
4.2 It is recognized that, for purposes of fashion or aesthetics, the ultimate consumer of articles made from these fabrics may find acceptable products that do not conform to all of the requirements listed in Table 1. Therefore, one or more of the requirements in Table 1 may be modified by mutual agreement between the purchaser and the supplier.
4.2.1 In such cases, any references to the specifications should specify that: “This product meets ASTM specifications XXXX except for the following characteristic(s).”
4.3 Where no pre-purchase agreement has been reached between the purchaser and supplier, and in case of controversy, the requirements listed in Table 1 are intended to be used as a guide only. As noted in 4.2, ultimate consumer demands dictate varying performance parameters for a particular product.
4.4 The uses and significance of particular properties and test methods are discussed in the appropriate sections of the specified test methods.
SCOPE
1.1 This specification covers the performance requirements for woven high stretch fabrics used in apparel.
1.2 The following safety hazards caveat pertains only to the test methods described in this performance specification: This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.3 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

• Status: Published
• Publication Date: 31-Dec-2022
• ICS: 59.080.30 - Textile fabrics
• Technical Committee: D13 - Textiles
• Drafting Committee: D13.61 - Apparel

Relations

• Refers: ASTM D3107-07(2019) - Standard Test Methods for Stretch Properties of Fabrics Woven from Stretch Yarns
• Effective Date: 01-Jul-2019
• Refers: ASTM D123-17 - Standard Terminology Relating to Textiles
• Effective Date: 01-Mar-2017
• Refers: ASTM D123-15b - Standard Terminology Relating to Textiles
• Effective Date: 15-Sep-2015
• Refers: ASTM D123-15a - Standard Terminology Relating to Textiles
• Effective Date: 01-Sep-2015
• Refers: ASTM D3107-07(2015) - Standard Test Methods for Stretch Properties of Fabrics Woven from Stretch Yarns
• Effective Date: 01-Jul-2015
• Refers: ASTM D123-15 - Standard Terminology Relating to Textiles
• Effective Date: 01-Apr-2015
• Refers: ASTM D7022-13 - Standard Terminology Relating to Apparel
• Effective Date: 01-Oct-2013
• Refers: ASTM D7022-13e1 - Standard Terminology Relating to Apparel
• Effective Date: 01-Oct-2013
• Refers: ASTM D123-13a - Standard Terminology Relating to Textiles
• Effective Date: 15-Jun-2013
• Refers: ASTM D123-13ae1 - Standard Terminology Relating to Textiles
• Effective Date: 15-Jun-2013
• Refers: ASTM D123-13 - Standard Terminology Relating to Textiles
• Effective Date: 15-May-2013
• Refers: ASTM D3775-12 - Standard Test Method for Warp (End) and Filling (Pick) Count of Woven Fabrics
• Effective Date: 01-Sep-2012
• Refers: ASTM D123-12e1 - Standard Terminology Relating to Textiles
• Effective Date: 01-Feb-2012
• Refers: ASTM D123-12 - Standard Terminology Relating to Textiles
• Effective Date: 01-Feb-2012
• Refers: ASTM D3107-07(2011) - Standard Test Methods for Stretch Properties of Fabrics Woven from Stretch Yarns
• Effective Date: 01-May-2011

Overview

ASTM D7507-23 is the internationally recognized standard specification for woven high stretch fabrics used in apparel. Published by ASTM International, this document sets forth the performance requirements for woven fabrics containing high levels of elastic fibers, primarily used in clothing where flexibility and stretch are essential. The standard ensures that these high stretch fabrics meet specific criteria for durability, safety, and quality, providing a basis for both manufacturers and purchasers to evaluate and select suitable textiles for fashion and performance garments.

Key Topics

• Performance Requirements: Specifies how woven high stretch fabrics should perform in essential aspects such as stretch, dimensional stability, colorfastness, and flammability.
• Testing Methods: References widely accepted ASTM and AATCC test methods for evaluating:
  • Stretch and recovery
  • Dimensional change after laundering and dry cleaning
  • Colorfastness to laundry, dry cleaning, bleaching, perspiration, crocking, light, and ozone
  • pH levels and fabric weight
  • Flammability (in alignment with 16 CFR 1610)
• Quality Control: Defines acceptance criteria for textile lots, sampling processes, and reporting of physical and chemical properties.
• Purchasing Agreements: Allows flexibility for buyers and suppliers to mutually agree on modifications to requirements for specific aesthetics or end uses.

Applications

ASTM D7507-23 is vital for professionals in the apparel industry, including textile manufacturers, fashion designers, sourcing specialists, and quality assurance personnel. Its value and practical applications include:

• Garment Manufacturing: Ensures that sportswear, fashion apparel, uniforms, and other stretch-based garments perform reliably in terms of fit, comfort, and appearance after repeated use and care cycles.
• Fabric Sourcing: Enables buyers to specify and verify compliance with international standards for stretch performance, durability, and color retention when selecting high stretch woven fabrics.
• Product Development & Innovation: Provides a standardized baseline for developing new woven stretch fabrics with enhanced performance or targeted end-use applications.
• Regulatory Compliance: Facilitates adherence to governmental and trade regulations concerning flammability and consumer safety, especially in markets with stringent import requirements.
• Dispute Resolution: Acts as an industry-accepted reference in case of quality disputes between buyers and suppliers.

Related Standards

ASTM D7507-23 references and is complemented by additional standards and test methods, including:

• ASTM D123: Terminology Relating to Textiles
• ASTM D3107: Test Methods for Stretch Properties of Fabrics Woven from Stretch Yarns
• ASTM D3775: Test Method for End (Warp) and Pick (Filling) Count of Woven Fabrics
• ASTM D3776: Test Methods for Mass Per Unit Area (Weight) of Fabric
• AATCC Methods: A suite of colorfastness, dimensional change, and pH tests (e.g., AATCC TM8, TM135, TM158, TM16)
• 16 CFR 1610: Standard for Flammability of Clothing Textiles

These documents, along with ASTM D7507-23, form a comprehensive framework for assessing and specifying the quality and performance of woven high stretch fabrics for use in apparel.

---

Keywords: ASTM D7507-23, woven high stretch fabrics, apparel, textile standards, stretch fabric performance, colorfastness, flammability, quality control, fabric testing, garment manufacturing

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

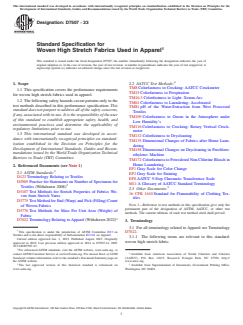

Designation: D7507 − 23
Standard Specification for
Woven High Stretch Fabrics Used in Apparel
This standard is issued under the fixed designation D7507; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 2.2 AATCC Test Methods:
TM8 Colorfastness to Crocking: AATCC Crockmeter
1.1 This specification covers the performance requirements
TM15 Colorfastness to Perspiration
for woven high stretch fabrics used in apparel.
TM16.3 Colorfastness to Light: Xenon-Arc
1.2 The following safety hazards caveat pertains only to the
TM61 Colorfastness to Laundering: Accelerated
test methods described in this performance specification: This
TM81 pH of the Water-Extraction from West Processed
standard does not purport to address all of the safety concerns,
Textiles
if any, associated with its use. It is the responsibility of the user
TM109 Colorfastness to Ozone in the Atmosphere under
of this standard to establish appropriate safety, health, and
Low Humidity’s
environmental practices and determine the applicability of
TM116 Colorfastness to Crocking: Rotary Vertical Crock-
regulatory limitations prior to use.
meter
1.3 This international standard was developed in accor-
TM132 Colorfastness to Drycleaning
dance with internationally recognized principles on standard-
TM135 Dimensional Changes of Fabrics after Home Laun-
ization established in the Decision on Principles for the
dering
Development of International Standards, Guides and Recom-
TM158 Dimensional Changes on Drycleaning in Perchloro-
mendations issued by the World Trade Organization Technical
ethylene: Machine
Barriers to Trade (TBT) Committee.
TM172 Colorfastness to Powedered Non-Chlorine Bleach in
Home Laundering
2. Referenced Documents (see Note 1)
EP1 Gray Scale for Color Change
2.1 ASTM Standards:
EP2 Gray Scale for Staining
D123 Terminology Relating to Textiles
EP8 AATCC 9-Step Chromatic Transference Scale
D2905 Practice for Statements on Number of Specimens for
M11 A Glossary of AATCC Standard Terminology
Textiles (Withdrawn 2008)
2.3 Other Documents:
D3107 Test Methods for Stretch Properties of Fabrics Wo-
16 CFR 1610 Standard for Flammability of Clothing Tex-
ven from Stretch Yarns
tiles
D3775 Test Method for End (Warp) and Pick (Filling) Count
NOTE 1—Reference to test methods in this specification give only the
of Woven Fabrics
permanent part of the designation of ASTM, AATCC, or other test
D3776 Test Methods for Mass Per Unit Area (Weight) of
methods. The current editions of each test method cited shall prevail.
Fabric
D7022 Terminology Relating to Apparel (Withdrawn 2022)
3. Terminology
3.1 For all terminology related to Apparel see Terminology
This specification is under the jurisdiction of ASTM Committee D13 on
D7022.
Textiles and is the direct responsibility of Subcommittee D13.61 on Apparel.
3.1.1 The following terms are relevant to this standard:
Current edition approved Jan. 1, 2023. Published August 2023. Originally
woven high stretch fabric.
approved in 2010. Last previous edition approved in 2014 as D7507-14. DOI:
10.1520/D7507-23.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM Available from American Association of Textile Chemists and Colorists
Standards volume information, refer to the standard’s Document Summary page on (AATCC), P.O. Box 12215, Research Triangle Park, NC 27709, http://
the ASTM website. www.aatcc.org.
3 5
The last approved version of this historical standard is referenced on Available from Superintendent of Documents, Government Printing Office,
www.astm.org. Washington, DC 20402.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

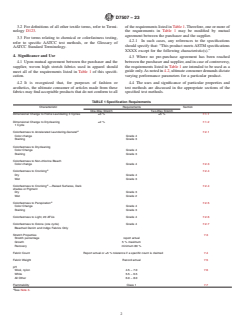

D7507 − 23
3.2 For definitions of all other textile terms, refer to Termi- of the requirements listed in Table 1. Therefore, one or more of
nology D123. the requirements in Table 1 may be modified by mutual
agreement between the purchaser and the supplier.
3.3 For terms relating to chemical or colorfastness testing,
4.2.1 In such cases, any references to the specifications
refer to specific AATCC test methods, or the Glossary of
should specify that: “This product meets ASTM specifications
AATCC Standard Terminology.
XXXX except for the following characteristic(s).”
4. Significance and Use
4.3 Where no pre-purchase agreement has been reached
4.1 Upon mutual agreement between the purchaser and the between the purchaser and supplier, and in case of controversy,
supplier, woven high stretch fabrics used in apparel should the requirements listed in Table 1 are intended to be used as a
meet all of the requirements listed in Table 1 of this specifi- guide only. As noted in 4.2, ultimate consumer demands dictate
varying performance parameters for a particular product.
cation.
4.2 It is recognized that, for purposes of fashion or 4.4 The uses and significance of particular properties and
aesthetics, the ultimate consumer of articles made from these test methods are discussed in the appropriate sections of the
fabrics may find acceptable products that do not conform to all specified test methods.

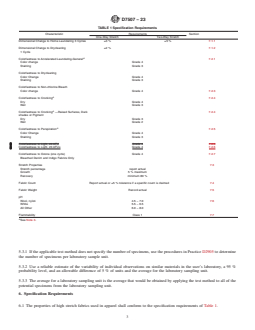

TABLE 1 Specification Requirements
Characteristic Requirements Section
One-Way Stretch Two-Way Stretch
Dimensional Change to Home Laundering 3 Cycles ±3 % ±5 % 7.1.1
Dimensional Change to Drycleaning ±2 % 7.1.2
1 Cycle
A
Colorfastness to Accelerated Laundering-General
...

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

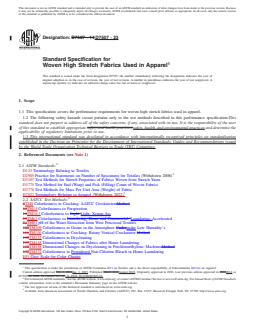

Designation: D7507 − 14 D7507 − 23
Standard Specification for
Woven High Stretch Fabrics Used in Apparel
This standard is issued under the fixed designation D7507; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This specification covers the performance requirements for woven high stretch fabrics used in apparel.
1.2 The following safety hazards caveat pertains only to the test methods described in this performance specification:This
standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user
of this standard to establish appropriate safety and health practices,safety, health, and environmental practices and determine the
applicability of regulatory limitations prior to use.
1.3 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents (see Note 1)
2.1 ASTM Standards:
D123 Terminology Relating to Textiles
D2905 Practice for Statements on Number of Specimens for Textiles (Withdrawn 2008)
D3107 Test Methods for Stretch Properties of Fabrics Woven from Stretch Yarns
D3775 Test Method for End (Warp) and Pick (Filling) Count of Woven Fabrics
D3776 Test Methods for Mass Per Unit Area (Weight) of Fabric
D7022 Terminology Relating to Apparel (Withdrawn 2022)
2.2 AATCC Test Methods:
8TM8 Colorfastness to Crocking: AATCC Crockmeter Method
15TM15 Colorfastness to Perspiration
16TM16.3 Colorfastness to Light Light: Xenon-Arc
61TM61 Colorfastness to Laundering, Home and Commercial: Laundering: Accelerated
81TM81 pH of the Water-Extraction from West Processed Textiles
109TM109 Colorfastness to Ozone in the Atmosphere Underunder Low Humidity’s
116TM116 Colorfastness to Crocking: Rotary Vertical Crockmeter Method
132TM132 Colorfastness to Drycleaning
135TM135 Dimensional Changes of Fabrics after Home Laundering
158TM158 Dimensional Changes on Drycleaning in Perchloroethylene: Machine Method
172TM172 Colorfastness to Powedered Non-Chlorine Bleach in Home Laundering
EP1 Gray Scale for Color Change
This specification is under the jurisdiction of ASTM Committee D13 on Textiles and is the direct responsibility of Subcommittee D13.61 on Apparel.
Current edition approved Feb. 1, 2014Jan. 1, 2023. Published March 2014August 2023. Originally approved in 2010. Last previous edition approved in 20102014 as
D7507-10. DOI: 10.1520/D7507-14.-14. DOI: 10.1520/D7507-23.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
The last approved version of this historical standard is referenced on www.astm.org.
Available from American Association of Textile Chemists and Colorists (AATCC), P.O. Box 12215, Research Triangle Park, NC 27709, http://www.aatcc.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
D7507 − 23
EP2 Gray Scale for Staining
EP8 AATCC 9-Step Chromatic Transference Scale
M11 A Glossary of AATCC Standard Terminology
2.3 Other Documents:
16 CFR 1610 Standard for Flammability of Clothing Textiles
NOTE 1—Reference to test methods in this specification give only the permanent part of the designation of ASTM, AATCC, or other test methods. The
current editions of each test method cited shall prevail.
3. Terminology
3.1 Definitions: For definitions of textile terms used in this specification, refer to Terminology D123 and the AATCC Glossary.
3.1.1 woven high stretch fabric, n—woven fabrics with greater than 15 % elastic fiber content.
3.1 For all terminology related to Apparel see Terminology D7022.
3.1.1 The following terms are relevant to this standard: woven high stretch fabric.
3.2 For definitions of all other textile terms, refer to Terminology D123.
3.3 For terms relating to chemical or colorfastness testing, refer to specific AATCC test methods, or the Glossary of AATCC
Standard Terminology.
4. Significance and Use
4.1 Upon mutual agreement between the purchaser and the supplier, woven high stretch fabrics used in apparel should meet all
of the requirements listed in Table 1 of this specification.
4.2 It is recognized that, for purposes of fashion or aesthetics, the ultimate consumer of articles made from these fabrics may find
acceptable products that do not conform to all of the requirements listed in Table 1. Therefore, one or more of the requirements
in Table 1 may be modified by mutual agreement between the purchaser and the supplier.
4.2.1 In such cases, any references to the specifications should specify that: “This product meets ASTM specifications XXXX
except for the following characteristic(s).”
4.3 Where no pre-purchase agreement has been reached between the purchaser and supplier, and in case of controversy, the
requirements listed in Table 1 are intended to be used as a guide only. As noted in 4.2, ultimate consumer demands dictate varying
performance parameters for a particular product.
4.4 The uses and significance of particular properties and test methods are discussed in the appropriate sections of the specified
test methods.
5. Sampling
5.1 Acceptance Testing Lot—Unless agreed otherwise, consider as a lot for acceptance testing all material of a single item as a
single shipment.
5.2 Lot Samples and Laboratory Samples—For acceptance testing, take lot samples and laboratory samples as directed by each
of the applicable test methods.
5.3 Specimens—Take the number of specimens directed in each of the applicable test methods. Perform the tests on the finished
fabrics
...
