ASTM F2090-21

Standard Specification for Window Fall Prevention Devices With Emergency Escape (Egress) Release Mechanisms

ABSTRACT
This specification establishes the installation, safety, performance, and labeling requirements for devices intended to address the risk of injury and death associated with accidental falls from windows by children five years old and younger. It applies to window fall prevention devices that are to be used on any window, including those that are designated for emergency escape (egress) and rescue (ingress). It is, however, not intended to meet the unique requirements of the Americans with Disabilities Act (ADA).
SCOPE
1.1 This specification establishes requirements for devices intended to address the risk of injury and death associated with accidental falls through open windows by children five years old and younger.
1.2 This specification is not intended to meet the unique requirements of Americans With Disabilities Act (ADA).
1.3 This specification applies to window fall prevention devices, including window opening control devices (WOCDs), window fall prevention screens, and fall prevention window guards, that are to be used on operable windows, including those that are designated for emergency escape (egress) and rescue (ingress).
Note 1: A separate safety specification, Safety Specification F2006, covers window fall prevention devices for non-emergency escape (egress) and rescue (ingress) windows in installations more than 75 ft6 (23 m) above ground level in multiple family dwelling buildings since windows at these heights are beyond the reach of rescue ladders currently in use.
1.4 Window manufacturers who rely on a test report from the supplier of the window fall prevention device shall verify that the installation of the window fall prevention device (either installed by the window manufacturer prior to shipping of the window or provided by the window manufacturer as a field installed kit) on their specific window product operator type complies with this standard.
1.5 Partial compliance to this standard is not permitted. In order to claim compliance to this standard, all of the applicable requirements in the standard must be met.
1.6 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.7 This standard does not purport to address all safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and to determine the applicability of regulatory limitations prior to use.
1.8 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

• Status: Published
• Publication Date: 31-May-2021
• ICS: 91.060.50 - Doors and windows
• Technical Committee: F15 - Consumer Products
• Drafting Committee: F15.38 - Window Fall Prevention

Relations

• Refers: ASTM F977-12 - Standard Consumer Safety Specification for Infant Walkers
• Effective Date: 01-May-2012
• Refers: ASTM F977-11b - Standard Consumer Safety Specification for Infant Walkers
• Effective Date: 01-Dec-2011
• Refers: ASTM F1487-11 - Standard Consumer Safety Performance Specification for Playground Equipment for Public Use
• Effective Date: 15-Oct-2011
• Refers: ASTM F977-11a - Standard Consumer Safety Specification for Infant Walkers
• Effective Date: 26-Sep-2011
• Refers: ASTM F2006-10 - Standard Safety Specification for Window Fall Prevention Devices for Non-Emergency Escape (Egress) and Rescue (Ingress) Windows
• Effective Date: 15-Mar-2010
• Refers: ASTM F977-09 - Standard Consumer Safety Specification for Infant Walkers
• Effective Date: 01-Nov-2009
• Refers: ASTM F2006-08 - Standard Safety Specification for Window Fall Prevention Devices for Non-Emergency Escape (Egress) and Rescue (Ingress) Windows
• Effective Date: 01-Nov-2008
• Refers: ASTM F977-07 - Standard Consumer Safety Specification for Infant Walkers
• Effective Date: 01-Apr-2007
• Refers: ASTM F1487-07a - Standard Consumer Safety Performance Specification for Playground Equipment for Public Use
• Effective Date: 15-Mar-2007
• Refers: ASTM F1487-07ae1 - Standard Consumer Safety Performance Specification for Playground Equipment for Public Use
• Effective Date: 15-Mar-2007
• Refers: ASTM F1487-07 - Standard Consumer Safety Performance Specification for Playground Equipment for Public Use
• Effective Date: 01-Mar-2007
• Refers: ASTM F2006-00(2005) - Standard Safety Specification for Window Fall Prevention Devices for Non-Emergency Escape (Egress) and Rescue (Ingress) Windows
• Effective Date: 01-Nov-2005
• Refers: ASTM F1487-05 - Standard Consumer Safety Performance Specification for Playground Equipment for Public Use
• Effective Date: 15-Aug-2005
• Refers: ASTM F977-03 - Standard Consumer Safety Specification for Infant Walkers
• Effective Date: 10-Mar-2003
• Refers: ASTM F1487-01e1 - Standard Consumer Safety Performance Specification for Playground Equipment for Public Use
• Effective Date: 10-Jun-2001

Overview

ASTM F2090-21 is the Standard Specification for Window Fall Prevention Devices With Emergency Escape (Egress) Release Mechanisms, developed by ASTM International. This standard establishes the minimum requirements for the installation, safety, performance, and labeling of devices designed to reduce the risk of injury or death from accidental falls through open windows, particularly by children aged five years and younger. Notably, it applies to devices used on all operable windows, including those designated for emergency escape (egress) and rescue (ingress). The specification is not intended to address the unique requirements mandated by the Americans with Disabilities Act (ADA).

Key Topics

• Scope and Applicability: Covers window fall prevention devices such as window opening control devices (WOCDs), window fall prevention screens, and window guards, applicable to new and existing window installations.
• Safety Requirements: Details the need to limit window openings to a size that restricts passage of a 4-inch (102 mm) diameter rigid sphere, commonly used as a proxy to prevent child falls.
• Performance Testing: Establishes rigorous static load, impact (pendulum), and release mechanism tests to simulate real-world use conditions and ensure product durability and reliability.
• Emergency Escape (Egress) Release: Devices must include easily operable release mechanisms allowing adults to open the window for emergency exit or rescue without the need for keys, tools, or special knowledge.
• Labeling and Instructions: Specifies mandatory safety warnings and installation instructions to support compliant use and proper maintenance.
• Manufacturer Compliance: Ensures full conformance, prohibiting partial adherence to the standard, and requires verification by window manufacturers if relying on third-party test reports.

Applications

ASTM F2090-21 provides essential guidance for:

• Window Manufacturers: Ensures that integrated or field-installed window safety devices meet robust safety and performance benchmarks.
• Residential and Commercial Property Owners: Helps property managers, landlords, and homeowners select compliant window fall prevention solutions, especially in multi-story dwellings and locations where children are present.
• Installers and Contractors: Offers clear criteria and installation instructions to achieve effective fall prevention while maintaining emergency egress, in line with local building and fire codes.
• Safety Inspectors: Assists code officials and building inspectors in verifying that installed devices meet the applicable safety and labeling requirements.
• Parents and Caregivers: Provides reassurance that properly installed and maintained devices can meaningfully reduce the risk of child falls from windows, while reinforcing the importance of supervision.

By following ASTM F2090-21, stakeholders can confidently enhance window safety without restricting the functionality of emergency escape routes.

Related Standards

• ASTM F2006: Safety Specification for Window Fall Prevention Devices for Non-Egress Windows in high-rise buildings (above 75 feet/23 meters).
• ANSI Z535.4 / Z535.6: Cover product safety signs, labels, and instructions used in safety communications.
• ANSI Z97.1: Standard for impact performance of safety glazing materials in buildings.
• AAMA/WDMA/CSA 101/IS.2/A440: North American Fenestration Standard for windows, doors, and skylights.
• CPSC 16 CFR 1500.53 / 1508.6(b): Federal safety regulations for simulation of use and abuse of child products and crib safety.

For a comprehensive approach to window safety across different use cases, it is essential to consider these and other referenced standards together with ASTM F2090-21.

Keywords: ASTM F2090-21, window fall prevention, emergency egress, child window safety, WOCD, window guards, installation, building code compliance, safety labeling, window manufacturer, fall prevention screen.

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
Designation:F2090 −21
Standard Specification for
Window Fall Prevention Devices With Emergency Escape
(Egress) Release Mechanisms
This standard is issued under the fixed designation F2090; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
INTRODUCTION
This consumer safety specification addresses window fall prevention devices that protect against
potential falls by children aged five years and under through open windows. Window fall prevention
devices currently available include window opening control devices (WOCDs), window fall
prevention screens, and some types of window guards. These devices use different strategies to
prevent children from falling through open windows. Window opening control devices (WOCDs)
restrict the size of the open area of the window so that it is too small for a young child to fall through.
They do this by allowing the window opening to be set at a predetermined position. Window fall
prevention screens and fall prevention window guards provide a barrier to prevent a child from falling
through an open window.
A special study by the U.S. Consumer Product Safety Commission (CPSC) indicates that young
children are at risk of death and serious injury from falls through open windows. Children aged five
and younger account for a higher percentage of window fall fatalities and injuries.
Windowfallpreventiondevicesusuallydifferinpurposeandapplicationfromsecurity/burglarbars.
The general purpose of a window fall prevention device is to prevent a child age five or younger from
falling through an open window. The general purpose of a security bar is to prevent unlawful entry
through a window. Generally, window fall prevention devices and security bars are two separate
devices. Security bars are generally permanently in place, cannot be released, and therefore would not
be considered a window fall prevention device under this standard.
The CPSC has advised caregivers to open windows less than 4 in. when children are present as one
means to prevent child falls through open windows. Window opening control devices (WOCDs)
provide a means that the window, when opened in an initial operation, will satisfy the CPSC
recommendationtoopenlessthan4in. The4-in.dimensionisdrawnfromrelatedbuildingcodesand
standards for openings in guardrail assemblies, and is universally accepted as the appropriate
dimension to prevent a child from passing through balcony or guard railing systems. An additional
operation is required to open the window further.The additional operation must be performed without
the use of keys, tools, or special knowledge. Security from forced entry is not within the scope of this
standard and is not the intended function of any of the devices referred to herein.
The intent of this update to this standard is to add new subsections 1.4 and 1.5 to the Scope section
for window manufacturers who rely on supplier test reports and to clarify that all the applicable
requirements of the standard must be met to claim conformance to this standard.Another update is to
improvetheclarityin9.3.3regardingthevisibilityofoperatingmechanismsandcorrectatypoin12.2
replacing “hand tag” with “hang tag.”
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
F2090−21
1. Scope 1.8 This international standard was developed in accor-
dance with internationally recognized principles on standard-
1.1 This specification establishes requirements for devices
ization established in the Decision on Principles for the
intended to address the risk of injury and death associated with
Development of International Standards, Guides and Recom-
accidental falls through open windows by children five years
mendations issued by the World Trade Organization Technical
old and younger.
Barriers to Trade (TBT) Committee.
1.2 This specification is not intended to meet the unique
requirements of Americans With Disabilities Act (ADA).
2. Referenced Documents
1.3 This specification applies to window fall prevention
2.1 ASTM Standards:
devices, including window opening control devices (WOCDs),
F977 Consumer Safety Specification for Infant Walkers
window fall prevention screens, and fall prevention window
F1487 ConsumerSafetyPerformanceSpecificationforPlay-
guards, that are to be used on operable windows, including
ground Equipment for Public Use
those that are designated for emergency escape (egress) and
F2006 Safety Specification for Window Fall Prevention
rescue (ingress).
Devices for Non-Emergency Escape (Egress) and Rescue
(Ingress) Windows
NOTE 1—A separate safety specification, Safety Specification F2006,
covers window fall prevention devices for non-emergency escape (egress) 8
2.2 Code of Federal Regulations:
and rescue (ingress) windows in installations more than 75 ft (23 m)
16 CFR 1500.53 Test Methods for Simulating Use and
above ground level in multiple family dwelling buildings since windows
Abuse of Toys and Other Articles Intended for Use by
at these heights are beyond the reach of rescue ladders currently in use.
Children Over 36 But Not Over 96 Months of Age, (f)(3)
1.4 Window manufacturers who rely on a test report from
Testing Procedure
the supplier of the window fall prevention device shall verify
16 CFR 1508.6(b) Requirements for Full-Size Baby Cribs
that the installation of the window fall prevention device
CPSC 16 CFR Chapter II Part 1201 Safety Standard for
(either installed by the window manufacturer prior to shipping
Architectural Glazing Materials
of the window or provided by the window manufacturer as a
field installed kit) on their specific window product operator 2.3 ANSI Standards:
ANSI Z535.4 Product Safety Signs and Labels
type complies with this standard.
ANSI Z535.6 Product Safety Instructions in Product
1.5 Partial compliance to this standard is not permitted. In
Manuals, Instructions and Other Collateral Materials
order to claim compliance to this standard, all of the applicable
ANSI Z97.1 Safety Glazing Materials Used in Buildings —
requirements in the standard must be met.
Safety Performance Specifications and Methods of Test
1.6 The values stated in inch-pound units are to be regarded
(Tempered Glass Impact Test)
as standard. The values given in parentheses are mathematical
ANSI/BHMAA156.9 American National Standard for Cabi-
conversions to SI units that are provided for information only
net Hardware
and are not considered standard.
ANSI/SMA 1201 Specification for Insect Screens for
1.7 This standard does not purport to address all safety Windows, Sliding Doors and Swinging Doors
concerns, if any, associated with its use. It is the responsibility
2.4 AAMA Standards:
of the user of this standard to establish appropriate safety,
AAMA/WDMA/CSA 101/IS.2/A440 North American Fen-
health, and environmental practices and to determine the
estration Standard/Specification for Windows, Doors, and
applicability of regulatory limitations prior to use.
Skylights (NAFS)
AAMA 902 Voluntary Specification for Sash Balances
3. Terminology
This specification is under the jurisdiction of ASTM Committee F15 on
Consumer Products and is the direct responsibility of Subcommittee F15.38 on
3.1 Definitions of Terms Specific to This Standard:
Window Fall Prevention.
CurrenteditionapprovedJune1,2021.PublishedJuly2021.Originallyapproved 3.1.1 aftermarket, adj—referring to a product or device that
in 2001. Last previous edition approved in 2017 as F2090 – 17. DOI: 10.1520/
ismanufacturedseparatelyfromawindowbutisintendedtobe
F2090-21.
used in conjunction with a window; for purposes of this
U.S. Consumer Product Safety Commission, Special Window Falls Study,
standard, such a device is intended to be attached to or near a
conducted in 1991.
U.S. Consumer Product Safety Commission, Special Window Falls Study,
conducted in 1991 and “Window Safety: Data and Patterns Related to Entrapments
and Accidental Falls from Windows,” prepared by Andersen Corporation.
Supporting data have been filed atASTM International Headquarters and may be For referenced ASTM standards, visit the ASTM website, www.astm.org, or
obtained by requesting Research Report RR:F15-1002. Contact ASTM Customer contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM
Service at [e-mail]. Standards volume information, refer to the standard’s Document Summary page on
Consumer Product Safety Commission, “PreventingWindow Falls,” Document the ASTM website.
#5124. Code of Federal Regulations, available from U.S. Government Printing Office,
See NFPA 101, 2012 Edition, Section 7.2.2.4.5.3. Also see Section R312.1.3 Washington, DC 20402.
guard opening limitations in the 2018 and 2021 International Residential Code Available from American National Standards Institute (ANSI), 25 W. 43rd St.,
(IRC). 4th Floor, New York, NY 10036, http://www.ansi.org.
6 10
2006 International Building Code, Section 403.1, Special Provisions for Available from American Architectural Manufacturers Association, 1900 E.
Groups B and R1, January 2000. See 2021 International Building Code, Section Golf Road, Suite 1250, Schaumburg, IL 60173, http://www.aamanet.org/index.asp.
202, definition for High-Rise Building.

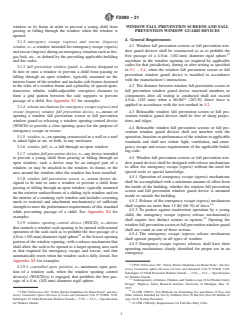

F2090−21
window or its frame in order to prevent a young child from WINDOW FALL PREVENTION SCREENS AND FALL
passing or falling through the window when the window is PREVENTION WINDOW GUARD DEVICES
opened.

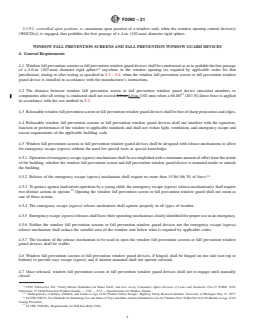

4. General Requirements
3.1.2 emergency escape (egress) and rescue (ingress)
4.1 Window fall prevention screens or fall prevention win-
window, n—a window intended for emergency escape (egress)
dow guard devices shall be constructed so as to prohibit the
andrescue(ingress)duringanemergencysituationsuchasfire,
free passage of a 4.0-in. (102-mm) diameter rigid sphere
gas leak, etc., as defined by the prevailing applicable building
anywhere in the window opening (as required by applicable
and fire codes.
codes for that jurisdiction), during or after testing as specified
3.1.3 fall prevention window guard, n—device designed to
in 5.1 – 5.4, when the window fall prevention screen or fall
fit into or onto a window to prevent a child from passing or
prevention window guard device is installed in accordance
falling through an open window; typically mounted on the
with the manufacturer’s instructions.
interior frame of the window and includes side frames fastened
4.2 The distance between window fall prevention screen or
to the sides of a window frame and a plurality of spaced-apart,
transverse, tubular, width-adjustable crosspiece elements to fall prevention window guard device structural members or
components after all testing is conducted shall not exceed
form a grid pattern between the side supports to prevent
passage of a child. See Appendix X3 for examples. 4.0 in. (102 mm) when a 60-lbf (267-N) direct force is
applied in accordance with the test method in 5.2.
3.1.4 release mechanism for emergency escape (egress) and
rescue (ingress) window fall prevention device, n—means of 4.3 Releasable window fall prevention screen or fall pre-
opening a window fall prevention screen or fall prevention vention window guard devices shall be free of sharp projec-
window guard or releasing a window opening control device tions and edges.
(WOCD) to provide a clear opening space for the purpose of
4.4 Releasable window fall prevention screens or fall pre-
emergency escape or rescue.
vention window guard devices shall not interfere with the
3.1.5 window, n—an opening constructed in a wall or a roof
operation,functionorperformanceofthewindowtoapplicable
to admit light or air, or both, to any enclosure.
standards and shall not violate light, ventilation, and emer-
gency escape and rescue requirements of the applicable build-
3.1.6 window fall, n—a fall through an open window.
ing code.
3.1.7 window fall prevention device, n—anydeviceintended
4.5 Window fall prevention screens or fall prevention win-
to prevent a young child from passing or falling through an
dow guard devices shall be designed with release mechanisms
open window; such a device may be an integral part of a
to allow for emergency escape (egress) without the need for
window, or may be attached to the window, its frame, or the
special tools or special knowledge.
area around the window after the window has been installed.
4.5.1 Operation of emergency escape (egress) mechanisms
3.1.8 window fall prevention screen, n—screen device de-
shall be accomplished with a minimum amount of effort from
signed to fit into or onto a window to prevent a child from
the inside of the building, whether the window fall prevention
passing or falling through an open window; typically mounted
screen and fall prevention window guard device is mounted
on the exterior surface/frame of a sliding style window and on
inside or outside the building.
the interior of a cranking style window and includes screening
4.5.2 Release of the emergency escape (egress) mechanism
mesh or material and attachment mechanism(s) of sufficient
shall require no more than 15 lbf (66 N) of force.
strength to meet the performance requirements of this standard
4.5.3 To protect against inadvertent operation by a young
while preventing passage of a child. See Appendix X4 for
child, the emergency escape (egress) release mechanism(s)
examples.
shall require two distinct actions to operate. Opening the
3.1.9 window opening control device (WOCD), n—device
windowfallpreventionscreenorfallpreventionwindowguard
that controls a window sash opening to be opened with normal
shall not count as one of these actions.
operation of the sash such as to prohibit the free passage of a
4.5.4 The emergency escape (egress) release mechanism
4.0-in. (102-mm) diameter rigid sphere at the lowest opening
shall operate properly in all types of weather.
portion of the window opening, with a release mechanism that
4.5.5 Emergency escape (egress) releases shall have their
shall allow the sash to be opened to a larger opening area such
operating mechanisms clearly identified for proper use in an
as that required for emergency escape and rescue, and that
emergency.
automatically resets when the window sash is fully closed. See
Appendix X5 for examples.
CPSC Publication 362, “Safety Barrier Guidelines for Home Pools” and New
3.1.9.1 controlled open position, n—maximum open posi-
Jersey Community Affairs Division of Codes and Standards, Cite 27 N.M.R. 3150,
tion of a window sash, when the window opening control
Subchapter 27 Child-Protection Window Guards — 5:10 — 27.4 — Specifications
device(s) (WOCD(s)) is engaged, that prohibits the free pas- for Window Guards.
“Anthropometry of Infants, Children, andYouths toAge 18 for Product Safety
sage of a 4-in. (102-mm) diameter rigid sphere.
Design,” Highway Safety Research Institute, University of Michigan, May 31,
1977.
CPSC Publication 362, “Safety Barrier Guidelines for Home Pools” and New 16 CFR 1500.53, Test Methods for Simulating Use and Abuse of Toys and
Jersey Community Affairs Division of Codes and Standards, Cite 27 N.M.R. 3150, Other Articles Intended for Use by Children Over 36 But Not Over 96 Months of
Subchapter 27 Child-Protection Window Guards — 5:10 — 27.4 — Specifications Age, (f)(3) Testing Procedure.
for Window Guards. 16 CFR 1508.6(b), Requirements for Full-Size Baby Cribs.
F2090−21

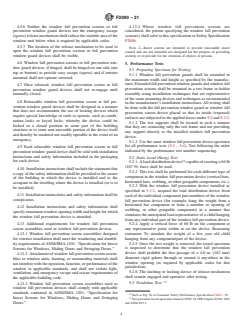

4.5.6 Neither the window fall prevention screens or fall 4.13.4 Where window fall prevention screens are
prevention window guard devices nor the emergency escape considered, the person specifying the window fall prevention
(egress)releasemechanismshallreducetheexitableareaofthe screen(s) shall refer to this specification or Safety Specification
window unit below what is required by applicable codes. F2006.
4.5.7 The location of the release mechanism to be used to
NOTE 2—Insect screens are intended to provide reasonable insect
open the window fall prevention screens or fall prevention
control and are not intended nor designed for the purpose of providing
security or to provide for the retention of objects or persons.
window guard devices shall be visible.
4.6 Window fall prevention screens or fall prevention win-
5. Performance Tests
dow guard devices, if hinged, shall be hinged on one side (not
5.1 Preparing Specimen for Testing:
top or bottom) to provide easy escape (egress) and if interior
5.1.1 Window fall prevention guards shall be extended to
mounted shall not operate outward.
the maximum width and height as specified by the manufac-
turer.Extendedfallpreventionwindowguardsandwindowfall
4.7 Once released, window fall prevention screen or fall
prevention screens shall be mounted in a test frame or holder
prevention window guard devices shall not re-engage until
assembly using installation techniques that are representative
manually closed.
of the same mounting devices and techniques as recommended
4.8 Releasable window fall prevention screen or fall pre-
in the manufacturer’s installation instructions.All testing shall
vention window guard devices shall be designed in a manner
be done with the fall prevention window guard or window fall
that does not accommodate the use of locking devices which
prevention screen device placed so that its inside (exposed)
require special knowledge or tools to operate, such as combi-
surfacesaresubjectedtotheappliedforcesunder5.2and5.3.3.
nation locks or keyed locks, whereby the device could be
5.1.2 The test supports shall be located in such a manner
locked in a closed position to some part of the building
that they are contacting only the test frame and not providing
structure or to some non-moveable portion of the device itself
any support directly to the installed window fall prevention
and thereby be rendered not readily operable in the event of an
device.
emergency.
5.1.3 Use the same window fall prevention device specimen
for all performance tests (5.2 – 5.4). Test following the order
4.9 Each releasable window fall prevention screen or fall
indicated by the performance test number sequencing.
prevention window guard device shall be sold with installation
instructions and safety information included in the packaging
5.2 Static Load (Hang) Test:
for each device.
5.2.1 Aloaddistributiondevice capableofexertinga60lb
(267 N) force shall be used.
4.10 Installation instructions shall include the statement that
5.2.2 This test shall be performed for each different type of
a copy of the safety information shall be provided to the owner
component in the window fall prevention device (vertical bars,
of the building in which the device is installed and to the
horizontal bars, webbing, or other graspable components, etc.).
occupant in the dwelling where the device is installed (or is to
5.2.3 With the window fall prevention device installed as
be installed).
specified in 5.1.1, suspend the load distribution device from
4.11 Installation instructions and safety information shall be
each of the individual component part members of the window
conspicuous.
fall prevention device (for example, hang the weight from a
horizontal bar component or from a member or opening of
4.12 Installation instructions and safety information shall
webbing, or other graspable component) in a manner that
specify maximum window opening width and height for which
simulates the anticipated load representative of a child hanging
the window fall prevention device is intended.
from any individual part of the window fall prevention device.
4.13 Additional requirements for window fall prevention
5.2.4 Apply a vertical force of 60 lb on the component at
screen assemblies used as window fall prevention devices.
any representative point within or on the device. Reasoning
4.13.1 Window fall prevention screen assemblies designed statement: To simulate the weight of a five year old child
hanging from any component/part of the device.
for exterior installation shall meet the weathering and durabil-
ity requirements ofANSI/SMA1201: “Specification for Insect 5.2.5 Once the test weight is removed, the tested specimen
is inspected to determine that the window fall prevention
Screens for Windows, Sliding Doors and Swinging Doors.”
device shall prohibit the free passage of a 4.0 in. (102 mm)
4.13.2 Attachment of window fall prevention screen assem-
diameter rigid sphere through or around it anywhere in the
blies to window units, framing, or surrounding materials shall
window opening (as required by applicable codes for that
notinterferewiththeoperation,function,orperformanceofthe
jurisdiction).
window to applicable standards, and shall not violate light,
5.2.6 The latching or locking device of release mechanism
ventilation, and emergency escape and rescue requirements of
shall remain engaged and operative after testing.
the applicable building code.
5.3 Pendulum Test:
4.13.3 Window fall prevention screen assemblies used as
window fall prevention devices shall comply with applicable
standards contained in ANSI/SMA 1201: “Specification for
Such as Fig. 36 of Consumer Safety Performance Specification F1487 – 95.
Insect Screens for Windows, Sliding Doors and Swinging
Test procedure based upon data found in CPSC 16 CFR Chapter II Part 1201
Doors.” and ANSI Z97.1.
F2090−21
5.3.1 Rationale—This test is based on subjecting the win- 5.4.1.1 Neither of the two distinct actions necessary to
dow fall prevention screen or fall prevention window guard activate the release mechanism shall require a force greater
device to 100 ft-lb (136 J) of energy. This is the energy that than 15 lbf (66 N).
would be generated by a 50-lb (22.7-kg) child (95th percentile 5.4.2 The window fall prevention device shall open
5-year-old) falling directly onto the window fall prevention promptly after the release mechanism has been activated.
devicefromaheightof2ftorrunningdirectlyintothewindow 5.4.3 Re-secure window fall prevention device into a closed
fall prevention device at a speed of 11.4 ft/s (3.48 m/s) position.
(approximately 50th percentile 6-year-old sprint speed; 6 years 5.4.4 Perform this procedure for a total of five times with
18 20
is the youngest age for which data are available). zero failures within a 2-min period. The release mechanism
shall not fail to operate.
NOTE3—100ft-lbisareasonablystringentcriterion.If,whilebouncing
on a bed for instance, the child fell against the window fall prevention
6. Safety Information
device, it is not likely that all of the energy from such a fall would be
directed straight into the window fall prevention device, as it is in the
6.1 Safety information shall be distinct from the Installation
testing situation. In addition, the window fall prevention device is not
Instructions. Safety information shall be headed “IMPOR-
intended to protect against an intentional all-out effort on the part of the
TANT SAFETY INFORMATION” and shall contain a note of
child to run through the window fall prevention device.
attention to the installer to leave the safety information behind
5.3.2 Test Objective—The test determines the fall preven-
for the occupant.
tion device’s resistance to allowing an opening to develop that
6.2 Safetyinformationshallincludeatleasttheinformation,
would permit a child to pass through after being impacted.The
signal word panels, and graphics contained in 6.4, 6.5, and 6.6.
fall prevention device must not have an opening larger than the
(Sample safety information is included in Appendix X2.)
maximum space as prescribed by 4.1. If such a space is found
after the test, this will constitute failure of the device.
6.3 Safety information shall specify that window fall pre-
5.3.3 Test Procedure:
vention devices, including window fall prevention screens, or
5.3.3.1 The fall prevention device is mounted into the test fall prevention window guards (Note to manufacturers: Use
whatever term applies to your device) shall be installed in such
fixture utilizing the manufacturer’s written installation instruc-
tions. a manner that, after the device is installed and engaged, no
space shall exist anywhere in the window opening (as required
5.3.3.2 The impactor (100 lb) (45.3 kg), such as in Figures
by applicable codes for that jurisdiction) that would permit the
2 and 3 fromANSI Z97.1 (see Appendix X1), is prepared and
passage of a rigid sphere measuring 4.0 in. (102 mm) in
mounted to the test fixture cable so that when at rest it is no
diameter.
farther than 2 in. (50 mm) away from the horizontal and
6.3.1 The safety information in 6.4, 6.5 and 6.6 shall be
vertical center of the window fall prevention device.
headedbyasignalwordpanel(seebelow)andshallcontainthe
5.3.3.3 Theimpactorispulledawayfromthespecimenuntil
word “WARNING” in upper case letters, preceded by a safety
the bottom of the impactor rises to the vertical distance of
alert symbol consisting of an exclamation mark inside a solid
12 in. (300 mm) above the at rest position.
equilateral triangle background with the point of the triangle
5.3.3.4 When all motion has stopped, the impactor is
oriented upward. The word “WARNING” and the safety alert
released and allowed to impact once into the test specimen.
symbol shall be centered on one line and shall be in letters at
5.3.3.5 Once the impact is completed and the test weight is
least ⁄16 in. (7.9 mm) high.
removed, the tested specimen shall prohibit the free passage of
a 4.0-in. (102-mm) diameter rigid sphere through or around it
"WARNING
anywhere in the window opening (as required by applicable
6.4 Thesafetyinformationshallincludethestatementofthe
codes for that jurisdiction).
th
hazard,“NoWindowRescueAbove75ft(6 Floor),”andshall
5.3.3.6 The latching or locking device of the release mecha-
contain the following information:
nism shall remain engaged and operative after testing.
5.4 Release Mechanism Test:
"WARNING
th
5.4.1 Apply a force of no greater than 15 lbf (66 N) in the
No Window Rescue Above 75 ft (6 Floor)
th
direction normally associated with opening (releasing) the
• Fire rescue ladder may not reach beyond 75 ft (6 floor).
th
release mechanism of the window fall prevention device in
• Do not rely on being rescued from windows above 75 ft (6
accordance with manufacturer’s instructions.
floor). Follow
...

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: F2090 − 17 F2090 − 21
Standard Specification for
Window Fall Prevention Devices With Emergency Escape
(Egress) Release Mechanisms
This standard is issued under the fixed designation F2090; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
INTRODUCTION
This consumer safety specification addresses window fall prevention devices that protect against
potential falls by children aged five years and under through open windows. Window fall prevention
devices currently available include window opening control devices (WOCDs), window fall
prevention screens, and some types of window guards. These devices use different strategies to
prevent children from falling through open windows. Window opening control devices (WOCDs)
restrict the size of the open area of the window so that it is too small for a young child to fall through.
They do this by allowing the window opening to be set at a predetermined position. Window fall
prevention screens and fall prevention window guards provide a barrier to prevent a child from falling
through an open window.
A special study by the U.S. Consumer Product Safety Commission (CPSC) indicates that young
children are at risk of death and serious injury from falls through open windows. Children aged five
and younger account for a higher percentage of window fall fatalities and injuries.
Window fall prevention devices usually differ in purpose and application from security/burglar bars.
The general purpose of a window fall prevention device is to prevent a child age five or younger from
falling through an open window. The general purpose of a security bar is to prevent unlawful entry
through a window. Generally, window fall prevention devices and security bars are two separate
devices. However, a security bar could be used as a Security bars are generally permanently in place,
cannot be released, and therefore would not be considered a window fall prevention device if it meets
the requirements of this specification. under this standard.
The CPSC has advised caregivers to open windows less than 4 in. when children are present as one
means to prevent child falls through open windows. Window opening control devices (WOCDs)
provide a means that the window, when opened in an initial operation, will satisfy the CPSC
recommendation to open less than 4 in. The 4-in. dimension is drawn from related building codes and
standards for openings in guardrail assemblies, and is universally accepted as the appropriate
dimension to prevent a child from passing through balcony or guard railing systems. An additional
operation is required to open the window further. The additional operation must be performed without
the use of keys, tools, or special knowledge. Security from forced entry is not within the scope of this
standard and is not the intended function of any of the devices referred to herein.
This specification is under the jurisdiction of ASTM Committee F15 on Consumer Products and is the direct responsibility of Subcommittee F15.38 on Window Fall
Prevention.
Current edition approved Nov. 1, 2017June 1, 2021. Published November 2017July 2021. Originally approved in 2001. Last previous edition approved in 20132017 as
F2090 – 13.F2090 – 17. DOI: 10.1520/F2090-17.10.1520/F2090-21.
U.S. Consumer Product Safety Commission, Special Window Falls Study, conducted in 1991.
U.S. Consumer Product Safety Commission, Special Window Falls Study, conducted in 1991 and “Window Safety: Data and Patterns Related to Entrapments and
Accidental Falls from Windows,” prepared by Andersen Corporation.
Supporting data have been filed at ASTM International Headquarters and may be obtained by requesting Research Report RR:F15-1002. Contact ASTM Customer Service
at [e-mail].
Consumer Product Safety Commission, “Preventing Window Falls,” Document #5124.
See NFPA 101, 2012 Edition, Section 7.2.2.4.5.3. Also see Section R312.1.3 guard opening limitations in the 20122018 and 20152021 International Residential Code
(IRC).
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
F2090 − 21
The intent of this update to this standard is to add new subsections 1.4 and 1.5the standard to the
Scope section for window manufacturers who rely on supplier test reports and to clarify that all the
applicable requirements of the standard must be met to claim conformance to this standard. Another
update is to improve the clarity of performancein 9.3.3 and labeling requirements and to reorganize
the sections such that the general requirements, performance tests, safety information, labeling
requirements, and installation instructions are separated byregarding the visibility of operating
mechanisms and correct a typo in 12.2 device type.replacing “hand tag” with “hang tag.”
1. Scope
1.1 This specification establishes requirements for devices intended to address the risk of injury and death associated with
accidental falls through open windows by children five years old and younger.
1.2 This specification is not intended to meet the unique requirements of Americans With Disabilities Act (ADA).
1.3 This specification applies to window fall prevention devices, including window opening control devices (WOCDs), window
fall prevention screens, and fall prevention window guards, that are to be used on operable windows, including those that are
designated for emergency escape (egress) and rescue (ingress).
NOTE 1—A separate safety specification, Safety Specification F2006, covers window fall prevention devices for non-emergency escape (egress) and rescue
(ingress) windows in installations more than 75 ft (23 m) above ground level in multiple family dwelling buildings since windows at these heights are
beyond the reach of rescue ladders currently in use.
1.4 Window manufacturers who rely on a test report from the supplier of the window fall prevention device shall verify that the
installation of the window fall prevention device (either installed by the window manufacturer prior to shipping of the window or
provided by the window manufacturer as a field installed kit) on their specific window product operator type complies with this
standard.
1.5 Partial compliance to this standard is not permitted. In order to claim compliance to this standard, all of the applicable
requirements in the standard must be met.
1.6 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical
conversions to SI units that are provided for information only and are not considered standard.
1.7 This standard does not purport to address all safety concerns, if any, associated with its use. It is the responsibility of the
user of this standard to establish appropriate safety, health, and environmental practices and to determine the applicability of
regulatory limitations prior to use.
1.8 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
F977 Consumer Safety Specification for Infant Walkers
F1487 Consumer Safety Performance Specification for Playground Equipment for Public Use
F2006 Safety Specification for Window Fall Prevention Devices for Non-Emergency Escape (Egress) and Rescue (Ingress)
Windows
2.2 Code of Federal Regulations:
16 CFR 1500.53 Test Methods for Simulating Use and Abuse of Toys and Other Articles Intended for Use by Children Over
36 But Not Over 96 Months of Age, (f)(3) Testing Procedure
2006 International Building Code, Section 403.1, Special Provisions for Groups B and R1, January 2000. See 2021 International Building Code, Section 202, definition
for High-Rise Building.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Code of Federal Regulations, available from U.S. Government Printing Office, Washington, DC 20402.
F2090 − 21
16 CFR 1508.6(b) Requirements for Full-Size Baby Cribs
CPSC 16 CFR Chapter II Part 1201 Safety Standard for Architectural Glazing Materials
2.3 ANSI Standards:
ANSI Z535.4 Product Safety Signs and Labels
ANSI Z535.6 Product Safety Instructions in Product Manuals, Instructions and Other Collateral Materials
ANSI Z97.1 Safety Glazing Materials Used in Buildings — Safety Performance Specifications and Methods of Test (Tempered
Glass Impact Test)
ANSI/BHMA A156.9 American National Standard for Cabinet Hardware
ANSI/SMA 1201 Specification for Insect Screens for Windows, Sliding Doors and Swinging Doors
2.4 AAMA Standards:
AAMA/WDMA/CSA 101/IS.2/A440 North American Fenestration Standard/Specification for Windows, Doors, and Skylights
(NAFS)
AAMA 902 Voluntary Specification for Sash Balances
3. Terminology
3.1 Definitions of Terms Specific to This Standard:
3.1.1 aftermarket, adj—referring to a product or device that is manufactured separately from a window but is intended to be used
in conjunction with a window. Forwindow; for purposes of this standard, such a device is intended to be attached to or near a
window or its frame in order to prevent a young child from passing or falling through the window when the window is opened.
3.1.2 emergency escape (egress) and rescue (ingress) window, n—a window intended for emergency escape (egress) and rescue
(ingress) during an emergency situation such as fire, gas leak, etc., as defined by the prevailing applicable building and fire codes.
3.1.3 fall prevention window guard, n—device designed to fit into or onto a window to prevent a child from passing or falling
through an open window. Typicallywindow; typically mounted on the interior frame of the window and includes side frames
fastened to the sides of a window frame and a plurality of spaced-apart, transverse, tubular, width-adjustable crosspiece elements
to form a grid pattern between the side supports to prevent passage of a child. See Appendix X3 for examples.
3.1.4 release mechanism for emergency escape (egress) and rescue (ingress) window fall prevention device, n—means of opening
a window fall prevention screen or fall prevention window guard or releasing a window opening control device (WOCD) to
provide a clear opening space for the purpose of emergency escape or rescue.
3.1.5 window, n—an opening constructed in a wall or a roof to admit light or air, or both, to any enclosure.
3.1.6 window fall, n—a fall through an open window.
3.1.7 window fall prevention device, n—any device intended to prevent a young child from passing or falling through an open
window. Suchwindow; such a device may be an integral part of a window, or may be attached to the window, its frame, or the area
around the window after the window has been installed.
3.1.8 window fall prevention screen, n—screen device designed to fit into or onto a window to prevent a child from passing or
falling through an open window. Typicallywindow; typically mounted on the exterior surface/frame of a sliding style window and
on the interior of a cranking style window and includes screening mesh or material and attachment mechanism(s) of sufficient
strength to meet the performance requirements of this standard while preventing passage of a child. See Appendix X4 for
examples.
3.1.9 window opening control device (WOCD), n—device that controls a window sash opening to be opened with normal operation
of the sash such as to prohibit the free passage of a 4.0-in. (102-mm) diameter rigid sphere at the lowest opening portion of the
window opening, with a release mechanism that shall allow the sash to be opened to a larger opening area such as that required
for emergency escape and rescue, and that automatically resets when the window sash is fully closed. See Appendix X5 for
examples.
Available from American National Standards Institute (ANSI), 25 W. 43rd St., 4th Floor, New York, NY 10036, http://www.ansi.org.
Available from American Architectural Manufacturers Association, 1900 E. Golf Road, Suite 1250, Schaumburg, IL 60173, http://www.aamanet.org/index.asp.
CPSC Publication 362, “Safety Barrier Guidelines for Home Pools” and New Jersey Community Affairs Division of Codes and Standards, Cite 27 N.M.R. 3150,
Subchapter 27 Child-Protection Window Guards — 5:10 — 27.4 — Specifications for Window Guards.
F2090 − 21
3.1.9.1 controlled open position, n—maximum open position of a window sash, when the window opening control device(s)
(WOCD(s)) is engaged, that prohibits the free passage of a 4-in. (102-mm) diameter rigid sphere.
WINDOW FALL PREVENTION SCREENS AND FALL PREVENTION WINDOW GUARD DEVICES
4. General Requirements
4.1 Window fall prevention screens or fall prevention window guard devices shall be constructed so as to prohibit the free passage
of a 4.0-in. (102-mm) diameter rigid sphere anywhere in the window opening (as required by applicable codes for that
jurisdiction), during or after testing as specified in 5.1 – 5.4, when the window fall prevention screen or fall prevention window
guard device is installed in accordance with the manufacturer’s instructions.
4.2 The distance between window fall prevention screen or fall prevention window guard device structural members or
components after all testing is conducted shall not exceed 4.0 in. 4.0 in. (102 mm) when a 60-lbf (267-N) direct force is applied
in accordance with the test method in 5.2.
4.3 Releasable window fall prevention screen or fall prevention window guard devices shall be free of sharp projections and edges.
4.4 Releasable window fall prevention screens or fall prevention window guard devices shall not interfere with the operation,
function or performance of the window to applicable standards and shall not violate light, ventilation, and emergency escape and
rescue requirements of the applicable building code.
4.5 Window fall prevention screens or fall prevention window guard devices shall be designed with release mechanisms to allow
for emergency escape (egress) without the need for special tools or special knowledge.
4.5.1 Operation of emergency escape (egress) mechanisms shall be accomplished with a minimum amount of effort from the inside
of the building, whether the window fall prevention screen and fall prevention window guard device is mounted inside or outside
the building.
4.5.2 Release of the emergency escape (egress) mechanism shall require no more than 15 lbf (66 N) of force.
4.5.3 To protect against inadvertent operation by a young child, the emergency escape (egress) release mechanism(s) shall require
two distinct actions to operate. Opening the window fall prevention screen or fall prevention window guard shall not count as
one of these actions.
4.5.4 The emergency escape (egress) release mechanism shall operate properly in all types of weather.
4.5.5 Emergency escape (egress) releases shall have their operating mechanisms clearly identified for proper use in an emergency.
4.5.6 Neither the window fall prevention screens or fall prevention window guard devices nor the emergency escape (egress)
release mechanism shall reduce the exitable area of the window unit below what is required by applicable codes.
4.5.7 The location of the release mechanism to be used to open the window fall prevention screens or fall prevention window
guard devices shall be visible.
4.6 Window fall prevention screens or fall prevention window guard devices, if hinged, shall be hinged on one side (not top or
bottom) to provide easy escape (egress) and if interior mounted shall not operate outward.
4.7 Once released, window fall prevention screen or fall prevention window guard devices shall not re-engage until manually
closed.
CPSC Publication 362, “Safety Barrier Guidelines for Home Pools” and New Jersey Community Affairs Division of Codes and Standards, Cite 27 N.M.R. 3150,
Subchapter 27 Child-Protection Window Guards — 5:10 — 27.4 — Specifications for Window Guards.
“Anthropometry of Infants, Children, and Youths to Age 18 for Product Safety Design,” Highway Safety Research Institute, University of Michigan, May 31, 1977.
16 CFR 1500.53, Test Methods for Simulating Use and Abuse of Toys and Other Articles Intended for Use by Children Over 36 But Not Over 96 Months of Age, (f)(3)
Testing Procedure.
16 CFR 1508.6(b), Requirements for Full-Size Baby Cribs.
F2090 − 21
4.8 Releasable window fall prevention screen or fall prevention window guard devices shall be designed in a manner that does
not accommodate the use of locking devices which require special knowledge or tools to operate, such as combination locks or
keyed locks, whereby the device could be locked in a closed position to some part of the building structure or to some
non-moveable portion of the device itself and thereby be rendered not readily operable in the event of an emergency.
4.9 Each releasable window fall prevention screen or fall prevention window guard device shall be sold with installation
instructions and safety information included in the packaging for each device.
4.10 Installation instructions shall include the statement that a copy of the safety information shall be provided to the owner of
the building in which the device is installed and to the occupant in the dwelling where the device is installed (or is to be installed).
4.11 Installation instructions and safety information shall be conspicuous.
4.12 Installation instructions and safety information shall specify maximum window opening width and height for which the
window fall prevention device is intended.
4.13 Additional requirements for window fall prevention screen assemblies used as window fall prevention devices.
4.13.1 Window fall prevention screen assemblies designed for exterior installation shall meet the weathering and durability
requirements of ANSI/SMA 1201: “Specification for Insect Screens for Windows, Sliding Doors and Swinging Doors.”
4.13.2 Attachment of window fall prevention screen assemblies to window units, framing, or surrounding materials shall not
interfere with the operation, function, or performance of the window to applicable standards, and shall not violate light, ventilation,
and emergency escape and rescue requirements of the applicable building code.
4.13.3 Window fall prevention screen assemblies used as window fall prevention devices shall comply with applicable standards
contained in ANSI/SMA 1201: “Specification for Insect Screens for Windows, Sliding Doors and Swinging Doors.”
4.13.4 Where window fall prevention screens are considered, the person specifying the window fall prevention screen(s) shall
refer to this specification or Safety Specification F2006.
NOTE 2—Insect screens are intended to provide reasonable insect control and are not intended nor designed for the purpose of providing security or to
provide for the retention of objects or persons.
5. Performance Tests
5.1 Preparing Specimen for Testing:
5.1.1 Window fall prevention guards shall be extended to the maximum width and height as specified by the manufacturer.
Extended fall prevention window guards and window fall prevention screens shall be mounted in a test frame or holder assembly
using installation techniques that are representative of the same mounting devices and techniques as recommended in the
manufacturer’s installation instructions. All testing shall be done with the fall prevention window guard or window fall prevention
screen device placed so that its inside (exposed) surfaces are subjected to the applied forces under 5.2 and 5.3.3.
5.1.2 The test supports shall be located in such a manner that they are contacting only the test frame and not providing any support
directly to the installed window fall prevention device.
5.1.3 Use the same window fall prevention device specimen for all performance tests (5.2 – 5.4). Test following the order indicated
by the performance test number sequencing.
5.2 Static Load (Hang) Test:
F2090 − 21
5.2.1 A load distribution device capable of exerting a 60 lb (267 N) force shall be used.
5.2.2 This test shall be performed for each different type of component in the window fall prevention device (vertical bars,
horizontal bars, webbing, or other graspable components, etc.).
5.2.3 With the window fall prevention device installed as specified in 5.1.1, suspend the load distribution device from each of the
individual component part members of the window fall prevention device (for example, hang the weight from a horizontal bar
component or from a member or opening of webbing, or other graspable component) in a manner that simulates the anticipated
load representative of a child hanging from any individual part of the window fall prevention device.
5.2.4 Apply a vertical force of 60 lb on the component at any representative point within or on the device. Reasoning statement:
To simulate the weight of a five year old child hanging from any component/part of the device.
5.2.5 Once the test weight is removed, the tested specimen is inspected to determine that the window fall prevention device shall
prohibit the free passage of a 4.0 in. (102 mm) diameter rigid sphere through or around it anywhere in the window opening (as
required by applicable codes for that jurisdiction).
5.2.6 The latching or locking device of release mechanism shall remain engaged and operative after testing.
5.3 Pendulum Test:
5.3.1 Rationale—This test is based on subjecting the window fall prevention screen or fall prevention window guard device to 100
ft-lb (136 J) of energy. This is the energy that would be generated by a 50-lb (22.7-kg) child (95th percentile 5-year-old) falling
directly onto the window fall prevention device from a height of 2 ft or running directly into the window fall prevention device
at a speed of 11.4 ft/s (3.48 m/s) (approximately 50th percentile 6-year-old sprint speed; 6 years is the youngest age for which data
are available).
NOTE 3—100 ft-lb is a reasonably stringent criterion. If, while bouncing on a bed for instance, the child fell against the window fall prevention device,
it is not likely that all of the energy from such a fall would be directed straight into the window fall prevention device, as it is in the testing situation.
In addition, the window fall prevention device is not intended to protect against an intentional all-out effort on the part of the child to run through the
window fall prevention device.
5.3.2 Test Objective—The test determines the fall prevention device’s resistance to allowing an opening to develop that would
permit a child to pass through after being impacted. The fall prevention device must not have an opening larger than the maximum
space as prescribed by 4.1. If such a space is found after the test, this will constitute failure of the device.
5.3.3 Test Procedure:
5.3.3.1 The fall prevention device is mounted into the test fixture utilizing the manufacturer’s written installation instructions.
5.3.3.2 The impactor (100 lb) (45.3 kg), such as in Figures 2 and 3 from ANSI Z97.1 (see Appendix X1), is prepared and mounted
to the test fixture cable so that when at rest it is no farther than 2 in. (50 mm) away from the horizontal and vertical center of the
window fall prevention device.
5.3.3.3 The impactor is pulled away from the specimen until the bottom of the impactor rises to the vertical distance of 12 in. 12 in.
(300 mm) above the at rest position.
5.3.3.4 When all motion has stopped, the impactor is released and allowed to impact once into the test specimen.
5.3.3.5 Once the impact is completed and the test weight is removed, the tested specimen shall prohibit the free passage of a 4.0-in.
(102-mm) diameter rigid sphere through or around it anywhere in the window opening (as required by applicable codes for that
jurisdiction).
Such as Fig. 36 of Consumer Safety Performance Specification F1487–95. – 95.
Test procedure based upon data found in CPSC 16 CFR Chapter II Part 1201 and ANSI Z97.1.
Maximum Running Speed 167, Childata The Handbook of Child Measurements and Capabilities – Data for Design Safety, Department of Trade and Industry, UK, June
1995, Beverley Norris and John R. Wilson, Eds., Institute for Occupational Ergonomics, Department of Manufacturing Engineering and Operations Management, University
of Nottingham, University Park, Nottingham NG7 2RD, UK.
F2090 − 21
5.3.3.6 The latching or locking device of the release mechanism shall remain engaged and operative after testing.
5.4 Release Mechanism Test:
5.4.1 Apply a force of no greater than 15 lbf (66 N) in the direction normally associated with opening (releasing) the release
mechanism of the window fall prevention device in accordance with manufacturer’s instructions.
5.4.1.1 Neither of the two distinct actions necessary to activate the release mechanism shall require a force greater than 15 lbf (66
N).
5.4.2 The window fall prevention device shall open promptly after the release mechanism has been activated.
5.4.3 Re-secure window fall prevention device into a closed position.
5.4.4 Perform this procedure for a total of five times with zero failures within a 2-min period. The release mechanism shall not
fail to operate.
6. Safety Information
6.1 Safety information shall be distinct from the Installation Instructions. Safety information shall be headed “IMPORTANT
SAFETY INFORMATION” and shall contain a note of attention to the installer to leave the safety information behind for the
occupant.
6.2 Safety information shall include at least the information, signal word panels, and graphics contained in 6.4, 6.5, and 6.6.
(Sample safety information is included in Appendix X2.)
6.3 Safety information shall specify that window fall prevention devices, including window fall prevention screens, or fall
prevention window guards (Note to manufacturers: Use whatever term applies to your device) shall be installed in such a manner
that, after the device is installed and engaged, no space shall exist anywhere in the window opening (as required by applicable
codes for that jurisdiction) that would permit the passage of a rigid sphere measuring 4.0 in. (102 mm) in diameter.
6.3.1 The safety information in 6.4, 6.5 and 6.6 shall be headed by a signal word panel (see below) and shall contain the word
“WARNING” in upper case letters, preceded by a safety alert symbol consisting of an exclamation mark inside a solid equilateral
triangle background with the point of the triangle oriented upward. The word
...
