ASTM D3774-18
(Test Method)Standard Test Method for Width of Textile Fabric
General Information
- Abstract
SIGNIFICANCE AND USE
5.1 Option A procedures of Test Method D3774 for width are considered satisfactory for acceptance testing of commercial shipments because they are used extensively in the trade.
5.1.1 In case of a dispute arising from differences in reported test values when using Test Method D3774 for acceptance testing of commercial shipments, the purchaser and the supplier should conduct comparative tests to determine if there is a statistical bias between their laboratories. Competent statistical assistance is recommended for the investigation of bias. As a minimum, the two parties should take a group of test specimens which are as homogeneous as possible and which are from a lot of material of the type in question. The test specimens should then be randomly assigned in equal numbers to each laboratory for testing. The average results from the two laboratories should be compared using Student's t-test for unpaired data and an acceptable probability level chosen by the two parties before testing is begun. If a bias is found, either its cause must be found and corrected or the purchaser and the supplier must agree to interpret future test results in the light of the known bias.
SCOPE
1.1 This test method covers the measurement of the width of woven or knitted fabrics, usable width, or both. The method is applicable to full rolls, bolts of fabric, and short specimens removed from a roll or bolt. Unless otherwise specified, measurements shall include the selvages when present.
1.2 The method offers two options:
1.2.1 Option A—Full Roll or Bolt.
1.2.2 Option B—Short Specimen Removed from Full Roll or Bolt.
1.3 The values stated in either SI units or U.S. customary units are to be regarded as standard. The U.S. customary units may be approximate.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
- Status
- Published
- Publication Date
- 30-Jun-2018
- Technical Committee
- D13 - Textiles
- Drafting Committee
- D13.60 - Fabric Physical Test Methods B
Overview
ASTM D3774-18 is the internationally recognized standard test method for measuring the width of textile fabrics. Developed by ASTM International, this method supports accurate and consistent measurement practices across woven and knitted fabrics, including those with pile, napped, or raised surfaces. The standard is vital for quality control, product specification, and trade of textile materials, providing reliable procedures for acceptance testing of commercial shipments.
ASTM D3774-18 is applicable to full fabric rolls, bolts, and short specimens. It allows the measurement of both total and usable fabric width, including selvages unless specified otherwise. The test can be performed with fabrics laid tension-free or under specific finishing conditions, making it adaptable to various production and inspection environments.
Key Topics
- Measurement Procedures
- Option A: For full rolls or bolts, offering both tension-free and tension-applied measurement methods
- Option B: For short specimens cut from rolls or bolts, suitable when only small fabric samples are available
- Measurements include selvages unless directed otherwise
- Sampling and Conditioning
- Roll or bolt selection is randomized according to material specification or mutual agreement
- Fabric specimens must be conditioned following recognized textile testing practice (ASTM D1776) where possible
- Reporting Requirements
- Clear documentation of the specimen description, measurement option, tension use, measured width (full or usable), and measurement conditions
- Inclusion of minimum, maximum, and average width values, along with testing conditions
- Precision and Bias
- Option A is considered free of bias and is widely accepted as a referee method
- Statistical guidance is provided for resolving interlaboratory differences, using comparative tests and Student’s t-test
- Applicability
- Applies to both commercial acceptance testing and laboratory evaluation
- Suitable for a wide range of woven, knitted, circular-knitted, raised-surface, and shuttleless loom fabrics
Applications
ASTM D3774-18 is widely used in the textile industry by manufacturers, suppliers, and buyers to:
- Quality Assurance and Control:
Ensure that fabric width meets design specifications and contractual requirements through standardized testing practices - Acceptance Testing:
Provide a reliable and mutually recognized means for evaluating commercial fabric shipments prior to acceptance and payment - Dispute Resolution:
Establish objective measurement procedures for resolving disputes between suppliers and purchasers over reported fabric widths - Laboratory Testing:
Facilitate evaluation of fabric samples during product development and production, especially when only swatches or short samples are available
This standard enhances trust across the textile supply chain by promoting consistency, transparency, and reproducibility in fabric width measurement.
Related Standards
Organizations utilizing ASTM D3774-18 may also reference the following standards:
- ASTM D123 - Terminology Relating to Textiles
- ASTM D1776 - Practice for Conditioning and Testing Textiles
- ASTM D4850 - Terminology Relating to Fabrics and Fabric Test Methods
- ANSI/ASQC Z1.4 - Inspection by Attributes (for general sampling and inspection practices)
These related documents support comprehensive textile testing and help users uphold best practices for measurement, quality control, and reporting within the industry.
Keywords: ASTM D3774-18, textile fabric width, width measurement, woven textiles, knitted textiles, fabric quality control, textile industry standards, fabric inspection, acceptance testing.
Relations
- Effective Date
- 15-Jul-2017
- Effective Date
- 01-Mar-2017
- Effective Date
- 15-Sep-2015
- Effective Date
- 01-Sep-2015
- Effective Date
- 01-Apr-2015
- Effective Date
- 01-Jul-2013
- Effective Date
- 01-Jul-2013
- Effective Date
- 15-Jun-2013
- Effective Date
- 15-Jun-2013
- Effective Date
- 15-May-2013
- Effective Date
- 01-Jul-2012
- Effective Date
- 01-Feb-2012
- Effective Date
- 01-Feb-2012
- Effective Date
- 15-Jan-2009
- Effective Date
- 15-Jan-2009
Get Certified
Connect with accredited certification bodies for this standard
Control Union Certifications
Global certification for agriculture and sustainability.
Hohenstein Institut
Textile testing and certification.
Bureau Veritas Bangladesh
Bureau Veritas certification services in Bangladesh.
Sponsored listings
Frequently Asked Questions
ASTM D3774-18 is a standard published by ASTM International. Its full title is "Standard Test Method for Width of Textile Fabric". This standard covers: SIGNIFICANCE AND USE 5.1 Option A procedures of Test Method D3774 for width are considered satisfactory for acceptance testing of commercial shipments because they are used extensively in the trade. 5.1.1 In case of a dispute arising from differences in reported test values when using Test Method D3774 for acceptance testing of commercial shipments, the purchaser and the supplier should conduct comparative tests to determine if there is a statistical bias between their laboratories. Competent statistical assistance is recommended for the investigation of bias. As a minimum, the two parties should take a group of test specimens which are as homogeneous as possible and which are from a lot of material of the type in question. The test specimens should then be randomly assigned in equal numbers to each laboratory for testing. The average results from the two laboratories should be compared using Student's t-test for unpaired data and an acceptable probability level chosen by the two parties before testing is begun. If a bias is found, either its cause must be found and corrected or the purchaser and the supplier must agree to interpret future test results in the light of the known bias. SCOPE 1.1 This test method covers the measurement of the width of woven or knitted fabrics, usable width, or both. The method is applicable to full rolls, bolts of fabric, and short specimens removed from a roll or bolt. Unless otherwise specified, measurements shall include the selvages when present. 1.2 The method offers two options: 1.2.1 Option A—Full Roll or Bolt. 1.2.2 Option B—Short Specimen Removed from Full Roll or Bolt. 1.3 The values stated in either SI units or U.S. customary units are to be regarded as standard. The U.S. customary units may be approximate. 1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
SIGNIFICANCE AND USE 5.1 Option A procedures of Test Method D3774 for width are considered satisfactory for acceptance testing of commercial shipments because they are used extensively in the trade. 5.1.1 In case of a dispute arising from differences in reported test values when using Test Method D3774 for acceptance testing of commercial shipments, the purchaser and the supplier should conduct comparative tests to determine if there is a statistical bias between their laboratories. Competent statistical assistance is recommended for the investigation of bias. As a minimum, the two parties should take a group of test specimens which are as homogeneous as possible and which are from a lot of material of the type in question. The test specimens should then be randomly assigned in equal numbers to each laboratory for testing. The average results from the two laboratories should be compared using Student's t-test for unpaired data and an acceptable probability level chosen by the two parties before testing is begun. If a bias is found, either its cause must be found and corrected or the purchaser and the supplier must agree to interpret future test results in the light of the known bias. SCOPE 1.1 This test method covers the measurement of the width of woven or knitted fabrics, usable width, or both. The method is applicable to full rolls, bolts of fabric, and short specimens removed from a roll or bolt. Unless otherwise specified, measurements shall include the selvages when present. 1.2 The method offers two options: 1.2.1 Option A—Full Roll or Bolt. 1.2.2 Option B—Short Specimen Removed from Full Roll or Bolt. 1.3 The values stated in either SI units or U.S. customary units are to be regarded as standard. The U.S. customary units may be approximate. 1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ASTM D3774-18 is classified under the following ICS (International Classification for Standards) categories: 59.080.30 - Textile fabrics. The ICS classification helps identify the subject area and facilitates finding related standards.
ASTM D3774-18 has the following relationships with other standards: It is inter standard links to ASTM D4850-13(2017), ASTM D123-17, ASTM D123-15b, ASTM D123-15a, ASTM D123-15, ASTM D4850-13, ASTM D4850-13e1, ASTM D123-13a, ASTM D123-13ae1, ASTM D123-13, ASTM D4850-12, ASTM D123-12e1, ASTM D123-12, ASTM D123-09, ASTM D123-09e2. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ASTM D3774-18 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

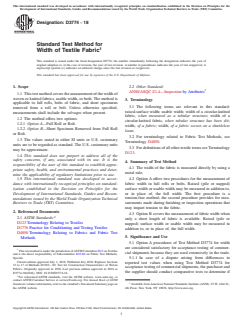

Designation: D3774 − 18
Standard Test Method for
Width of Textile Fabric
This standard is issued under the fixed designation D3774; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope 2.2 Other Standard:
ANSI/ASQC Z1.4—Inspection by Attributes
1.1 Thistestmethodcoversthemeasurementofthewidthof
woven or knitted fabrics, usable width, or both. The method is
3. Terminology
applicable to full rolls, bolts of fabric, and short specimens
3.1 The following terms are relevant to this standard:
removed from a roll or bolt. Unless otherwise specified,
raised-surface width; usable width; width of a circular-knitted
measurements shall include the selvages when present.
fabric, when measured as a tubular structure; width of a
1.2 The method offers two options:
circular-knitted fabric, when tubular structure has been slit;
1.2.1 Option A—Full Roll or Bolt.
width, of a fabric; width, of a fabric woven on a shuttleless
1.2.2 Option B—Short Specimen Removed from Full Roll
loom.
or Bolt.
3.2 For terminology related to Fabric Test Methods, see
1.3 The values stated in either SI units or U.S. customary
Terminology D4850.
units are to be regarded as standard. The U.S. customary units
3.3 FordefinitionsofallothertextiletermsseeTerminology
may be approximate.
D123.
1.4 This standard does not purport to address all of the
safety concerns, if any, associated with its use. It is the
4. Summary of Test Method
responsibility of the user of this standard to establish appro-
4.1 The width of the fabric is measured directly by using a
priate safety, health, and environmental practices and deter-
metal rule.
mine the applicability of regulatory limitations prior to use.
4.2 Option A offers two procedures for the measurement of
1.5 This international standard was developed in accor-
fabric width in full rolls or bolts. Raised (pile or napped)
dance with internationally recognized principles on standard-
ization established in the Decision on Principles for the surface width or usable width may be measured in addition to,
or in place of, the full width. The first procedure is a
Development of International Standards, Guides and Recom-
mendations issued by the World Trade Organization Technical tension-free method; the second procedure provides for mea-
surements made during finishing or inspection operations that
Barriers to Trade (TBT) Committee.
may impart tension to the fabric.
2. Referenced Documents
4.3 Option B covers the measurement of fabric width when
2.1 ASTM Standards:
only a short length of fabric is available. Raised (pile or
D123 Terminology Relating to Textiles
napped) surface width or usable width may be measured in
D1776 Practice for Conditioning and Testing Textiles
addition to, or in place of, the full width.
D4850 Terminology Relating to Fabrics and Fabric Test
5. Significance and Use
Methods
5.1 Option A procedures of Test Method D3774 for width
are considered satisfactory for acceptance testing of commer-
This test method is under the jurisdiction ofASTM Committee D13 on Textiles
cial shipments because they are used extensively in the trade.
and is the direct responsibility of Subcommittee D13.60 on Fabric Test Methods,
Specific. 5.1.1 In case of a dispute arising from differences in
Current edition approved July 1, 2018. Published July 2018. Replaces Sections
reported test values when using Test Method D3774 for
13 to 17 of Methods D1910 – 89, Test for Construction Characteristics of Woven
acceptance testing of commercial shipments, the purchaser and
Fabrics. Originally approved in 1996. Last previous edition approved in 2016 as
the supplier should conduct comparative tests to determine if
D3774–96(2016). DOI: 10.1520/D3774-18.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
Standards volume information, refer to the standard’s Document Summary page on Available from American National Standards Institute (ANSI), 25 W. 43rd St.,
the ASTM website. 4th Floor, New York, NY 10036, http://www.ansi.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

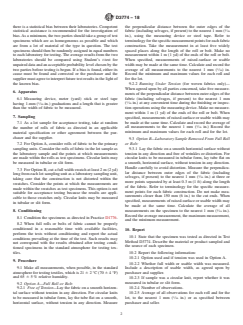

D3774 − 18
there is a statistical bias between their laboratories. Competent the perpendicular distance between the outer edges of the
statistical assistance is recommended for the investigation of fabric (including selvages, if present) to the nearest 1 mm ( ⁄16
bias.As a minimum, the two parties should take a group of test in.), using the measuring device or steel tape. Refer to
specimens which are as homogeneous as possible and which terminologyforthespecificmeasurementpointsforeachfabric
are from a lot of material of the type in question. The test construction. Take the measurement in at least five widely
specimens should then be randomly assigned in equal numbers spaced places along the length of the roll or bolt. Make no
to each laboratory for testing.The average results from the two measurement within1m(1yd)ofthe ends of the roll or bolt.
laboratories should be compared using Student’s t-test for When specified, measurements of raised-surface or usable
unpaireddataandanacceptableprobabilitylevelchosenbythe width may be made at the same time. Calculate and record the
two parties before testing is begun. If a bias is found, either its average of all measurements to the nearest 1 mm ( ⁄16) in.
cause must be found and corrected or the purchaser and the Record the minimum and maximum values for each roll and
supplier must agree to interpret future test results in the light of for the lot.
the known bias.

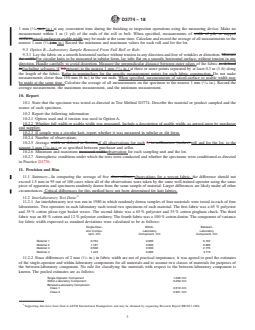

9.2.2 Running Under Tension (for woven fabrics only)—
When agreed upon by all parties concerned, take five measure-
6. Apparatus
ments of the perpendicular distance between outer edges of the
fabric (including selvages, if present) to the nearest 1 mm
6.1 Measuring device, meter (yard) stick or steel tape
having 1-mm ( ⁄16-in.) graduations and a length that is greater ( ⁄16 in.) at any convenient time during the finishing or inspec-
tion operations using the measuring device. Make no measure-
than the width of fabric to be measured.
ment within1m(1yd)ofthe ends of the roll or bolt. When
7. Sampling
specified, measurements of raised-surface or usable width may
be made at the same time. Calculate and record the average of
7.1 As a lot sample for acceptance testing, take at random
all measurements to the nearest 1 mm ( ⁄16 in.) Record the
the number of rolls of fabric as directed in an applicable
minimum and maximum values for each roll and for the lot.
material specification or other agreement between the pur-
chaser and the supplier.
9.3 Option B—Laboratory Sample Removed From Full Roll
or Bolt:
7.2 For Option A, consider rolls of fabric to be the primary
sampling units. Consider the rolls of fabric in the lot sample as 9.3.1 Lay the fabric on a smooth horizontal surface without
the laboratory sample and the points at which measurements tension in any direction and free of wrinkles or distortion. For
are made within the rolls as test specimens. Circular knits may circular knits to be measured in tubular form, lay tube flat on
be measured in tubular or slit form. a smooth, horizontal surface, without tension in any direction.
Handle carefully to avoid distortion. Measure t
...
This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

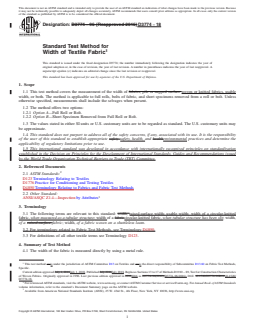

Designation: D3774 − 96 (Reapproved 2016) D3774 − 18
Standard Test Method for
Width of Textile Fabric
This standard is issued under the fixed designation D3774; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope
1.1 This test method covers the measurement of the width of fabrics, pile or napped surface woven or knitted fabrics, usable
width, or both. The method is applicable to full rolls, bolts of fabric, and short specimens removed from a roll or bolt. Unless
otherwise specified, measurements shall include the selvages when present.
1.2 The method offers two options:
1.2.1 Option A—Full Roll or Bolt.
1.2.2 Option B—Short Specimen Removed from Full Roll or Bolt.
1.3 The values stated in either SI units or U.S. customary units are to be regarded as standard. The U.S. customary units may
be approximate.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety safety, health, and healthenvironmental practices and determine the
applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
D123 Terminology Relating to Textiles
D1776 Practice for Conditioning and Testing Textiles
D4850 Terminology Relating to Fabrics and Fabric Test Methods
2.2 Other Standard:
ANSI/ASQC Z1.4—Inspection by Attributes
3. Terminology
3.1 The following terms are relevant to this standard: width, raised-surface width; usable width; width of a circular-knitted
fabric, when measured as a tubular structure; width of a fabriccircular-knitted fabric, when tubular structure has been slit; width,
of a raised-surface fabric; width, of a fabric woven on a shuttleless loom.
3.2 For terminology related to Fabric Test Methods, see Terminology D4850.
3.3 For definitions of all other textile terms see Terminology D123.
4. Summary of Test Method
4.1 The width of the fabric is measured directly by using a metal rule.
This test method areis under the jurisdiction of ASTM Committee D13 on Textiles and areis the direct responsibility of Subcommittee D13.60 on Fabric Test Methods,
Specific.
Current edition approved July 1, 2016July 1, 2018. Published July 2016July 2018. Replaces Sections 13 to 17 of Methods D1910 – 89, Test for Construction Characteristics
of Woven Fabrics. Originally approved in 1996. Last previous edition approved in 20122016 as D3774–96(2012).D3774–96(2016). DOI: 10.1520/D3774-96R16.10.1520/
D3774-18.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Available from American National Standards Institute (ANSI), 25 W. 43rd St., 4th Floor, New York, NY 10036, http://www.ansi.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

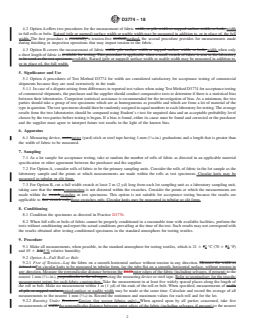

D3774 − 18
4.2 Option A offers two procedures for the measurement of fabric width, or pile width or napped surface width, or both, width
in full rolls or bolts. Raised (pile or napped) surface width or usable width may be measured in addition to, or in place of, the full
width. The first procedure is essentially a tension-free method,method; the second procedure provides for measurements made
during finishing or inspection operations that may impart tension to the fabric.
4.3 Option B covers the measurement of fabric width, pile surface width or napped surface width, or both, width when only
a short length of fabric is available for testing. This procedure is applicable when a small swatch of fabric is sent to the laboratory
to be used as the test specimen.available. Raised (pile or napped) surface width or usable width may be measured in addition to,
or in place of, the full width.
5. Significance and Use
5.1 Option A procedures of Test Method D3774 for width are considered satisfactory for acceptance testing of commercial
shipments because they are used extensively in the trade.
5.1.1 In case of a dispute arising from differences in reported test values when using Test Method D3774 for acceptance testing
of commercial shipments, the purchaser and the supplier should conduct comparative tests to determine if there is a statistical bias
between their laboratories. Competent statistical assistance is recommended for the investigation of bias. As a minimum, the two
parties should take a group of test specimens which are as homogeneous as possible and which are from a lot of material of the
type in question. The test specimens should then be randomly assigned in equal numbers to each laboratory for testing. The average
results from the two laboratories should be compared using Student’s t-test for unpaired data and an acceptable probability level
chosen by the two parties before testing is begun. If a bias is found, either its cause must be found and corrected or the purchaser
and the supplier must agree to interpret future test results in the light of the known bias.
6. Apparatus
6.1 Measuring device, metremeter (yard) stick or steel tape having 1-mm ( ⁄16-in.) graduations and a length that is greater than
the width of fabric to be measured.
7. Sampling
7.1 As a lot sample for acceptance testing, take at random the number of rolls of fabric as directed in an applicable material
specification or other agreement between the purchaser and the supplier.
7.2 For Option A, consider rolls of fabric to be the primary sampling units. Consider the rolls of fabric in the lot sample as the
laboratory sample and the points at which measurements are made within the rolls as test specimens. Circular knits may be
measured in tubular or slit form.
7.3 For Option B, cut a full width swatch at least 2 m (2 yd) long from each lot sampling unit as a laboratory sampling unit,
taking care that the weaveconstruction is not distorted within the swatches. Consider the points at which the measurements are
made within the swatchswatches as test specimens. This option is not suitable for acceptance testing because the results are
applicable to that swatch only.those swatches only. Circular knits may be measured in tubular or slit form.
8. Conditioning
8.1 Condition the specimens as directed in Practice D1776.
8.2 When full rolls or bolts of fabric cannot be properly conditioned in a reasonable time with available facilities, perform the
tests without conditioning and report the actual conditions prevailing at the time of the test. Such results may not correspond with
the results obtained after testing conditioned specimens in the standard atmosphere for testing textiles.
9. Procedure
9.1 Make all measurements, when possible, in the standard atmosphere for testing textiles, which is 21 6 12 °C (70 6 24 °F)
and 65 6 2 %5 % relative humidity.
9.2 Option A—Full Roll or Bolt:
9.2.1 Free of Tension—Lay the fabric on a smooth horizontal surface without tension in any direction. Measure the width as
defined inFor circular knits to be measured in tubular form, lay the tube flat on a smooth, horizontal surface, without tension in
any direction. Measure the perpendicular distance between the D123outer edges of the fabric (including selvages, if present) to the
nearest 1 mm ( ⁄16 in.), perpendicular to the selvages using the measuring device or steel ta
...
