Winter and road service area maintenance equipment - Data acquisition and transmission - Part 1: In-vehicle data acquisition

Same as in EN 15430-1:2007 + A1:2011

Winterdienst- und Straßenbetriebsdienstausstattung - Datenerfassung und -übertragung - Teil 1: Datenerfassung im Fahrzeug

Diese Europäische Norm legt ein genormtes Protokoll für das Übertragen von Betriebsdaten von der Anbau-Gerätesteuerung (Steuergerät) zu einem im Fahrzeug befindlichen Bord-Computer fest, um die Kompatibilität zwischen dem Fahrzeug und den verschiedenen Anbau-Geräten, die an diesem Fahrzeug betrieben werden können, sicherzustellen.
Diese Norm legt sowohl Schnittstellen (Anschlüsse) fest wie auch Variablen, Datensätze und Meldungen, die es in dem genormten Protokoll ermöglichen, eine größtmögliche Vielfalt bei Anwendungen von Anbau-Geräten beim Straßenbetriebs- und Winterdienst abzudecken.

Matériels de viabilité hivernale et d'entretien des dépendances routières - Acquisition et transmission des données - Partie 1 : Acquisition des données véhiculaires

Oprema za vzdrževalna dela zimske službe in službe za vzdrževanje cest - Zajem in prenos podatkov - 1. del: Zajem podatkov v vozilu

Ta evropski standard določa standardiziran protokol za prenos podatkov od nadzorne omarice opreme do računalnika v vozilu za zagotavljanje izmenljivosti med vozilom in drugo opremo, ki je lahko nameščena v istem vozilu.
Določa povezavo vmesnika in spremenljivke, zapise ter poročila, ki omogočajo standardiziranemu protokolu obravnavanje aplikacij z največjim možnim naborom opreme za izvajanje vzdrževalnih del zimske službe in službe za vzdrževanje cest.

General Information

• Status: Withdrawn
• Publication Date: 04-Aug-2015
• Withdrawal Date: 03-Dec-2024
• ICS: 35.240.60 - IT applications in transport
• ICS: 43.160 - Special purpose vehicles
• Technical Committee: CEN/TC 337 - Winter maintenance and road service area maintenance equipment
• Drafting Committee: CEN/TC 337 - Winter maintenance and road service area maintenance equipment
• Current Stage: 9092 - Decision on results of review/2YR ENQ - revise - Review Enquiry
• Completion Date: 28-Apr-2021
• Ref Project: SIST EN 15430-1:2015 - Winter and road service area maintenance equipment – Data acquisition and transmission - Part 1: In vehicle data acquisition

Relations

• Replaces: EN 15430-1:2007+A1:2011 - Winter and road service area maintenance equipments - Data acquisition and transmission - Part 1: In vehicle data acquisition
• Effective Date: 08-Jun-2022
• Replaced By: EN 15430-1:2024 - Winter and road service area maintenance equipment - Data acquisition and transmission - Part 1: In-vehicle data acquisition
• Effective Date: 19-Jan-2023

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Oprema za vzdrževalna dela zimske službe in službe za vzdrževanje cest - Zajem in prenos podatkov - 1. del: Zajem podatkov v voziluWinterdienst- und Straßenbetriebsdienstausstattung - Datenerfassung und -übertragung - Teil 1: Datenerfassung im FahrzeugMatériels de viabilité hivernale et d'entretien des dépendances routières - Acquisition et transmission des données - Partie 1 : Acquisition des données véhiculairesWinter and road service area maintenance equipment – Data acquisition and transmission - Part 1: In vehicle data acquisition43.160Vozila za posebne nameneSpecial purpose vehicles35.240.60Uporabniške rešitve IT v transportu in trgoviniIT applications in transport and tradeICS:Ta slovenski standard je istoveten z:EN 15430-1:2015SIST EN 15430-1:2015en,fr,de01-oktober-2015SIST EN 15430-1:2015SLOVENSKI
STANDARDSIST EN 15430-1:2008+A1:20111DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 15430-1
August 2015 ICS 35.240.60; 43.160 Supersedes EN 15430-1:2007+A1:2011English Version
Winter and road service area maintenance equipments - Data acquisition and transmission - Part 1: In-vehicle data acquisition Matériels de viabilité hivernale et d'entretien des dépendances routières - Acquisition et transmission des données - Partie 1 : Acquisition des données véhiculaires
Winterdienst- und Straßenbetriebsdienstausstattung - Datenerfassung und -übertragung - Teil 1: Datenerfassung im Fahrzeug This European Standard was approved by CEN on 28 May 2015.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2015 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 15430-1:2015 ESIST EN 15430-1:2015

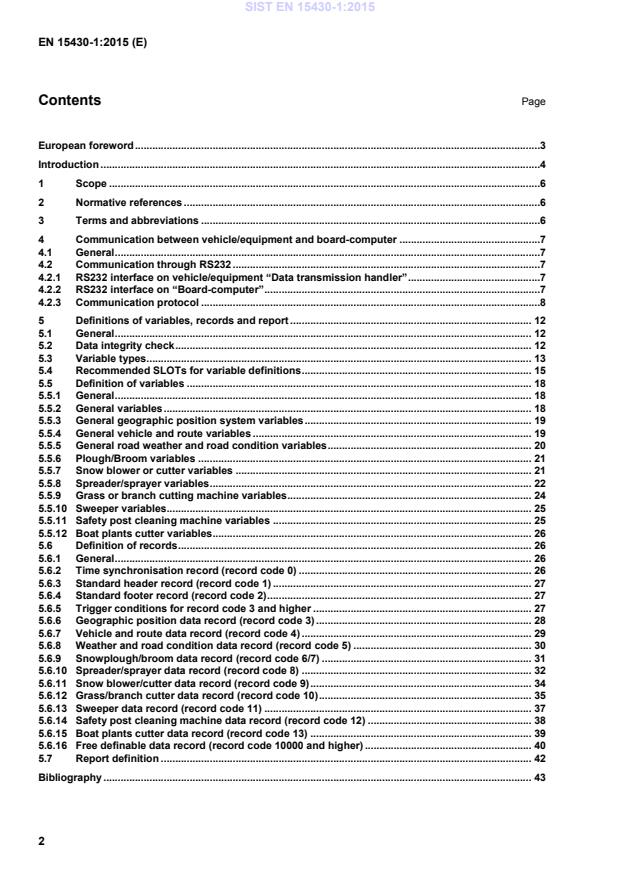

European foreword .3 Introduction .4 1 Scope .6 2 Normative references .6 3 Terms and abbreviations .6 4 Communication between vehicle/equipment and board-computer .7 4.1 General .7 4.2 Communication through RS232 .7 4.2.1 RS232 interface on vehicle/equipment “Data transmission handler” .7 4.2.2 RS232 interface on “Board-computer” .7 4.2.3 Communication protocol .8 5 Definitions of variables, records and report . 12 5.1 General . 12 5.2 Data integrity check . 12 5.3 Variable types . 13 5.4 Recommended SLOTs for variable definitions . 15 5.5 Definition of variables . 18 5.5.1 General . 18 5.5.2 General variables . 18 5.5.3 General geographic position system variables . 19 5.5.4 General vehicle and route variables . 19 5.5.5 General road weather and road condition variables . 20 5.5.6 Plough/Broom variables . 21 5.5.7 Snow blower or cutter variables . 21 5.5.8 Spreader/sprayer variables . 22 5.5.9 Grass or branch cutting machine variables . 24 5.5.10 Sweeper variables. 25 5.5.11 Safety post cleaning machine variables . 25 5.5.12 Boat plants cutter variables . 26 5.6 Definition of records . 26 5.6.1 General . 26 5.6.2 Time synchronisation record (record code 0) . 26 5.6.3 Standard header record (record code 1) . 27 5.6.4 Standard footer record (record code 2) . 27 5.6.5 Trigger conditions for record code 3 and higher . 27 5.6.6 Geographic position data record (record code 3) . 28 5.6.7 Vehicle and route data record (record code 4) . 29 5.6.8 Weather and road condition data record (record code 5) . 30 5.6.9 Snowplough/broom data record (record code 6/7) . 31 5.6.10 Spreader/sprayer data record (record code 8) . 32 5.6.11 Snow blower/cutter data record (record code 9) . 34 5.6.12 Grass/branch cutter data record (record code 10) . 35 5.6.13 Sweeper data record (record code 11) . 37 5.6.14 Safety post cleaning machine data record (record code 12) . 38 5.6.15 Boat plants cutter data record (record code 13) . 39 5.6.16 Free definable data record (record code 10000 and higher) . 40 5.7 Report definition . 42 Bibliography . 43
