CEN

EN 13852-1:2004/AC:2007

(Corrigendum)

Cranes - Offshore cranes - Part 1: General - purpose offshore cranes

Cranes - Offshore cranes - Part 1: General - purpose offshore cranes

TC - Various modifications throughout text

Krane - Offshore Krane - Teil 1: Offshore-Krane für allgemeine Verwendung

Appareils de levage - Appareils de levage offshore - Partie 1: Appareils de levage offshore pour usage général

Dvigala (žerjavi) - Dvigala na plavajočih objektih - 1. del: Dvigala na plavajočih objektih za splošne namene

General Information

Status
Withdrawn
Publication Date
27-Feb-2007
Withdrawal Date
24-Sep-2013
ICS
47.020.40 - Lifting and cargo handling equipment
53.020.20 - Cranes
Technical Committee
CEN/TC 147 - Cranes - Safety
Drafting Committee
CEN/TC 147 - Cranes - Safety
Current Stage
9960 - Withdrawal effective - Withdrawal
Start Date
25-Sep-2013
Completion Date
25-Sep-2013
Directive
98/37/EC - Machinery
Mandate
M/BC/CEN/91/1 - Standardization request to CEN/CENELEC concerning machines presenting hazards due to mobility or load lifting
Ref Project
SIST EN 13852-1:2004/AC:2007 - Cranes - Offshore cranes - Part 1: General - purpose offshore cranes

Relations

Replaces
EN 13852-1:2004/AC:2004 - Cranes - Offshore cranes - Part 1: General - purpose offshore cranes
Effective Date
22-Dec-2008
Replaced By
EN 13852-1:2013 - Cranes - Offshore cranes - Part 1: General-purpose offshore cranes
Effective Date
02-Oct-2013
Corrects
EN 13852-1:2004 - Cranes - Offshore cranes - Part 1: General - purpose offshore cranes
Effective Date
08-Jun-2022

Buy Standard

EN 13852-1:2004/AC:2007EN 13852-1:2004/AC:2007
PreviousNext
Corrigendum
EN 13852-1:2004/AC:2007
English language
11 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)


2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Krane - Offshore Krane - Teil 1: Offshore-Krane für allgemeine VerwendungAppareils de levage - Appareils de levage offshore - Partie 1: Appareils de levage offshore pour usage généralCranes - Offshore cranes - Part 1: General - purpose offshore cranes53.020.20DvigalaCranes47.020.40Dvigalna oprema in oprema za pretovorLifting and cargo handling equipmentICS:Ta slovenski standard je istoveten z:EN 13852-1:2004/AC:2007SIST EN 13852-1:2004/AC:2007en,fr01-julij-2007SIST EN 13852-1:2004/AC:2007SLOVENSKI
STANDARDSIST EN 13852-1:2004/AC:20051DGRPHãþD

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13852-1:2004/ACFebruary 2007Février 2007Februar 2007ICS 47.020.40; 53.020.20English versionVersion FrançaiseDeutsche FassungCranes - Offshore cranes - Part 1: General - purpose offshore cranesAppareils de levage - Appareils de levageoffshore - Partie 1: Appareils de levageoffshore pour usage généralKrane - Offshore Krane - Teil 1: Offshore-Krane für allgemeine VerwendungThis corrigendum becomes effective on 28 February 2007 for incorporation in the three officiallanguage versions of the EN.Ce corrigendum prendra effet le 28 février 2007 pour incorporation dans les trois versionslinguistiques officielles de la EN.Die Berichtigung tritt am 28.Februar 2007 zur Einarbeitung in die drei offiziellen Sprachfassungen derEN in Kraft.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2007 CENAll rights of exploitation in any form and by any means reserved worldwide for CEN national Members.Tous droits d'exploitation sous quelque forme et de quelque manière que ce soit réservés dans le monde entier auxmembres nationaux du CEN.Alle Rechte der Verwertung, gleich in welcher Form und in welchem Verfahren, sind weltweit den nationalen Mitgliedernvon CEN vorbehalten.Ref. No.:EN 13852-1:2004/AC:2007 D/E/FSIST EN 13852-1:2004/AC:2007

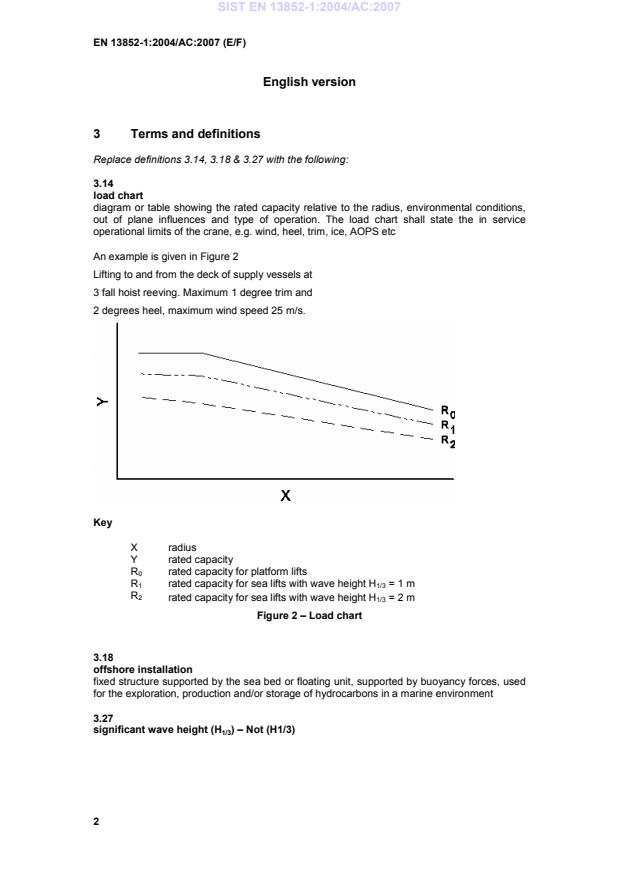

3 Terms and definitions Replace definitions 3.14, 3.18 & 3.27 with the following: 3.14 load chart diagram or table showing the rated capacity relative to the radius, environmental conditions, out of plane influences and type of operation. The load chart shall state the in service operational limits of the crane, e.g. wind, heel, trim, ice, AOPS etc
An example is given in Figure 2 Lifting to and from the deck of supply vessels at
3 fall hoist reeving. Maximum 1 degree trim and
2 degrees heel, maximum wind speed 25 m/s.
Key
X radius
Y rated capacity
R0 rated capacity for platform lifts
R1 rated capacity for sea lifts with wave height H1/3 = 1 m
R2 rated capacity for sea lifts with wave height H1/3 = 2 m Figure 2 – Load chart
3.18 offshore installation fixed structure supported by the sea bed or floating unit, supported by buoyancy forces, used for the exploration, production and/or storage of hydrocarbons in a marine environment 3.27 significant wave height (H1/3) – Not (H1/3)
a) maximum capacity/ maximum radius 1; b) intermediate radius 2, 3; c) maximum radius 4. The overload test shall be carried out for every configuration (e.g. boom length, reeving arrangement) with test loads in accordance with 6.2.5.
Key
X
radius
Y
rated capacity
maximum capacity/ maximum radius
2 and 3
intermediate radius
maximum radius Figure 5 – Static/Installation Test Points For cranes mounted on floating installations, the slewing system shall be tested at the inclination angles, ref. Table C.1, as far as practicable possible.'
6.2.5 Test load To Table 3; Delete 'or Rn' from the first column, top row. SIST EN 13852-1:2004/AC:2007

T
may be obtained from the following equation:
T=(H1/3/0,03)0,4
B.3.2.1 - General Last paragraph; Insert ' Rn,' between the word 'rating' and 'for' B.5 – Load combinations Insert the following as new text after NOTE Load combinations shall be calculated in accordance with Table B.3. Replace the text with the following In the table: a: AOPS load factor shall be in the range of 1,0 up to a load factor which equates to significant damage, ref. 5.7.1.2
Annex F – Control station instrumentation
Amend item l to read: Fire and gas control panel;
Annex G – Wire rope safety factors G.2 and G.3 Relocate the brackets as follows (4 times). Delete 'Rated capacity o
...
