EN 12274-6:2018

Slurry surfacing - Test methods - Part 6: Rate of application

This European Standard specifies test methods for determination the average rate of application of slurry surfacing in kilograms per square metre (kg/m2).
This European Standard applies to slurry surfacing for roads, airfields and other trafficked areas.

Dünne Asphaltdeckschichten in Kaltbauweise - Prüfverfahren - Teil 6: Bestimmung der Einbaumasse

Diese Europäische Norm legt Prüfverfahren zur Bestimmung der mittleren Einbaumasse in Kilogramm je Quadratmeter (kg/m2) für Bitumenschlämmen und Dünne Asphaltdeckschichten in Kaltbauweise fest.
Diese Europäische Norm gilt für Bitumenschlämmen und Dünne Asphaltdeckschichten in Kaltbauweise für Straßen, Flugplätze und andere Verkehrsflächen.

Matériaux bitumineux coulés à froid - Méthode d’essai - Partie 6: Taux d’épandage

La présente Norme européenne spécifie les méthodes d'essai permettant de déterminer le taux moyen d'épandage d'un matériau bitumineux coulé à froid en kilogrammes par mètre carré (kg/m2).
La présente Norme européenne s'applique aux matériaux bitumineux coulés à froid destiné à la construction des chaussées, aérodromes et d'autres zones de circulation.

Tankoplastne prevleke po hladnem postopku - Preskusne metode - 6. del: Količina nanosa

Ta evropski standard določa metode preskušanja za ugotavljanje povprečne stopnje nanašanja površin iz redke malte v kilogramih na kvadratni meter (kg/m2).
Ta evropski standard velja za površine iz redke malte za uporabo na cestah, letališčih in drugih prometnih površinah.

General Information

• Status: Published
• Publication Date: 13-Mar-2018
• Withdrawal Date: 29-Sep-2018
• ICS: 93.080.20 - Road construction materials
• Technical Committee: CEN/TC 227 - Road materials
• Drafting Committee: CEN/TC 227/WG 2 - Surface dressing and slurry surfacing
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Start Date: 29-Jul-2024
• Completion Date: 14-Apr-2025
• Ref Project: SIST EN 12274-6:2018 - Slurry surfacing - Test methods - Part 6: Rate of application

Relations

• Replaces: EN 12274-6:2002 - Slurry surfacing - Test methods - Part 6: Rate of application
• Effective Date: 21-Mar-2018

Overview - EN 12274-6:2018 (Slurry surfacing - Rate of application)

EN 12274-6:2018 is a CEN European Standard that defines test methods to determine the average rate of application of slurry surfacing in kilograms per square metre (kg/m2). It applies to slurry surfacing used on roads, airfields and other trafficked areas and is part of the EN 12274 series covering sampling, composition and performance tests for cold-laid bituminous surfacings.

Key topics and technical requirements

• Scope and units: Specifies measurement of the total mass of slurry surfacing applied per covered area (kg/m2).
• Two accepted measurement principles:
  • Constituent-record method (4.1): Sum masses of all mixture constituents from delivery tickets or continuous on-board recordings. Make allowances for residual stocks when appropriate. Convert any volume recordings to mass using constituent densities.
  • Weighing-machine method (4.2): Determine mass difference of the slurry machine before and after laying using fixed or portable weighing systems.
• Formulas:
  • Rate X = M / A (total mass M divided by covered area A)
  • Rate Y = M' / A (mass without processing water M' divided by A)
• Portable weighing system requirements:
  • Plates to weigh each axle, sized for double wheels
  • Minimum capacity: 15 000 kg
  • Slope (crossfall/gradient) during weighing < 3%
  • Accuracy (limit deviation): ±25 kg for axles ≤ 2 500 kg; ±50 kg for axles up to 15 000 kg
  • System must record mass per axle, date and time (printer optional)
• Test report contents: Mandatory items include reference to the standard, any deviations, date, location, procedure used (4.1 or 4.2), masses of constituents, covered area, calculated rate X or Y, and tester signature. Optional items include binder and water content and theoretical formulation.
• Precision: The standard notes that statistical repeatability and reproducibility information are not known.

Practical applications and users

• Who uses EN 12274-6:2018: highway authorities, airport pavement managers, contractors performing slurry surfacing, quality control laboratories, site inspectors and specification writers.
• Why it matters: Provides a standardized, traceable method to quantify material application rates for contract compliance, cost control, performance evaluation, and quality assurance of slurry surfacings on trafficked surfaces.

Related standards

Part of the EN 12274 series for slurry surfacing test methods:

• EN 12274-1 Sampling
• EN 12274-2 Residual binder content
• EN 12274-3 Consistency
• EN 12274-4 Determination of cohesion
• EN 12274-5 Minimum binder content and wearing resistance
• EN 12274-7 Shaking abrasion
• EN 12274-8 Visual assessment of defects

Keywords: EN 12274-6:2018, slurry surfacing, rate of application, test methods, kg/m2, CEN, roads, airfields, weighing system, quality control.

Standards Content (Sample)

SLOVENSKI STANDARD
01-maj-2018
1DGRPHãþD
SIST EN 12274-6:2002
GHO.ROLþLQD7DQNRSODVWQHSUHYOHNHSRKODGQHPSRVWRSNX3UHVNXVQHPHWRGH
QDQRVD
Slurry surfacing - Test methods - Part 6: Rate of application
Dünne Asphaltdeckschichten in Kaltbauweise - Prüfverfahren - Teil 6: Bestimmung der
Einbaumasse
Matériaux bitumineux coulés à froid - Méthode d’essai - Partie 6 : Taux d’épandage
Ta slovenski standard je istoveten z: EN 12274-6:2018
ICS:
93.080.20 Materiali za gradnjo cest Road construction materials
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 12274-6
EUROPEAN STANDARD
NORME EUROPÉENNE
March 2018
EUROPÄISCHE NORM
ICS 93.080.20 Supersedes EN 12274-6:2002
English Version
Slurry surfacing - Test methods - Part 6: Rate of
application
Matériaux bitumineux coulés à froid - Méthode d'essai Dünne Asphaltdeckschichten in Kaltbauweise -
- Partie 6: Taux d'épandage Prüfverfahren - Teil 6: Bestimmung der Einbaumasse
This European Standard was approved by CEN on 13 November 2017.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2018 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 12274-6:2018 E
worldwide for CEN national Members.

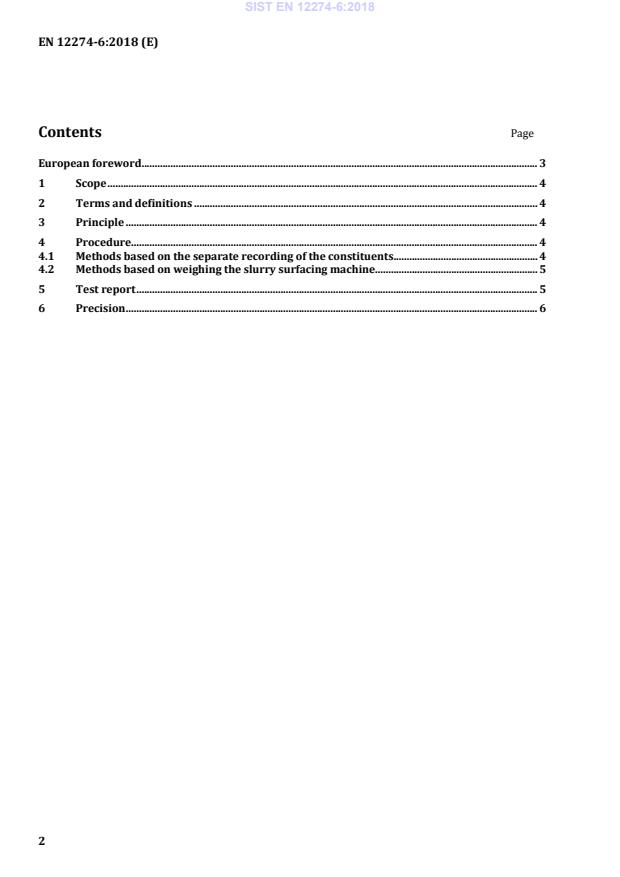

Contents Page
European foreword . 3
1 Scope . 4
2 Terms and definitions . 4
3 Principle . 4
4 Procedure. 4
4.1 Methods based on the separate recording of the constituents . 4
4.2 Methods based on weighing the slurry surfacing machine . 5
5 Test report . 5
6 Precision . 6
European foreword
This document (EN 12274-6:2018) has been prepared by Technical Committee CEN/TC 227 “Road
materials”, the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by September 2018, and conflicting national standards shall
be withdrawn at the latest by September 2018.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 12274-6:2002.
Compared with EN 12274-6:2002, the following changes have been made:
a) Making allowances for residual stocks in 4.1.
This European Standard is one of a series of standards as listed below:
— EN 12274-1, Slurry surfacing — Test methods — Part 1: Sampling
— EN 12274-2, Slurry surfacing — Test methods — Part 2: Determination of residual binder content
— EN 12274-3, Slurry surfacing — Test methods — Part 3: Consistency
— EN 12274-4, Slurry surfacing — Test methods — Part 4: Determination of cohesion of the mix
— EN 12274-5, Slurry surfacing — Test methods — Part 5: Determination of the minimum binder content
and wearing resistance
— EN 12274-6, Slurry surfacing — Test methods — Part 6: Rate of application
— EN 12274-7, Slurry surfacing — Test methods — Part 7: Sha
...
