EN ISO 10319:2024
(Main)Geosynthetics - Wide-width tensile test (ISO 10319:2024)
Geosynthetics - Wide-width tensile test (ISO 10319:2024)
This document specifies an index test method for the determination of the tensile properties of geosynthetics (polymeric, glass and metallic), using a wide-width strip. This document is applicable to most geosynthetics, including woven geotextiles, nonwoven geotextiles, geocomposites, knitted geotextiles, geonets, geomats and metallic products. It is also applicable to geogrids and similar open-structure geotextiles, but specimen dimensions will possibly need to be altered. It is not applicable to polymeric or bituminous geosynthetic barriers, but it is applicable to clay geosynthetic barriers.
This document specifies a tensile test method that covers the measurement of tensile force, elongation characteristics and includes procedures for the calculation of secant stiffness, maximum load per unit width and strain at maximum force. Singular points on the tensile force-extension curve are also indicated.
Procedures for measuring the tensile properties of both conditioned and wet specimens are included in this document.
Geokunststoffe - Zugversuch am breiten Streifen (ISO 10319:2024)
Dieses Dokument legt ein Indexprüfverfahren für die Bestimmung der Zugeigenschaften von Geokunststoffen (Kunststoff, Glas und Metall) unter Verwendung eines breiten Streifens fest. Dieses Dokument ist auf die meisten Geokunststoffe, einschließlich Geogewebe, Geovliesstoffe, Geoverbundstoffe, Geomaschenwaren, Geonetze, Geomatten und metallische Produkte anwendbar. Es ist auch auf Geogitter und ähnliche offen strukturierte Geotextilien anwendbar, jedoch ist es möglicherweise erforderlich, die Messprobenabmessungen zu ändern. Es gilt nicht für geosynthetische Kunststoff- oder Bitumendichtungsbahnen, ist jedoch für geosynthetische Tondichtungsbahnen anwendbar.
Dieses Dokument legt ein Zugprüfverfahren fest, das die Messung der Zugkraft- und Dehnungs-Eigenschaften umfasst und Verfahren zur Berechnung der Sekantensteifigkeit, der Höchstkraft je Breiteneinheit und der Dehnung bei der Höchstzugkraft einschließt. Einzelne Punkte der Zugkraft-Dehnungs-Kurve sind ebenfalls angegeben.
Verfahren zur Messung der Zugeigenschaften sowohl von konditionierten Messproben als auch von nassen Messproben sind in diesem Dokument enthalten.
Géosynthétiques - Essai de traction des bandes larges (ISO 10319:2024)
Le présent document décrit une méthode d’essai de référence pour la détermination des propriétés mécaniques en traction des géosynthétiques (à base de polymère, de verre et de métal) à l’aide d’une bande de grande largeur. Ce document est applicable à la plupart des géosynthétiques, notamment les géotextiles tissés, les géotextiles non tissés, les géocomposites, les géotextiles maillés, les géofilets, les géomatelas et les produits métalliques. Il s’applique également aux géogrilles et aux géotextiles à structure ouverte similaires, mais il pourra s’avérer nécessaire de modifier les dimensions de l’éprouvette. Cet essai n’est pas applicable aux géomembranes polymériques ou bitumineuses, mais il est applicable aux géosynthétiques bentonitiques.
Le présent document spécifie une méthode d’essai de traction qui couvre le mesurage des caractéristiques de force de traction et d’élongation et comprend les modes opératoires de calcul de la raideur sécante, de la force maximale par unité de largeur et de la déformation à la force maximale. Des points singuliers sont également indiqués sur la courbe de force de traction/extension.
Le présent document fournit en outre des modes opératoires de mesure des propriétés mécaniques en traction d’éprouvettes conditionnées et d’éprouvettes humides.
Geotekstilije - Natezni preskus na širokih preskušancih (ISO 10319:2024)
General Information
Relations
Standards Content (Sample)

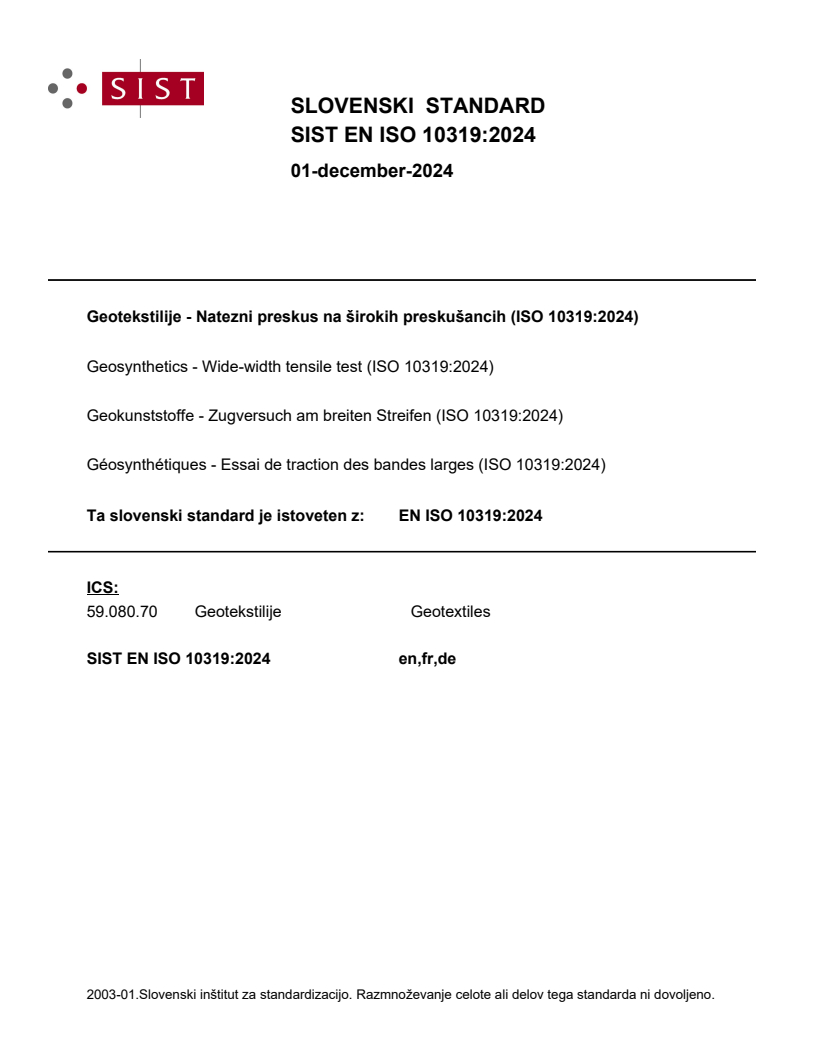

SLOVENSKI STANDARD
01-december-2024
Geotekstilije - Natezni preskus na širokih preskušancih (ISO 10319:2024)
Geosynthetics - Wide-width tensile test (ISO 10319:2024)
Geokunststoffe - Zugversuch am breiten Streifen (ISO 10319:2024)
Géosynthétiques - Essai de traction des bandes larges (ISO 10319:2024)
Ta slovenski standard je istoveten z: EN ISO 10319:2024
ICS:
59.080.70 Geotekstilije Geotextiles
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

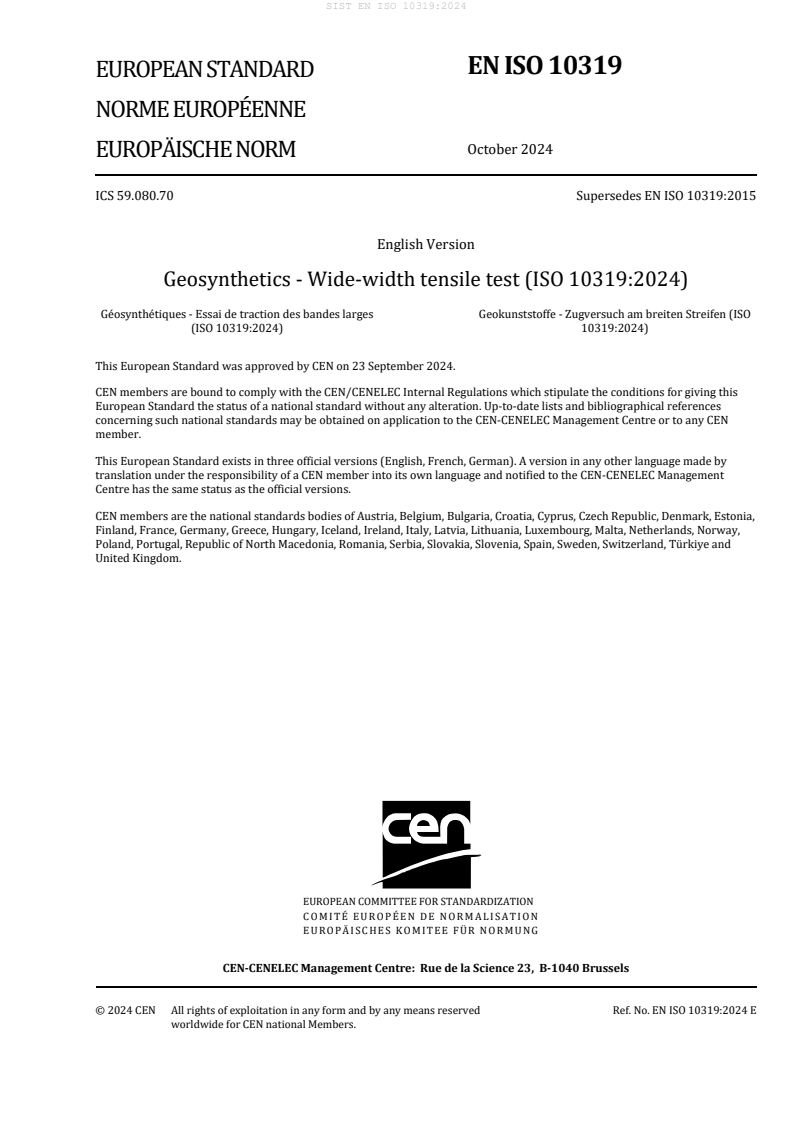

EN ISO 10319
