EN 17196:2023
(Main)Construction products: Assessment of release of dangerous substances - Digestion by aqua regia for subsequent analysis of inorganic substances
Construction products: Assessment of release of dangerous substances - Digestion by aqua regia for subsequent analysis of inorganic substances
This document specifies methods for obtaining the aqua regia digestible content of construction products. Solutions produced by this method are for analysis by inductively coupled plasma mass spectrometry (ICP-MS) and inductively coupled spectrometry (ICP-OES) for the following 67 elements:
Aluminium (Al), antimony (Sb), arsenic (As), barium (Ba), beryllium (Be), bismuth (Bi), boron (B), cadmium (Cd), calcium (Ca), cerium (Ce), caesium (Cs), chromium (Cr), cobalt (Co), copper (Cu), dysprosium (Dy), erbium (Er), europium (Eu), gadolinium (Gd), gallium (Ga), germanium (Ge), gold (Au), hafnium (Hf), holmium (Ho), indium (In), iridium (Ir), iron (Fe), lanthanum (La), lead (Pb), lithium (Li), lutetium (Lu), magnesium (Mg), manganese (Mn), mercury (Hg), molybdenum (Mo), neodymium (Nd), nickel (Ni), palladium (Pd), phosphorus (P), platinum (Pt), potassium (K), praseodymium (Pr), rubidium (Rb), rhenium (Re), rhodium (Rh), ruthenium (Ru), samarium (Sm), scandium (Sc), selenium (Se), silicon (Si), silver (Ag), sodium (Na), strontium (Sr), sulphur (S), tellurium (Te), terbium (Tb), thallium (Tl), thorium (Th), thulium (Tm), tin (Sn), titanium (Ti), tungsten (W), uranium (U), vanadium (V), ytterbium (Yb), yttrium (Y), zinc (Zn), and zirconium (Zr).
Solutions produced by the methods are suitable for analysis by cold vapour atomic absorption or fluorescent spectrometry (CV-AAS, CV-AFS), for mercury (Hg).
The method in this document is applicable to construction products.
Digestion with aqua regia will not necessarily accomplish total decomposition of the sample. The extracted analyte concentrations might not necessarily reflect the total content in the sample.
NOTE Construction products include e.g. mineral-based products (S); bituminous products (B); metals (M); wood-based products (W); plastics and rubbers (P); sealants and adhesives (A); paints and coatings (C), see also CEN/TR 16045.
Bauprodukte: Bewertung der Freisetzung von gefährlichen Stoffen - Königswasser-Aufschluss zur anschließenden Analyse von anorganischen Stoffen
Dieses Dokument legt Verfahren zur Gewinnung des mit Königswasser aufschließbaren Anteils von Bauprodukten fest. In den Lösungen, die nach diesem Verfahren hergestellt wurden, können mittels Massenspektrometrie mit induktiv gekoppeltem Plasma (ICP-MS) oder mittels optischer Emissionsspektrometrie mit induktiv gekoppeltem Plasma (ICP-OES) die folgenden 67 Elemente analysiert werden:
Aluminium (Al), Antimon (Sb), Arsen (As), Barium (Ba), Beryllium (Be), Bismut (Bi), Blei (Pb), Bor (B), Cadmium (Cd), Calcium (Ca), Cäsium (Cs), Cer (Ce), Chrom (Cr), Cobalt (Co), Dysprosium (Dy), Eisen (Fe), Erbium (Er), Europium (Eu), Gadolinium (Gd), Gallium (Ga), Germanium (Ge), Gold (Au), Hafnium (Hf), Holmium (Ho), Indium (In), Iridium (Ir), Kalium (K), Kupfer (Cu), Lanthan (La), Lithium (Li), Lutetium (Lu), Magnesium (Mg), Mangan (Mn), Molybdän (Mo), Natrium (Na), Neodym (Nd), Nickel (Ni), Palladium (Pd), Phosphor (P), Platin (Pt), Praseodym (Pr), Quecksilber (Hg), Rhenium (Re), Rhodium (Rh), Rubidium (Rb), Ruthenium (Ru), Samarium (Sm), Scandium (Sc), Schwefel (S), Selen (Se), Silber (Ag), Silicium (Si), Strontium (Sr), Tellur (Te), Terbium (Tb), Thallium (Tl), Thorium (Th), Thulium (Tm), Titan (Ti), Uran (U), Vanadium (V), Wolfram (W), Ytterbium (Yb), Yttrium (Y), Zink (Zn), Zinn (Sn) und Zirconium (Zr).
Die nach diesen Verfahren erstellten Lösungen sind für die Analyse von Quecksilber (Hg) mittels Kaltdampf-Atomabsorptions- oder Fluoreszenzspektrometrie (CV-AAS, CV-AFS) geeignet.
Das in diesem Dokument beschriebene Verfahren ist für Bauprodukte anwendbar.
Der Aufschluss mit Königswasser wird die Probe nicht unbedingt völlig zersetzen. Die extrahierten Analytkonzentrationen geben unter Umständen nicht den Gesamtgehalt in der Probe wieder.
ANMERKUNG Bauprodukte umfassen z. B. mineralische Produkte (S), bituminöse Produkte (B), Metalle (M), Holzprodukte (W), Kunststoffe und Gummi (P), Dichtstoffe und Klebstoffe (A), Farben und Beschichtungen (C), siehe auch CEN/TR 16045.
Produits de construction : Évaluation de l'émission de substances dangereuses - Digestion par l'eau régale pour une analyse ultérieure de substances inorganiques
Le présent document spécifie les méthodes permettant d'obtenir la teneur digestible par l'eau régale des produits de construction. Les solutions produites par la présente méthode sont destinées à l'analyse par spectrométrie de masse avec plasma à couplage inductif (ICP-MS) et par spectrométrie à couplage inductif (ICP-OES) pour les 67 éléments suivants :
Aluminium (Al), antimoine (Sb), arsenic (As), baryum (Ba), béryllium (Be), bismuth (Bi), bore (B), cadmium (Cd), calcium (Ca), cérium (Ce), césium (Cs), chrome (Cr), cobalt (Co), cuivre (Cu), dysprosium (Dy), erbium (Er), europium (Eu), gadolinium (Gd), gallium (Ga), germanium (Ge), or (Au), hafnium (Hf), holmium (Ho), indium (In), iridium (Ir), fer (Fe), lanthane (La), plomb (Pb), lithium (Li), lutécium (Lu), magnésium (Mg), manganèse (Mn), mercure (Hg), molybdène (Mo), néodyme (Nd), nickel (Ni), palladium (Pd), phosphore (P), platine (Pt), potassium (K), praséodyme (Pr), rubidium (Rb), rhénium (Re), rhodium (Rh), ruthénium (Ru), samarium (Sm), scandium (Sc), sélénium (Se), silicium (Si), argent (Ag), sodium (Na), strontium (Sr), soufre (S), tellure (Te), terbium (Tb), thallium (Tl), thorium (Th), thulium (Tm), étain (Sn), titane (Ti), tungstène (W), uranium (U), vanadium (V), ytterbium (Yb), yttrium (Y), zinc (Zn) et zirconium (Zr).
Les solutions produites par les méthodes conviennent à l'analyse par spectrométrie d'absorption atomique de vapeur froide (SAAVF) ou par spectrométrie de fluorescence atomique de vapeur froide (SFAVF), pour le mercure (Hg).
La méthode présentée dans le présent document est applicable aux produits de construction.
La digestion par l'eau régale n'entraîne pas nécessairement la décomposition totale de l'échantillon. Les concentrations des analytes extraits peuvent ne pas refléter nécessairement la teneur totale de l'échantillon.
NOTE Les produits de construction comprennent par exemple les produits à base de minéraux (S) ; les produits bitumineux (B) ; les métaux (M) ; les produits à base de bois (W) ; les plastiques et les caoutchoucs (P) ; les produits d'étanchéité et les adhésifs (A) ; les peintures et les revêtements (C), voir également le CEN/TR 16045.
Gradbeni proizvodi - Ocenjevanje sproščanja nevarnih snovi - Razklop z zlatotopko za analizo anorganskih snovi
Ta evropski standard določa metode za pridobivanje vsebine, ki jo je mogoče razklopiti z zlatotopko za gradbene proizvode. Raztopine, ki se jih ustvarja s to metodo, so namenjene analizi z masno spektrometrijo z induktivno sklopljeno plazmo (ICP-MS) in induktivno sklopljeno plazmo (ICP-OES) za naslednjih 67 elementov:
aluminij (Al), antimon (Sb), arzen (As), barij (Ba), berilij (Be), bizmut (Bi), bor (B), kadmij (Cd), kalcij (Ca), cerij (Ce), cezij (Cs), krom (Cr), kobalt (Co), baker (Cu), disprozij (Dy), erbij (Er), evropij (Eu), gadolinij (Gd), galij (Ga), germanij (Ge), zlato (Au), hafnij (Hf), holmij (Ho), indij (In), iridij (Ir), železo (Fe), lantan (La), svinec (Pb), litij (Li), lutecij (Lu), magnezij (Mg), mangan (Mn), živo srebro (Hg), molibden (Mo), neodim (Nd), nikelj (Ni), paladij (Pd), fosfor (P), platina (Pt), kalij (K), prazeodim (Pr), rubidij (Rb), renij (Re), rodij (Rh), rutenij (Ru), samarij (Sm), skandij (Sc), selen (Se), silicij (Si), srebro (Ag), natrij (Na), stroncij (Sr), žveplo (S), telurij (Te), terbij (Tb), talij (Tl), torij (Th), tulij (Tm), kositer (Sn), titan (Ti), volfram (W), uran (U), vanadij (V), iterbij (Yb), itrij (Y), cink (Zn) in cirkonij (Zr).
Raztopine, ki se jih ustvarja s to metodo, so primerne za analizo z atomsko absorpcijsko spektrometrijo hladnih par ali atomsko fluorescenčno spektrometrijo hladnih par (CV-AAS, CV-AFS) za živo srebro (Hg).
Metoda iz tega evropskega standarda velja za gradbene proizvode.
Z razklopom z zlatotopko se ne doseže nujno popolna razgradnja vzorca.
Iz ekstrahiranih koncentracij analita ni nujno razvidna skupna vsebina v vzorcu.
OPOMBA: Gradbeni proizvodi vključujejo na primer mineralne proizvode (S); bitumenske proizvode (B);
kovine (M); lesne proizvode (W); plastične mase in gume (P); tesnila in lepila (A); barve in
premaze (C), glej tudi CEN/TR 16045.
General Information
Relations
Standards Content (Sample)

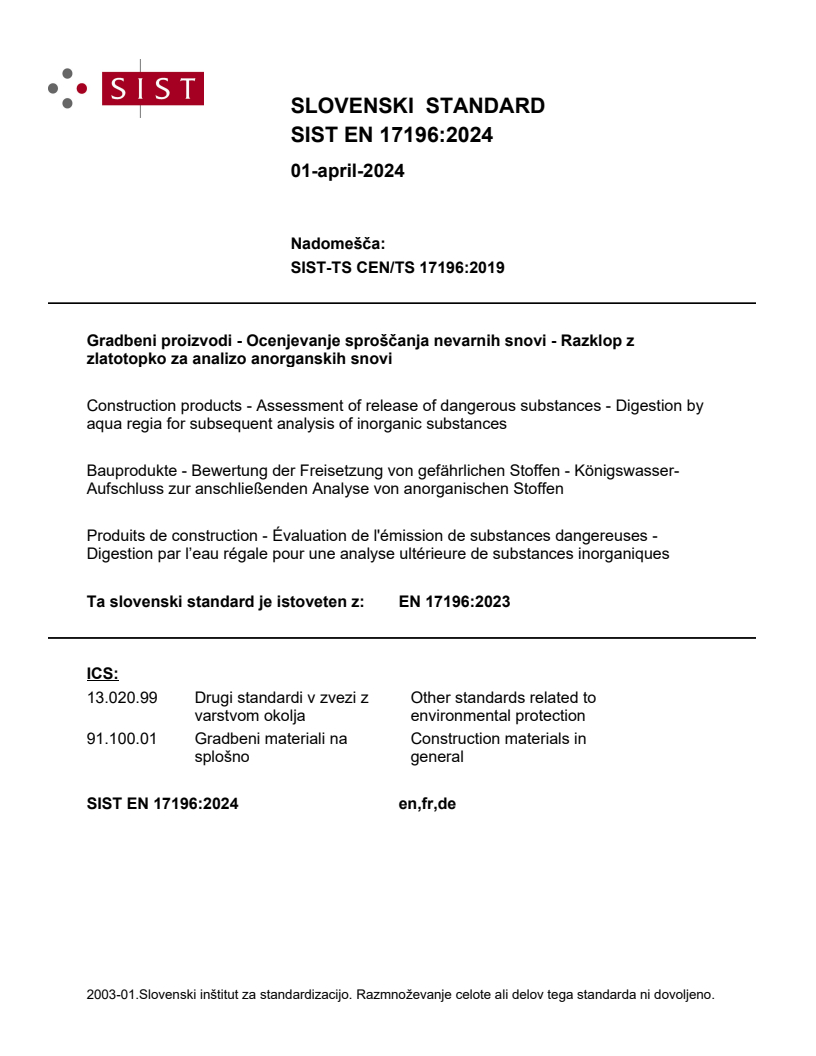

SLOVENSKI STANDARD
01-april-2024
Nadomešča:
SIST-TS CEN/TS 17196:2019
Gradbeni proizvodi - Ocenjevanje sproščanja nevarnih snovi - Razklop z
zlatotopko za analizo anorganskih snovi
Construction products - Assessment of release of dangerous substances - Digestion by
aqua regia for subsequent analysis of inorganic substances
Bauprodukte - Bewertung der Freisetzung von gefährlichen Stoffen - Königswasser-
Aufschluss zur anschließenden Analyse von anorganischen Stoffen
Produits de construction - Évaluation de l'émission de substances dangereuses -
Digestion par l’eau régale pour une analyse ultérieure de substances inorganiques
Ta slovenski standard je istoveten z: EN 17196:2023
ICS:
13.020.99 Drugi standardi v zvezi z Other standards related to
varstvom okolja environmental protection
91.100.01 Gradbeni materiali na Construction materials in
splošno general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN 17196
EUROPEAN STANDARD
NORME EUROPÉENNE
November 2023
EUROPÄISCHE NORM
ICS 91.100.01 Supersedes CEN/TS 17196:2018
English Version
Construction products: Assessment of release of
dangerous substances - Digestion by aqua regia for
subsequent analysis of inorganic substances
Produits de construction : Évaluation de l'émission de Bauprodukte: Bewertung der Freisetzung von
substances dangereuses - Digestion par l'eau régale gefährlichen Stoffen - Königswasser-Aufschluss zur
pour une analyse ultérieure de substances anschließenden Analyse von anorganischen Stoffen
inorganiques
This European Standard was approved by CEN on 14 August 2023.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 17196:2023 E
worldwide for CEN national Members.

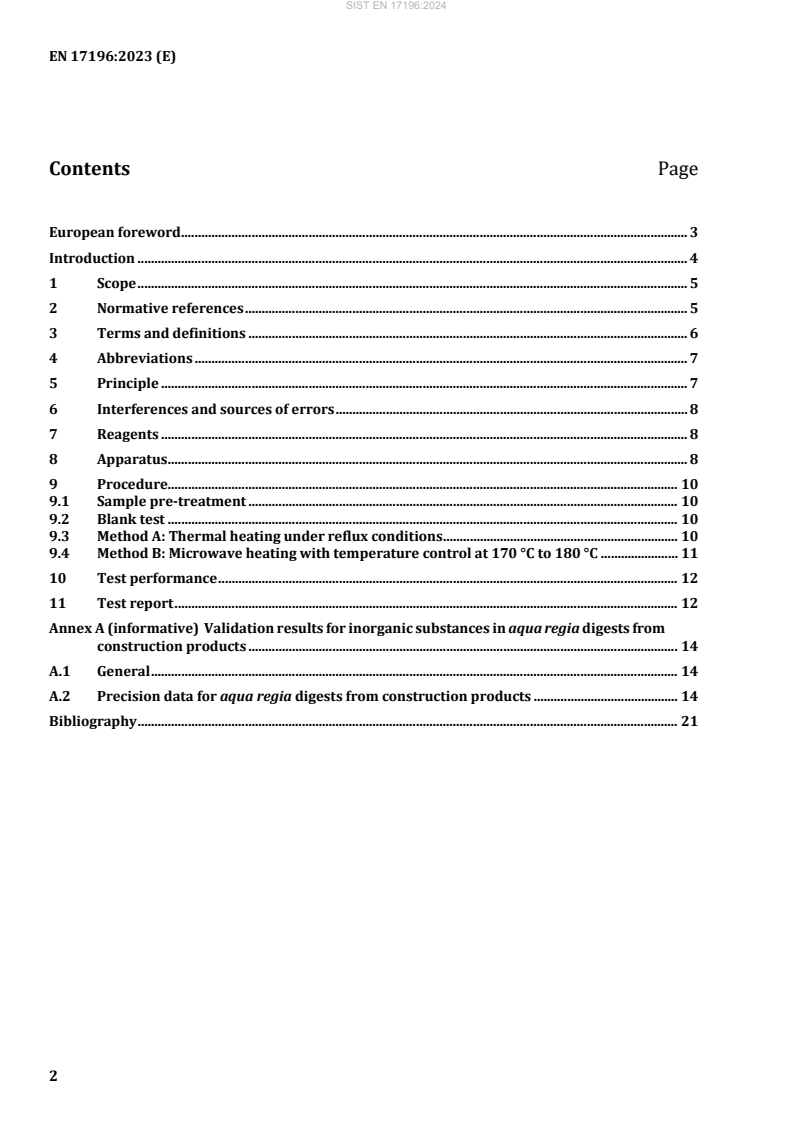

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 6
4 Abbreviations . 7
5 Principle . 7
6 Interferences and sources of errors . 8
7 Reagents . 8
8 Apparatus . 8
9 Procedure. 10
9.1 Sample pre-treatment . 10
9.2 Blank test . 10
9.3 Method A: Thermal heating under reflux conditions . 10
9.4 Method B: Microwave heating with temperature control at 170 °C to 180 °C . 11
10 Test performance . 12
11 Test report . 12
Annex A (informative) Validation results for inorganic substances in aqua regia digests from
construction products . 14
A.1 General . 14
A.2 Precision data for aqua regia digests from construction products . 14
Bibliography . 21
European foreword
This document (EN 17196:2023) has been prepared by Technical Committee CEN/TC 351 “Construction
products: Assessment of release of dangerous substances”, the secretariat of which is held by NEN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by May 2024, and conflicting national standards shall be
withdrawn at the latest by May 2024.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes CEN/TS 17196:2018.
In comparison with the previous edition, the following technical modifications have been made:
— the addition of performance data and data from intercomparison validation;
— alignment of terms and definitions within the working groups of CEN/TC 351, i.e. through the revised
version of EN 16687.
This document has been prepared under a Standardization Request given to CEN by the European
Commission and the European Free Trade Association.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
Introduction
Following an extended evaluation of available methods for content analysis in construction products
(CEN/TR 16045) it was concluded that multi matrix and multi-element digestion methods have
preference over methods developed for single matrices or small groups of matrices. This implies that for
inorganic substances aqua regia digestion is preferred for the digestion of construction products for
content analysis.
This document has been adopted from the work carried out in the context of CEN/TC 292 and
CEN/TC 400 and is very similar to EN 13657 and EN 16174.
This document is part of a modular horizontal approach which was adopted in CEN/TC 351. “Horizontal”
means that the methods can be used for a wide range of materials and products with certain properties.
“Modular” means that a test standard developed in this approach concerns a specific step in assessing a
property and not the whole chain of measurement (from sampling to analyses). Beneficial features of this
approach are that modules can be replaced by better ones without jeopardizing the standard chain and
duplication of work of in different Technical Committees for Products can be avoided as far as possible.
The modules that relate to the standards developed in CEN/TC 351 are specified in CEN/TR 16220, which
distinguishes between the modules. This document belongs to the analytical step.
The use of modular horizontal standards implies the drawing of test schemes as well. Before executing a
test on a certain construction product to determine certain characteristics, it is necessary to draw up a
protocol in which the adequate modules are selected and together form the basis for the entire test
procedure.
WARNING — Persons using this document should be familiar with usual laboratory practice. The
reagents used in this document are strongly corrosive and partly very toxic. Safety precautions are
absolutely necessary, not only due to the strong corrosive reagents, but also to high temperature and high
pressure.
The use of laboratory-grade microwave equipment with isolated and corrosion resistant safety devices
is required. Domestic (kitchen) type microwave ovens should not be used, as corrosion by acid vapours
can compromise the function of the safety devices and prevent the microwave magnetron from shutting
off when the door is open, which could result in operator exposure to microwave energy.
By the use of strong oxidising reagents, the formation of explosive organic intermediates is possible,
especially when dealing with samples with a high organic content.
The use of this document may involve hazardous materials, operations and equipment. This document
does not purport to address all of the safety problems associated with its use. It is the responsibility of
the user of this document to establish appropriate measures to ensure the safety and health of personnel
prior to application of the document and to fulfil statutory and regulatory requirements for this purpose.
IMPORTANT — It is absolutely essential that tests conducted according to this document be carried out
by suitably trained staff.
1 Scope
This document specifies methods for obtaining the aqua regia digestible content of construction
products. Solutions produced by this method are for analysis by inductively coupled plasma mass
spectrometry (ICP-MS) and inductively coupled spectrometry (ICP-OES) for the following 67 elements:
Aluminium (Al), antimony (Sb), arsenic (As), barium (Ba), beryllium (Be), bismuth (Bi), boron (B),
cadmium (Cd), calcium (Ca), cerium (Ce), caesium (Cs), chromium (Cr), cobalt (Co), copper (Cu),
dysprosium (Dy), erbium (Er), europium (Eu), gadolinium (Gd), gallium (Ga), germanium (Ge), gold (Au),
hafnium (Hf), holmium (Ho), indium (In), iridium (Ir), iron (Fe), lanthanum (La), lead (Pb), lithium (Li),
lutetium (Lu), magnesium (Mg), manganese (Mn), mercury (Hg), molybdenum (Mo), neodymium (Nd),
nickel (Ni), palladium (Pd), phosphorus (P), platinum (Pt), potassium (K), praseodymium (Pr), rubidium
(Rb), rhenium (Re), rhodium (Rh), ruthenium (Ru), samarium (Sm), scandium (Sc), selenium (Se), silicon
(Si), silver (Ag), sodium (Na), strontium (Sr), sulphur (S), tellurium (Te), terbium (Tb), thallium (Tl),
thorium (Th), thulium (Tm), tin (Sn), titanium (Ti), tungsten (W), uranium (U), vanadium (V),
ytterbium (Yb), yttrium (Y), zinc (Zn), and zirconium (Zr).
Solutions produced by the methods are suitable for analysis by cold vapour atomic absorption
or fluorescent spectrometry (CV-AAS, CV-AFS), for mercury (Hg).
The method in this document is applicable to construction products.
Digestion with aqua regia will not necessarily accomplish total decomposition of the sample.
The extracted analyte concentrations might not necessarily reflect the total content in the sample.
NOTE Construction products include e.g. mineral-based products (S); bituminous products (B); metals (M);
wood-based products (W); plastics and rubbers (P); sealants and adhesives (A); paints and coatings (C),
see also CEN/TR 16045.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 15936, Soil, waste, treated biowaste and sludge — Determination of total organic carbon (TOC) by dry
combustion
EN 16687:2023, Construction products: Assessment of release of dangerous substances — Terminology
EN 17087, Construction products: Assessment of release of dangerous substances — Preparation of test
portions from the laboratory sample for testing of release and analysis of content
3 Terms and definitions
For the purposes of this document, the terms and definitions given i
...
