prEN ISO 19085-2

Woodworking machines - Safety - Part 2: Horizontal beam panel circular sawing machine (ISO/DIS 19085-2:2026)

This document gives the safety requirements and measures for horizontal beam panel circular sawing machines with the saw carriage of the front cutting line mounted below the workpiece support, which are manually and/or powered loaded and manually unloaded, capable of continuous production use, as defined in 3.1 and hereinafter referred to as “machines”.
This document deals with all significant hazards, hazardous situations and events as listed in Annex A, relevant to the machines, when operated, adjusted and maintained as intended and under the conditions foreseen by the manufacturer including reasonably foreseeable misuse. Also, transport, assembly, dismantling, disabling and scrapping phases have been taken into account.
It is also applicable to machines fitted with one or more of the following devices/additional working units, whose hazards have been dealt with:
—    side pressure device;
—    device for powered unloading;
—    unit for scoring;
—    unit for post-formed/soft-formed edge pre-cutting;
—    panel turning device;
—    front side turn table;
—    pushing out device;
—    pneumatic clamping of the saw blade;
—    powered panel loading device;
—    device for grooving by milling tool;
—    one or more additional cutting lines inside the machine for longitudinal and/or head cut (before the transversal cutting line);
—    workpiece vacuum clamping as part of a front side turn table or of a panel loading device;
—    panel pusher;
—    independent panel pushers;
—    additional panel pushers mounted on the panel pusher carriage;
—    additional panel pusher with integrated label printer device;
—    lifting platform;
—    device for automatic loading of thin panels;
—    device for base board unloading by gravity;
—    device for base board powered unloading;
—    device for panel unloading in limited space condition;
—    loading or pre-loading roller conveyors;
—    pressure beam with additional flaps to increase dust extraction efficiency;
—    saw blade cooling system by air or water-air or oil-air;
—    vibrating conveyor with/without trimming unit for offcuts management;
—    predisposition for top loading/unloading by an external system directly on the machine table and/or on the machine preloading roller conveyor and/or on the machine lifting table.
NOTE      base board is a support panel underlying the panel stack, to protect the panels from damages during transportation.
The machines are designed for cutting panels consisting of:
a) solid wood;
b) material with similar physical characteristics to wood (see ISO19085‑1:2021, 2);
c) gypsum boards, gypsum bounded fibreboards;
d) composite materials, with core consisting of e.g. polyurethane or mineral material, laminated with light alloy;
e) cardboard;
f) foam board;
g) matrix engineered mineral boards, silicate boards;
h) polymer‐matrix composite materials and reinforced thermoplastic/thermoset/elastomeric materials;
i) aluminium light alloy plates with a maximum thickness of 10 mm;
j) composite boards made from the materials listed above.
This document does not deal with hazards related to:
—    specific features different from those listed above;
—    the machining of panels with milling tools for grooving;
—    powered unloading of panels;
—    rear half of split pressure beam on the front cutting line;
—    the combination of a single machine being used with any other machine (as part of a line).
It is not applicable to:
—    machines intended for use in potentiall

Holzbearbeitungsmaschinen - Sicherheit - Teil 2: Horizontale Plattenkreissägemaschinen mit Druckbalken (ISO/DIS 19085-2:2026)

Machines à bois - Sécurité - Partie 2: Scies circulaires à panneaux horizontales à presseur (ISO/DIS 19085-2:2026)

Le présent document donne les exigences et les mesures de sécurité relatives aux scies circulaires à panneaux horizontales à presseur dont le chariot porte-scie de la ligne de coupe frontale est monté sous le support de pièce, qui sont chargées manuellement et/ou mécaniquement et déchargées manuellement, capables d’une utilisation en production continue, telles que définies en 3.1 et ci-après désignées «machines».
Le présent document traite de tous les phénomènes dangereux, situations et événements dangereux significatifs, tels qu'énumérés à l'Annexe A, applicables aux machines lorsqu'elles sont utilisées, réglées et entretenues comme prévu et dans les conditions prévues par le fabricant, y compris une mauvaise utilisation raisonnablement prévisible. Les phases de transport, d'assemblage, de démontage, de mise hors service et de mise au rebut ont également été prises en compte.
Il est également applicable aux machines équipées d'un ou plusieurs des dispositifs/unités de travail supplémentaires suivants, dont les phénomènes dangereux ont été traités:
—    dispositif de pressage latéral;
—    dispositif pour le déchargement mécanisé;
—    unité pour l'incision;
—    unité pour la précoupe de chants postformés;
—    dispositif de rotation de panneaux;
—    table tournante à l'avant;
—    poussoir d’évacuation;
—    bridage pneumatique de la lame de scie;
—    dispositif mécanisé de chargement du panneau;
—    dispositif de rainurage à l'aide d'un outil de fraisage;
—    une ou plusieurs lignes de coupe additionnelles à l’intérieur de la machine pour une coupe longitudinale et/ou une coupe de tête (avant la ligne de coupe transversale);
—    bridage de pièce par dépression faisant partie d’une table tournante à l'avant ou d’un dispositif de chargement du panneau;
—    pousseur de panneaux;
—    pousseurs de panneaux indépendants;
—    pousseurs de panneaux supplémentaires montés sur le chariot pousseur de panneaux;
—    pousseur de panneau supplémentaire avec dispositif d'impression d'étiquettes intégré;
—    plateforme élévatrice;
—    dispositif de chargement automatique de panneaux minces;
—    dispositif de déchargement des plaques de base par gravité;
—    dispositif de déchargement motorisé des plaques de base;
—    dispositif de déchargement du panneau dans des conditions d’espace limité;
—    convoyeurs à rouleaux de chargement ou de préchargement;
—    poutre de pression avec volets supplémentaires pour augmenter l'efficacité d'extraction des poussières;
—    système de refroidissement de lame de scie par air ou eau-air ou huile-air;
—    convoyeur vibrant avec/sans groupe d’usinage pour la gestion des chutes;
—    prédisposition au chargement/déchargement par le haut par un système externe directement sur la table de la machine et/ou sur le convoyeur à rouleaux de précharge de la machine et/ou sur la table élévatrice de la machine.
NOTE         La plaque de base est un panneau de support sous la pile de panneaux, pour protéger les panneaux contre les dommages pendant le transport.
Les machines sont conçues pour découper des panneaux constitués de:
a) bois massif;
b) un matériau ayant des caractéristiques physiques similaires à celles du bois (voir l'ISO19085‑1:2021, 2);
c) panneaux en plâtre, panneaux en fibres agglomérées au plâtre;
d) matériaux en composite, dont la base est constituée, par exemple, de polyuréthane ou d'un matériau minéral stratifié en alliages légers;
e) carton;
f) panneau de mousse;
g) panneaux minéraux à matr

Lesnoobdelovalni stroji - Varnost - 2. del: Formatne horizontalne krožne žage za razrez plošč (ISO/DIS 19085-2:2026)

Ta dokument določa varnostne zahteve in ukrepe za horizontalne krožne žage s prečnim vozičkom, pri katerih je žagalna linija nameščena pod podporo obdelovanca, ki se ročno in/ali strojno nalagajo ter ročno razkladajo, sposobne za neprekinjeno proizvodnjo, kot je opredeljeno v točki 3.1 in v nadaljevanju imenovane "stroji".
Ta dokument obravnava vse pomembne nevarnosti, nevarne situacije in dogodke, navedene v Prilogi A, ki so pomembni za stroje, ko so ti uporabljeni, nastavljeni in vzdrževani, kot je predvideno, ter pod pogoji, ki jih predvideva proizvajalec, vključno z razumno predvidljivo napačno uporabo. Prav tako so upoštevane faze transporta, montaže, demontaže, onesposobitve in razgradnje.
Prav tako se uporablja za stroje, opremljene z eno ali več naslednjimi napravami/dodatnimi delovnimi enotami, katerih nevarnosti so bile obravnavane:
- stranska tlačna naprava;
- naprava za strojno razkladanje;
- enota za zarezovanje;
- enota za predrezovanje post-formiranih/mehko-formiranih robov;
- naprava za obračanje plošč;
- obračalna miza na sprednji strani;
- iztiskovalna naprava;
- pnevmatsko vpenjanje žaginega lista;
- naprava za strojno nalaganje plošč;
- naprava za utore z rezkalnim orodjem;
- ena ali več dodatnih rezalnih linij znotraj stroja za vzdolžni in/ali čelni rez (pred prečno rezalno linijo);
- vakuumsko vpenjanje obdelovanca kot del obračalne mize na sprednji strani ali naprave za nalaganje plošč;
- potiskač plošč;
- neodvisni potiskači plošč;
- dodatni potiskači plošč, nameščeni na vozičku potiskača plošč;
- dodatni potiskač plošč z integrirano napravo za tiskanje nalepk;
- dvižna platforma;
- naprava za samodejno nalaganje tankih plošč;
- naprava za razkladanje osnovne plošče z gravitacijo;
- naprava za strojno razkladanje osnovne plošče;
- naprava za razkladanje plošč v omejenem prostoru;
- valjčni transporterji za nalaganje ali prednalaganje;
- tlačna greda z dodatnimi loputami za povečanje učinkovitosti odsesavanja prahu;
- sistem za hlajenje žaginega lista z zrakom ali zrak-voda ali zrak-olje;
- vibracijski transporter z/ali brez enote za obrezovanje za upravljanje ostankov;
- predispozicija za zgornje nalaganje/razkladanje z zunanjim sistemom neposredno na mizo stroja in/ali na prednalagalni valjčni transporter stroja in/ali na dvižno mizo stroja.
OPOMBA: osnovna plošča je podporna plošča pod skladom plošč, ki ščiti plošče pred poškodbami med transportom.
Stroji so zasnovani za rezanje plošč, sestavljenih iz:
a) masivnega lesa;
b) materiala s podobnimi fizikalnimi lastnostmi kot les (glej ISO 19085-1:2021, 2);
c) mavčnih plošč, mavčno vezanih vlaknenih plošč;
d) kompozitnih materialov, s sredico iz npr. poliuretana ali mineralnega materiala, laminiranih z lahkimi zlitinami;
e) kartona;
f) penaste plošče;
g) mineralnih plošč z matrico, silikatnih plošč;
h) kompozitnih materialov z matrico iz polimerov in ojačanih termoplastičnih/termosetnih/elastomernih materialov;
i) plošč iz aluminijevih lahkih zlitin z največjo debelino 10 mm;
j) kompozitnih plošč, izdelanih iz zgoraj navedenih materialov.
Ta dokument ne obravnava nevarnosti, povezanih z:
- specifičnimi značilnostmi, ki se razlikujejo od zgoraj navedenih;
- obdelavo plošč z rezkalnimi orodji za utore;
- strojno razkladanje plošč;
- zadnjo polovico razdeljene tlačne grede na sprednji rezalni liniji;
- kombinacijo enega stroja, ki se uporablja z drugim strojem (kot del linije).
Ne velja za:
- stroje, namenjene za uporabo v potencialno

General Information

• Status: Not Published
• Publication Date: 25-Oct-2027
• ICS: 79.120.10 - Woodworking machines
• Technical Committee: CEN/TC 142 - Woodworking machines - Safety
• Current Stage: 4020 - Submission to enquiry - Enquiry
• Start Date: 02-Apr-2026
• Completion Date: 02-Apr-2026
• Directive: Not Harmonized2023/1230 - Regulation (EU) 2023/1230 of the European Parliament and of the Council of 14 June 2023 on machinery and repealing Directive 2006/42/EC of the European Parliament and of the Council and Council Directive 73/361/EEC (Text with EEA relevance)
• Mandate: M/605 - COMMISSION IMPLEMENTING DECISION of 20.1.2025 on a standardisation request to the European Committee for Standardization and to the European Committee for Electrotechnical Standardization as regards machinery and related products in support of Regulation (EU) 2023/1230 of the European Parliament and of the Council
• Ref Project: oSIST prEN ISO 19085-2:2026 - Woodworking machines - Safety - Part 2: Horizontal beam panel circular sawing machine (ISO/DIS 19085-2:2026)

Relations

• Revises: EN ISO 19085-2:2021 - Woodworking machines - Safety - Part 2: Horizontal beam panel circular sawing machines (ISO 19085-2:2021)
• Effective Date: 09-Jul-2025

Standards Content (Sample)

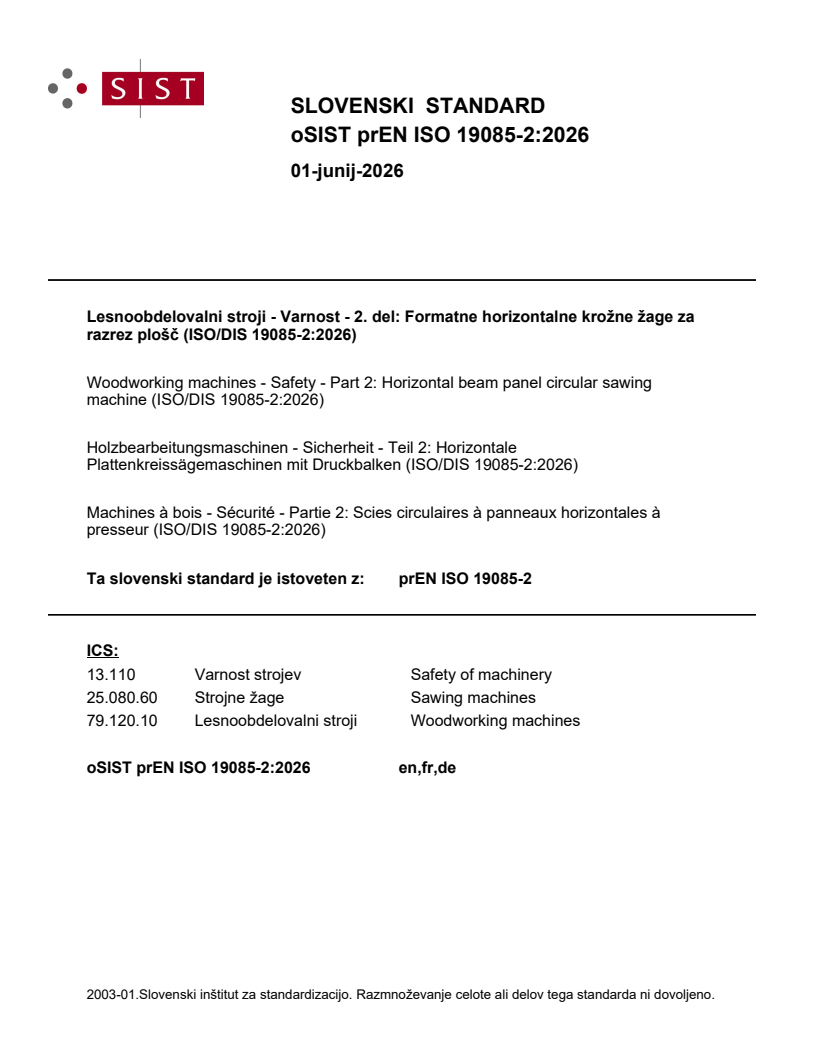

SLOVENSKI STANDARD
01-junij-2026
Lesnoobdelovalni stroji - Varnost - 2. del: Formatne horizontalne krožne žage za
razrez plošč (ISO/DIS 19085-2:2026)
Woodworking machines - Safety - Part 2: Horizontal beam panel circular sawing
machine (ISO/DIS 19085-2:2026)
Holzbearbeitungsmaschinen - Sicherheit - Teil 2: Horizontale
Plattenkreissägemaschinen mit Druckbalken (ISO/DIS 19085-2:2026)
Machines à bois - Sécurité - Partie 2: Scies circulaires à panneaux horizontales à
presseur (ISO/DIS 19085-2:2026)
Ta slovenski standard je istoveten z: prEN ISO 19085-2
ICS:
13.110 Varnost strojev Safety of machinery
25.080.60 Strojne žage Sawing machines
79.120.10 Lesnoobdelovalni stroji Woodworking machines
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

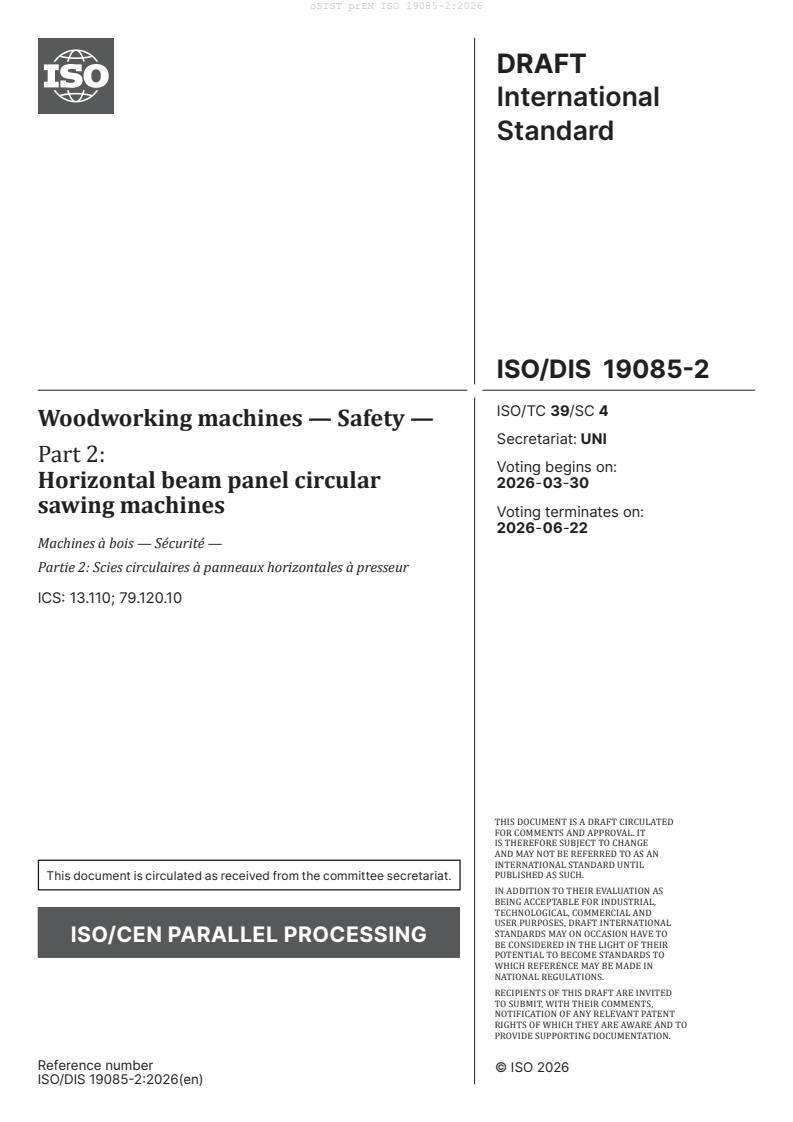

DRAFT
International
Standard
ISO/DIS 19085-2
ISO/TC 39/SC 4
Woodworking machines — Safety —
Secretariat: UNI
Part 2:
Voting begins on:
Horizontal beam panel circular 2026-03-30
sawing machines
Voting terminates on:
2026-06-22
Machines à bois — Sécurité —
Partie 2: Scies circulaires à panneaux horizontales à presseur
ICS: 13.110; 79.120.10
THIS DOCUMENT IS A DRAFT CIRCULATED
FOR COMMENTS AND APPROVAL. IT
IS THEREFORE SUBJECT TO CHANGE
AND MAY NOT BE REFERRED TO AS AN
INTERNATIONAL STANDARD UNTIL
PUBLISHED AS SUCH.
This document is circulated as received from the committee secretariat.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL,
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
STANDARDS MAY ON OCCASION HAVE TO
ISO/CEN PARALLEL PROCESSING
BE CONSIDERED IN THE LIGHT OF THEIR
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
NATIONAL REGULATIONS.
RECIPIENTS OF THIS DRAFT ARE INVITED
TO SUBMIT, WITH THEIR COMMENTS,
NOTIFICATION OF ANY RELEVANT PATENT
RIGHTS OF WHICH THEY ARE AWARE AND TO
PROVIDE SUPPORTING DOCUMENTATION.
Reference number
ISO/DIS 19085-2:2026(en)
DRAFT
ISO/DIS 19085-2:2026(en)
International
Standard
ISO/DIS 19085-2
ISO/TC 39/SC 4
Woodworking machines — Safety —
Secretariat: UNI
Part 2:
Voting begins on:
Horizontal beam panel circular
sawing machines
Voting terminates on:
Machines à bois — Sécurité —
Partie 2: Scies circulaires à panneaux horizontales à presseur
ICS: 13.110; 79.120.10
THIS DOCUMENT IS A DRAFT CIRCULATED
FOR COMMENTS AND APPROVAL. IT
IS THEREFORE SUBJECT TO CHANGE
AND MAY NOT BE REFERRED TO AS AN
INTERNATIONAL STANDARD UNTIL
PUBLISHED AS SUCH.
This document is circulated as received from the committee secretariat.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL,
© ISO 2026
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
STANDARDS MAY ON OCCASION HAVE TO
ISO/CEN PARALLEL PROCESSING
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
BE CONSIDERED IN THE LIGHT OF THEIR
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
or ISO’s member body in the country of the requester.
NATIONAL REGULATIONS.
ISO copyright office
RECIPIENTS OF THIS DRAFT ARE INVITED
CP 401 • Ch. de Blandonnet 8
TO SUBMIT, WITH THEIR COMMENTS,
CH-1214 Vernier, Geneva
NOTIFICATION OF ANY RELEVANT PATENT
Phone: [phone]
RIGHTS OF WHICH THEY ARE AWARE AND TO
PROVIDE SUPPORTING DOCUMENTATION.
Email: [e-mail]
Website: www.iso.org
Published in Switzerland Reference number
ISO/DIS 19085-2:2026(en)
ii
ISO/DIS 19085-2:2026(en)
Contents Page
Foreword .vi
Introduction .vii
1 Scope . 1
2 Normative references . 3
3 Terms and definitions . 3
4 Safety requirements and measures for controls . 8
4.1 Safety and reliability of control systems.8
4.2 Control devices .8
4.2.1 General .8
4.2.2 Hand-held control set .9
4.2.3 Reset device .9
4.3 Start .9
4.3.1 Direct start .9
4.3.2 Start via control power-on .9
4.3.3 Operating conditions .9
4.4 Safe stops .10
4.4.1 Stop function .10
4.4.2 Normal stop .11
4.4.3 Operational stop .11
4.4.4 Emergency stop .11
4.5 Braking function of tools .11
4.6 Operating modes .11
4.7 Tool speed .11
4.7.1 Speed changing by shifting the belts on the pulleys .11
4.7.2 Speed changing by incremental speed change motor .11
4.7.3 Speed control by frequency inverter .11
4.8 Failure of any energy supply .11
4.9 Manual reset control . 12
4.10 Standstill detection . 12
4.11 Machine moving parts speed monitoring. 12
4.12 Time delay. 12
4.13 Teleservice . 12
4.14 Protection against corruption . 12
5 Safety requirements and measures for protection against mechanical hazards .12
5.1 Stability . 12
5.2 Risk of break-up during operation . 12
5.3 Tool and tool fixing design . 12
5.3.1 General . 12
5.3.2 Spindle locking . 12
5.3.3 Circular saw blade fixing device . 12
5.3.4 Flange dimension for circular saw blades . 12
5.4 Tool brake . . 13
5.5 Safeguards . 13
5.5.1 Fixed guards . 13
5.5.2 Interlocking movable guards . 13
5.5.3 Hold-to-run control . 13
5.5.4 Two-hand control . 13
5.5.5 Electro-sensitive protective equipment (ESPE) . 13
5.5.6 Pressure-sensitive protective equipment (PSPE) . 13
5.5.7 Enabling control . 13
5.6 Prevention of access to hazardous moving parts . 13
5.6.1 Saw blades outside the cutting area . 13
5.6.2 Saw blades in the cutting area .14

iii
ISO/DIS 19085-2:2026(en)
5.6.3 Access to moving parts from below the guards . 15
5.6.4 Pressure beam .16
5.6.5 Side pressure device . . .19
5.6.6 Front side turn table .19
5.6.7 Pushing out device .19
5.6.8 Rear of the machine with panel pusher (except loading zone) .19
5.6.9 Loading zone at the rear of the machine with panel pusher . 20
5.6.10 Minimum clearance at the unloading area . 25
5.6.11 Predisposition for top loading/unloading by an external system .27
5.6.12 Integrated trimming unit for offcuts management .27
5.7 Impact hazard .27
5.8 Clamping devices . 28
5.9 Measures against ejection . 28
5.9.1 General . 28
5.9.2 Guards of class A, materials and thickness . 28
5.9.3 Guards of class B, materials and thickness . 28
5.10 Workpiece supports and guides . . 28
5.10.1 General . 28
5.10.2 Roller tables . 29
5.10.3 Roller rails . 29
6 Safety requirements and measures for protection against other hazards .29
6.1 Fire . 29
6.2 Noise . 29
6.2.1 Noise reduction at the design stage . 29
6.2.2 Noise emission measurement . 29
6.3 Emission of chips and dust . 29
6.4 Electricity . 29
6.5 Ergonomics and handling . 30
6.6 Lighting . 30
6.7 Pneumatics . 30
6.8 Hydraulics . 30
6.9 Electromagnetic compatibility. 30
6.10 Laser . 30
6.11 Static electricity. 30
6.12 Errors of fitting . 30
6.13 Isolation . 30
6.14 Maintenance . 30
6.15 Risks due to surfaces, edges or angles . 30
6.16 Relevant but not significant hazards . 30
7 Information for use .30
7.1 Warning devices . 30
7.2 Marking .31
7.2.1 Marking methods and language .31
7.2.2 Marking contents .31
7.3 Instructions handbook .31
7.3.1 Instructions drafting and language .31
7.3.2 Instructions handbook contents .31
Annex A (informative) List of significant hazards .33
Annex B (informative) Performance level required .35
Annex C (normative) Brake test .37
Annex D (normative) Impact test for guards .38
Annex E (normative) Noise test code .39
Annex F (normative) Rigidity tests for sectional safety curtain material .42

iv
ISO/DIS 19085-2:2026(en)
Annex ZA (informative) Relationship between this European Standard and the essential
requirements of Regulation (EU) 2023/1230 aimed to be covered .43

v
ISO/DIS 19085-2:2026(en)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO documents should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 39, Machine tools, Subcommittee SC 4,
Woodworking machines, in collaboration with the European Committee for Standardization (CEN) Technical
Committee CEN/TC 142, Woodworking machines - Safety, in accordance with the Agreement on technical
cooperation between ISO and CEN (Vienna Agreement).
This document is intended to be used in conjunction with ISO 19085-1:2026.
This third edition cancels and replaces the second edition (ISO 19085-2:2021), which has been technically
revised. The main changes are as follows:
— the way of reference from this document to ISO 19085-1:2026 has been simplified, as well as its
explanation in Introduction, and aligned to ISO drafting rules;
— the verification methods at the end of each subclause have been deleted, since self-evident;
— 4.2, 4.6, 7.2, 7.3 have been rearranged, to follow the new subdivision in ISO 19085-1:2026;
— 4.7.3, 5.10 have been subdivided, to follow the new subdivision in ISO 19085-1:2026;
— 5.4, 5.9 have been simplified in structure, for easier reading;
— requirements for another configuration have been added in 5.6.10, Figure 10 b), 7.3.2 c);
— 5.7 has been clarified and completed.
A list of all parts in the ISO 19085 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

vi
ISO/DIS 19085-2:2026(en)
Introduction
The ISO 19085 series provides technical safety requirements for the design and construction of
woodworking machinery, as well as for the content of the relevant instruction handbook. It concerns
designers, manufacturers, suppliers and importers of the machines specified in the Scope.
This document is a type-C standard as stated in ISO 12100.
This document is of relevance, in particular, for the following stakeholder groups representing the market
players with regard to machinery safety:
— machine manufacturers (small, medium and large enterprises);
— health and safety bodies (regulators, accident prevention organisations, market surveillance etc.)
Others can be affected by the level of machinery safety achieved with the means of the document by the
above-mentioned stakeholder groups:
— machine users/employers (small, medium and large enterprises);
— machine users/employees (e.g. trade unions, organizations for people with special needs);
— service providers, e. g. for maintenance (small, medium and large enterprises);
— consumers (in case of machinery intended for use by consumers).
The above-mentioned stakeholder groups have been given the possibility to participate at the drafting
process of this document.
The machinery concerned and the extent to which hazards, hazardous situations or hazardous events are
covered are indicated in the Scope of this document.
When requirements of this type-C standard are different from those which are stated in type-A or type-B
standards, the requirements of this type-C standard take precedence over the requirements of the other
standards for machines that have been designed and built according to the requirements of this type-C
standard.
In this document, a subclause can refer to the same subclause of ISO DIS 19085-1:2026 or give specific
requirements or both.
vii
DRAFT International Standard ISO/DIS 19085-2:2026(en)
Woodworking machines — Safety —
Part 2:
Horizontal beam panel circular sawing machines
1 Scope
This document specifies the safety requirements and measures for horizontal beam panel circular sawing
machines with the saw carriage of the front cutting line mounted below the workpiece support, which are
manually or powered loaded or both and manually unloaded, capable of continuous production use, as
defined in 3.1 and hereinafter referred to also as “machines”.
This document deals with all significant hazards, hazardous situations or hazardous events, listed in
Annex A, relevant to the machines when used as intended and under conditions of misuse which are
reasonably foreseeable. Also, transport, assembly, adjustment, maintenance, dismantling, disabling and
scrapping phases have been taken into account.
This document is also applicable to machines fitted with one or more of the following devices or additional
working units, whose hazards have been dealt with:
— side pressure device;
— device for powered unloading;
— unit for scoring;
— unit for post-formed/soft-formed edge pre-cutting;
— panel turning device;
— front side turn table;
— pushing out device;
— pneumatic clamping of the saw blade;
— powered panel loading device;
— device for grooving by milling tool;
— one or more additional cutting lines inside the machine for longitudinal or head cut or both (before the
transversal cutting line);
— workpiece vacuum clamping as part of a front side turn table or of a panel loading device;
— panel pusher;
— independent panel pushers;
— additional panel pushers mounted on the panel pusher carriage;
— additional panel pusher with integrated label printer device;
— lifting platform;
— device for automatic loading of thin panels;

ISO/DIS 19085-2:2026(en)
— device for base board unloading by gravity;
— device for base board powered unloading;
— device for panel unloading in limited space condition;
— loading or pre-loading roller conveyors;
— pressure beam with additional flaps to increase dust extraction efficiency;
— saw blade cooling system by air or water-air or oil-air;
— vibrating conveyor with/without trimming unit for offcuts management;
— predisposition for top loading/unloading by an external system directly on the machine table or on the
machine preloading roller conveyor or on the machine lifting table.
NOTE base board is a support panel underlying the panel stack, to protect the panels from damages during
transportation.
The machines are designed for cutting panels consisting of:
a) solid wood;
b) material with similar physical characteristics to wood (see ISO DIS 19085-1:2026, 3.2);
c) gypsum boards, gypsum bounded fibreboards;
d) composite materials, with core consisting of e.g. polyurethane or mineral material, laminated with light
alloy;
e) cardboard;
f) foam board;
g) matrix engineered mineral boards, silicate boards;
h) polymer-matrix composite materials and reinforced thermoplastic/thermoset/elastomeric materials;
i) aluminium light alloy plates with a maximum thickness of 10 mm;
j) composite boards made from the materials listed above.
This document does not deal with hazards related to:
— specific features different from those listed above;
— the machining of panels with milling tools for grooving;
— powered unloading of panels;
— rear half of split pressure beam on the front cutting line;
— the combination of a single machine being used with any other machine (as part of a line).
This document is not applicable to:
— machines intended for use in potentially explosive atmospheres;
— machines manufactured prior to the date of its publication.

ISO/DIS 19085-2:2026(en)
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 12100:2010, Safety of machinery — General principles for design — Risk assessment and risk reduction
EN 847-1:2017, Tools for woodworking — Safety requirements — Part 1: Milling tools, circular saw blades
ISO 13849-1:2023, Safety of machinery — Safety-related parts of control systems — Part 1: General principles
for design
ISO 13857:2019, Safety of machinery — Safety distances to prevent hazard zones being reached by upper and
lower limbs
ISO 14118:2017, Safety of machinery — Prevention of unexpected start-up
ISO 19085-1:2026, Woodworking machines — Safety — Part-1: common requirements
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 12100:2010, ISO 13849-1:2023,
ISO DIS 19085-1:2026 and the following apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
horizontal beam panel circular sawing machine
machine designed for cutting panels, fitted with one travelling saw carriage (3.4) per cutting line
incorporating one or more circular saw blades, with horizontal workpiece support and with a pressure beam
(3.5) holding the workpiece in position during cutting
Note 1 to entry: The workpiece can be mechanically positioned by a panel pusher (3.6) for the cuts. The cutting stroke
is power driven. Before the cutting stroke commences, the saw blade is automatically raised and is lowered below the
workpiece support for the return stroke. Examples are shown in Figure 1.
3.2
manual loading
operation where the operator puts the workpiece directly on the workpiece support from the front side of
the machine, or onto an intermediate loading device that cannot keep the operator away from the machine
front cutting line of at least 1 500 mm during operation
3.3
manual unloading
operation where the operator removes the workpiece directly from the workpiece support, or from an
intermediate unloading device that cannot keep the operator away from the machine front cutting line of at
least 1 500 mm during operation
3.4
saw carriage
supporting unit of the saw blades, which performs the cutting stroke

ISO/DIS 19085-2:2026(en)
3.5
pressure beam
workpiece clamping device extending across the full working width of the machine with the function to hold
the workpiece down to the workpiece support during cutting
Note 1 to entry: The pressure beam is also part of the safeguarding of the saw blades in the cutting area.
3.6
panel pusher
movable workpiece guiding device used to position the workpiece over the line of cut, and fitted with holding
devices e.g. collets for holding the workpiece in position
Note 1 to entry: The positioning of the panel pusher can be under NC control.
a) Example of a machine with panel pusher and panel loading from the rear side by a powered
loading device and with perimeter fence and light barrier

ISO/DIS 19085-2:2026(en)
b) Example of a machine with panel pusher and panel loading from the front side and perimeter
fence
c) Example of a machine with panel pusher and panel loading from the front and with distance
guards mounted on the machine frame

ISO/DIS 19085-2:2026(en)
d) Example of a machine without panel pusher
Key
h height of the front side fixed guards
h height of the perimeter fence
Figure 1 — Examples of horizontal beam panel saws
3.7
cutting cycle
single cut operation consisting of vertical movements of the saw blades and horizontal movements of the
saw carriage (3.4)
3.8
rest position
position in either the left or the right side of the machine body and outside of the cutting
area to which the saw carriage (3.4) can return at the end of each cutting cycle (3.7)
3.9
rest position
position of the saw blade below the machine table
3.10
pressure beam rest position
highest position of the pressure beam (3.5)
3.11
front cutting line
cutting line closest to the operator's position
Note 1 to entry: See Figure 2, key 1.

ISO/DIS 19085-2:2026(en)
3.12
head cutting line
first cutting line to divide a panel before further cuts, where the saw carriage (3.4) can be mounted below or
above the workpiece support
Note 1 to entry: See Figure 2, key 3.
Key
1 front cutting line
2 longitudinal cutting line
3 head cutting line
4 unloading area
Figure 2 — Horizontal beam panel saw cutting lines
3.13
side pressure device
power operated movable workpiece guiding device to push the workpiece against the fence for right-angled
cuts
3.14
panel turning device
device integrated into the rear workpiece support to turn the panel for e.g. rectangular cut
3.15
front side turn table
table, mostly with air cushion, able to move power-driven parallel to the cutting line and turn by 90° for
ergonomic positioning of very heavy workpieces or stacks of panels

ISO/DIS 19085-2:2026(en)
3.16
pushing out device
movable device to move the last residues of a panel towards the front of the pressure beam (3.5) for easy
take off by the operator
Note 1 to entry: The same function can be achieved by telescopic collets or by collets with extended length mounted
on the panel pusher.
4 Safety requirements and measures for controls
4.1 Safety and reliability of control systems
ISO DIS 19085-1:2026, 4.1, shall apply.
Annex B, Table B.1 summarizes the performance levels required in Clause 4 and Clause 5 for all safety
functions.
4.2 Control devices
4.2.1 General
ISO DIS 19085-1:2026, 4.2.1, shall apply.
The following electrical control devices of the machine, if any, shall be positioned together on the main
control panel, located at the front side of the machine such that the working area is visible from this position
by the operator:
— for start and stop of the cycle;
— for control power-on;
— for normal stop;
— for the movement of the panel pusher;
— for saw spindle speed changing;
— for the side pressure;
— for the pushing out device;
— for hold-to-run of the downward movement of the pressure beam.
Emergency stop control devices shall be provided on the main control panel, on any auxiliary control panel,
and at the following positions unless the main control panel or an auxiliary control panel is placed there
already:
a) on the front of the machine: at both sides of the loading/unloading opening;
b) on the rear side of the machine with panel pusher: at one side of any access opening;
c) on the rear side of the machine without panel pusher: at both sides of the loading/unloading opening.
An additional cycle start control device may be fitted on the front side of the machine, at one of the air-
cushion tables. It shall be supplemented by a normal stop or an emergency stop control device adjacent to it.
If more than one additional control device for cycle start is provided at the air-cushion tables, only one shall
be active at a time.
The cycle start control device may be a push button or push bar (as long as cushion table maximum) and shall,
in any case, be fitted with protection means against inadvertent actuation as specified in ISO 14118:2017.

ISO/DIS 19085-2:2026(en)
On machines without panel pusher, if more than one cycle start control device is available, only one of them
shall be active at a time.
The SRP/CS for selecting the active additional cycle-start control device may not achieve any PL.
4.2.2 Hand-held control set
Hand-held control set is not relevant to these machines.
4.2.3 Reset device
ISO DIS 19085-1:2026, 4.2.3, shall apply.
4.3 Start
4.3.1 Direct start
Direct start is not relevant to these machines.
4.3.2 Start via control power-on
ISO DIS 19085-1:2026, 4.3.2, shall apply.
When the saw carriage is out of its rest position, the saw blades shall not leave their rest position before the
saw blades rotation has been started.
When a saw blade is out of its rest position, the saw carriage shall not leave its rest position before the saw
blades rotation has been started.
The SRP/CS for the interlocking of the saw blades movement out of their rest position with the saw blades
rotation and the saw carriage position shall achieve PL = b.
r
The SRP/CS for the interlocking of the saw carriage movement out of its rest position with the saw blades
rotation and the saw blades position shall achieve PL = b.
r
4.3.3 Operating conditions
During operation, the conditions from a) to e) shall be met in the front cutting line.
a) The pressure beam shall not leave its rest position as long as the safety curtain has not reached its
guarding position.
b) When the saw carria
...
