EN 16194:2023
(Main)Mobile non-sewer-connected toilet cabins - Requirements of services and products relating to the deployment of cabins and sanitary products
Mobile non-sewer-connected toilet cabins - Requirements of services and products relating to the deployment of cabins and sanitary products
This document applies to mobile non-sewer-connected toilet cabins system.
It specifies the requirements for services related to the provision of toilet cabins and the relevant requirements for toilet cabins and sanitary products, taking into account comfort, hygiene, health and safety.
It specifies the minimum quality requirements for toilet cabins and sanitary products, as well as the extent of on-site service and the required disinfection and the number of toilet cabins to be provided. It also determines the frequency of use, the maximum number of uses per toilet cabins, the locations and the intervals for on-site service or disposal of faecal water.
This document is applicable to the framework of activities carried out in the following sectors:
— construction and extractive industries, opencast or underground;
— public events and recreational activities, festivals and concerts;
— agriculture, labour camps and temporary work camps;
— beaches;
— emergencies;
— military tactical and training exercises.
There are other types of mobile toilet cabins which are not connected to a sewage system (e.g. dry toilets, composting toilets, incinerations toilets, vacuum toilets, or other technologies and processes) and which are not covered by this document.
This document establishes a system to ensure that mobile sanitation facilities for waste disposal are available not only in the workplaces but wherever there are no waste disposal systems connected to a sewerage network.
This document is directed at manufacturers, services providers' companies and publics or private cabin hirers of toilet cabins not connected to a sewage network.
Mobile anschlussfreie Toilettenkabinen - Anforderungen an Dienstleistungen und Produkte für den Einsatz von Kabinen und Sanitärprodukten
Dieses Dokument ist anwendbar für mobile, anschlussfreie Toilettenkabinensysteme.
Es legt Anforderungen fest an Dienstleistungen bezüglich der Bereitstellung von Toilettenkabinen und die benötigten Anforderungen an Toilettenkabinen und Sanitärprodukte unter Berücksichtigung von Komfort, Hygiene, Gesundheit und Sicherheit.
Es legt die Mindestqualitätsanforderungen für Toilettenkabinen und Sanitärprodukte sowie den Umfang der Serviceleistung vor Ort und die erforderliche Desinfektion und die Anzahl der bereitzustellenden Toilettenkabinen fest. Es legt auch die Häufigkeit der Nutzung, die maximale Anzahl der Nutzungen je Toilettenkabine, die Standorte und die Intervalle für die Serviceleistung vor Ort oder die Entsorgung von Fäkalwasser fest.
Dieses Dokument ist anwendbar im Rahmen von Tätigkeiten in den folgenden Bereichen:
Bau- und Bergbauindustrie, im Tagebau oder unter Tage;
öffentliche Veranstaltungen und Freizeitaktivitäten, Festivals und Konzerte;
Landwirtschaft, Quartiere und temporäre Unterkünfte für Beschäftigte;
Strände;
Notfälle;
militärische taktische und Ausbildungsübungen.
Es gibt andere Arten von anschlussfreien mobilen Toilettenkabinen (z. B. Trockentoiletten, Komposttoiletten, Verbrennungstoiletten, Vakuumtoiletten oder andere Technologien und Verfahren), die in diesem Dokument nicht behandelt werden.
Dieses Dokument legt ein System fest, das sicherstellt, dass mobile Sanitäreinrichtungen für die Fäkalienentsorgung nicht nur an den Arbeitsplätzen, sondern überall dort zur Verfügung stehen, wo es keine an ein Kanalisationssystem angeschlossenen Fäkalienentsorgungssysteme gibt.
Dieses Dokument richtet sich an Hersteller, Dienstleistungsunternehmen und öffentliche oder private Vermieter von anschlussfreien Toilettenkabinen.
Cabines sanitaires mobiles autonomes - Exigences relatives aux services et produits, liées à la mise en place des cabines et des produits sanitaires
Le présent document s’applique aux systèmes de cabines sanitaires mobiles autonomes.
Il spécifie les exigences relatives aux services liés à la fourniture de cabines sanitaires mobiles autonomes et les exigences correspondantes relatives aux cabines et aux produits sanitaires, en tenant compte du confort, de l’hygiène, de la santé et de la sécurité.
Il spécifie les exigences de qualité minimales relatives aux cabines sanitaires mobiles autonomes et aux produits sanitaires ainsi que le degré de service sur site, la désinfection requise et le nombre de cabines sanitaires mobiles autonomes à fournir. Il détermine également la fréquence d’utilisation, le nombre maximum d’utilisations par cabine sanitaire, les emplacements et les intervalles de service sur site ou l’évacuation des eaux fécales.
Le présent document est applicable dans le cadre des activités menées dans les secteurs suivants :
— la construction et les industries extractives, à ciel ouvert ou souterraines ;
— les événements publics et les activités de loisirs, les festivals et les concerts ;
— l’agriculture, les camps de travailleurs et les camps de travail temporaires ;
— les plages ;
— les urgences ;
— les exercices militaires tactiques et d’entraînement.
Il existe d’autres types de cabines sanitaires mobiles autonomes (par exemple, les toilettes sèches, les toilettes à compost, les toilettes à incinération, les toilettes à aspiration, ou d’autres technologies et procédés) qui ne sont pas couverts par le présent document.
Le présent document définit un système permettant de garantir la disponibilité de cabines sanitaires mobiles autonomes pour l’évacuation des effluents, non seulement sur les lieux de travail, mais aussi partout où il n’existe pas de systèmes d’évacuation des eaux usées raccordés à un réseau d’assainissement.
Il s’adresse aux fabricants, aux sociétés prestataires de services et aux loueurs publics ou privés de cabines sanitaires mobiles autonomes.
Premične toaletne kabine, ki niso priključene na kanalizacijski sistem - Zahteve za storitve in proizvode v zvezi z uporabo kabin in sanitarnih proizvodov
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
SIST EN 16194:2023
01-september-2023
Premične toaletne kabine, ki niso priključene na kanalizacijski sistem - Zahteve za
storitve in proizvode v zvezi z uporabo kabin in sanitarnih proizvodov
Mobile non-sewer-connected toilet cabins - Requirements of services and products
relating to the deployment of cabins and sanitary products
Mobile anschlussfreie Toilettenkabinen - Anforderungen an Dienstleistungen und
Produkte für den Einsatz von Kabinen und Sanitärprodukten
Cabines sanitaires mobiles autonomes - Exigences relatives aux services et produits,
liées à la mise en place des cabines et des produits sanitaires
Ta slovenski standard je istoveten z: EN 16194:2023
ICS:
03.080.30 Storitve za potrošnike Services for consumers
91.140.70 Sanitarne naprave Sanitary installations
SIST EN 16194:2023 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN 16194:2023
---------------------- Page: 2 ----------------------
SIST EN 16194:2023
EN 16194
EUROPEAN STANDARD
NORME EUROPÉENNE
June 2023
EUROPÄISCHE NORM
ICS 03.080.30; 91.040.99 Supersedes EN 16194:2012
English Version
Mobile non-sewer-connected toilet cabins - Requirements
of services and products relating to the deployment of
cabins and sanitary products
Cabines sanitaires mobiles autonomes - Exigences Mobile anschlussfreie Toilettenkabinen -
relatives aux services et produits, liées à la mise en Anforderungen an Dienstleistungen und Produkte für
place des cabines et des produits sanitaires den Einsatz von Kabinen und Sanitärprodukten
This European Standard was approved by CEN on 3 March 2023.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 16194:2023 E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 16194:2023
EN 16194:2023 (E)

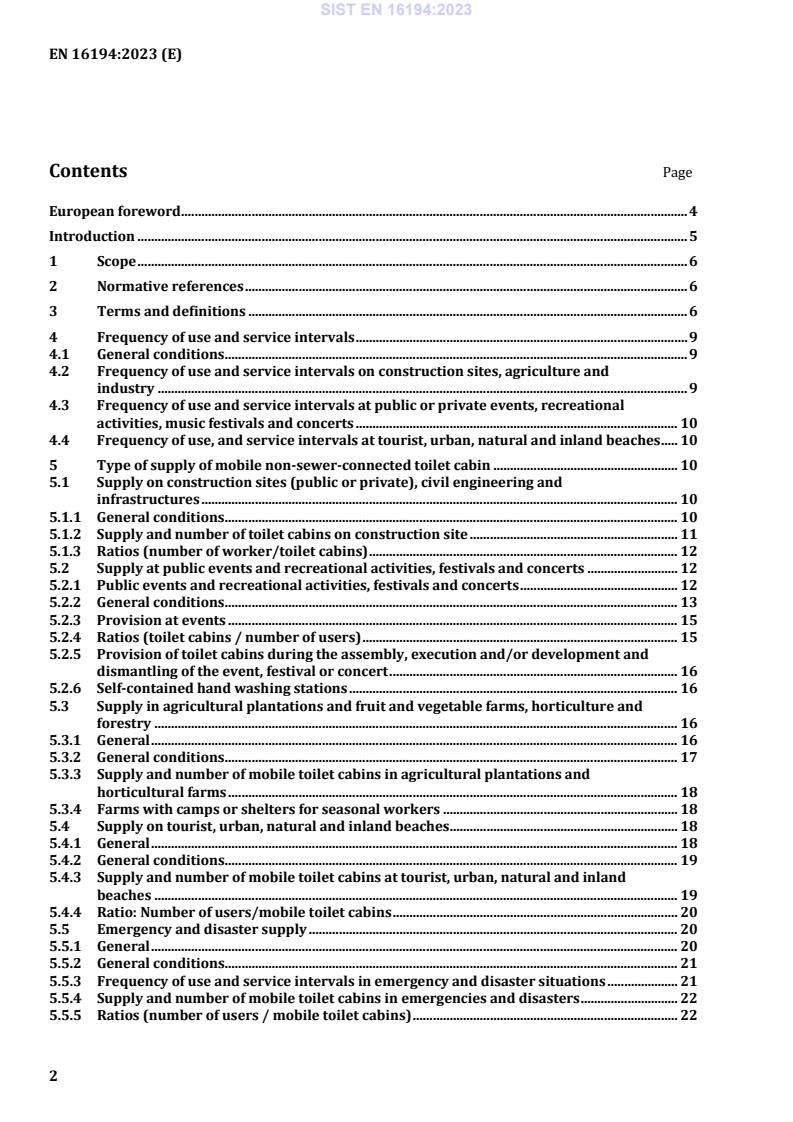

Contents Page
European foreword . 4
Introduction . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 Frequency of use and service intervals . 9
4.1 General conditions . 9
4.2 Frequency of use and service intervals on construction sites, agriculture and
industry . 9
4.3 Frequency of use and service intervals at public or private events, recreational
activities, music festivals and concerts . 10
4.4 Frequency of use, and service intervals at tourist, urban, natural and inland beaches . 10
5 Type of supply of mobile non-sewer-connected toilet cabin . 10
5.1 Supply on construction sites (public or private), civil engineering and
infrastructures . 10
5.1.1 General conditions . 10
5.1.2 Supply and number of toilet cabins on construction site . 11
5.1.3 Ratios (number of worker/toilet cabins) . 12
5.2 Supply at public events and recreational activities, festivals and concerts . 12
5.2.1 Public events and recreational activities, festivals and concerts . 12
5.2.2 General conditions . 13
5.2.3 Provision at events . 15
5.2.4 Ratios (toilet cabins / number of users) . 15
5.2.5 Provision of toilet cabins during the assembly, execution and/or development and
dismantling of the event, festival or concert . 16
5.2.6 Self-contained hand washing stations . 16
5.3 Supply in agricultural plantations and fruit and vegetable farms, horticulture and
forestry . 16
5.3.1 General . 16
5.3.2 General conditions . 17
5.3.3 Supply and number of mobile toilet cabins in agricultural plantations and
horticultural farms . 18
5.3.4 Farms with camps or shelters for seasonal workers . 18
5.4 Supply on tourist, urban, natural and inland beaches . 18
5.4.1 General . 18
5.4.2 General conditions . 19
5.4.3 Supply and number of mobile toilet cabins at tourist, urban, natural and inland
beaches . 19
5.4.4 Ratio: Number of users/mobile toilet cabins . 20
5.5 Emergency and disaster supply . 20
5.5.1 General . 20
5.5.2 General conditions . 21
5.5.3 Frequency of use and service intervals in emergency and disaster situations . 21
5.5.4 Supply and number of mobile toilet cabins in emergencies and disasters . 22
5.5.5 Ratios (number of users / mobile toilet cabins) . 22
2
---------------------- Page: 4 ----------------------
SIST EN 16194:2023
EN 16194:2023 (E)
5.6 Supply on military manoeuvres, tactical training, fire drills and military camping or
hosting . 23
5.6.1 General conditions . 23
5.6.2 Frequency of use and service intervals in manoeuvres and military camps . 23
5.6.3 Supply and number of mobile toilet cabins in training camps and/or military camps
and shelters . 24
5.6.4 Ratios (Number of users/mobile toilet cabins) . 24
6 Self-contained hand washing stations . 24
7 Product requirements . 25
7.1 Mobile non-sewer connected toilet cabins . 25
7.1.1 General . 25
7.1.2 Mobile toilet cabin . 26
7.1.3 Wheelchair accessible toilet cabin . 27
7.2 Sanitary products . 27
7.2.1 Sanitary concentrates . 27
7.2.2 Scented oils . 28
7.2.3 Hygienic paper . 28
8 Service requirements . 28
8.1 Preconditions . 28
8.2 Planning and advice . 28
8.3 Delivery of the mobile toilet cabin . 28
8.4 On-site service . 29
8.5 Sewage treatment management . 30
8.6 Mobile toilet cabin pick-up . 30
9 Documentation and records . 30
10 Name of the service . 30
Annex A (informative) Legal requirements . 31
Annex B (normative) Construction and agricultural, labour camps and temporary work
camps – Minimum number of toilet cabins facilities . 32
Annex C (normative) Festivals and events . 34
C.1 Minimum number of mobile toilet cabins facilities . 34
C.2 Provision of mobile toilet cabins during the assembly/disassembly of the event . 38
Annex D (normative) Farms with camps or shelters for seasonal workers– Minimum
number of toilet cabins facilities . 39
Annex E (normative) Supply on tourist, urban, natural and inland beaches – Minimum
number of toilet cabins facilities . 40
Annex F (normative) Emergency and disaster supply – Minimum number of toilet cabins
facilities . 42
Annex G (normative) Supply on military manoeuvres, tactical training, fire drills and
military camping or hosting – Minimum number of toilet cabins facilities . 46
3
---------------------- Page: 5 ----------------------
SIST EN 16194:2023
EN 16194:2023 (E)
European foreword
This document (EN 16194:2023) has been prepared by Technical Committee CEN/TC 183 “Waste
management”, the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by December 2023, and conflicting national standards shall
be withdrawn at the latest by December 2023.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 16194:2012.
The main changes compared to the previous edition are listed below:
— daily frequency of use by workers and users of mobile portable toilets increased;
— maximum number of uses per mobile portable toilet decreased in all sectors of application;
— introduced the total capacity and/or waste capacity in the waste tank;
— introduced the minimum frequency of cleaning and emptying of the tank for each application sector.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
4
---------------------- Page: 6 ----------------------
SIST EN 16194:2023
EN 16194:2023 (E)
Introduction
For more than 60 years, mobile sanitation facilities have been used in many sectors of activity, public or
private. At the beginning, they were mainly used on various temporary or mobile construction sites; over
the years, they have become a practical facility in the following sectors: industry, agriculture, commerce,
training services, cultural events, leisure, concerts and outdoors festivals, beaches and parks, military
camps, refugee’s camps, public events, etc.
Whenever large numbers of people congregate for a long period of time in places where sanitation
facilities lack or are insufficient, the use of mobile toilet cabins not connected to the sewer has become a
common practice providing security, hygiene, healthiness, dignity and privacy.
Adequate provision of toilet cabins allows hygiene, healthiness, comfort, dignity and privacy.
This document complies with the three fundamental pillars of the Sustainable Development Goals,
promoting the best environmental management practices in a broad sense and constituting a large-scale
transversal commitment.
This document contributes to the following Sustainable Development Goals of the United Nations:
— SDG 3 Health and Well-being.
— SDG 5 Gender Equality.
— SDG 6 Clean Water and Sanitation.
— SDG 11 Sustainable Cities. (Waste management).
— SDG 12 Responsible Consumption and Production.
— SDG 13 Climate action.
5
---------------------- Page: 7 ----------------------
SIST EN 16194:2023
EN 16194:2023 (E)
1 Scope
This document applies to mobile non-sewer-connected toilet cabins system.
It specifies the requirements for services related to the provision of toilet cabins and the relevant
requirements for toilet cabins and sanitary products, taking into account comfort, hygiene, health and
safety.
It specifies the minimum quality requirements for toilet cabins and sanitary products, as well as the
extent of on-site service and the required disinfection and the number of toilet cabins to be provided. It
also determines the frequency of use, the maximum number of uses per toilet cabins, the locations and
the intervals for on-site service or disposal of faecal water.
This document is applicable to the framework of activities carried out in the following sectors:
— construction and extractive industries, opencast or underground;
— public events and recreational activities, festivals and concerts;
— agriculture, labour camps and temporary work camps;
— beaches;
— emergencies;
— military tactical and training exercises.
There are other types of mobile toilet cabins which are not connected to a sewage system (e.g. dry toilets,
composting toilets, incinerations toilets, vacuum toilets, or other technologies and processes) and which
are not covered by this document.
This document establishes a system to ensure that mobile sanitation facilities for waste disposal are
available not only in the workplaces but wherever there are no waste disposal systems connected to a
sewerage network.
This document is directed at manufacturers, services providers' companies and publics or private cabin
hirers of toilet cabins not connected to a sewage network.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at https://www.electropedia.org/
3.1
mobile toilet cabins not connected to the sewer
self-contained mobile toilet cabin intended for use by a single person, to lockable from the inside, with a
sewage tank not connected to a waste water network
6
---------------------- Page: 8 ----------------------
SIST EN 16194:2023
EN 16194:2023 (E)
3.2
mobile male and/or female urinal unit not connected to the sewerage system
portable urinal unit, for use by either men or women, either freestanding or multiple, provided with a
wastewater tank not connected to a sewerage system
3.3
wheelchair accessible toilet cabins
units located on an accessible level that are part of the general core of mobile toilet cabins
Note 1 to entry: Toilet cabins’ arrangement of appliances (toilet roll holders, gel, soap and paper towel
dispensers), door opening and technical aids (folding bars or grab bars) are suitable for users with different
disabilities. In any case, toilet cabins’ arrangement has an interior free space that allows a wheelchair user to turn
around and transfer onto the toilet cabin tank from one side of the tank only.
3.4
sanitary products
concentrate with sanitary effect (liquid or solid), antifreeze for sewage tank, aromatic oils, toilet paper,
paper towel, soap and hydro alcoholic gel, bactericide, disinfectant and virucide
3.5
service
planning and advice, delivery of the toilet cabin, on-site service, transport of waste water to the discharge
point authorized in each case by the operator of the public sewerage system and collection of the toilet
cabin
3.6
on-site service
specified process for on-site service with a service truck (pumping of the toilet cabin tank, cleaning of the
inside of the tank with high pressure water, refilling with 20 l of water and deodorizers, washing with
high pressure water the inside and outside of the toilet cabin, drying of the inside of the toilet cabin),
disinfection with bactericide, refurnishing hygienic paper, soap or hydro alcoholic gel
3.7
standard cleaning
regular cleaning
routine maintenance carried out by the employer at the workplace according to the legal provisions in
force in the respective country
Note 1 to entry: Standard or regular cleaning is intended to be carried out by the customer at the workplace, as
described in the respective national workplace legislation.
3.8
mobile
readily relocatable
3.9
non-sewage waste disposal system
sanitary waste disposal system not connected to a toilet sewage, septic tank or on-site waste disposal
system
3.10
amount of workers
maximum number of workers present in a shift in the ordinary working week, in force in each EU member
7
---------------------- Page: 9 ----------------------
SIST EN 16194:2023
EN 16194:2023 (E)
3.11
frequency of use
number of uses of the cabin per hour by the user
3.12
frequency of on-site service
number of on-site service performed on each toilet cabin
3.13
maximum number of uses
maximum number of uses per toilet cabin between 2 on-site service operations
3.14
ratio
quantified relationship between two magnitudes reflecting their proportion
3.15
no food or beverage service
event or function where no food or beverages are served
3.16
with food or beverage service
event, festival or concert where food and beverages are served
3.17
capacity
maximum capacity that a given venue can hold
3.18
beach management body
organization or authorities having the power to manage and inspect aspects related to a beach, including
its public management, as well as its sphere of influence
3.19
carrying capacity
maximum number of users that can access and fit on a beach, in a given period
3.20
installation
supplies of toilet cabins or set of equipment, infrastructure and other physical elements, like hand wash
and urinals, necessary to carry out the portable sanitation activity
3.21
service providers
company providing planning, advice, supply and installation of toilet cabins, on-site service, waste water
extraction and delivery to the waste treatment plant, and toilets cabins collection
3.22
renter
owner
companies, organizations, public bodies, municipalities or individuals using the service for planning and
advice toilet cabin delivery, on-site service, sewage treatment management and toilet cabin collection
8
---------------------- Page: 10 ----------------------
SIST EN 16194:2023
EN 16194:2023 (E)
3.23
initial waste producer
public or private person whose activity produces waste
3.24
waste management
collection and transport to the public sewerage system or to sewerage network or to collectors or sewage
treatment plants in accordance with national and local legislation of each country, or waste treatment
plants
3.25
collection
collection of waste for the purpose of transport to a waste treatment facility
3.26
external hand washing station
hand washing station where, using any kind of non-electrical pump to dispense water from the fresh
water tank, the water is dispensed through a tap for hand washing and grey water drains into the waste
tank inside the sink body
Note 1 to entry: Most of the hand washing units offer space for one or two users at the same time.
3.27
internal hand washing station
hand washing station where any kind of non-electrical pump dispenses the fresh water from the hand
wash tank through a tap and the grey water drains into the toilets cabins waste tank
Note 1 to entry: This hand wash unit is always inside of the portable toilets cabins.
4 Frequency of use and service intervals
4.1 General conditions
The following guidelines should be taken into account when determining the number of mobile toilet
cabins required:
— the amount of waste within the toilet cabin tank should never exceed 87 l including the sanitary
product with the initial load of 20 l and the grey water from the self-contained hand washing stations
approximately 10 l;
— separate facilities for each sex need to be provided or separate use shall be provided in accordance
with the legal provisions in force in each country, with hand washing facilities or disinfection
facilities;
— if the toilet cabin contains a urinal in addition to the tank, then appropriate toilet cabins for men and
women shall be calculated.
4.2 Frequency of use and service intervals on construction sites, agriculture and
industry
The frequency of use per person shall be 3 times during a standard working day.
The maximum number of uses per toilet cabin between 2 on-site services should be no more than
105 uses. This is based on 7 workers using the toilet cabin 3 times per day for 5 days/week.
9
---------------------- Page: 11 ----------------------
SIST EN 16194:2023
EN 16194:2023 (E)
The minimum on-site service frequency shall be once a week, after 5 standard working days of 8 h each.
This on-site service is mandatory.
4.3 Frequency of use and service intervals at public or private events, recreational
activities, music festivals and concerts
The frequency of use per person for events without food and beverage service is as follows:
— 1,5 times during an event up to 6 h;
— 3 times during an event up to 12 h.
The frequency of use per person for events with food and beverage service is as follows:
— 2 times during an event up to 6 h;
— 4 times during an event up to 12 h.
The maximum number of uses per toilet cabin between 2on-site services shall in no case exceed 100 for
6 h and 125 for 12 h.
If the events last more than 6 h or 12 h, the mobile toilet cabins shall be on-site serviced at intervals of
6 h or 12 h or after each event on a mandatory basis. As a general rule, they shall always receive 1 on-site
service per 6 h interval or 12 h interval.
4.4 Frequency of use, and service intervals at tourist, urban, natural and inland beaches
The estimated frequency of use per person shall be 3 times during a 12-h day.
The maximum number of uses per toilet cabin between 2 on-site services shall not exceed 156 uses.
The minimum on-site service frequency shall be once a day, on working days, Saturdays, Sundays and
public holidays. If the beach has a high or very high turnover of people, these on-site services shall be
minimum 2 per day, spaced between the 12 opening h of the beach.
Separate facilities for each sex shall be provided with hand-washing facilities or disinfection facilities.
5 Type of supply of mobile non-sewer-connected toilet cabin
5.1 Supply on construction sites (public or private), civil engineering and
infrastructures
5.1.1 General conditions
Temporary or mobile construction sites, hereinafter referred to as “sites”, means any public or private
construction site on which construction or civil engineering works are carried out. A non-exhaustive list
of which is given in the European Directive 92/104/CEE, Directive 92/91/CEE and Directive 92/57/CEE.
Construction sites shall be equipped with fixed toilet services, or mobile or temporary toilet cabins,
depending on the number of workers who are going to use them.
These facilities shall be progressively adapted as workers, including t
...
SLOVENSKI STANDARD
oSIST prEN 16194:2022
01-junij-2022
Premične toaletne kabine brez odvajanja v kanalizacijo, ki niso priključene na
kanalizacijski sistem - Zahteve za storitve in proizvode v zvezi z uporabo kabin in
sanitarnih proizvodov
Mobile non-sewer-connected toilet cabins - Requirements of services and products
relating to the deployment of cabins and sanitary products
Mobile anschlussfreie Toilettenkabinen - Anforderungen an Dienstleistungen und
Produkte für den Einsatz von Kabinen und Sanitärprodukten
Cabines sanitaires mobiles autonomes - Exigences relatives aux services et produits,
liées à la mise en place des cabines et des produits sanitaires
Ta slovenski standard je istoveten z: prEN 16194
ICS:
03.080.30 Storitve za potrošnike Services for consumers
91.140.70 Sanitarne naprave Sanitary installations
oSIST prEN 16194:2022 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
oSIST prEN 16194:2022
---------------------- Page: 2 ----------------------
oSIST prEN 16194:2022
DRAFT
EUROPEAN STANDARD
prEN 16194
NORME EUROPÉENNE
EUROPÄISCHE NORM
April 2022
ICS 03.080.30; 91.040.99 Will supersede EN 16194:2012
English Version
Mobile non-sewer-connected toilet cabins - Requirements
of services and products relating to the deployment of
cabins and sanitary products
Cabines sanitaires mobiles autonomes - Exigences Mobile anschlussfreie Toilettenkabinen -
relatives aux services et produits, liées à la mise en Anforderungen an Dienstleistungen und Produkte für
place des cabines et des produits sanitaires den Einsatz von Kabinen und Sanitärprodukten
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 183.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 16194:2022 E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
oSIST prEN 16194:2022
prEN 16194:2022 (E)
Contents Page
European foreword . 4
Introduction . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 Frequency of use and Service intervals . 9
4.1 General conditions . 9
4.2 Frequency of use and service intervals on construction sites, agriculture and
industry . 9
4.3 Frequency of use and service intervals at public or private events, recreational
activities, music festivals and concerts . 10
4.4 Frequency of use, and service intervals at tourist, urban, natural and inland beaches . 10
5 Type of supply of mobile non-sewer-connected toilet cabin . 10
5.1 Supply on Construction sites (public or private), civil engineering and
infrastructures . 10
5.1.1 General conditions . 10
5.1.2 Construction sites, supply and number of toilet cabins . 11
5.1.3 Ratios (number of worker/toilet cabins) . 12
5.2 Supply at public events and recreational activities, festivals and concerts . 12
5.2.1 Public events and recreational activities, festivals and concerts . 12
5.2.2 General conditions . 13
5.2.3 Provision at events . 15
5.2.4 Ratios (toilet cabins / number of users) . 16
5.2.5 Provision of toilet cabins during the assembly, execution and/or development and
dismantling of the event, festival or concert . 16
5.2.6 Self-contained hand washing stations. Festivals and Events . 16
5.3 Supply in Agricultural plantations and Fruit and Vegetable farms, horticulture and
forestry . 16
5.3.1 Introduction . 16
5.3.2 General conditions . 17
5.3.3 Supply and number of mobile toilet cabins in agricultural plantations and
horticultural farms . 18
5.3.4 Farms with camps or shelters for seasonal workers . 18
5.4 Supply on tourist, urban, natural and inland beaches . 18
5.4.1 Introduction . 18
5.4.2 General conditions . 19
5.4.3 Supply and number of mobile toilet cabins at tourist, urban, natural and inland
beaches . 20
5.4.4 Ratio: Number of users/mobile toilet cabins . 20
5.5 Emergency and disaster supply . 20
5.5.1 Introduction . 20
5.5.2 General conditions . 21
2
---------------------- Page: 4 ----------------------
oSIST prEN 16194:2022
prEN 16194:2022 (E)
5.5.3 Frequency of use and service intervals in emergency and disaster situations . 22
5.5.4 Supply and number of mobile toilet cabins in emergencies and disasters . 22
5.5.5 Ratios (number of users / mobile toilet cabins) . 23
5.6 Supply on military manoeuvres, tactical training, fire drills and military camping or
hosting . 23
5.6.1 General conditions . 23
5.6.2 Frequency of use and service intervals in manoeuvres and military camps . 23
5.6.3 Supply and number of mobile toilet cabins in training camps and/or military camps
and shelters . 24
5.6.4 Ratios (Number of users/mobile toilet cabins) . 25
6 Self-contained hand washing stations . 25
7 Product requirements . 26
7.1 Mobile non sewer connected toilet cabins . 26
7.1.1 General . 26
7.1.2 Mobile toilet cabin . 26
7.1.3 Wheelchair accessible toilet cabin . 28
7.2 Sanitary products . 28
7.2.1 Sanitary concentrates . 28
7.2.2 Scented oils . 28
7.2.3 Hygienic paper . 28
8 Service requirements . 29
8.1 Preconditions . 29
8.2 Planning and advice . 29
8.3 Delivery of the mobile toilet cabin . 29
8.4 On-site service . 29
8.5 Sewage treatment management . 30
8.6 Mobile toilet cabin pick-up . 31
9 Documentation and records . 31
10 Name of the service . 31
Annex A (informative) Legal requirements . 32
Annex B (normative) Construction and Agricultural, Labour camps and temporary work
camps – Minimum number of toilet cabins facilities . 33
Table B.1 — Mobile toilet cabins . 33
Annex C (normative) Festivals and Events . 35
C.1 Minimum number of mobile toilet cabins facilities . 35
C.2 Provision of mobile toilet cabins during the assembly/disassembly of the event . 38
Annex D (normative) Farms with camps or shelters for seasonal workers– Minimum
number of toilet cabins facilities . 39
Annex E (normative) Supply on tourist, urban, natural and inland beaches – Minimum
number of toilet cabins facilities . 40
Annex F (normative) Emergency and disaster supply – Minimum number of toilet cabins
facilities . 42
Annex G (normative) Supply on military manoeuvres, tactical training, fire drills and
military camping or hosting – Minimum number of toilet cabins facilities . 46
3
---------------------- Page: 5 ----------------------
oSIST prEN 16194:2022
prEN 16194:2022 (E)
European foreword
This document (prEN 16194:2022) has been prepared by Technical Committee CEN/TC 183 “Waste
management”, the secretariat of which is held by DIN.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 16194:2012.
The significant changes made in EN 16194:2021 compared to EN 16194:2012 are:
— daily frequency of use by workers and users of mobile portable toilets increased;
— maximum number of uses per mobile portable toilet decreased in all sectors of application ;
— introduced the total capacity and/or waste capacity in the waste tank;
— introduced the minimum frequency of cleaning and emptying of the tank for each application
sector.
4
---------------------- Page: 6 ----------------------
oSIST prEN 16194:2022
prEN 16194:2022 (E)
Introduction
For more than 60 years, mobile sanitation facilities have been used in many sectors of activity, public or
private. At the beginning, they were mainly used on various temporary or mobile construction sites;
over the years, they have become a practical facility in the following sectors: industry, agriculture,
commerce, training services, cultural events, leisure, concerts and outdoors festivals, beaches and
parks, military camps, refugee’s camps, public events etc.
Whenever large numbers of people congregate for a long period of time in places where sanitation
facilities lack or are insufficient, the use of mobile toilet cabins not connected to the sewer has become a
common practice providing security, hygiene, healthiness, dignity and privacy.
Adequate provision of toilet cabins allows hygiene, healthiness, comfort, dignity and privacy.
This document complies with the three fundamental pillars of the Sustainable Development Goals,
promoting the best environmental management practices in a broad sense and constituting a large-
scale transversal commitment.
This document contributes to the following Sustainable Development Goals of the United Nations:
— SDG 3 Health and Well-being.
— SDG 5 Gender Equality.
— SDG 6 Clean Water and Sanitation.
— SDG 11 Sustainable Cities. (Waste management).
— SDG 12 Responsible Consumption and Production.
— SDG 13 Climate action.
5
---------------------- Page: 7 ----------------------
oSIST prEN 16194:2022
prEN 16194:2022 (E)
1 Scope
This document applies to mobile non-sewer- connected toilet cabins system.
It specifies the requirements for services related to the provision of toilet cabins and the relevant
requirements for toilet cabins and sanitary products, taking into account comfort, hygiene, health and
safety.
It specifies the minimum quality requirements for toilet cabins and sanitary products, as well as the
extent of on-site service and the required disinfection and the number of toilet cabins to be provided. It
also determines the frequency of use, the maximum number of uses per toilet cabins, the locations and
the intervals for on-site service or disposal of fecal water.
This document applies in the framework of activities carried out in the following sectors:
— construction and extractive industries, opencast or underground;
— public events and recreational activities, festivals and concerts;
— agriculture. Labour camps and temporary work camps;
— beaches;
— emergencies;
— military tactical and training exercises.
There are other types of mobile toilet cabins which are not connected to a sewage system (e.g. dry
toilets, composting toilets, incinerations toilets, vacuum toilets, or other technologies and processes)
and which are not covered by this European Standard.
This document establishes a system to ensure that mobile sanitation facilities for waste disposal are
available not only in the workplaces but wherever there are no waste disposal systems connected to a
sewerage network.
This document is directed at manufacturers, services providers' companies and publics or private cabin
hirers of toilet cabins not connected to a sewage network.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at https://www.electropedia.org/
3.1
mobile toilet cabins not connected to the sewer
self-contained mobile toilet cabin intended for use by a single person, resealable from the inside, with a
sewage tank not connected to a waste water network
6
---------------------- Page: 8 ----------------------
oSIST prEN 16194:2022
prEN 16194:2022 (E)
3.2
mobile male and/or female urinal unit not connected to the sewerage system
portable urinal unit, for use by either men or women, either freestanding or multiple, provided with a
wastewater tank not connected to a sewerage system
3.3
wheelchair accessible toilet cabins
units located on an accessible level that are part of the general core of mobile toilet cabins
Note 1 to entry: Toilet cabins’ arrangement of appliances (toilet roll holders, gel, soap and paper towel
dispensers), door opening and technical aids (folding bars or grab bars) are suitable for users with different
disabilities. In any case, toilet cabins’ arrangement has an interior free space that allows a wheelchair user to turn
around and transfer onto the toilet cabin tank from one side of the tank only.
3.4
sanitary products
concentrate with sanitary effect (liquid or solid), antifreeze for sewage tank, aromatic oils, toilet paper,
paper towel, soap and hydro alcoholic gel, bactericide, disinfectant and virucide
3.5
service
planning and advice, delivery of the toilet cabin, on-site service, transport of non-domestic urban waste
water to the discharge point authorized in each case by the operator of the public sewerage system and
collection of the toilet cabin
3.6
on-site service
specified process for on-site service with a service truck (pumping of the toilet cabin tank, cleaning of
the inside of the tank with high pressure water, refilling with 20 liters of water and deodorizers,
washing with high pressure water the inside and outside of the toilet cabin, drying of the inside of the
toilet cabin), disinfection with bactericide, refurnishing hygienic paper, soap or hydro alcoholic gel
3.7
standard or regular cleaning
routine maintenance carried out by the employer at the workplace according to the legal provisions in
force in your country
Note 1 to entry: Standard or regular cleaning is intended to be carried out by the customer at the workplace, as
described in your national workplace legislation.
3.8
mobile
readily relocatable
3.9
non-sewage waste disposal system
sanitary waste disposal system not connected to a toilet sewage, septic tank or on-site waste disposal
system
3.10
amount of workers
maximum number of workers present in a shift in the ordinary working week, in force in each EU
member
7
---------------------- Page: 9 ----------------------
oSIST prEN 16194:2022
prEN 16194:2022 (E)
3.11
frequency of use
number of uses of the cabin per hour by the user
3.12
frequency of on-site service
number of on-site service performed on each toilet cabin
3.13
maximum number of uses
maximum number of uses per toilet cabin between two on-site service operations
3.14
ratio
quantified relationship between two magnitudes reflecting their proportion
3.15
no food or beverage service
event or function where no food or beverages are served
3.16
with food or beverage service
event, festival or concert where food and beverages are served
3.17
capacity
maximum capacity that a given venue can hold
3.18
beach management body
organization or authorities having the power to manage and inspect aspects related to a beach,
including its public management, as well as its sphere of influence
3.19
carrying capacity
maximum number of users that can access and fit on a beach, in a given period
3.20
installation
supplies of toilet cabins or set of equipment, infrastructure and other physical elements, like hand wash
and urinals, necessary to carry out the portable sanitation activity
3.21
service providers company
company providing planning, advice, supply and installation of toilet cabins, on-site service, waste
water extraction and delivery to the waste treatment plant, and toilets cabins collection
3.22
renter/owner
companies, organizations, public bodies, municipalities or individuals using the service for planning and
advice toilet cabin delivery, on-site service, sewage treatment management and toilet cabin collection
8
---------------------- Page: 10 ----------------------
oSIST prEN 16194:2022
prEN 16194:2022 (E)
3.23
initial waste producer
public or private person whose activity produces waste
3.24
waste management
collection and transport to the public sewerage system or to sewerage network or to collectors or
sewage treatment plants in accordance with national and local legislation of each country, or waste
treatment plants
3.25
collection
collection of waste for the purpose of transport to a waste treatment facility
3.26
external hand washing station
hand washing station where, using the foot pump to dispense water from the fresh water tank, the
water is dispensed through a tap for hand washing and grey water drains into the waste tank inside the
sink body
Note 1 to entry: Most of the hand washing units offer space for one or two users at the same time.
3.27
internal hand washing station
hand washing station where a foot pump dispenses the fresh water from the hand wash tank through a
tap and the grey water drains into the toilets cabins waste tank
Note 1 to entry: This hand wash unit is always inside of the portable toilets cabins.
4 Frequency of use and Service intervals
4.1 General conditions
The following guidelines should be taken into account when determining the number of mobile toilet
cabins required:
— in any case, the amount of waste within the toilet cabin tank should never exceed 87 l including the
sanitary product with the initial load of 20 litres and the grey water from the self-contained hand
washing stations approximately 10 litres;
— separate facilities for each sex need to be provided or separate use shall be provided in accordance
with the legal provisions in force in each country, with hand washing facilities or disinfection
facilities;
— if the toilet cabin contains a urinal in addition to the tank, then appropriate toilet cabins for men
and women shall be calculated.
4.2 Frequency of use and service intervals on construction sites, agriculture and
industry
The frequency of use per person shall be three times during a standard working day.
The maximum number of uses per toilet cabin between two on-site services should be no more than
105 uses. This is based on 7 workers using the toilet cabin 3 times per day for 5 days/week.
9
---------------------- Page: 11 ----------------------
oSIST prEN 16194:2022
prEN 16194:2022 (E)
The minimum on-site service frequency shall be once a week, after five standard working days of eight
hours each. This on-site service is mandatory.
4.3 Frequency of use and service intervals at public or private events, recreational
activities, music festivals and concerts
The frequency of use per person for events without food and beverage service is as follows:
— 1,5 times during an event up to 6 h;
— 3 times during an event up to 12 h.
The frequency of use per person for events with food and beverage service is as follows:
— 2 times during an event up to 6 h;
— 4 times during an event up to 12 h.
The maximum number of uses per toilet cabin between two on-site services shall in no case exceed 100
for 6 hours and 125 for 12 hours.
If the events last more than six hours or twelve hours, the mobile toilet cabins shall be on-site serviced
at intervals of six hours or twelve hours or after each event on a mandatory basis. As a general rule,
they shall always receive 1 on-site service per 6 h interval or 12 hours interval.
4.4 Frequency of use, and service intervals at tourist, urban, natural and inland beaches
The estimated frequency of use per person shall be three times during a 12-h day.
The maximum number of uses per toilet cabin between two on-site services shall not exceed 156 uses.
The minimum on-site service frequency shall be once a day, on working days, Saturdays, Sundays and
public holidays. If the beach has a high or very high turnover of people, these on-site services shall be
minimum 2 per day, spaced between the 12 opening hours of the beach
Separate facilities for each sex shall be provided with hand-washing facilities or disinfection facilities.
5 Type of supply of mobile non-sewer-connected toilet cabin
5.1 Supply on Construction sites (public or private), civil engineering and
infrastructures
5.1.1 General conditions
Temporary or mobile construction sites, hereinafter referred to as “sites”, means any public or private
construction site on which construction or civil engineering works are carried out. A non-exhaustive list
of which is given in the European Directive 92/104/CEE, Directive 92/91/CEE and
Directive 92/57/CEE.
Construction sites shall be equipped with fixed toilet services, or mobile or temporary toilet cabins,
depending on the number of workers who are going to use them.
These facilities shall be progressively adapted as workers, including those of subcontracting
undertakings and self-employed workers, join the site, always in relation to the number of workers
simultaneously carrying out tasks on the site.
Where the number of workers in a workplace fluctuates greatly, the number of portable toilet-cabins
required shall be determined by the maximum number of workers present during a regular ordinary
working week, in force in each EU member country.
10
---------------------- Page:
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
