FprEN ISO 19932-1

Equipment for crop protection - Knapsack sprayers - Part 1: Safety and environmental requirements (ISO/FDIS 19932-1:2019)

2020-11-20 JF: Through decision BT C215/2020, taken on 2020-11-18, CEN/BT approved the cancellation of WI.
2020-08-28 ISO CS informed about breaking Vienna Agreement

Pflanzenschutzgeräte - Tragbare Geräte - Teil 1: Sicherheitstechnische und umweltrelevante Anforderungen (ISO/FDIS 19932-1:2019)

Matériel de protection des cultures - Pulvérisateurs à dos - Partie 1: Exigences environnementales et de sécurité (ISO/FDIS 19932-1:2019)

Oprema za zaščito poljščin - Nahrbtni škropilniki - 1. del: Varnostnotehnične in okoljevarstvene zahteve (ISO/FDIS 19932-1:2019)

General Information

• Status: Not Published
• Publication Date: 04-Aug-2019
• ICS: 65.060.40 - Plant care equipment
• Technical Committee: CEN/TC 144 - Tractors and machinery for agriculture and forestry
• Drafting Committee: CEN/TC 144/WG 4 - Portable machines and pedestrian controlled machines
• Current Stage: 3098 - Decision to reject - Consensus building
• Start Date: 18-Nov-2020
• Completion Date: 23-Sep-2025
• Directive: 2006/42/EC - Directive 2006/42/EC of the European Parliament and of the Council of 17 May 2006 on machinery, and amending Directive 95/16/EC (recast)
• Mandate: M/396 - Mandate to CEN and Cenelec for standardisation in the field of machinery
• Ref Project: kSIST FprEN ISO 19932-1:2019 - Equipment for crop protection - Knapsack sprayers - Part 1: Safety and environmental requirements (ISO/FDIS 19932-1:2019)

Relations

• Revises: EN ISO 19932-1:2013 - Equipment for crop protection - Knapsack sprayers - Part 1: Safety and environmental requirements (ISO 19932-1:2013)
• Effective Date: 19-Jan-2023

Overview

The FprEN ISO 19932-1 standard, titled "Equipment for crop protection - Knapsack sprayers - Part 1: Safety and environmental requirements", provides essential safety and environmental guidelines for the design and manufacture of knapsack sprayers used in agriculture, forestry, and horticulture. Published by the European Committee for Standardization (CEN) and aligned with ISO guidelines, this standard aims to enhance operator safety while minimizing environmental impact during the application of plant protection products.

This standard specifically addresses various types of knapsack sprayers carried on the back or shoulder and focuses on lever-operated, compression, and engine- or motor-driven sprayers with a nominal tank volume exceeding 6 liters. It excludes knapsack combustion engine-driven air-blast sprayers and pre-existing models manufactured before the standard's publication. By implementing FprEN ISO 19932-1, manufacturers ensure compliance with international safety obligations and environmental protection measures.

Key Topics

• Scope and Applicability
  Defines the types of knapsack sprayers covered, including design, construction, and safe operational use related to plant protection product application.

• Safety Requirements
  Specifies essential safety features such as harness design, spray tank integrity, control mechanisms, hoses, filters, spray lances, and nozzles to prevent operator hazards and environmental contamination.

• Environmental Protection
  Establishes guidelines to minimize spray drift and unintended dispersal of chemicals into the environment during operation.

• Specific Requirements by Sprayer Type

  • Lever-operated sprayers: Tank specifications and operating controls.
  • Engine- or motor-driven sprayers: Additional requirements including fuel tanks, exhaust systems, power-driven components, noise, vibration, and electromagnetic considerations.
  • Compression sprayers: Specific harness and tank design criteria.

• Information for Users
  Manufacturers must provide clear instructions covering safe working practices, technical data, markings, and warnings related to residual risks.

• Hazard Identification
  Annexes include detailed lists of significant hazards and correlation with EU directives ensuring alignment with broader legislative frameworks.

Applications

FprEN ISO 19932-1 is critical for agricultural machinery manufacturers, distributors, and end-users tasked with the handling and operation of knapsack sprayers. The benefits include:

• Enhancing Operator Safety: By adhering to ergonomic harness designs and functional control specifications, operators experience reduced physical strain and operational hazards.

• Ensuring Environmental Responsibility: Compliance minimizes chemical drift and environmental contamination, supporting sustainable crop protection practices.

• Regulatory Compliance: Aligns product design with EU Machinery Directive and other international safety and environmental regulations, facilitating smoother market access and legal adherence.

• Improved Product Reliability: Standardized verification methods ensure durable and safe equipment performance under normal and foreseeable misuse conditions.

This standard is particularly relevant in agriculture, forestry, and horticulture industries, where handheld crop protection equipment is extensively used.

Related Standards

FprEN ISO 19932-1 references and complements several international standards that support comprehensive crop protection equipment safety:

• ISO 5681 – Crop protection equipment vocabulary ensuring consistent terminology.
• ISO 12100 – General machinery safety principles including risk assessment and reduction.
• ISO 14982 – Electromagnetic compatibility requirements for agricultural machinery.
• ISO 3767-5 and ISO 3864-1 – Safety signs and graphical symbols for operator controls.
• ISO 5682-1 – Test methods for sprayer nozzles ensuring functional reliability.
• ISO 22868 – Noise test methods for forestry and gardening machinery.

Manufacturers are advised to consult these interconnected standards alongside FprEN ISO 19932-1 to design and certify compliant, safe, and efficient knapsack sprayers.

---

By following the requirements set forth in FprEN ISO 19932-1, stakeholders can ensure that knapsack sprayers used for crop protection meet rigorous international standards, safeguarding human health and the environment while maintaining operational effectiveness.

Standards Content (Sample)

SLOVENSKI STANDARD
oSIST prEN ISO 19932-1:2017
01-junij-2017
2SUHPD]D]DãþLWRSROMãþLQ1DKUEWQLãNURSLOQLNLGHO9DUQRVWQRWHKQLþQHLQ
RNROMHYDUVWYHQH]DKWHYH,62',6
Equipment for crop protection - Knapsack sprayers - Part 1: Safety and environmental
requirements (ISO/DIS 19932-1:2017)
Pflanzenschutzgeräte - Tragbare Geräte - Teil 1: Sicherheitstechnische und
umweltrelevante Anforderungen (ISO/DIS 19932-1:2017)
Matériel de protection des cultures - Pulvérisateurs à dos - Partie 1: Exigences
environnementales et de sécurité (ISO/DIS 19932-1:2017)
Ta slovenski standard je istoveten z: prEN ISO 19932-1
ICS:
65.060.40 Oprema za nego rastlin Plant care equipment
oSIST prEN ISO 19932-1:2017 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

oSIST prEN ISO 19932-1:2017
oSIST prEN ISO 19932-1:2017

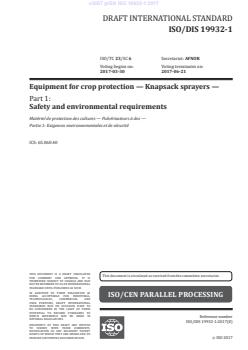

DRAFT INTERNATIONAL STANDARD
ISO/DIS 19932-1
ISO/TC 23/SC 6 Secretariat: AFNOR
Voting begins on: Voting terminates on:
2017-03-30 2017-06-21
Equipment for crop protection — Knapsack sprayers —
Part 1:
Safety and environmental requirements
Matériel de protection des cultures — Pulvérisateurs à dos —
Partie 1: Exigences environnementales et de sécurité
ICS: 65.060.40
THIS DOCUMENT IS A DRAFT CIRCULATED
This document is circulated as received from the committee secretariat.
FOR COMMENT AND APPROVAL. IT IS
THEREFORE SUBJECT TO CHANGE AND MAY
NOT BE REFERRED TO AS AN INTERNATIONAL
STANDARD UNTIL PUBLISHED AS SUCH.
IN ADDITION TO THEIR EVALUATION AS
ISO/CEN PARALLEL PROCESSING
BEING ACCEPTABLE FOR INDUSTRIAL,
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
STANDARDS MAY ON OCCASION HAVE TO
BE CONSIDERED IN THE LIGHT OF THEIR
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
Reference number
NATIONAL REGULATIONS.
ISO/DIS 19932-1:2017(E)
RECIPIENTS OF THIS DRAFT ARE INVITED
TO SUBMIT, WITH THEIR COMMENTS,
NOTIFICATION OF ANY RELEVANT PATENT
RIGHTS OF WHICH THEY ARE AWARE AND TO
©
PROVIDE SUPPORTING DOCUMENTATION. ISO 2017

oSIST prEN ISO 19932-1:2017
ISO/DIS 19932-1:2017(E)
© ISO 2017, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. [phone]
Fax [phone]
[e-mail]
www.iso.org
ii © ISO 2017 – All rights reserved

oSIST prEN ISO 19932-1:2017
ISO/DIS 19932-1:2017(E)
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 General requirements . 3
4.1 General . 3
4.2 Harness . 4
4.3 Spray tank . 4
4.4 Controls . 5
4.5 Hoses . 5
4.6 Filters . 5
4.7 Spray lance and nozzles . 6
5 Specific requirements for lever-operated knapsack sprayers. 6
5.1 General . 6
5.2 Spray tank . 6
6 Specific requirements for engine- or motor-driven knapsack sprayers .7
6.1 General . 7
6.2 Spray tank . 7
6.3 Controls . 8
6.4 Power-driven components . 8
6.5 Fuel tank . 8
6.6 Hot parts . 8
6.7 Exhaust system . 9
6.8 Parts under high voltage . 9
6.9 Electromagnetic immunity . 9
6.10 Noise .10
6.11 Vibration .10
7 Specific requirements for compression sprayers .10
7.1 General .10
7.2 Harness .10
7.3 Spray tank .10
8 Information for use .11
8.1 Instruction handbook .11
8.1.1 General.11
8.1.2 Technical data .13
8.2 Marking .14
8.3 Warnings .14
Annex A (informative) List of significant hazards.15
Annex ZA (informative) Relationship between this European Standard and the Essential
Requirements of EU Directive 2006/42/EC amended by Directive 2009/127/EC
aimed to be covered .16
Bibliography .17
oSIST prEN ISO 19932-1:2017
ISO/DIS 19932-1:2017(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International
Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies
casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 19932-1 was prepared by Technical Committee ISO/TC 23, Tractors and machinery for agriculture
and forestry, Subcommittee SC 6, Equipment for crop protection.
This second edition cancels and replaces the first edition (ISO 19932-1:2013), which has been technically
revised.
A list of all parts in the ISO 19932- series can be found on the ISO website.
iv © ISO 2017 – All rights reserved

oSIST prEN ISO 19932-1:2017
ISO/DIS 19932-1:2017(E)
Introduction
The application of plant protection products with knapsack sprayers should take into consideration
biological, economic, environmental and operator issues.
The aim of this part of ISO 19932 is to specify safety and environmental requirements for equipment.
Implementation of this part of ISO 19932 should achieve an appropriate level of operator safety and
avoid unnecessary dispersal of plant protection products into the environment.
— This document is a type-C standard as stated in ISO 12100.
— The machinery concerned and the extent to which hazards, hazardous situations or hazardous
events are covered are indicated in the scope of this document.
When requirements of this type-C standard are different from those which are stated in type-A or
type-B standards, the requirements of this type-C standard take precedence over the requirements of
the other standards for machines that have been designed and built according to the requirements of
this type-C standard.
oSIST prEN ISO 19932-1:2017
oSIST prEN ISO 19932-1:2017
DRAFT INTERNATIONAL STANDARD ISO/DIS 19932-1:2017(E)
Equipment for crop protection — Knapsack sprayers —
Part 1:
Safety and environmental requirements
1 Scope
This part of ISO 19932 specifies the safety and environmental requirements and their means of
verification for the design and construction of knapsack sprayers carried on the back or shoulder of the
operator for use with plant protection products. In addition, it specifies the type of information on safe
working practices (including residual risks) to be provided by the manufacturer.
It is applicable to lever-operated knapsack sprayers, knapsack compression sprayers and knapsack
sprayers driven by an engine or electric motor using hydraulic pressure atomisation of the spray liquid
intended to be used primarily in agriculture, forestry and horticulture with a nominal volume of more
than 6,0 l.
It does not apply to knapsack combustion engine-driven air-blast sprayers according to ISO 28139.
This part of ISO 19932 deals with all significant hazards, hazardous situations and hazardous events
relevant to knapsack sprayers when they are used as intended and under conditions of misuse which
are reasonably foreseeable by the manufacturer (see Annex A), excepting the hazards arising from:
— static electricity;
— explosion or fire from chemicals for spraying; and
— insufficient structural integrity.
This document does not cover electromagnetic compatibility (EMC) requirements.
This document is not applicable to knapsack sprayers which are manufactured before the date of
publication of this document.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 3767-5:1992, Tractors, machinery for agriculture and forestry, powered lawn and garden equipment —
Symbols for operator controls and other displays — Part 5: Symbols for manual portable forestry machinery
ISO 3864-1:2011, Graphical symbols — Safety colours and safety signs — Part 1: Design principles for
safety signs and safety markings
ISO 5681:1992, Equipment for crop protection — Vocabulary
ISO 5682-1:1996, Equipment for crop protection — Spraying equipment — Part 1: Test methods for
sprayer nozzles
ISO 6385:2004, Ergonomic principles in the design of work systems
ISO 8169:1984, Equipment for crop protection — Sprayers — Connecting dimensions for nozzles and
manometers
oSIST prEN ISO 19932-1:2017
ISO/DIS 19932-1:2017(E)
ISO 8893:1997, Forestry machinery — Portable brush-cutters and grass-trimmers — Engine performance
and fuel consumption
ISO 10626:1991, Equipment for crop protection — Sprayers — Connecting dimensions for nozzles with
bayonet fixing
ISO 11684:1995, Tractors, machinery for agriculture and forestry, powered lawn and garden equipment —
Safety signs and hazard pictorials — General principles
ISO 12100:2010, Safety of machinery — General principles for design — Risk assessment and risk reduction
ISO 13732-1:2006, Ergonomics of the thermal environment — Methods for the assessment of human
responses to contact with surfaces — Part 1: Hot surfaces
ISO 13857:2008, Safety of machinery — Safety distances to prevent hazard zones being reached by upper
and lower limbs
ISO 14982:1998, Agricultural and forestry machinery — Electromagnetic compatibility — Test methods
and acceptance criteria
ISO 19732:2007, Equipment for crop protection — Sprayer filters — Colour coding for identification
ISO/DIS 19932-2, Equipment for crop protection — Knapsack sprayers — Part 2: Test methods
ISO 22868:2011, Forestry and gardening machinery — Noise test code for portable hand-held machines
with internal combustion engine — Engineering method (Grade 2 accuracy)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 5681 and ISO 12100 and the
following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http:// www .electropedia .org/
— ISO Online browsing platform: available at http:// www .iso .org/ obp
3.1
knapsack sprayer
self-contained sprayer carried on the operator’s back or shoulder by means of straps or a strap3.2
3.2
nominal volume
maximum filling level specified by the manufacturer
Note 1 to entry: The maximum filling level can be marked by the upper value of the contents gauge scale or at a
lower level by a dedicated mark.
3.3
maximum working pressure
maximum pressure allowed at any part of the sprayer
2 © ISO 2017 – All rights reserved

oSIST prEN ISO 19932-1:2017
ISO/DIS 19932-1:2017(E)
4 General requirements
4.1 General
4.1.1 The sprayer shall comply with the safety and environmental requirements and/or protective
measures of this Clause, as well as the additional requirements for particular types of knapsack specified
in Clauses 5, 6, and 7.
In addition, the sprayer shall be designed according to the principles of ISO 6385 and ISO 12100 for
relevant but not significant hazards which are not dealt with by this part of ISO 19932.
All spray functions including spraying, filling, emptying and cleaning (including cleaning nozzles and
filters) shall be possible for an operator wearing appropriate protective gloves.
Compliance shall be checked by inspection and function test.
4.1.2 The mass of the equipment with the fuel tank and spray tank filled to the nominal volume shall
not be more than 25 kg. Compliance shall be checked by measurement.
4.1.3 The centre of gravity of the upright sprayer shall not be located at a horizontal distance greater
than 150 mm from the back support of the harness with fuel and spray tanks filled to their nominal value
and with the equipment ready for use. Compliance shall be tested according to ISO/DIS 19932-2, 5.6.
4.1.4 The sprayer shall have an adjustable spray liquid output which does not deviate by more
than ± 15 % of the values specified in the instruction handbook for each setting. Compliance shall be
tested according to ISO/DIS 19932-2, 5.3.2.
4.1.5 Wearing parts (such as nozzles, filters, anti-drip valves, valves, diaphragms) specified in the
instruction handbook shall be changeable without special tools, unless provided with the sprayer, by
an operator wearing appropriate protective gloves and without contamination of the operator and the
environment. Compliance shall be checked by inspection and function test.
4.1.6 The sprayer shall be equipped with a means for lifting and carrying the filled sprayer (e.g. a
handle) in an upright position. Compliance shall be checked by inspection and function test.
4.1.7 In order to guarantee the stability of the sprayer during filling operations, the sprayer shall
remain stable on an incline of 8,5° (±0,2°) in any direction, irrespective of the amount of liquid in the
spray tank. Compliance shall be tested according to ISO/DIS 19932-2, 5.3.4.
4.1.8 The sprayer shall be designed so that the loss of liquid during stoppage of spraying is minimised.
The volume emitted within 5 s after spray shut-off shall not be more than 5 ml. Compliance shall be
checked by measurement.
4.1.9 For sprayers with a nominal volume of up to 17 l, the residual volume of liquid shall not exceed
250 ml. For those that exceed 17 l, this volume shall not exceed 1,5 % of the nominal spray-tank volume.
Compliance shall be tested according to ISO/DIS 19932-2, 6.1.3 for lever-operated sprayers, according
to ISO/DIS 19932-2, 7.2 for engine- or motor-driven sprayers or according to ISO/DIS 19932-2, 8.1.2 for
compression sprayers.
4.1.10 The sprayer shall be designed to avoid accumulation of liquid in case of accidental overfilling.
External deposit shall not exceed 70 ml. Compliance shall be tested according to ISO/DIS 19932-2, 6.1.2
for lever-operated sprayers, according to ISO/DIS 19932-2, 7.1 for engine- or motor-driven sprayers or
according to ISO/DIS 19932-2, 8.1.1 for compression sprayers.
oSIST prEN ISO 19932-1:2017
ISO/DIS 19932-1:2017(E)
4.1.11 Pressurized parts of the sprayer shall withstand twice the maximum working pressure specified
by the manufacturer after undertaking the drop test specified in ISO 19932-2.Compliance shall be tested
according to ISO/DIS 19932-2, 5.4.
4.2 Harness
4.2.1 A harness shall be provided to carry the sprayer. It shall be adjustable to the size of the operator
so that one person shall be able to pick up, to carry and to put down the sprayer. A double shoulder
harness shall be designed so that pressure is evenly distributed on both shoulders of the operator. The
design of the double shoulder harness shall prevent slipping in any direction.
All double shoulder harnesses shall be designed that the sprayer can be released quickly from the operator
in the event of emergency, e.g. by providing a means for quick-release. If a quick-release mechanism is
provided, it shall be possible to open it under load and release the machine using only one hand.
Compliance shall be checked by inspection and function test.
4.2.2 Straps shall be made of non-absorbent material. The increase in mass of straps after defined
immersion in water shall not exceed 30 g. Compliance shall be tested according to ISO/DIS 19932-2, 5.3.8.
4.2.3 Each shoulder strap shall have a load-bearing part of a length of at least 100 mm and of a
minimum comfort width of:
a) 25 mm in case of (filled) sprayer masses up to 10 kg;
b) 50 mm in case of (filled) sprayer masses higher than 10 kg.
The load shall be distributed over the whole width.
Compliance shall be checked by measurement.
4.2.4 If the load-bearing area is formed by a pad, this shall not slip from its position unintentionally.
Compliance shall be checked by inspection and function test.
4.2.5 There shall be no damage on load-bearing straps and their fixation points that reduces their
functionality as a consequence of the specified strap drop test. Compliance shall be tested according to
ISO/DIS 19932-2, 5.3.3.
4.3 Spray tank
4.3.1 The nominal volume shall be specified in whole litres (l). It shall be possible to determine the
spray tank filling level of the sprayer with a minimum resolution of 1 l. If the nominal volume of the
sprayer is at least 10 l, a lower resolution is accepted for a filling level below 4 l.
Compliance shall be checked by inspection.
4.3.2 The volumetric contents gauge scale shall have a maximum error of the reading of ± 10 % up to a
filling level of 5 l and ± 5 % above. Compliance shall be tested according to ISO/DIS 19932-2, 5.3.5.
4.3.3 The spray tank material shall be resistant to UV light.
Compliance shall be shown in the technical documentation by the sprayer manufacturer.
4.3.4 It shall be possible to fill the spray tank to its nominal volume within 60 s. The total volume of all
liquid spillage during filling shall not exceed 5 ml. Compliance shall be tested according to ISO/DIS 19932-
2, 5.3.6.
4 © ISO 2017 – All rights reserved

oSIST prEN ISO 19932-1:2017
ISO/DIS 19932-1:2017(E)
4.3.5 It shall be possible to fully empty the spray tank. The amount of liquid remaining in the spray
tank shall not exceed 50 g. Compliance shall be tested according to ISO/DIS 19932-2, 5.3.7.
4.3.6 The operator shall be protected from coming into contact with the plant protection product
when emptying the spray tank. This requirement is met for example, if the draining outlet can be opened
without the use of a tool, wearing appropriate protective gloves, and the flow is directed away from the
operator such that it can be collected in a suitable container. Compliance shall be checked by inspection
and function test.
4.4 Controls
4.4.1 It shall be possible to operate all controls by an operator wearing appropriate pro
...
