CEN

EN 10092-1:2003

(Main)

Hot rolled spring steel flat bars - Part 1: Flat bars - Dimensions and tolerances on shape and dimensions

Hot rolled spring steel flat bars - Part 1: Flat bars - Dimensions and tolerances on shape and dimensions

This Part of this European Standard specifies the nominal dimensions and the tolerances on dimensions and shape of hot rolled steel flat bars for springs with three different types of profiles (A, B, and C). Formulas for calculation the moment of inertia are specified in annex A.
This standard is applicable only to spring steel flat bars produced from steel grades specified in EN 10089.

Warmgewalzte Flachstäbe aus Federstahl - Teil 1: Flachstäbe - Maße, Formtoleranzen und Grenzabmaße

Dieser Teil dieser Europäischen Norm legt die Nennmaße, Grenzabmaße und Formtoleranzen warmgewalzter Flachstäbe aus Stahl für Federn in drei verschiedenen Profilarten (A, B und C) fest. Formeln für die Berechnung des Trägheitsmomentes sind in Anhang A enthalten.
Diese Norm gilt nur für Flachstäbe aus Federstahl, die aus den in EN 10089 festgelegten Stahlsorten hergestellt wurden.

Plats laminés à chaud ou aciers à ressorts - Tolérances sur la forme et les dimensions - Partie 1: Plats en acier laminés à chaud pour lames de ressorts

La présente partie de la présente Norme européenne spécifie les dimensions nominales et les tolérances sur les dimensions et la forme de plats en acier laminés à chaud pour lames de ressorts pour trois types différents de profils (A, B, et C). Les formules pour calculer le moment d'inertie sont spécifiées dans l'Annexe A.
La présente norme s'applique uniquement aux plats en acier pour lames de ressorts produits à partir des nuances d'acier spécifiées dans l'EN 10089.

Hot rolled spring steel flat bars - Part 1: Flat bars - Dimensions and tolerances on shape and dimensions

General Information

Status
Published
Publication Date
28-Oct-2003
Withdrawal Date
29-Apr-2004
ICS
77.140.25 - Spring steels
77.140.60 - Steel bars and rods
Technical Committee
ECISS/TC 103 - Structural steels other than reinforcements
Drafting Committee
ECISS/TC 11/SC 1 - Hot rolled steel bars for engineering use. Dimensions and tolerances
Current Stage
9093 - Decision to confirm - Review Enquiry
Completion Date
11-Apr-2024
Ref Project
SIST EN 10092-1:2004 - Hot rolled spring steel flat bars - Part 1: Flat bars - Dimensions and tolerances on shape and dimensions

Buy Standard

EN 10092-1:2004EN 10092-1:2004
PreviousNext
Standard
EN 10092-1:2004
English language
15 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

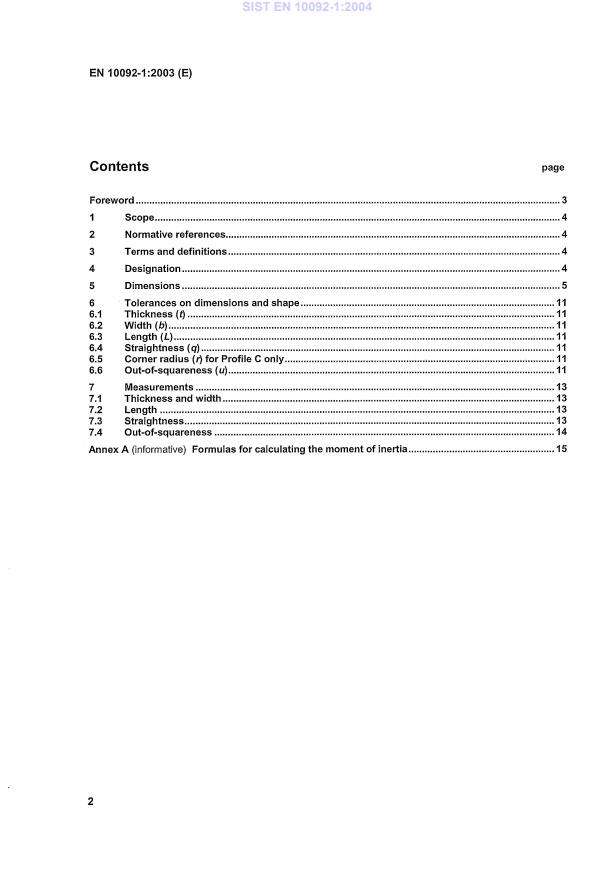

Standards Content (Sample)


2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Hot rolled spring steel flat bars - Part 1: Flat bars - Dimensions and tolerances on shape and dimensionsWarmgewalzte Flachstäbe aus Federstahl - Teil 1: Flachstäbe - Maße, Formtoleranzen und GrenzabmaßePlats laminés a chaud ou aciers a ressorts - Tolérances sur la forme et les dimensions - Partie 1: Plats en acier laminés a chaud pour lames de ressortsHot rolled spring steel flat bars - Part 1: Flat bars - Dimensions and tolerances on shape and dimensions77.140.60Jeklene
...
