EN 17476:2021+A1:2022/prA2
(Amendment)Specifications for dedicated liquefied petroleum gas appliances - LPG vapour pressure appliances incorporating a horizontal cartridge in the chassis
- Abstract
This document specifies the construction characteristics, performances and marking related to safety and the rational use of energy of portable, flat gas appliances directly supplied at the LPG vapour pressure, incorporating a gas cartridge complying with EN 417:2012, inserted horizontally in the chassis.
NOTE 1 These appliances are referred to in the body of the text as “appliances”.
This document covers appliances for outdoor or in well ventilated areas uses only.
This document does not cover appliances supplied by an external gas source.
For example, the following types of appliances are covered:
a) cooking appliances (stoves, barbecues);
b) heating appliances.
This document specifies the requirements applicable to these appliances or their functional sections whether or not the latter are independent or incorporated into an assembly.
Appliances covered by this document are not connected to a flue for the discharge of products of combustion and are not connected to the mains electricity supply.
This document covers neither appliances supplied with LPG in the liquid phase nor appliance with fixed integral container which could be refilled by the user.
This document does not cover appliances of direct pressure propane category.
Requirements for rational use of energy have been considered for stove burners.
NOTE 2 However, such requirements have not been considered for the other types of appliances because:
- for barbecues, this type of cooking varies according to the type of food and region where the appliance is used;
- for heating appliances, all the heat produced is discharged into the environment.
- Status
- Not Published
- Publication Date
- 12-May-2027
- Technical Committee
- CEN/TC 181 - Dedicated liquified petroleum gas appliances
- Drafting Committee
- CEN/TC 181/WG 1 - Flueless space heaters
- Current Stage
- 4020 - Submission to enquiry - Enquiry
- Start Date
- 08-Oct-2026
- Due Date
- 29-Jan-2026
- Completion Date
- 08-Oct-2026
EN 17476:2021+A1:2022/prA2 is a CEN draft amendment for dedicated liquefied petroleum gas appliances. It covers portable, flat gas appliances directly supplied at LPG vapour pressure, using a horizontal cartridge in the chassis and a cartridge complying with EN 417:2012. The document is aimed at manufacturers, test laboratories and conformity teams that need to check safety-related construction, performance and marking.
What does EN 17476:2021+A1:2022/prA2 specify?
EN 17476:2021+A1:2022/prA2 specifies changes to the European Standard for appliances used outdoors or in well ventilated areas only. It applies to cooking appliances such as stoves and barbecues, and to heating appliances, and it excludes appliances supplied from an external gas source, in the liquid phase, or with a fixed integral container refillable by the user.
The amendment is organized as modifications to Clause 2, 3.26, Clauses 5 to 8, Annex B, a new informative Annex D, and Annex ZA.
| Annex / part | What it covers |
|---|---|
| Annex B | Tests on taps |
| Annex D | Explanations of technical choices for the pressure sensitive safety device, FSD, and plate thickness |
| Annex ZA | Relationship with EU legislation |
What are the key requirements of EN 17476:2021+A1:2022/prA2?
EN 17476:2021+A1:2022/prA2 tightens several safety and usability points that matter in real products and tests.
Materials, assembly and maintenance
- Clause 5.3 requires rubber based materials to meet EN 549:2019+A2:2024 classes A2/H2 minimum and to be LPG resistant. For food-contact parts, the material must be corrosion resistant and non-toxic.
- Clauses 5.4.1 and 5.4.2 require user-assembled parts and user-cleaned parts to be designed so they cannot be put together wrongly when the instructions are followed. This reduces assembly errors and service issues.
Stability, ignition and flame safety
- Clause 5.5.2 and new 6.5.2.4 add a flame stability check for flat portable gas heater on a 10° incline, with the cartridge cooled and the appliance operated with the tap fully open. This gives a defined tilt test for unstable flame behavior.
- Clause 5.23 adds that, after closing the tap, the flame shall extinguish within 6 s maximum. In practice, this limits delayed flame persistence after shut-off.
Pressure, marking and safety devices
- Clause 5.10 changes the pressure sensitive safety device requirement so gas supply is stopped between 4 and 7 bar. That matters for design settings and for pressure test verification.
- Clause 5.31 strengthens marking durability: after the test, markings must still be visible and legible, and the label must not be removable by hand or curl up.
- Clause 7.1 and 8.2.3 update appliance marking and instructions, including the phrases for outdoor use or well ventilated areas and a warning against accessories not allowed by the instructions.
Tap tests and high-temperature safety
- Annex B replaces the tap tests with soundness checks after temperature conditioning and after 2 000 endurance cycles. The leak limit is kept very low, so taps must remain tight after heat, cold and repeated operation.
- Clause 6.28 updates the high-temperature test for stove burners to use a thicker stainless steel plate and a deformation limit. This makes the test setup more robust and easier to judge.
What terms does EN 17476:2021+A1:2022/prA2 define?
- LPG - liquefied petroleum gas, the fuel used by the appliances covered by the standard.
- FSD - flame supervision device, a safety device linked to flame presence.
- ODS - oxygen depletion sensor, a device noted in Annex D as part of heater safety logic.
- Pressure sensitive safety device - a device that stops gas supply when pressure rises into the specified range.
- Gas cartridge - the cartridge inserted horizontally in the chassis and required to comply with EN 417:2012.
Who uses EN 17476:2021+A1:2022/prA2?
EN 17476:2021+A1:2022/prA2 is used by appliance manufacturers, component suppliers, and test laboratories working on portable LPG stoves, barbecues and heaters. It is also used by quality, compliance and regulatory teams that need a common basis for safety tests, marking checks and product documentation.
What changed in EN 17476:2021+A1:2022/prA2 from the previous edition?
Compared with EN 17476:2021+A1:2022, this draft amendment updates or adds:
- normative references;
- design requirements for assembly, cleaning and maintenance;
- a new inclined-plane flame stability test for flat portable gas heaters;
- the pressure value for the pressure sensitive safety device, changed to 7 bar;
- removal of the mandatory FSD sentence for heating appliances;
- a 6 s limit for flame extinction after closing the tap;
- clearer marking durability, appliance marking and instructions for use;
- a new description of the stainless steel plate used in the high-temperature test;
- a reworded Annex B;
- a new informative Annex D;
- updates to Annex ZA.
Which standards are used with EN 17476:2021+A1:2022/prA2?
EN 17476:2021+A1:2022/prA2 uses these named standards in its requirements and notes:
- EN 30-1-1:2021+A1:2023 - referenced for a test method in Clause 6.
- EN 125:2022+A1:2024 - referenced for flame supervision devices.
- EN 437:2021 - used for test gases, test pressures and appliance categories.
- EN 549:2019+A2:2024 - sets the rubber material classes for seals and diaphragms.
- EN 417:2012 - defines the cartridge used by the appliances in scope.
- EN 1672-2:2020 - cited in the food-contact material note.
- EN 10088-1:2023 - cited for stainless steel grades in Annex D.
What does the EN 17476:2021+A1:2022/prA2 document contain?
The document contains clause-by-clause amendments to the base standard, including revised material, assembly, stability, ignition, marking and safety-device requirements. It also adds a specific inclined-plane test for flat portable gas heaters and revises tap tests in Annex B. Annex D explains the technical reasons behind selected choices, and Annex ZA updates the EU legislation linkage.
Relations
- Effective Date
- 12-Mar-2025
Get Certified
Connect with accredited certification bodies for this standard
Institut za varilstvo d.o.o. (Welding Institute)
Slovenia's leading welding institute since 1952. ISO 3834, EN 1090, pressure equipment certification, NDT personnel, welder qualification. Only IIW Au
Sponsored listings
Frequently Asked Questions
EN 17476:2021+A1:2022/prA2 is a draft published by the European Committee for Standardization (CEN). Its full title is "Specifications for dedicated liquefied petroleum gas appliances - LPG vapour pressure appliances incorporating a horizontal cartridge in the chassis". This standard covers: This document specifies the construction characteristics, performances and marking related to safety and the rational use of energy of portable, flat gas appliances directly supplied at the LPG vapour pressure, incorporating a gas cartridge complying with EN 417:2012, inserted horizontally in the chassis. NOTE 1 These appliances are referred to in the body of the text as “appliances”. This document covers appliances for outdoor or in well ventilated areas uses only. This document does not cover appliances supplied by an external gas source. For example, the following types of appliances are covered: a) cooking appliances (stoves, barbecues); b) heating appliances. This document specifies the requirements applicable to these appliances or their functional sections whether or not the latter are independent or incorporated into an assembly. Appliances covered by this document are not connected to a flue for the discharge of products of combustion and are not connected to the mains electricity supply. This document covers neither appliances supplied with LPG in the liquid phase nor appliance with fixed integral container which could be refilled by the user. This document does not cover appliances of direct pressure propane category. Requirements for rational use of energy have been considered for stove burners. NOTE 2 However, such requirements have not been considered for the other types of appliances because: - for barbecues, this type of cooking varies according to the type of food and region where the appliance is used; - for heating appliances, all the heat produced is discharged into the environment.
This document specifies the construction characteristics, performances and marking related to safety and the rational use of energy of portable, flat gas appliances directly supplied at the LPG vapour pressure, incorporating a gas cartridge complying with EN 417:2012, inserted horizontally in the chassis. NOTE 1 These appliances are referred to in the body of the text as “appliances”. This document covers appliances for outdoor or in well ventilated areas uses only. This document does not cover appliances supplied by an external gas source. For example, the following types of appliances are covered: a) cooking appliances (stoves, barbecues); b) heating appliances. This document specifies the requirements applicable to these appliances or their functional sections whether or not the latter are independent or incorporated into an assembly. Appliances covered by this document are not connected to a flue for the discharge of products of combustion and are not connected to the mains electricity supply. This document covers neither appliances supplied with LPG in the liquid phase nor appliance with fixed integral container which could be refilled by the user. This document does not cover appliances of direct pressure propane category. Requirements for rational use of energy have been considered for stove burners. NOTE 2 However, such requirements have not been considered for the other types of appliances because: - for barbecues, this type of cooking varies according to the type of food and region where the appliance is used; - for heating appliances, all the heat produced is discharged into the environment.
EN 17476:2021+A1:2022/prA2 is classified under the following ICS (International Classification for Standards) categories: 23.020.35 - Gas cylinders. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 17476:2021+A1:2022/prA2 has the following relationships with other standards: It is inter standard links to EN 17476:2021+A1:2022. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 17476:2021+A1:2022/prA2 is associated with the following European legislation: EU Directives/Regulations: 2016/426; Standardization Mandates: M/595. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
EN 17476:2021+A1:2022/prA2 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

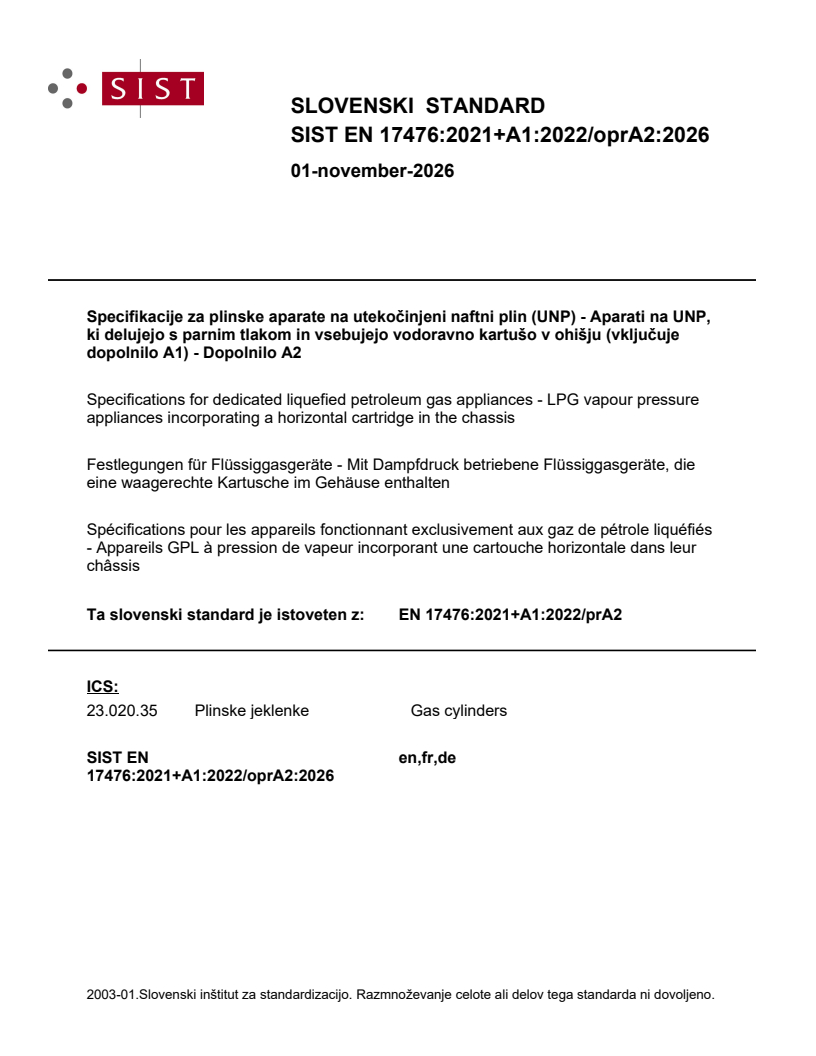

SLOVENSKI STANDARD
01-november-2026
Specifikacije za plinske aparate na utekočinjeni naftni plin (UNP) - Aparati na UNP,
ki delujejo s parnim tlakom in vsebujejo vodoravno kartušo v ohišju (vključuje
dopolnilo A1) - Dopolnilo A2
Specifications for dedicated liquefied petroleum gas appliances - LPG vapour pressure
appliances incorporating a horizontal cartridge in the chassis
Festlegungen für Flüssiggasgeräte - Mit Dampfdruck betriebene Flüssiggasgeräte, die
eine waagerechte Kartusche im Gehäuse enthalten
Spécifications pour les appareils fonctionnant exclusivement aux gaz de pétrole liquéfiés
- Appareils GPL à pression de vapeur incorporant une cartouche horizontale dans leur
châssis
Ta slovenski standard je istoveten z: EN 17476:2021+A1:2022/prA2
ICS:
23.020.35 Plinske jeklenke Gas cylinders
SIST EN en,fr,de
17476:2021+A1:2022/oprA2:2026
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

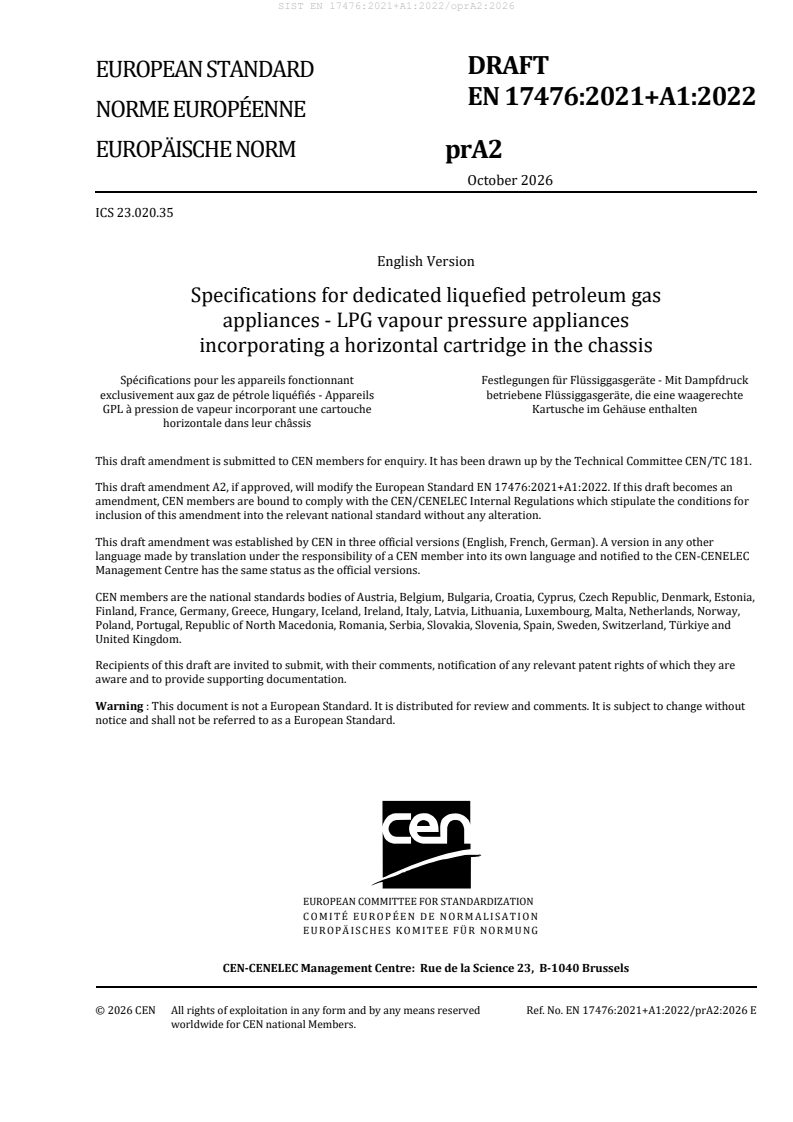

DRAFT
EUROPEAN STANDARD
EN 17476:2021+A1:2022
NORME EUROPÉENNE
EUROPÄISCHE NORM
prA2
October 2026
ICS 23.020.35
English Version
Specifications for dedicated liquefied petroleum gas
appliances - LPG vapour pressure appliances
incorporating a horizontal cartridge in the chassis
Spécifications pour les appareils fonctionnant Festlegungen für Flüssiggasgeräte - Mit Dampfdruck
exclusivement aux gaz de pétrole liquéfiés - Appareils betriebene Flüssiggasgeräte, die eine waagerechte
GPL à pression de vapeur incorporant une cartouche Kartusche im Gehäuse enthalten
horizontale dans leur châssis
This draft amendment is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee CEN/TC 181.
This draft amendment A2, if approved, will modify the European Standard EN 17476:2021+A1:2022. If this draft becomes an
amendment, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for
inclusion of this amendment into the relevant national standard without any alteration.
This draft amendment was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2026 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 17476:2021+A1:2022/prA2:2026 E
worldwide for CEN national Members.

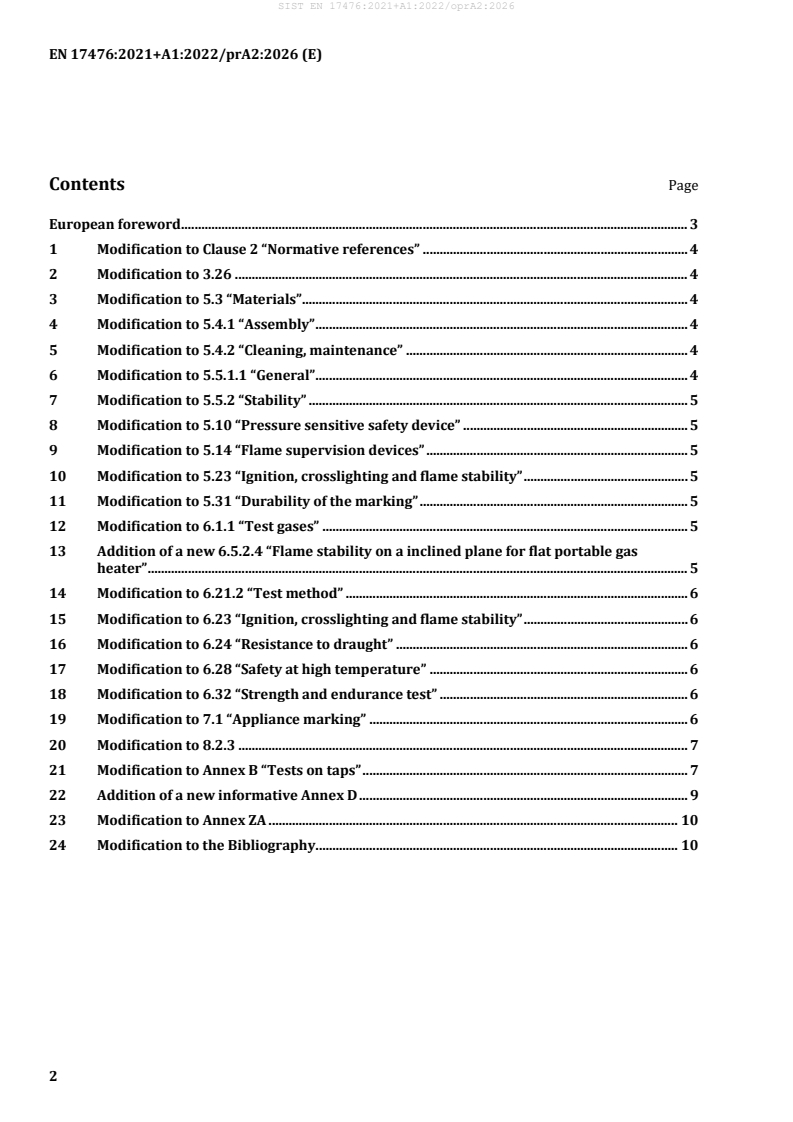

Contents Page
European foreword . 3
1 Modification to Clause 2 “Normative references” . 4
2 Modification to 3.26 . 4
3 Modification to 5.3 “Materials”. 4
4 Modification to 5.4.1 “Assembly” . 4
5 Modification to 5.4.2 “Cleaning, maintenance” . 4
6 Modification to 5.5.1.1 “General” . 4
7 Modification to 5.5.2 “Stability” . 5
8 Modification to 5.10 “Pressure sensitive safety device” . 5
9 Modification to 5.14 “Flame supervision devices” . 5
10 Modification to 5.23 “Ignition, crosslighting and flame stability” . 5
11 Modification to 5.31 “Durability of the marking” . 5
12 Modification to 6.1.1 “Test gases” . 5
13 Addition of a new 6.5.2.4 “Flame stability on a inclined plane for flat portable gas
heater” . 5
14 Modification to 6.21.2 “Test method” . 6
15 Modification to 6.23 “Ignition, crosslighting and flame stability” . 6
16 Modification to 6.24 “Resistance to draught” . 6
17 Modification to 6.28 “Safety at high temperature” . 6
18 Modification to 6.32 “Strength and endurance test” . 6
19 Modification to 7.1 “Appliance marking” . 6
20 Modification to 8.2.3 . 7
21 Modification to Annex B “Tests on taps” . 7
22 Addition of a new informative Annex D . 9
23 Modification to Annex ZA . 10
24 Modification to the Bibliography . 10
European foreword
This document (EN 17476:2021+A1:2022/prA2:2025) has been prepared by Technical Committee
CEN/TC 181 “Appliances and leisure vehicle installations using liquefied petroleum gas and appliances
using natural gas for outdoor use”, the secretariat of which is held by AFNOR.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 17476:2021+A1:2022.
This document has been prepared under a standardization request addressed to CEN by the European
Commission. The Standing Committee of the EFTA States subsequently approves these requests for its
Member States.
For the relationship with EU Legislation, see informative Annex ZA, which is an integral part of
EN 17476:2021+A1:2022.
The following main changes have been made compared to EN 17476:2021+A1:2022:
— updating of normative references;
— design requirements for assembly, cleaning and maintenance;
— addition of a new subclause 6.5.2.4 Flame stability on a inclined plane for flat portable gas heater;
— modification of the pressure value for the sensitive safety device;
— removal of the mandatory flame supervision devices for heating appliances;
— addition of a limited delay for flame extinction after closing the tap;
— wording improvement of the requirement for durability of the marking;
— description of the stainless steel plate used for the safety at high temperature test;
— improvement of the requirements for appliance marking and instructions for use, maintenance and
assembly;
— rewording of Annex B;
— addition of informative Annex D explaining some technical choices retained for this standard;
— updating of Annex ZA.
1 Modification to Clause 2 “Normative references”
Clause 2 Normative reference is replaced by:
“The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 30-1-1:2021+A1:2023, Domestic cooking appliances burning gas — Part 1-1: Safety — General
EN 125:2022+A1:2024, Flame supervision devices for gas burning appliances — Thermoelectric flame
supervision devices
EN 437:2021, Test gases — Test pressures — Appliance categories
EN 549:2019+A2:2024, Rubber materials for seals and diaphragms for gas appliances and gas equipment”
2 Modification to 3.26
The dated reference to EN 437 is replaced by: “EN 437:2021”
3 Modification to 5.3 “Materials”
The 5th paragraph is replaced by the following:
“Rubber based materials shall comply with EN 549:2019+A2:2024 classes A2/H2 minimum, and LPG
resistant.”
The 8th paragraph is changed as follows:
“Material intended to be in contact with food shall be:
— corrosion resistant; This is considered to be satisfied if the material used is enamelled (one or more
layers) or be coated with another effective protection against corrosion, or if the material is assessed
as acceptable to the national regulations in force;
— non-toxic.”
The note is completed with the date of “EN 1672-2:2020”
4 Modification to 5.4.1 “Assembly”
The second paragraph, starting by “Parts whose…” is replaced by:
“By design, for parts, whose assembly is carried out by the user, it shall not be possible to assemble them
incorrectly following the instructions provided with the appliance.”
5 Modification to 5.4.2 “Cleaning, maintenance”
The first paragraph starting by “All parts…” is replaced by:
“All parts of the appliance requiring cleaning by the user shall be
...
