EN 13647:2021
(Main)Wood flooring and wood panelling and cladding - Determination of geometrical characteristics
Wood flooring and wood panelling and cladding - Determination of geometrical characteristics
This document specifies methods of measuring the geometrical characteristics of wood flooring and wood panelling and cladding elements.
This document does not specify sampling, which is intended to be found in the product standards or test methods and it does not apply to elements which are installed.
Holzfußböden und Wand- und Deckenbekleidungen aus Holz - Bestimmung geometrischer Eigenschaftenen
Dieses Dokument legt Messverfahren für die Bestimmung der geometrischen Eigenschaften von Holzfuß-böden sowie von Elementen für Wand- und Deckenbekleidungen aus Holz fest.
Dieses Dokument legt keine Probenahme fest, die entsprechend den Produktnormen oder Prüfmethoden durchzuführen ist. Dieses Dokument ist nicht anwendbar für eingebaute Elemente.
Planchers en bois, lambris et bardages en bois - Détermination des caractéristiques géométriques
Le présent document définit des méthodes de mesure des caractéristiques géométriques des éléments de planchers en bois, de lambris et de bardages en bois.
Le présent document ne définit pas l’échantillonnage que les normes de produit ou les méthodes d’essais doivent aborder et il ne s’applique pas aux éléments installés.
Lesene talne, stenske in stropne obloge - Ugotavljanje geometrijskih lastnosti
General Information
Relations
Standards Content (Sample)

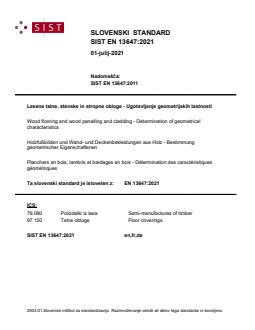

SLOVENSKI STANDARD
01-julij-2021
Nadomešča:
SIST EN 13647:2011
Lesene talne, stenske in stropne obloge - Ugotavljanje geometrijskih lastnosti
Wood flooring and wood panelling and cladding - Determination of geometrical
characteristics
Holzfußböden und Wand- und Deckenbekleidungen aus Holz - Bestimmung
geometrischer Eigenschaftenen
Planchers en bois, lambris et bardages en bois - Détermination des caractéristiques
géométriques
Ta slovenski standard je istoveten z: EN 13647:2021
ICS:
79.080 Polizdelki iz lesa Semi-manufactures of timber
97.150 Talne obloge Floor coverings
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN 13647
EUROPEAN STANDARD
NORME EUROPÉENNE
April 2021
EUROPÄISCHE NORM
ICS 79.080 Supersedes EN 13647:2011
English Version
Wood flooring and wood panelling and cladding -
Determination of geometrical characteristics
Planchers en bois, lambris et bardages en bois - Holzfußböden und Wand- und Deckenbekleidungen
Détermination des caractéristiques géométriques aus Holz - Bestimmung geometrischer Eigenschaftenen
This European Standard was approved by CEN on 12 March 2021.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13647:2021 E
worldwide for CEN national Members.

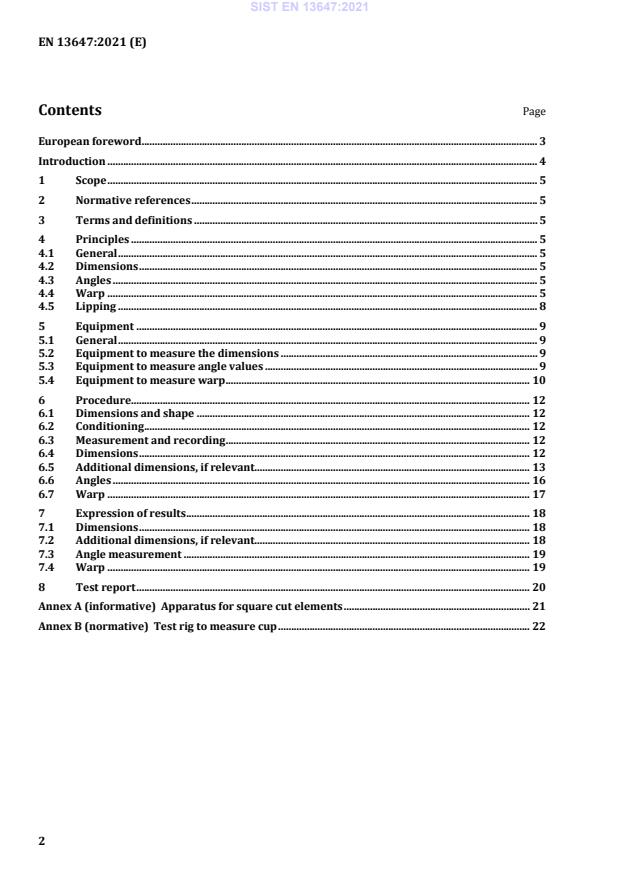

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Principles . 5
4.1 General . 5
4.2 Dimensions . 5
4.3 Angles . 5
4.4 Warp . 5
4.5 Lipping . 8
5 Equipment . 9
5.1 General . 9
5.2 Equipment to measure the dimensions . 9
5.3 Equipment to measure angle values . 9
5.4 Equipment to measure warp . 10
6 Procedure. 12
6.1 Dimensions and shape . 12
6.2 Conditioning . 12
6.3 Measurement and recording . 12
6.4 Dimensions . 12
6.5 Additional dimensions, if relevant. 13
6.6 Angles . 16
6.7 Warp . 17
7 Expression of results . 18
7.1 Dimensions . 18
7.2 Additional dimensions, if relevant. 18
7.3 Angle measurement . 19
7.4 Warp . 19
8 Test report . 20
Annex A (informative) Apparatus for square cut elements . 21
Annex B (normative) Test rig to measure cup . 22
European foreword
This document (EN 13647:2021) has been prepared by Technical Committee CEN/TC 175 “Round and
sawn timber”, the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by October 2021, and conflicting national standards shall
be withdrawn at the latest by October 2021.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 13647:2011.
Compared with EN 13647:2011, the following modifications have been made:
— in lipping measuring;
— in dimensions measuring: thickness of the element, thickness of the top layer, depth and width of the
groove, thickness and width of the tongue.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United
Kingdom.
Introduction
This document is one of a series of standards specifying requirements and test methods for wood flooring
and wood panelling and cladding.
The measurements should be carried out as specified in this document or with any other equipment or
principles giving at least the same accuracy.
1 Scope
This document specifies methods of measuring the geometrical characteristics of wood flooring and
wood panelling and cladding elements.
This document does not specify sampling, which is intended to be found in the product standards or test
methods and it does not apply to elements which are installed.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 13756:2018, Wood flooring and parquet — Terminology
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 13756:2018 apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at https://www.iso.org/obp
4 Principles
4.1 General
The measurements shall be carried out only if relevant, taking the product standards into account.
4.2 Dimensions
The dimensions are determined by measuring any characteristic defined in the product standard and
with appropriate tools.
4.3 Angles
Determine square angles by measuring the distance (maximum value) between an edge of the element
and the side of a square whose other side is in line with an adjacent edge of the element.
Determine other angles by the use of a protractor.
4.4 Warp
4.4.1 Cup
Determine cup by measuring, at the middle of the width of the element, the distance separating the face
of the element from the straight reference line joining the top arises of the edges of the element, see
Figures 1 and 2.
Key
1 width
2 face
3 cup
4 cross section
5 reference line
Figure 1 — Example of convex cup
Key
1 width
2 face
3 cup
4 cross section
5 reference line
Figure 2 — Example of concave cup
4.4.2 Bow
Determine bow by measuring, at the middle of the length of the element, the distance separating the face
of the element from the straight reference line joining the end top arises of the element, see Figures 3
and 4.
If the maximum bow is not in the middle of the length, the measurement can be carried out at the
appropriate place and this should be mentioned in the report.
Key
1 length
2 face
3 bow
4 edge
5 thickness
6 reference line
For practical reasons, convex bow may be measured in the same way on the back of the element.
Figure 3 — Example of convex bow
Key
1 length
2 face
3 bow
4 edge
5 thickness
6 reference line
Figure 4 — Example of concave bow
4.4.3 Spring
Determine spring by measuring, at the middle of the length of the element, along the lengthwise edges of
the element, the distance separating one edge from the straight reference line joining the two arises of
that edge, see Figure 5.
NOTE The measurement is usually carried out on the edge bearing the groove.
Key
1 length
2 face
3 spring
4 reference line
5 width
Figure 5 — Example of spring (element viewed from above)
4.5 Lipping
Determine lipping by measuring the difference in the levels of the face of two adjacent elements when
they are assembled together, see Figure 6.
Key
1 ruler
2 measuring point
3 test specimen
Figure 6 — Test specimens assembled, with the 13 measuring points indicated by ∇
5 Equipment
5.1 General
The equipment specified in this document is given as an indication. Any other equipment providing the
same results with at least the same accuracy may be used.
5.2 Equipment to measure the dimensions
5.2.1 Calliper
It shall have an accuracy of ± 0,05 mm.
If used to measure the characteristics of tongue and groove profiles, it shall have a built-in depth rod.
It shall also have a useful measuring length corresponding to the width of the elements to be measured.
5.2.2 Micrometer
It shall have a limit deviation of ± 0,05 mm and two parallel flat circular feelers having a diameter of
(10 ± 1) mm.
It shall be used for measurement of total thickness.
NOTE 1 For the measurement of top layer thickness, the device mentioned in 5.2.4 and the procedure described
in 6.5.9 are suitable.
NOTE 2 Other similar optical devices, e.g. microscope are also suitable to be used.
5.2.3 Graduated rule
It shall be used wh
...
