EN 16664:2015

Playing field equipment - Lightweight goals - Functional, safety requirements and test methods

This European Standard specifies the functional and safety requirements and test methods for lightweight goals, which are classified in 4.
This standard is not applicable to goals:
a)   according to EN 748 (football);
b)   EN 749 (handball);
c)   EN 750 (hockey);
d)   EN 1270 (basketball);
e)   EN 15312 (free access multi-sports);
f)   EN 13451-4 (water polo);
g)   to prEN 16579 (portable and fixed goals);
h)   inflatable goals;
i)   goals which are classified as toys under the responsibility of technical committees CEN/TC 52 "Safety of toys";
j)   Goals which are intended to move in use (e.g. rink hockey and roller hockey).
It is applicable to playing field goals used for training or recreational play, indoor and outdoor including educational and public establishments and recreational areas.

Spielfeldgeräte - Leichtgewicht-Tore - Funktionale, sicherheitstechnische Anforderungen und Prüfverfahren

Diese Europäische Norm legt funktionale und sicherheitstechnische Anforderungen und Prüfverfahren für Leichtgewicht-Tore, wie in Abschnitt 4 klassifiziert, fest.
Diese Norm ist nicht anwendbar auf Tore:
a)   nach EN 748 (Fußball);
b)   EN 749 (Handball);
c)   EN 750 (Hockey);
d)   EN 1270 (Basketball);
e)   EN 15312 (frei zugängliche Multisportgeräte);
f)   EN 13451-4 (Wasserball);
g)   für prEN 16579 (ortsveränderliche und standortgebundene Tore);
h)   aufblasbare Tore;
i)   Tore, die unter der Zuständigkeit des Technischen Komitees CEN/TC 52 "Sicherheit von Spielzeug" als Spielzeug eingestuft sind;
j)   Tore, die für eine Bewegung während der Benutzung vorgesehen sind (z. B. beim Rollhockey).
Diese Norm gilt für Spielfeldtore, die zu Trainings  oder Erholungszwecken genutzt und in Innen  und Außenbereichen einschließlich Bildungseinrichtungen und öffentlichen Einrichtungen, sowie Erholungsbereichen verwendet werden.

Équipements de jeux - Buts légers - Exigences fonctionnelles, exigences de sécurité et méthodes d'essai

La présente Norme européenne spécifie les exigences fonctionnelles, les exigences de sécurité et les méthodes d'essai relatives aux buts légers, selon la classification en 4.
La présente norme n'est pas applicable :
a)   aux buts conformes à l'EN 748 (football) ;
b)   aux buts conformes à l'EN 749 (handball) ;
c)   aux buts conformes à l'EN 750 (hockey) ;
d)   aux équipements conformes à l'EN 1270 (basket-ball) ;
e)   aux buts conformes à l'EN 15312 (équipements sportifs en accès libre) ;
f)   aux buts conformes à l'EN 13451-4 (water-polo) ;
g)   aux buts conformes au prEN 16579 (buts transportables et fixes) ;
h)   aux buts gonflables ;
i)   aux buts classés comme jouets relevant de la responsabilité du comité technique CEN/TC 52 "Sécurité des jouets" ;
j)   aux buts conçus pour être mobiles lorsqu'ils sont utilisés (par exemple, les buts pour hockey sur glace ou pour hockey sur rollers).
Elle est applicable aux buts de terrains de jeux utilisés pour l'entraînement ou les jeux récréatifs, à l’intérieur ou à l’extérieur, y compris dans les établissements scolaires, les établissements publics et les espaces de loisirs.

Oprema športnih igrišč - Lahka nogometna vrata - Funkcionalne, varnostne zahteve in preskusne metode

Ta evropski standard določa funkcionalne in varnostne zahteve za lahka nogometna vrata, ki so razvrščena v 4.2.
Ta standard se ne uporablja za nogometna vrata:
– v skladu s standardi EN 748 (nogomet), EN 749 (rokomet), EN 750 (hokej), EN 1270 (košarka) in EN 15312 (prosto dostopna večnamenska športna oprema) in EN 13451-4 (vaterpolo).
– v skladu s standardom EN 16579;
– ki so napihljivi goli;
– ki so goli, razvrščeni kot igrače v skladu s standardom CEN/TC 52.
Uporablja se za gole za igranje na terenu, ki se uporabljajo za notranje ali zunanje igranje za rekreacijo, vključno z izobraževalnimi in javnimi ustanovami ali področji za rekreacijo, vendar ne za gospodinjsko uporabo.

General Information

• Status: Published
• Publication Date: 07-Jul-2015
• Withdrawal Date: 30-Jan-2016
• ICS: 97.220.30 - Indoor sports equipment
• ICS: 97.220.40 - Outdoor and water sports equipment
• Technical Committee: CEN/TC 136 - Sports, playground and other recreational equipment
• Drafting Committee: CEN/TC 136/WG 22 - Gymnastic and playing field equipment
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Start Date: 05-Mar-2021
• Completion Date: 06-Dec-2025
• Directive: 2001/95/EC - Directive 2001/95/EC of the European Parliament and of the Council of 3 December 2001 on general product safety
• Ref Project: SIST EN 16664:2015 - Playing field equipment - Lightweight goals - Functional, safety requirements and test methods

Overview

EN 16664:2015 - Playing field equipment: Lightweight goals - Functional, safety requirements and test methods is a CEN European Standard that defines safety, performance and testing requirements for portable lightweight goals used for training and recreational play (indoor and outdoor). The standard covers goal classification, material selection, construction, anchorage/ballast, net and net-fixing safety, impact and entrapment testing, marking and documentation.

Key topics and technical requirements

• Classification: A product is a lightweight goal if its total mass (including net, excluding separate ballast) ≤ 10 kg and it meets a static force criterion (≤ 50 N at a specified measuring point).
• Materials: Guidance on material selection to avoid hazards from skin contact; see Annex C for recommendations.
• Strength and structural integrity: Goal frames must not break, collapse or produce sharp fragments under impact testing.
• Anchorage / ballast: Goals > 2 kg must have at least one anchorage point; ballast must be at least twice the goal weight.
• Entrapment and pinch hazards: Designs must prevent finger, head and neck entrapment. Assessment follows EN 913:2008 with additional tests in Annex A (head and neck entrapment).
• Net and net fixings: Minimum yarn diameter 2 mm; mesh must not allow the intended ball to pass or create entrapment. Minimum mesh breaking strength: open mesh 400 N (EN ISO 1806); close mesh 300 kPa (EN ISO 13938-1). Metal cup hooks are prohibited as net fixings.
• Impact tests: A soft-body pendulum (approx. 75 kg tyre impactor) strikes the assembled goal at 1.0 ± 0.05 m/s in specified directions (side, front, top) to verify no dangerous collapse.
• Net-fixing strength test: Applied horizontal load of 400 ± 50 N on a disc placed against the net to check fixation integrity.
• Marking & documentation: Assembly, installation, maintenance instructions and warning labels are required; test reports must record test conditions, equipment details and results.

Applications and users

EN 16664:2015 is practical for:

• Manufacturers and designers of lightweight sports goals - to design compliant products and select materials.
• Testing laboratories and conformity assessors - to perform impact, net and entrapment tests and issue test reports.
• Procurement officers, facility managers, schools, clubs and playground operators - to specify safe products for training and recreational use.
• Standards committees and safety auditors - for regulatory alignment and risk assessments.

Keywords: EN 16664:2015, lightweight goals, playing field equipment, safety requirements, test methods, net fixings, impact test, entrapment testing.

Related standards

Normative and related references include EN 913:2008 (gymnastic equipment safety), prEN 16579 (portable and fixed goals), EN ISO 1806 and EN ISO 13938-1 (net/membrane testing). EN 16664 is not applicable to goals covered by EN 748 (football), EN 749 (handball), EN 750 (hockey), EN 1270 (basketball), EN 15312 (multi-sports), EN 13451-4 (water polo), prEN 16579, inflatable goals, toys (CEN/TC 52) or goals intended to move in use.

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.UQRVWQHSpielfeldgeräte - Leichtgewicht Tore - Funktionale, sicherheitstechnische Anforderungen und PrüfverfahrenÉquipements de jeux - Buts légers - Exigences fonctionnelles, exigences de sécurité et méthodes d'essaiPlaying field equipment - Lightweight goals - Functional, safety requirements and test methods97.220.40Oprema za športe na prostem in vodne športeOutdoor and water sports equipment97.220.30Oprema za dvoranske športeIndoor sports equipmentICS:Ta slovenski standard je istoveten z:EN 16664:2015SIST EN 16664:2015en,fr,de01-september-2015SIST EN 16664:2015SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 16664
July 2015 ICS 97.220.30; 97.220.40 English Version
Playing field equipment - Lightweight goals - Functional, safety requirements and test methods
Équipements de jeux - Buts légers - Exigences fonctionnelles, exigences de sécurité et méthodes d'essai
Spielfeldgeräte - Leichtgewicht-Tore - Funktionale, sicherheitstechnische Anforderungen und Prüfverfahren This European Standard was approved by CEN on 27 May 2015.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2015 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 16664:2015 ESIST EN 16664:2015

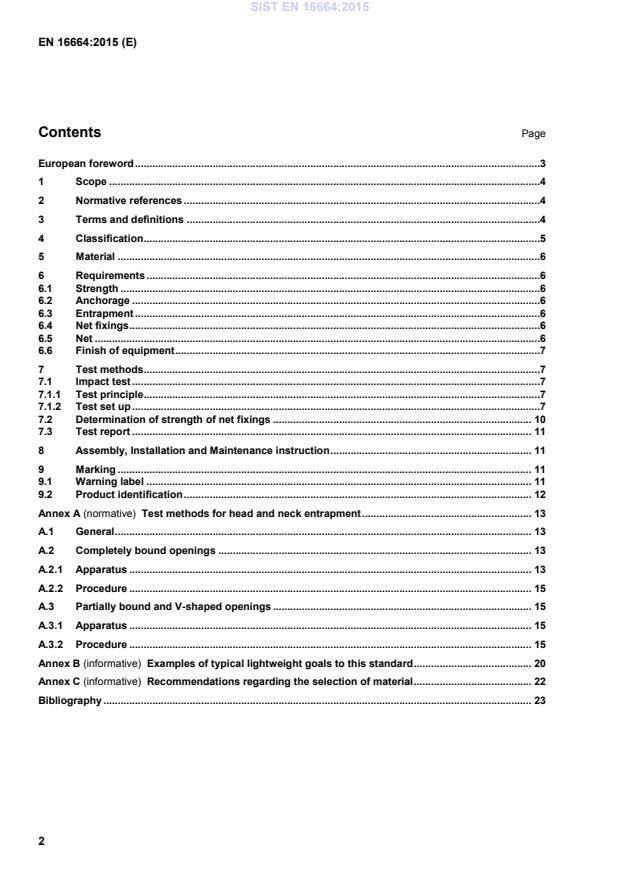

Test methods for head and neck entrapment . 13 A.1 General . 13 A.2 Completely bound openings . 13 A.2.1 Apparatus . 13 A.2.2 Procedure . 15 A.3 Partially bound and V-shaped openings . 15 A.3.1 Apparatus . 15 A.3.2 Procedure . 15 Annex B (informative)
Examples of typical lightweight goals to this standard . 20 Annex C (informative)
Recommendations regarding the selection of material . 22 Bibliography . 23
a) Side view b) Front view Key A measuring point 1 force measuring device capable of measuring with a precision equal to or better than ± 1 N 2 suspension system 3 supporting block (alternative) Figure 1 — Example for measuring SIST EN 16664:2015
...
