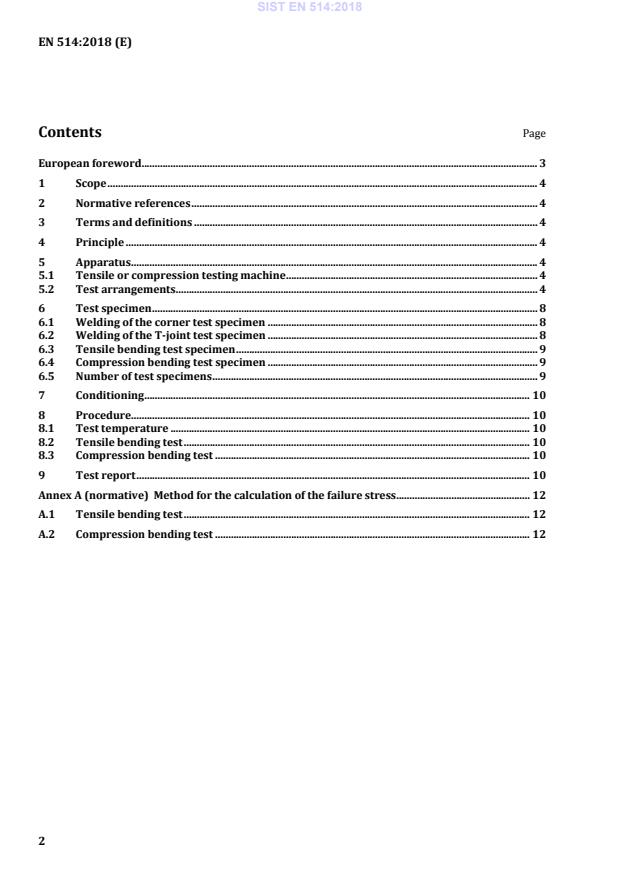

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 Principle . 4
5 Apparatus . 4
5.1 Tensile or compression testing machine . 4
5.2 Test arrangements . 4
6 Test specimen . 8
6.1 Welding of the corner test specimen . 8
6.2 Welding of the T-joint test specimen . 8
6.3 Tensile bending test specimen . 9
6.4 Compression bending test specimen . 9
6.5 Number of test specimens . 9
7 Conditioning . 10
8 Procedure. 10
8.1 Test temperature . 10
8.2 Tensile bending test . 10
8.3 Compression bending test . 10
9 Test report . 10
Annex A (normative) Method for the calculation of the failure stress . 12
A.1 Tensile bending test . 12
A.2 Compression bending test . 12
European foreword
This document (EN 514:2018) has been prepared by Technical Committee CEN/TC 249 “Plastics”, the
secretariat of which is held by NBN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by July 2018, and conflicting national standards shall be
withdrawn at the latest by July 2018.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN not be held responsible for identifying any or all such patent rights.
This document supersedes EN 514:2000.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
1 Scope
This European Standard specifies a tensile bending method and a compression bending method for
determining the failure stress of welded corners and welded T-joints made from unplasticized
poly(vinyl chloride) (PVC-U) profiles.
It is applicable to PVC based profiles used for the fabrication of windows and doors.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at http://www.iso.org/obp
3.1
failure load
load at which yield occurs, or, if yield does not occur, load at which the test specimen breaks
4 Principle
Welded corners and T-joints made from unplasticized poly(vinyl chloride) (PVC-U) profiles are
subjected to a tensile bending or compression bending test at specified temperature and test speed.
The failure load is recorded and the failure stress is calculated.
5 Apparatus
5.1 Tensile or compression testing machine
Tensile or compression testing machines are used with the following specifications:
a) measuring range of load: 2 kN to 20 kN;
b) load indication with zero point setting and peak recording;
c) me
...
