Insulating materials - Industrial rigid round laminated tubes and rods based on thermosetting resins for electrical purposes - Part 3: Specifications for individual materials - Sheet 2: Round laminated moulded tubes

IEC 61212-3-2:2013 gives requirements for industrial rigid round laminated moulded tubes for electrical purposes, based on different resins and different reinforcements. Applications and distinguishing properties are given in Table 1. Materials which conform to this specification meet established levels of performance. However, the selection of a material by a user for a specific application should be based on the actual requirements necessary for adequate performance in that application and not based on this specification alone. This third edition cancels and replaces the second edition published in 2006. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: Details of test for insulation resistance after immersion in water are changed. Key words: industrial rigid round laminated moulded tubes

Isolierstoffe – Runde Rohre und Stäbe aus technischen Schichtpressstoffen auf der Basis warmhärtender Harze für elektrotechnische Zwecke – Teil 3: Bestimmungen für einzelne Werkstoffe – Blatt 2: Runde, formgepresste Rohre

Matériaux isolants - Tubes et barres industriels rigides, ronds, stratifiés, à base de résines thermodurcissables, à usages électriques - Partie 3: Spécifications pour matériaux particuliers - Feuille 2: Tubes ronds stratifiés moulés

La CEI 61212-3-2:2013 donne les exigences relatives aux tubes industriels rigides ronds, stratifiés, moulés, à usages électriques, à base de différentes résines et de différents matériaux de renfort. Les applications et les propriétés distinctives sont données au Tableau 1. Les matériaux qui sont conformes à cette spécification satisfont à des niveaux de performances établis. Cependant, il convient que le choix d'un matériau par un utilisateur et pour une application particulière soit fondé sur les exigences réelles nécessaires pour obtenir les performances satisfaisantes pour cette application, et non pas fondé sur cette seule spécification. Cette troisième édition annule et remplace la deuxième édition parue en 2006 et constitue une révision technique. Cette édition inclut fications techniques majeures suivantes par rapport à l'édition précédente: Les détails d'essais relatifs à la résistance d'isolement après immersion dans l'eau ont été modifiés. Mots clés: tubes industriels rigides ronds, stratifiés, moulés

Izolacijski materiali - Industrijske toge okrogle laminirane cevi in palice na temelju termično utrjenih smol za električne namene - 3. del: Specifikacije za posamezne materiale - 2. list: Okrogle laminirane vlite cevi

Ta del standarda IEC 61212 navaja zahteve za industrijske toge okrogle lepljene lite cevi za električne namene glede na različne smole in različne armature. Vrste uporabe in razlikovalne lastnosti so navedene v preglednici 1. Materiali, ki so skladni s to specifikacijo, ustrezajo določenim ravnem delovanja. Vendar mora uporabnik material za specifično uporabo izbrati glede na dejanske zahteve, ki omogočajo ustrezno delovanje pri tej uporabi, in ne samo na podlagi te specifikacije. Varnostno opozorilo: Končni uporabnik je odgovoren za zagotavljanje varne uporabe metod, ki so zajete ali omenjene v tem dokumentu.

General Information

Status
Withdrawn
Publication Date
02-Sep-2013
Withdrawal Date
02-Jun-2016
Drafting Committee
Current Stage
6060 - Document made available - Publishing
Start Date
05-Jul-2013
Completion Date
05-Jul-2013

Relations

Buy Standard

Standard
EN 61212-3-2:2013
English language
16 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 61212-3-2:2013
01-september-2013
1DGRPHãþD
SIST EN 61212-3-2:2007

,]RODFLMVNLPDWHULDOL,QGXVWULMVNHWRJHRNURJOHODPLQLUDQHFHYLLQSDOLFHQDWHPHOMX

WHUPLþQRXWUMHQLKVPRO]DHOHNWULþQHQDPHQHGHO6SHFLILNDFLMH]DSRVDPH]QH
PDWHULDOHOLVW2NURJOHODPLQLUDQHYOLWHFHYL
Insulating materials - Industrial rigid round laminated tubes and rods based on

thermosetting resins for electrical purposes - Part 3: Specifications for individual

materials - Sheet 2: Round laminated moulded tubes

Isolierstoffe - Runde Rohre und Stäbe aus technischen Schichtpressstoffen auf der Basis

warmhärtender Harze für elektrotechnische Zwecke - Teil 3: Bestimmungen für einzelne

Werkstoffe - Blatt 2: Runde, formgepresste Rohre

Matériaux isolants - Tubes et barres industriels, rigides, ronds, stratifiés, à base de

résines thermodurcissables, à usages électriques - Partie 3: Spécifications pour
matériaux particuliers - Feuille 2: Tubes ronds, stratifiés, moulés
Ta slovenski standard je istoveten z: EN 61212-3-2:2013
ICS:
29.035.01 Izolacijski materiali na Insulating materials in
splošno general
SIST EN 61212-3-2:2013 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 61212-3-2:2013
---------------------- Page: 2 ----------------------
SIST EN 61212-3-2:2013
EUROPEAN STANDARD
EN 61212-3-2
NORME EUROPÉENNE
July 2013
EUROPÄISCHE NORM
ICS 29.035.01 Supersedes EN 61212-3-2:2006
English version
Insulating materials -
Industrial rigid round laminated tubes and rods based on thermosetting
resins for electrical purposes -
Part 3: Specifications for individual materials -
Sheet 2: Round laminated moulded tubes
(IEC 61212-3-2:2013)
Matériaux isolants - Isolierstoffe – Runde Rohre und Stäbe

Tubes et barres industriels rigides, ronds, aus technischen Schichtpressstoffen auf

stratifiés, à base de résines der Basis warmhärtender Harze für
thermodurcissables, à usages électriques elektrotechnische Zwecke – Teil 3:
- Bestimmungen für einzelne Werkstoffe –
Partie 3: Spécifications pour matériaux Blatt 2: Runde, formgepresste Rohre
particuliers - (IEC 61212-3-2:2013)
Feuille 2: Tubes ronds stratifiés moulés
(CEI 61212-3-2:2013)

This European Standard was approved by CENELEC on 2013-06-03. CENELEC members are bound to comply

with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard

the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on

application to the CEN-CENELEC Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other

language made by translation under the responsibility of a CENELEC member into its own language and notified

to the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,

the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,

Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,

Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2013 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 61212-3-2:2013 E
---------------------- Page: 3 ----------------------
SIST EN 61212-3-2:2013
EN 61212-3-2:2013 - 2 -

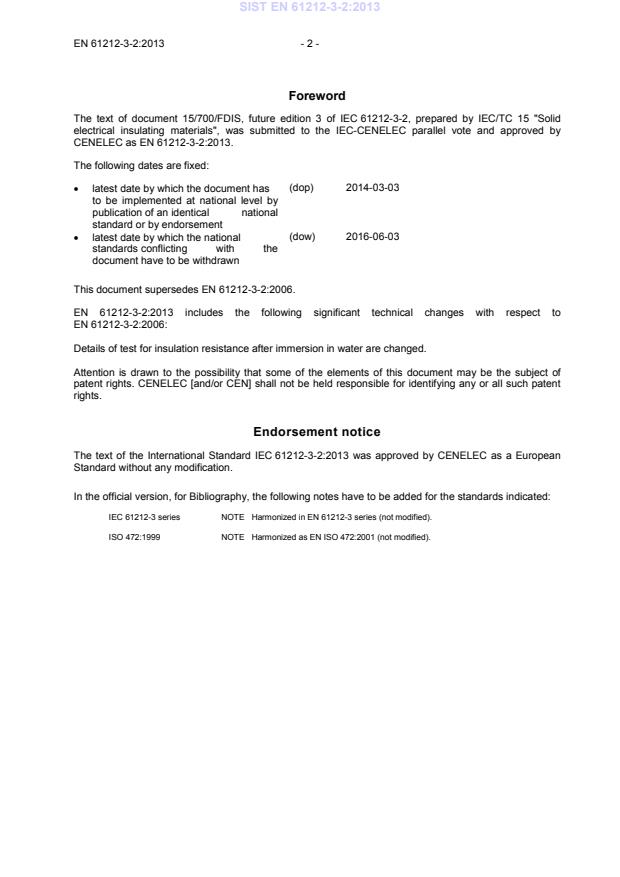

Foreword

The text of document 15/700/FDIS, future edition 3 of IEC 61212-3-2, prepared by IEC/TC 15 "Solid

electrical insulating materials", was submitted to the IEC-CENELEC parallel vote and approved by

CENELEC as EN 61212-3-2:2013.
The following dates are fixed:
(dop) 2014-03-03
• latest date by which the document has
to be implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2016-06-03
standards conflicting with the
document have to be withdrawn
This document supersedes EN 61212-3-2:2006.

EN 61212-3-2:2013 includes the following significant technical changes with respect to

EN 61212-3-2:2006:
Details of test for insulation resistance after immersion in water are changed.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent

rights.
Endorsement notice

The text of the International Standard IEC 61212-3-2:2013 was approved by CENELEC as a European

Standard without any modification.

In the official version, for Bibliography, the following notes have to be added for the standards indicated:

IEC 61212-3 series NOTE Harmonized in EN 61212-3 series (not modified).
ISO 472:1999 NOTE Harmonized as EN ISO 472:2001 (not modified).
---------------------- Page: 4 ----------------------
SIST EN 61212-3-2:2013
- 3 - EN 61212-3-2:2013
Annex ZA
(normative)
Normative references to i nternational publications
with their corresponding European publications

The following documents, in whole or in part, are normatively referenced in this document and are

indispensable for its application. For dated references, only the edition cited applies. For undated

references, the latest edition of the referenced document (including any amendments) applies.

NOTE When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD

applies.
Publication Year Title EN/HD Year
IEC 61212-1 - Insulating materials - Industrial rigid round EN 61212-1 -
laminated tubes and rods based on
thermosetting resins for electrical purposes -
Part 1: Definitions, designations and general
requirements
IEC 61212-2 2006 Insulating materials - Industrial rigid round EN 61212-2 2006
laminated tubes and rods based on
thermosetting resins for electrical purposes -
Part 2: Methods of test
---------------------- Page: 5 ----------------------
SIST EN 61212-3-2:2013
---------------------- Page: 6 ----------------------
SIST EN 61212-3-2:2013
IEC 61212-3-2
Edition 3.0 2013-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Insulating materials – Industrial rigid round laminated tubes and rods based on
thermosetting resins for electrical purposes –
Part 3: Specifications for individual materials – Sheet 2: Round laminated
moulded tubes

Matériaux isolants – Tubes et barres industriels rigides, ronds, stratifiés, à base

de résines thermodurcissables, à usages électriques –
Partie 3: Spécifications pour matériaux particuliers – Feuille 2: Tubes ronds
stratifiés moulés
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX M
ICS 29.035.01 ISBN 978-2-83220-759-8

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 7 ----------------------
SIST EN 61212-3-2:2013
– 2 – 61212-3-2 © IEC:2013
CONTENTS

FOREWORD ........................................................................................................................... 3

INTRODUCTION ..................................................................................................................... 5

1 Scope ............................................................................................................................... 6

2 Normative references ....................................................................................................... 6

3 Terms and definitions ....................................................................................................... 6

4 Designations and abbreviations ........................................................................................ 7

4.1 General ................................................................................................................... 7

4.2 Designation ............................................................................................................. 7

4.3 Abbreviations .......................................................................................................... 7

5 Requirements ................................................................................................................... 7

Bibliography .......................................................................................................................... 13

Table 1 – Types of industrial round moulded tubes ................................................................. 8

Table 2 – Permissible deviation from nominal external diameter of round moulded

tubes in the “as moulded" condition ........................................................................................ 8

Table 3 – Permissible deviation from nominal external diameter of moulded tubes in

ground or turned condition, all types ....................................................................................... 9

Table 4 – Permissible deviation from nominal internal diameter of moulded tubes .................. 9

Table 5 – Tolerance on wall thickness for round moulded tubes .............................................. 9

Table 6 – Departure from straightness for round moulded tubes ........................................... 10

Table 7 – Property requirements for round moulded tubes .................................................... 11

Table 8 – Electric strength at 90 °C in oil, perpendicular to laminations for round

moulded tubes (1 min proof test or 20 s step-by-step test) (kV/mm) ..................................... 12

---------------------- Page: 8 ----------------------
SIST EN 61212-3-2:2013
61212-3-2 © IEC:2013 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
INSULATING MATERIALS –
INDUSTRIAL RIGID ROUND LAMINATED TUBES
AND RODS BASED ON THERMOSETTING RESINS
FOR ELECTRICAL PURPOSES –
Part 3: Specifications for individual materials –
Sheet 2: Round laminated moulded tubes
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 61212-3-2 has been prepare
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
