EN 60544-2:2012

Electrical insulating materials - Determination of the effects of ionizing radiation on insulating materials - Part 2: Procedures for irradiation and test

IEC 60544-2:2012 specifies the controls maintained over the exposure conditions during and after the irradiation of insulating materials with ionizing radiation prior to the determination of radiation-induced changes in physical or chemical properties. This standard specifies a number of potentially significant irradiation conditions as well as various parameters which can influence the radiation-induced reactions under these conditions. The objective of this standard is to emphasize the importance of selecting suitable specimens, exposure conditions and test methods for determining the effect of radiation on appropriately chosen properties. Since many materials are used either in air or in inert environments, standard exposure conditions are recommended for both of these situations. It should be noted that this standard does not consider measurements which are performed during the irradiation. This edition includes the following significant technical changes with respect to the previous edition: - alignment with standards recently developed by SC 45A as well as with other parts in the IEC 60544 series.

Elektroisolierstoffe - Bestimmung der Auswirkungen ionisierender Strahlung auf Isolierstoffe - Teil 2: Verfahren zur Bestrahlung und Prüfung

Matériaux isolants électriques - Détermination des effets des rayonnements ionisants sur les matériaux isolants - Partie 2: Méthodes d'irradiation et d'essai

La CEI 60544-2:2012 spécifie d'abord les contrôles exercés sur les conditions d'exposition pendant et après l'irradiation de matériaux isolants par des rayonnements ionisants, avant de déterminer les changements de propriétés physiques ou chimiques induits par rayonnement. Cette norme discute certaines des principales conditions d'irradiation possibles d'une importance significative et spécifie les divers paramètres qui peuvent influer sur les réactions induites par rayonnement dans ces conditions. L'objectif de la présente norme est de démontrer l'importance du choix d'échantillons, de conditions d'exposition et de méthodes d'essai appropriés pour déterminer les effets des rayonnements sur des propriétés convenablement choisies. Comme un grand nombre de matériaux peuvent être utilisés soit dans l'air, soit dans des environnements inertes, des conditions normales d'exposition sont recommandées pour chacune de ces situations. Il convient de noter que cette norme ne prend pas en compte les mesures réalisées pendant l'irradiation. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente: - alignement avec des normes récemment élaborées au sein du SC 45A, ainsi qu'avec d'autres parties de la série CEI 60544.

Električni izolacijski materiali - Navodilo za ugotavljanje učinkov ionizirnega sevanja na izolacijske materiale - 2. del: Postopki za obsevanje in preskušanje

Ta del standarda IEC 60544 določa nadzor nad pogoji izpostavljenosti med obsevanjem izolacijskih materialov z ionizirajočim sevanjem in po njem, preden se določijo spremembe, ki so posledica sevanja, v okviru fizikalnih in kemičnih lastnosti. Ta standard določa število potencialno pomembnih pogojev obsevanja in različne parametre, ki lahko vplivajo na reakcije, ki jih povzroči obsevanje, pod temi pogoji. Cilj tega standarda je poudariti pomen izbire ustreznih vzorcev, pogojev izpostavljenosti in preizkusnih metod za določanje učinka obsevanja na ustrezno izbrane lastnosti. Ker se veliko materialov uporablja v zraku ali v inertnih okoljih, so za obe navedeni vrsti okoliščin priporočljivi standardni pogoji izpostavljenosti. V tem standardu niso obravnavane meritve, ki se izvajajo med obsevanjem.

General Information

• Status: Published
• Publication Date: 18-Oct-2012
• Withdrawal Date: 12-Aug-2015
• ICS: 17.240 - Radiation measurements
• ICS: 29.035.01 - Insulating materials in general
• Technical Committee: CLC/SR 112 - Evaluation and qualification of electrical insulating materials and systems (to be defined)
• Drafting Committee: IEC/TC 112 - IEC_TC_112
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 19-Oct-2012
• Completion Date: 19-Oct-2012
• Ref Project: SIST EN 60544-2:2012 - Electrical insulating materials - Guide for determining of the effects of ionizing radiation on insulating materials - Part 2: Procedures for irradiation and test

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 60544-2:2012
01-december-2012
(OHNWULþQLL]RODFLMVNLPDWHULDOL1DYRGLOR]DXJRWDYOMDQMHXþLQNRYLRQL]LUQHJD
VHYDQMDQDL]RODFLMVNHPDWHULDOHGHO3RVWRSNL]DREVHYDQMHLQSUHVNXãDQMH
Electrical insulating materials - Guide for determining of the effects of ionizing radiation
on insulating materials - Part 2: Procedures for irradiation and test
Matériaux isolants électriques - Guide pour la détermination des effets des
rayonnements ionisant sur les matériaux isolants - Partie 2: Méthodes d'irradiation et
d'essai
Ta slovenski standard je istoveten z: EN 60544-2:2012
ICS:
29.035.01 Izolacijski materiali na Insulating materials in
splošno general
SIST EN 60544-2:2012 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST EN 60544-2:2012

---------------------- Page: 2 ----------------------

SIST EN 60544-2:2012

EUROPEAN STANDARD
EN 60544-2

NORME EUROPÉENNE
October 2012
EUROPÄISCHE NORM

ICS 17.240; 29.035.01


English version


Electrical insulating materials -
Determination of the effects of ionizing radiation on insulating materials -
Part 2: Procedures for irradiation and test
(IEC 60544-2:2012)


Matériaux isolants électriques -  Elektroisolierstoffe -
Détermination des effets des Bestimmung der Auswirkungen
rayonnements ionisants ionisierender Strahlung auf Isolierstoffe -
sur les matériaux isolants - Teil 2: Verfahren zur Bestrahlung und
Partie 2: Méthodes d'irradiation et d'essai Prüfung
(CEI 60544-2:2012) (IEC 60544-2:2012)




This European Standard was approved by CENELEC on 2012-08-13. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels


© 2012 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60544-2:2012 E

---------------------- Page: 3 ----------------------

SIST EN 60544-2:2012
EN 60544-2:2012 - 2 -

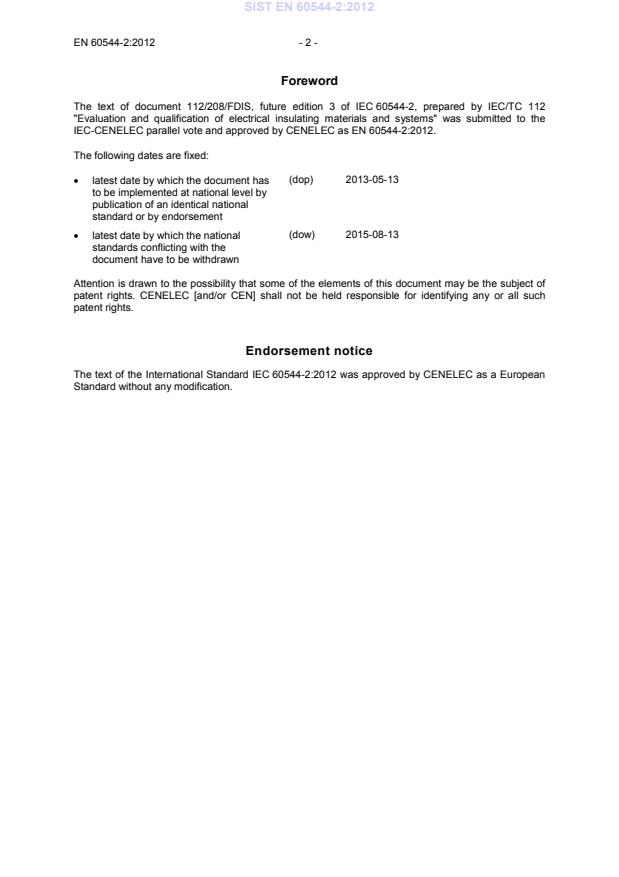

Foreword
The text of document 112/208/FDIS, future edition 3 of IEC 60544-2, prepared by IEC/TC 112
"Evaluation and qualification of electrical insulating materials and systems" was submitted to the
IEC-CENELEC parallel vote and approved by CENELEC as EN 60544-2:2012.
The following dates are fixed:
(dop) 2013-05-13
• latest date by which the document has
to be implemented at national level by
publication of an identical national
standard or by endorsement
(dow) 2015-08-13
• latest date by which the national
standards conflicting with the
document have to be withdrawn

Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.

Endorsement notice
The text of the International Standard IEC 60544-2:2012 was approved by CENELEC as a European
Standard without any modification.

---------------------- Page: 4 ----------------------

SIST EN 60544-2:2012
- 3 - EN 60544-2:2012
Annex ZA
(normative)

Normative references to international publications
with their corresponding European publications

The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.

Publication Year Title EN/HD Year

IEC 600
...
