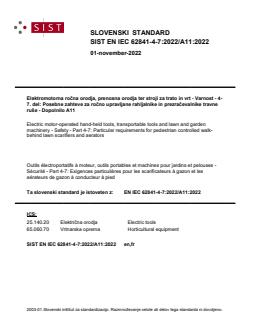

SLOVENSKI STANDARD
SIST EN IEC 62841-4-7:2022/A11:2022
01-november-2022

Elektromotorna ročna orodja, prenosna orodja ter stroji za trato in vrt - Varnost - 4-

7. del: Posebne zahteve za ročno upravljane rahljalnike in prezračevalnike travne

ruše - Dopolnilo A11
Electric motor-operated hand-held tools, transportable tools and lawn and garden

machinery - Safety - Part 4-7: Particular requirements for pedestrian controlled walk-

behind lawn scarifiers and aerators

Outils électroportatifs à moteur, outils portables et machines pour jardins et pelouses -

Sécurité - Part 4-7: Exigences particulières pour les scarificateurs à gazon et les

aérateurs de gazon à conducteur à pied
Ta slovenski standard je istoveten z: EN IEC 62841-4-7:2022/A11:2022
ICS:
25.140.20 Električna orodja Electric tools
65.060.70 Vrtnarska oprema Horticultural equipment
SIST EN IEC 62841-4-7:2022/A11:2022 en,fr

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN IEC 62841-4-7:2022/A11:2022
---------------------- Page: 2 ----------------------
SIST EN IEC 62841-4-7:2022/A11:2022

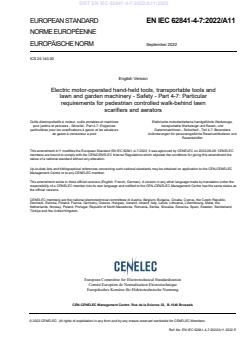

EUROPEAN STANDARD EN IEC 62841-4-7:2022/A11
NORME EUROPÉENNE
EUROPÄISCHE NORM September 2022
ICS 25.140.30
English Version
Electric motor-operated hand-held tools, transportable tools and
lawn and garden machinery - Safety - Part 4-7: Particular
requirements for pedestrian controlled walk-behind lawn
scarifiers and aerators

Outils électroportatifs à moteur, outils portables et machines Elektrische motorbetriebene handgeführte Werkzeuge,

pour jardins et pelouses - Sécurité - Part 4-7: Exigences transportable Werkzeuge und Rasen- und

particulières pour les scarificateurs à gazon et les aérateurs Gartenmaschinen - Sicherheit - Teil 4-7: Besondere

de gazon à conducteur à pied Anforderungen für personengeführte Rasenvertikutierer und

Rasenbelüfter

This amendment A11 modifies the European Standard EN IEC 62841-4-7:2022; it was approved by CENELEC on 2022-08-08. CENELEC

members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this amendment the

status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC

Management Centre or to any CENELEC member.

This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the

responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as

the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,

Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the

Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2022 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.

Ref. No. EN IEC 62841-4-7:2022/A11:2022 E
---------------------- Page: 3 ----------------------
SIST EN IEC 62841-4-7:2022/A11:2022
EN IEC 62841-4-7:2022/A11:2022 (E)
Contents Page

European foreword .................................................................................................................................... 3

1 Modification to Clause 1, “Scope” .............................................................................................. 5

2 Modifications to Clause 2, “Normative references” .................................................................. 5

3 Modifications to Clause 8, “Marking and instructions” ............................................................ 5

4 Modifications to Annex I, “Measurement of noise and vibration emissions” ........................ 6

5 Modifications to Annex K, “Battery tools and battery packs” ................................................. 6

6 Addition of the Annex ZA, “Normative references to international publications with their

corresponding European publications” ..................................................................................... 7

7 Addition of the Annex ZZ, “Relationship between this European Standard and the essential

requirements of Directive 2006/42/EC [2006 OJ L157] aimed to be covered” ......................10

---------------------- Page: 4 ----------------------
SIST EN IEC 62841-4-7:2022/A11:2022
EN IEC 62841-4-7:2022/A11:2022 (E)
European foreword

This document (EN IEC 62841-4-7:2022/A11:2022) has been prepared by CLC/TC 116 “Safety and

environmental aspects of motor-operated electric tools”.
The following dates are fixed:
• latest date by which this document has to be (dop) 2023-08-27
implemented at national level by publication of
an identical national standard or by
endorsement
• latest date by which the national standards (dow) 2025-08-27
conflicting with this document have to be
withdrawn

This document modifies by common modifications EN IEC 62841-4-7:2022, which consists of the text of

116/589/FDIS (future IEC 62841-4-7, Ed. 1) prepared by IEC/TC 116 “Safety of motor-operated electric tools”.

This series is divided into four parts.

Part 1: General requirements which are common to most hand-held electric motor operated tools (for the

purpose of this document referred to simply as tools) which could come within the scope of this document;

Part 2, 3 or 4: Requirements for particular types of tools which either supplement or modify the requirements

given in Part 1 to account for the particular hazards and characteristics of these specific tools.

The Part 4-7 is used in conjunction with EN 62841-1:2015 and its amendments.

The Part 4-7 supplements or modifies the corresponding clauses in EN 62841-1:2015, so as to convert it into

the European Standard: Particular requirements for pedestrian controlled walk-behind lawn scarifiers and

aerators.

Where a particular subclause of Part 1 is not mentioned in the Part 4-7, that subclause applies as far as relevant.

When this document states “addition”, “modification” or “replacement”, the relevant text in Part 1 is to be adapted

accordingly.
The following print types are used:
— requirements; in roman type;
— test specifications: in italic type;
— notes: in smaller roman type.
The terms defined in Clause 3 are printed in bold typeface.

Subclauses, notes, tables and figures which are additional to those in Part 1 are numbered starting from 101.

Clauses, subclauses, notes, tables, figures and annexes which are additional to those in IEC 62841-4-7:2022

are prefixed “Z”.
This document follows the overall requirements of EN ISO 12100.

This document has been prepared under a Standardization Request given to CENELEC by the European

Commission and the European Free Trade Association and supports essential requirements of EU Directive(s)

/ Regulation(s).
---------------------- Page: 5 ----------------------
SIST EN IEC 62841-4-7:2022/A11:2022
EN IEC 62841-4-7:2022/A11:2022 (E)

For the relationship with EU Directive(s) / Regulation(s), see informative Annex ZZ, which is an integral part of

this document.

Compliance with the clauses of Part 1 together with Part 4-7 provides one means of conforming with the

essential health and safety requirements of the Directive concerned.
---------------------- Page: 6 ----------------------
SIST EN IEC 62841-4-7:2022/A11:2022
EN IEC 62841-4-7:2022/A11:2022 (E)
1 Modification to Clause 1, “Scope”
Add the following to the existing Clause 1:

“This document covers all significant hazards, hazardous situations or hazardous events relevant for machines

covered by this document.

NOTE Z101 Essential requirements not mentioned in Table ZZ.1 are deemed to be not applicable, because the

corresponding hazards are either not relevant for machines covered by this document or do not require specific action by

the designer.”
2 Modifications to Clause 2, “Normative references”

Replace the normative reference “IEC 62841-1:2014” with the following in Clause 2 and throughout the text:

EN 62841-1:2015, Electric motor-operated hand-held tools, transportable tools and lawn and garden

machinery - Safety - Part 1: General requirements

Replace the normative reference “IEC 60884 (all parts)” with the following in Clause 2 and throughout the text:

IEC 60884-1:2002, Plugs and socket-outlets for household and similar purposes – Part 1: General

requirements

IEC 60884-2-1:2006, Plugs and socket-outlets for household and similar purposes – Part 2-1: Particular

requirements for fused plugs

IEC 60884-2-2:2006, Plugs and socket-outlets for household and similar purposes – Part 2-2: Particular

requirements for socket-outlets for appliances

IEC 60884-2-5:2017, Plugs and socket-outlets for household and similar purposes – Part 2-5: Particular

requirements for adaptors

IEC 60884-2-7:2011, Plugs and socket-outlets for household and similar purposes – Part 2-7: Particular

requirements for cord extension sets
3 Modifications to Clause 8, “Marking and instructions”
Replace the existing 8.3 with the following:
“8.3 Replacement of the sixth dash:

— the mass of the machine in kg. For this requirement, the mass of the machine includes the mass of a

supply cord with a length not less than 10 m, if any, in addition to the items specified in 5.17.”

Replace the text and NOTE after 8.14.2 c) 108) with the following:
“8.14.2 Za) Replacement:
Emissions:
1) The noise emission, measured in accordance with Clause I.2, as follows:

— A-weighted emission sound pressure level L and its uncertainty K , where L exceeds 70 dB(A).

pA pA pA
Where L does not exceed 70 dB(A), this fact shall be indicated;
— A-weighted guaranteed sound power level L .
As impacted by EN 62841-1:2015/AC:2015 and EN 62841-1:2015/A11:2022.
As impacted by IEC 60884-1:2002/A1:2006 and IEC 60884-1:2002/A2:2013.
As impacted by IEC 60884-2-7:2011/A1:2013.
---------------------- Page: 7 ----------------------
SIST EN IEC 62841-4-7:2022/A11:2022
EN IEC 62841-4-7:2022/A11:2022 (E)
2) Recommendation for the operator to wear hearing protection.

3) The vibration total value and its uncertainty measured in accordance with Clause I.3.

When the vibration total value does not exceed 2,5 m/s , this shall be stated.

When the vibration total value exceeds 2,5 m/s , its value shall be given in the instructions.

4) The following information:

— that the declared vibration total value(s) and the declared noise emission value(s) have been measured

in accordance with a standard test method and may be used for comparing one machine with another;

— that the declared vibration total value(s) and the declared noise emission value(s) may also be used

in a preliminary assessment of exposure.
5) A warning:

— that the vibration and noise emissions during actual use of the machine can differ from the declared

total value depending on the ways in which the machine is used; and

— of the need to identify safety measures to protect the operator that are based on an estimation of

exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the

times when the machine is switched off and when it is running idle in addition to the trigger time).”

4 Modifications to Annex I, “Measurement of noise and vibration emissions”
Replace the title of Annex I with the following:
“Annex I
(normative)
Measurement of noise and vibration emissions”
and delete the NOTE.
In I.2.2.1, replace the NOTE with the following one:

NOTE The determination of the sound power level in accordance with I.2.2.4 also provides the A-weighted measured and

guaranteed sound power level L required by the European Directive 2000/14/EC and its amendments.”

5 Modifications to Annex K, “Battery tools and battery packs”
Replace the NOTE 301 in K.21.18 with the following normative text:
“K.21.18.Z101 Isolation device

Machines with an integral battery shall be equipped with an isolation device to prevent the risk of injury from

mechanical hazards during servicing or user maintenance.
An isolation device shall

— provide disconnection of at least one pole of the battery from the serviceable region of the machine;

— be equipped with an unambiguous indication of the state of the disconnection device which corresponds to

each position of its manual control (actuator);
---------------------- Page: 8 ----------------------
SIST EN IEC 62841-4-7:2022/A11:2022
EN IEC 62841-4-7:2022/A11:2022 (E)
— be provided with protection against accidental reconnection.

NOTE 1 Examples of methods to achieve this disconnection include removable jumpers, integral batteries that can be

disconnected for servicing or user maintenance, or an electromechanical power switch (operator presence control) with

a direct mechanical link between the actuator and the contact.
...
