EN 61753-086-2:2009

Fibre optic interconnecting devices and passive components performance standard - Part 086-2: Non-connectorised single-mode bidirectional 1490 / 1550 nm downstream 1310 nm upstream WWDM devices for category C - Controlled environment

IEC 61753-086-2:2009(E) gives the minimum initial performance, test and measurement requirements and severities which a fibre optic pigtailed 1 490 / 1 550 nm downstream and 1 310 nm upstream wide wavelength division multiplexing (WWDM) passive optical network (PON) device must satisfy in order to be categorized as meeting the requirements of category C (controlled environments).

Lichtwellenleiter – Verbindungselemente und passive Bauteile - Betriebsverhalten - Teil 086-2: Nicht mit Steckverbindern versehene bidirektionale 1 490/1 550-nm-downstream-1 310-nm-upstream-Einmoden-WWDM-Bauteile für die Kategorie C - Kontrollierte Umgebung

Norme de qualité de fonctionnement des dispositifs d'interconnexion et composants passifs à fibres optiques - Partie 086-2: Dispositifs WWDM unimodaux non connectorisés bidirectionnels 1490 / 1550 nm en voie descendante et 1310 nm en voie montante pour la catégorie C - Environnement contrôlé

L'IEC 61753-086-2:2009 contient les sévérités et les exigences minimales initiales de performances, d'essais et de mesure auxquelles un dispositif de réseau optique passif (PON: Passive Optical Network) à répartition en longueur d'onde large (WWDM: Wide Wavelength Division Multiplexing) 1 490 / 1 550 nm en voie descendante et 1 310 nm en voie montante muni de fibres amorces doit répondre afin d'être classé comme conforme aux exigences de la catégorie C (environnements contrôlés), comme défini dans l'Annexe A de la CEI 61753-1. L'Annexe B de la présente norme fournit des informations concernant le fonctionnement des voies descendantes à 1 490 / 1 550 nm et des voies montantes à 1 310 nm. Mots clés: catégorie C (environnements contrôlés), WWDM, PON

Optični spojni elementi in pasivne komponente - Tehnični standard - 086-2. del: Elementi WWDM brez konektorjev z enorodnimi vlakni velikosti 1490/1550 nm za navzdolnji in 1310 nm za navzgornji prenos za kategorijo C - Nadzorovano okolje (IEC 61753-086-2:2009)

Ta del IEC 61753 vsebuje minimalne zahteve glede začetnega delovanja, preskušanja in merjenja ter natančnosti ki jih mora izpolnjevati naprava pasivnega optičnega omrežja (PON) z optičnimi vlakni v svitku 1.490/1.550 nm za navzdolnji in 1.310 nm za navzgornji prenos multipleksne delitve širokih valovnih dolžin (WWDM), da bi bila uvrščena kot da izpolnjuje zahteve kategorije C (nadzorovana okolja), kot so določene v Prilogi A dokumenta IEC 61753-1. Priloga B tega standarda podaja informacije v zvezi z delovanjem WWDM z 1.490/1.550 nm za navzdolnji in 1.310 nm za navzgornji prenos.

General Information

• Status: Published
• Publication Date: 05-Nov-2009
• Withdrawal Date: 31-Oct-2012
• ICS: 33.180.10 - Fibres and cables
• Technical Committee: CLC/TC 86BXA - Fibre optic interconnect, passive and connectorised components
• Drafting Committee: IEC/SC 86B - IEC_SC_86B
• Parallel Committee: IEC/SC 86B - IEC_SC_86B
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 06-Nov-2009
• Completion Date: 06-Nov-2009
• Ref Project: SIST EN 61753-086-2:2010 - Fibre optic interconnecting devices and passive components - Performance standard - Part 086-2: Non-connectorised single-mode bidirectional 1490 / 1550 nm downstream 1310 nm upstream WWDM devices for category C - Controlled environment (IEC 61753-086-2:2009)

Relations

• Replaced By: EN IEC 61753-086-02:2025 - Fibre optic interconnecting devices and passive components - Performance standard - Part 086-02: Non-connectorized single-mode bidirectional 1 490 / 1 550 nm downstream and 1 310 nm upstream WWDM devices for category C - Indoor controlled environment
• Effective Date: 06-Feb-2024

Overview

EN 61753-086-2:2009 (IEC 61753-086-2:2009) is a performance standard for non-connectorised, pigtailed single‑mode WWDM devices used in passive optical networks (PON). It specifies the minimum initial performance, test and measurement requirements, and severity levels a 1490 / 1550 nm downstream and 1310 nm upstream wide wavelength division multiplexing (WWDM) device must meet to be classified as Category C – Controlled environment. The standard focuses on fibre‑optic passive components without connectors (pigtails) intended for controlled indoor environments such as central offices or controlled indoor enclosures.

Key Topics and Requirements

• Device scope: Non‑connectorised single‑mode bidirectional WWDM for 1490 / 1550 nm downstream and 1310 nm upstream.
• Performance baseline: Minimum initial optical performance and categorization criteria aligned with IEC 61753 series.
• Test and measurement: Mandates use of IEC 61300 family test methods, including (but not limited to):
  • Vibration (sinusoidal) and shock
  • Fibre/cable retention and strain relief flexing
  • Cold, dry heat, damp heat and change of temperature
  • Optical power handling and damage threshold
  • Return loss, polarization dependent loss (PDL), and wavelength dependence of attenuation
  • Spectral transfer function and directivity measurements
• Sample size and test reporting: Defines sample sizing rules and requires comprehensive test reports documenting results, pass criteria and measurement methods.
• Reference to category definitions: Category C (controlled environment) follows the classification in IEC 61753‑1.

Applications and Practical Value

• Ensures WWDM PON components meet repeatable quality and reliability criteria for controlled‑indoor deployments.
• Useful for manufacturers of pigtailed WWDM splitters/combiners to validate product conformity before shipment.
• Employed by test laboratories and quality assurance teams to certify performance for PON equipment used in central offices, headends, and controlled indoor network rooms.
• Enables procurement and compliance teams to specify measurable acceptance criteria for optical passive components in FTTH and broadband access networks.

Who Uses This Standard

• Optical component manufacturers (design, QA)
• Independent test laboratories and certification bodies
• Network equipment vendors and system integrators
• Procurement and compliance engineers specifying PON passive parts

Related Standards

• IEC 61753‑1 (General guidance for performance standards)
• IEC 61300 series (Basic test and measurement procedures)
• IEC 60793‑2‑50 (Single‑mode fibre product specifications)
• IEC 62074‑1 (as referenced in normative bibliography)

Keywords: EN 61753-086-2:2009, IEC 61753-086-2, WWDM, PON, fibre optic, passive components, 1490/1550 nm, 1310 nm, non-connectorised, Category C, controlled environment.

Standards Content (Sample)

SLOVENSKI STANDARD
01-januar-2010
2SWLþQLVSRMQLHOHPHQWLLQSDVLYQHNRPSRQHQWH7HKQLþQLVWDQGDUGGHO
(OHPHQWL::'0EUH]NRQHNWRUMHY]HQRURGQLPLYODNQLYHOLNRVWLQP]D
QDY]GROQMLLQQP]DQDY]JRUQMLSUHQRV]DNDWHJRULMR&1DG]RURYDQRRNROMH
,(&
Fibre optic interconnecting devices and passive components - Performance standard -
Part 086-2: Non-connectorised single-mode bidirectional 1490 / 1550 nm downstream
1310 nm upstream WWDM devices for category C - Controlled environment (IEC 61753-
086-2:2009)
Lichtwellenleiter - Verbindungselemente und passive Bauteile - Betriebsverhalten - Teil
086-2: Nicht mit Steckern versehene bidirektionale 1 490/1 550-nm-downstream-1 310-
nm-upstream-Einmoden-WWDM-Bauteile für die Kategorie C - Kontrollierte Umgebung
(IEC 61753-086-2:2009)
Norme de qualité de fonctionnement des dispositifs d'interconnexion et composants
passifs à fibres optiques - Partie 086-2: Dispositifs WWDM unimodaux non
connectorisés bidirectionnels 1490 / 1550 nm en voie descendante et 1310 nm en voie
montante fonctionnant en catégorie C - Environnement contrôlé (CEI 61753-086-2:2009)
Ta slovenski standard je istoveten z: EN 61753-086-2:2009
ICS:
33.180.20 3RYH]RYDOQHQDSUDYH]D Fibre optic interconnecting
RSWLþQDYODNQD devices
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 61753-086-2
NORME EUROPÉENNE
November 2009
EUROPÄISCHE NORM
ICS 33.180.10
English version
Fibre optic interconnecting devices
and passive components performance standard -
Part 086-2: Non-connectorised single-mode bidirectional 1490 / 1550 nm
downstream 1310 nm upstream WWDM devices for category C -
Controlled environment
(IEC 61753-086-2:2009)
Norme de qualité de fonctionnement  Lichtwellenleiter - Verbindungselemente
des dispositifs d'interconnexion et und passive Bauteile -
composants passifs à fibres optiques - Betriebsverhalten -
Partie 086-2: Dispositifs WWDM Teil 086-2: Nicht mit Steckverbindern
unimodaux non connectorisés versehene bidirektionale
bidirectionnels 1490 / 1550 nm 1 490/1 550-nm-downstream-
en voie descendante et 1310 nm 1 310-nm-upstream-Einmoden-WWDM-
en voie montante fonctionnant Bauteile für die Kategorie C -
en catégorie C - Kontrollierte Umgebung
Environnement contrôlé (IEC 61753-086-2:2009)
(CEI 61753-086-2:2009)
This European Standard was approved by CENELEC on 2009-11-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: Avenue Marnix 17, B - 1000 Brussels

© 2009 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 61753-086-2:2009 E

EN 61753-086-02:2009 - 2 -

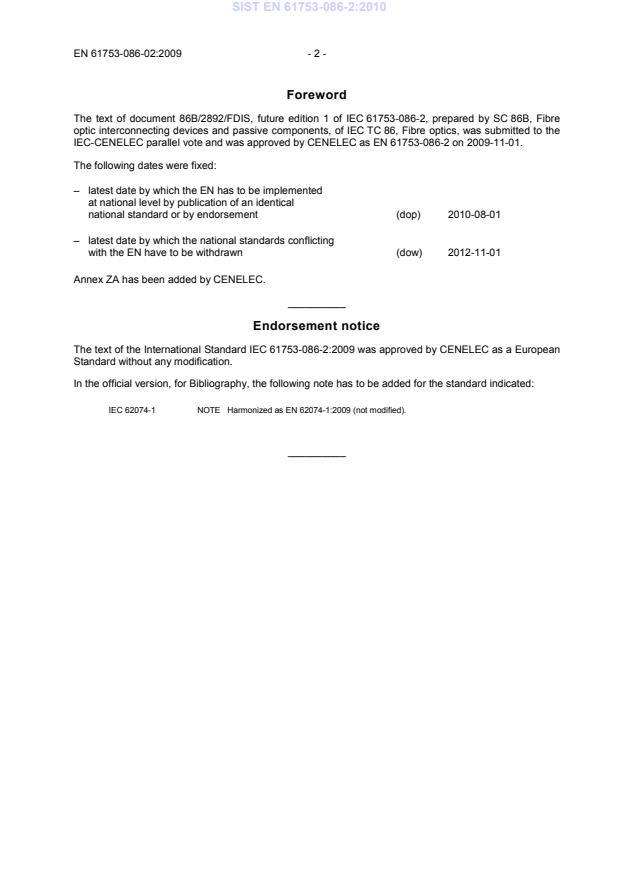

Foreword
The text of document 86B/2892/FDIS, future edition 1 of IEC 61753-086-2, prepared by SC 86B, Fibre
optic interconnecting devices and passive components, of IEC TC 86, Fibre optics, was submitted to the
IEC-CENELEC parallel vote and was approved by CENELEC as EN 61753-086-2 on 2009-11-01.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2010-08-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2012-11-01
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 61753-086-2:2009 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following note has to be added for the standard indicated:
IEC 62074-1 NOTE  Harmonized as EN 62074-1:2009 (not modified).

__________
- 3 - EN 61753-086-2:2009
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

1) 2)
IEC 60793-2-50 - Optical fibres - EN 60793-2-50 2008
Part 2-50: Product specifications - Sectional
specification for class B single-mode fibres

IEC 61300 Series Fibre optic interconnecting devices and EN 61300 Series
passive components - Basic test and
measurement procedures
1) 2)
IEC 61300-2-1 - Fibre optic interconnecting devices and EN 61300-2-1 2009
passive components - Basic test and
measurement procedures -
Part 2-1: Tests - Vibration (sinusoidal)

1) 2)
IEC 61300-2-4 - Fibre optic interconnecting devices and EN 61300-2-4 1997
passive components - Basic test and
measurement procedures -
Part 2-4: Tests - Fibre/cable retention

1) 2)
IEC 61300-2-9 - Fibre optic interconnecting devices and EN 61300-2-9 1997
passive components - Basic test and
measurement procedures -
Part 2-9: Tests - Shock
1) 2)
IEC 61300-2-14 - Fibre optic interconnecting devices and EN 61300-2-14 2006
passive components - Basic test and + corr. November 2006
measurement procedures -
Part 2-14: Tests - Optical power handling and
damage threshold characterization

1) 2)
IEC 61300-2-17 - Fibre optic interconnecting devices and EN 61300-2-17 2003
passive components - Basic test and
measurement procedures -
Part 2-17: Tests - Cold
1) 2)
IEC 61300-2-18 - Fibre optic interconnecting devices and EN 61300-2-18 2005
passive components - Basic test and
measurement procedures -
Part 2-18: Tests - Dry heat - High temperature
endurance
1) 2)
IEC 61300-2-19 - Fibre optic interconnecting devices and EN 61300-2-19 2005
passive components - Basic test and
measurement procedures -
Part 2-19: Tests - Damp heat (steady state)

1)
Undated reference.
2)
Valid edition at date of issue.

EN 61753-086-02:2009 - 4 -
Publication Year Title EN/HD Year

1) 2)
IEC 61300-2-22 - Fibre optic interconnecting devices and EN 61300-2-22 2007
passive components - Basic test and
measurement procedures -
Part 2-22: Tests - Change of temperature

1) 2)
IEC 61300-2-42 - Fibre optic interconnecting devices and EN 61300-2-42 2005
passive components - Basic test and
measurement procedures -
Part 2-42: Tests - Static side load for
connectors
1) 2)
IEC 61300-2-44 - Fibre optic interconnecting devices and EN 61300-2-44 2008
passive components - Basic test and
measurement procedures -
Part 2-44: Tests - Flexing of the strain relief of
fibre optic devices
1) 2)
IEC 61300-3-2 - Fibre optic interconnecting devices and EN 61300-3-2 2009
passive components - Basic test and
measurement procedures -
Part 3-2: Examinations and measurements -
Polarization dependent loss in a single-mode
fibre optic device
1) 2)
IEC 61300-3-6 - Fibre optic interconnecting devices and EN 61300-3-6 2009
passive components - Basic test and
measurement procedures -
Part 3-6: Examinations and measurements -
Return loss
1) 2)
IEC 61300-3-7 - Fibre optic interconnecting devices and EN 61300-3-7 2001
passive components - Basic test and
measurement procedures -
Part 3-7: Examinations and measurements -
Wavelength dependence of attenuation and
return loss of single mode components

1) 2)
IEC 61300-3-20 - Fibre optic interconnecting devices and EN 61300-3-20 2001
passive components - Basic test and + corr. March 2002
measurement procedures -
Part 3-20: Examinations and measurements -
Directivity of fibre optic branching devices

1) 2)
IEC 61300-3-29 - Fibre optic interconnecting devices and EN 61300-3-29 2006
passive components - Basic test and + corr. November 2006
measurement procedures -
Part 3-29: Examinations and measurements -
Measurement techniques for characterising
the amplitude of the spectral transfer function
of DWDM components
1) 2)
IEC 61753-1 - Fibre optic interconnecting devices and EN 61753-1 2007
passive components performance standard -
Part 1: General and guidance for performance
standards
IEC 61753-086-2 ®
Edition 1.0 2009-09
INTERNATIONAL
STANDARD
colour
inside
Fibre optic interconnecting devices and passive components performance
standard –
Part 086-2: Non-connectorized single-mode bidirectional 1 490 / 1 550 nm
downstream and 1 310 nm upstream WWDM devices for category C – Controlled
environment
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
N
ICS 33.180.10 ISBN 2-8318-1064-0
– 2 – 61753-086-2 © IEC:2009(E)
CONTENTS
FOREWORD.3
1 Scope.5
2 Normative references .5
3 Test.6
4 Test report.6
5 Performance requirements .7
5.1 Reference components.7
5.2 Dimensions .7
5.3 Sample size .7
5.4 Test details and requirements .7
Annex A (normative) Sample size .12
Annex B (informative) General information for 1490 / 1550 nm downstream and
1310 nm upstream PON WWDM devices .13
Bibliography.14

Figure B.1 – Example of 1490 / 1550 nm downstream and 1310 nm upstream WWDM
at central office and customer side – Separate video detection inside the ONU .
Figure B.2 – Example of 1490 / 1550 nm downstream and 1310 nm upstream WWDM
at central office side – Integrated video detection inside the ONU.13

Table 1 – Test details and requirements .7
Table A.1 – Sample size .12

61753-086-2 © IEC:2009(E) – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIBRE OPTIC INTERCONNECTING DEVICES AND
PASSIVE COMPONENTS PERFORMANCE STANDARD –

Part 086-2: Non-connectorized single-mode
bidirectional 1 490 / 1 550 nm downstream and 1 310 nm
upstream WWDM devices for category C –
Controlled environment
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61753-086-2 has been prepared by subcommittee 86B: Fibre optic
interconnecting devices and passive components, of IEC technical committee 86: Fibre optics.
The text of this standard is based on the following documents:
FDIS Report on voting
86B/2892/FDIS 86B/2922/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

– 4 – 61753-086-2 © IEC:2009(E)
A list of all parts of IEC 61753 series, under the general title Fibre optic interconnecting
devices and passive components performance standards, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

IMPORTANT – The “colour inside” logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this publication using a colour printer.

61753-086-2 © IEC:2009(E) – 5 –
FIBRE OPTIC INTERCONNECTING DEVICES AND
PASSIVE COMPONENTS PERFORMANCE STANDARD –

Part 086-2: Non-connectorized single-mode
bidirecti
...
