EN 50363-4-2:2005

Insulating, sheathing and covering materials for low voltage energy cables - Part 4-2: PVC covering compounds

This part of EN 50363 specifies the requirements for the physical properties of the PVC covering compound given in Table 1. The relevant test methods are given in EN 60811 series.

Isolier-, Mantel- und Umhüllungswerkstoffe für Niederspannungskabel und -leitungen - Teil 4-2: PVC-Umhüllungsmischungen

Dieser Teil der EN 50363 legt die Anforderungen an PVC Umhüllungsmischungen fest, die in Tabelle 1 aufgeführt sind. Die entsprechenden Prüfverfahren sind in den Normen der Reihe EN 60811 beschrieben.

Matériaux pour enveloppe isolante, gainage et revêtement pour les câbles d'énergie basse tension - Partie 4-2: Mélanges PVC pour revêtement

La présente partie de la EN 50363 mentionne les prescriptions pour les mélanges en PVC pour revêtement, donnés dans le Tableau 1. Les méthodes d’essais appropriées sont données dans la série EN 60811.

Materiali za izoliranje, oplaščenje in prekritje nizkonapetostnih energetskih kablov – 4-2. del: Polivinilkloridne (PVC) mase za prevleke

General Information

• Status: Published
• Publication Date: 17-Nov-2005
• Withdrawal Date: 31-Oct-2007
• ICS: 29.035.20 - Plastics and rubber insulating materials
• Technical Committee: CLC/TC 20 - Electric cables
• Drafting Committee: IEC/TC 20 - IEC_TC_20
• Parallel Committee: IEC/TC 20 - IEC_TC_20
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Start Date: 23-Oct-2024
• Completion Date: 23-Sep-2025
• Directive: 2006/95/EC - Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits (codified version)
• Directive: 2014/35/EU - Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits
• Directive: 73/23/EEC - Electrical equipment designed for use within certain voltage limits
• Ref Project: SIST EN 50363-4-2:2006 - Insulating, sheathing and covering materials for low voltage energy cables -- Part 4-2: PVC covering compounds

Overview - EN 50363-4-2:2005 (PVC covering compounds)

EN 50363-4-2:2005 is a CENELEC European standard specifying the physical property requirements for PVC covering compounds used on low-voltage energy cables. It applies to PVC sheathing/covering materials (type TM 6) and references the EN 60811 series for the relevant test methods. This part is intended to be read in conjunction with EN 50363-0 and was approved by CENELEC on 2005-11-01.

Key topics and technical requirements

The standard defines measurable requirements and test conditions for PVC covering compounds, including:

• Material type and application

  • Type: TM 6 (maximum cable operating temperature 70 °C)
  • Typical use: coverings for cold-resistant cables (cross-ref. EN 61138)

• Mechanical properties (before and after ageing)

  • Tensile strength (median, min): 7.5 N/mm²
  • Elongation at break (median, min): 125%
  • After oven ageing (80 ± 2 °C for 7 × 24 h): tensile and elongation must meet the same minima with maximum permitted variation ±20%

• Thermal and ageing tests

  • Loss of mass after ageing (80 ± 2 °C for 7 × 24 h): max 2.0 mg/cm²
  • Heat shock: 150 ± 2 °C for 1 h - result: no cracks
  • Pressure/indentation at elevated temperature (70 ± 2 °C): median depth of indentation ≤ 50%
  • Low-temperature behaviour: bending test at -40 ± 2 °C - no cracks
  • Low-temperature elongation: at -40 ± 2 °C, elongation without break ≥ 30%

• Test methods

  • All referenced test procedures are those in the EN 60811 series; cross-references and detailed procedures are given in EN 50363-0.

Practical applications and users

This standard is primarily used for:

• Cable manufacturers and compound formulators verifying PVC sheathing performance for low-voltage energy cables
• Materials suppliers and quality control laboratories performing type testing and routine quality checks
• Specifiers, procurement engineers, and project managers requiring compliant cable sheathing for installations, including cold-environment applications
• National standards bodies and conformity assessors implementing CENELEC requirements

Using EN 50363-4-2 helps ensure consistent PVC covering quality, reliable mechanical and thermal performance, and traceable testing aligned with EN 60811.

Related standards

• EN 50363-0 (general requirements and cross-references) - read in conjunction with this part
• EN 60811 series (test methods for cable materials) - referenced for specific tests
• EN 61138 (cold-resistant cable guidance) - related to TM 6 application

Keywords: EN 50363-4-2, PVC covering compounds, low voltage energy cables, cable sheathing, EN 60811, PVC sheathing standards, cold-resistant cables.

Standards Content (Sample)

SLOVENSKI SIST EN 50363-4-2:2006

STANDARD
maj 2006
Materiali za izoliranje, oplaščenje in prekritje nizkonapetostnih energetskih
kablov – 4-2. del: Polivinilkloridne (PVC) mase za prevleke
Insulating, sheathing and covering materials for low voltage energy cables – Part 4-
2: PVC covering compounds
ICS 29.035.20; 29.060.20 Referenčna številka
©  Standard je založil in izdal Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega dokumenta ni dovoljeno

EUROPEAN STANDARD EN 50363-4-2
NORME EUROPÉENNE
EUROPÄISCHE NORM November 2005

ICS 29.035.20
English version
Insulating, sheathing and covering materials
for low voltage energy cables
Part 4-2: PVC covering compounds

Matériaux pour enveloppe isolante, Isolier-, Mantel- und
gainage et revêtement pour les câbles Umhüllungswerkstoffe für
d'énergie basse tension Niederspannungskabel und -leitungen
Partie 4-2: Mélanges PVC pour Teil 4-2: PVC-Umhüllungsmischungen
revêtement
This European Standard was approved by CENELEC on 2005-11-01. CENELEC members are bound to
comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and
notified to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden,
Switzerland and United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2005 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 50363-4-2:2005 E

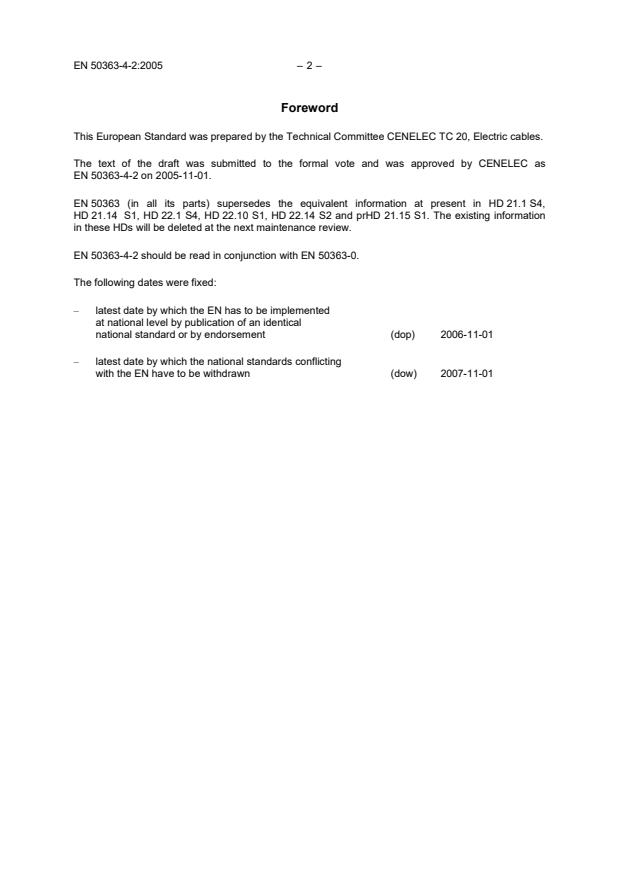

Foreword
