Overview
EN 50655-2:2017 - published by CLC - is the European standard for material characterization (fingerprinting) of heat shrinkable components used in cable accessories for low and medium voltage systems up to 20,8/36 (42) kV. The standard defines the purpose, sampling, preparation, test methods and reporting requirements for establishing and subsequently confirming the properties of heat‑shrink tubing, wraparound sleeves, molded parts and similar components used for electrical insulation and/or mechanical protection in cable accessories.
Key topics and technical requirements
- Scope and purpose: Fingerprinting is a standalone verification method (but may be combined with accessory type tests) to record material signatures for later comparison and quality control.
- Sampling and conditioning: Samples are taken from supplier‑stored material or from the same batch used for accessory type tests as agreed between supplier and user. Components must be fully recovered (heated) and conditioned per supplier instructions before testing.
- Mandatory fingerprinting tests (see Table 1 in the standard):
- Dimensions after full recovery (EN 60684-2): inner diameter and wall thickness with allowed deviations (typically ±10 % for inner diameter; wall thickness ±10–15 % depending on thickness).
- Density (EN ISO 1183 series): measured without sealant; multi‑layer components require measurement of each layer (±5 % deviation).
- Differential Scanning Calorimetry (DSC) (EN ISO 11357-3): characteristic transition temperatures (melting/crystallization peaks) recorded; deviations ±5 K.
- Thermogravimetric Analysis (TGA) (EN ISO 11358-1): polymer, carbon black, filler and sealant content and decomposition temperatures with specified deviation limits (typically ±10 % for composition, ±15 K for temperature).
- Test report requirements: part identification, supplier, batch/date, full test methods and results, preparation/conditioning details, and copies of TDS and MSDS.
Applications and users
- Who uses it: cable accessory manufacturers, material suppliers, independent test laboratories, utilities, procurement teams and specification engineers.
- Practical uses:
- Establishing baseline material “fingerprints” for incoming quality control and supplier qualification.
- Confirming material identity after storage, after supplier changes, or during failure investigations.
- Supporting conformity assessment when used alongside accessory type tests (EN 50393, HD 629.1, HD 629.2).
- Ensuring compatibility of multi‑layer or sealant‑containing components in low/medium voltage joints and terminations.
Related standards
- EN 50655-1 (resinous compounds) and EN 50655-3 (cold shrinkable components)
- EN 50393 (accessory test methods), HD 629.1 / HD 629.2 (accessories for MV cables)
- EN 60684-2, EN ISO 1183, EN ISO 11357-3, EN ISO 11358-1
Keywords: EN 50655-2:2017, fingerprinting, heat shrinkable components, material characterization, cable accessories, low and medium voltage, DSC, TGA, density, quality control.
Frequently Asked Questions
EN 50655-2:2017 is a standard published by CLC. Its full title is "Electric cables - Accessories - Material characterization - Part 2: Fingerprinting for heat shrinkable components for low and medium voltage applications up to 20,8/36 (42) kV". This standard covers: This European Standard specifies the methods and requirements for fingerprinting (as defined in 3.13) of heat shrinkable components intended to be used for electrical insulation and/or electrical insulation and mechanical protection in cable accessories for low and medium voltage, as defined in EN 50393, HD 629.1 and HD 629.2. Fingerprinting of materials does not have a mandatory link to type testing of accessories. It is regarded as a stand-alone test, but it may be carried out in combination with accessory type tests.
This European Standard specifies the methods and requirements for fingerprinting (as defined in 3.13) of heat shrinkable components intended to be used for electrical insulation and/or electrical insulation and mechanical protection in cable accessories for low and medium voltage, as defined in EN 50393, HD 629.1 and HD 629.2. Fingerprinting of materials does not have a mandatory link to type testing of accessories. It is regarded as a stand-alone test, but it may be carried out in combination with accessory type tests.
EN 50655-2:2017 is classified under the following ICS (International Classification for Standards) categories: 29.035.20 - Plastics and rubber insulating materials. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 50655-2:2017 has the following relationships with other standards: It is inter standard links to HD 631.2 S1:2007, HD 631.3 S1:2008. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase EN 50655-2:2017 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CLC standards.
Standards Content (Sample)
SLOVENSKI STANDARD
01-januar-2018
1DGRPHãþD
SIST HD 631.2 S1:2008
SIST HD 631.3 S1:2009
(OHNWULþQLNDEOL3ULERU=QDþLOQRVWLPDWHULDORYGHO ,GHQWLILNDFLMDPDWHULDOD
WRSORWQRVNUþOMLYLKNRPSRQHQW]DXSRUDERYQL]NRLQVUHGQMHQDSHWRVWQLKVLVWHPLK
GR N9
Electric cables - Accessories - Material characterization - Part 2: Fingerprinting for heat
shrinkable components for low and medium voltage applications up to 20,8/36 (42) kV
Kabel und isolierte Leitungen - Garnituren - Materialcharakterisierung - Teil 2:
Fingerprintprüfungen für wärmeschrumpfende Komponenten für Niederspannungs- und
Mittelspannungsanwendungen bis 20,8/36 (42) kV
Câbles électriques - Accessoires - Caractérisation des matériaux - Partie 2: Essais
d'identification des composants thermorétractables pour les applications basse tension
et moyenne tension à 20,8/36 (42) kV
Ta slovenski standard je istoveten z: EN 50655-2:2017
ICS:
29.035.20 3ODVWLþQLLQJXPHQLL]RODFLMVNL Plastics and rubber insulating
PDWHULDOL materials
29.060.20 Kabli Cables
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD EN 50655-2
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2017
ICS 29.035.20 Supersedes HD 631.2 S1:2007, HD 631.3 S1:2008
English Version
Electric cables - Accessories - Material characterization - Part 2:
Fingerprinting for heat shrinkable components for low and
medium voltage applications up to 20,8/36 (42) kV
Câbles électriques - Accessoires - Caractérisation des Kabel und isolierte Leitungen - Garnituren -
matériaux - Partie 2: Essais d'identification des composants Materialcharakterisierung - Teil 2: Fingerprintprüfungen für
thermorétractables pour les applications basse tension et wärmeschrumpfende Komponenten für Niederspannungs-
moyenne tension à 20,8/36 (42) kV und Mittelspannungsanwendungen bis 20,8/36 (42) kV
This European Standard was approved by CENELEC on 2017-09-18. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2017 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 50655-2:2017 E

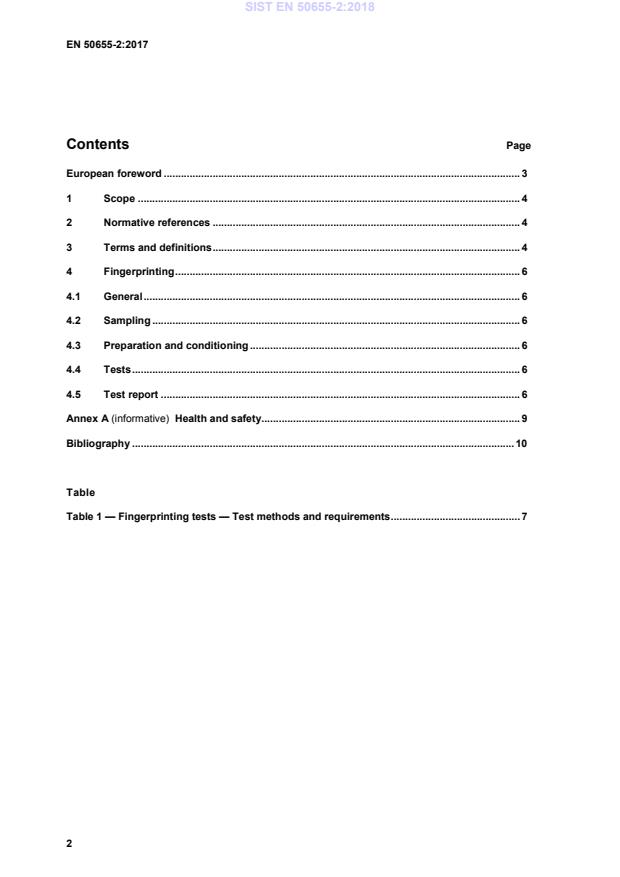

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 Fingerprinting . 6
4.1 General . 6
4.2 Sampling . 6
4.3 Preparation and conditioning . 6
4.4 Tests . 6
4.5 Test report . 6
Annex A (informative) Health and safety . 9
Bibliography . 10
Table
Table 1 — Fingerprinting tests — Test methods and requirements . 7
European foreword
This document (EN 50655-2:2017) has been prepared by CLC/TC 20 “Electric cables”.
The following dates are fixed:
– latest date by which this document has (dop) 2018-09-18
to be implemented at national level by
publication of an identical national
standard or by endorsement
– latest date by which the national (dow) 2020-09-18
standards conflicting with this document
have to be withdrawn
This document supersedes HD 631.2 S1:2007 and HD 631.3 S1:2008.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
EN 50655 series will consist of the following:
– EN 50655-1, Electric cables - Accessories - Material characterization - Part 1: Fingerprinting for
resinous compounds;
– EN 50655-2, Electric cables - Accessories - Material characterization - Part 2: Fingerprinting for heat
shrinkable components for low and medium voltage applications up to 20,8/36 (42) kV;
– EN 50655-3, Electric cables - Accessories - Material characterization - Part 3: Fingerprinting for cold
shrinkable components for low and medium voltage applications up to 20,8/36 (42) kV.
NOTE It has been assumed in the preparation of this document that the execution of its provisions will be entrusted
to appropriately qualified and experienced people, for whose use it has been produced.
WARNING This European Standard calls for the use of substances and/or procedures that may be
injurious to health if adequate precautions are not taken. It refers only to technical suitability and does not
absolve the user from legal obligations relating to health and safety at any stage.
1 Scope
This European Standard specifies the methods and requirements for fingerprinting (as defined in 3.13) of
heat shrinkable components intended to be used for electrical insulation and/or electrical insulation and
mechanical protection in cable accessories for low and medium voltage, as defined in EN 50393, HD 629.1
and HD 629.2.
Fingerprinting of materials does not have a mandatory link to type testing of accessories. It is regarded as
a stand-alone test, but it may be carried out in combination with accessory type tests.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
EN 50393, Test methods and requirements for accessories for use on distribution cables of rated voltage
0,6/1,0 (1,2) kV
EN 60684-2, Flexible insulating sleeving - Part 2: Methods of test (IEC 60684-2)
EN ISO 1183 (series), Plastics - Methods for determining the density of non-cellular plastics (ISO 1183
series)
EN ISO 11357-3, Plastics - Differential scanning calorimetry (DSC) - Part 3: Determination of temperature
and enthalpy of melting and crystallization (ISO 11357-3)
EN ISO 11358-1, Plastics - Thermogravimetry (TG) of polymers - Part 1: General principles (ISO 11358-1)
HD 629.1, Test requirements on accessories for use on power cables of rated voltage from 3,6/6(7,2) kV
up to 20,8/36(42) kV - Part 1: Cables with extruded insulation
HD 629.2,
...
SIST EN 50655-2
S L O V E N S K I
S T A N D A R D januar 2018
Električni kabli – Pribor – Značilnosti materialov –
2. del: Identifikacija materiala toplotno skrčljivih komponent za uporabo v
nizko- in srednjenapetostnih sistemih do 20,8/36 (42) kV
Electric cables – Accessories – Material characterization –
Part 2: Fingerprinting for heat shrinkable components for low and medium voltage
applications up to 20,8/36 (42) kV
Câbles électriques – Accessoires – Caractérisation des matériaux –
Partie 2: Essais d'identification des composants thermorétractables pour les
applications basse tension et moyenne tension à 20,8/36 (42) kV
Kabel und isolierte Leitungen – Garnituren – Materialcharakterisierung –
Teil 2: Fingerprintprüfungen für wärmeschrumpfende Komponenten für
Niederspannungsund Mittelspannungsanwendungen bis 20,8/36 (42) kV
Referenčna oznaka
ICS 29.035.20; 29.060.20 SIST EN 50655-2:2018 (sl)
Nadaljevanje na straneh II do III in od 1 do 9
2024-03. Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega dokumenta ni dovoljeno.
SIST EN 50655-2 : 2018
NACIONALNI UVOD
Standard SIST EN 50655-2 (sl), Električni kabli – Pribor – Značilnosti materialov – 2. del: Identifikacija
materiala toplotno skrčljivih komponent za uporabo v nizko- in srednjenapetostnih sistemih do 20,8/36
(42) kV, 2018, ima status slovenskega standarda in je istoveten evropskemu standardu EN 50655-2
(en), Electric cables – Accessories – Material characterization – Part 2: Fingerprinting for heat shrinkable
components for low and medium voltage applications up to 20,8/36 (42) kV, 2017.
Ta standard nadomešča SIST HD 631.2 S1:2008 in SIST HD 631.3 S1:2009.
NACIONALNI PREDGOVOR
Evropski standard EN 50655-2:2017 je pripravil tehnični odbor CLC/TC 20 Električni kabli. Slovenski
standard SIST EN 50655-2:2018 je prevod evropskega standarda EN 50655-2:2017. V primeru spora
glede besedila slovenskega prevoda v tem standardu je odločilen izvirni evropski standard v angleškem
jeziku. Slovensko izdajo standarda je potrdil Strokovni svet SIST za področja elektrotehnike,
informacijske tehnologije in telekomunikacij.
Odločitev za privzem tega standarda je januarja 2018 sprejel Strokovni svet SIST za področje
elektrotehnike, informacijske tehnologije in telekomunikacij.
ZVEZA S NACIONALNIMI STANDARDI
S privzemom tega evropskega standarda veljajo za omejeni namen referenčnih standardov vsi
standardi, navedeni v izvirniku, razen tistih, ki so že sprejeti v nacionalno standardizacijo:
SIST EN 50393 Preskusne metode in zahteve za pribor, ki se uporablja na distribucijskih
kablih za naznačeno napetosti 0,6/1,0 (1,2) kV
SIST EN 60684-2 Gibke izolacijske cevi – 2. del: Preskusne metode (IEC 60684-2)
SIST EN ISO 1183 (skupina) Polimerni materiali – Metode za ugotavljanje gostote nepenjenih
polimernih materialov (skupina ISO 1183)
SIST EN ISO 11357-3 Polimerni materiali – Diferenčna dinamična kalorimetrija (DSC) – 3. del:
Ugotavljanje temperature in entalpije taljenja in kristalizacije (ISO 11357-
3)
SIST EN ISO 11358-1 Polimerni materiali – Termogravimetrija (TG) polimerov – 1. del: Splošna
načela (ISO 11358-1)
SIST HD 629.1 Preskusne zahteve za pribor, ki se uporablja na elektroenergetskih kablih
za nazivne napetosti od 3,6/6(7,2) kV do vključno 20,8/36(42) kV – 1. del:
Dodatki za kable z ekstrudirano izolacijo
SIST HD 629.2 Preskusne zahteve za pribor, ki se uporablja na elektroenergetskih kablih
za naznačene napetosti od 3,6/6(7,2) kV do vključno 20,8/36(42) kV –
2. del: Kabli, izolirani z impregniranim papirjem
SIST IEC 60050-461 Mednarodni elektrotehniški slovar – 461. del: Električni kabli

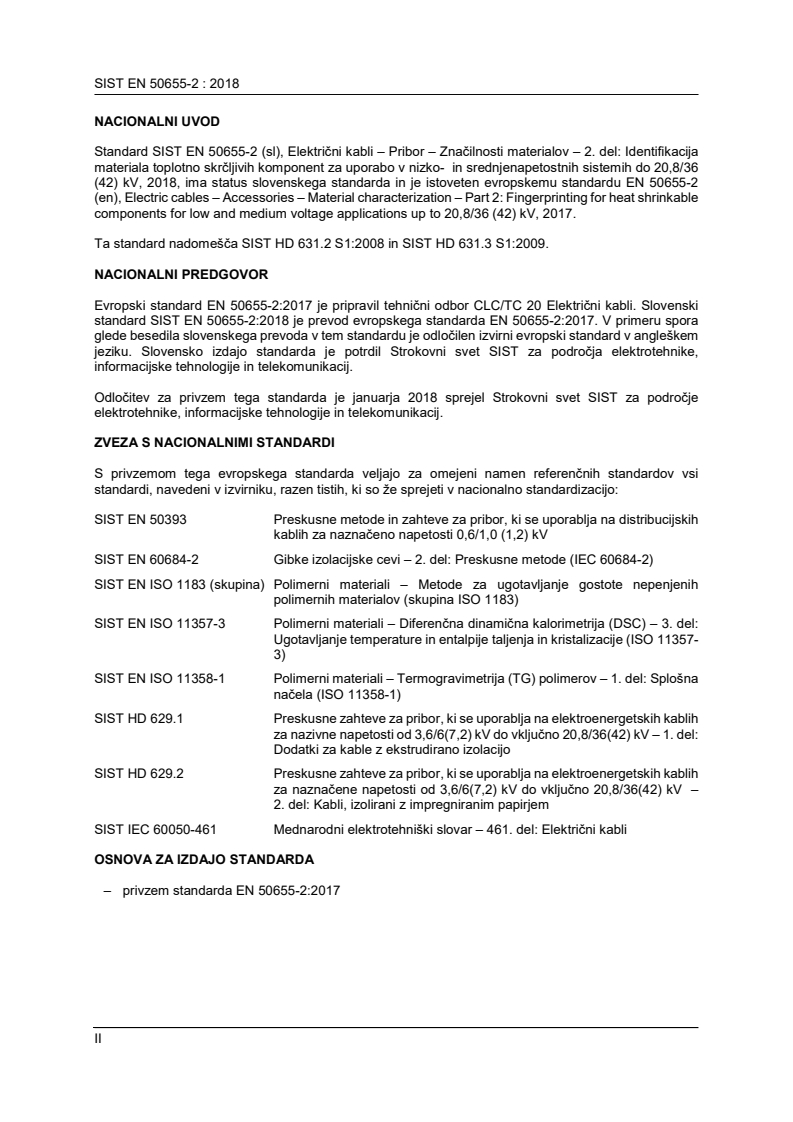

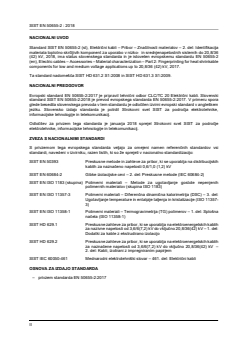

OSNOVA ZA IZDAJO STANDARDA
– privzem standarda EN 50655-2:2017
II
SIST EN 50655-2 : 2018

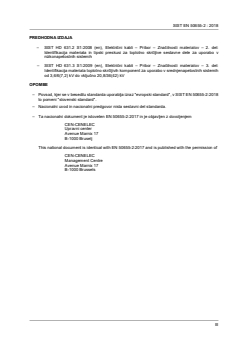

PREDHODNA IZDAJA
– SIST HD 631.2 S1:2008 (en), Električni kabli – Pribor – Značilnosti materialov – 2. del:
Identifikacija materiala in tipski preskusi za toplotno skrčljive sestavne dele za uporabo v
nizkonapetostnih sistemih
– SIST HD 631.3 S1:2009 (en), Električni kabli – Pribor – Značilnosti materialov – 3. del:
Identifikacija materiala toplotno skrčljivih komponent za uporabo v srednjenapetostnih sistemih
od 3,6/6(7,2) kV do vključno 20,8/36(42) kV
OPOMBE
– Povsod, kjer se v besedilu standarda uporablja izraz "evropski standard", v SIST EN 50655-2:2018
to pomeni "slovenski standard".
– Nacionalni uvod in nacionalni predgovor nista sestavni del standarda.
– Ta nacionalni dokument je istoveten EN 50655-2:2017 in je objavljen z dovoljenjem
CEN-CENELEC
Upravni center
Avenue Marnix 17
B-1000 Bruselj
This national document is identical with EN 50655-2:2017 and is published with the permission of
CEN-CENELEC
Management Centre
Avenue Marnix 17
B-1000 Brussels
III
SIST EN 50655-2 : 2018

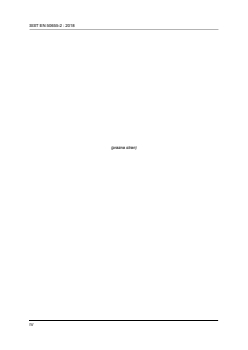

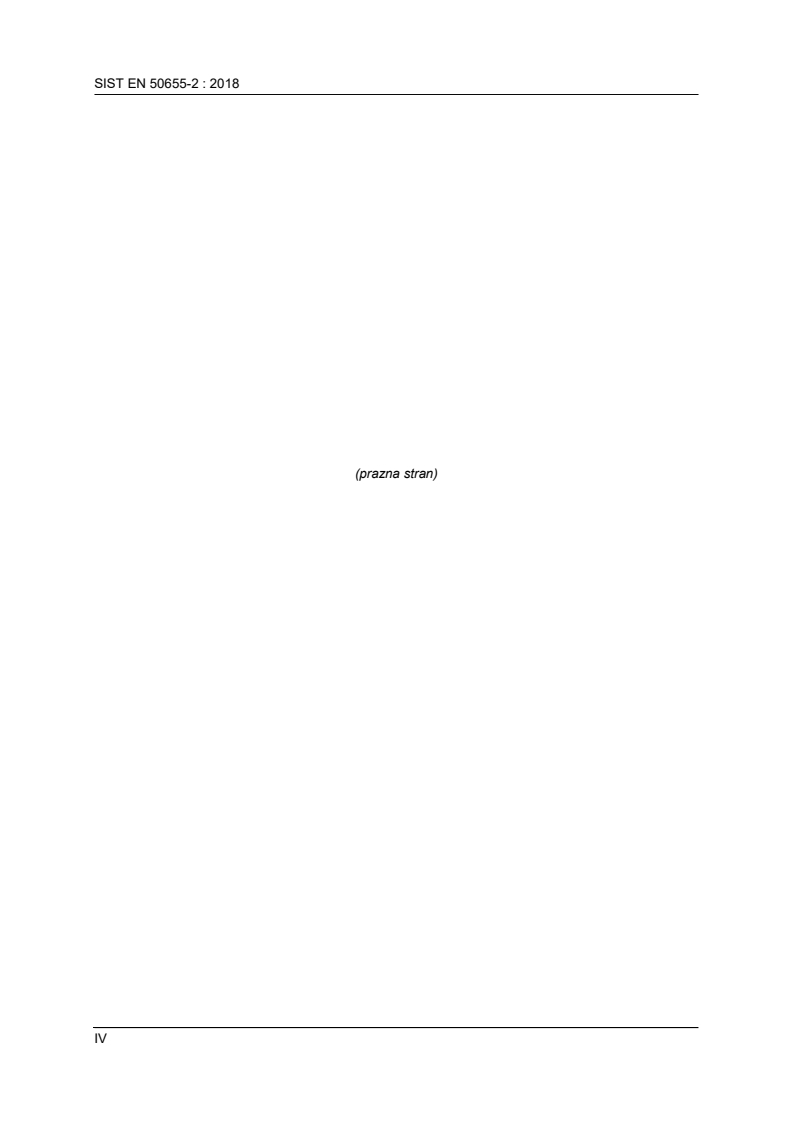

(prazna stran)
IV
EVROPSKI STANDARD EN 50655-2
EUROPEAN STANDARD
november 2017
NORME EUROPÉENNE
EUROPÄISCHE NORM
ICS 29.035.20 Nadomešča HD 631.2 S1:2007, HD 631.3 S1:2008
Slovenska izdaja
Električni kabli – Pribor – Značilnosti materialov – 2. del: Identifikacija
materiala toplotno skrčljivih komponent za uporabo v nizko- in
srednjenapetostnih sistemih do 20,8/36 (42) kV
Electric cables – Accessories – Câbles électriques – Kabel und isolierte Leitungen -
Material characterization – Accessoires – Caractérisation Garnituren –
Part 2: Fingerprinting for heat des matériaux – Partie 2: Essais Materialcharakterisierung –
shrinkable components for low d'identification des composants Teil 2: Fingerprintprüfungen für
and medium voltage thermorétractables pour les wärmeschrumpfende
applications up to applications basse tension et Komponenten für
20,8/36 (42) kV moyenne tension à Niederspannungsund
20,8/36 (42) kV Mittelspannungsanwendungen
bis 20,8/36 (42) kV
Ta evropski standard je CENELEC sprejel 18. septembra 2017. Člani CENELEC morajo izpolnjevati
notranje predpise CEN/CENELEC, ki določajo pogoje, pod katerimi dobi ta evropski standard status
nacionalnega standarda brez kakršnihkoli sprememb.
Najnovejši seznami teh nacionalnih standardov in njihovi bibliografski podatki se na zahtevo lahko dobijo
pri Upravnem centru ali kateremkoli članu CENELEC.
Ta evropski standard obstaja v treh uradnih izdajah (angleški, francoski in nemški). Izdaja v kateremkoli
drugem jeziku, ki jo na lastno odgovornost član CENELEC prevede v svoj jezik in priglasi Upravnemu
centru CEN-CENELEC, velja kot uradne izdaje.
Člani CENELEC so nacionalni elektrotehniški komiteji Avstrije, Belgije, Bolgarije, Cipra, Češke, Danske,
Estonije, Finske, Francije, Grčije, Hrvaške, Islandije, Irske, Italije, Latvije, Litve, Luksemburga,
Madžarske, Malte, Nekdanje jugoslovanske republike Makedonije, Nemčije, Nizozemske, Norveške,
Poljske, Portugalske, Romunije, Srbije, Slovaške, Slovenije, Španije, Švedske, Švice, Turčije in
Združenega kraljestva.
CENELEC
Evropski komite za standardizacijo v elektrotehniki
European Committee for Electrotechnical Standardisation
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
Upravni center CEN-CENELEC: Avenue Marnix 17, B-1000 Bruselj
© 2017 CENELEC Vse pravice do izkoriščanja v kakršnikoli obliki in na Ref. oznaka EN 50655-2:2017 E
kakršenkoli način imajo nacionalni člani CENELEC.
SIST EN 50655-2 : 2018
VSEBINA Stran
Evropski predgovor . 3
1 Področje uporabe . 4
2 Zveze s standardi . 4
3 Izrazi in definicije . 4
4 Identifikacija . 6
4.1 Splošno . 6
4.2 Vzorčenje . 6
4.3 Priprava in kondicioniranje . 6
4.4 Preskusi . 6
4.5 Poročilo o preskusu . 6
Dodatek A (informativni): Zdravje in varnost . 8
Literatura. 9
Preglednica 1: Identifikacijski preskusi – Preskusne metode in zahteve . 7
SIST EN 50655-2 : 2018
Evropski predgovor
Ta dokument (EN 50655-2:2017) je pripravil tehnični odbor CLC/TC 20 ''Električni kabli''.
Določena sta bila naslednja datuma:
– zadnji datum, do katerega mora dobiti dokument (dop) 2018-09-18
status nacionalnega standarda bodisi z objavo
identičnega nacionalnega standarda ali z
razglasitvijo
– zadnji datum, do katerega je treba razveljaviti (dow) 2020-09-18
nacionalne standarde, ki so v nasprotju s tem
dokumentom
Ta dokument nadomešča HD 631.2 S1:2007 in HD 631.3 S1:2008.
Opozoriti je treba na možnost, da so nekateri deli tega dokumenta lahko predmet patentnih pravic.
CENELEC ni odgovoren za prepoznavanje nobene ali vseh patentnih pravic.
Skupino standardov EN 60655 sestavljajo:
– EN 50655-1, Električni kabli – Pribor – Značilnosti materialov – 1. del: Identifikacija smolnatih zmesi
– EN 50655-2, Električni kabli – Pribor – Značilnosti materialov – 2. del: Identifikacija materiala
toplotno skrčljivih komponent za uporabo v nizko- in srednjenapetostnih sistemih do 20,8/36
(42) kV
– EN 50655-3, Električni kabli – Pribor – Značilnosti materialov – 3. del: Identifikacija materiala hladno
skrčljivih komponent za uporabo v nizko- in srednjenapetostnih sistemih do 20,8/36 (42) kV
OPOMBA: Pri pripravi tega dokumenta je bilo predvideno, da bo izvajanje njegovih določil zaupano ustrezno usposobljenim
in izkušeni
...
EN 50655-2:2017 표준은 저압 및 중압 응용 분야에서 사용되는 열수축 구성 요소에 대한 지문 인식을 규정하고 있습니다. 이 표준은 전기 절연 및 기계적 보호를 위한 케이블 액세서리에서 열수축 구성 요소의 재료 특성을 파악하는 데 초점을 맞추고 있습니다. 이 표준의 중요한 강점 중 하나는 지문 인식의 명확한 정의와 절차를 제공하여, 사용자들이 케이블 액세서리의 재료를 효과적으로 식별할 수 있도록 한다는 점입니다. EN 50655-2는 EN 50393, HD 629.1 및 HD 629.2와 같은 기존의 표준들과 연계하여 저전압 및 중전압 애플리케이션에 필요한 필수 요소를 충족하도록 돕습니다. 또한, 이 표준은 지문 인식이 액세서리 유형 시험과는 독립적으로 수행될 수 있다는 점에서 유연성을 제공합니다. 이는 사용자들이 다양한 상황에 맞춰 테스트를 수행할 수 있도록 해 주는 강력한 장점입니다. 이러한 독립적인 특성은 액세서리의 품질 보증 및 안전성을 높이는 데 기여하며, 이를 통해 전기 케이블 및 액세서리 제조업체들이 보다 신뢰할 수 있는 제품을 제공할 수 있게 됩니다. 결론적으로, SIST EN 50655-2:2018 표준은 열수축 구성 요소의 재료 특성을 정교하게 규명하는 유용한 도구로, 저압 및 중압 애플리케이션의 전기 절연 안전성을 확보하는 데 필수적이다. 이러한 특성 덕분에 해당 표준은 업계에서 그 중요성이 점점 더 부각되고 있습니다.
La norme EN 50655-2:2017 représente un jalon essentiel dans le domaine des câbles électriques et des accessoires, en spécifiant les méthodes et les exigences relatives à la caractérisation des matériaux par empreinte digitale pour les composants thermorétractables. Son champ d'application est clairement défini, englobant des vitesses jusqu'à 20,8/36 (42) kV, ce qui la rend pertinente tant pour les applications à basse que moyenne tension. L'un des points forts de cette norme est sa capacité à fournir une méthode systématique pour le fingerprinting des composants thermorétractables, qui est crucial pour assurer l'isolation électrique et la protection mécanique des accessoires de câbles. Bien que le fingerprinting des matériaux ne soit pas lié de manière obligatoire aux essais de type des accessoires, cette norme établit un cadre robuste qui permet d'exécuter ce test de manière autonome. Cela offre aux fabricants et aux utilisateurs une meilleure compréhension des matériaux utilisés, renforçant ainsi la conformité et la fiabilité des produits finaux. De plus, la norme assure la compatibilité avec d'autres standards européens tels que EN 50393 et HD 629.1, HD 629.2, augmentant ainsi son utilité dans le paysage réglementaire européen. En mettant l'accent sur la caractérisation des matériaux, la norme EN 50655-2:2017 joue un rôle crucial dans la sécurité et la performance des applications électriques, ce qui en fait un outil indispensable pour les professionnels du secteur. En somme, ce document de normalisation non seulement normalise les pratiques de fingerprinting mais également garantit que les composants thermorétractables utilisés dans les applications à basse et moyenne tension répondent aux exigences de qualité les plus élevées.
SIST EN 50655-2:2018文書は、低および中電圧アプリケーション（20.8/36(42)kVまで）向けのヒートシュリンクコンポーネントの指紋認証に関する欧州標準を詳述しています。この標準は、電気絶縁および機械的保護を目的としたケーブルアクセサリーにおける材料の特性評価のための方法と要件を明確に定義しており、その範囲は広範囲にわたります。 この標準の強みは、ヒートシュリンクコンポーネントの特性を解析するための整然とした手法を提供している点です。特に、指紋認証（3.13で定義）を通じて、材料の特性を明確に識別できることは、電気的および機械的保護の信頼性を高める上で非常に重要です。材料の指紋認証は、アクセサリーの型試験とは必ずしも関連付けられていないスタンドアロンテストとしての性質を持ちつつも、型試験と組み合わせて実施することが可能で、多角的なアプローチを推進しています。 標準の関連性は、EN 50393、HD 629.1、及びHD 629.2と連携することで、低中電圧ケーブルアクセサリーにおける安全性と性能を保証するための基盤を提供している点にあります。ヒートシュリンクコンポーネントの品質管理を進めるための指針となるため、業界の技術者にとって必須の標準として位置付けられています。このように、SIST EN 50655-2:2018は、電気ケーブルアクセサリーにおける材料の特性評価に関する重要なリファレンスであると言えます。
The standard EN 50655-2:2017 addresses the crucial area of material characterization for heat shrinkable components used in electrical cable accessories. Its scope encompasses the methods and requirements for fingerprinting, which is vital for ensuring the quality and performance of materials in low and medium voltage applications, specifically those up to 20.8/36 (42) kV. One of the significant strengths of this standard is its focus on establishing a clear methodology for fingerprinting materials. This process aids in identifying the unique characteristics and performance attributes of the components used in cable accessories, thereby enhancing the reliability and safety of electrical installations. The standard emphasizes that fingerprinting is a stand-alone test, which offers flexibility for manufacturers and users, allowing it to be performed independently or alongside accessory type tests. Furthermore, the relevance of EN 50655-2:2017 cannot be overstated. As the demand for robust electrical systems continues to grow, having standardized methods for material characterization becomes increasingly essential. By adhering to this standard, manufacturers can ensure that their heat shrinkable components meet the necessary performance criteria, thus fostering confidence among users regarding the electrical insulation and mechanical protection offered by these cable accessories. In summary, EN 50655-2:2017 not only lays down critical methodologies but also reinforces the importance of material quality in enhancing electrical safety and efficiency, making it a paramount standard in the realm of low and medium voltage cable accessories.
Die Norm EN 50655-2:2017 bietet eine präzise und umfassende Methodik für die Charakterisierung von Materialien, die in der Herstellung von Schrumpfkomponenten für Kabelzubehör in Niederspannungs- und Mittelspannungsanwendungen bis zu 20,8/36 (42) kV eingesetzt werden. Der Schwerpunkt liegt auf der Fingerabdruckerstellung (Fingerprinting) von thermoplastischen Materialien, die für elektrische Isolierungen und mechanischen Schutz unerlässlich sind. Ein bedeutender Vorteil dieser Norm ist ihre klare Definition und Anforderung für das Fingerprinting von Materialien, was zu einer verbesserten Transparenz und Qualitätssicherung in der Herstellung von Kabelzubehör führt. Die Norm vereinfacht den Herstellungsprozess, indem sie eine standardisierte Methode zur Charakterisierung von Materialien bereitstellt. Dies fördert nicht nur die Konsistenz der Produkte, sondern auch deren Sicherheit und Leistungsfähigkeit in verschiedenen Anwendungsszenarien. Darüber hinaus ist die Norm EN 50655-2:2017 besonders relevant, da sie auf dem bestehenden Normenkontext aufbaut, einschließlich der Normen EN 50393, HD 629.1 und HD 629.2. Dies gewährleistet eine nahtlose Integration in bestehende Prüfverfahren, während gleichzeitig ein flexibles, eigenständiges Testverfahren für das Material selbst bereitgestellt wird, das nicht zwingend an Typprüfungen des Zubehörs gebunden ist. Zusammenfassend lässt sich sagen, dass die EN 50655-2:2017 die Relevanz und Notwendigkeit von standardisierten Testverfahren zur Charakterisierung von Materialien in der Kabelzubehörindustrie unterstreicht. Ihre Stärken liegen in der Fähigkeit, detaillierte Anforderungen zu definieren, die Qualität zu verbessern und die Sicherheit in der Anwendung von elektrischen Kabeln zu gewährleisten.
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
