Fibre optic active components and devices - Test and measurement procedures - Part 3: Optical power variation induced by mechanical disturbance in optical receptacles and transceiver interfaces

IEC 62150-3:2015(E) It has been found that some optical transceivers and receptacles are susceptible to fibre optic cable induced stress when side forces are applied to the mated cable-connector assembly, resulting in variations in the transmitted optical power. The purpose of this part of IEC 62150 is to define physical stress tests to ensure that such optical connections (cable and receptacle) can continue to function within specifications. This standard specifies the test requirements and procedures for qualifying optical devices for sensitivity to coupled power variations induced by mechanical disturbance at the optical ports of the device. This standard applies to active devices with optical receptacle interfaces. This standard describes the testing of transceivers for use with single-mode connectors having either 2,5 mm or 1,25 mm ferrules. This second edition cancels and replaces the first edition published in 2012 and constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: extension of application field to SC connector interface transceivers in addition to LC connector interface transceivers specified in the first edition as both transceiver interfaces are very important in the industry; addition of a new Annex E dealing with load value difference for connector type in Method A. Keywords: fibre optic cable induced stress, power variations induced by mechanical disturbance

Aktive Lichtwellenleiter-Bauteile und -Bauelemente - Grundlegende Prüf- und Messverfahren - Teil 3: Optische Leistungsabweichungen bedingt durch mechanische Störungen in optischen Kupplungen und Transceiver-Schnittstellen

Composants et dispositifs actifs à fibres optiques - Procédures fondamentales d’essais et de mesures - Partie 3: Variation de puissance optique induite par des perturbations mécaniques dans les interfaces d'embases et d'émetteurs-récepteurs optiques

IEC 62150-3:2015 On a constaté que certains émetteurs-récepteurs et embases optiques sont sensibles aux contraintes induites par les câbles fibroniques lorsque l'ensemble câble-connecteur accouplé est soumis à des forces latérales, ce qui génère des variations de la puissance optique transmise. La présente partie de l'IEC 62150 a pour objectif de définir des essais de contraintes physiques pour garantir que de telles connexions optiques (câble et embase) peuvent continuer à fonctionner conformément aux spécifications. On a constaté que certains émetteurs-récepteurs et embases optiques sont sensibles aux contraintes induites par les câbles fibroniques lorsque l'ensemble câble-connecteur accouplé est soumis à des forces latérales, ce qui génère des variations de la puissance optique transmise. La présente partie de l'IEC 62150 a pour objectif de définir des essais de contraintes physiques pour garantir que de telles connexions optiques (câble et embase) peuvent continuer à fonctionner conformément aux spécifications. La présente norme spécifie les exigences d'essais et les procédures pour qualifier la sensibilité de dispositifs optiques à des variations de la puissance couplée induites par des perturbations mécaniques au niveau des ports optiques du dispositif. La présente norme s'applique aux dispositifs actifs dotés d'interfaces d'embases optiques. La présente norme décrit les essais des émetteurs-récepteurs destinés à être utilisés avec des connecteurs unimodaux comportant des férules de 2,5 mm ou 1,25 mm. La présente norme spécifie les exigences d'essais et les procédures pour qualifier la sensibilité de dispositifs optiques à des variations de la puissance couplée induites par des perturbations mécaniques au niveau des ports optiques du dispositif. La présente norme s'applique aux dispositifs actifs dotés d'interfaces d'embases optiques. La présente norme décrit les essais des émetteurs-récepteurs destinés à être utilisés avec des connecteurs unimodaux comportant des férules de 2,5 mm ou 1,25 mm. Cette deuxième édition annule et remplace la première édition, parue en 2012, dont elle constitue une révision technique. La présente édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente: - étendue du champ d'application aux émetteurs-récepteurs avec interfaces de connecteurs SC, en plus des émetteurs-récepteurs avec interfaces de connecteurs LC spécifiés dans la première édition, dans la mesure où ces deux interfaces d'émetteurs-récepteurs sont très importantes dans l'industrie; - ajout d’une nouvelle Annexe E traitant de la différence de valeur de charge pour le type de connecteur selon la méthode A. Mots clés : contraintes induites par les câbles fibroniques, puissance couplée induites par des perturbations mécaniques

Aktivne optične komponente in naprave - Postopki preskušanja in merjenja - 3. del: Spreminjanje optične moči zaradi mehanskih motenj v optičnih sprejemnikih in oddajno-sprejemniških vmesnikih (IEC 62150-3:2015)

Ugotovljeno je bilo, da so nekateri optični oddajniki-sprejemniki in sprejemniki med uporabo stranskih sil pri sestavu kabla in priključka občutljivi na napetost kabla iz optičnih vlaken zaradi sprememb v oddajani optični moči. Namen tega dela standarda IEC 62150 je opredelitev preskusov fizične napetosti za zagotovitev nadaljnjega delovanja takšnih optičnih povezav (kabelskih in z vtičnico) v okviru specifikacij.
Ta standard določa preskusne zahteve in postopke za razvrstitev optičnih naprav glede na občutljivost spreminjanja moči, ki jih povzročajo mehanske motnje pri optičnih vhodih naprave.
Ta standard velja za dejavne naprave z vmesniki optičnega sprejemnika. Ta standard opisuje preskušanje oddajnikov-sprejemnikov za uporabo z enorodnimi konektorji z 2,5-mm ali 1,25-mm tulkami.

General Information

Status
Published
Publication Date
06-Aug-2015
Withdrawal Date
10-Jun-2018
Current Stage
6060 - Document made available - Publishing
Start Date
07-Aug-2015
Completion Date
07-Aug-2015

Relations

Buy Standard

Standard
EN 62150-3:2016 - BARVE
English language
25 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

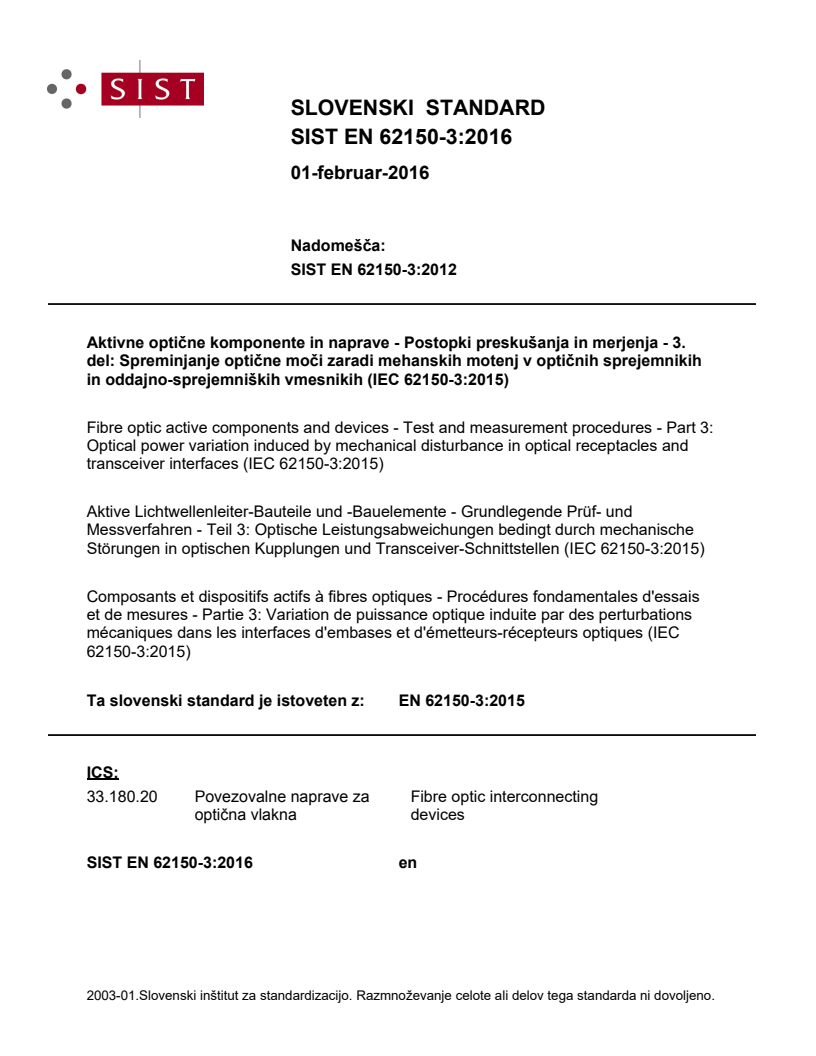

SLOVENSKI STANDARD
SIST EN 62150-3:2016
01-februar-2016
1DGRPHãþD
SIST EN 62150-3:2012
$NWLYQHRSWLþQHNRPSRQHQWHLQQDSUDYH3RVWRSNLSUHVNXãDQMDLQPHUMHQMD
GHO6SUHPLQMDQMHRSWLþQHPRþL]DUDGLPHKDQVNLKPRWHQMYRSWLþQLKVSUHMHPQLNLK
LQRGGDMQRVSUHMHPQLãNLKYPHVQLNLK ,(&
Fibre optic active components and devices - Test and measurement procedures - Part 3:
Optical power variation induced by mechanical disturbance in optical receptacles and
transceiver interfaces (IEC 62150-3:2015)
Aktive Lichtwellenleiter-Bauteile und -Bauelemente - Grundlegende Prüf- und
Messverfahren - Teil 3: Optische Leistungsabweichungen bedingt durch mechanische
Störungen in optischen Kupplungen und Transceiver-Schnittstellen (IEC 62150-3:2015)
Composants et dispositifs actifs à fibres optiques - Procédures fondamentales d'essais
et de mesures - Partie 3: Variation de puissance optique induite par des perturbations
mécaniques dans les interfaces d'embases et d'émetteurs-récepteurs optiques (IEC
62150-3:2015)
Ta slovenski standard je istoveten z: EN 62150-3:2015
ICS:
33.180.20 3RYH]RYDOQHQDSUDYH]D Fibre optic interconnecting
RSWLþQDYODNQD devices
SIST EN 62150-3:2016 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST EN 62150-3:2016

---------------------- Page: 2 ----------------------

SIST EN 62150-3:2016

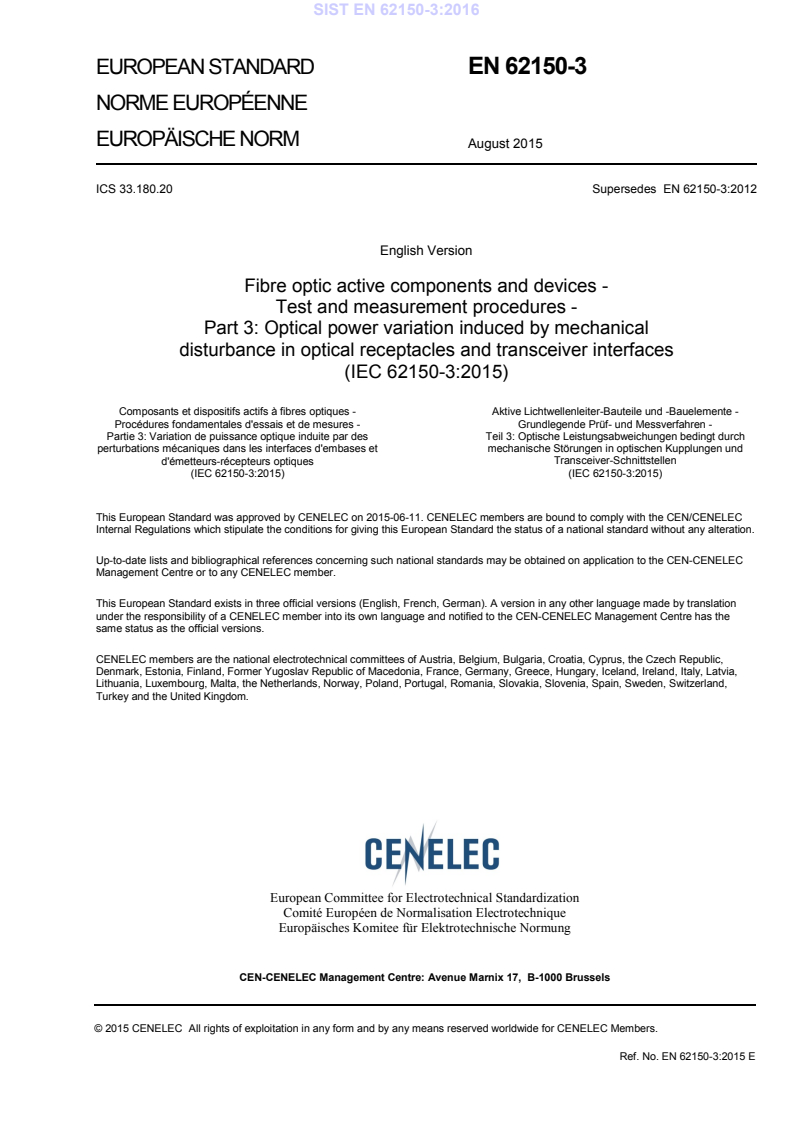

EUROPEAN STANDARD EN 62150-3

NORME EUROPÉENNE

EUROPÄISCHE NORM
August 2015
ICS 33.180.20 Supersedes EN 62150-3:2012
English Version
Fibre optic active components and devices -
Test and measurement procedures -
Part 3: Optical power variation induced by mechanical
disturbance in optical receptacles and transceiver interfaces
(IEC 62150-3:2015)
Composants et dispositifs actifs à fibres optiques - Aktive Lichtwellenleiter-Bauteile und -Bauelemente -
Procédures fondamentales d'essais et de mesures - Grundlegende Prüf- und Messverfahren -
Partie 3: Variation de puissance optique induite par des Teil 3: Optische Leistungsabweichungen bedingt durch
perturbations mécaniques dans les interfaces d'embases et mechanische Störungen in optischen Kupplungen und
d'émetteurs-récepteurs optiques Transceiver-Schnittstellen
(IEC 62150-3:2015) (IEC 62150-3:2015)
This European Standard was approved by CENELEC on 2015-06-11. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.


European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2015 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
 Ref. No. EN 62150-3:2015 E

---------------------- Page: 3 ----------------------

SIST EN 62150-3:2016
EN 62150-3:2015

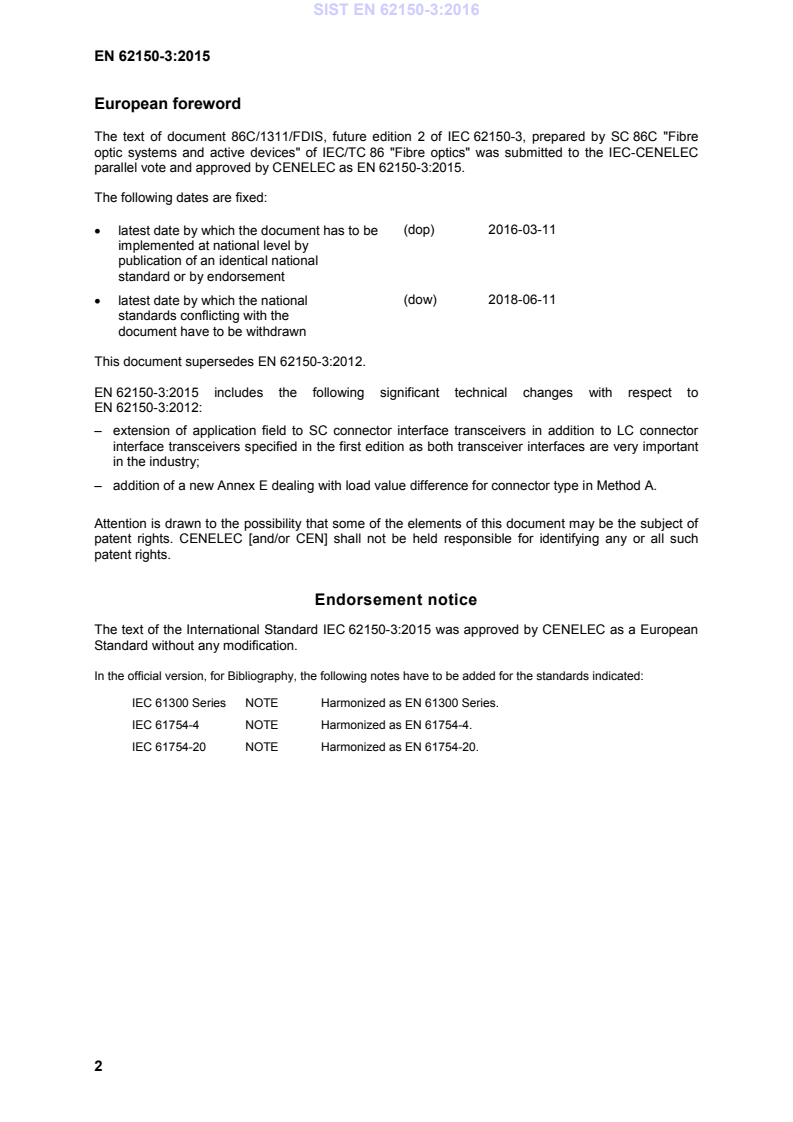

European foreword
