1 Scope and object This clause of Part 1 is applicable except as follows: 1.1.1 Equipment included in scope Replacement: Replace the existing text with the following: This part of IEC 61010 specifies safety requirements for HAND-HELD and hand-manipulated current sensors described below. These current sensors are for measuring, detecting or injecting current, or indicating current waveforms on circuits without physically opening the current path of the circuit being measured. They may be stand-alone current sensors or accessories to other equipment or parts of combined equipment (see Figure 101). These include measurement circuits which are part of electrical test and measurement equipment, laboratory equipment, or process control equipment. The existence of these current sensors and circuits in equipment requires additional protective means between the current sensor, the circuit and an OPERATOR.

Sicherheitsbestimmungen für elektrische Mess-, Steuer-, Regel- und Laborgeräte - Teil 2-032: Besondere Anforderungen für handgehaltene und handbediente Stromsonden für elektrische Prüfungen und Messungen

Exigences de sécurité pour appareils électriques de mesurage, de régulation et de laboratoire - Partie 2-032 : Exigences particulières pour les capteurs de courant, portatifs et manipulés manuellement, pour essai électrique et mesurage

Varnostne zahteve za električno opremo za meritve, nadzor in laboratorijsko uporabo - 2-032. del: Posebne zahteve za ročne in ročno vodene tokovne senzorje za električno meritev in preskušanje - Dopolnilo A11

Ta del standarda IEC 61010 določa varnostne zahteve za spodaj navedene ROČNE in ročno vodene tokovne senzorje.
Ti tokovni senzorji so namenjeni za merjenje, zaznavanje ali priključitev toka ali določanje oblik toka na tokokrogih, ne da bi bilo treba fizično odpreti tokovne poti tokokroga, na katerem se izvaja meritev. Tokovni senzorji so lahko samostojni ali priključki k drugi opremi ali delom sestavljene opreme (glej sliko 101). Zajemajo merilne tokokroge, ki so del električne preskusne in merilne opreme, laboratorijske opreme ali opreme za vodenje procesa. Pri teh tokovnih senzorjih in tokokrogih je potrebno dodatno zaščitno sredstvo med tokovnim senzorjem, tokokrogom in UPRAVLJAVCEM.
OPOMBA 1: Sestavljena oprema je oprema, ki je električno povezana s tokovnim senzorjem prek trajnega priključka, ki ga je mogoče odstraniti samo z ORODJEM.
OPOMBA 2: Nekateri tokovni senzorji se imenujejo tudi tokovne klešče, KLEŠČNI MULTIMETRI in tokovne sonde.
Tokovne senzorje je treba pred preskusom oziroma meritvijo in/ali po tem upravljati ročno, vendar jih med preskusom oziroma meritvijo ni vedno treba DRŽATI V ROKI. Tokovni senzorji, ki se uporabljajo kot FIKSNA OPREMA, ne spadajo na področje uporabe tega dokumenta.

General Information

Status
Published
Publication Date
11-Nov-2021
Current Stage
6060 - Document made available - Publishing
Start Date
12-Nov-2021
Due Date
18-Sep-2022
Completion Date
12-Nov-2021

Relations

Buy Standard

Amendment
EN IEC 61010-2-032:2022/A11:2022
English language
7 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)


SLOVENSKI STANDARD
01-marec-2022
Varnostne zahteve za električno opremo za meritve, nadzor in laboratorijsko
uporabo - 2-032. del: Posebne zahteve za ročne in ročno vodene tokovne senzorje
za električno meritev in preskušanje - Dopolnilo A11
Safety requirements for electrical equipment for measurement, control and laboratory
use - Part 2-032: Particular requirements for hand-held and hand-manipulated current
sensors for electrical test and measurement
Sicherheitsbestimmungen für elektrische Mess-, Steuer-, Regel- und Laborgeräte - Teil 2
-032: Besondere Anforderungen für handgehaltene und handbediente Stromsonden für
elektrische Prüfungen und Messungen
Exigences de sécurité pour appareils électriques de mesurage, de régulation et de
laboratoire - Partie 2-032 : Exigences particulières pour les capteurs de courant, portatifs
et manipulés manuellement, pour essai électrique et mesurage
Ta slovenski standard je istoveten z: EN IEC 61010-2-032:2021/A11:2021
ICS:
19.080 Električno in elektronsko Electrical and electronic
preskušanje testing
71.040.10 Kemijski laboratoriji. Chemical laboratories.
Laboratorijska oprema Laboratory equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 61010-2-032:2021/A11

NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2021
ICS 19.080
English Version
Safety requirements for electrical equipment for measurement,
control and laboratory use - Part 2-032: Particular requirements
for hand-held and hand-manipulated current sensors for
electrical test and measurement
Exigences de sécurité pour appareils électriques de Sicherheitsbestimmungen für elektrische Mess-, Steuer-,
mesurage, de régulation et de laboratoire - Partie 2-032 : Regel- und Laborgeräte - Teil 2-032: Besondere
Exigences particulières pour les capteurs de courant, Anforderungen für handgehaltene und handbediente
portatifs et manipulés manuellement, pour essai électrique Stromsonden für elektrische Prüfungen und Messungen
et mesurage
This amendment A11 modifies the European Standard EN IEC 61010-2-032:2021; it was approved by CENELEC on 2021-01-04.
CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
amendment the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as
the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 61010-2-032:2021/A11:2021 E

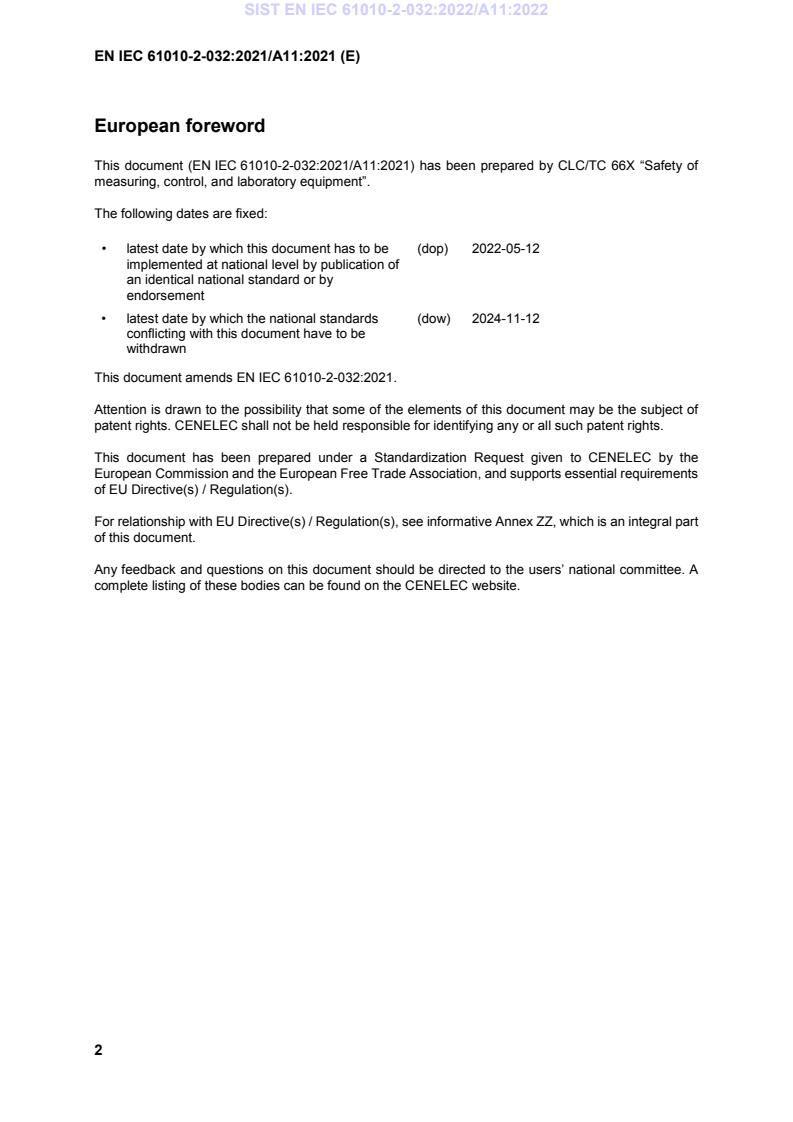

European foreword
