EN IEC 60987:2021

(Main)

Nuclear power plants - Instrumentation and control important to safety - Hardware requirements

Nuclear power plants - Instrumentation and control important to safety - Hardware requirements

IEC 60987:2021 provides requirements and recommendations for the hardware aspects of I&C systems whatever the technology and applies for all safety classes in a graded manner (as defined by IEC 61513). The requirements defined within this document guide, in particular, the selection of pre-existing components, hardware aspects of system detailed design and implementation and equipment manufacturing. This third edition cancels and replaces the second edition published in 2007. This edition includes the following significant technical changes with respect to the previous edition: a) Title modified; b) Take account of the fact that hardware requirements apply to all I&C technologies, including conventional hardwired equipment, programmable digital equipment or by using a combination of both types of equipment; c) Align the standard with the new revisions of IAEA documents SSR-2/1, which include as far as possible an adaptation of the definitions; d) Replace, as far as possible, the requirements associated with standards published since the edition 2.1, especially IEC 61513, IEC 60880, IEC 62138, IEC 62566 and IEC 62566‑2; e) Review the existing requirements and update the terminology and definitions; f) Extend the scope of the standard to all hardware (computerized and non-computerized) and to all safety classes 1, 2 and 3; g) Complete, update the IEC and IAEA references and vocabulary; h) Check possible impact of other IAEA requirements and recommendations considering extension of the scope of SC 45A; i) Highlight the use of IEC 62566 and IEC 62566-2 for HPD development; j) Introduce specific activities for pre-existing items (selection, acceptability and/or mitigation); k) Introduce clearer requirements for electronic module-level design, manufacturing and control; l) Complete reliability assessment methods; m) Introduce requirements when using automated tests or control activities; n) Complete description of manufacturing control activities (control process, assessment of manufactured equipment, preservation of products); o) Define and ensure the inclusion of a graded approach for dealing with the 3 different classes of equipment and related requirements.

Kernkraftwerke - Leittechnische Systeme mit sicherheitstechnischer Bedeutung - Hardwareanforderungen

Centrales nucléaires de puissance - Systèmes d'instrumentation et de contrôle-commande importants pour la sûreté - Exigences applicables au matériel

See the scope of IEC 60987:2021. Adoption of IEC 60987:2021 is to be done without modification.

Jedrske elektrarne - Merilna in nadzorna oprema za zagotavljanje varnosti - Zahteve za strojno opremo (IEC 60987:2021)

General Information

Status
Published
Publication Date
16-Sep-2021
ICS
27.120.20 - Nuclear power plants. Safety
Technical Committee
CLC/TC 45AX - Nuclear power plants
Drafting Committee
CLC/TC 45AX - Nuclear power plants
Current Stage
6060 - Document made available - Publishing
Start Date
17-Sep-2021
Due Date
17-Sep-2023
Completion Date
17-Sep-2021
Ref Project
SIST EN IEC 60987:2021 - Nuclear power plants - Instrumentation and control important to safety - Hardware requirements (IEC 60987:2021)

Relations

Replaces
EN 60987:2015 - Nuclear power plants - Instrumentation and control important to safety - Hardware design requirements for computer-based systems
Effective Date
21-Sep-2021

Buy Standard

EN IEC 60987:2021EN IEC 60987:2021
PreviousNext
Standard
EN IEC 60987:2021
English language
53 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

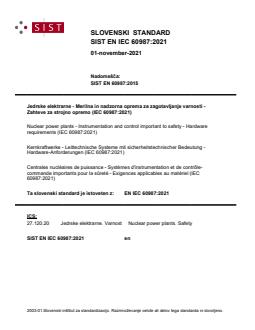

SLOVENSKI STANDARD
SIST EN IEC 60987:2021
01-november-2021
Nadomešča:
SIST EN 60987:2015
Jedrske elektrarne - Merilna in nadzorna oprema za zagotavljanje varnosti -
Zahteve za strojno opremo (IEC 60987:2021)
Nuclear power plants - Instrumentation and control important to safety - Hardware
requirements (IEC 60987:2021)
Kernkraftwerke - Leittechnische Systeme mit sicherheitstechnischer Bedeutung -
Hardware-Anforderungen (IEC 60987:2021)
Centrales nucléaires de puissance - Systèmes d'instrumentation et de contrôle-
commande importants pour la sûreté - Exigences applicables au matériel (IEC
60987:2021)
Ta slovenski standard je istoveten z: EN IEC 60987:2021
ICS:
27.120.20 Jedrske elektrarne. Varnost Nuclear power plants. Safety
SIST EN IEC 60987:2021 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN IEC 60987:2021

---------------------- Page: 2 ----------------------
SIST EN IEC 60987:2021

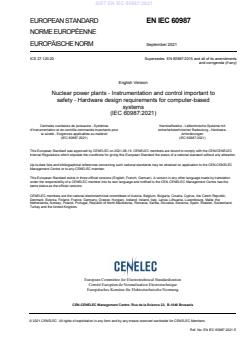

EUROPEAN STANDARD EN IEC 60987

NORME EUROPÉENNE

EUROPÄISCHE NORM
September 2021
ICS 27.120.20 Supersedes EN 60987:2015 and all of its amendments
and corrigenda (if any)
English Version
Nuclear power plants - Instrumentation and control important to
safety - Hardware design requirements for computer-based
systems
(IEC 60987:2021)
Centrales nucléaires de puissance - Systèmes Kernkraftwerke - Leittechnische Systeme mit
d'instrumentation et de contrôle-commande importants pour sicherheitstechnischer Bedeutung - Hardware-
la sûreté - Exigences applicables au matériel Anforderungen
(IEC 60987:2021) (IEC 60987:2021)
This European Standard was approved by CENELEC on 2021-08-16. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.


European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
 Ref. No. EN IEC 60987:2021 E

---------------------- Page: 3 ----------------------
SIST EN IEC 60987:2021
EN IEC 60987:2021 (E)

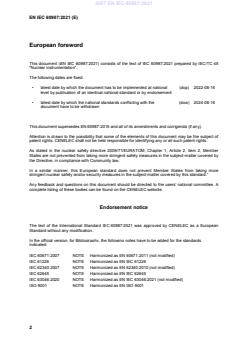

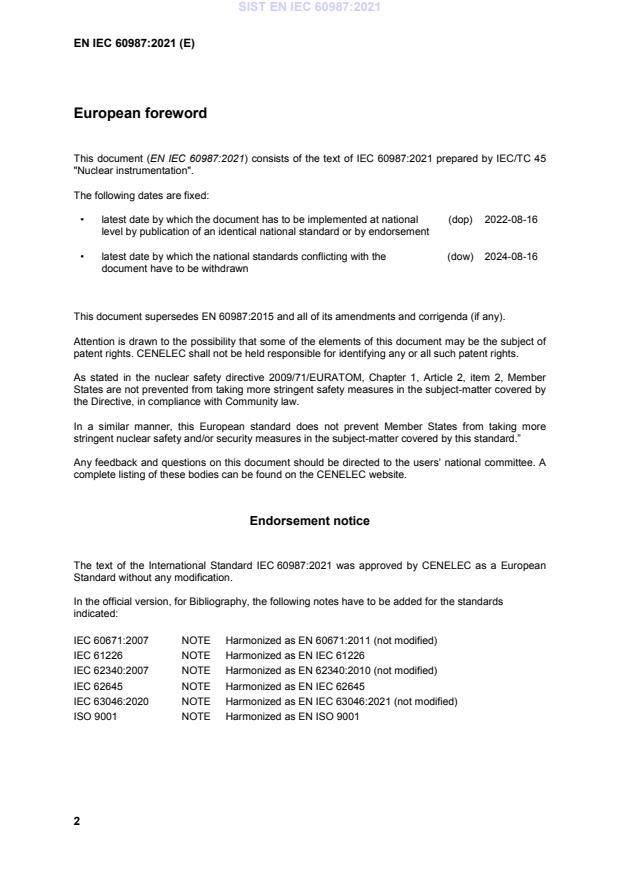

European foreword
This document (EN IEC 60987:2021) consists of the text of IEC 60987:2021 prepared by IEC/TC 45
"Nuclear instrumentation".
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2022-08-16
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2024-08-16
document have to be withdrawn

This document supersedes EN 60987:2015 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
As stated in the nuclear safety directive 2009/71/EURATOM, Chapter 1, Article 2, item 2, Member
States are not prevented from taking more stringent safety measures in the subject-matter covered by
the Directive, in compliance with Community law.
In a similar manner, this European standard does not prevent Member States from taking more
stringent nuclear safety and/or security measures in the subject-matter covered by this standard.”
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 60987:2021 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards
indicated:
IEC 60671:2007 NOTE Harmonize
...
