EN 60317-8:2010
(Main)Specifications for particular types of winding wires - Part 8: Polyesterimide enamelled round copper wire, class 180
Specifications for particular types of winding wires - Part 8: Polyesterimide enamelled round copper wire, class 180
IEC 60317-8:2010 specifies the requirements of enamelled round copper winding wires of class 180 with a sole coating based on polyesterimide resin, which may be modified provided it retains the chemical identity of the original resin and meets all specified wire requirements. The main changes with respect to the previous edition are: - introduction of requirements for appearance; - new reference to resistance to refrigerants test method; - deletion of high temperature failure requirements; - introductin of pin hole test requirements.
Technische Lieferbedingungen für bestimmte Typen von Wickeldrähten - Teil 8: Runddrähte aus Kupfer, lackisoliert mit Polyesterimid, Klasse 180
Spécifications pour types particuliers de fils de bobinage - Partie 8: Fil de section circulaire en cuivre émaillé avec polyesterimide, classe 180
La CEI 60317-8:2010 concerne les fils de bobinage de section circulaire en cuivre émaillé de classe 180 avec un revêtement unique à base de résine polyesterimide qui peut être modifiée à condition qu'elle conserve l'identité chimique de la résine initiale et réponde à toutes les exigences du fil. Les modifications principales par rapport à l'édition précédente sont: - introduction des exigences concernant l'aspect; - nouvelle référence ajouté à la méthode d'essai de la résistance aux réfrigérants; - suppression des exigences concernant la défaillance à haute température; - introduction des exigences concernant la détection des microfissures en immersion.
Specifikacije za posebne tipe navitij - 8. del: S poliesterimidom emajliran bakren okrogel vodnik, razred 180 (IEC 60317-8:2010)
Ta del IEC 60317 določa zahteve za emajliran bakren okrogel vodnik razreda 180 z enojnim premazom na osnovi poliesterimidne smole, ki se lahko spremeni, pod pogojem, da ohrani kemično identiteto originalne smole in izpolnjuje vse zahteve za vodnik. Razred 180 je toplotni razred, ki zahteva minimalni temperaturni indeks 180 in temperaturo toplotnega šoka vsaj 200 °C. Temperatura v stopinjah Celzija, ki ustreza temperaturnemu indeksu, ni nujno temperatura, priporočena za obratovanje vodnika, saj je to odvisno od številnih dejavnikov, vključno z vrsto vključene opreme. Razpon nominalnih premerov prevodnikov, ki jih zajema ta standard, je naslednji: - Stopnja 1: 0,018 mm do vključno 3,150 mm; - Stopnja 2: 0,020 mm do vključno 5,000 mm; - Stopnja 3: 0,250 mm do vključno 1,600 mm. Nominalne premere prevodnikov določa Klavzula 4 IEC 60317-0-1.
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
SIST EN 60317-8:2010
01-september-2010
1DGRPHãþD
SIST EN 60317-8:2001
SIST EN 60317-8:2001/A1:2001
SIST EN 60317-8:2001/A2:2002
Specifikacije za posebne tipe navitij - 8. del: S poliesterimidom emajliran bakren
okrogel vodnik, razred 180 (IEC 60317-8:2010)
Specifications for particular types of winding wires - Part 8: Polyesterimide enamelled
round copper wire, class 180 (IEC 60317-8:2010)
Technische Lieferbedingungen für bestimmte Typen von Wickeldrähten - Teil 8:
Runddrähte aus Kupfer, lackisoliert mit Polyesterimid, Klasse 180 (IEC 60317-8:2010)
Spécifications pour types particuliers de fils de bobinage - Partie 8: Fil de section
circulaire en cuivre émaillé avec polyesterimide, classe 180 (CEI 60317-8:2010)
Ta slovenski standard je istoveten z: EN 60317-8:2010
ICS:
29.060.10 Žice Wires
SIST EN 60317-8:2010 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN 60317-8:2010
---------------------- Page: 2 ----------------------
SIST EN 60317-8:2010
EUROPEAN STANDARD
EN 60317-8
NORME EUROPÉENNE
May 2010
EUROPÄISCHE NORM
ICS 29.060.10 Supersedes EN 60317-8:1994 + A1:1997 + A2:1998
English version
Specifications for particular types of winding wires -
Part 8: Polyesterimide enamelled round copper wire, class 180
(IEC 60317-8:2010)
Spécifications pour types particuliers Technische Lieferbedingungen
de fils de bobinage - für bestimmte Typen von Wickeldrähten -
Partie 8: Fil de section circulaire en cuivre Teil 8: Runddrähte aus Kupfer, lackisoliert
émaillé avec polyesterimide, classe 180 mit Polyesterimid, Klasse 180
(CEI 60317-8:2010) (IEC 60317-8:2010)
This European Standard was approved by CENELEC on 2010-05-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland and the United Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
Management Centre: Avenue Marnix 17, B - 1000 Brussels
© 2010 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60317-8:2010 E
---------------------- Page: 3 ----------------------
SIST EN 60317-8:2010
EN 60317-8:2010 - 2 -

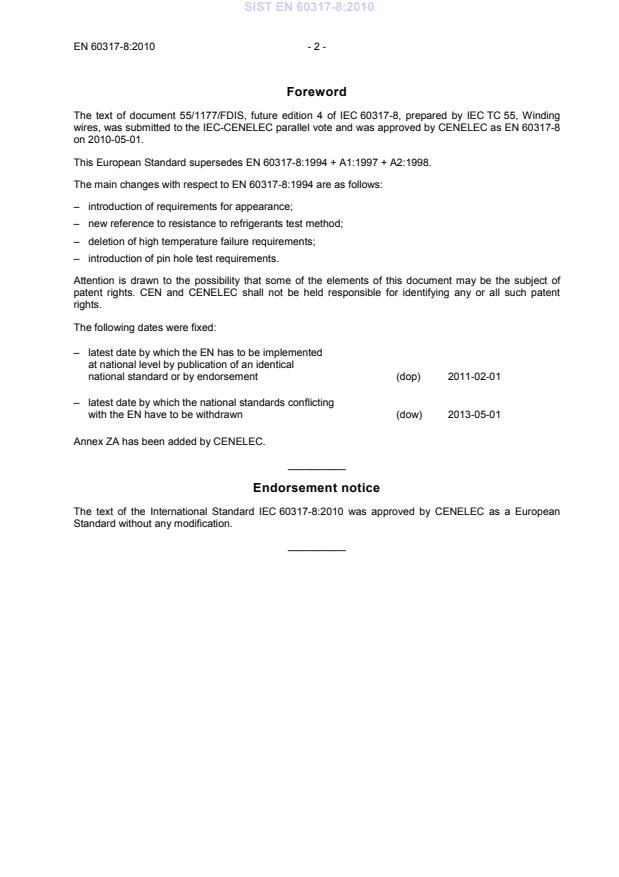

Foreword
The text of document 55/1177/FDIS, future edition 4 of IEC 60317-8, prepared by IEC TC 55, Winding
wires, was submitted to the IEC-CENELEC parallel vote and was approved by CENELEC as EN 60317-8
on 2010-05-01.
This European Standard supersedes EN 60317-8:1994 + A1:1997 + A2:1998.
The main changes with respect to EN 60317-8:1994 are as follows:
– introduction of requirements for appearance;
– new reference to resistance to refrigerants test method;
– deletion of high temperature failure requirements;
– introduction of pin hole test requirements.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN and CENELEC shall not be held responsible for identifying any or all such patent
rights.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
(dop) 2011-02-01
national standard or by endorsement
– latest date by which the national standards conflicting
(dow) 2013-05-01
with the EN have to be withdrawn
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 60317-8:2010 was approved by CENELEC as a European
Standard without any modification.
__________
---------------------- Page: 4 ----------------------
SIST EN 60317-8:2010
- 3 - EN 60317-8:2010
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following referenced documents are indispensable for the application of
...
