EN 50065-2-3:2024
(Main)Signalling on low-voltage electrical installations in the frequency range 3 kHz to 148,5 kHz - Part 2-3: Immunity requirements for mains communicating equipment operating in the range of frequencies 3 kHz to 95 kHz and intended for use by electricity suppliers and distributors
Signalling on low-voltage electrical installations in the frequency range 3 kHz to 148,5 kHz - Part 2-3: Immunity requirements for mains communicating equipment operating in the range of frequencies 3 kHz to 95 kHz and intended for use by electricity suppliers and distributors
This document applies to electrical equipment using signals in the frequency range 3 kHz to 95 kHz to transmit or receive information on low voltage electrical systems, for electricity suppliers and distributors. Mains communicating equipment (MCE) may fall into one of the two following categories: - MCE implementing transmission or reception of information on LV distribution networks or installations of network users connected to the public electricity distribution network as the sole function. Immunity requirements for such equipment are entirely covered by this document; - MCE being equipment covered by the scope of other standards, integrating mains communication as one of their functions. In this case, only the immunity requirements for the mains communication function of such equipment are covered by the scope of this document. Immunity requirements for all other available functions of this equipment are covered by the relevant product standard or generic standard. The object of this document is to contribute to ensuring EMC in general. It specifies essential immunity requirements and test methods, including those tests which are to be performed during type-testing of MCE, for electromagnetic interference (EMI) generated on LV installations. It defines the methods and requirements for testing immunity of MCE on meeting the essential requirements of the EMCD. Test requirements are specified for each port considered. Furthermore, it provides guidelines for the assessment of the performance of the communication function of an MCE. Normative specifications are under consideration. This document gives immunity requirements which are applicable to MCE used by electricity suppliers and distributors (e.g. DSOs) for purposes like energy management and network monitoring and automation. The levels do not however cover extreme cases which could occur in any location but with a low probability of occurrence. In special cases situations will arise where the level of disturbances could exceed the levels specified in this document, e.g. where a hand-held transmitter is used in proximity of an apparatus. In these instances special mitigation measures might have to be employed. It does not specify immunity of MCE to signals from other MCE operating in the same nominal frequency band or immunity to signals originating from power line carrier systems operating on high or medium-voltage networks. Safety considerations are not included in this document.
Signalübertragung auf elektrischen Niederspannungsnetzen im Frequenzbereich 3 kHz bis 148,5 kHz - Teil 2-3: Störfestigkeitsanforderungen an Netz-Datenübertragungsgeräte, die im Frequenzbereich 3 kHz bis 95 kHz betrieben werden und für den Gebrauch durch Stromversorgungs- und verteilungsunternehmen bestimmt sind
Transmission de signaux sur les réseaux électriques basse tension dans la plage de fréquences de 3 kHz à 148,5 kHz - Partie 2-3: Exigences d’immunité pour les appareils de communication par le réseau électrique dans la plage de fréquences de 3 kHz à 95 kHz et destinés à être utilisés par les fournisseurs et les distributeurs d’énergie électrique
Le présent document s’applique aux appareils électriques qui utilisent des signaux dans la plage de fréquences de 3 kHz à 95 kHz pour émettre ou recevoir des informations sur les réseaux électriques basse tension, pour les fournisseurs et les distributeurs d’énergie électrique. Un appareil de communication par le réseau électrique (MCE) peut faire partie de l’une des deux catégories suivantes: - MCE mettant en œuvre la transmission ou la réception d’informations sur les réseaux ou installations de distribution BT des utilisateurs du réseau connectés au réseau public de distribution d’électricité comme seule fonction. Les exigences d’immunité pour ces appareils sont entièrement couvertes par le présent document; - MCE consistant en un appareil couvert par le domaine d’application d’autres normes, intégrant la communication sur le réseau comme l’une de ses fonctions. Dans ce cas, seules les exigences d’immunité concernant la fonction de communication sur le réseau de ces appareils sont couvertes par le domaine d’application du présent document. Les exigences d’immunité concernant toute autre fonction disponible de cet appareil sont couvertes par la norme de produit ou la norme générique applicable. L’objet du présent document est de contribuer à assurer la CEM en général. Il spécifie les exigences essentielles d’immunité et les méthodes d’essai, y compris les essais qui sont à réaliser pendant les essais de type des MCE, pour le brouillage électromagnétique (EMI) généré sur les installations BT. Il définit les méthodes et les exigences pour les essais d’immunité d’un MCE, afin de satisfaire aux exigences de la directive CEM. Les exigences d’essais sont spécifiées pour chaque accès pris en compte. De plus, il fournit des lignes directrices pour l’évaluation des performances de la fonction de communication d’un MCE. Les spécifications normatives sont à l’étude. Le présent document donne les exigences d’immunité applicables aux MCE utilisés par les fournisseurs et les distributeurs d’énergie électrique (par exemple les GRD) à des fins telles que la gestion de l’énergie ainsi que la surveillance et l’automatisation du réseau. Ces niveaux ne couvrent cependant pas les cas extrêmes qui pourraient se produire, mais avec une faible probabilité, sur un quelconque site. Dans des cas spéciaux, des situations dans lesquelles des niveaux de perturbation peuvent dépasser les niveaux spécifiés dans le présent document peuvent apparaître, par exemple lorsqu’un émetteur portatif est utilisé à proximité d’un appareillage. Dans ces cas, des moyens spéciaux d’atténuation peuvent s’avérer nécessaires. Il ne spécifie pas l’immunité des MCE aux signaux qui proviennent d’autres MCE fonctionnant dans la même bande de fréquences nominale ou l’immunité aux signaux originaires des systèmes de courant porteur en ligne qui fonctionnent sur les réseaux à moyenne et haute tension. Le présent document ne couvre pas les considérations relatives à la sécurité.
Signalizacija po vodnikih nizkonapetostnih električnih inštalacij v frekvenčnem območju od 3 kHz do 148,5 kHz – 2-3. del: Zahteve za odpornost omrežne komunikacijske opreme, ki obratuje v frekvenčnem območju od 3 kHz do 95 kHz in je namenjena za uporabo prii dobaviteljih električne energije in distributerjih
Ta dokument se uporablja za električno opremo, ki s signali v frekvenčnem območju od 3 kHz do 95 kHz prenaša ali sprejema informacije o nizkonapetostnih električnih sistemih za dobavitelje in distributerje električne energije. V primeru opreme, ki poleg prenosa ali sprejema informacij o nizkonapetostnih distribucijskih omrežjih ali napravah uporabnikov omrežja, priključenih na javno distribucijsko omrežje električne energije, vključuje še druge funkcije, se ta dokument uporablja samo za tisti del opreme, ki je namenjen takemu prenosu ali sprejemu informacij. Drugi deli opreme naj bi bili v skladu s standardom odpornosti ali standardi, ki so pomembni za funkcije teh drugih delov.
Namen tega dokumenta je prispevati k zagotavljanju elektromagnetne združljivosti na splošno. Določa bistvene zahteve glede odpornosti in preskusne metode, vključno s tistimi preskusi, ki jih je treba opraviti med tipskim preskušanjem opreme MCE, za elektromagnetne motnje (EMI), ki nastanejo na nizkonapetostni napeljavi.
Opredeljuje metode in zahteve za preskušanje odpornosti v zvezi z osnovno funkcijo opreme MCE glede neprekinjenih in prehodnih motenj, tako prevodnih kot sevanih, ter glede elektrostatičnih razelektritev. Preskusne zahteve so določene za vsaka obravnavana vrata.
Poleg tega podaja smernice za oceno lastnosti komunikacijske funkcije opreme MCE. Normativne specifikacije so v obravnavi.
Ta dokument določa omejitve, ki veljajo za opremo MCE, ki jo uporabljajo dobavitelji in distributerji električne energije (npr. DSO) za namene, kot so upravljanje z energijo ter spremljanje in avtomatizacija omrežja. Vendar stopnje ne zajemajo izjemnih primerov, ki se utegnejo zgoditi na kateri koli lokaciji, čeprav je verjetnost majhna. V posebnih primerih se bodo pojavile situacije, ko bi lahko raven motenj presegla ravni, določene v tem dokumentu, npr. kadar se v bližini aparata uporablja ročni oddajnik. V takih primerih je morda treba uporabiti posebne ukrepe za ublažitev.
Ne določa odpornosti med opremo MCE, ki deluje v istem nazivnem frekvenčnem pasu, ali odpornosti na signale, ki izvirajo iz sistemov nosilcev daljnovoda, ki delujejo v visoko ali srednjenapetostnih omrežjih.
Varnostni vidiki niso vključeni v ta dokument.
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
01-september-2024
Nadomešča:
SIST EN 50065-2-3:2004
SIST EN 50065-2-3:2004/A1:2006
Signalizacija po vodnikih nizkonapetostnih električnih inštalacij v frekvenčnem
območju od 3 kHz do 148,5 kHz – 2-3. del: Zahteve za odpornost omrežne
komunikacijske opreme, ki obratuje v frekvenčnem območju od 3 kHz do 95 kHz in
je namenjena za uporabo prii dobaviteljih električne energije in distributerjih
Signalling on low-voltage electrical installations in the frequency range 3 kHz to 148,5
kHz - Part 2-3: Immunity requirements for mains communicating equipment operating in
the range of frequencies 3 kHz to 95 kHz and intended for use by electricity suppliers
and distributors
Signalübertragung auf elektrischen Niederspannungsnetzen im Frequenzbereich 3 kHz
bis 148,5 kHz - Teil 2-3: Störfestigkeitsanforderungen an Netz-Datenübertragungsgeräte,
die im Frequenzbereich 3 kHz bis 95 kHz betrieben werden und für den Gebrauch durch
Stromversorgungs- und verteilungsunternehmen bestimmt sind
Transmission de signaux sur les réseaux électriques basse tension dans la bande de
fréquences de 3 kHz à 148,5 kHz - Partie 2-3 : Exigences d’immunité pour les appareils
de communication par le réseau électrique dans la bande de fréquences de 3 kHz à 95
kHz et destinés à être utilisés par les fournisseurs et les distributeurs d’énergie électrique
Ta slovenski standard je istoveten z: EN 50065-2-3:2024
ICS:
33.040.30 Komutacijski in signalizacijski Switching and signalling
sistem systems
33.100.20 Imunost Immunity
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD EN 50065-2-3
NORME EUROPÉENNE
EUROPÄISCHE NORM July 2024
ICS 33.040.30; 33.100.01 Supersedes EN 50065-2-3:2003/corrigendum Aug. 2003;
EN 50065-2-3:2003; EN 50065-2-3:2003/A1:2005
English Version
Signalling on low-voltage electrical installations in the frequency
range 3 kHz to 148,5 kHz - Part 2-3: Immunity requirements for
mains communicating equipment operating in the range of
frequencies 3 kHz to 95 kHz and intended for use by electricity
suppliers and distributors
Transmission de signaux sur les réseaux électriques basse Signalübertragung auf elektrischen Niederspannungsnetzen
tension dans la plage de fréquences de 3 kHz à 148,5 kHz - im Frequenzbereich 3 kHz bis 148,5 kHz - Teil 2-3:
Partie 2-3: Exigences d'immunité pour les appareils de Störfestigkeitsanforderungen an Netz-
communication par le réseau électrique dans la plage de Datenübertragungsgeräte, die im Frequenzbereich 3 kHz
fréquences de 3 kHz à 95 kHz et destinés à être utilisés par bis 95 kHz betrieben werden und für den Gebrauch durch
les fournisseurs et les distributeurs d'énergie électrique Stromversorgungs- und verteilungsunternehmen bestimmt
sind
This European Standard was approved by CENELEC on 2024-06-03. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 50065-2-3:2024 E

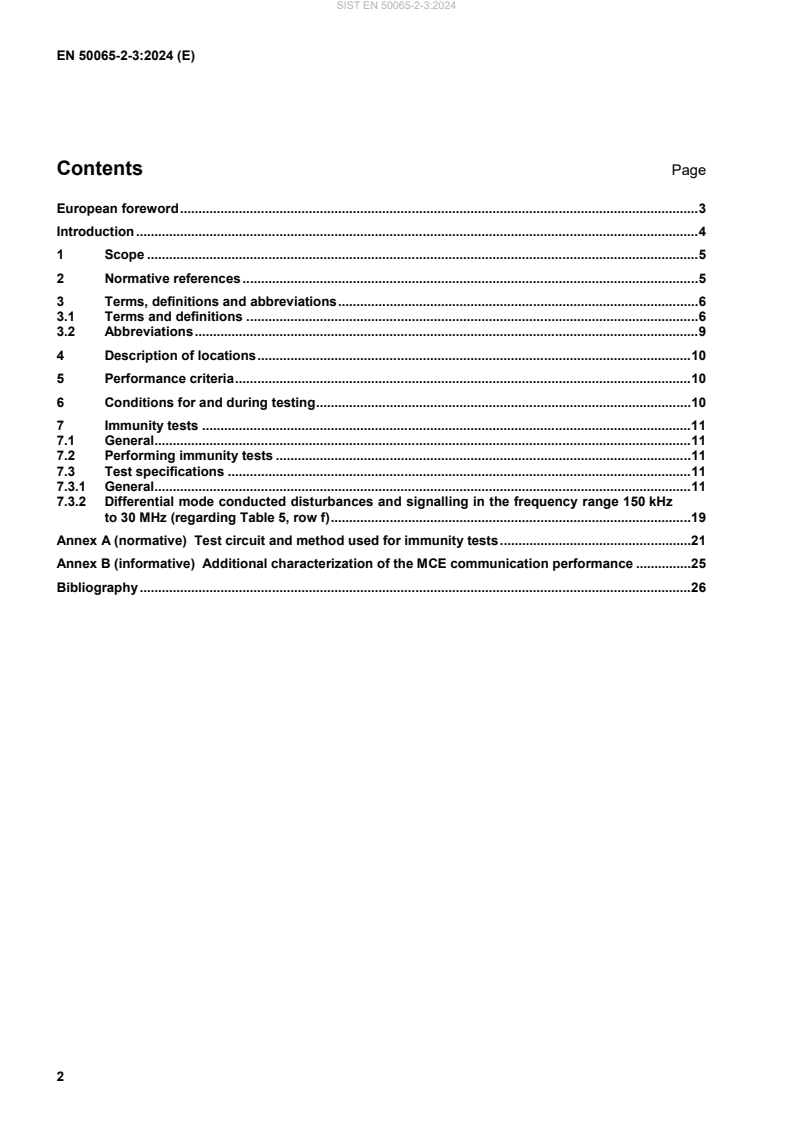

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms, definitions and abbreviations . 6
3.1 Terms and definitions . 6
3.2 Abbreviations . 9
4 Description of locations . 10
5 Performance criteria . 10
6 Conditions for and during testing . 10
7 Immunity tests . 11
7.1 General . 11
7.2 Performing immunity tests . 11
7.3 Test specifications . 11
7.3.1 General . 11
7.3.2 Differential mode conducted disturbances and signalling in the frequency range 150 kHz
to 30 MHz (regarding Table 5, row f) . 19
Annex A (normative) Test circuit and method used for immunity tests . 21
Annex B (informative) Additional characterization of the MCE communication performance . 25
Bibliography . 26
European foreword
This document (EN 50065-2-3:2024) has been prepared by WG 11 “Immunity” of CLC/TC 219 “Mains
communicating systems”.
The following dates are fixed:
• latest date by which this document has to be (dop) 2025–06–03
implemented at national level by publication of
an identical national standard or by
endorsement
• latest date by which the national standards (dow) 2027–06–03
conflicting with this document have to be
withdrawn
This document supersedes EN 50065-2-3:2003 and all of its amendments and corrigenda (if any).
— adaptation of title as well as generally focussing on mains communicating equipment (MCE);
— adaptation of the Scope precising clarifying the applicability of the standard;
— completion and update of normative references;
— completion of Definitions;
— update of the Performance criteria;
— update of the Test specifications;
— improvement of the test circuit and method used for immunity tests, in the normative Annex A,
considering also problems at testing immunity from voltage dips and voltage interruptions having been
recognized at application of the test circuit defined in EN 50065-2-3:2003;
— addition of an Annex B (informative) with optional test specifications.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Introduction
This document defines limits and test methods for the immunity of mains communicating equipment (MCE)
operating in the range of frequencies from 3 kHz to 95 kHz and intended for monitoring or controlling the low-
voltage (LV) distribution network, including energy usage of connected equipment and premises, used by
electricity suppliers and distributors (e.g. Distribution System Operators (DSOs)).
Immunity requirements for MCE intended for operation in residential, commercial and light industrial
environments are given in Part 2-1 of the EN 50065-2 series.
Immunity requirements and tests applicable to MCE intended for operation in industrial environments are
given in Part 2-2 of the EN 50065-2 series.
For MCE intended to be operated by utilities in the frequency range 3 kHz to 95 kHz, with lower immunity
requirements than specified in this Part 2-3, the specifications of Part 2-2 or Part 2-1 of the EN 50065-2 series
may be applied.
These tests and limits represent essential electromagnetic compatibility (EMC) and immunity requirements for
the environment according to the scope. Not all known disturbances have been included for testing purposes
which have been limited to those disturbances known to be critical for the operation of such equipment
including specific MCE disturbances such as conducted narrow band.
The immunity requirements have been selected to ensure an adequate level of immunity for MCE for use by
electricity utilities. The levels do not however cover extreme cases which could occur in any location but with
an extremely low probability of occurrence.
Annexes designated “normative” are part of the body of the standard.
In this document, Annex A is normative, and Annex B is informative.
1 Scope
This document applies to electrical equipment using signals in the frequency range 3 kHz to 95 kHz to
transmit or receive information on low voltage electrical systems, for electricity suppliers and distributors.
Mains communicating equipment (MCE) may fall into one of the two following categories:
— MCE implementing transmission or reception of information on LV distribution networks or installations of
network users connected to the public electricity distribution network as the sole function. Immunity
requirements for such equipment are entirely covered by this document;
— MCE being equipment covered by the scope of other standards, integrating mains communication as one
of their functions. In this case, only the immunity requirements for the mains communication function of
such equipment are covered by the scope of this document. Immunity requirements for all other available
functions of this equipment are covered by the relevant product standard or generic standard.
The object of this document is to contribute to ensuring EMC in general. It specifies essential immunity
requirements and test methods, including those tests which are to be performed during type-testing of MCE,
for electromagnetic interference (EMI) generated on LV installations.
It defines the methods and requirements for testing immunity of MCE on meeting the essential requirements
of the EMCD. Test requirements are specified for each port considered.
Furthermore, it provides guidelines for the assessment of the performance of the communication function of
an MCE. Normative specifications are under consideration.
This document gives immunity requirements which are applicable to MCE used by electricity suppliers and
distributors (e.g. DSOs) for purposes like energy management and network monitoring and automation. The
levels do not however cover extreme cases which could occur in any location but with a low probability of
occurrence. In special cases situations will arise where the level of disturbances could exceed the levels
specified in this document, e.g. where a hand-held transmitter is used in proximity of an apparatus. In these
instances special mitigation measures might have to be employed.
It does not specify immunity of MCE to signals from other MCE operating in the same nominal frequency band
or immunity to signals originating from power line carrier systems operating on high or medium-voltage
networks.
Safety considerations are not included in this document.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
EN 50065-1:2011, Signalling on low-voltage electrical installations in the frequency range 3 kHz to 148,5 kHz -
Part 1: General requirements, frequency bands and electromagnetic disturbances
EN 61000-4-2:2009, Electromagnetic compatibility (EMC) - Part 4-2: Testing and measurement techniques -
Electrostatic discharge immunity test (IEC 61000-4-2:2008)
EN 61000-4-3:2020, Electromagnetic compatibility (EMC) - Part 4-3: Testing and measurement techniques -
Radiated, radio-frequency, electromagnetic field immunity test (IEC 61000-4-3:2020)
EN 61000-4-4:2012, Electromagnetic compatibility (EMC) - Part 4-4: Testing and measurement techniques -
Electrical fas
...
