EN 62343-3-2:2016

Dynamic modules - Part 3-2: Performance specification templates - Optical channel monitor

IEC 62343-3-2:2016(E) provides a performance specification template for optical channel monitors. The objective of this performance specification template is to provide a framework for the performance specification of the optical channel monitor. Additional specification parameters may be included for detailed product specifications or performance specifications. However, specification parameters specified in this document should not be removed from the detail product specifications or performance specifications. This document outlines the parameters that are used to specify the performance of the optical channel monitor. Keywords: optical channel monitor (OCM)

Dynamische Module - Teil 3-2: Vorlagen für Leistungsspezifikationen - Optische Kanalüberwachung

Modules dynamiques - Partie 3-2: Modèles de spécification de performance - Contrôleur de canal de transmission optique

IEC 62343-3-2:2016 fournit un modèle de spécification de performance pour les contrôleurs de canal de transmission optique. Ce modèle de spécification de performance est destiné à fournir un cadre pour la spécification de performance du contrôleur de canal de transmission optique.Anchor Des paramètres de spécification supplémentaires peuvent être inclus pour les spécifications particulières de produit ou de performance. Toutefois, il convient de ne pas retirer les paramètres de spécification stipulés dans le présent document des spécifications particulières de produit ou de performance. Le présent document décrit les paramètres utilisés pour spécifier les performances du contrôleur de canal de transmission optique.

Dinamični moduli - 3-2. del: Predloge za tehnične specifikacije - Optični kanal za monitor (IEC 62343-3-2:2016)

Ta del standarda IEC 62343 zagotavlja predlogo za tehnično specifikacijo za optične kanale za monitorje. Cilj te predloge za tehnično specifikacijo je zagotoviti okvir za tehnično specifikacijo optičnega kanala za monitor. Vključeni so lahko dodatni tehnični parametri za podrobne specifikacije proizvodov ali tehnične specifikacije. Tehničnih parametrov iz tega dokumenta se ne sme odstraniti iz podrobnih specifikacij proizvodov ali tehničnih specifikacij. Ta dokument opredeljuje parametre, ki se uporabljajo za določanje zmogljivosti optičnega kanala za monitor.

General Information

• Status: Published
• Publication Date: 21-Jul-2016
• Withdrawal Date: 15-Jun-2019
• ICS: 33.180.01 - Fibre optic systems in general
• ICS: 33.180.99 - Other fibre optic equipment
• Technical Committee: CLC/SR 86C - Fibre optic systems and active devices
• Drafting Committee: IEC/SC 86C - IEC_SC_86C
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 22-Jul-2016
• Completion Date: 22-Jul-2016
• Ref Project: SIST EN 62343-3-2:2016 - Dynamic modules - Part 3-2: Performance specification templates - Optical channel monitor (IEC 62343-3-2:2016)

Overview

EN 62343-3-2:2016 (IEC 62343-3-2:2016) is a performance specification template for optical channel monitors (OCM) within the Dynamic Modules family. The document provides a standardized framework for specifying OCM performance parameters used in dense wavelength-division multiplexing (DWDM) systems. It is intended to be included in product or performance specifications - required parameters must be retained, while additional parameters may be added for detailed product requirements. The OCM template supports applications such as ROADM-based power equalization and continuous channel monitoring.

Key topics and technical requirements

• Template structure and R/O designations: Table 1 in the standard lists performance parameters and marks each as Required (R) or Optional (O) to form a minimal, consistent specification.
• Channel and spectral parameters:
  • Input channel plan and channel frequency range
  • Channel frequency spacing tolerance and frequency error / resolution
  • Reference measurement bandwidth and noise-equivalent bandwidth
• Power and OSNR metrics:
  • Input channel power dynamic range, non‑uniformity, absolute/relative error, variability and resolution intervals
  • Total band power dynamic range and errors
  • OSNR dynamic range, absolute/relative error, variability and resolution
• Polarization and reflection:
  • Polarization dependent errors for channel power, frequency and OSNR
  • Back reflection specification
• Performance timing and environmental:
  • Response time and repeatability time interval
  • Operating and storage temperature and relative humidity ranges
• Test method links: The template references established test standards for measurement methods (e.g., IEC 61280‑2‑9 for OSNR, IEC 61300‑3‑21 for switching/response time, IEC 61300‑3‑29 for spectral transfer characteristics).

Applications and users

Who uses EN 62343-3-2:2016:

• OCM manufacturers - to produce consistent, testable product specifications
• System integrators and DWDM equipment vendors - for component selection and interoperability with ROADMs
• Network operators and designers - to define monitoring requirements for live optical networks and power-equalization control loops
• Test laboratories and procurement teams - to verify compliance and evaluate OCM performance against a standardized template

Practical uses:

• Specifying minimum and optional OCM performance items for DWDM links
• Guiding acceptance tests and factory verification
• Ensuring OCM data quality for dynamic power balancing in ROADM nodes

Related standards

• IEC 61280-2-9 - Optical SNR measurement for DWDM systems
• IEC 61300-3-21 - Switching time / response time tests
• IEC 61300-3-29 - Spectral transfer characteristics of DWDM devices
• IEC 62074-1 - WDM device generic specification
• IEC 62343 - Dynamic modules general guidance

Keywords: EN 62343-3-2:2016, optical channel monitor (OCM), performance specification template, DWDM, ROADM, dynamic modules.

Standards Content (Sample)

SLOVENSKI STANDARD
01-oktober-2016
'LQDPLþQLPRGXOLGHO3UHGORJH]DWHKQLþQHVSHFLILNDFLMH2SWLþQLNDQDO]D
PRQLWRU,(&
Dynamic modules - Part 3-2: Performance specification templates - Optical channel
monitor (IEC 62343-3-2:2016)
Ta slovenski standard je istoveten z: EN 62343-3-2:2016
ICS:
33.180.20 3RYH]RYDOQHQDSUDYH]D Fibre optic interconnecting
RSWLþQDYODNQD devices
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN 62343-3-2

NORME EUROPÉENNE
EUROPÄISCHE NORM
July 2016
ICS 33.180.99; 33.180.01
English Version
Dynamic modules - Part 3-2: Performance specification
templates - Optical channel monitor
(IEC 62343-3-2:2016)
Dynamic modules - Part 3-2: Performance specification Dynamische Module - Teil 3-2: Vorlagen für
templates - Optical channel monitor Leistungsspezifikationen - Optische Kanalüberwachung
(IEC 62343-3-2:2016) (IEC 62343-3-2:2016)
This European Standard was approved by CENELEC on 2016-06-16. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2016 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 62343-3-2:2016 E

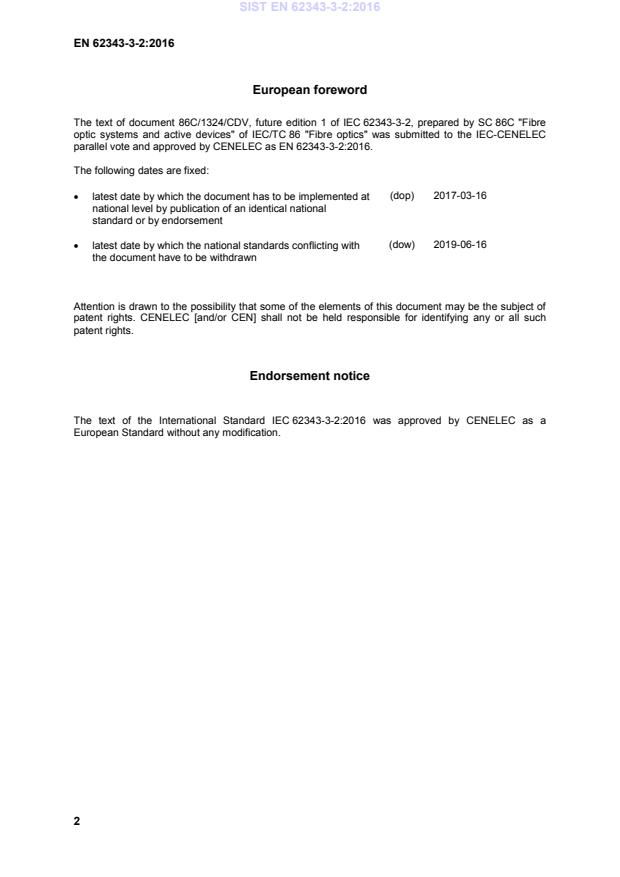

European foreword
The text of document 86C/1324/CDV, future edition 1 of IEC 62343-3-2, prepared by SC 86C "Fibre
optic systems and active devices" of IEC/TC 86 "Fibre optics" was submitted to the IEC-CENELEC
parallel vote and approved by CENELEC as EN 62343-3-2:2016.
The following dates are fixed:
(dop) 2017-03-16
• latest date by which the document has to be implemented at
national level by publication of an identical national
standard or by endorsement
• latest date by which the national standards conflicting with (dow) 2019-06-16
the document have to be withdrawn

Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
Endorsement notice
The text of the International Standard IEC 62343-3-2:2016 was approved by CENELEC as a
European Standard without any modification.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 61280-2-9 -  Fibre optic communication subsystem test EN 61280-2-9 -
procedures -- Part 2-9: Digital systems -
Optical signal-to-noise ratio measurement
for dense wavelength-division multiplexed
systems
IEC 61300-3-21 -  Fibre optic interconnecting devices and EN 61300-3-21 -
passive components - Basic test and
measurement procedures - Part 3-21:
Examinations and measurements -
Switching time
IEC 61300-3-29 -  Fibre optic interconnecting devices and EN 61300-3-29 -
passive components - Basic test and
measurement procedures -- Part 3-29:
Examinations and measurements -
Spectral transfer characteristics of DWDM
devices
IEC 62074-1 -  Fibre optic interconnecting devices and EN 62074-1 -
passive components - Fibre optic WDM
devices -- Part 1: Generic specification
IEC 62343 -  Dynamic modules - General and guidance EN 62343 -

IEC 62343-3-2 ®
Edition 1.0 2016-05
INTERNATIONAL
STANDARD
Dynamic modules –
Part 3-2: Performance specification templates – Optical channel monitor

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 33.180.99, 33.180.01 ISBN 978-2-8322-3364-1

– 2 – IEC 62343-3-2:2016 © IEC 2016
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references. 6
3 Terms and definitions . 6
4 Performance specification template . 6
Annex A (informative) Background and additional information on this specification
template . 9
A.1 Background information on the structure of this specification template . 9
A.1.1 Selecting “directionally correct” terminology . 9
A.1.2 Logical sequence of parameters in Table 1 . 9
A.1.3 Performance parameters hierarchical structure . 10
A.2 Additional information about reference measurement bandwidth . 10
Bibliography . 12

Table 1 – Optical channel monitor specification template . 7

IEC 62343-3-2:2016 © IEC 2016 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
DYNAMIC MODULES –
Part 3-2: Performance specification templates –
Optical channel monitor
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62343-3-2 has been prepared by subcommittee 86C: Fibre optic
systems and active devices, of IEC technical committee 86: Fibre optics.
The text of this document is based on the following documents:
CDV Report on voting
86C/1324/CDV 86C/1371/RVC
Full information on the voting for the approval of this document can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 62343 series, published under the general title Dynamic modules,
can be found on the IEC website.

– 4 – IEC 62343-3-2:2016 © IEC 2016
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

IEC 62343-3-2:2016 © IEC 2016 – 5 –
INTRODUCTION
An optical channel monitor (OCM) is a dynamic module that measures the optical
characteristics, mainly power and frequency, of each channel present in a dense wavelength
division multiplexing (DWDM) transmission line. The OCM is typically connected to an optical
tap coupler which directs to the OCM anywhere between 1 % and 5 % of the optical signal in
the fibre-optic transmission line. The data reported by the OCM are used in a reconfigurable
optical add/drop multiplexer (ROADM) to dynamically equalize the power in the optical
channels and to monitor the performance of the channels continuously over the lifetime of the
system.
– 6 – IEC 62343-3-2:2016 © IEC 2016
DYNAMIC MODULES –
Part 3-2: Performance specification templates –
Optical channel monitor
1 Scope
This part of IEC 62343 provides a performance specification template for optical channel
monitors. The objective of this performance specification template is to provide a framework
for the performance specification of the optical channel monitor.
Additional specification parameters may be included for detailed product specifications or
performance specifications. However, specification parameters specified in this document
should not be removed from the detail product specifications or performance specifications.
This document outlines the parameters that are used to specify the performance of the optical
channel monitor.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 61280-2-9, Fibre optic communication subsystem test procedures – Part 2-9: Digital
systems – Optical signal-to-noise ratio measurement for dense wavelength-division
multiplexed systems
IEC 61300-3-21, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 3-21: Examinations and measurements – Switching time
IEC 61300-3-29, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 3-29: Examinations and measurements – Spectral
transfer characteristics of DWDM devices
IEC 62074-1, Fibre optic interconnecting devices and passive components – Fibre optic WDM
devices – Part 1: Generic specification
IEC 62343, Dynamic modules – General and guidance
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 62343 and
IEC 61280-2-9 apply.
4 Performance specification template
This specification template is a comprehensive compilati
...
