SLOVENSKI STANDARD
SIST EN IEC 63009:2020
01-januar-2020
Ultrazvok - Fizioterapevtski sistemi - Poljske specifikacije in merilne metode v
frekvenčnem območju od 20 kHz do 500 kHz (IEC 63009:2019)

Ultrasonics - Physiotherapy systems - Field specifications and methods of measurement

in the frequency range 20 kHz to 500 kHz (IEC 63009:2019)
Ultraschall - Physiotherapiesysteme - Feldspezifikationen und Messmethoden im
Frequenzbereich 20 kHz bis 500 kHz (IEC 63009:2019)

Ultrasons - Systèmes de physiothérapie - Spécifications des champs et méthodes de

mesure dans la plage de fréquences de 20 kHz à 500 kHz (IEC 63009:2019)
Ta slovenski standard je istoveten z: EN IEC 63009:2019
ICS:
11.040.60 Terapevtska oprema Therapy equipment
SIST EN IEC 63009:2020 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN IEC 63009:2020
---------------------- Page: 2 ----------------------
SIST EN IEC 63009:2020
EUROPEAN STANDARD EN IEC 63009
NORME EUROPÉENNE
EUROPÄISCHE NORM
September 2019
ICS 17.140.50; 11.040.60
English Version
Ultrasonics - Physiotherapy systems - Field specifications and
methods of measurement in the frequency range 20 kHz to 500
kHz
(IEC 63009:2019)

Ultrasons - Systèmes de physiothérapie - Spécifications Ultraschall - Physiotherapiesysteme - Feldspezifikationen

des champs et méthodes de mesure dans la plage de und Messmethoden im Frequenzbereich 20 kHz bis 0,5

fréquences de 20 kHz à 500 kHz MHz
(IEC 63009:2019) (IEC 63009:2019)

This European Standard was approved by CENELEC on 2019-08-15. CENELEC members are bound to comply with the CEN/CENELEC

Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC

Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation

under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the

same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,

Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the

Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2019 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.

Ref. No. EN IEC 63009:2019 E
---------------------- Page: 3 ----------------------
SIST EN IEC 63009:2020
EN IEC 63009:2019 (E)

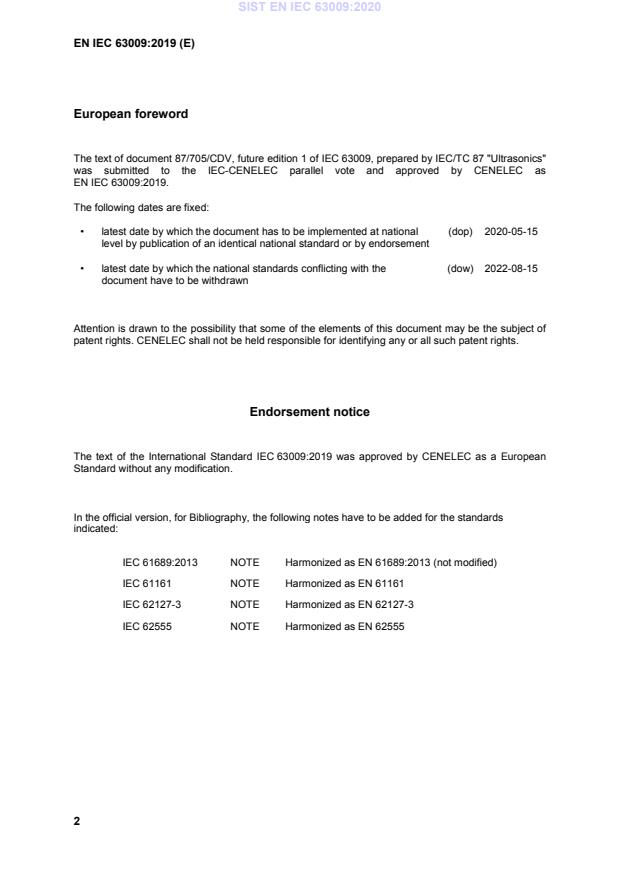

European foreword

The text of document 87/705/CDV, future edition 1 of IEC 63009, prepared by IEC/TC 87 "Ultrasonics"

was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as
EN IEC 63009:2019.
The following dates are fixed:

• latest date by which the document has to be implemented at national (dop) 2020-05-15

level by publication of an identical national standard or by endorsement

• latest date by which the national standards conflicting with the (dow) 2022-08-15

document have to be withdrawn

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.

Endorsement notice

The text of the International Standard IEC 63009:2019 was approved by CENELEC as a European

Standard without any modification.

In the official version, for Bibliography, the following notes have to be added for the standards

indicated:
IEC 61689:2013 NOTE Harmonized as EN 61689:2013 (not modified)
IEC 61161 NOTE Harmonized as EN 61161
IEC 62127-3 NOTE Harmonized as EN 62127-3
IEC 62555 NOTE Harmonized as EN 62555
---------------------- Page: 4 ----------------------
SIST EN IEC 63009:2020
EN IEC 63009:2019 (E)
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments)

applies.

NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the relevant

EN/HD applies.

NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available here:

www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60565 - Underwater acoustics - Hydrophones - Calibration in EN 60565 -
the frequency range 0,01 Hz to 1 MHz

IEC 60601-2-5 - Medical electrical equipment - Part 2-5: Particular EN 60601-2-5 -

requirements for the basic safety and essential
performance of ultrasonic physiotherapy equipment
IEC 62127-1 - Ultrasonics - Hydrophones - Part 1: Measurement EN 62127-1 -
and characterization of medical ultrasonic fields up to
40 MHz

IEC 62127-2 - Ultrasonics - Hydrophones - Part 2: Calibration for EN 62127-2 -

ultrasonic fields up to 40 MHz
---------------------- Page: 5 ----------------------
SIST EN IEC 63009:2020
---------------------- Page: 6 ----------------------
SIST EN IEC 63009:2020
IEC 63009
Edition 1.0 2019-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Ultrasonics – Physiotherapy systems – Field specifications and methods of
measurement in the frequency range 20 kHz to 500 kHz
Ultrasons – Systèmes de physiothérapie – Spécifications des champs et
méthodes de mesure dans la plage de fréquences de 20 kHz à 500 kHz
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 17.140.50; 11.040.60 ISBN 978-2-8322-7153-7

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 7 ----------------------
SIST EN IEC 63009:2020
– 2 – IEC 63009:2019  IEC 2019
CONTENTS

FOREWORD ........................................................................................................................... 4

INTRODUCTION ..................................................................................................................... 6

1 Scope .............................................................................................................................. 7

2 Normative references ...................................................................................................... 7

3 Terms and definitions ...................................................................................................... 8

4 Symbols ........................................................................................................................ 17

5 Ultrasonic field specifications ......................................................................................... 18

6 Conditions of measurement and test equipment used for field measurements ................ 19

6.1 General ................................................................................................................. 19

6.2 Test vessel ........................................................................................................... 20

6.3 Hydrophone .......................................................................................................... 20

6.4 RMS or peak signal measurement ......................................................................... 20

7 Type testing reference procedures and measurements .................................................. 21

7.1 General ................................................................................................................. 21

7.2 Rated output power ............................................................................................... 21

7.3 Hydrophone measurements .................................................................................. 21

7.4 Effective radiating area ......................................................................................... 22

7.5 Reference type testing parameters........................................................................ 23

7.6 Acceptance criteria for reference type testing ....................................................... 24

8 Routine measurement procedure ................................................................................... 24

8.1 General ................................................................................................................. 24

8.2 Rated output power ............................................................................................... 24

8.3 Effective radiating area ......................................................................................... 25

8.4 Beam non-uniformity ratio ..................................................................................... 25

8.5 Effective intensity.................................................................................................. 25

8.6 Acceptance criteria for routine testing ................................................................... 25

9 Sampling and uncertainty determination ........................................................................ 26

9.1 Reference type testing measurements .................................................................. 26

9.2 Routine measurements ......................................................................................... 26

9.3 Uncertainty determination ..................................................................................... 26

Annex A (informative) Guidance for performance and safety ............................................... 27

A.1 General ................................................................................................................. 27

A.2 Rated output power ............................................................................................... 27

A.3 Effective intensity.................................................................................................. 27

A.4 Beam non-uniformity ratio ..................................................................................... 27

A.4.1 General ......................................................................................................... 27

A.4.2 Rationale behind using a limiting value for the beam non-uniformity

ratio, R ...................................................................................................... 27

Annex B (normative) Raster scan measurement and analysis procedures ............................ 30

B.1 General ................................................................................................................. 30

B.2 Requirements for raster scans .............................................................................. 30

B.3 Requirements for analysis of raster scan data ....................................................... 30

B.3.1 General ......................................................................................................... 30

B.3.2 Total mean square acoustic pressure ............................................................ 31

B.3.3 Calculation of the beam cross-sectional area, A ...................................... 31

BCS
---------------------- Page: 8 ----------------------
SIST EN IEC 63009:2020
IEC 63009:2019  IEC 2019 – 3 –

Annex C (normative) Diametrical (line) scan measurement and analysis procedures............ 32

C.1 General ................................................................................................................. 32

C.2 Requirements for line scans .................................................................................. 32

C.3 Analysis of line scans ........................................................................................... 32

Bibliography .......................................................................................................................... 35

Table C.1 – Constitution of the transformed array [B] used for the analysis of half-line

scans .................................................................................................................................... 33

---------------------- Page: 9 ----------------------
SIST EN IEC 63009:2020
– 4 – IEC 63009:2019  IEC 2019
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ULTRASONICS – PHYSIOTHERAPY SYSTEMS – FIELD SPECIFICATIONS
AND METHODS OF MEASUREMENT IN THE FREQUENCY
RANGE 20 kHz TO 500 kHz
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 63009 has been prepared by technical committee 87: Ultrasonics.

The text of this International Standard is based on the following documents:
CDV Report on voting
87/705/CDV 87/714A/RVC

Full information on the voting for the approval of this International Standard can be found in

the report on voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

In this standard, the following print types are used:
---------------------- Page: 10 ----------------------
SIST EN IEC 63009:2020
IEC 63009:2019  IEC 2019 – 5 –
• Terms defined in Clause 3: bold type
• Compliance clauses: Arial Italic
• Symbols of quantities: Times New Roman + Italic

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 11 ----------------------
SIST EN IEC 63009:2020
– 6 – IEC 63009:2019  IEC 2019
INTRODUCTION

Ultrasound is used in medicine for the purposes of physiotherapy. Such equipment consists

of a generator of electrical energy and usually a hand-held treatment head, often

referred to as an applicator. The treatment head contains a transducer for converting the

electrical energy to ultrasound and is often designed for contact with the human body.

---------------------- Page: 12 ----------------------
SIST EN IEC 63009:2020
IEC 63009:2019  IEC 2019 – 7 –
ULTRASONICS – PHYSIOTHERAPY SYSTEMS – FIELD SPECIFICATIONS
AND METHODS OF MEASUREMENT IN THE FREQUENCY
RANGE 20 kHz TO 500 kHz
1 Scope

This International Standard is applicable to ultrasonic equipment designed for physiotherapy

containing an ultrasonic transducer generating ultrasound in the frequency range 20 kHz to

500 kHz.

This document only relates to ultrasonic physiotherapy equipment employing a single

plane non-focusing circular transducer per treatment head, producing static beams

perpendicular to the face of the treatment head.
This document specifies:
• methods of measurement and characterization of the output of ultrasonic
physiotherapy equipment based on reference testing methods;
• characteristics to be specified by manufacturers of ultrasonic physiotherapy
equipment;
• methods of measurement and characterization of the output of ultrasonic
physiotherapy equipment based on routine testing methods;

• acceptance criteria for aspects of the output of ultrasonic physiotherapy equipment.

The therapeutic value and methods of use of ultrasonic physiotherapy equipment are not

within the scope of this document.
Excluded equipment includes, but is not limited to:

• equipment in which ultrasound waves are intended to destroy conglomerates (for example

stones in the kidneys or the bladder) or tissue of any type;

• equipment in which a tool is driven by ultrasound (for example surgical scalpels,

phacoemulsifiers, dental scalers or intracorporeal lithotripters);

• equipment in which ultrasound waves are intended to sensitize tissue to further therapies

(for example radiation or chemotherapy);

• equipment in which ultrasound waves are intended to treat cancerous (i.e., malignant) or

pre-cancerous tissue, or benign masses, such as High Intensity Focused Ultrasound

(HIFU) or High Intensity Therapeutic Ultrasound (HITU).
2 Normative references

The following documents are referred to in the text in such a way that some or all of their

content constitutes requirements of this document. For dated references, only the edition

cited applies. For undated references, the latest edition of the referenced document (including

any amendments) applies.

IEC 60565, Underwater acoustics – Hydrophones – Calibration in the frequency range

0,01 Hz to 1 MHz

IEC 60601-2-5, Medical electrical equipment – Part 2-5: Particular requirements for the basic

safety and essential performance of ultrasonic physiotherapy equipment
---------------------- Page: 13 ----------------------
SIST EN IEC 63009:2020
– 8 – IEC 63009:2019  IEC 2019

IEC 62127-1, Ultrasonics – Hydrophones – Part 1: Measurement and characterization of

medical ultrasonic fields up to 40 MHz

IEC 62127-2, Ultrasonics – Hydrophones – Part 2: Calibration for ultrasonic fields up to

40 MHz
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
absolute maximum rated output power

sum of the rated output power, the 95 % confidence overall uncertainty in the rated output

power, and the maximum increase in the rated output power for a ±10 % variation in the rated

value of the mains voltage

Note 1 to entry: The possibility of variation in the rated output power resulting from ±10 % variation in the rated

value of the mains voltage should be checked by using a variable output transformer between the mains voltage

supply and the ultrasonic physiotherapy equipment. See Clause A.2 for further guidance.

Note 2 to entry: Absolute maximum rated output power is expressed in watts (W).
[SOURCE: IEC 61689:2013, 3.1]
3.2
active area coefficient

quotient of the active area gradient, m, and the beam cross-sectional area at 0,3 cm from

the face of the treatment head, A (0,3)
BCS

Note 1 to entry: Active area coefficient is expressed in units of one per metre (m ).

[SOURCE: IEC 61689:2013, 3.2]
3.3
active area gradient

ratio of the difference of the beam cross-sectional area at z , A (z ), and the beam

N BCS N

cross-sectional area at 0,3 cm from the face of the treatment head, A (0,3), divided by

BCS
the difference of the respective distances
[Az( )− A (03, )]
BCS N BCS
m= (1)
(z − 03,)
where
A is the beam cross-sectional area;
BCS

z is the distance of the last axial maximum of the RMS acoustic pressure from the face

of the treatment head;

Note 1 to entry: If z < 0,3 cm then A at a /λ or 2a, whichever is greater, should be used instead of A (z ),

N BCS BCS N
where a is the geometrical radius of the active element of the treatment head.
Note 2 to entry: Active area gradient is expressed in metres (m).
---------------------- Page: 14 ----------------------
SIST EN IEC 63009:2020
IEC 63009:2019  IEC 2019 – 9 –

[SOURCE: IEC 61689:2013, 3.3, modified – by defining the term "gradient" within the

definition and adding the equation to calculate the gradient.]
3.4
absolute maximum beam non-uniformity ratio

beam non-uniformity ratio plus the 95 % confidence overall uncertainty in the beam non-

uniformity ratio
[SOURCE: IEC 61689:2013, 3.4]
3.5
absolute maximum effective intensity

value of the effective intensity corresponding to the absolute maximum rated output

power and the absolute minimum effective radiating area from the equipment
[SOURCE: IEC 61689:2013, 3.5]
3.6
absolute minimum effective radiating area

effective radiating area minus the 95 % confidence overall uncertainty in the effective

radiating area
[SOURCE: IEC 61689:2013, 3.6]
3.7
acoustic working frequency
awf

frequency of an acoustic signal based on the observation of the output of a hydrophone

placed in an acoustic field at the position corresponding to the spatial-peak temporal-peak

acoustic pressure or 0,3 cm, whichever is greater

Note 1 to entry: The signal is analysed using either the zero-crossing acoustic-working frequency technique or

a spectrum analysis method. Acoustic-working frequencies are defined in 3.7.1 and 3.7.2.

Note 2 to entry: In a number of cases the present definition is not very helpful or convenient, especially for

broadband transducers. In that case a full description of the frequency spectrum should be given in order to

enable any frequency-dependent correction to the signal.
Note 3 to entry: Acoustic-working frequency is expressed in hertz (Hz).

[SOURCE: IEC 61689:2013, 3.7, modified – by adding a minimum measurement distance for

low frequencies for which the distance to the spatial-peak temporal-peak acoustic pressure

may be too close to the transducer to allow for hydrophone measurements.]
3.7.1
arithmetic-mean acoustic-working frequency

arithmetic mean of the most widely separated frequencies f and f , within the range of three

1 2

times f , at which the magnitude of the acoustic pressure spectrum is 3 dB below the peak

magnitude
Note 1 to entry: This frequency is intended for pulse-wave systems only.
Note 2 to entry: It is assumed that f < f .
1 2

Note 3 to entry: If f is not found within the range < 3f , f is to be understood as the lowest frequency above this

2 1 2
range at which the spectrum magnitude is 3 dB below the peak magnitude.
[SOURCE: IEC 61689:2013, 3.7.1]
---------------------- Page: 15 ----------------------
SIST EN IEC 63009:2020
– 10 – IEC 63009:2019  IEC 2019
3.7.2
zero-crossing acoustic-working frequency

number, n, of consecutive half-cycles (irrespective of polarity) divided by twice the time

between the commencement of the first half-cycle and the end of the n-th half-cycle

Note 1 to entry: None of the n consecutive half-cycles should show evidence of phase change.

Note 2 to entry: The measurement should be performed at terminals in the receiver that are as close as possible

to the receiving transducer (hydrophone) and, in all cases, before rectification.

Note 3 to entry: This frequency is determined according to the procedure specified in IEC TR 60854 [1] .

Note 4 to entry: This frequency is intended for continuous-wave systems only.
[SOURCE: IEC 61689:2013, 3.7.2]
3.8
acoustic pulse waveform

temporal waveform of the instantaneous acoustic pressure at a specified position in an

acoustic field and displayed over a period sufficiently long to include all significant acoustic

information in a single pulse or tone-burst, or one or more cycles in a continuous wave

Note 1 to entry: Temporal waveform is a representation (e.g. oscilloscope presentation or equation) of the

instantaneous acoustic pressure.
[SOURCE: IEC 61689:2013, 3.8]
3.9
acoustic repetition period
arp

pulse repetition period equal to the time interval between corresponding points of

consecutive cycles for continuous wave systems
Note 1 to entry: Acoustic repetition period is expressed in seconds (s).
[SOURCE: IEC 61689:2013, 3.9]
3.10
amplitude modulated wave

wave in which the ratio p 2 p at a distance on the beam alignment axis of either a /λ

tp RMS

or 2a, whichever is the more appropriate, is greater than 1,05, where p is the temporal-peak

acoustic pressure and p is the RMS acoustic pressure
RMS

[SOURCE: IEC 61689:2013, 3.10, modified – to allow for low frequencies for which the

distance a /λ may be too close to the transducer to allow hydrophone measurements.]

3.11
attachment head

accessory intended to be attached to the treatment head for the purpose of modifying the

ultrasonic beam characteristics
[SOURCE: IEC 60601-2-5:2009, 201-3-202]
—————————
Numbers in square brackets refer to the Bibliography.
---------------------- Page: 16 ----------------------
SIST EN IEC 63009:2020
IEC 63009:2019  IEC 2019 – 11 –
3.12
beam alignment axis

straight line joining two points of maximum RMS acoustic pressure on two plane surfaces

parallel to the face of the treatment head at specific distances

Note 1 to entry: One plane is at a distance of approximately a /λ, where a is the geometrical radius of the active

2 2

element of the treatment head. The second plane surface is at a distance of either 2a /λ or a /(3λ), whichever is

the more appropriate. For the purposes of alignment, this line may be projected to the face of the treatment head.

Note 2 to entry: As the beam alignment axis is used purely for the purposes of alignment, the definitions of

specific distances may be relaxed slightly to reflect the constraints of the measurement system employed. For

example, some treatment heads will have a /λ considerably greater than 12 cm, in which case a maximum

distance of 12 cm may be used to define the first plane. General guidelines for determining the beam alignment

axis are given in 7.3.

[SOURCE: IEC 61689:2013, 3.12, modified – The details of the plane surfaces have been

moved to a note to entry.]
3.13
beam cross-sectional area
BCS

minimum area in a specified plane perpendicular to the beam alignment axis for which the

sum of the mean square acoustic pressure is 75 % of the total mean square acoustic

pressure

Note 1 to entry: Beam cross-sectional area is expressed in units of metre squared (m ).

[SOURC
...
