EN IEC 60947-1:2021/prAA:2023
(Amendment)Low-voltage switchgear and controlgear - Part 1: General rules
Low-voltage switchgear and controlgear - Part 1: General rules
This Amendment A11 will revise EN IEC 60947-1:2021 to meet the essential requirements of Directive 2014/35/EU relating to low voltage and Directive 2014/30/EU relating to electromagnetic compatibility.
Niederspannungsschaltgeräte - Teil 1: Allgemeine Festlegungen
Appareillage à basse tension - Partie 1: Règles générales
Nizkonapetostne stikalne in krmilne naprave - 1. del: Splošna pravila - Dopolnilo AA
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
01-januar-2024
Nizkonapetostne stikalne in krmilne naprave - 1. del: Splošna pravila - Dopolnilo
AA
Low-voltage switchgear and controlgear - Part 1: General rules
Niederspannungsschaltgeräte - Teil 1: Allgemeine Festlegungen
Appareillage à basse tension - Partie 1: Règles générales
Ta slovenski standard je istoveten z: EN IEC 60947-1:2021/prAA:2023
ICS:
29.130.20 Nizkonapetostne stikalne in Low voltage switchgear and
krmilne naprave controlgear
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD DRAFT
EN IEC 60947-1:2021
NORME EUROPÉENNE
EUROPÄISCHE NORM
prAA
December 2023
ICS 29.130.20 -
English Version
Low-voltage switchgear and controlgear - Part 1: General rules
Appareillage à basse tension - Partie 1: Règles générales Niederspannungsschaltgeräte - Teil 1: Allgemeine
Festlegungen
This draft amendment prAA, if approved, will modify the European Standard EN IEC 60947-1:2021; it is submitted to CENELEC members
for enquiry.
Deadline for CENELEC: 2024-02-23.
It has been drawn up by CLC/TC 121A.
If this draft becomes an amendment, CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this amendment the status of a national standard without any alteration.
This draft amendment was established by CENELEC in three official versions (English, French, German).
A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to
the CEN-CENELEC Management Centre has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Project: 77578 Ref. No. EN IEC 60947-1:2021/prAA:2023 E

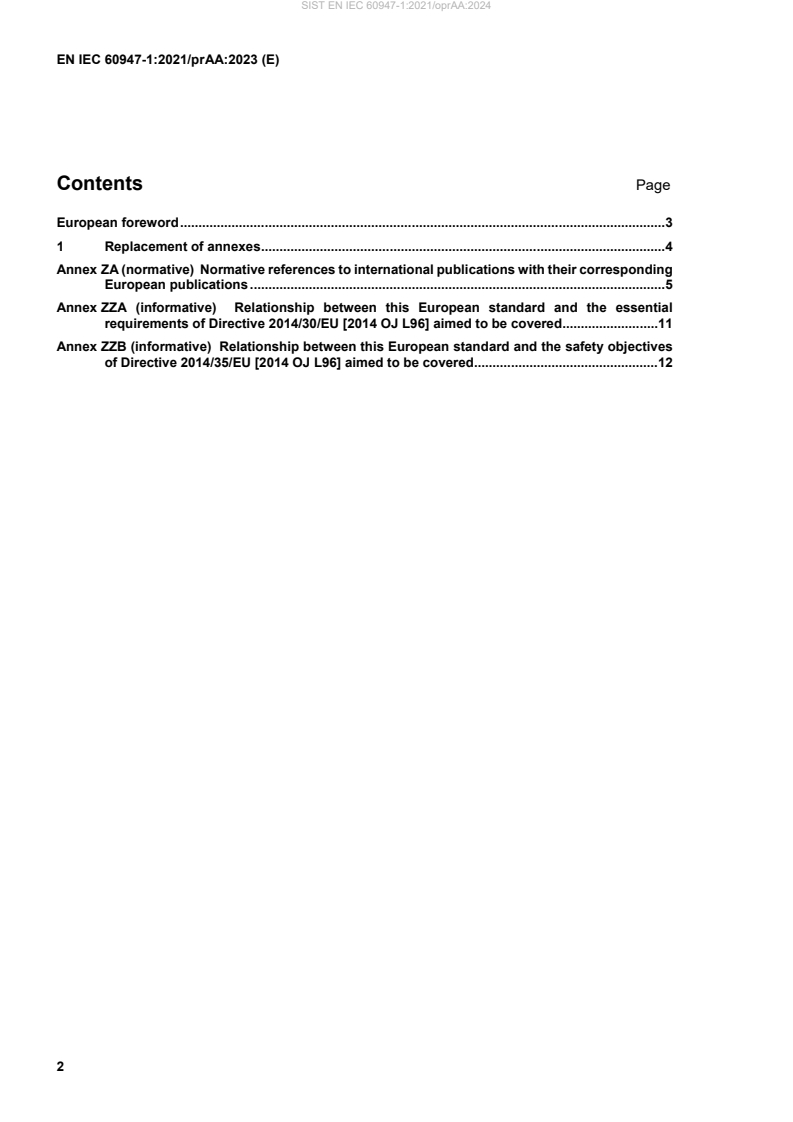

Contents Page
European foreword . 3
1 Replacement of annexes . 4
Annex ZA (normative) Normative references to international publications with their corresponding
European publications . 5
Annex ZZA (informative) Relationship between this European standard and the essential
requirements of Directive 2014/30/EU [2014 OJ L96] aimed to be covered .11
Annex ZZB (informative) Relationship between this European standard and the safety objectives
of Directive 2014/35/EU [2014 OJ L96] aimed to be covered .12
European foreword
This document (EN IEC 60947-1:2021/prAA:2023) has been prepared by CLC/TC 121A “Low-voltage
switchgear and controlgear"
This document is currently submitted to the Enquiry.
The following dates are proposed:
• latest date by which the existence of this (doa) dor + 6 months
document has to be announced at national
level
• latest date by which this document has to be (dop) dor + 12 months
implemented at national level by publication of
an identical national standard or by
endorsement
• latest date by which the national standards (dow) dor + 36 months
conflicting with this document have to be (to be confirmed or
withdrawn modified when voting)
This document has been prepared under a standardization request addressed to CENELEC by the European
Commission. The Standing Committee of the EFTA States subsequently approves these requests for its
Member States.
For the relationship with EU Legislation, see informative Annexes ZZA and ZZB, which are an integral part of
this document.
1 Replacement of annexes
Replace Annexes ZA, ZZA and ZZB with the following:
“
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references, the
latest edition of the referenced document (including any amendments) applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 60038 (mod) 2009 IEC standard voltages EN 60038 2011
IEC 60068-1 2013 Environmental testing - Part 1: General and EN 60068-1 2014
guidance
IEC 60068-2-1 2007 Environmental testing - Part 2-1: Tests - Test A: EN 60068-2-1 2007
Cold
IEC 60068-2-2 2007 Environmental testing - Part 2-2: Tests - Test B: EN 60068-2-2 2007
Dry heat
IEC 60068-2-6 2007 Environmental testing - Part 2-6: Tests - Test Fc: EN 60068-2-6 2008
Vibration (sinusoidal)
IEC 60068-2-27 2008 Environmental testing - Part 2-27: Tests - Test EN 60068-2-27 2009
Ea and guidance: Shock
IEC 60068-2-30 2005 Environmental testing - Part 2-30: Tests - Test EN 60068-2-30 2005
Db: Damp heat, cyclic (12 h + 12 h cycle)
IEC 60068-2-52 2017 Environmental testing - Part 2: Tests - Test Kb: EN 60068-2-52 2018
Salt mist, cyclic (sodium chloride solution)
IEC 60068-2-78 2012 Environmental testing - Part 2-78: Tests - Test EN 60068-2-78 2013
Cab: Damp heat, steady state
IEC 60073 2002 Basic and safety principles for man-machine EN 60073 2002
interface, marking and identification - Coding
principles for indicators and actuators
IEC 60085 2007 Electrical insulation - Thermal evaluation and EN 60085 2008
designation
IEC 60092-504 2016 Electrical installations in ships - Part 504: - -
Automation, control and instrumentation
IEC 60216-2 - Electrical insulating materials - Thermal EN 60216-2 2005
endurance properties - Part 2: Determination of
thermal endurance properties of electrical
insulating materials - Choice of test criteria
IEC 60228 2004 Conductors of insulated cables EN 60228 2005
- - + AC 2005
Publication Year Title EN/HD Year
IEC 60269-1 2006 Low-voltage fuses - Part 1: General EN 60269-1 2007
requirements
+ A1 2009 + A1 2009
+ A2 2014 + A2 2014
IEC 60300-3-5 2001 Dependability management - Part 3-5: -
Application guide - Reliability test conditions and
statistical test principles
IEC/TR 60344 2007 Calculation of d.c. resistance of plain and coated - -
copper conductors of low-frequency cables and
wires - Application guide
IEC 60417 - Graphical symbols for use on equipment - -
IEC 60445 2017 Basic and safety principles for man-machine EN 60445 2017
interface, marking and identification -
Identification of equipment terminals, conductor
terminations and conductors
IEC 60447 2004 Basic and safety principles for man-machine EN 60447 2004
interface, marking and identification – Actuating
principles
IEC 60529 1989 Degrees of protection provided by enclosures (IP EN 60529 1991
Code)
+ A1 1999 + A1 2000
+ A2 2013 + A2 2013
- - + AC 1993
- - + AC 2016
IEC 60617 - Graphical symbols for diagrams - -
IEC 60664-1 2007 Insulation coordination for equipment within low- EN 60664-1 2007
voltage systems - Part 1: Principles,
requirements and tests
IEC 60695-2-10 2013 Fire hazard testing - Part 2-10: Glowing/hot-wire EN 60695-2-10 2013
based test methods - Glow-wire apparatus and
common test procedure
IEC 60695-2-11 2014 Fire hazard testing - Part 2-11: Glowing/hot-wire EN 60695-2-11 2014
based test methods - Glow-wire flammability test
method for end-products (GWEPT) (IEC 60695-
2-11:2014)
IEC 60695-2-12 - Fire hazard testing - Part 2-12: Glowing/hot-wire EN 60695-2-12 2010
based test methods - Glow-wire flammability
index (GWFI) test method for materials
- - + A1 2014
IEC 60695-11-10 2013 Fire hazard testing - Part 11-10: Test flames - 50 EN 60695-11-10 2013
W horizontal and vertical flame test methods
- - + AC 2014
IEC 60947-2 2016 Low-voltage switchgear and controlgear - Part 2: EN 60947-2 2017
Circuit-breakers
+ A1 2019 A1 2020
Publication Year Title EN/HD Year
IEC 60947-4-2 - Low-voltage switchgear and controlgear - Part 4- EN 60947-4-2 2012
2: Contactors and motor-starters - AC
semiconductor motor controllers and starters
IEC 60947-5 all parts Low-voltage switchgear and controlgear –: EN 60947-5-1 2017
Control circuit devices and switching elements
EN IEC 60947-5-2 2020
EN 60947-5-3 2013
EN 60947-5-4 2003
+ A1 2019
EN 60947-5-5 1997
+ A1 2005
+ A2 2017
+ A11 2013
EN 60947-5-6 2000
EN 60947-5-7 2003
EN IEC 60947-5-8 2021
EN 60947-5-9 2007
IEC 60947-5-1 - Low-voltage switchgear and controlgear - Part 5- EN 60947-5-1 2017
1: Control circuit dev
...
