IEC 62396-5:2014

Process management for avionics - Atmospheric radiation effects - Part 5: Assessment of thermal neutron fluxes and single event effects in avionics systems

IEC 62396-5:2014(E) provides a more precise definition of the threat that thermal neutrons pose to avionics as a second mechanism for inducing single event upset (SEU) in microelectronics. IEC 62396-5 addresses two main items:
- a detailed evaluation of the existing literature on measurements of the thermal flux inside of airliners, and
- an enhanced compilation of the thermal neutron SEU cross-section in currently available SRAM devices (more than 20 different devices). The net result of the reviews of these two different sets of data will be two ratios that are considered to be very important for leading to the ultimate objective of determining how large a threat is. This new edition includes the following technical changes with respect to the previous technical specification: document upgraded to an IEC international standard, change to title, updated references and bibliography, consideration of smaller geometries, addition of recent data on neutron cross-sections, etc.

General Information

• Status: Published
• Publication Date: 21-Aug-2014
• ICS: 03.100.50 - Production. Production management
• ICS: 31.020 - Electronic components in general
• ICS: 49.060 - Aerospace electric equipment and systems
• Technical Committee: TC 107 - Process management for avionics
• Current Stage: PPUB - Publication issued
• Start Date: 15-Sep-2014
• Completion Date: 22-Aug-2014

Relations

• Replaces: IEC TS 62396-5:2008 - Process management for avionics - Atmospheric radiation effects - Part 5: Guidelines for assessing thermal neutron fluxes and effects in avionics systems
• Effective Date: 05-Sep-2023

Standards Content (Sample)

IEC 62396-5 ®
Edition 1.0 2014-08
INTERNATIONAL
STANDARD
colour
inside
Process management for avionics – Atmospheric radiation effects –
Part 5: Assessment of thermal neutron fluxes and single event effects in
avionics systems
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 14
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 55 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
IEC 62396-5 ®
Edition 1.0 2014-08
INTERNATIONAL
STANDARD
colour
inside
Process management for avionics – Atmospheric radiation effects –

Part 5: Assessment of thermal neutron fluxes and single event effects in

avionics systems
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
S
ICS 03.100.50; 31.020; 49.060 ISBN 978-2-8322-1821-1

– 2 – IEC 62396-5:2014  IEC 2014

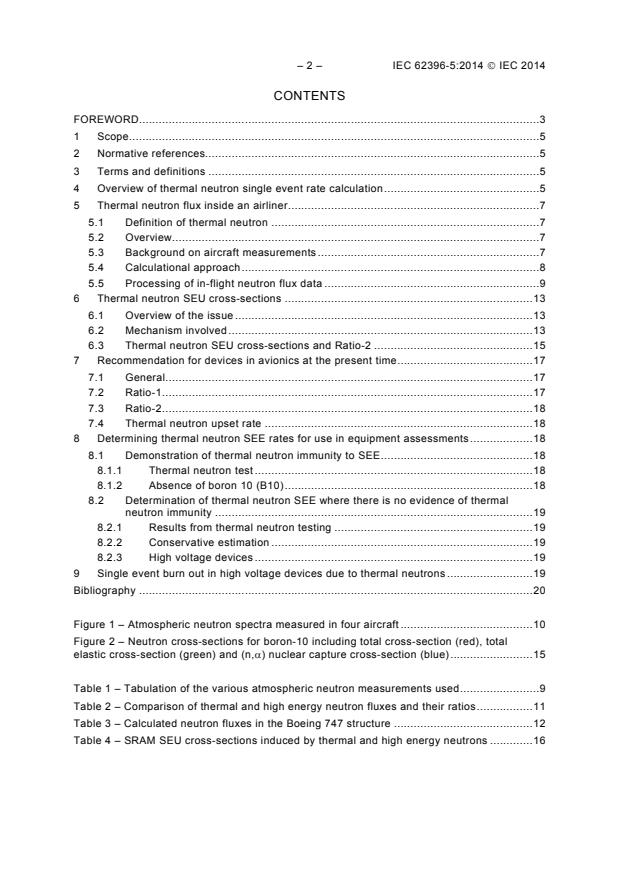

CONTENTS
