IEC 61010-2-010:2019
(Main)Safety requirements for electrical equipment for measurement, control and laboratory use - Part 2-010: Particular requirements for laboratory equipment for the heating of materials
Safety requirements for electrical equipment for measurement, control and laboratory use - Part 2-010: Particular requirements for laboratory equipment for the heating of materials
IEC 61010-2-010:2019 is available as IEC 61010-2-010:2019 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition.
IEC 61010-2-010:2019 specifies particular safety requirements for the following types a) to c) of electrical equipment and their accessories, wherever they are intended to be used, whenever the heating of materials is one of the functions of the equipment.
a) Electrical test and measurement equipment
This is equipment which by electromagnetic means tests, measures, indicates or records
one or more electrical or physical quantities, also non-measuring equipment such as
signal generators, measurement standards, power supplies for laboratory use,
transducers, transmitters, etc.
b) Electrical industrial process-control equipment
This is equipment which controls one or more output quantities to specific values, with
each value determined by manual setting, by local or remote programming, or by one or
more input variables.
c) Electrical laboratory equipment
This is equipment which measures, indicates, monitors, inspects or analyses materials, or
is used to prepare materials, and includes in vitro diagnostic (IVD) equipment. This fourth edition cancels and replaces the third edition published in 2014. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
a) alignment with changes introduced by Amendment 1 of IEC 61010-1:2010;
b) alignment with IEC 61010-2-011 and IEC 61010-2-012:
- new matching Introduction clarifying which standard(s) to use;
- new 5.4.101 instructions for flammable liquid;
- subclause 9.5 on flammable liquids replaced with text from IEC 61010-2-012;
c) subclause 5.2.101 deleted;
d) requirements in 10.101 b) and c) clarified.
It has the status of a group safety publication in accordance with IEC Guide 104.
Exigences de sécurité pour appareils électriques de mesurage, de régulation et de laboratoire - Partie 2-010: Exigences particulières pour appareils de laboratoire utilisés pour l'échauffement des matières
IEC 61010-2-010:2019 est disponible sous forme de IEC 61010-2-010:2019 RLV qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente.
L'IEC 61010-2-010:2019 spécifie les exigences de sécurité particulières pour les appareils électriques et leurs accessoires des types a) à c) suivants, quelle que soit l'utilisation à laquelle ils sont destinés, lorsque l'échauffement des matières est l'une des fonctions de l'appareil.
a) Appareils électriques d'essai et de mesurage
Il s'agit d'appareils qui, par des moyens d'ordre électromagnétique, mesurent, indiquent ou enregistrent une ou plusieurs grandeurs électriques ou physiques, ainsi que des appareils non-mesureurs tels que générateurs de signaux, étalons de mesure, alimentations de puissance de laboratoire, transducteurs, transmetteurs, etc.
b) Appareils électriques de contrôle de procédés industriels
Il s'agit d'appareils qui règlent une ou plusieurs grandeurs de sortie selon des valeurs spécifiques, chaque valeur étant déterminée par réglage manuel, par programmation locale ou à distance, ou par une ou plusieurs variables d'entrée.
c) Appareils électriques de laboratoire
Il s'agit d'appareils qui mesurent, indiquent, surveillent, inspectent ou analysent des matériaux, ou qui servent à préparer des matériaux, y compris les appareils de diagnostic in vitro (DIV). Cette quatrième édition annule et remplace la troisième édition parue en 2014. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) alignement sur les modifications introduites par l'Amendement 1 de l'IEC 61010-1:2010;
b) alignement sur l'IEC 61010-2-011 et l'IEC 61010-2-012:
- nouvelle Introduction précisant la ou les normes à utiliser;
- nouvelles instructions en 5.4.101 relatives aux liquides inflammables;
- le paragraphe 9.5 relatif aux liquides inflammables a été remplacé par le texte de l'IEC 61010-2-012;
c) le paragraphe 5.2.101 a été supprimé:
d) les exigences de 10.101 b) et c) ont été précisées;
General Information
Relations
Buy Standard
Standards Content (Sample)
IEC 61010-2-010 ®
Edition 4.0 2019-02
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
GROUP SAFETY PUBLICATION
Safety requirements for electrical equipment for measurement, control and
laboratory use –
Part 2-010: Particular requirements for laboratory equipment for the heating of
materials
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and Definitions clause of
IEC publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or CISPR.
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
IEC 61010-2-010 ®
Edition 4.0 2019-02
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
GROUP SAFETY PUBLICATION
Safety requirements for electrical equipment for measurement, control and
laboratory use –
Part 2-010: Particular requirements for laboratory equipment for the heating of
materials
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 19.080; 71.040.20 ISBN 978-2-8322-6577-2
– 2 – IEC 61010-2-010:2019 RLV © IEC 2019
CONTENTS
FOREWORD . 3
INTRODUCTION . 2
1 Scope and object . 9
2 Normative references . 10
3 Terms and definitions . 10
4 Tests . 10
5 Marking and documentation . 10
6 Protection against electric shock . 14
7 Protection against mechanical HAZARDS . 17
8 Resistance to mechanical stresses . 17
9 Protection against the spread of fire . 18
10 Equipment temperature limits and resistance to heat . 19
11 Protection against HAZARDS from fluids and solid foreign objects . 20
12 Protection against radiation, including laser sources, and against sonic and
ultrasonic pressure . 21
13 Protection against liberated gases and substances, explosion and implosion . 21
14 Components and subassemblies . 22
15 Protection by interlocks . 23
16 HAZARDS resulting from application . 23
17 RISK assessment . 23
Annexes . 24
Annex K (normative) Insulation requirements not covered by 6.7 . 25
Bibliography . 26
Figure 101 – Schema of a refrigerating system incorporating a condenser . 7
Figure 102 – Flow chart illustrating the selection process . 8
Table 1 – Symbols . 11
Table 101 – Time-temperature conditions . 21
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SAFETY REQUIREMENTS FOR ELECTRICAL EQUIPMENT
FOR MEASUREMENT, CONTROL AND LABORATORY USE –
Part 2-010: Particular requirements for laboratory
equipment for the heating of materials
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC
Publication(s)"). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This redline version of the official IEC Standard allows the user to identify the changes
made to the previous edition. A vertical bar appears in the margin wherever a change
has been made. Additions are in green text, deletions are in strikethrough red text.
– 4 – IEC 61010-2-010:2019 RLV © IEC 2019
International Standard IEC 61010-2-010 has been prepared by IEC technical committee 66:
Safety of measuring, control and laboratory equipment.
It has the status of a group safety publication in accordance with IEC Guide 104.
This fourth edition cancels and replaces the third edition published in 2014. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) alignment with changes introduced by Amendment 1 of IEC 61010-1:2010;
b) alignment with IEC 61010-2-011 and IEC 61010-2-012:
– new matching Introduction clarifying which standard(s) to use;
– new 5.4.101 instructions for flammable liquid HEAT TRANSFER MEDIUM;
– subclause 9.5 on flammable liquids replaced with text from IEC 61010-2-012;
c) subclause 5.2.101 deleted;
d) requirements in 10.101 b) and c) clarified.
The text of this International Standard is based on the following documents:
CDV Report on voting
66/657/CDV 66/678/RVC
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts of the IEC 61010 series, published under the general title: Safety
requirements for electrical equipment for measurement, control, and laboratory use, can be
found on the IEC website.
This Part 2-010 is to be used in conjunction with the latest edition of IEC 61010-1. It was
established on the basis of the third edition (2010) and its Amendment 1 (2016), hereinafter
referred to as Part 1.
This Part 2-010 supplements or modifies the corresponding clauses in IEC 61010-1 so as to
convert that publication into the IEC standard: Particular requirements for laboratory
equipment for the heating of materials.
Where a particular subclause of Part 1 is not mentioned in this Part 2-010, that subclause
applies as far as is reasonable. Where this Part 2-010 states "addition", "modification",
"replacement", or "deletion" the relevant requirement, test specification or note in Part 1
should be adapted accordingly.
In this standard:
1) the following print types are used:
– requirements: in roman type;
– NOTES in small roman type;
– conformity and test: in italic type;
– terms used throughout this standard which have been defined in Clause 3: SMALL
ROMAN CAPITALS;
2) subclauses, figures, tables and notes which are additional to those in Part 1 are numbered
starting from 101. Additional annexes are lettered starting from AA.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data related
to the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
– 6 – IEC 61010-2-010:2019 RLV © IEC 2019
INTRODUCTION
This Part 2-010, Part 2-011 and Part 2-012, taken together, address the specific HAZARDS
associated with the heating and cooling of materials by equipment and are organized as
follows:
Specifically addresses the HAZARDS associated with equipment incorporating heating
IEC 61010-2-010
systems.
Specifically addresses the HAZARDS associated with equipment incorporating
IEC 61010-2-011
refrigerating systems.
Specifically addresses the HAZARDS associated with equipment incorporating both
heating and refrigerating systems that interact with each other such that the combined
heating and cooling syste
...
IEC 61010-2-010 ®
Edition 4.0 2019-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
GROUP SAFETY PUBLICATION
PUBLICATION GROUPÉE DE SÉCURITÉ
Safety requirements for electrical equipment for measurement, control and
laboratory use –
Part 2-010: Particular requirements for laboratory
equipment for the heating of materials
Exigences de sécurité pour appareils électriques de mesurage, de régulation et
de laboratoire –
Partie 2-010: Exigences particulières pour appareils de laboratoire utilisés pour
l'échauffement des matières
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and Definitions clause of
IEC publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or CISPR.
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - Electropedia - www.electropedia.org
webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au
La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en
en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans
comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire
projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.
IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary
Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais
Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des
Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées
antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
IEC 61010-2-010 ®
Edition 4.0 2019-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
GROUP SAFETY PUBLICATION
PUBLICATION GROUPÉE DE SÉCURITÉ
Safety requirements for electrical equipment for measurement, control and
laboratory use –
Part 2-010: Particular requirements for laboratory
equipment for the heating of materials
Exigences de sécurité pour appareils électriques de mesurage, de régulation et
de laboratoire –
Partie 2-010: Exigences particulières pour appareils de laboratoire utilisés pour
l'échauffement des matières
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 19.080; 71.040.20 ISBN 978-2-8322-6502-4

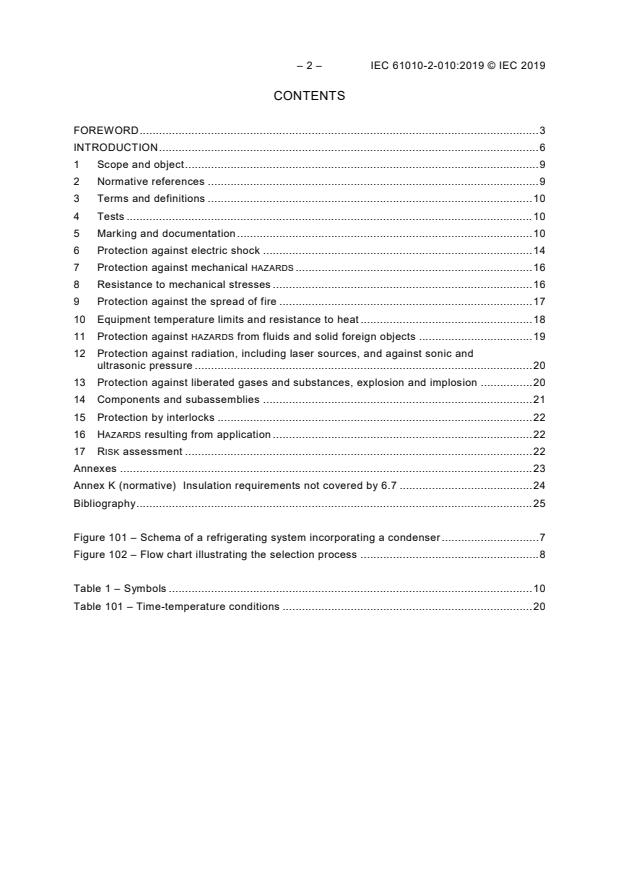

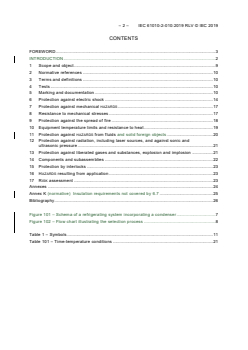

– 2 – IEC 61010-2-010:2019 © IEC 2019
CONTENTS
FOREWORD . 3
INTRODUCTION . 6
1 Scope and object . 9
2 Normative references . 9
3 Terms and definitions . 10
4 Tests . 10
5 Marking and documentation . 10
6 Protection against electric shock . 14
7 Protection against mechanical HAZARDS . 16
8 Resistance to mechanical stresses . 16
9 Protection against the spread of fire . 17
10 Equipment temperature limits and resistance to heat . 18
11 Protection against HAZARDS from fluids and solid foreign objects . 19
12 Protection against radiation, including laser sources, and against sonic and
ultrasonic pressure . 20
13 Protection against liberated gases and substances, explosion and implosion . 20
14 Components and subassemblies . 21
15 Protection by interlocks . 22
16 HAZARDS resulting from application . 22
17 RISK assessment . 22
Annexes . 23
Annex K (normative) Insulation requirements not covered by 6.7 . 24
Bibliography . 25
Figure 101 – Schema of a refrigerating system incorporating a condenser . 7
Figure 102 – Flow chart illustrating the selection process . 8
Table 1 – Symbols . 10
Table 101 – Time-temperature conditions . 20
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SAFETY REQUIREMENTS FOR ELECTRICAL EQUIPMENT
FOR MEASUREMENT, CONTROL AND LABORATORY USE –
Part 2-010: Particular requirements for laboratory
equipment for the heating of materials
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC
Publication(s)"). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61010-2-010 has been prepared by IEC technical committee 66:
Safety of measuring, control and laboratory equipment.
It has the status of a group safety publication in accordance with IEC Guide 104.
This fourth edition cancels and replaces the third edition published in 2014. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) alignment with changes introduced by Amendment 1 of IEC 61010-1:2010;
b) alignment with IEC 61010-2-011 and IEC 61010-2-012:
– 4 – IEC 61010-2-010:2019 © IEC 2019
– new matching Introduction clarifying which standard(s) to use;
– new 5.4.101 instructions for flammable liquid HEAT TRANSFER MEDIUM;
– subclause 9.5 on flammable liquids replaced with text from IEC 61010-2-012;
c) subclause 5.2.101 deleted;
d) requirements in 10.101 b) and c) clarified.
The text of this International Standard is based on the following documents:
CDV Report on voting
66/657/CDV 66/678/RVC
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all p
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
