Semiconductor devices - Discrete devices - Part 7: Bipolar transistors

IEC 60747-7:2010 gives the requirements applicable to the following sub-categories of bipolar transistors excluding microwave transistors.
- Small signal transistors (excluding switching and microwave applications);
- Linear power transistors (excluding switching, high-frequency, and microwave applications);
- High-frequency power transistors for amplifier and oscillator applications;
- Switching transistors for high speed switching and power switching applications;
- Resistor biased transistors. The main changes with respect to previous edition are listed below.
a) Clause 1 was amended by adding an item that should be included.
b) Clauses 3, 4, 5, 6 and 7 were amended by adding terms, definitions, suitable additions and deletions those should be included.
c) The text of the second edition was combined with that of IEC 60747-7-5.
This publication is to be read in conjunction with IEC 60747-1:2006.

Dispositifs à semiconducteurs - Dispositifs discrets - Partie 7: Transistors bipolaires

La CEI 60747-7:2010 donne les exigences applicables aux sous-catégories suivantes de transistors bipolaires, à l'exclusion des transistors micro-ondes.
- Transistors petits signaux (à l'exclusion des applications en commutation et en micro-ondes);
- Transistors de puissance linéaire (à l'exclusion des applications en commutation, à haute fréquence et en micro-ondes);
- Transistors de puissance haute fréquence pour applications en amplificateurs et en oscillateurs;
- Transistors de commutation pour applications en commutation à grande vitesse et en commutation de puissance;
- Transistors à résistances de polarisation. Les principaux changements par rapport à l'édition précédente sont énumérés ci-dessous.
a) L'article 1 a été amendé par l'ajout d'un élément qu'il convient d'inclure.
b) Les articles 3, 4, 5, 6 et 7 ont été amendés en ajoutant des termes et des définitions, ainsi que des ajouts et suppressions adaptés qu'il convient d'inclure.
c) Le texte de la deuxième édition a été combiné à la CEI 60747-7-5.
Cette publication doit être lue conjointement avec la CEI 60747-1:2006.

General Information

Status
Published
Publication Date
15-Dec-2010
Current Stage
PPUB - Publication issued
Start Date
16-Dec-2010
Completion Date
16-Dec-2010
Ref Project

Buy Standard

Standard
IEC 60747-7:2010 - Semiconductor devices - Discrete devices - Part 7: Bipolar transistors
English and French language
209 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC 60747-7
Edition 3.0 2010-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Semiconductor devices – Discrete devices –
Part 7: Bipolar transistors
Dispositifs à semiconducteurs – Dispositifs discrets –
Partie 7: Transistors bipolaires
IEC 60747-7:2010
---------------------- Page: 1 ----------------------

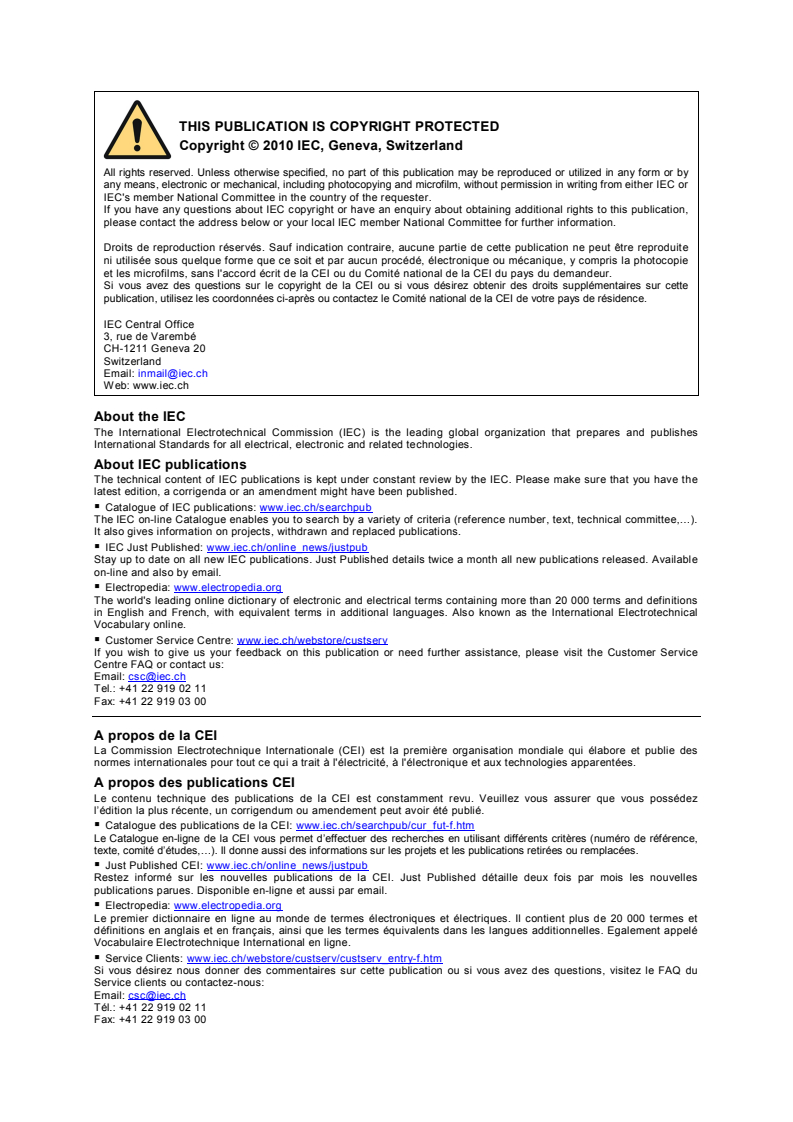

THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2010 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by

any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or

IEC's member National Committee in the country of the requester.

If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,

please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.

Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette

publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
§ Catalogue of IEC publications: www.iec.ch/searchpub

The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).

It also gives information on projects, withdrawn and replaced publications.
§ IEC Just Published: www.iec.ch/online_news/justpub

Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available

on-line and also by email.
§ Electropedia: www.electropedia.org

The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions

in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical

Vocabulary online.
§ Customer Service Centre: www.iec.ch/webstore/custserv

If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service

Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
A propos de la CEI

La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des

normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI

Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez

l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
§ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm

Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,

texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.

§ Just Published CEI: www.iec.ch/online_news/justpub

Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles

publications parues. Disponible en-ligne et aussi par email.
§ Electropedia: www.electropedia.org

Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et

définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé

Vocabulaire Electrotechnique International en ligne.
§ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm

Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du

Service clients ou contactez-nous:
Email: csc@iec.ch
Tél.: +41 22 919 02 11
Fax: +41 22 919 03 00
---------------------- Page: 2 ----------------------

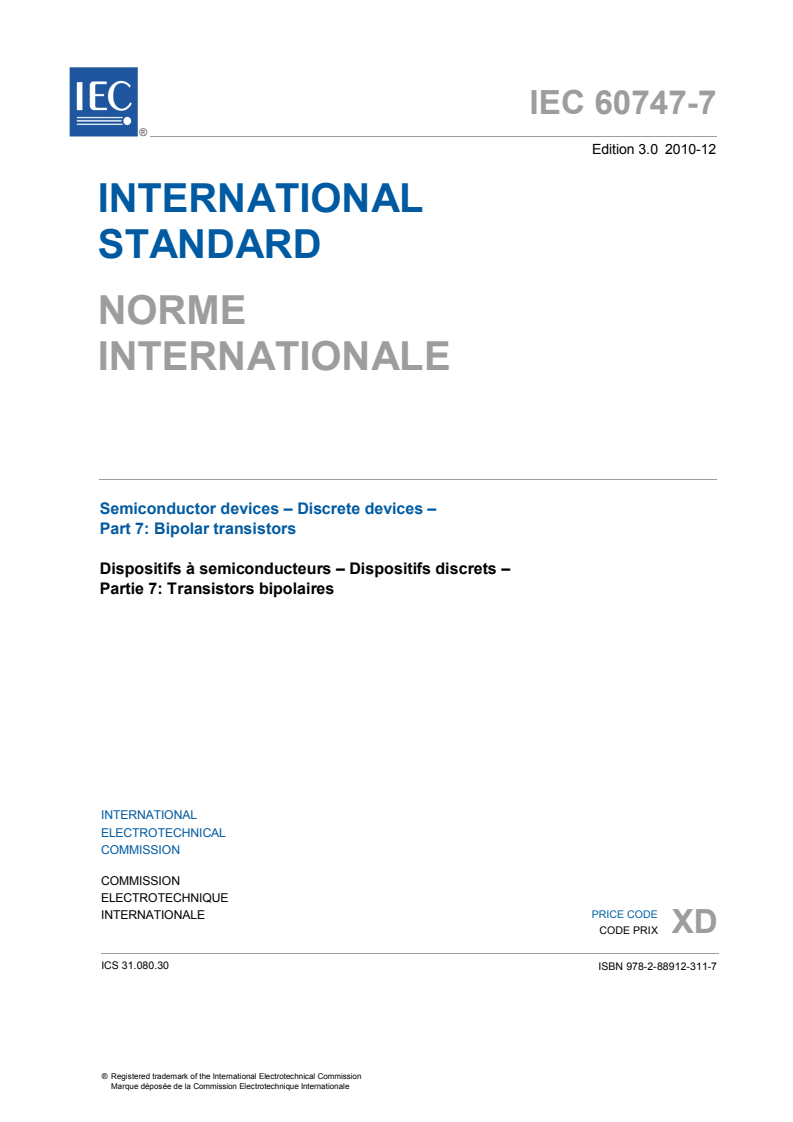

IEC 60747-7
Edition 3.0 2010-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Semiconductor devices – Discrete devices –
Part 7: Bipolar transistors
Dispositifs à semiconducteurs – Dispositifs discrets –
Partie 7: Transistors bipolaires
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX
ICS 31.080.30 ISBN 978-2-88912-311-7
® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

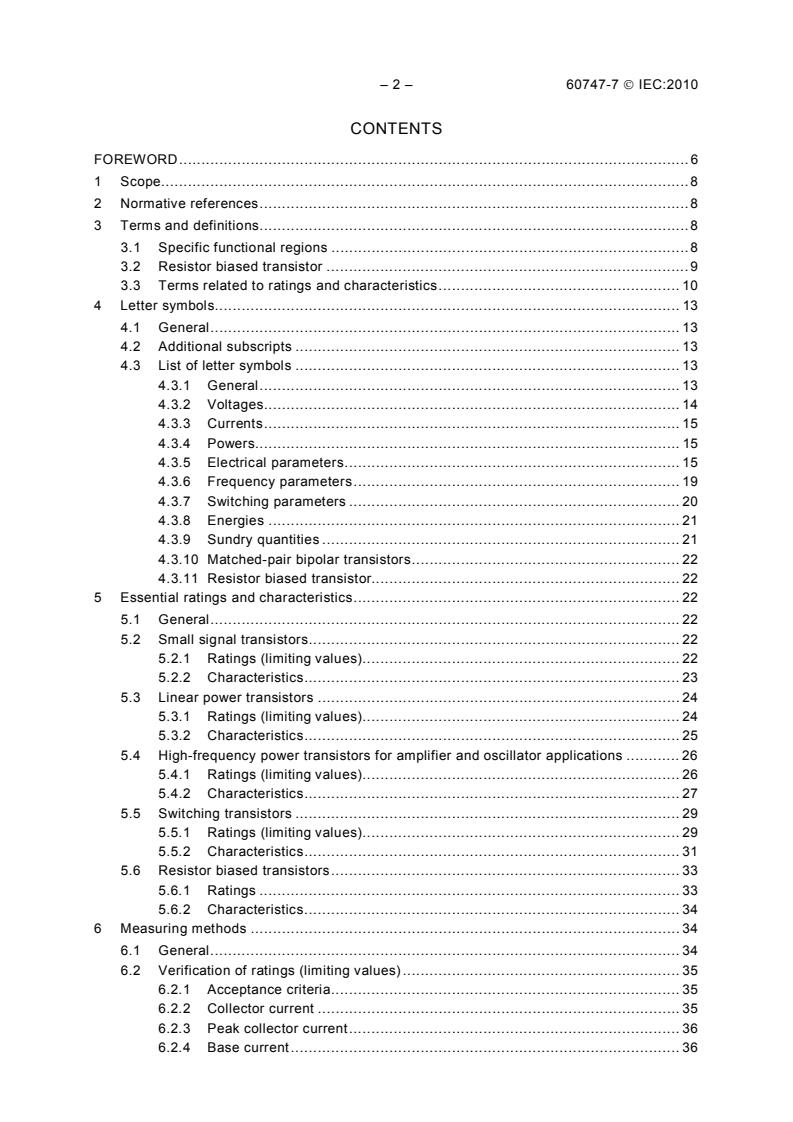

– 2 – 60747-7 Ó IEC:2010
