Electrostatics - Part 4-4: Standard test methods for specific applications - Electrostatic classification of flexible intermediate bulk containers (FIBC)

IEC 61340-4-4:2018 is also available as IEC 61340-4-4:2018 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition.
IEC 61340-4-4:2018 specifies requirements for flexible intermediate bulk containers (FIBC) between 0,25 m3 and 3 m3 in volume, intended for use in hazardous explosive atmospheres. The explosive atmosphere can be created by the contents in the FIBC or can exist outside the FIBC. The requirements include:
– classification and labelling of FIBC;
– classification of inner liners;
– specification of test methods for each type of FIBC, inner liner, labels and document pockets;
– design and performance requirements for FIBC, inner liners, labels and document pockets;
– safe use of FIBC (including those with inner liners) within different zones defined for explosion endangered environments, described for areas where combustible dusts are, or can be, present (IEC 60079-10-2), and for explosive gas atmospheres (IEC 60079-10-1);
– procedures for type qualification and certification of FIBC, including the safe use of inner liners. This third edition cancels and replaces the second edition, published in 2012, and Amendment 1:2014. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
a) in light of experimental evidence, the maximum resistance to ground limit for Type C FIBC, and corresponding resistance limits for inner liners used in Type C FIBC has been increased from 10 M ohms to 100 M ohms;
b) the classification of Type L1 inner liners has been revised and extended to include Type L1C inner liners made from multi-layer materials with a conductive internal layer;
c) a labelling requirement to include a reference to IEC TS 60079-32-1 for guidance on earthing has been added.

Électrostatique - Partie 4-4: Méthodes d'essai normalisées pour des applications spécifiques - Classification électrostatique des grands récipients pour vrac souples (GRVS)

IEC 61340-4-4:2018 est disponible sous forme de IEC 61340-4-4:2018 RLV qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente.
L'IEC 61340-4-4:2018 spécifie les exigences relatives aux grands récipients pour vrac souples (GRVS) dont le volume est compris entre 0,25 m3 et 3 m3, destinés à être utilisés dans des atmosphères explosives dangereuses. L'atmosphère explosive peut être créée par le contenu du GRVS ou peut exister à l'extérieur du GRVS. Les exigences comportent:
– la classification et l'étiquetage des GRVS;
– la classification des revêtements protecteurs intérieurs;
– la spécification des méthodes d'essai pour chaque type de GRVS, du revêtement protecteur intérieur, des étiquettes et des pochettes de documents;
– les exigences de conception et de performance des GRVS, des revêtements protecteurs intérieurs, des étiquettes et des pochettes de documents;
– l'utilisation sécurisée des GRVS (incluant ceux qui comportent des revêtements protecteurs intérieurs) dans des zones différentes définies pour des environnements présentant un danger d'explosion, décrite pour des zones où des poussières combustibles sont présentes ou peuvent être présentes (IEC 60079-10-2) et pour des atmosphères explosives gazeuses (IEC 60079-10-1);
– les procédures de qualification de type et de certification des GRVS, incluant l'utilisation sécurisée des revêtements protecteurs intérieurs. Cette troisième édition annule et remplace la deuxième édition, parue en 2012, et l'Amendement 1:2014. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) au vu des preuves expérimentales, la limite maximale de résistance de mise à la terre pour les GRVS de Type C, et les limites de résistance associées des revêtements protecteurs intérieurs utilisés dans les GRVS de Type C ont été augmentées de 10 M ohms à 100 M ohms;
b) la classification des revêtements protecteurs intérieurs de Type L1 a été révisée et étendue aux revêtements protecteurs intérieurs de Type L1C fabriqués à partir de matériaux multicouches ayant une couche interne conductrice;
c) une exigence relative à l'étiquetage permettant d'inclure une référence à l'IEC TS 60079-32-1 concernant les recommandations relatives à la mise à la terre a été ajoutée.

General Information

Status
Published
Publication Date
29-Jan-2018
Technical Committee
Current Stage
PPUB - Publication issued
Completion Date
30-Jan-2018
Ref Project

Buy Standard

Standard
IEC 61340-4-4:2018 - Electrostatics - Part 4-4: Standard test methods for specific applications - Electrostatic classification of flexible intermediate bulk containers (FIBC)
English and French language
97 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

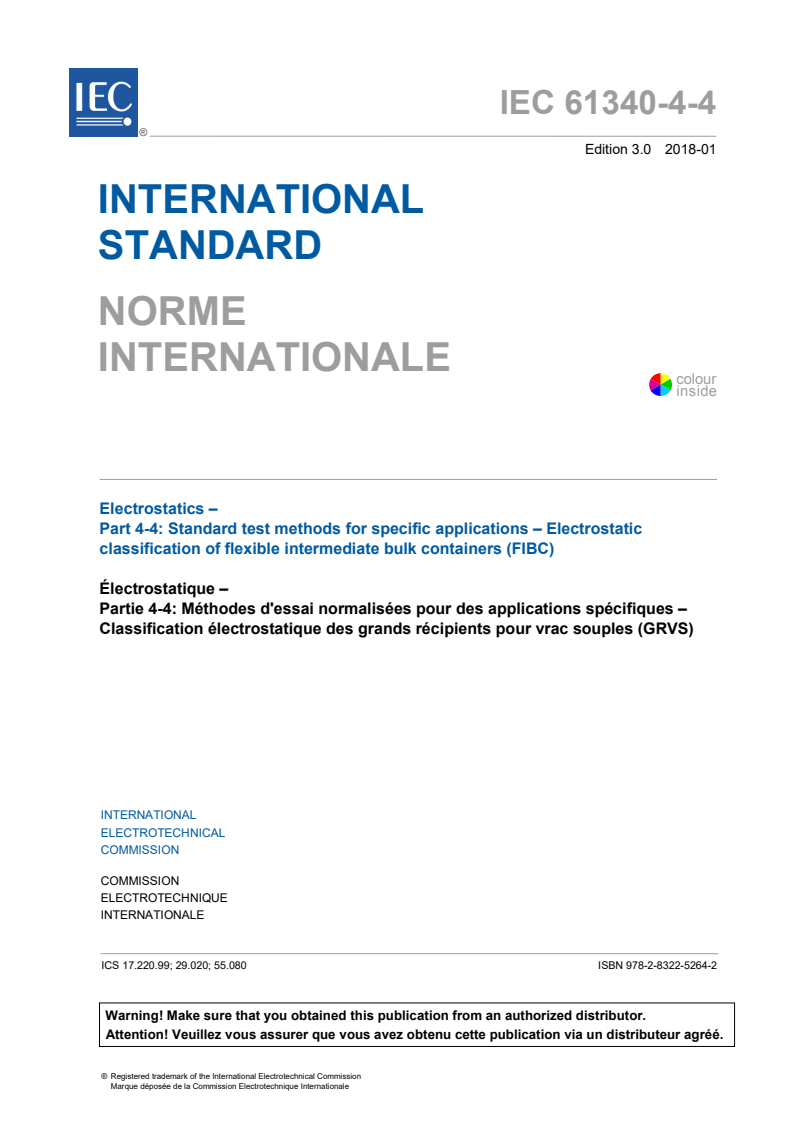

IEC 61340-4-4
Edition 3.0 2018-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Electrostatics –
Part 4-4: Standard test methods for specific applications – Electrostatic
classification of flexible intermediate bulk containers (FIBC)
Électrostatique –
Partie 4-4: Méthodes d'essai normalisées pour des applications spécifiques –
Classification électrostatique des grands récipients pour vrac souples (GRVS)
IEC 61340-4-4:2018-01(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2018 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org

The stand-alone application for consulting the entire The world's leading online dictionary of electronic and

bibliographical information on IEC International Standards, electrical terms containing 21 000 terms and definitions in

Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional

documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical

iPad. Vocabulary (IEV) online.

IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary

The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and

variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of

committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been

and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc

details all new publications released. Available online and If you wish to give us your feedback on this publication or

also once a month by email. need further assistance, please contact the Customer Service

Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 21 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC -
Glossaire IEC - std.iec.ch/glossary
webstore.iec.ch/advsearchform
67 000 entrées terminologiques électrotechniques, en anglais

La recherche avancée permet de trouver des publications IEC et en français, extraites des articles Termes et Définitions des

en utilisant différents critères (numéro de référence, texte, publications IEC parues depuis 2002. Plus certaines entrées

comité d’études,…). Elle donne aussi des informations sur les antérieures extraites des publications des CE 37, 77, 86 et

projets et les publications remplacées ou retirées. CISPR de l'IEC.

IEC Just Published - webstore.iec.ch/justpublished Service Clients - webstore.iec.ch/csc

Restez informé sur les nouvelles publications IEC. Just Si vous désirez nous donner des commentaires sur cette

Published détaille les nouvelles publications parues. publication ou si vous avez des questions contactez-nous:

Disponible en ligne et aussi une fois par mois par email. sales@iec.ch.
---------------------- Page: 2 ----------------------
IEC 61340-4-4
Edition 3.0 2018-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Electrostatics –
Part 4-4: Standard test methods for specific applications – Electrostatic
classification of flexible intermediate bulk containers (FIBC)
Électrostatique –
Partie 4-4: Méthodes d'essai normalisées pour des applications spécifiques –
Classification électrostatique des grands récipients pour vrac souples (GRVS)
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 17.220.99; 29.020; 55.080 ISBN 978-2-8322-5264-2

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------
– 2 – IEC 61340-4-4:2018 © IEC 2018

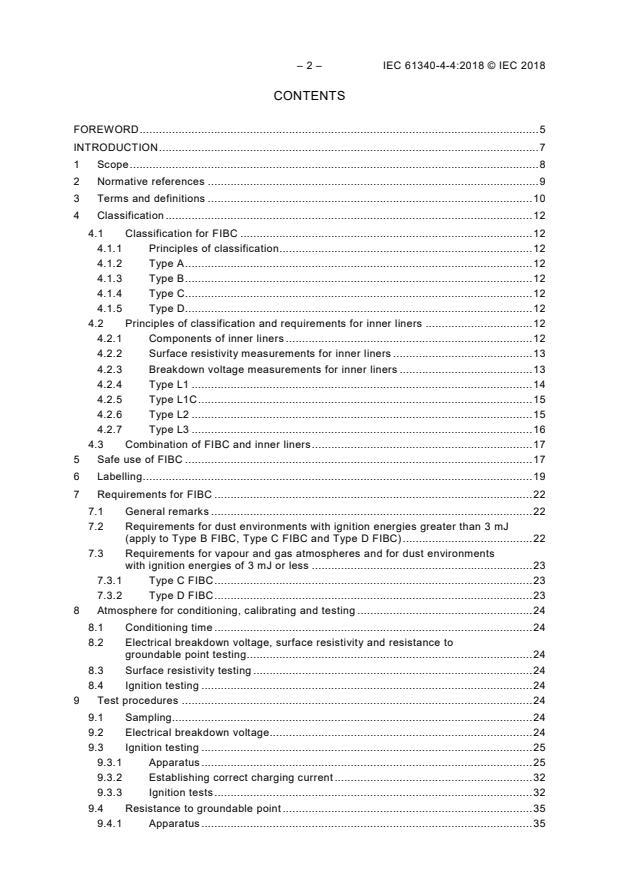

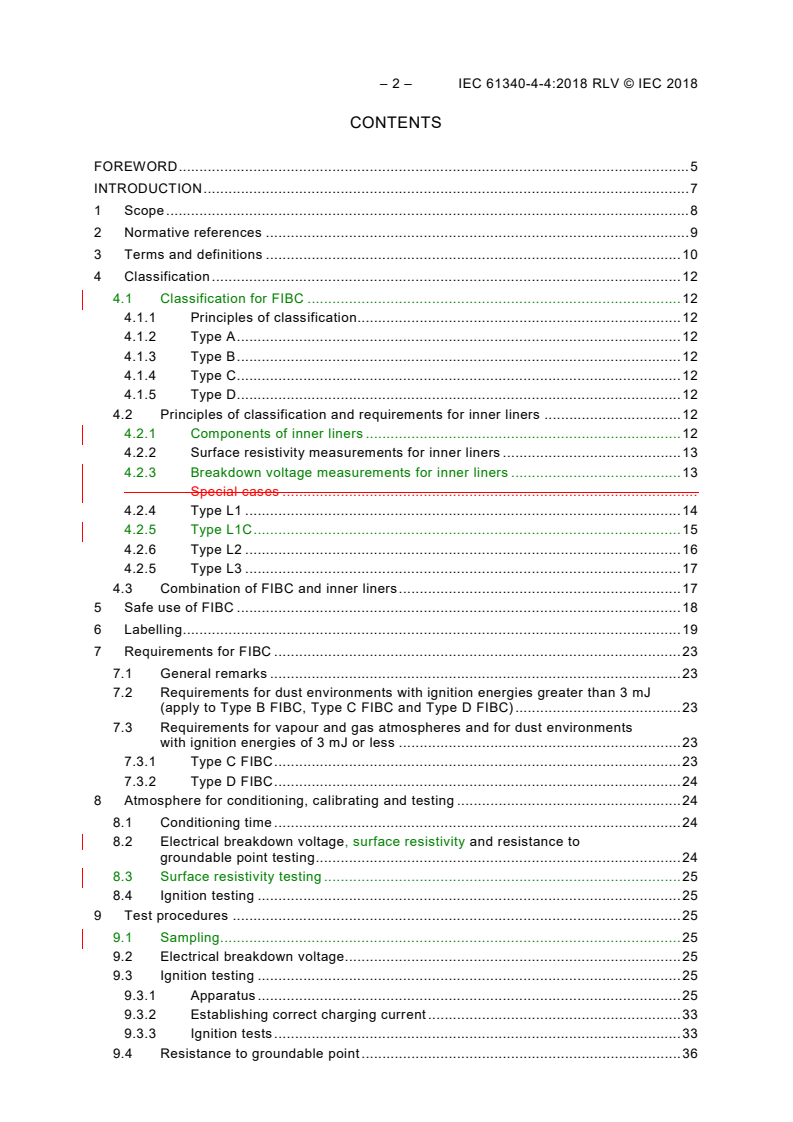

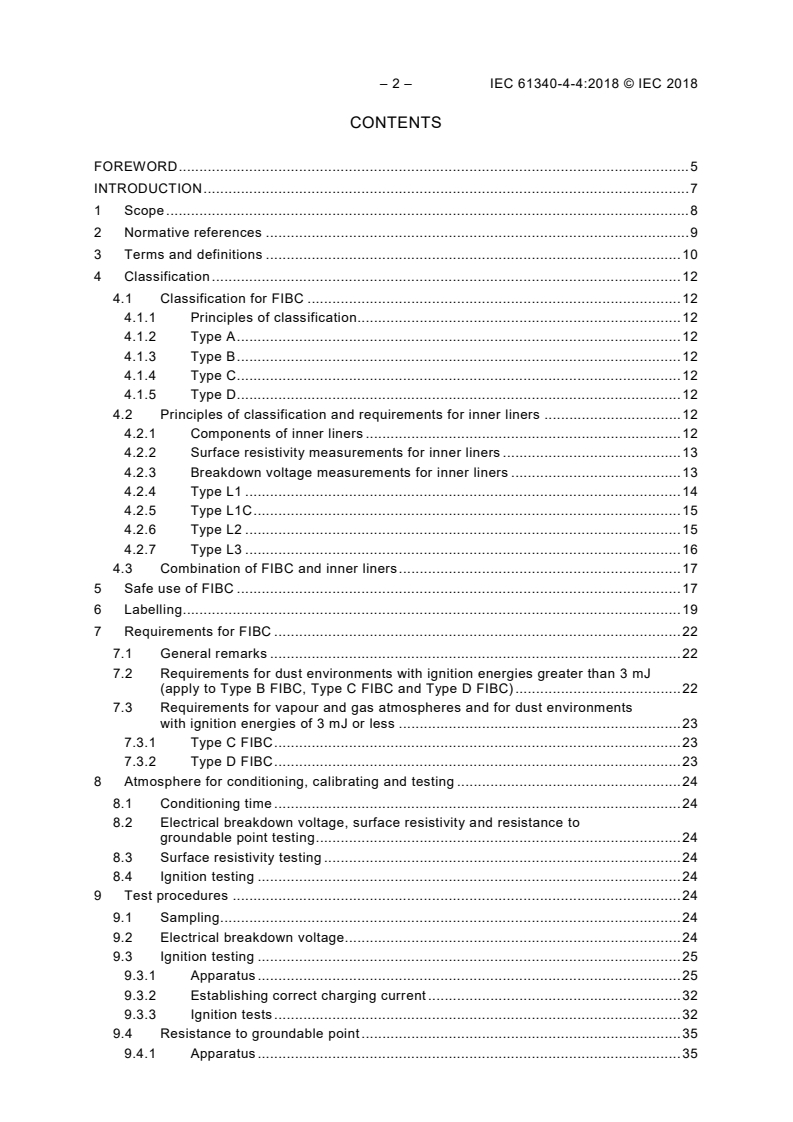

CONTENTS
