IEC 60384-3-1:2006

Fixed capacitors for use in electronic equipment - Part 3-1: Blank detail specification: Surface mount fixed tantalum electrolytic capacitors with manganese dioxide solid electrolyte - Assessment level EZ

IEC 60384-3-1:2006 is a bilingual version and corresponds to the English version. It is a supplementary document to the sectional specification and contains requirements for style, layout and minimum content of detail specifications. Detail specifications not complying with these requirements may not be considered as being in accordance with IEC specifications nor shall they so be described. It cancels and replaces the first edition published in 1989 and constitutes a minor revision related to tables, figures and references.

Condensateurs fixes utilisés dans les équipements électroniques - Partie 3-1: Spécification particulière cadre: Condensateurs fixes électrolytiques au tantale pour montage en surface, à électrolyte solide au dioxyde de manganèse - Niveau d'assurance EZ

La CEI 60384-3-1:2006 est une version bilingue et correspond à la version anglaise. Elle est un document annexe à la spécification intermédiaire qui contient des exigences pour le modèle, la disposition et le contenu minimum des spécifications particulières. Les spécifications particulières qui ne satisfont pas aux exigences peuvent ne pas être considérées comme conformes aux spécifications de la CEI et ne doivent pas être décrites comme telles. Elle annule et remplace la première édition publiée en 1989. Elle constitue une révision mineure des tableaux, valeurs et références.

General Information

• Status: Published
• Publication Date: 24-Oct-2006
• ICS: 01 - GENERALITIES. TERMINOLOGY. STANDARDIZATION. DOCUMENTATION
• ICS: 31.060.30 - Paper and plastics capacitors
• Technical Committee: TC 40 - Capacitors and resistors for electronic equipment
• Current Stage: PPUB - Publication issued
• Start Date: 31-Mar-2007
• Completion Date: 25-Oct-2006

Relations

• Revises: IEC 60384-3-1:1989 - Fixed capacitors for use in electronic equipment. Part 3: Blank detail specification: Fixed tantalum chip capacitors. Assessment level E
• Effective Date: 05-Sep-2023

Standards Content (Sample)

INTERNATIONAL IEC
STANDARD 60384-3-1
QC 300801
Second edition
2006-10
Fixed capacitors for use in electronic equipment –
Part 3-1:
Blank detail specification: Surface mount
fixed tantalum electrolytic capacitors with
manganese dioxide solid electrolyte –
Assessment level EZ
Reference number
Publication numbering
As from 1 January 1997 all IEC publications are issued with a designation in the

60000 series. For example, IEC 34-1 is now referred to as IEC 60034-1.

Consolidated editions
The IEC is now publishing consolidated versions of its publications. For example,

edition numbers 1.0, 1.1 and 1.2 refer, respectively, to the base publication, the

base publication incorporating amendment 1 and the base publication incorporating

amendments 1 and 2.
Further information on IEC publications
The technical content of IEC publications is kept under constant review by the IEC,
thus ensuring that the content reflects current technology. Information relating to
this publication, including its validity, is available in the IEC Catalogue of
publications (see below) in addition to new editions, amendments and corrigenda.
Information on the subjects under consideration and work in progress undertaken
by the technical committee which has prepared this publication, as well as the list
of publications issued, is also available from the following:
• IEC Web Site (www.iec.ch)
• Catalogue of IEC publications
The on-line catalogue on the IEC web site (www.iec.ch/searchpub) enables you to
search by a variety of criteria including text searches, technical committees
and date of publication. On-line information is also available on recently issued
publications, withdrawn and replaced publications, as well as corrigenda.
• IEC Just Published
This summary of recently issued publications (www.iec.ch/online_news/ justpub)
is also available by email. Please contact the Customer Service Centre (see
below) for further information.
• Customer Service Centre
If you have any questions regarding this publication or need further assistance,
please contact the Customer Service Centre:

Email: [e-mail]
Tel: [phone]
Fax: [phone]
INTERNATIONAL IEC
STANDARD 60384-3-1
QC 300801
Second edition
2006-10
Fixed capacitors for use in electronic equipment –
Part 3-1:
Blank detail specification: Surface mount
fixed tantalum electrolytic capacitors with
manganese dioxide solid electrolyte –
Assessment level EZ
© IEC 2006 ⎯ Copyright - all rights reserved
No part of this publication may be reproduced or utilized in any form or by any means, electronic or
mechanical, including photocopying and microfilm, without permission in writing from the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: [phone] Telefax: [phone] E-mail: [e-mail] Web: www.iec.ch
PRICE CODE
Commission Electrotechnique Internationale N
International Electrotechnical Commission
МеждународнаяЭлектротехническаяКомиссия
For price, see current catalogue

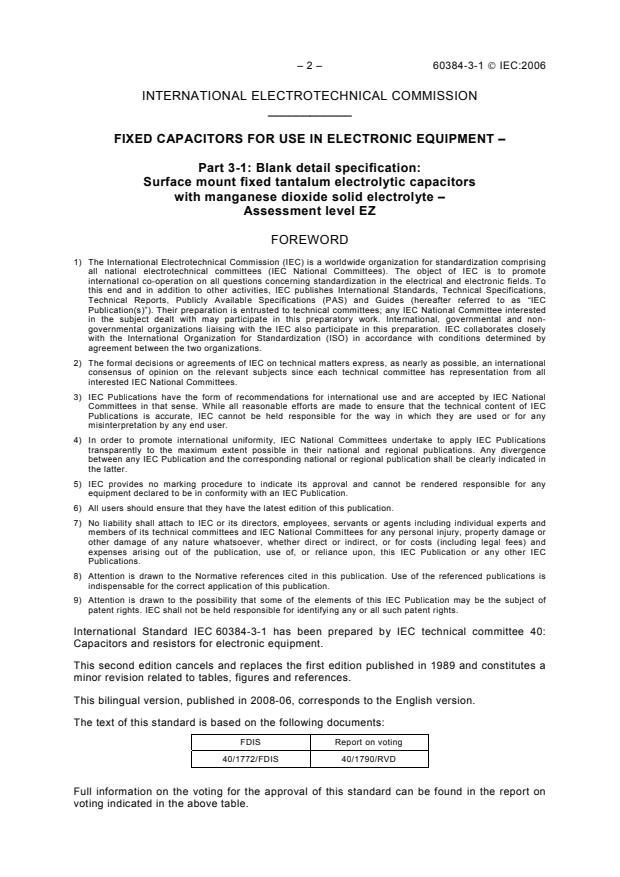

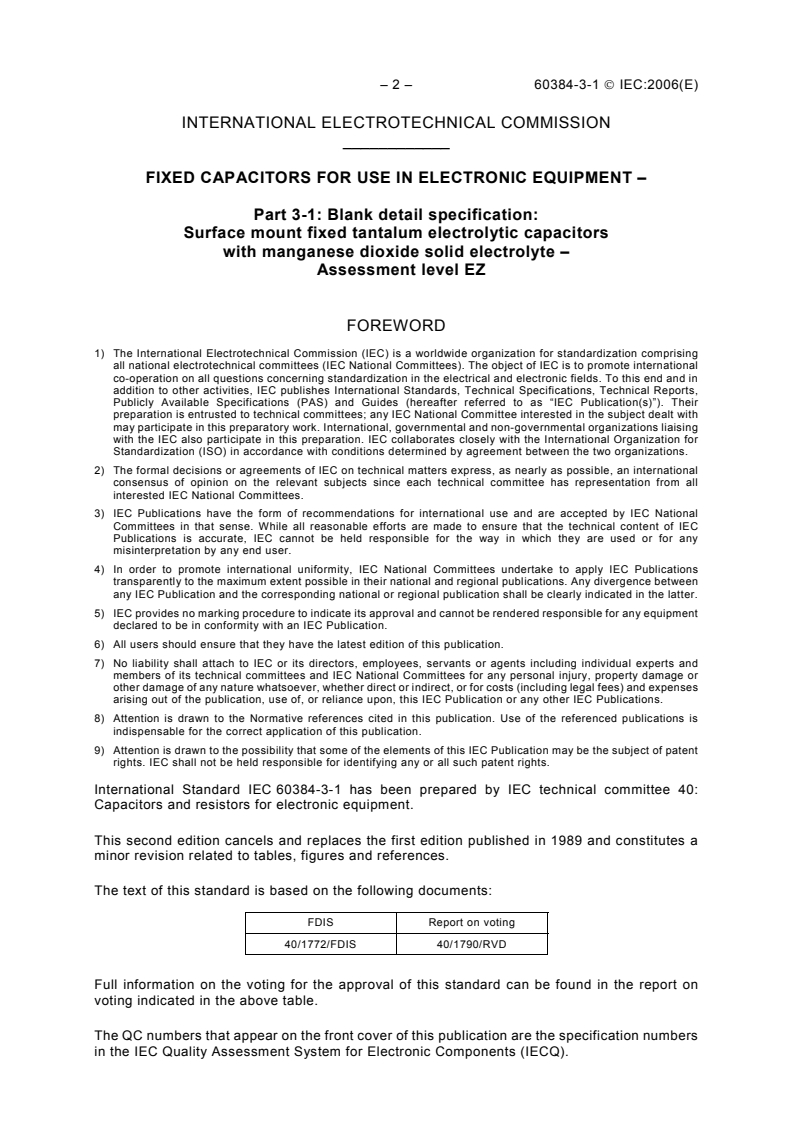

– 2 – 60384-3-1 © IEC:2006(E)
INTERNATIONAL ELECTROTECHNICAL COMMISSION

____________
FIXED CAPACITORS FOR USE IN ELECTRONIC EQUIPMENT –

Part 3-1: Blank detail specification:

Surface mount fixed tantalum electrolytic capacitors

with manganese dioxide solid electrolyte –

Assessment level EZ
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and in
addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any equipment
declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and expenses
arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60384-3-1 has been prepared by IEC technical committee 40:
Capacitors and resistors for electronic equipment.
This second edition cancels and replaces the first edition published in 1989 and constitutes a
minor revision related to tables, figures and references.
The text of this standard is based on the following documents:
FDIS Report on voting
40/1772/FDIS 40/1790/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
The QC numbers that appear on the front cover of this publication are the specification numbers
in the IEC Quality Assessment System for Electronic Components (IECQ).

60384-3-1 © IEC:2006(E) – 3 –
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all the parts of the IEC 60384 series, under the (new) general title Fixed capacitors for

use in electronic equipment, can be found on the IEC website.

The committee has decided that the contents of this publication will remain unchanged until the

maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in the data

related to the specific publication. At this date, the publication will be

• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

– 4 – 60384-3-1 © IEC:2006(E)
FIXED CAPACITORS FOR USE IN ELECTRONIC EQUIPMENT –

Part 3-1: Blank detail specification:

Surface mount fixed tantalum electrolytic capacitors

with manganese dioxide solid electrolyte –

Assessment level EZ
INTRODUCTION
Blank detail specification
A blank detail specification is a supplementary document to the sectional specification and
contains requirements for style, layout and minimum content of detail specifications. Detail
specifications not complying with these requirements may not be considered as being in
accordance with IEC specifications nor shall they so be described.
In the preparation of detail specifications, the content of 1.4 of the sectional specification shall
be taken into account.
The numbers between square brackets on the first page of the detail specification correspond to
the following information, which shall be inserted in the position indicated.
Identification of the detail specification
[1] The “International Electrotechnical Commission” or the National Standards Organization
under whose authority the detail specification is drafted.
[2] The IEC or National Standards number of the detail specification, date of issue and any
further information required by the national system.
[3] The number and issue number of the IEC or national generic specification.
[4] The IEC number of the blank detail specification.
Identification of the capacitor
[5] A short description of the type of capacitor.
[6] Information on typical construction (when applicable).

NOTE When the capacitor is not designed for use in printed circuit board applications, this is clearly stated in the
detail specification in this position.
[7] Outline drawing with main dimensions which are of importance for interchangeability and/or
reference to the national or international documents for outlines. Alternatively, this drawing
may be given in an annex to the detail specification.
[8] Application or group of applications covered and/or assessment level.
[9] Reference data on the most important properties, to allow comparison between the various
capacitor types.
60384-3-1 © IEC:2006(E) – 5 –
[1] IEC 60384-3-1-XXX [2]
QC 300801-XXX
ELECTRONIC COMPONENTS OF ASSESSED IEC 60384-3-1 [4]

QUALITY IN ACCORDANCE WITH: QC 300801

IEC 60384-1
IEC 60384-3
SURFACE MOUNT FIXED TANTALUM ELECTROLYTIC

CAPACITORS WITH MANGANESE DIOXIDE SOLID
ELECTROLYTE [5]
[3]
OUTLINE DRAWING: (see Table 1)
[6]
(first angle projection)
[7]
ASSESSMENT LEVEL(S): EZ [8]
(Other shapes are permitted within the dimensions
given.)
NOTE For [1] to [9]: see previous page.
[9]
Information on the availability of components qualified to this
detail specification is given in the Qualified Products List.
1 General data
1.1 Recommended method of mounting (to be inserted)
The capacitors are mounted by their terminations (see 1.3.2 and 4.3 of IEC 60384-3).
1.2 Dimensions
Table 1 – Case-size reference and dimensions
Case-size Dimensions
reference
mm or inches and mm
l h d .
∅
When there is no case-size reference, Table 1 may be omitted and the dimensions shall be given
in Table 2, which then becomes Table 1.

– 6 – 60384-3-1 © IEC:2006(E)
The dimensions shall be given as maximum dimensions or as nominal dimensions with a

tolerance.
1.3 Ratings and characteristics

Capacitance range (see Table 2)

Tolerance on rated capacitance

Rated voltage (see Table 2)
Category voltage (if applicable) (see Table 2)

Climatic category
Rated temperature
Variation of capacitance with temperature (see Table 3)
Tangent of loss angle
Leakage current (see Table 3)
Impedance (if applicable) (see Table 4)
Equivalent series resistance (ESR) (if required) (see Table 5)
Surge voltage
Table 2 – Values of capacitance and of voltage related to case sizes
Rated voltage
a
Category voltage
Case size Case size Case size Case size
Rated capacitance
(in μF)
a
If different from the rated voltage.

60384-3-1 © IEC:2006(E) – 7 –
Table 3 – Characteristics at high and low temperature

U C Capacitance change Maximum values
R R
V % Tangent of loss angle Leakage current
μF
% μA
a
T T T T 20 °C T T 20 °C T T
A R B A R B R B
T is the lower category temperature.
A
T is the upper category temperature.
B
T is the rated temperature.
R
a
Measured with the category voltage.

Table 4 – Impedance at 100 kHz (if required)
Case size Impedance
Ω
Table 5 – Equivalent series resistance (ESR) at 100 kHZ (if required)

Rated voltage U
R
V
Rated capacitance Maximum ESR
μF mΩ
– 8 – 60384-3-1 © IEC:2006(E)
1.4 Normative references
IEC 60286-3, Packaging of components for automatic handling – Part 3: Packaging of leadless

components on continuous tapes

IEC 60384-1, Fixed capacitors for use in electronic equipment – Part 1: Generic specification

IEC 60384-3, Fixed capacitors for use in electronic equipment – Part 3: Sectional specification:

Fixed surface mount tantalum capacitors

IEC 60410, Sampling plans and procedures for inspection by attributes

1.5 Marking
The marking of the capacitor (if applied) and the package shall be in accordance with the
requirements of IEC 60384-3, 1.6.
The details of the marking of the component and package shall be given in full in the detail
specification.
1.6 Ordering information
Orders for capacitors covered by this specification shall contain, in clear or in coded form, the
following minimum information:
a) rated capacitance;
b) tolerance on rated capacitance;
c) rated d.c. voltage;
d) number and issue reference of the detail specification and style reference;
e) packing (bulk or taped; if taped, according to IEC 60286-3).
1.7 Certified records of released lots
Required/not required.
1.8 Additional information (not for inspection purposes)
1.9 Additional or increased severities or requirements to those specified in the generic
and/or sectional specification

NOTE Additions or increased requirements should be specified only when essential.
Table 6 – Other characteristics
This table is to be used for defining chara
...

IEC 60384-3-1
Edition 2.0 2006-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
QC 300801
Fixed capacitors for use in electronic equipment –
Part 3-1: Blank detail specification: Surface mount fixed tantalum electrolytic
capacitors with manganese dioxide solid electrolyte – Assessment level EZ

Condensateurs fixes utilisés dans les équipements électroniques –
Partie 3-1: Spécification particulière cadre: Condensateurs fixes électrolytiques
au tantale pour montage en surface, à électrolyte solide au dioxyde de
manganèse – Niveau d’assurance EZ

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: [e-mail]
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: [e-mail]
Tel.: [phone]
Fax: [phone]
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
ƒ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
ƒ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: [e-mail]
Tél.: [phone]
Fax: [phone]
IEC 60384-3-1
Edition 2.0 2006-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
QC 300801
Fixed capacitors for use in electronic equipment –
Part 3-1: Blank detail specification: Surface mount fixed tantalum electrolytic
capacitors with manganese dioxide solid electrolyte – Assessment level EZ

Condensateurs fixes utilisés dans les équipements électroniques –
Partie 3-1: Spécification particulière cadre: Condensateurs fixes électrolytiques
au tantale pour montage en surface, à électrolyte solide au dioxyde de
manganèse – Niveau d’assurance EZ

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
N
CODE PRIX
ICS 31.060.30 ISBN 2-8318-9861-7

– 2 – 60384-3-1 © IEC:2006
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIXED CAPACITORS FOR USE IN ELECTRONIC EQUIPMENT –

Part 3-1: Blank detail specification:
Surface mount fixed tantalum electrolytic capacitors
with manganese dioxide solid electrolyte –
Assessment level EZ
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60384-3-1 has been prepared by IEC technical committee 40:
Capacitors and resistors for electronic equipment.
This second edition cancels and replaces the first edition published in 1989 and constitutes a
minor revision related to tables, figures and references.
This bilingual version, published in 2008-06, corresponds to the English version.
The text of this standard is based on the following documents:
FDIS Report on voting
40/1772/FDIS 40/1790/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.

60384-3-1 © IEC:2006 – 3 –
The French version of this standard has not been voted upon.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
The QC numbers that appear on the front cover of this publication are the specification
numbers in the IEC Quality Assessment System for Electronic Components (IECQ).
A list of all the parts of the IEC 60384 series, under the general title Fixed capacitors for use
in electronic equipment, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition; or
• amended.
– 4 – 60384-3-1 © IEC:2006
FIXED CAPACITORS FOR USE IN ELECTRONIC EQUIPMENT –

Part 3: Blank detail specification:
Surface mount fixed tantalum electrolytic capacitors
with manganese dioxide solid electrolyte –
Assessment level EZ
INTRODUCTION
Blank detail specification
A blank detail specification is a supplementary document to the sectional specification and
contains requirements for style, layout and minimum content of detail specifications. Detail
specifications not complying with these requirements may not be considered as being in
accordance with IEC specifications nor shall they so be described.
In the preparation of detail specifications, the content of 1.4 of the sectional specification shall
be taken into account.
The numbers between square brackets on the first page of the detail specification correspond
to the following information, which shall be inserted in the position indicated.
Identification of the detail specification
[1] The “International Electrotechnical Commission” (IEC) or the National Standards
Organization under whose authority the detail specification is drafted.
[2] The IEC or National Standards number of the detail specification, date of issue and any
further information required by the national system.
[3] The number and issue number of the IEC or national generic specification.
[4] The IEC number of the blank detail specification.
Identification of the capacitor
[5] A short description of the type of capacitor.
[6] Information on typical construction (when applicable).
NOTE When the capacitor is not designed for use in printed circuit board applications, this is clearly stated in
the detail specification in this position.
[7] Outline drawing with main dimensions which are of importance for interchangeability
and/or reference to the national or international documents for outlines. Alternatively, this
drawing may be given in an annex to the detail specification.
[8] Application or group of applications covered and/or assessment level.
[9] Reference data on the most important properties, to allow comparison between the
various capacitor types.
60384-3-1 © IEC:2006 – 5 –
[1] IEC 60384-3-1-XXX [2]
QC 300801-XXX
ELECTRONIC COMPONENTS OF ASSESSED IEC 60384-3-1 [4]
QUALITY IN ACCORDANCE WITH: QC 300801
IEC 60384-1
IEC 60384-3
SURFACE MOUNT FIXED TANTALUM ELECTROLYTIC

CAPACITORS WITH MANGANESE DIOXIDE SOLID
ELECTROLYTE [5]
[3]
OUTLINE DRAWING: (see Table 1)
[6]
(first angle projection)
[7]
ASSESSMENT LEVEL(S): EZ [8]
(Other shapes are permitted within the dimensions
given.)
NOTE For [1] to [9]: see previous page.
[9]
Information on the availability of components qualified to this
detail specification is given in the Qualified Products List.
1 General data
1.1 Recommended method of mounting (to be inserted)
The capacitors are mounted by their terminations (see 1.3.2 and 4.3 of IEC 60384-3).
1.2 Dimensions
Table 1 – Case-size reference and dimensions
Case-size Dimensions
reference
mm or inches and mm
l h d .
∅
When there is no case-size reference, Table 1 may be omitted and the dimensions shall be
given in Table 2, which then becomes Table 1.

– 6 – 60384-3-1 © IEC:2006
The dimensions shall be given as maximum dimensions or as nominal dimensions with a
tolerance.
1.3 Ratings and characteristics
Capacitance range (see Table 2)
Tolerance on rated capacitance
Rated voltage (see Table 2)
Category voltage (if applicable) (see Table 2)
Climatic category
Rated temperature
Variation of capacitance with temperature (see Table 3)
Tangent of loss angle
Leakage current (see Table 3)
Impedance (if applicable) (see Table 4)
Equivalent series resistance (ESR) (if required) (see Table 5)
Surge voltage
Table 2 – Values of capacitance and of voltage related to case sizes
Rated voltage
a
Category voltage
...
