ISO 447:1984

Machine tools - Direction of operation of controls

This second edition, which cancals and replaces ISO 447-1973, incorporates draft Amendment 1. Specifies rules for the direction of operation of controls whose function is to produce movement of controlled machine tool components in one or other of two opposing directions. Its scope does not include controls for components which rotate continuously in the same direction during the normal functioning of the machine.

Machines-outils — Sens de manoeuvre des organes de commande

General Information

• Status: Published
• Publication Date: 30-Apr-1984
• ICS: 25.080.01 - Machine tools in general
• Technical Committee: ISO/TC 39 - Machine tools
• Drafting Committee: ISO/TC 39 - Machine tools
• Current Stage: 9093 - International Standard confirmed
• Start Date: 04-Jan-2021
• Completion Date: 13-Dec-2025

Relations

• Revises: ISO 447:1973 - Machine tools - Direction of operation of controls
• Effective Date: 15-Apr-2008

Overview

ISO 447:1984 - Machine tools - Direction of operation of controls defines ergonomic and functional rules for the direction of operation of controls on machine tools. This second edition (1984) replaces ISO 447:1973 and applies to controls that produce movement of a machine tool component in one of two opposing directions. The standard explicitly excludes controls for components that rotate continuously in the same direction during normal machine functioning (for example, electric motor start/stop controls).

Key topics

• Scope and applicability
  • Rules apply to controls that cause opposing movements (linear or circular) of machine tool components.
  • Continuous-rotation controls (e.g., motors) are excluded.

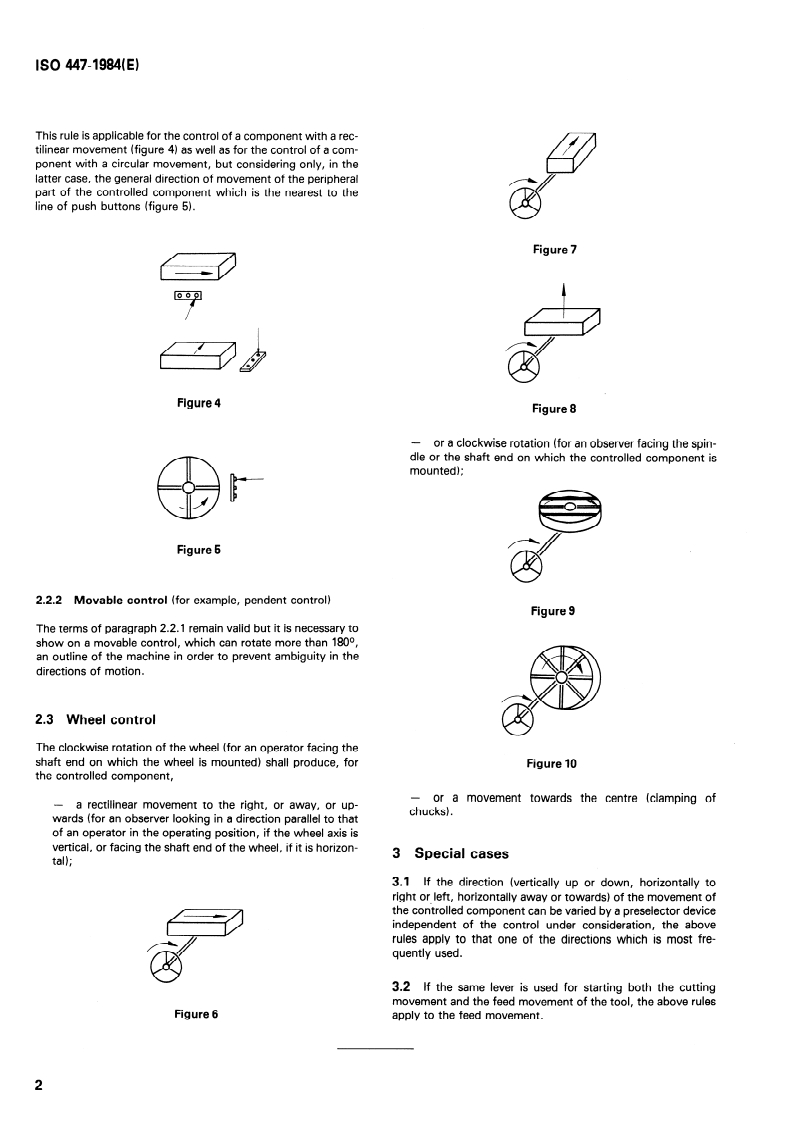

• Lever control
  • Lever travel should be oriented so the line joining extreme handle positions is approximately parallel to the controlled component’s rectilinear movement.
  • For circular movements, the lever’s rotation plane should be parallel to the component’s plane of rotation.

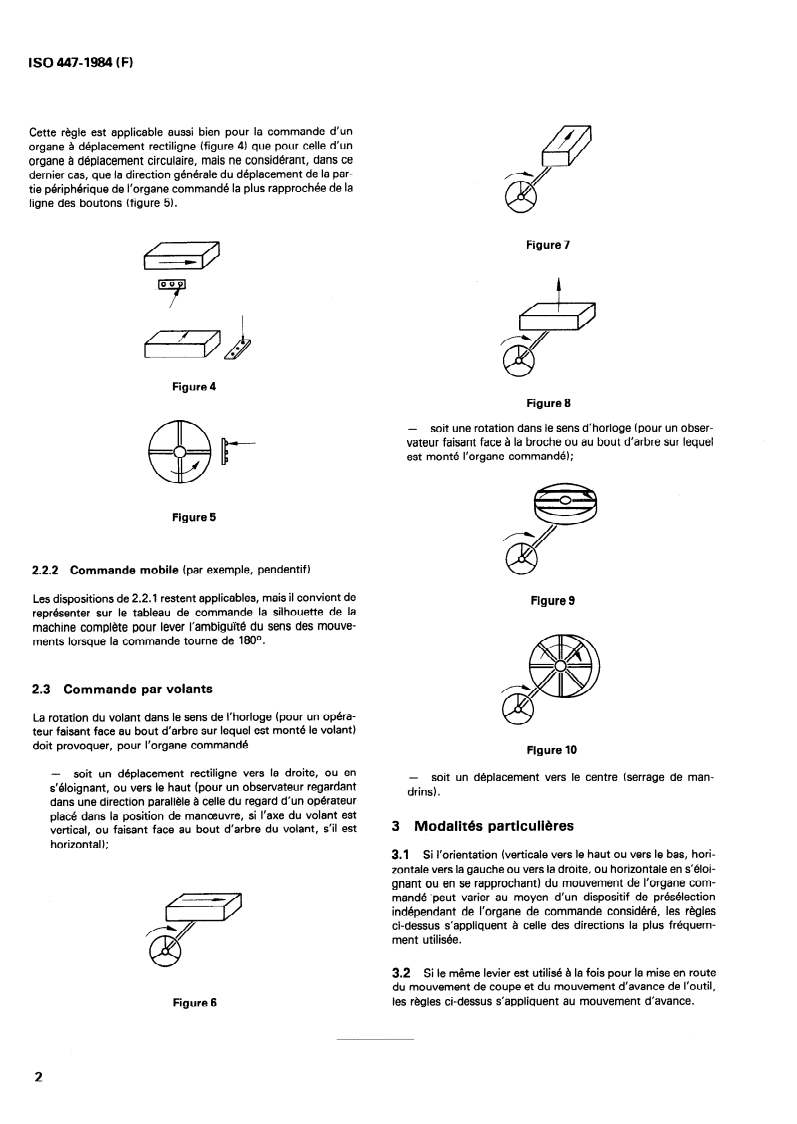

• Push-button control
  • Lines of fixed push-buttons should be placed parallel to the movement of the controlled component.
  • Operation of the right-hand, furthest, or top button should produce motion to the right, away, or upwards respectively (from the operator’s operating position).
  • For movable/pendant controls that can rotate >180°, an outline of the machine must be shown to avoid ambiguity.
• Wheel control
  • Clockwise rotation of a wheel (as seen by an operator facing the wheel shaft end) should produce:
    • movement towards the centre for clamping devices (chucks), or
    • rectilinear movement to the right, away, or upwards depending on wheel orientation.
• Special cases
  • If a preselector can change movement direction, the rules apply to the most frequently used direction.
  • If one lever starts both cutting and feed movements, rules apply to the feed movement.

Applications

• Machine tool designers and manufacturers: to design intuitive, consistent control layouts that reduce operator error.
• Safety and ergonomic engineers: to align control directions with operator expectations and minimize risk.
• Control panel and pendant suppliers: to implement compliant push-button, lever, and wheel arrangements.
• Maintenance, inspection, and compliance teams: to verify that machine controls follow international conventions and machine indicator plates where exceptions exist.

Related standards

• Developed by ISO/TC 39 (Machine tools). Users should consult other ISO machine-tool safety and ergonomics standards for comprehensive compliance and look for any later revisions or related guidance when implementing control layouts.

Keywords: ISO 447:1984, machine tools, direction of operation of controls, control equipment, lever control, push-button control, wheel control, operator ergonomics, machine indicator plate.

Standards Content (Sample)

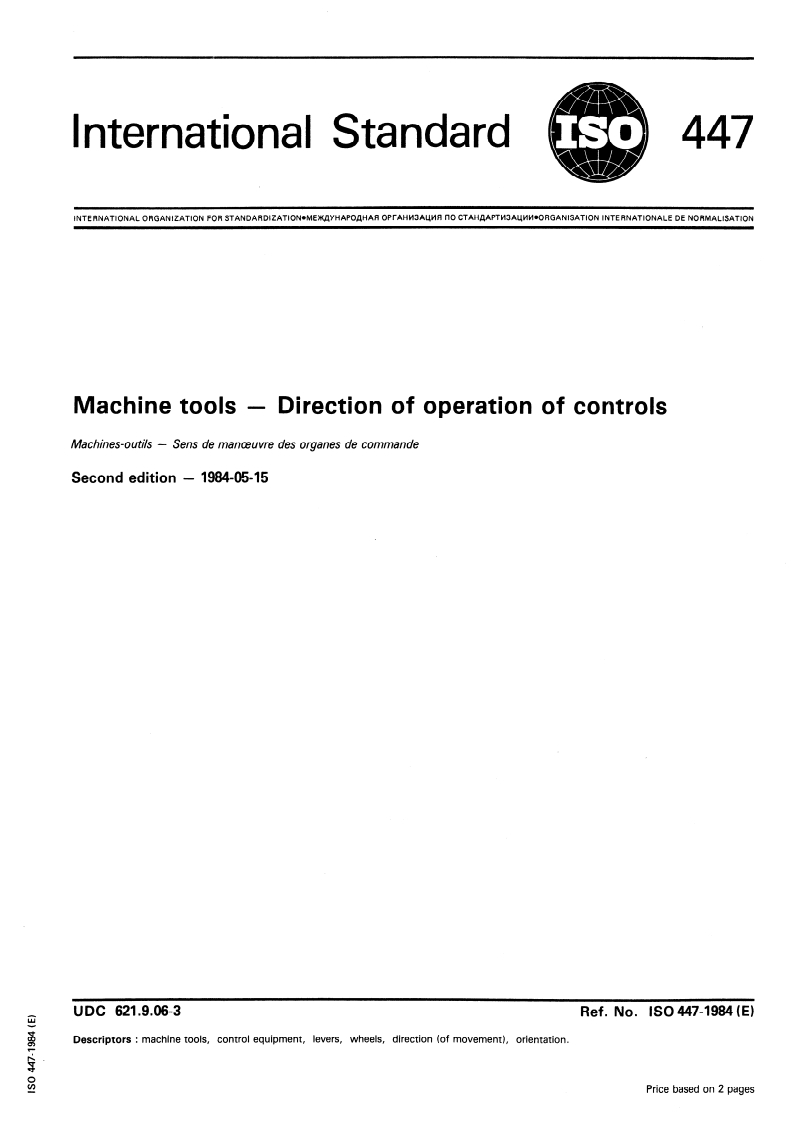

International Standard
INTERNATIONAL ORGANIZATION FOR STANDARDIZATION.ME~YHAPO~HAR OPI-AHM3AUMR I-IO CTAHAAPTkl3Al.&lM~ORGANlSATlON INTERNATIONALE DE NORMALISATION
Machine tools - Direction of operation of controls
Machines-outils - Sens de mancwvre des organes de commande
Second edition - 1984-05-15
UDC 621.9.06-3
Ref. No. IS0 4474984 (E)
: machine tools, control equipment, levers, wheels, direction (of movement), orientation.
Descriptors
Price based on 2 pages

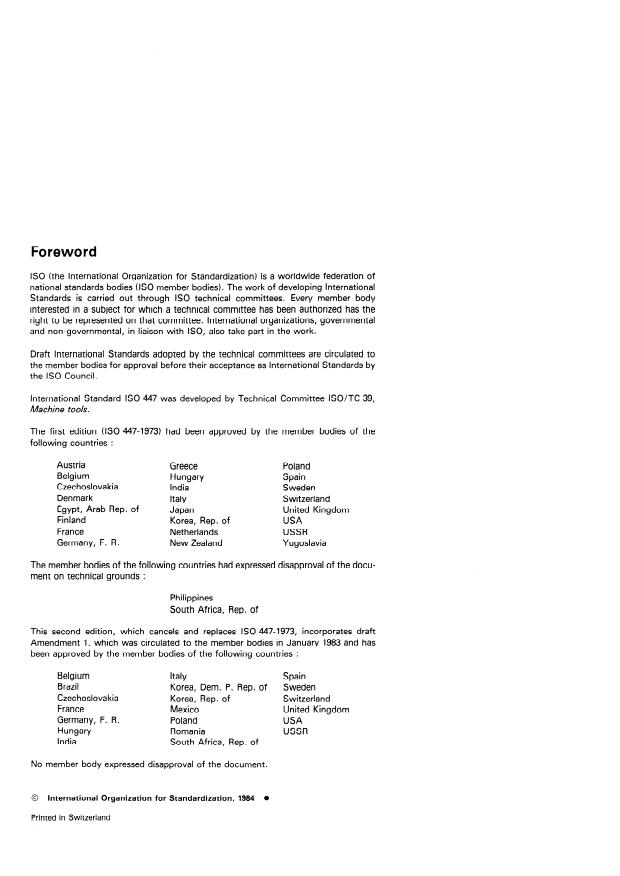

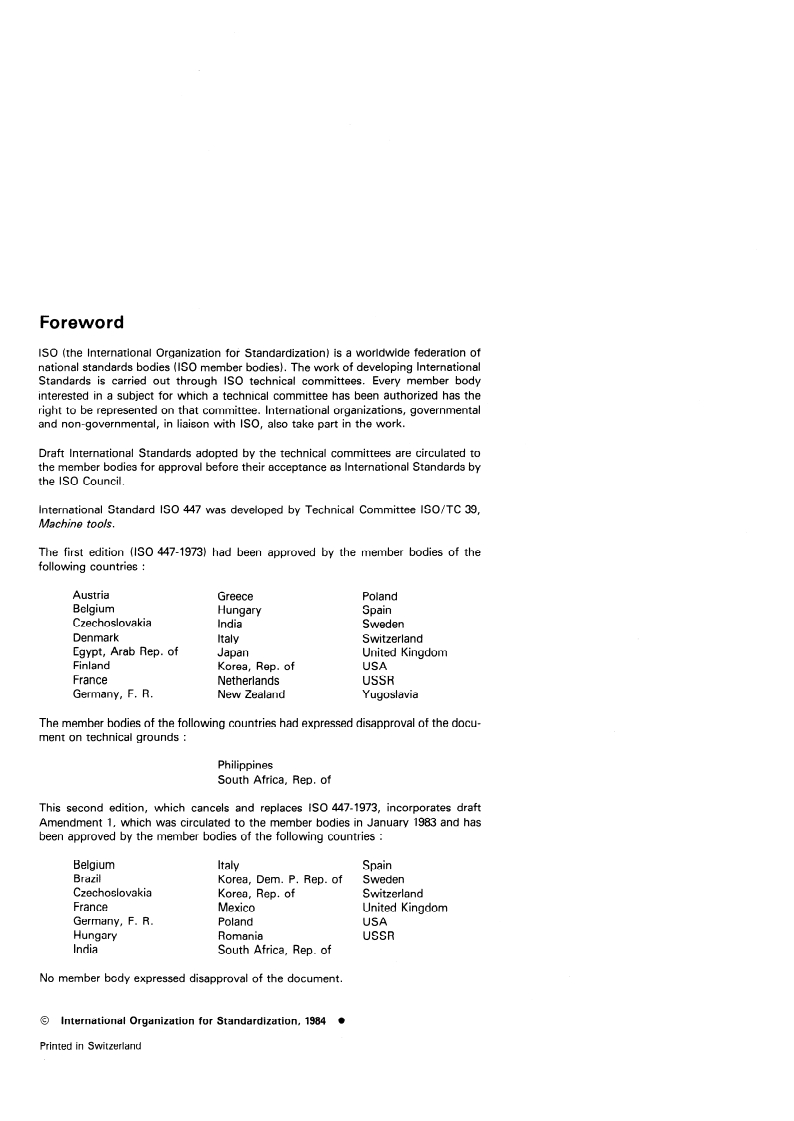

Foreword
IS0 (the International Organization for Standardization) is a worldwide federation of
national standards bodies (IS0 member bodies). The work of developing International
Standards is carried out through IS0 technical committees. Every member body
interested in a subject for which a technical committee has been authorized has the
right to be represented on that committee. International organizations, governmental
and non-governmental, in liaison with ISO, also take part in the work.
Draft International Standards adopted by the technical committees are circulated to
the member bodies for approval before their acceptance as International Standards by
the IS0 Council.
International Standard IS0 447 was developed by Technical Committee ISO/TC 39,
Machine tools.
The first edition (IS0 447-1973) had been approved by the member bodies of the
following countries :
Austria Poland
Greece
Belgium
Hungary Spain
Czechoslovakia India Sweden
Denmark
Italy Switzerland
Egypt, Arab Rep. of United Kingdom
Japan
Finland
Korea, Rep. of USA
France Netherlands USSR
Germany, F. R. New Zealand Yugoslavia
The member bodies of the following cou ntries had expressed pproval of the docu-
ment on technical grounds :
Philippines
South Africa, Rep. of
This second edition, which cancels and replaces IS0 4474973, incorporates draft
Amendment 1, which was circulated to the member bodies in January 1983 and has
been approved by the member bodies of the following countries :
Belgium Italy Spain
Brazil
Korea, Dem. P. Rep. of Sweden
Czechoslovakia Switzerland
Korea, Rep. of
France
Mexico United Kingdom
Germany, F. R. Poland USA
Hungary Romania USSR
India South Africa, Rep. of
No member body expressed disapproval of the document.
0 International Organization for Standardization, 1984 l
Printed in Switzerland

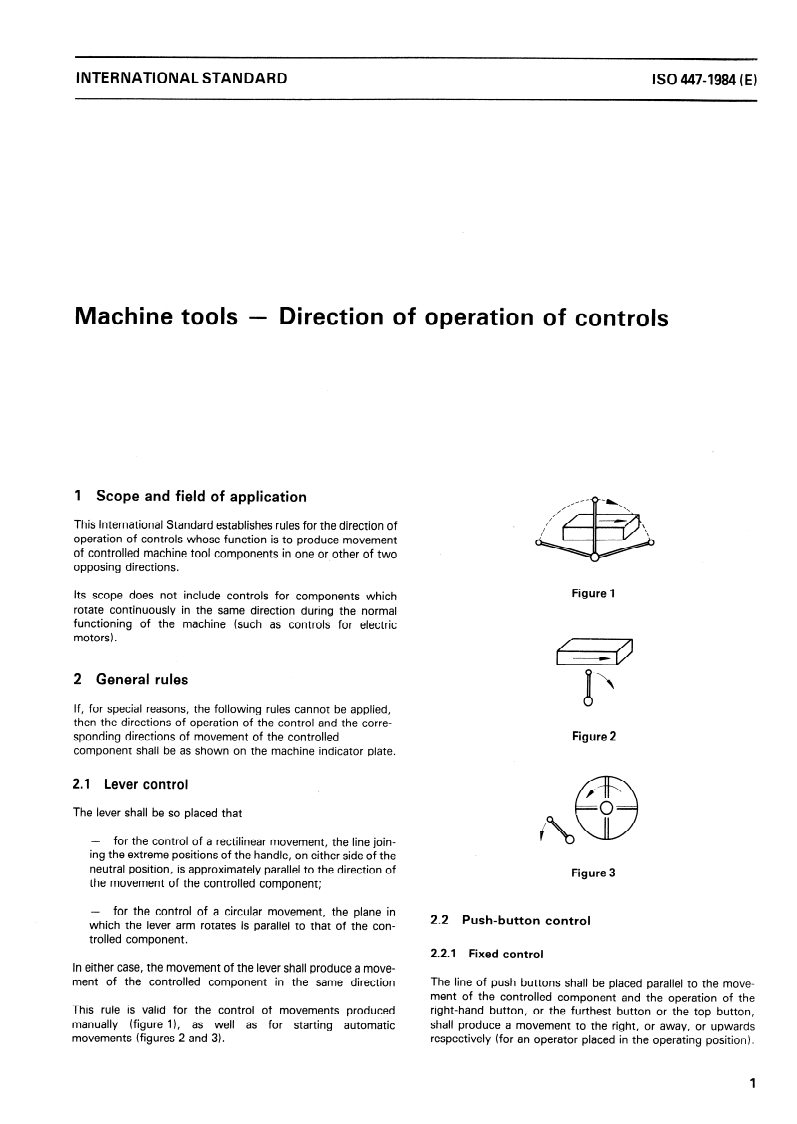

INTERNATIONAL STANDARD IS0 4474984 (E)
- Direction of operation of controls
Machine tools
1 Scope and field of application /--
/’ -4.
/
‘\
/
/
1’
\
This International Standard establishes rules for the direction of
\
/I \
operation of controls whose function is to produce movement
of controlled machine tool components in one or other of two
. L
opposing directions.
Figure I
Its scope does not include controls for components which
rotate continuously in the same direction during the normal
functioning of the machine (such as controls for electric
motors).
2 General rules
If, for special reasons, the following rules cannot be applied,
then the directions of operation of the contro
...

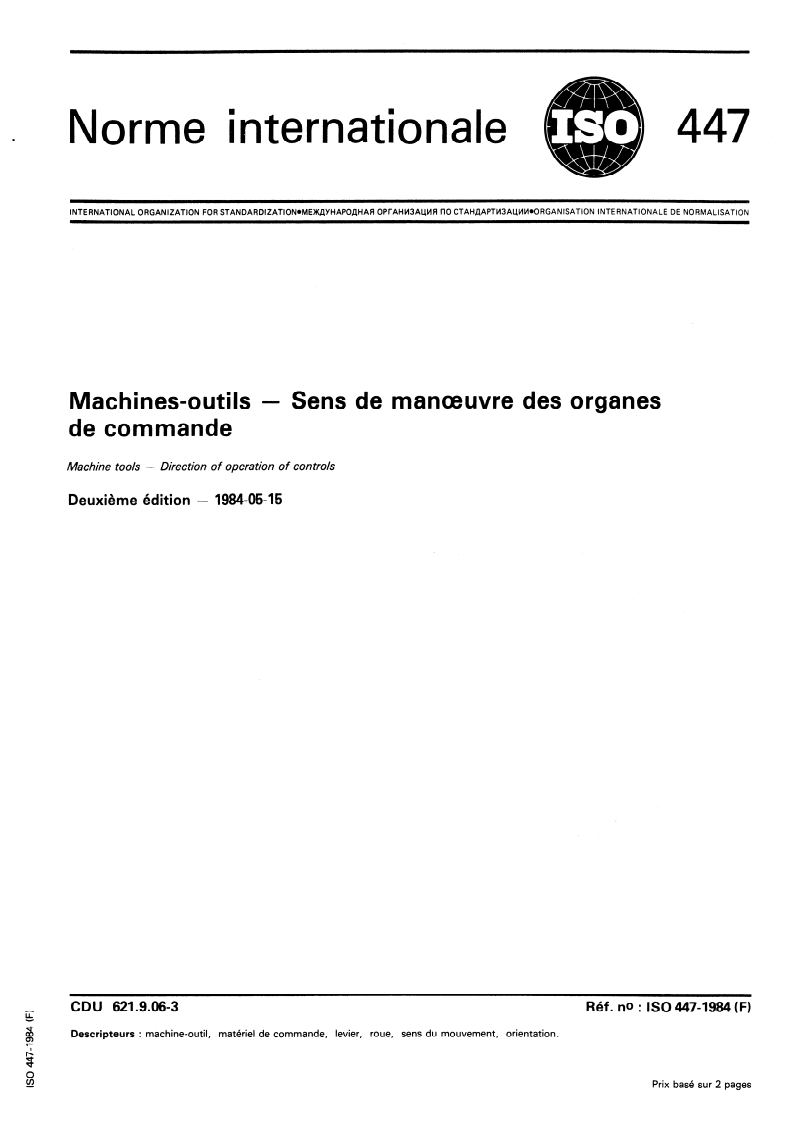

Norme internationale 447
INTERNATIONAL ORGANIZATION FOR STANDARDIZATlON.MElK,QYHAPO~HAfl OPrAHM3AUMR I-IO CTAHC(APTl43ALWlM~ORGANlSATlON INTERNATIONALE DE NORMALISATION
Machines-outils - Sens de manoeuvre des organes
de commande
Machine tools - Direction of operation of controls
DeuxiBme hdition - 1984-05-15
CDU 621.9.06-3
RGf. no : IS0 4474984 (F)
Descripteurs : machine-outil, materiel de commande, levier, roue, sens du mouvement, orientation.
Prix base sur 2 pages

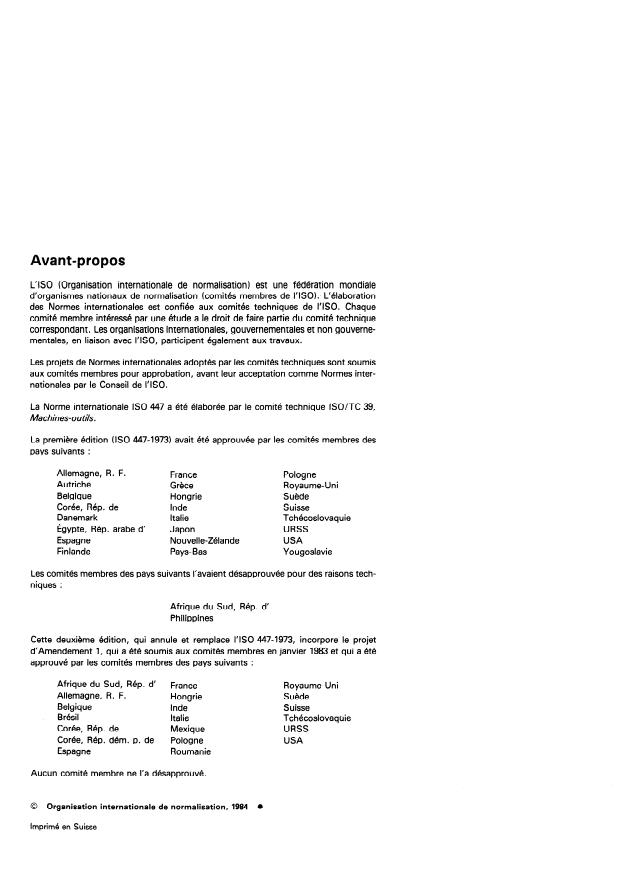

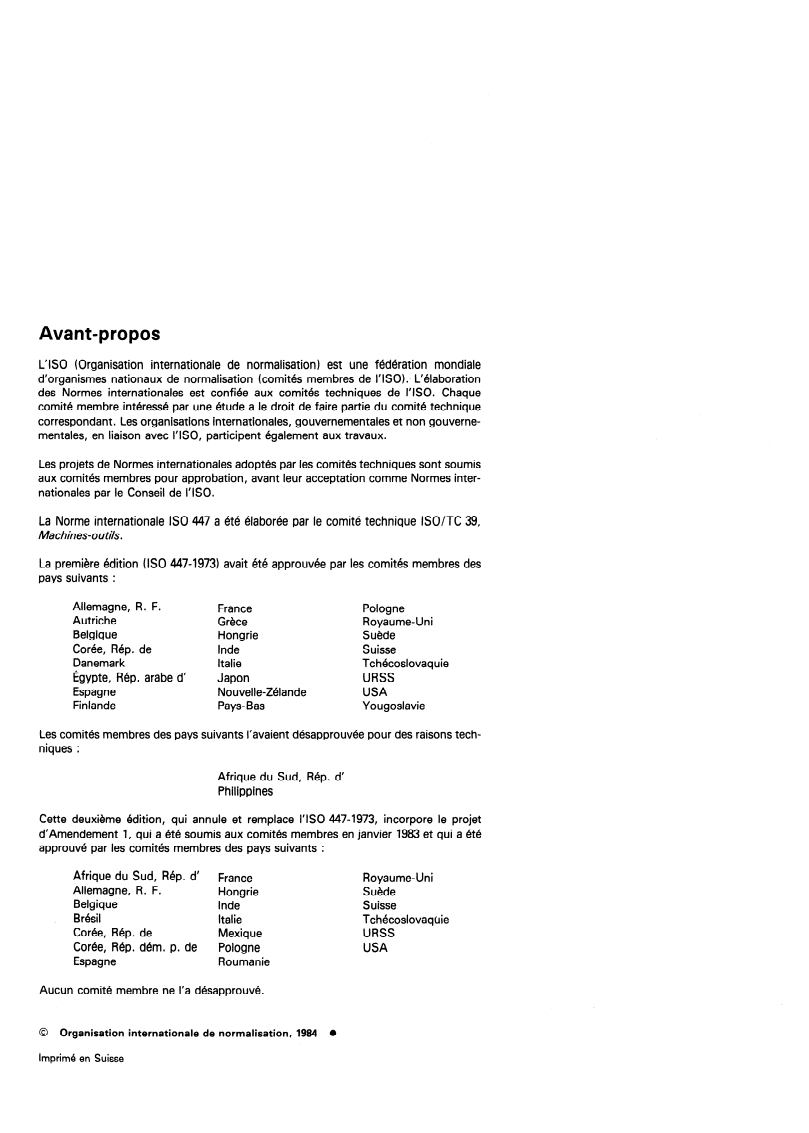

Avant-propos
L’ISO (Organisation internationale de normalisation) est une federation mondiale
d’organismes nationaux de normalisation (comites membres de I’ISO): L’elaboration
des Normes internationales est confide aux comites techniques de I’ISO. Chaque
comite membre interesse par une etude a le droit de faire partie du comite technique
correspondant. Les organisations internationales, gouvernementales et non gouverne-
mentales, en liaison avec I’ISO, participent egalement aux travaux.
Les projets de Normes internationales adopt& par les comites techniques sont soumis
aux comites membres pour approbation, avant leur acceptation comme Normes inter-
nationales par le Conseil de I’ISO.
La Norme internationale IS0 447 a et6 elaboree par le comite technique ISO/TC 39,
Machines-outis.
La premiere edition (IS0 4474973) avait et6 approuvee par les comites membres des
pays suivants :
Allemagne, R. F.
France Pologne
Autriche
Grece Royaume-Uni
Belgique Hongrie Suede
Co&e, Rep. de
lnde Suisse
Danemark ltalie Tchecoslovaquie
igypte, Rep. arabe d’
Japon URSS
Espagne Nouvelle-Zelande USA
Finlande
Pays- Bas Yougoslavie
Les comites membres des pays suivants l’avaient desapprouvee pour des raisons tech-
niques :
Afrique du Sud, Rep. d’
Philippines
Cette deuxieme edition, qui annule et remplace I’ISO 4474973, incorpore le projet
d’Amendement 1, qui a et6 soumis aux comites membres en janvier 1983 et qui a et6
approuve par les comites membres des pays suivants :
Afrique du Sud, Rep. d’
France Royaume-Uni
Allemagne, R. F.
Hongrie Suede
Belgique lnde Suisse
Bresil
ltalie Tchecoslovaquie
Coree, Rep. de Mexique URSS
Coree, Rep. dem. p. de
Pologne USA
Espagne Roumanie
Aucun comite membre ne I’a desapprouve.
0 Organisation internationale de normalisation, 1984
Imprim en Suisse
IS0 4474984 (F)

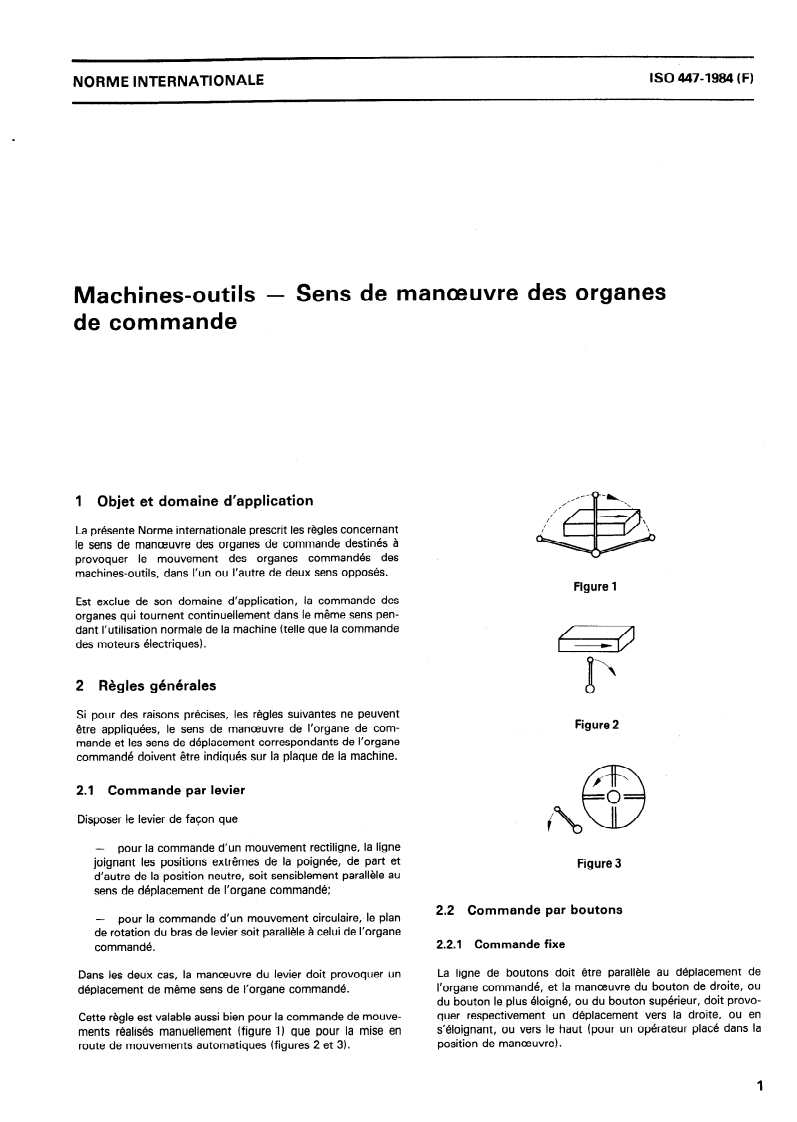

NORME INTERNATIONALE
Sens de manoeuvre des organes
Machines-outils -
de commande
/--
// --A.
1 Objet et domaine d’application /
-\
/’
1’
\
\
1’ \
La presente Norme internationale prescrit les regles concernant
le sens de manoeuvre des organes de commande destines a
~
provoquer le mouvement des organes commandes des
machines-outils, dans I’un ou l’autre de deux sens opposes.
Figure 1
Est exclue de son domaine d’application, la commande des
organes qui tournent continuellement dans le meme sens pen-
dant I’utilisation normale de la machine (telle que la commande
des moteurs electriques).
2 RGgles g&hales
Si pour des raisons precises, les regles suivantes ne peuvent
Figure 2
etre appliquees, le sens de manceuvre de I’organe de com-
mande et les sens de deplacement correspondants de I’organe
command6 doivent etre i
...

Norme internationale 447
INTERNATIONAL ORGANIZATION FOR STANDARDIZATlON.MElK,QYHAPO~HAfl OPrAHM3AUMR I-IO CTAHC(APTl43ALWlM~ORGANlSATlON INTERNATIONALE DE NORMALISATION
Machines-outils - Sens de manoeuvre des organes
de commande
Machine tools - Direction of operation of controls
DeuxiBme hdition - 1984-05-15
CDU 621.9.06-3
RGf. no : IS0 4474984 (F)
Descripteurs : machine-outil, materiel de commande, levier, roue, sens du mouvement, orientation.
Prix base sur 2 pages
Avant-propos
L’ISO (Organisation internationale de normalisation) est une federation mondiale
d’organismes nationaux de normalisation (comites membres de I’ISO): L’elaboration
des Normes internationales est confide aux comites techniques de I’ISO. Chaque
comite membre interesse par une etude a le droit de faire partie du comite technique
correspondant. Les organisations internationales, gouvernementales et non gouverne-
mentales, en liaison avec I’ISO, participent egalement aux travaux.
Les projets de Normes internationales adopt& par les comites techniques sont soumis
aux comites membres pour approbation, avant leur acceptation comme Normes inter-
nationales par le Conseil de I’ISO.
La Norme internationale IS0 447 a et6 elaboree par le comite technique ISO/TC 39,
Machines-outis.
La premiere edition (IS0 4474973) avait et6 approuvee par les comites membres des
pays suivants :
Allemagne, R. F.
France Pologne
Autriche
Grece Royaume-Uni
Belgique Hongrie Suede
Co&e, Rep. de
lnde Suisse
Danemark ltalie Tchecoslovaquie
igypte, Rep. arabe d’
Japon URSS
Espagne Nouvelle-Zelande USA
Finlande
Pays- Bas Yougoslavie
Les comites membres des pays suivants l’avaient desapprouvee pour des raisons tech-
niques :
Afrique du Sud, Rep. d’
Philippines
Cette deuxieme edition, qui annule et remplace I’ISO 4474973, incorpore le projet
d’Amendement 1, qui a et6 soumis aux comites membres en janvier 1983 et qui a et6
approuve par les comites membres des pays suivants :
Afrique du Sud, Rep. d’
France Royaume-Uni
Allemagne, R. F.
Hongrie Suede
Belgique lnde Suisse
Bresil
ltalie Tchecoslovaquie
Coree, Rep. de Mexique URSS
Coree, Rep. dem. p. de
Pologne USA
Espagne Roumanie
Aucun comite membre ne I’a desapprouve.
0 Organisation internationale de normalisation, 1984
Imprim en Suisse
IS0 4474984 (F)
NORME INTERNATIONALE
Sens de manoeuvre des organes
Machines-outils -
de commande
/--
// --A.
1 Objet et domaine d’application /
-\
/’
1’
\
\
1’ \
La presente Norme internationale prescrit les regles concernant
le sens de manoeuvre des organes de commande destines a
~
provoquer le mouvement des organes commandes des
machines-outils, dans I’un ou l’autre de deux sens opposes.
Figure 1
Est exclue de son domaine d’application, la commande des
organes qui tournent continuellement dans le meme sens pen-
dant I’utilisation normale de la machine (telle que la commande
des moteurs electriques).
2 RGgles g&hales
Si pour des raisons precises, les regles suivantes ne peuvent
Figure 2
etre appliquees, le sens de manceuvre de I’organe de com-
mande et les sens de deplacement correspondants de I’organe
command6 doivent etre i
...
