Overview

ISO 19123-2:2026, Geographic information - Schema for coverage geometry and functions - Part 2: Coverage implementation schema is an international standard published by ISO Technical Committee 211 (ISO/TC 211). This document establishes a concrete, implementable, and conformance-testable coverage data structure based on the abstract principles defined in ISO 19123-1. It provides a universal schema for representing spatially- and temporally-varying phenomena-commonly known as “coverages”-in a form suitable for interoperability, encoding, and conformance testing across diverse geographic information systems.

Coverages are foundational to digital representations of physical fields such as remote sensing imagery, environmental model outputs, sensor measurements, and time series. ISO 19123-2 ensures these complex datasets can be efficiently modeled and exchanged, regardless of whether the application requires discrete or continuous data, regular or irregular grids, or multi-dimensional geospatial structures.

Key Topics

• Concrete Coverage Schema: Defines a detailed, testable structure for coverages, supporting practical implementation and data exchange.
• Encoding Formats:
  • XML and JSON coverage encodings for seamless integration with contemporary geospatial data workflows.
  • Multipart encoding for efficient handling of large or complex datasets.
• Coverage Types Supported:
  • Multi-point, general grid, multi-curve, multi-surface, and multi-solid coverages.
  • Specialized support for regular, irregular, and transformation grids.
• Modular Architecture: The schema is organized into modular packages, ensuring clarity and ease of extension for specific data types such as point clouds and meshes.
• Domain and Range Structure: Clear distinction and detailed handling of coverage domain sets (locations), range sets (values), and range types (semantics).
• Partitioning: Partitioned or tiled coverages allow efficient management, subsetting, and retrieval of very large datasets.
• Interoperability and Conformance: Includes conformance classes and conformance tests, enabling reliable validation and exchange of compliant coverage data.

Applications

Implementations of ISO 19123-2 are broadly applicable across industry sectors that rely on geographic information and spatial data analysis, including:

• Earth Observation and Remote Sensing: Managing and sharing satellite imagery, sensor data, and derived raster data products.
• Environmental Monitoring: Modeling and exchanging climate, weather, or ecological data grids and time series.
• Geospatial Data Infrastructures: Enabling interoperable data services such as Web Coverage Service (WCS) and Web Coverage Processing Service (WCPS), facilitating access to multi-dimensional spatiotemporal datasets.
• Urban Planning and Simulation: Modeling urban phenomena as spatial coverages for analysis and visualization in planning tools.
• Big Data Analytics and GeoAI: Structuring multi-dimensional data “datacubes” for efficient machine learning, trend analysis, and data mining over large geospatial datasets.

By offering standardized schemas for diverse coverage types and encoding formats, ISO 19123-2 accelerates system integration, data sharing, and advanced spatial analytics in government, science, and industry applications.

Related Standards

ISO 19123-2 forms part of a suite of international standards for geographic information and connects closely with:

• ISO 19123-1:2023: Defines fundamental concepts, structures, and interfaces for coverages.
• ISO 19136-1:2020 (GML): Provides Geography Markup Language encoding, commonly used for geospatial data exchange.
• OGC SWE Common Data Model: Supplies range type schema, facilitating sensor data integration.
• ISO 19123-3: Establishes query languages and service definitions for coverages, enhancing processing and analytics.
• Web Coverage Service (WCS), Web Coverage Processing Service (WCPS): OGC standards for serving and processing coverages on the web.

Adopting ISO 19123-2 ensures geographic information systems are equipped for high-level interoperability, efficient data management, and robust geospatial data services, meeting current and future needs in multi-dimensional spatial information exchange.

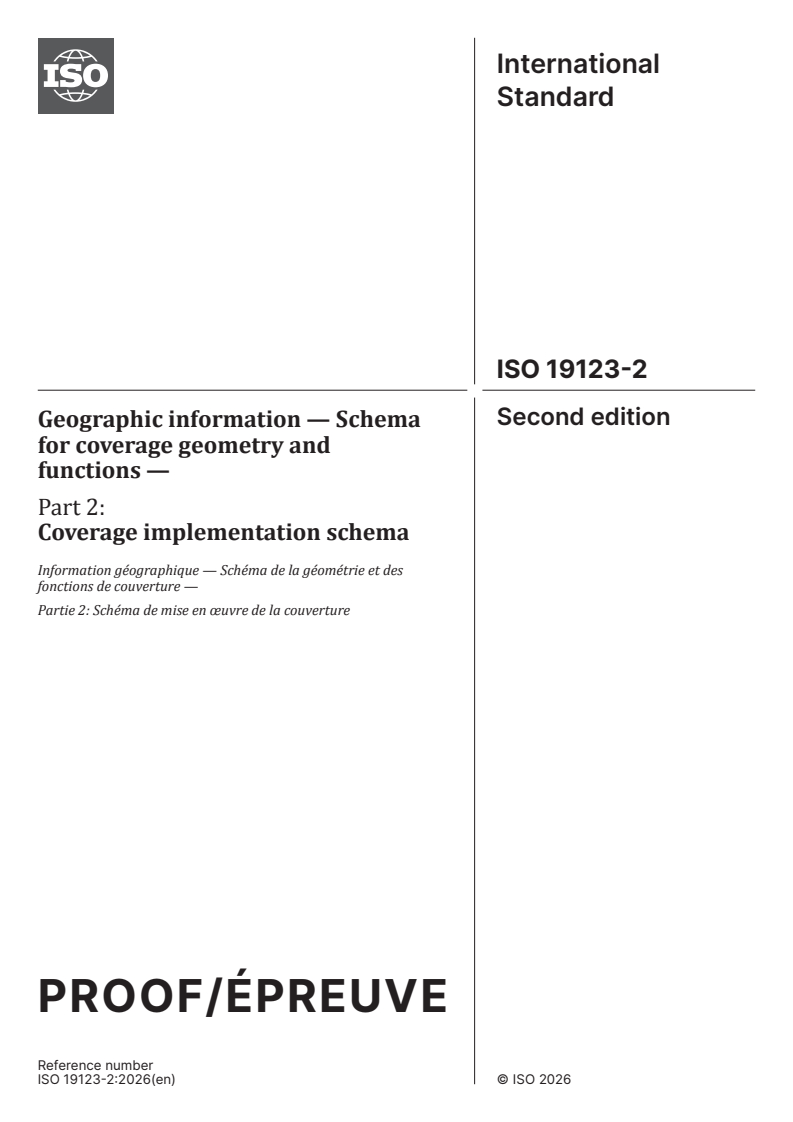

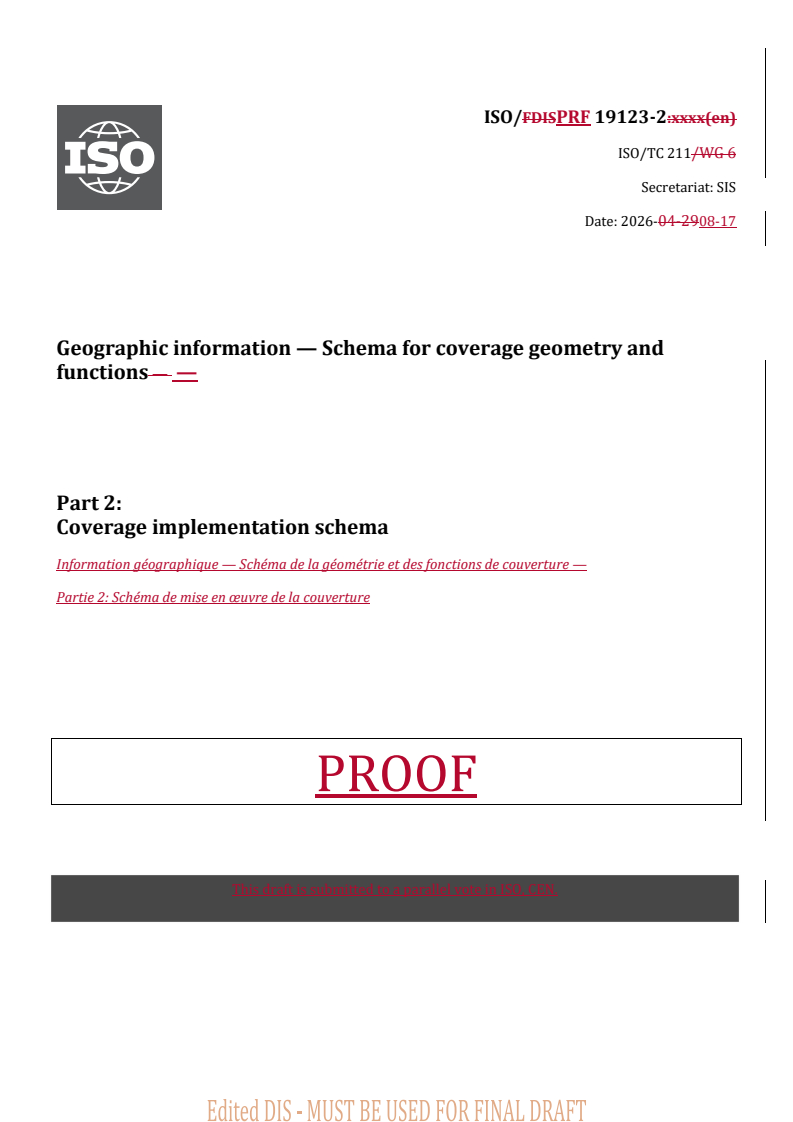

International
Standard
Second edition
Geographic information — Schema
for coverage geometry and
functions —
Part 2:
Coverage implementation schema
Information géographique — Schéma de la géométrie et des
fonctions de couverture —
Partie 2: Schéma de mise en œuvre de la couverture
PROOF/ÉPREUVE
Reference number
© ISO 2026

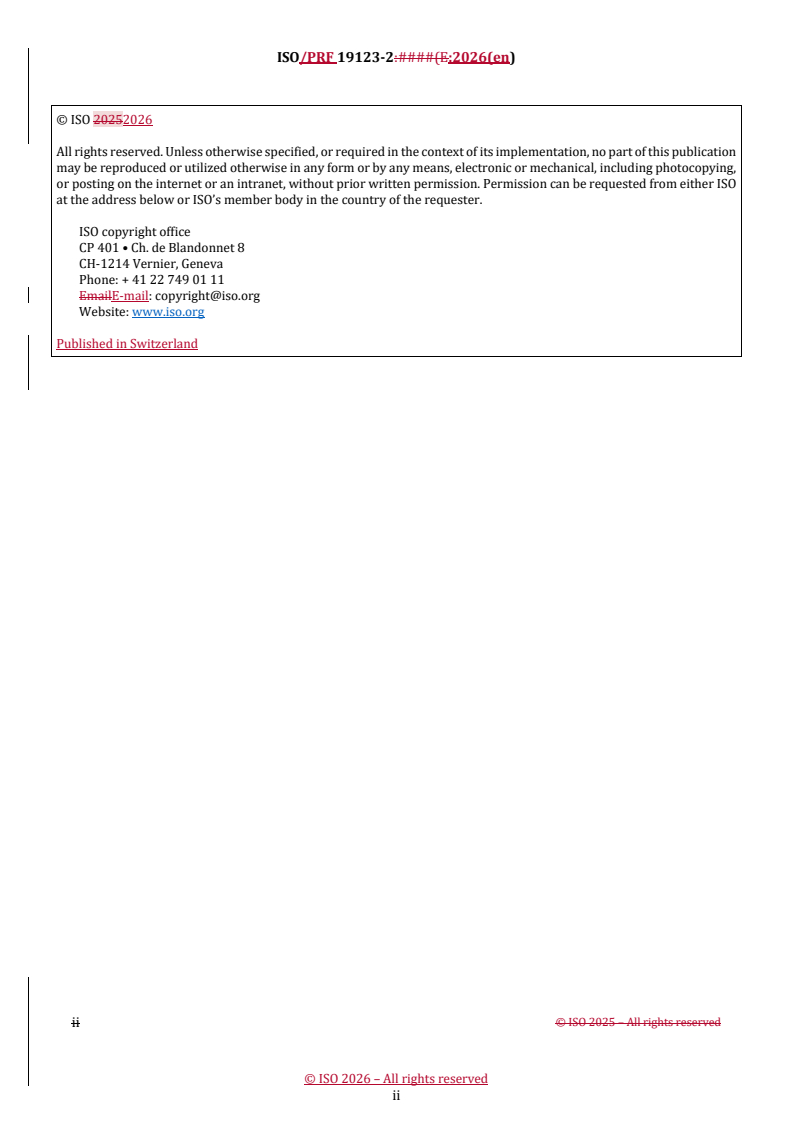

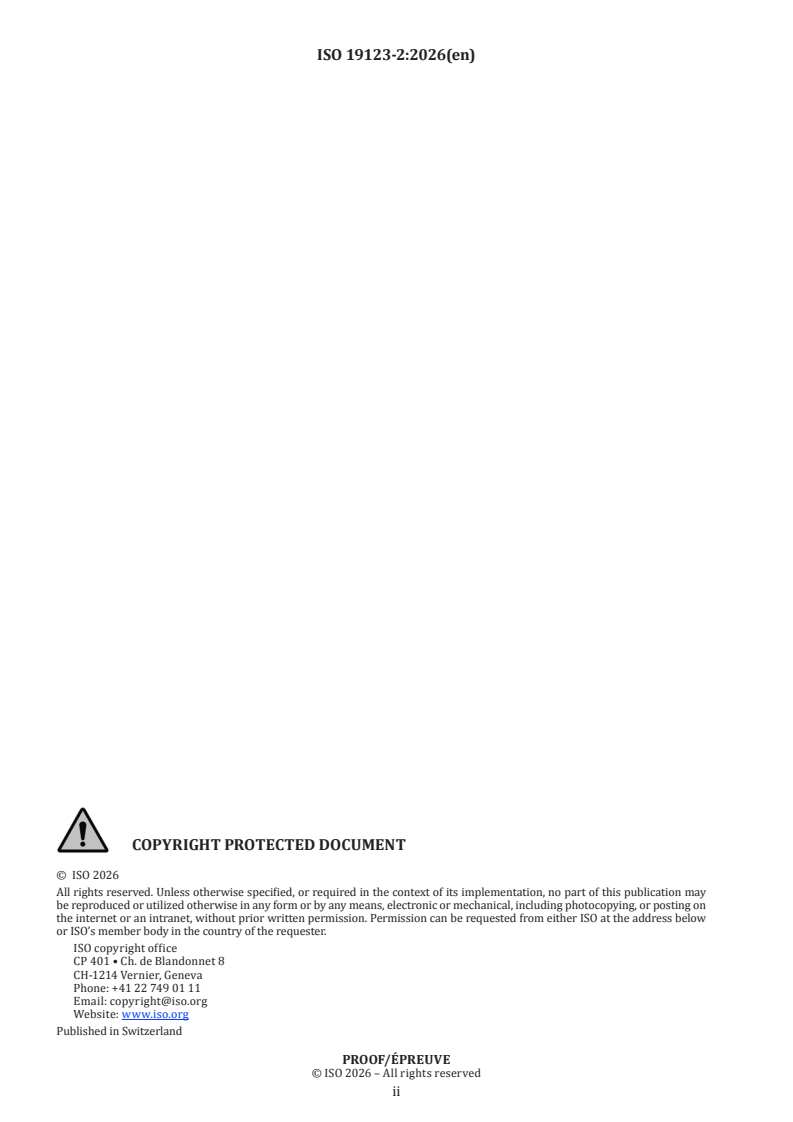

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
PROOF/ÉPREUVE
ii

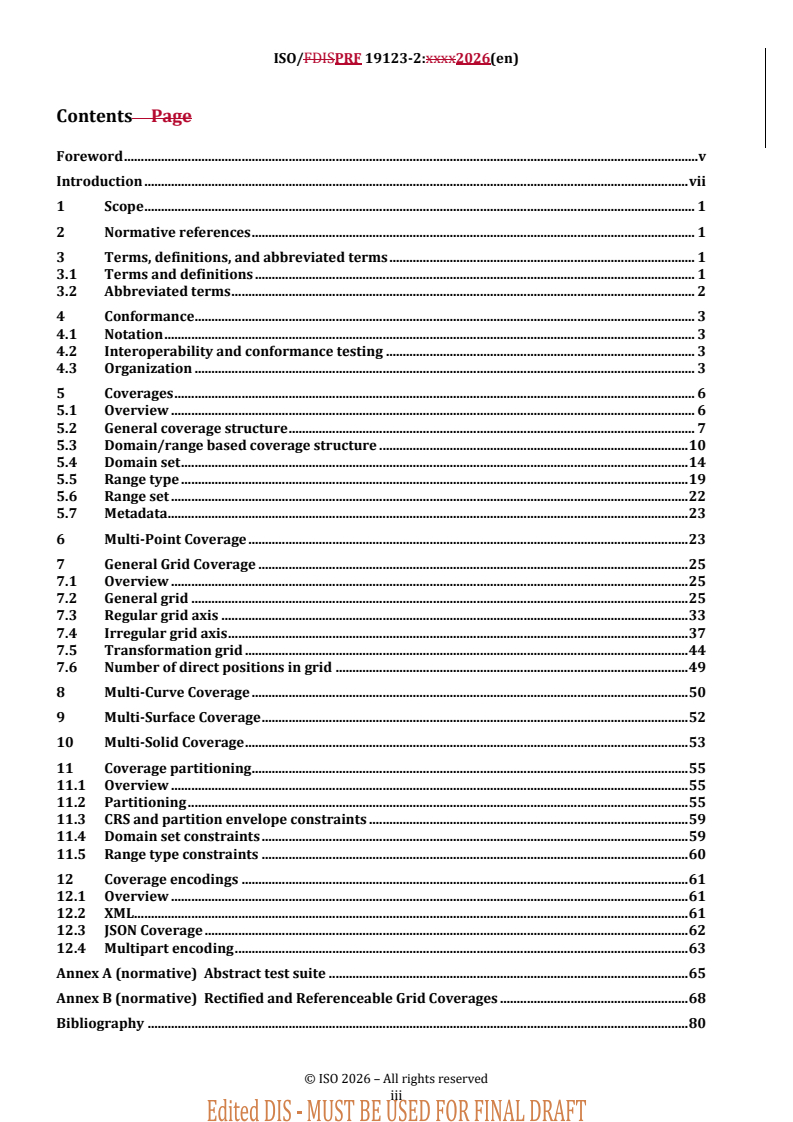

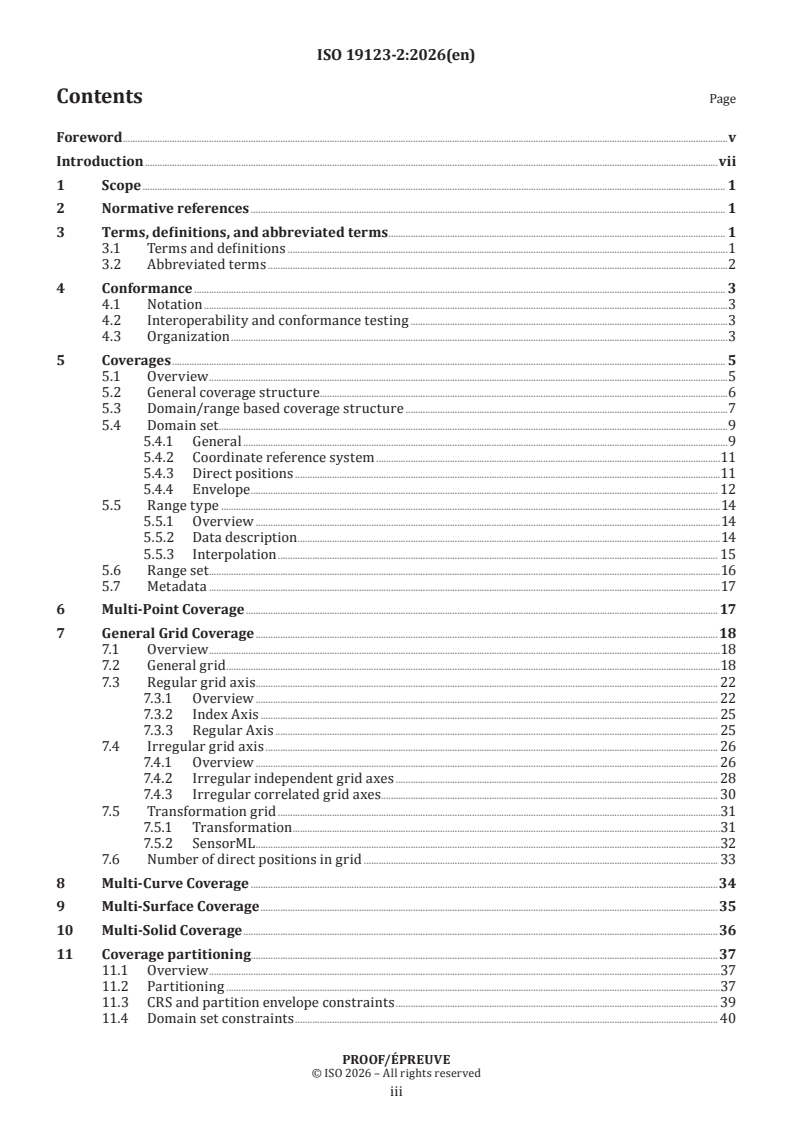

Contents Page
Foreword .v
Introduction .vii
1 Scope . 1
2 Normative references . 1
3 Terms, definitions, and abbreviated terms . 1
3.1 Terms and definitions .1
3.2 Abbreviated terms .2
4 Conformance . 3
4.1 Notation .3
4.2 Interoperability and conformance testing .3
4.3 Organization .3
5 Coverages . 5
5.1 Overview .5
5.2 General coverage structure.6
5.3 Domain/range based coverage structure .7
5.4 Domain set .9
5.4.1 General .9
5.4.2 Coordinate reference system .11
5.4.3 Direct positions .11
5.4.4 Envelope . 12
5.5 Range type .14
5.5.1 Overview .14
5.5.2 Data description .14
5.5.3 Interpolation . 15
5.6 Range set .16
5.7 Metadata .17
6 Multi-Point Coverage . 17
7 General Grid Coverage .18
7.1 Overview .18
7.2 General grid .18
7.3 Regular grid axis . 22
7.3.1 Overview . 22
7.3.2 Index Axis . 25
7.3.3 Regular Axis . 25
7.4 Irregular grid axis . 26
7.4.1 Overview . 26
7.4.2 Irregular independent grid axes . 28
7.4.3 Irregular correlated grid axes . 30
7.5 Transformation grid .31
7.5.1 Transformation .31
7.5.2 SensorML .32
7.6 Number of direct positions in grid . 33
8 Multi-Curve Coverage .34
9 Multi-Surface Coverage .35
10 Multi-Solid Coverage .36
11 Coverage partitioning.37
11.1 Overview .37
11.2 Partitioning .37
11.3 CRS and partition envelope constraints . 39
11.4 Domain set constraints . 40
PROOF/ÉPREUVE
iii

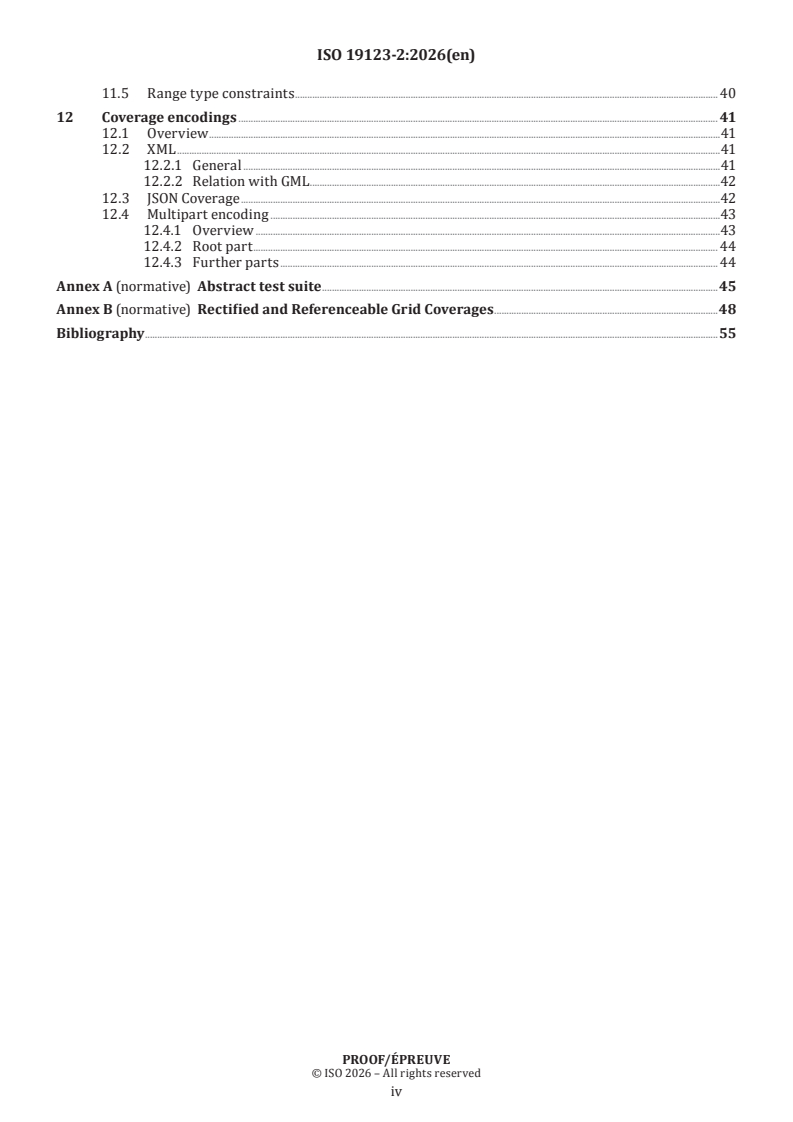

11.5 Range type constraints . 40
12 Coverage encodings . 41
12.1 Overview .41
12.2 XML .41
12.2.1 General .41
12.2.2 Relation with GML . .42
12.3 JSON Coverage .42
12.4 Multipart encoding .43
12.4.1 Overview .43
12.4.2 Root part . 44
12.4.3 Further parts . 44
Annex A (normative) Abstract test suite .45
Annex B (normative) Rectified and Referenceable Grid Coverages .48
Bibliography .55
PROOF/ÉPREUVE
iv
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO documents should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO’s adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 211, Geographic information/Geomatics, in
collaboration with the European Committee for Standardization (CEN) Technical Committee CEN/TC 287,
Geographic Information, in accordance with the Agreement on technical cooperation between ISO and CEN
(Vienna Agreement), in collaboration with the Open Geospatial Consortium (OGC).
This second edition cancels and replaces the first edition (ISO 19123-2:2018), which has been technically
revised.
The main changes are as follows:
— The document is adjusted to the structure established in ISO 19123-1. Among others, a clear separation
of logical level (UML structures) and physical level (encodings, such as XML) is established.
— Use of terminology is adjusted to align with ISO 19123-1.
[15]
— Coverage type GeneralGridCoverage is integrated from OGC CIS 1.1 as an additional coverage structure
which generalizes and simplifies grid coverage modelling. It adds comprehensive definitions for all
possible types of irregular grids, including RectifiedGridCoverage and ReferenceableGridCoverage as
special cases.
— RectifiedGridCoverage and ReferenceableGridCoverage have been moved into a (normative) annex as
their specification follows a different logic which does not easily fit into the structuring given by the
Coverage Fundamentals (ISO 19123-1). They form a legacy and will be deprecated in the next edition of
this document as GeneralGridCoverage covers these cases while simpler in structure.
— Editorial changes have been made to the structure and nomenclature in order to conform to the most
recent edition of the ISO/IEC Directives.
— The UML schema is updated to reflect the above updates.
— The XML coverage encoding is complemented with a structurally equivalent JSON encoding, based on
modern JSON schema design patterns.
PROOF/ÉPREUVE
v
— The XML and JSON schemas of the coverage range type, which relies on the SWE Common DataRecord,
have been copied verbatim from SWE Common into the coverage schema to make this document more
self-contained and easier to read.
NOTE The RDF encoding of OGC CIS 1.1 has not been included at this time. It will possibly be added at a later time.
— More general grid identifiers (with punctuation, national character sets, etc.).
— Mixed regular and non-regular grids.
— Added support for non-regularly gridded sensor models.
— Clear regulation for interpolation methods associated with grid coverages, thereby also clarifying a
long-standing confusion between discrete and continuous grid coverages.
— Distinction between grid dimension and CRS dimension.
— Introduction of EnvelopeByAxis, an envelope type which allows for a convenient handling of any type of
coordinates.
— Partitioned (“tiled”) coverages, allowing – among others – “interleaved representations” of coverages
and datacubes tiled for efficient subsetting.
— Removal of a namespace ambiguity in ReferenceableGridCoverage (resolved by introduction of
GeneralGridCoverage).
— Some GML schema definitions whose generality complicates coverage understanding unnecessarily have
been extracted and condensed into the pertaining XML schema. As a consequence, the XML encoding
of this document is now a compact, freestanding definition, rather than a GML application schema.
Nevertheless, by keeping with the coverage types inherited from the previous edition of this document,
it is possible for implementers to remain in the realm of a GML application schema.
A list of all the parts in the ISO 19123 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
PROOF/ÉPREUVE
vi
Introduction
This document specifies an interoperable, conformance-testable information schema for coverages.
As defined in ISO 19123-1 (which is equivalent to OGC Abstract Topic 6.1), coverages serve as digital
representations of space-time varying phenomena, corresponding to the notion of a “field” in physics. Such
coverages can be discrete or continuous. Common examples include 1-D time series, 2-D imagery, 3-D x/y/t
image time series and x/y/z geophysical voxel models, as well as 4-D x/y/z/t atmospheric and ocean data.
Coverages are independent from service definitions and, therefore, can be accessed through a variety of
[12]
web based service types, such as the OGC Web Coverage Service (WCS) Standard , and through service
instantiations realizing ISO 19123-3.
This document is a compliant standardization target of ISO 19123-1:2023 relying on its concepts, terms,
definitions, and interfaces to establish a logical schema (via UML) implementing the interfaces defined there.
Additionally, this document defines related physical coverage schemas (via format encodings) for the single
logical schema. Thus, ISO 19123-1 and this document together establish an abstraction hierarchy:
— conceptual level: ISO 19123-1 defining abstract interfaces;
— logical level: Clauses 5 to 10 of this document, defining data as object classes with attributes;
— physical level: Clauses 11 and 12 of this document, plus further separate coverage encoding standards
defined outside this document, defining the mapping of the logical-level data to byte streams (GeoTIFF,
netCDF, JPEG2000, etc.).
The content of this document is based on OGC standards CIS 1.0 and CIS 1.1.
PROOF/ÉPREUVE
vii
International Standard ISO 19123-2:2026(en)
Geographic information — Schema for coverage geometry
and functions —
Part 2:
Coverage implementation schema
1 Scope
This document specifies an implementable, conformance-testable coverage structure based on the abstract
schema for coverages defined in the ISO 19123-1 coverage fundamentals. This document defines a concrete
data structure that is suitable for encoding in many formats.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 19123-1:2023, Geographic information — Schema for coverage geometry and functions — Part 1:
Fundamentals
OGC 08-094r1, OGC® SWE Common Data Model Encoding Standard, version 2.0
OGC 24-014, OGC® SWE Common Data Model Encoding Standard, version 3.0
IETF RFC 2387, The MIME Multipart/Related Content-type, Internet Engineering Task Force, 1998
IETF RFC 2392, Content-ID and Message-ID Uniform Resource Locators, Internet Engineering Task Force, 1998
IETF RFC 7159, The JavaScript Object Notation (JSON) Data Interchange Format. Internet Engineering Task
Force, 2014
3 Terms, definitions, and abbreviated terms
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 19123-1:2023 and the following
apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1.1
coverage CRS
coverage coordinate reference system
coordinate reference system (CRS) in which all coordinates in a coverage domain are expressed
Note 1 to entry: Sometimes a coverage’s CRS is also referred to as the coverage’s native CRS to express that this is the
CRS to which all the coverage’s location data refer.
PROOF/ÉPREUVE
3.1.2
displaced grid
grid whose direct positions are topologically aligned to a grid, but whose geometric positions
can vary arbitrarily
3.1.3
irregular grid
grid whose direct positions have individual distances along each grid’s axis
3.1.4
partition
separately stored coverage acting, by being referenced in another coverage, as one of its
components
3.1.5
regular grid
grid whose direct positions have a constant distance along each grid’s axis
3.1.6
transformation grid
grid whose direct positions are given by a transformation
Note 1 to entry: This definition is adapted from OGC 08-094r1.
Note 2 to entry: The transformation algorithm described in this definition is not within the scope of this document.
3.2 Abbreviated terms
CIS coverage implementation schema
CRS coordinate reference system
EPSG European Petroleum Survey Group
GeoTIFF geo tagged image file format
GML geography markup language
JSON JavaScript Object Notation
netCDF network common data format
OGC Open Geospatial Consortium
RDF resource description framework
SWE sensor web enablement
TIN triangulated irregular network
UoM unit of measure
UML unified modeling language
WCS web coverage service
WCPS web coverage processing service
PROOF/ÉPREUVE
4 Conformance
4.1 Notation
Schemas are presented using the Unified Modeling Language (UML) as defined in ISO 19103.
4.2 Interoperability and conformance testing
The term “coverage”, together with related terms, is used as defined in ISO 19123-1:2023. This Coverage
Implementation Schema standard implements ISO 19123-1:2023, Clauses 5 through 10 (ISO 19123-1:2023,
Annex D is implemented by normative Annex B of this document). In other words, the data structures
defined in the UML schema form an implementation of the interfaces established in ISO 19123-1:2023.
This document defines testable conformance classes which correspond to the requirements in Clause 5
onwards. These conformance classes, together with the corresponding conformance tests, are described
in Annex A. Any implementation claiming conformance with this document shall conform to the abstract
conformance class “coverage” and, in addition, at least one of the conformance classes “xml”, “json”,
“multipart”.
4.3 Organization
The coverage schema is organized into the packages shown in Figure 1. Each package establishes one
requirements class. Figure 1 show the requirements class dependencies depicted as a UML package
diagram; each package represents one class, the “depends-on ” relationship represents the requirements
class dependency relationship. Packages have been grouped along practical implementation considerations,
in particular to maximize modularity (Figure 1 and Table 1):
— The core class “coverage” (in red). This is the only abstract class – it establishes the basic framework,
while the concrete conformance classes listed below define how concrete coverage instances can be
built.
— The grid coverage classes (in green):
— Class “grid-regular” establishes multi-dimensional unreferenced and regular referenced grids; in
particular, GridCoverage and RectifiedGridCoverage are provided here for backwards compatibility
with version 1.0 of this document.
— Class “grid-irregular” establishes multi-dimensional irregular referenced grids.
— Class “grid-transformation” establishes multi-dimensional referenced grids defined by algorithmic
transformations.
— The non-gridded coverage classes (in blue):
— Class “pointcloud” establishes point clouds, a class kept separately as it frequently appears standalone
in practice.
— Class “mesh” establishes general multi-dimensional geometric meshes with curves, surfaces, and
solids.
— The format encoding classes (in yellow):
— Class “xml-coverage” establishes XML encoding of coverages.
— Class “json-coverage” establishes JSON encoding of coverages.
— Class “multipart” establishes a multipart encoding of coverages.
— Class “partitioning” (in grey) establishes coverages composed from several sub-coverages.
PROOF/ÉPREUVE
Figure 1 — The Coverage class hierarchy as UML package diagram
Requirement 1:  https:// standards .isotc211 .org/ 19123/ -/ 2/ 2/ req/ coverage/ conformance
An implementation of this CIS standard, in order to be compliant, shall conform to:
— be an implementation of ISO 19123-1;
— the core conformance class coverage plus;
— at least one of the grid-regular, grid-irregular, grid-transformation, pointcloud, and mesh conformance
classes plus;
— at least one of the encoding conformance classes xml-coverage and json-coverage plus;
— the conformance tests specified in Annex A.
All requirements-classes and conformance-classes described in this document are owned by the standard(s)
identified.
The URIs in this document have a stem of https:// standards .isotc211 .org/ 19123/ -2/ 2/ which corresponds
to the OGC URI stem https:// www .opengis .net/ spec/ CIS/ 1 .2/ , except that the numbering (such as of
requirements) has changed sometimes.
Table 1 — Package (conformance class) URIs established in this document
Class Description and URI
coverage General, abstract coverage class, implementing ISO 19123-1:2023
https:// standards .isotc211 .org/ 19123/ -2/ 2/ conf/ coverage
pointcloud Coverage specialization for Multi-Point Coverages (point clouds)
https:// standards .isotc211 .org/ 19123/ -2/ 2/ conf/ pointcloud
grid-regular Coverage specialization for regular Grid Coverages
https:// standards .isotc211 .org/ 19123/ -2/ 2/ conf/ grid -regular
grid-irregular Coverage specialization for irregular Grid Coverages
https:// standards .isotc211 .org/ 19123/ -2/ 2/ conf/ grid -irregular
grid-transforma- Coverage specialization for transformation Grid Coverages
tion
https:// standards .isotc211 .org/ 19123/ -2/ 2/ conf/ grid -transformation
mesh Coverage specialization for curve, surface, and solid coverages
https:// standards .isotc211 .org/ 19123/ -2/ 2/ conf/ mesh
partitioning Partitioned representation of coverages
https:// standards .isotc211 .org/ 19123/ -2/ 2/ conf/ partitioning
PROOF/ÉPREUVE
TTaabbllee 11 ((ccoonnttiinnueuedd))
Class Description and URI
xml-coverage Coverage encoding in XML
https:// standards .isotc211 .org/ 19123/ -2/ 2/ conf/ xml -coverage
json-coverage Coverage encoding in JSON
https:// standards .isotc211 .org/ 19123/ -2/ 2/ conf/ json -coverage
multipart Multi-part representation of coverages
https:// standards .isotc211 .org/ 19123/ -2/ 2/ conf/ multipart
This document consists of the UML diagrams and textual requirements classes established in this document
as well as an external file bundle consisting of the corresponding schema files, plus example coverage files.
The name and contact information of the maintenance agency for this document can be found at www .iso
.org/ maintenance _agencies.
5 Coverages
5.1 Overview
Conformance class “coverage” lays the foundation for the Coverage Implementation Schema. It is the abstract
core class, meaning it does not allow creating coverage instances itself, but rather provides the fundament
for the further classes which define various specializations of coverage instances.
The following ISO 19123-1:2023 coverages are sorted along the topological dimension of the elements they
contain (Figure 2), visible in their respective domain set structure:
— 0-D point sets, known as Multi-Point Coverages for irregular point agglomerations (see Clause 6) and
General Grid Coverages for points sitting on some regular or irregular grid (see Clause 7);
— 1-D curve bundles, known as Multi-Curve Coverages (see Clause 8);
— 2-D surface bundles, known as Multi-Surface Coverages (see Clause 9);
— 3-D solid bundles, known as Multi-Solid Coverages (see Clause 10).
Figure 2 — Coverage subtypes defined in CIS (overview)
Requirement 2:  https:// standards .isotc211 .org/ 19123/ -/ 2/ 2/ req/ coverage/ subtypes
A coverage shall be one of: MultiPointCoverage, GeneralGridCoverage, MultiCurveCoverage,
MultiSurfaceCoverage, MultiSolidCoverage.
NOTE This structuring, adopted from ISO 19123-1:2023, is different from the previous edition of this document,
PROOF/ÉPREUVE
5.2 General coverage structure
A coverage consists of the following main components (Figure 3):
— Domain set: “where are values available?” Coordinate positions for which values are stored in the
coverage are called direct positions.
— Range set: “what is the value at a particular position?” (often referred to as “pixels” or “voxels”). Such
values can be atomic (such as in grayscale images) or record structures (such as in colour or hyperspectral
images). Record components are known as bands, channels, and variables in different disciplines.
— Range type: “what do these values mean?” Such a type often consists of one or more fields (also referred
to as bands or channels or variables – not to be confused with the physics field a coverage represents). For
this description of the semantics, coverages in this document make use of OGC SWE Common (OGC 08-
094r1).
— Metadata: “what else do we know about this coverage?” This item is added in this document, it is not
present in the abstract definition of ISO 19123-1:2023.
Technically, all coverage types are derived from abstract class Coverage. This structure contains a DomainSet
describing the coverage’s domain and a RangeSet component containing the range value consisting of one
or more record fields. The RangeType element describes the coverage’s range data structure. Its structure
description is based on the OGC SWE Common [OGC 08-094r1] DataRecord, so that the semantics description
from upstream sensor acquisitions into downstream services is carried over seamlessly.
In conformance class “coverage”, this domain/range representation is used; requirements class “coverage-
partitioning” (Clause 11) adds partitioning and position/value pair list as alternatives. This is why
coverage subtype CoverageByDomainAndRange is introduced in Figure 3; while it can seem artificial in this
requirements class, it will allow modelling the alternative representations later in this document.
Figure 3 contains the complete coverage structure with all variants allowed; in the subsequent subclauses,
all parts are successively described in detail.
[24]
NOTE ISO 19123-3:2023, which is based on the OGC Web Coverage Processing Service (WCPS), defines
a coverage-specific query language based on this document allowing extraction, recoding, fusion, derivation of
coverages and general analytics, currently on multi-dimensional grid coverages, i.e. geo datacubes.
PROOF/ÉPREUVE
Figure 3 — The Coverage structure (overview)
5.3 Domain/range based coverage structure
The coverage structure defined normatively in this class coverage is CoverageByDomainAndRange.
Requirement 3:  https:// standards .isotc211 .org/ 19123/ -/ 2/ 2/ req/ coverage/ domain+ range
A coverage instantiating class coverage shall conform with Figure 4 and Table 2.

PROOF/ÉPREUVE
Figure 4 — The Coverage domain/range structure
Table 2 — The Coverage domain/range structure
Name Definition Data type Multiplicity
Id string
Identifier of the coverage One
(mandatory)
coverage- Coverage-
Function describing the mapping from the domain to the Zero or one
Function Function
range of the coverage (multiplicity zero, unless overridden by (optional)
a coverage subtype)
Envelope Envelope-ByAxis
Bounding box of the coverage Zero or one
(optional)
domainSet DomainSet
Coverage domain set, specifying the direct positions at which One
range set values are available in this coverage (mandatory)
rangeSet RangeSet
Coverage range set, containing a value for each direct posi- One
tion in the domain set (mandatory)
rangeType SWE Common::
Structure definition of the coverage range values, as specified One
DataRecord
in OGC 08-094r1 OGC SWE Common 2.0 Clause 7 and 8 (mandatory)
metadata Any
Application specific metadata of the coverage Zero or one
(optional)
PROOF/ÉPREUVE
NOTE 1 In previous editions of this document, the id attribute was of type NCName which restricts the characters
allowed – a legacy from GML. In the course of the separation of logical and physical level and for the support of further
formats without this restriction, such as JSON, this has been relaxed. Generally, this results in a more human-readable
style allowing for whitespace, special characters, globally unique naming schemes, etc. Therefore, it is important to
take care to choose only id values which can be represented in all target formats envisaged (which can, but does not
necessarily, include GML).
The same separation from GML is not possible for rangeType as SWE Common does not offer a separate
logical model.
NOTE 2 UML data type Any is used here with the same meaning as XML’s xsd:any, which does not have a direct
equivalent in UML.
The coverageFunction item describes the correlation between the direct positions in the domain and
the values in the range. In case of the Multi-Point/Curve/Surface/Solid Coverages this correlation is
straightforward: points, curves, surfaces, and solids are listed linearly, and so are the range values, and
based on the sequence of occurrence of the items in both lists, pairs can be built unambiguously. Therefore,
coverageFunction in these cases is not needed and, hence, has a zero occurrence in general. This is
different in gridded coverages as the set of discrete points is aligned in multiple dimensions with no single
linearization scheme. Consequently, GeneralGridCoverage provides an explicit sequence definition (cf. 7.2).
NOTE 3 Although currently coverageFunction applies only to grids in a GeneralGridCoverage the structure
remains associated with Coverage as defined in OGC CIS 1.1 for backwards compatibility and to leave open
opportunities in future for using it in non-gridded coverage structure, too.
Table 3 — The CoverageFunction structure
Name Definition Data type Multiplicity
sequenceRule string
Linearization scheme code, case-insensitive. Zero or one
Default is “Linear” (optional)
axisOrder string
A list of the grid axes, identified by their decimal position number Zero or one
starting at 1, and ornamented with a “+” for traversal in ascending (optional)
coordinate order or “‒“ for traversal in descending coordinate
order.
If axisOrder is present, then each axis shall appear exactly once.
Default is “+1 +2 …+n” for an n-D grid.
startPoint integer
The n-D index position of a point in the n-D grid that is mapped Zero or one
to the first point in the range set (the start of the linearization (optional)
traversal).
Default is the n-tuple of lower index bounds in the grid.
NOTE 4 The axes in axisOrder are identified by their position number, starting with 1. The array start position,
given by the lower bounds vector, typically is (0,…,0). This is a GML heritage.
Requirement 4:  https:// standards .isotc211 .org/ 19123/ -/ 2/ 2/ req/ coverage/ coverage -function
The coverageFunction item, if present in a Coverage, shall consist of a CoverageFunction structure as per
Table 3.
NOTE 5 GML references withdrawn ISO 19123:2005 for the definition of the coverageFunction details.
ISO 19123:2005 is superseded by ISO 19123-1:2023 which contains the same information in its (informative) Annex C.
As there the traversal variants are given only with a coarse informal description and illustrations of the 2-D case this
is not sufficiently well defined for normative use.
5.4 Domain set
5.4.1 General
The domain set determines the exact locations of a coverage overall and its set of direct positions. The
coordinate space in which the coverage resides is given by a (single- or multi-dimensional) CRS defining an
ordered list of domain set axes whose lower and upper bounds establish the extent along each axis.
PROOF/ÉPREUVE
A CRS is referenced through some identifier. Axes used by the coverage are identified by their position in
the (ordered) list of axes given in the CRS. The srsName attribute contains an identifier which resolves to the
complete CRS definition. To avoid this extra roundtrip in services, information critical for understanding the
coverage – the axis labels and the unit of measure for each axis – is repeated locally in the domain set as the
two lists axisLabels and uomLabels.
Table 4 — The DomainSet structure
Name Definition Data type Multiplicity
srsName string
Identifier of the CRS in which the coverage domain set coordi- One
nates are expressed (mandatory)
axisLabels string
List of whitespace-separated pairwise distinct axis names, One
each one corresponding to exactly one axis in the CRS, match- (mandatory)
ing the position in the axis name list and the axis position in
the CRS. Axis names do not contain whitespace. They can be
identical to the respective CRS axis abbreviation, but do not
have to.
uomLabels string
List of whitespace-separated units of measure (uom), where One
each uom belongs to the axis matched by the position in (mandatory)
axisLabels. Uom items do not contain whitespaces.
dimension unsigned int
Dimension of the coverage, given by its CRS Zero or one
(optional)
NOTE 1 Attribute dimension is redundant (the dimension is equal to the number of elements in the axisLabels
and uomLabels lists) and hence not present in Multi-Point and General Grid Coverage domain sets, only in the legacy
GML Multi-Curve/Surface/Solid coverage domain sets.
EXAMPLE Examples of unit labels include “deg” (degree), “m” (metre), and “1” (for unit-less scalars).
Requirement 5:  https:// standards .isotc211 .org/ 19123/ -/ 2/ 2/ req/ coverage/ srsname -contents
The srsName attribute shall reference a CRS containing all axes referenced in the domain set in proper
order.
Requirement 6:  https:// standards .isotc211 .org/ 19123/ -/ 2/ 2/ req/ coverage/ axislabels -contents
The axisLabels attribute shall consist of a whitespace-separated list of names, with exactly as many names
as the srsName CRS defines.
Requirement 7:  https:// standards .isotc211 .org/ 19123/ -/ 2/ 2/ req/ coverage/ uomlabels -contents
The uomLabels attribute of an axis shall consist of a whitespace-separated list of units of measure (uom)
items, with exactly as many uom items as the srsName CRS defines.
Requirement 8:  https:// standards .isotc211 .org/ 19123/ -/ 2/ 2/ req/ coverage/ srsname -crs
The CRS in the srsName attribute shall have as many axes as indicated in the dimension attribute, if that is
present.
NOTE 2 See 5.4.2 for details on the CRS specification.
NOTE 3 In the context of coverage services like WCS the domain set CRS is called the coverage’s Native CRS, as
opposed to derivatives of this coverage in some other CRS, obtained through reprojection.
NOTE 4 Axis labels can be renamed locally in the coverage. For example, CRS axes Lat / Lon can be named Lat /
Long or x / y. Matching is done solely by their position.
NOTE 5 As a consequence of these requirements, axisLabels and uomLabels contain
...

ISO/FDISPRF 19123-2:xxxx(en)
ISO/TC 211/WG 6
Secretariat: SIS
Date: 2026-04-2908-17
Geographic information — Schema for coverage geometry and
functions — —
Part 2:
Coverage implementation schema
Information géographique — Schéma de la géométrie et des fonctions de couverture —
Partie 2: Schéma de mise en œuvre de la couverture
PROOF
TTTTTThihhhhhiiiiis drs drs drs drs drs draaaaaafffffftttttt i i i i i is s s s s s ssususususuubbbbbbmmmmmmiiiiiitttttttttttteeeeeedd d d d d ttttttoooooo   aaaaaa   ppppppaaaaaarrrrrraaaaaallellellellellellel l l l l l vvvvvvooooootttttteeeeee i i i i i innnnnn   IIIIIISSSSSSOOOOOO,,,,,,   CCCCCCEEEEEEN.N.N.N.N.N.

ISO/PRF 19123-2:####(E:2026(en)
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication
may be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying,
or posting on the internet or an intranet, without prior written permission. Permission can be requested from either ISO
at the address below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: + 41 22 749 01 11
EmailE-mail: [e-mail]
Website: www.iso.org
Published in Switzerland
ii
ii
ISO/FDISPRF 19123-2:xxxx2026(en)
Contents Page
Foreword . v
Introduction . vii
1 Scope . 1
2 Normative references . 1
3 Terms, definitions, and abbreviated terms . 1
3.1 Terms and definitions . 1
3.2 Abbreviated terms . 2
4 Conformance . 3
4.1 Notation . 3
4.2 Interoperability and conformance testing . 3
4.3 Organization . 3
5 Coverages . 6
5.1 Overview . 6
5.2 General coverage structure . 7
5.3 Domain/range based coverage structure . 10
5.4 Domain set . 14
5.5 Range type . 19
5.6 Range set . 22
5.7 Metadata . 23
6 Multi-Point Coverage . 23
7 General Grid Coverage . 25
7.1 Overview . 25
7.2 General grid . 25
7.3 Regular grid axis . 33
7.4 Irregular grid axis . 37
7.5 Transformation grid . 44
7.6 Number of direct positions in grid . 49
8 Multi-Curve Coverage . 50
9 Multi-Surface Coverage . 52
10 Multi-Solid Coverage . 53
11 Coverage partitioning . 55
11.1 Overview . 55
11.2 Partitioning . 55
11.3 CRS and partition envelope constraints . 59
11.4 Domain set constraints . 59
11.5 Range type constraints . 60
12 Coverage encodings . 61
12.1 Overview . 61
12.2 XML . 61
12.3 JSON Coverage . 62
12.4 Multipart encoding . 63
Annex A (normative) Abstract test suite . 65
Annex B (normative) Rectified and Referenceable Grid Coverages . 68
Bibliography . 80
iii
ISO/PRF 19123-2:####(E:2026(en)

iv
iv
ISO/FDISPRF 19123-2:xxxx2026(en)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types of
ISO documents should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawnISO draws attention to the possibility that some of the elementsimplementation of this
document may beinvolve the subjectuse of (a) patent(s). ISO takes no position concerning the evidence,
validity or applicability of any claimed patent rights in respect thereof. As of the date of publication of this
document, ISO had not received notice of (a) patent(s) which may be required to implement this document.
However, implementers are cautioned that this may not represent the latest information, which may be
obtained from the patent database available at www.iso.org/patents. ISO shall not be held responsible for
identifying any or all such patent rights. Details of any patent rights identified during the development of the
document will be in the Introduction and/or on the ISO list of patent declarations received (see ).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation onof the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO'sISO’s adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT)), see
www.iso.org/iso/foreword.htmlthe following URL: .
This document was prepared by Technical Committee ISO/TC 211, Geographic information/Geomatics, in
collaboration with the European Committee for Standardization (CEN) Technical Committee CEN/TC 287,
Geographic Information, in accordance with the Agreement on technical cooperation between ISO and CEN
(Vienna Agreement), under participation of the IEEE GRSS Earth Science Informatics (ESI) Technical
Committee, and derived from in collaboration with the Open Geospatial Consortium (OGC) standards CIS 1.0
and CIS 1.1 with permission.).
This second edition cancels and replaces the first edition (ISO 19123-2:2018), which has been technically
revised.
The main changes of this document over its predecessor version ISO 19123-2:2018 are as follows:
— — The document is adjusted to the structure established in ISO 19123-1. Among others, a clear
separation of logical level (UML structures) and physical level (encodings, such as XML) is established.
— — Use of terminology is adjusted to align with ISO 19123-1.
[15][18]
— — Coverage type GeneralGridCoverage is integrated from OGC CIS 1.1 as an additional
coverage structure which generalizes and simplifies grid coverage modelling. It adds comprehensive
definitions for all possible types of irregular grids, including RectifiedGridCoverage and
ReferenceableGridCoverage as special cases.
— — RectifiedGridCoverage and ReferenceableGridCoverage have been moved into a
(normative) annex as their specification follows a different logic which does not easily fit into the
v
ISO/PRF 19123-2:####(E:2026(en)
structuring given by the Coverage Fundamentals (ISO 19123-1). They form a legacy and will be deprecated
in the next edition of this document as GeneralGridCoverage covers these cases while simpler in
structure.
— — Editorial changes have been made to the structure and nomenclature in order to conform to the most
recent edition of the ISO/IEC Directives.
— — The UML schema is updated to reflect the above updates.
— — The XML coverage encoding is complemented with a structurally equivalent JSON encoding, based on
modern JSON schema design patterns.
— — The XML and JSON schemas of the coverage range type, which relies on the SWE Common DataRecord,
have been copied verbatim from SWE Common into the coverage schema to make this document more
self-contained and easier to read.
NOTE The RDF encoding of OGC CIS 1.1 has not been included at this time. It will possibly be added at a later time.
Technically, this document implements the following improvements over the previous version 19123-2:2018:
— — More general grid identifiers (with punctuation, national character sets, etc.).
— — Mixed regular and non-regular grids.
— — Added support for non-regularly gridded sensor models.
— — Clear regulation for interpolation methods associated with grid coverages, thereby also clarifying a
long-standing confusion between discrete and continuous grid coverages.
— — Distinction between grid dimension and CRS dimension.
— — Introduction of EnvelopeByAxis, an envelope type which allows for a convenient handling of any
type of coordinates.
— — Partitioned (“tiled”) coverages, allowing – among others – “interleaved representations” of coverages
and datacubes tiled for efficient subsetting.
— — Removal of a namespace ambiguity in ReferenceableGridCoverage (resolved by introduction
of GeneralGridCoverage).
— — Some GML schema definitions whose generality complicates coverage understanding unnecessarily
have been extracted and condensed into the pertaining XML schema. As a consequence, the XML encoding
of this document is now a compact, freestanding definition, rather than a GML application schema.
Nevertheless, by keeping with the coverage types inherited from the previous edition, ISO 19123-2:2018
of this document, it is possible for implementers to remain in the realm of a GML application schema.
A list of all the parts in the ISO 19123 -x series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
vi
vi
ISO/FDISPRF 19123-2:xxxx2026(en)
Introduction
This document specifies an interoperable, conformance-testable information schema for coverages. As
[10]
defined in ISO 19123-1 (which is equivalent to OGC Abstract Topic 6.1), coverages serve as digital
representations of space-time varying phenomena, corresponding to the notion of a “field” in physics. Such
coverages can be discrete or continuous. Common examples include 1-D time series, 2-D imagery, 3-D x/y/t
image time series and x/y/z geophysical voxel models, as well as 4-D x/y/z/t atmospheric and ocean data.
Coverages are independent from service definitions and, therefore, can be accessed through a variety of web
[12] [6]
based service types, such as the OGC Web Coverage Service (WCS) Standard , , and through service
instantiations realizing ISO 19123-3.
This document is a compliant standardization target of ISO 19123-1:2023 relying on its concepts, terms,
definitions, and interfaces to establish a logical schema (via UML) implementing the interfaces defined there.
Additionally, this document defines related physical coverage schemas (via format encodings) for the single
logical schema. Thus, ISO 19123-1 and this document together establish an abstraction hierarchy:
— — conceptual level: ISO 19123-1 defining abstract interfaces;
— — logical level: Clauses 5Clauses 5 – to 10 of this document, defining data as object classes with
attributes;
— — physical level: Clauses 11Clauses and 1212 of this document, plus further separate coverage encoding
standards defined outside this document, defining the mapping of the logical-level data to byte streams
(GeoTIFF, netCDF, JPEG2000, etc.).
The content of this document is based on OGC standards CIS 1.0 and CIS 1.1.

vii
FINAL DRAFT International Standard ISO/FDIS 19123-2:xxxx(en)

Geographic information — Schema for coverage geometry and
functions — —
Part 2:
Coverage implementation schema
1 Scope
This document specifies an implementable, conformance-testable coverage structure based on the abstract
schema for coverages defined in the ISO 19123-1 coverage fundamentals. This document defines a concrete
data structure that is suitable for encoding in many formats.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 19123--1:2023, Geographic information — Schema for coverage geometry and functions — Part 1:
Fundamentals
ISO 19136-1:2020, Geographic information — Geography Markup Language (GML) — Part 1: Fundamentals
OGC 08--094r1, OGC® SWE Common Data Model Encoding Standard, version 2.0
OGC 24-014, OGC® SWE Common Data Model Encoding Standard, version 3.0
IETF RFC 2387, The MIME Multipart/Related Content-type, Internet Engineering Task Force, 1998
IETF RFC 2392, Content-ID and Message-ID Uniform Resource Locators, Internet Engineering Task Force, 1998
IETF RFC 7159, The JavaScript Object Notation (JSON) Data Interchange Format. Internet Engineering Task
Force, 2014
3 Terms, definitions, and abbreviated terms
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 19123-1:2023 and the following
apply.
ISO and IEC maintain terminologicalterminology databases for use in standardization at the following
addresses:
— — IEC Electropedia: available at
— — ISO Online browsing platform: available at https://www.iso.org/obp
ISO/PRF 19123-2:2026(en)
3.1.1
— IEC Electropedia: available at https://www.electropedia.org/
3.1.1
coverage CRS
coverage Coordinate Reference Systemcoordinate reference system
coordinate reference system (CRS) in which all coordinates in a coverage domain are expressed
Note 1 to entry: Sometimes a coverage’s CRS is also referred to as the coverage’s native CRS to express that this is the
CRS to which all the coverage’s location data refer.
Note 2 to entry: The domain has been added to the definition.
3.1.2 3.1.2
displaced grid
grid whose direct positions are topologically aligned to a grid, but whose geometric positions can
vary arbitrarily
3.1.3 3.1.3
irregular grid
grid whose direct positions have individual distances along each grid’s axis
3.1.4 3.1.4
partition
separately stored coverage acting, by being referenced in another coverage, as one of its
components
3.1.5 3.1.5
regular grid
grid whose direct positions have a constant distance along each grid’s axis
3.1.6 3.1.6
transformation grid
grid whose direct positions are given by a transformation
Note 1 to entry: This definition is adapted from OGC 08-094r1.
Note 2 to entry: The transformation algorithm described in this definition is not within the scope of this document.
3.2 Abbreviated terms
CIS Coverage Implementation Schemacoverage implementation schema
CRS Coordinate Reference Systemcoordinate reference system
EPSG European Petroleum Survey Group
GeoTIFF Geo Tagged Image File Formatgeo tagged image file format
GML Geography Markup Languagegeography markup language
JSON JavaScript Object Notation
netCDF network Common Data Formatcommon data format
ISO/PRF 19123-2:2026(en)
OGC Open Geospatial Consortium
RDF Resource Description Frameworkresource description framework
SWE Sensor Web Enablementsensor web enablement
TIN Triangulated Irregular Networktriangulated irregular network
UoM Unitunit of Measuremeasure
UML Unified Modeling Languageunified modeling language
WCS Web Coverage Serviceweb coverage service
WCPS Web Coverage Processing Serviceweb coverage processing service
4 Conformance
4.1 Notation
[40]
Schemas are presented using the Unified Modeling Language (UML) as defined in ISO 19103. .
4.2 Interoperability and conformance testing
[10]
The term “coverage”, together with related terms, is used as defined in ISO 19123-1:2023. . This Coverage
Implementation Schema standard implements ISO 19123-1:2023, Clauses 5 through 10 of ISO 19123-1:2023
(ISO 19123-1:2023, Annex D is implemented by normative Annex BAnnex B of this document). In other words,
the data structures defined in the UML schema form an implementation of the interfaces established in
ISO 19123-1:2023.
This document defines testable conformance classes which correspond to the requirements in
Clause 5Clause 5 onwards. These conformance classes, together with the corresponding conformance tests,
are described in Annex AAnnex A. Any implementation claiming conformance with this document mustshall
conform to the abstract conformance class “coverage” and, in addition, at least one of the conformance classes
“xml”, “json”, “multipart”.
4.3 Organization
The coverage schema is organized into the packages shown in Figure 1Figure 1. Each package establishes one
requirements class. Figure 1Figure 1 show the requirements class dependencies depicted as a UML package
diagram; each package represents one class, the “depends-on-” relationship represents the requirements class
dependency relationship. Packages have been grouped along practical implementation considerations, in
particular to maximize modularity (Figure 1(Figure 1 and Table 1Table 1):):
— — The core class “coverage” (in red). This is the only abstract class – it establishes the basic framework,
while the concrete conformance classes listed below define how concrete coverage instances can be built.
— — The grid coverage classes (in green):
— — Class “grid-regular” establishes multi-dimensional unreferenced and regular referenced grids;
in particular, GridCoverage and RectifiedGridCoverage are provided here for backwards
compatibility with version 1.0 of this standarddocument.
— — Class “grid-irregular” establishes multi-dimensional irregular referenced grids.
— — Class “grid-transformation” establishes multi-dimensional referenced grids defined by algo-
rithmicalgorithmic transformations.
ISO/PRF 19123-2:2026(en)
— — The non-gridded coverage classes (in blue):
— — Class “pointcloud” establishes point clouds, a class kept separately as it frequently appears
standalone in practice.
— — Class “mesh” establishes general multi-dimensional geometric meshes with curves, surfaces,
and solids.
— — The format encoding classes (in yellow):
— — Class “xml-coverage” establishes XML encoding of coverages.
— — Class “json-coverage” establishes JSON encoding of coverages.
— — Class “multipart” establishes a multipart encoding of coverages.
— — Class “partitioning” (in grey) establishes coverages composed from several sub-coverages.
ISO/PRF 19123-2:2026(en)
json-coverage
coverage xml-coverage multipart
partitioning
grid-regular pointcloud
grid-irregular mesh
grid-transformation
Figure 1 — The Coverage class hierarchy as UML package diagram
Requirement 1:  https://standards.isotc211.org/19123/-/2/2/req/coverage/conformance
An implementation of this CIS standard, in order to be compliant, shall conform to:
Requirement 1:
An implementation of this CIS standard, in order to be compliant, shall conform to:
— —  be an implementation of ISO 19123-1;
— —  the core conformance class coverage plus;
— —  at least one of the grid-regular, grid-irregular, grid-transformation, pointcloud, and mesh conformance classes
plus;
— —  at least one of the encoding conformance classes xml-coverage and json-coverage plus
—  ;
— the conformance tests specified in Annex AAnnex A.
ISO/PRF 19123-2:2026(en)
All requirements-classes and conformance-classes described in this document are owned by the standard(s)
identified.
The URIs in this standarddocument have a stem of https://standards.isotc211.org/19123/-2/2/ which
corresponds to the OGC URI stem https://www.opengis.net/spec/CIS/1.2/, except that the numbering (such
as of requirements) has changed sometimes.
Table 1 — Package (conformance class) URIs established in this standarddocument
Class Description and URI
coverage General, abstract coverage class, implementing ISO 19123-1:2023
https://standards.isotc211.org/19123/-2/2/conf/coverage
pointcloud Coverage specialization for Multi-Point Coverages (point clouds)
https://standards.isotc211.org/19123/-2/2/conf/pointcloud
grid-regular Coverage specialization for regular Grid Coverages
https://standards.isotc211.org/19123/-2/2/conf/grid-regular
grid-irregular Coverage specialization for irregular Grid Coverages
https://standards.isotc211.org/19123/-2/2/conf/grid-irregular
grid- Coverage specialization for transformation Grid Coverages
transformation
https://standards.isotc211.org/19123/-2/2/conf/grid-transformation
mesh Coverage specialization for curve, surface, and solid coverages
https://standards.isotc211.org/19123/-2/2/conf/mesh
partitioning Partitioned representation of coverages
https://standards.isotc211.org/19123/-2/2/conf/partitioning
xml-coverage Coverage encoding in XML
https://standards.isotc211.org/19123/-2/2/conf/xml-coverage
json-coverage Coverage encoding in JSON
https://standards.isotc211.org/19123/-2/2/conf/json-coverage
multipart Multi-part representation of coverages
https://standards.isotc211.org/19123/-2/2/conf/multipart
This document consists of the UML diagrams and textual requirements classes established in this document
as well as an external file bundle consisting of the corresponding schema files, plus example coverage files.
The name and contact information of the maintenance agency for this document can be found at
www.iso.org/maintenance_agencies.
5 Coverages
5.1 Overview
Conformance class “coverage” lays the foundation for the Coverage Implementation Schema. It is the abstract
core class, meaning it does not allow creating coverage instances itself, but rather provides the fundament for
the further classes which define various specializations of coverage instances.
ISO/PRF 19123-2:2026(en)
[10]
The following ISO 19123-1:2023 coverages are sorted along the topological dimension of the elements they
contain (Figure 2(Figure 2),), visible in their respective domain set structure:
— — 0-D point sets, known as Multi-Point Coverages for irregular point agglomerations (see
Clause 6Clause 6)) and General Grid Coverages for points sitting on some regular or irregular grid (see
Clause 7Clause 7););
— — 1-D curve bundles, known as Multi-Curve Coverages (see Clause 8Clause 8););
— — 2-D surface bundles, known as Multi-Surface Coverages (see Clause 9Clause 9););
— — 3-D solid bundles, known as Multi-Solid Coverages (see Clause 10Subclause ).
«FeatureType»
Coverage
«FeatureType» «FeatureType» «FeatureType» «FeatureType» «FeatureType»
MultiPointCoverage GeneralGridCoverage MultiCurveCoverage MultiSurfaceCoverage MultiSolidCoverage

Figure 2 — Coverage subtypes defined in CIS (overview)
Requirement 2:  https://standards.isotc211.org/19123/-/2/2/req/coverage/subtypes
A coverage shall be one of: MultiPointCoverage, GeneralGridCoverage, MultiCurveCoverage,
MultiSurfaceCoverage, MultiSolidCoverage.
NOTE This structuring, adopted from ISO 19123-1:2023, is different from the previous edition of this standard,
document, ISO 19123-2:2018.
5.2 General coverage structure
A coverage consists of the following main components (Figure 3(Figure 3):):
— — Domain set: “where are values available?” Coordinate positions for which values are stored in the
coverage are called direct positions.
— — Range set: “what is the value at a particular position?” (often referred to as “pixels” or “voxels”). Such
values can be atomic (such as in grayscale images) or record structures (such as in colorcolour or
hyperspectral images). Record components are known as bands, channels, and variables in different
disciplines.
— — Range type: “what do these values mean?” Such a type often consists of one or more fields (also
referred to as bands or channels or variables – not to be confused with the physics field a coverage
ISO/PRF 19123-2:2026(en)
represents). For this description of the semantics, coverages in this document make use of OGC SWE
[16]
Common . (OGC 08-094r1).
— — Metadata: “what else do we know about this coverage?” This item is added in this document, it is not
present in the abstract definition of ISO 19123-1:2023.
Technically, all coverage types are derived from abstract class Coverage. This structure contains a
DomainSet describing the coverage’s domain and a RangeSet component containing the range value
consisting of one or more record fields. The RangeType element describes the coverage'scoverage’s range
data structure. Its structure description is based on the OGC SWE Common [OGC 08--094r1] DataRecord, so
that the semantics description from upstream sensor acquisitions into downstream services is carried over
seamlessly.
In conformance class “coverage,”, this domain/range representation is used; requirements class “coverage-
partitioning (Clause ” (Clause 11) adds partitioning and position/value pair list as alternatives. This is why
coverage subtype CoverageByDomainAndRange is introduced in Figure 3Figure 3;; while it can seem
artificial in this requirements class, it will allow modelling the alternative representations later in this
document.
Figure 3Figure 3 contains the complete coverage structure with all variants allowed; in the subsequent
subclauses, all parts are successively described in detail.
[42] [39] [24]
NOTE ISO 19123-3:2023 ,, which is based on the OGC Web Coverage Processing Service (WCPS) ,), defines a
coverage-specific query language based on this document allowing extraction, recoding, fusion, derivation of coverages
and general analytics, currently on multi-dimensional grid coverages, i.e. geo datacubes.
ISO/PRF 19123-2:2026(en)
ISO/PRF 19123-2:2026(en)
Figure 3 — The Coverage structure (overview)
5.3 Domain/range based coverage structure
The coverage structure defined normatively in this class coverage is CoverageByDomainAndRange.
Requirement 3:  https://standards.isotc211.org/19123/-/2/2/req/coverage/domain+range
A coverage instantiating class coverage shall conform with Figure 4Figure 4 and Table 2Table 2.

ISO/PRF 19123-2:2026(en)
«FeatureType»
Coverage
«GI_Property»
+ id: CharacterString
AbstractDataComponent
«Type»
DataRecord
(from OGC::Sensor Web
Enablement 2.0::OGC::SWE
Common Data Model 3.0::
+rangeType
Record Components)
+envelope
«GI_Property»
0.1
«GI_Property»
«GI_DataType»
«GI_DataType»
«FeatureType»
RangeType EnvelopeByAxis
CoverageByDomainAndRange
«GI_Property»
+ srsName: CharacterString
+interpolationRestriction
+ axisLabels: CharacterString
0.1
«GI_Property»
+ srsDimension: Integer [0.1]
+coverageFunction
0.1
«GI_DataType»
«GI_Property»
InterpolationRestriction
«GI_DataType»
CoverageFunction
«GI_Property»
+ allowedInterpolation [0.*]
«GI_Property»
+ sequenceRule: CharacterString [0.1]
+ axisOrder: CharacterString [0.1]
+domainSet
+rangeSet
+ startPoint: Integer [0.1]
«GI_Property»
«GI_Property»
+metadata
«GI_DataType» «GI_DataType»
0.1 «GI_Property»
DomainSet RangeSet
«GI_DataType»
tags
«GI_Property»
Metadata
definition =
+ srsName: CharacterString
description =
+ axisLabels: CharacterString
«GI_Property»
+ uomLabels: CharacterString
+ any [0.*]
+ dimension: Integer [0.1]
refined in the structure of values defined by
individual coverage RangeType, number of values
types defined by DomainSet
ISO/PRF 19123-2:2026(en)
Figure 4 — The Coverage domain/range structure
Table 2 — The Coverage domain/range structure
Name Definition Data type Multiplicity
Id string
Identifier of the coverage One
(mandatory)
coverage- Coverage-
Function describing the mapping from the domain to the Zero or one
Function Function
range of the coverage (multiplicity zero, unless overridden (optional)
by a coverage subtype)
Envelope Envelope-
Bounding box of the coverage Zero or one
ByAxis
(optional)
domainSet DomainSet
coverageCoverage domain set, specifying the direct positions One
at which range set values are available in this coverage (mandatory)
ISO/PRF 19123-2:2026(en)
Name Definition Data type Multiplicity
rangeSet RangeSet
Coverage range set, containing a value for each direct One
position in the domain set (mandatory)
rangeType SWE Common::
Structure definition of the coverage range values, as One
DataRecord
specified in OGC 08--094r1 OGC SWE Common 2.0 Clause 7 (mandatory)
and 8
metadata Any
Application specific metadata of the coverage Zero or one
(optional)
NOTE 1 In previous editions of this standarddocument, the id attribute was of type NCName which restricts the
characters allowed – a legacy from GML. In the course of the separation of logical and physical level and for the support
of further formats without this restriction, such as JSON, this has been relaxed. Generally, this results in a more human-
readable style allowing for whitespace, special characters, globally unique naming schemes, etc. Care has to be taken,
therefore,Therefore, it is important to take care to choose only id values which can be represented in all target formats
envisaged (which can, but does not necessarily, include GML).
The same separation from GML is not possible for rangeType as SWE Common does not offer a separate
logical model.
NOTE 2 UML data type Any is used here with the same meaning as XML’s xsd:any, which does not have a direct
equivalent in UML.
The coverageFunction item describes the correlation between the direct positions in the domain and the
values in the range. In case of the Multi-Point/Curve/Surface/Solid Coverages this correlation is
straightforward: points, curves, surfaces, and solids are listed linearly, and so are the range values, and based
on the sequence of occurrence of the items in both lists, pairs can be built unambiguously. Therefore,
coverageFunction in these cases is not needed and, hence, has a zero occurrence in general. This is
different in gridded coverages as the set of discrete points is aligned in multiple dimensions with no single
linearization scheme. Consequently, GeneralGridCoverage provides an explicit sequence definition (cf.
7.2Subclause 7.2).).
NOTE 3 Although currently coverageFunction applies only to grids in a GeneralGridCoverage the structure
remains associated with Coverage as defined in OGC CIS 1.1 for backwards compatibility and to leave open
opportunities in future for using it in non-gridded coverage structure, too.
Table 3 — The CoverageFunction structure
Name Definition Data type Multiplicity
sequenceRu string
Linearization scheme code, case-insensitive. Zero or one
le
Default is “Linear” (optional)
axisOrder string
A list of the grid axes, identified by their decimal position number Zero or one
starting at 1, and ornamented with a “+” for traversal in ascending (optional)
coordinate order or “-““‒“ for traversal in descending coordinate
order.
If axisOrder is present, then each axis shall appear exactly once.
Default is “+1 +2 …+n” for an n-D grid.
startPoint integer
The n-D index position of a point in the n-D grid that is mapped to Zero or one
the first point in the range set (the start of the linearization (optional)
traversal).
Default is the n-tuple of lower index bounds in the grid.
NOTE 4 The axes in axisOrder are identified by their position number, starting with 1. The array start position,
given by the lower bounds vector, typically is (0,…,0). This is a GML heritage.
ISO/PRF 19123-2:2026(en)
Requirement 4:  https://standards.isotc211.org/19123/-/2/2/req/coverage/coverage-function
The coverageFunction item, if present in a Coverage, shall consist of a CoverageFunction
structure as per Table 3Table 3.
NOTE 5 GML references withdrawn ISO 19123:2005 for the definition of the coverageFunction details.
ISO 19123:2005 is superseded by ISO 19123-1:2023 which contains the same information in its (informative) Annex C.
As there the traversal variants are given only with a coarse informal description and illustrations of the 2-D case this is
not sufficiently well defined for normative use.
5.4 Domain set
5.4.1 General
The domain set determines the exact locations of a coverage overall and its set of direct positions. The
coordinate space in which the coverage resides is given by a (single- or multi-dimensional) CRS defining an
ordered list of domain set axes whose lower and upper bounds establish the extent along each axis.
A CRS is referenced through some identifier. Axes used by the coverage are identified by their position in the
(ordered) list of axes given in the CRS. The srsName attribute contains an identifier which resolves to the
complete CRS definition. To avoid this extra roundtrip in services, information critical for understanding the
coverage – the axis labels and the unit of measure for each axis – is repeated locally in the domain set as the
two lists axisLabels and uomLabels.
Table 4 — The DomainSet structure
Name Definition Data type Multiplicity
srsName string
Identifier of the CRS in which the coverage domain set One
coordinates are expressed (mandatory)
axisLabels string
List of whitespace-separated pairwise distinct axis names, One
each one corresponding to exactly one axis in the CRS, (mandatory)
matching the position in the axis name list and the axis
position in the CRS. Axis names do not contain whitespace.
They can be identical to the respective CRS axis abbreviation,
but do not have to.
uomLabels string
List of whitespace-separated units of measure (uom), where One
each uom belongs to the axis matched by the position in (mandatory)
axisLabels. Uom items do not contain whitespaces.
dimension unsigned
Dimension of the coverage, given by its CRS Zero or one
int
(optional)
NOTE 61 Attribute dimension is redundant (the dimension is equal to the number of elements in the axisLabels
and uomLabels lists) and hence not present in Multi-Point and General Grid Coverage domain sets, only in the legacy
GML Multi-Curve/Surface/Solid coverage domain sets.
EXAMPLE Examples of unit labels include “deg” (degree), “m” (metre), and “1” (for unit-less scalars).
Requirement 5:  https://standards.isotc211.org/19123/-/2/2/req/coverage/srsname-contents
The srsName attribute shall reference a CRS containing all axes referenced in the domain set in proper
order.
ISO/PRF 19123-2:2026(en)
Requirement 6:  https://standards.isotc211.org/19123/-/2/2/req/coverage/axislabels-contents
The axisLabels attribute shall consist of a whitespace-separated list of names, with exactly as many
names as the srsName CRS defines.
Requirement 7:  https://standards.isotc211.org/19123/-/2/2/req/coverage/uomlabels-contents
The uomLabels attribute of an axis shall consist of a whitespace-separated list of units of measure (uom)
items, with exactly as many uom items as the srsName CRS defines.
Requirement 8:  https://standards.isotc211.org/19123/-/2/2/req/coverage/srsname-crs
The CRS in the srsName attribute shall have as many axes as indicated in the dimension attribute, if that
is present.
NOTE 2 See 5.4.2Subclause for details on the CRS specification.
NOTE 3 In the context of coverage services like WCS the domain set CRS is called the coverage’s Native CRS, as opposed
to derivatives of this coverage in some other CRS, obtained through reprojection.
NOTE 4 Axis labels can be renamed locally in the coverage. For example, CRS axes Lat / Lon can be named Lat / Long
or x / y. Matching is done solely by their position.
NOTE 45 As a consequence of these requirements, axisLabels and uomLabels contain the same number of
elements, equal to the coverage’s dimension.
NOTE 56 UCUM and QUDT are common methods for expressing units of measure.
5.4.2 Coordinate reference system
Each coverage has a single coordinate reference system (CRS) associated which defines the meaning of the
direct position coordinates across all axes of the coverage. This CRS has the same dimension as the coverage
domain set. The description of this CRS can be given by a single predefined CRS (such as from the EPSG
catalogue) or a composition of several CRSs (such as EPSG horizontal and OGC time).
By convention established by OGC, a reference to a CRS is a URL pointing to a resource which is a CRS
definition. As URLs for humans are impractical, a best practice has been established by OGC to alternatively
[40] [1]
allow a shorthand notation using SafeCURIE syntax . This syntax is defined as follows:
— — The CRS URLs to be abbreviated shall follow the pattern (with placeholders in curly braces)
https://www.opengis.net/def/crs/{authority}/{version}/{identifier}
— — Then, a valid CURIE equivalent for such a CRS URL is [{authority}:{identifier}] with
{version} in the CURIE set to 0 by definition, always taking the most up-to date version.
— — For composite CRSs using the “crs-compound” pattern to chain several CRSs, the CURIE equivalent is
their concatenated comma-separated list [{authority }{identifier}], .,
1 1
[{authority }{identifier }]
n n
EXAMPLE The following are valid CRS URLs and corresponding CURIEs, based on the OGC resolver operated by
Constructor University (line breaks added to improve readability):
https://www.opengis.net/def/crs/EP
...
