ISO 4802-1:2023
(Main)Glassware — Hydrolytic resistance of the interior surfaces of glass containers — Part 1: Determination by titration method and classification
Glassware — Hydrolytic resistance of the interior surfaces of glass containers — Part 1: Determination by titration method and classification
This document specifies: a) a method for determining the hydrolytic resistance of the interior surfaces of glass containers when subjected to attack by water at (121 ± 1) °C for (60 ± 1) min. The resistance is measured by titration of a known aliquot portion of the extraction solution produced with hydrochloric acid solution, in which case the resistance is inversely proportional to the volume of acid required; b) a classification of glass containers according to the hydrolytic resistance of the interior surfaces determined by the methods specified in this document.
Verrerie — Résistance hydrolytique des surfaces internes des récipients en verre — Partie 1: Détermination par analyse titrimétrique et classification
Le présent document spécifie: a) une méthode de détermination de la résistance hydrolytique des surfaces internes des récipients en verre lorsqu’ils sont soumis à l’attaque de l’eau à (121 ± 1) °C durant (60 ± 1) min. La résistance hydrolytique est mesurée par titrage d’une partie aliquote connue de la solution d’extraction obtenue avec une solution d’acide chlorhydrique; dans ce cas, la résistance hydrolytique est inversement proportionnelle au volume d’acide nécessaire au titrage; b) une classification des récipients en verre selon la résistance hydrolytique des surfaces internes déterminée par la méthode spécifiée dans le présent document.
General Information
Relations
Standards Content (Sample)
INTERNATIONAL ISO
STANDARD 4802-1
Fourth edition
2023-12
Glassware — Hydrolytic resistance
of the interior surfaces of glass
containers —
Part 1:
Determination by titration method
and classification
Verrerie — Résistance hydrolytique des surfaces internes des
récipients en verre —
Partie 1: Détermination par analyse titrimétrique et classification
Reference number
© ISO 2023
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 4
5 Reagents . 4
6 Apparatus . 5
7 Sample preparation .6
7.1 Sample size . 6
7.2 Determination of the filling volume . 6
7.2.1 Flat-bottomed containers ≤20 mm outer flange diameter (except ampoules,
syringes and cartridges) . 6
7.2.2 Flat-bottomed containers >20 mm outer flange diameter. 7
7.2.3 Round-bottomed containers . 7
7.2.4 Lipped containers . 7
7.2.5 Ampoules. 7
7.2.6 Syringes and cartridges . 7
8 Procedure .8
8.1 General . 8
8.2 Cleaning of samples . 8
8.3 Filling and heating . 8
8.4 Analysis of the extraction solutions . 9
8.5 Test to determine whether the containers have been surface-treated. 10
9 Expression of results .10
9.1 Determination . 10
9.2 Classification . 10
9.3 Distinction between containers of hydrolytic resistance container class HC 1 and
T
hydrolytic resistance container class HC 2 . 10
T
9.4 Designation . 11
10 Test report .11
11 Reproducibility .12
Bibliography .13
iii

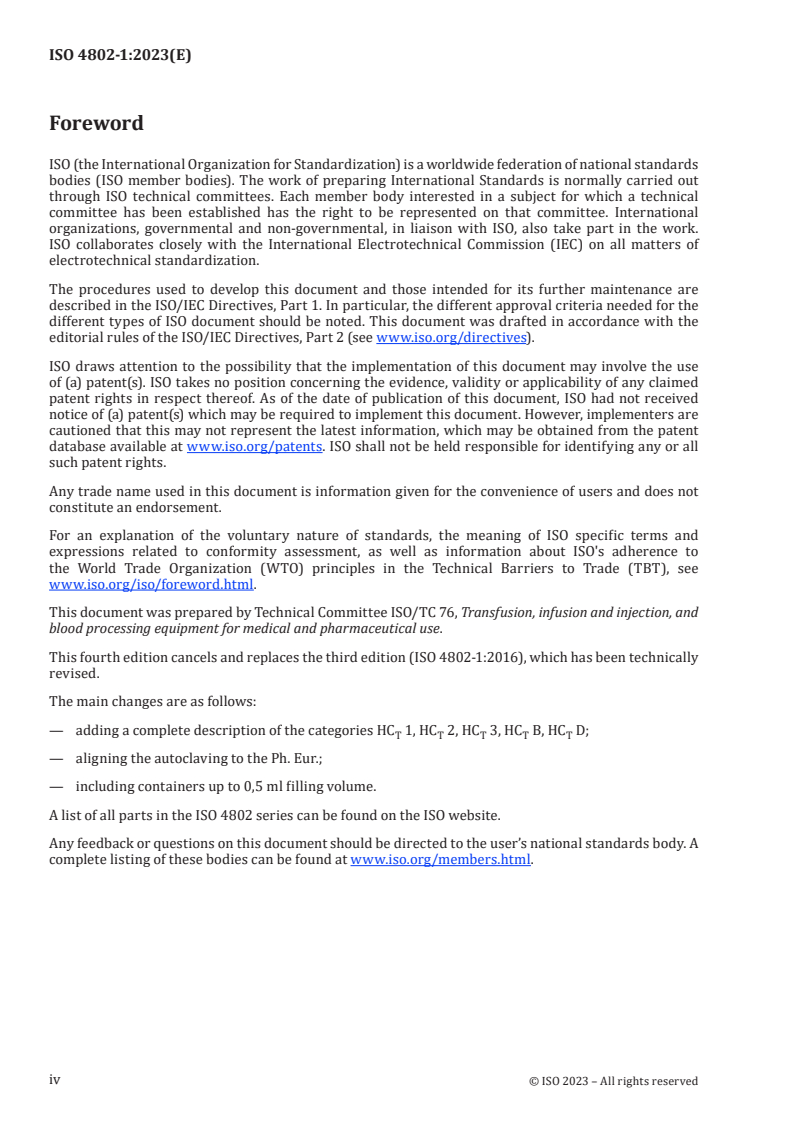

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO document should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use
of (a) patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed
patent rights in respect thereof. As of the date of publication of this document, ISO had not received
notice of (a) patent(s) which may be required to implement this document. However, implementers are
cautioned that this may not represent the latest information, which may be obtained from the patent
database available at www.iso.org/patents. ISO shall not be held responsible for identifying any or all
such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 76, Transfusion, infusion and injection, and
blood processing equipment for medical and pharmaceutical use.
This fourth edition cancels and replaces the third edition (ISO 4802-1:2016), which has been technically
revised.
The main changes are as follows:
— adding a complete description of the categories HC 1, HC 2, HC 3, HC B, HC D;
T T T T T
— aligning the autoclaving to the Ph. Eur.;
— including containers up to 0,5 ml filling volume.
A list of all parts in the ISO 4802 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
Introduction
This document is largely based on a test method approved by the International Commission on Glass
(ICG), Technical Committee 2, Chemical Durability and Analysis, for measuring the hydrolytic resistance
of the interior surfaces of glass containers.
The European Pharmacopoeia Commission has adopted the principle of the determination by titration
and has set up a classification for glass containers for injectable preparations, which is included in this
document. In addition, this document contains a classification of containers other than for injectable
preparations.
According to international interlaboratory tests, this document specifies the test conditions in more
detail than the European Pharmacopoeia in order to increase the reproducibility of the test results. In
particular, the autoclaving cycle is described in detail.
The hydrolytic resistance of the inner glass surface is evaluated by determination of the released
alkali reacting ions. According to their hydrolytic resistance, glass containers are classified in defined
categories.
HC 1 glass containers are suitable for most preparations whether or not for parenteral administration.
T
HC 2 glass containers are suitable for most acidic and neutral, aqueous preparations whether or not for
T
parenteral administration.
HC 3 glass containers are in general suitable for non-aqueous preparations for parenteral
T
administration, for powders for parenteral administration (except for freeze-dried preparations) and
for preparations not for parenteral administration.
HC B glass containers are in general suitable for drinking ampoules (Container Class HGB 2 according
T
to ISO 719).
HC D glass containers are in general suitable for lower demands on hydrolytic resistance (Container
T
Class HGB 4 and HGB 5 according to ISO 719).
v
INTERNATIONAL STANDARD ISO 4802-1:2023(E)
Glassware — Hydrolytic resistance of the interior surfaces
of glass containers —
Part 1:
Determination by titration method and classification
1 Scope
This document specifies:
a) a method for determining the hydrolytic resistance of the interior surfaces of glass containers when
subjected to attack by water at (121 ± 1) °C for (60 ± 1) min. The resistance is measured by titration
of a known aliquot portion of the extraction solution produced with hydrochloric acid solution, in
which case the resistance is inversely proportional to the volume of acid required;
b) a classification of glass containers according to the hydrolytic resistance of the interior surfaces
determined by the methods specified in this document.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 385, Laboratory glassware — Burettes
ISO 648, Laboratory glassware — Single-volume pipettes
ISO 719, Glass — Hydrolytic resistance of glass grains at 98 °C — Method of test and classification
ISO 720, Glass — Hydrolytic resistance of glass grains at 121 °C — Method of test and classification
ISO 1773, Laboratory glassware — Narrow-necked boiling flasks
ISO 3819, Laboratory glassware — Beakers
ISO 9187-1, Injection equipment for medical use — Part 1: Ampoules for injectables
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
ampoule
small, normally flat-bottomed container having stems in many different forms
Note 1 to entry: Ampoules are usually thin-walled and have a capacity normally up to 30 ml. They are intended to
be closed, after filling, by flame sealing.
3.2
bottle
flat-bottomed conta
...
