ISO 15927-1:2003

Hygrothermal performance of buildings - Calculation and presentation of climatic data - Part 1: Monthly means of single meteorological elements

ISO 15927-1:2003 specifies procedures for calculating and presenting the monthly means of those parameters of climatic data needed to assess some aspects of the thermal and moisture performance of buildings. Numerical values for any locations should be obtained from the meteorological service in the relevant country. ISO 15927-1:2003 covers the following single climate variables: air temperature; atmospheric humidity; wind speed; precipitation; solar radiation; longwave radiation. Meteorological instrumentation and methods of observation are not covered; these are specified by the World Meteorological Organisation (WMO).

Performance hygrothermique des bâtiments — Calcul et présentation des données climatiques — Partie 1: Moyennes mensuelles des éléments météorologiques simples

General Information

• Status: Published
• Publication Date: 16-Nov-2003
• ICS: 07.060 - Geology. Meteorology. Hydrology
• ICS: 91.120.10 - Thermal insulation of buildings
• Technical Committee: ISO/TC 163/SC 2 - Calculation methods
• Drafting Committee: ISO/TC 163/SC 2 - Calculation methods
• Current Stage: 9093 - International Standard confirmed
• Start Date: 24-Mar-2021
• Completion Date: 13-Dec-2025

Relations

• Consolidated By: ISO 14738:2002 - Safety of machinery - Anthropometric requirements for the design of workstations at machinery
• Effective Date: 06-Jun-2022

Overview

ISO 15927-1:2003, "Hygrothermal performance of buildings - Calculation and presentation of climatic data - Part 1: Monthly means of single meteorological elements," defines procedures for calculating and presenting monthly mean climatic parameters needed to assess aspects of a building’s thermal and moisture behaviour. It covers single meteorological variables such as air temperature, atmospheric humidity, wind speed, precipitation, solar radiation, and longwave (terrestrial) radiation. Instrumentation and observation methods are outside its scope (see WMO guidance); numerical data should be obtained from the relevant national meteorological service.

Key topics and technical requirements

• Scope and definitions: standardized terms (mixing ratio, vapour pressure, global/direct/diffuse solar irradiance, etc.) and symbols/units for hygrothermal analysis.
• Calculation procedures: methods to compute monthly means, daily statistics, and standard deviations for relevant variables.
• Periods and representation: guidance on the periods over which parameters are calculated and how results should be expressed.
• Variable-specific methods:
  • Air temperature: monthly mean, daily mean deviations, annual aggregates.
  • Atmospheric humidity: relationships between temperature and humidity parameters and monthly averaging.
  • Wind: mean wind speed and direction, environmental corrections, statistical elements.
  • Precipitation: monthly totals (including melted solid precipitation equivalents).
  • Solar radiation: procedures for monthly total irradiation and methods to estimate unmeasured irradiances (Annex A).
  • Longwave radiation: estimating monthly atmospheric longwave irradiation and sky temperature (Annex B).
• Normative references: aligns observational/instrumentation practices with the World Meteorological Organization (WMO) guidance.

Practical applications and users

Who uses ISO 15927-1:2003:

• Building designers and architects - for climate inputs when assessing hygrothermal performance and moisture risk.
• HVAC and energy modelers - to derive monthly climate inputs for thermal simulations and energy calculations.
• Researchers and consultants - for consistent climatic datasets in studies of building performance, condensation risk, and durability.
• Standards bodies and regulators - to harmonize climatic data presentation for compliance and comparative analyses.

Practical uses:

• Generating reliable monthly climatic input files for hygrothermal and energy simulation tools.
• Producing standardized climate summaries for building performance assessments and design decisions.
• Supporting risk assessments for condensation, moisture accumulation and thermal comfort analyses.

Related standards

• Other parts of the ISO 15927 series: Part 2 (cooling loads/overheating), Part 3 (driving rain index), Part 4 (data for annual energy demand), Part 5 (winter design temperatures), Part 6 (accumulated temperature differences).
• World Meteorological Organization (WMO) Guide to meteorological instruments and methods of observation for measurement/observation standards.

Keywords: ISO 15927-1:2003, hygrothermal performance, climatic data, monthly means, air temperature, humidity, wind speed, solar radiation, longwave radiation, WMO, building simulation.

Standards Content (Sample)

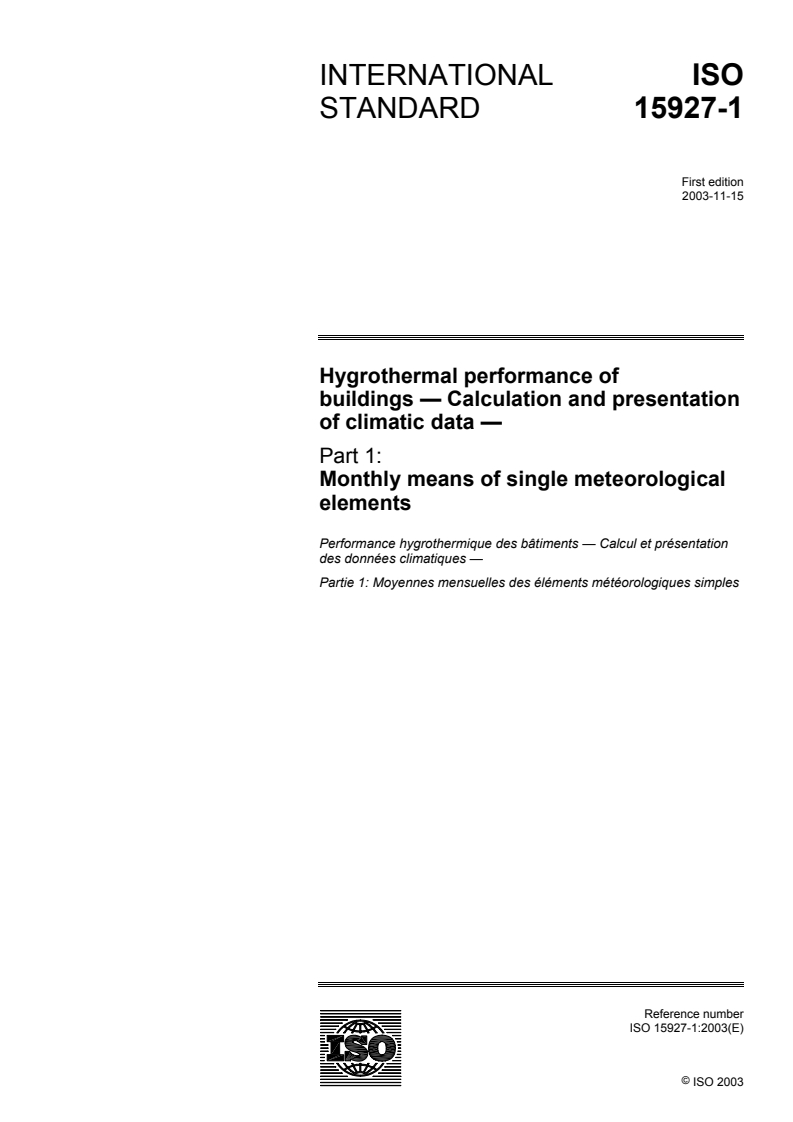

INTERNATIONAL ISO
STANDARD 15927-1
First edition
2003-11-15
Hygrothermal performance of
buildings — Calculation and presentation
of climatic data —
Part 1:
Monthly means of single meteorological
elements
Performance hygrothermique des bâtiments — Calcul et présentation
des données climatiques —
Partie 1: Moyennes mensuelles des éléments météorologiques simples

Reference number
©
ISO 2003

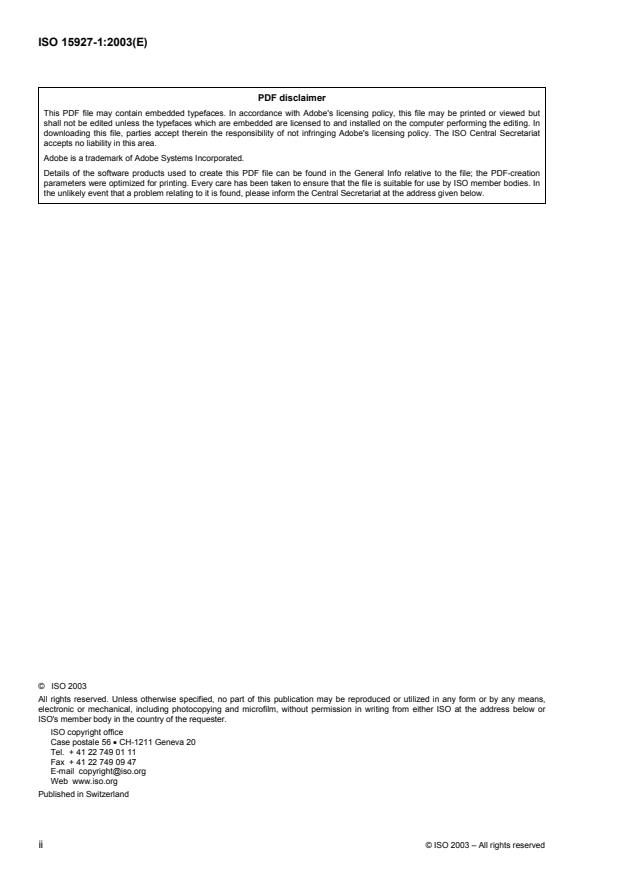

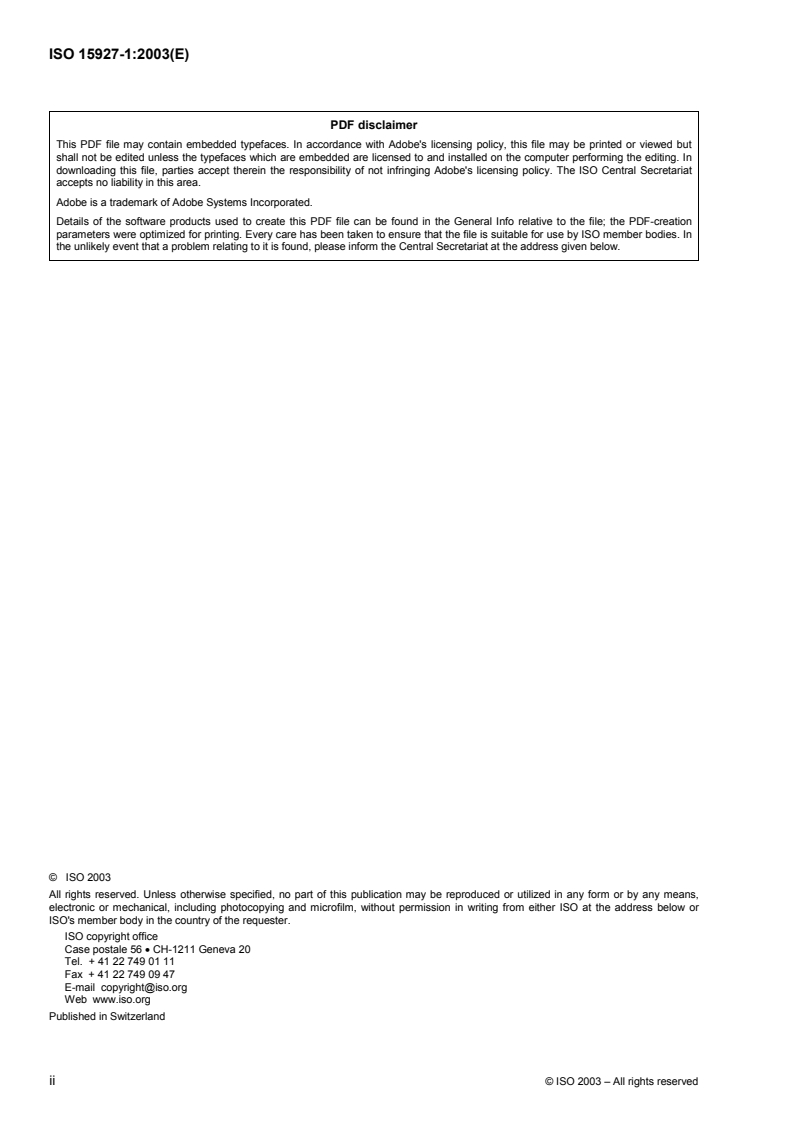

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2003
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland
ii © ISO 2003 – All rights reserved

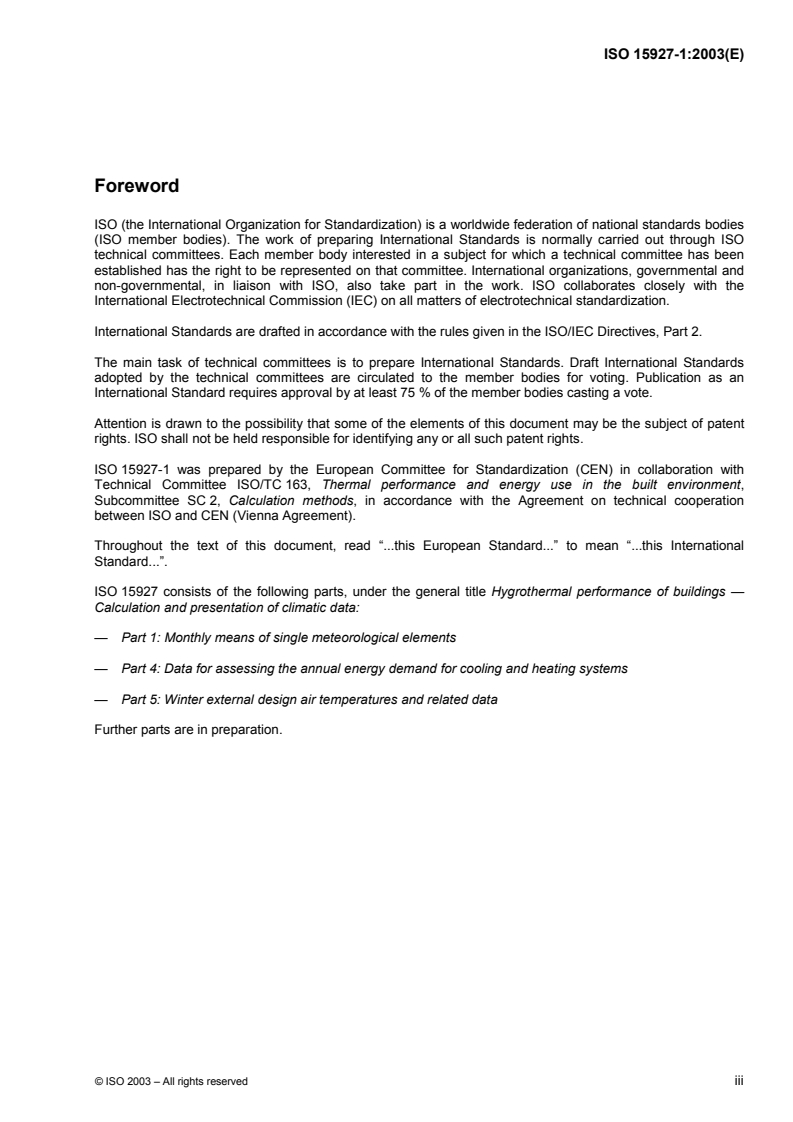

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 15927-1 was prepared by the European Committee for Standardization (CEN) in collaboration with
Technical Committee ISO/TC 163, Thermal performance and energy use in the built environment,
Subcommittee SC 2, Calculation methods, in accordance with the Agreement on technical cooperation
between ISO and CEN (Vienna Agreement).
Throughout the text of this document, read “.this European Standard.” to mean “.this International
Standard.”.
ISO 15927 consists of the following parts, under the general title Hygrothermal performance of buildings —
Calculation and presentation of climatic data:
— Part 1: Monthly means of single meteorological elements
— Part 4: Data for assessing the annual energy demand for cooling and heating systems
— Part 5: Winter external design air temperatures and related data
Further parts are in preparation.

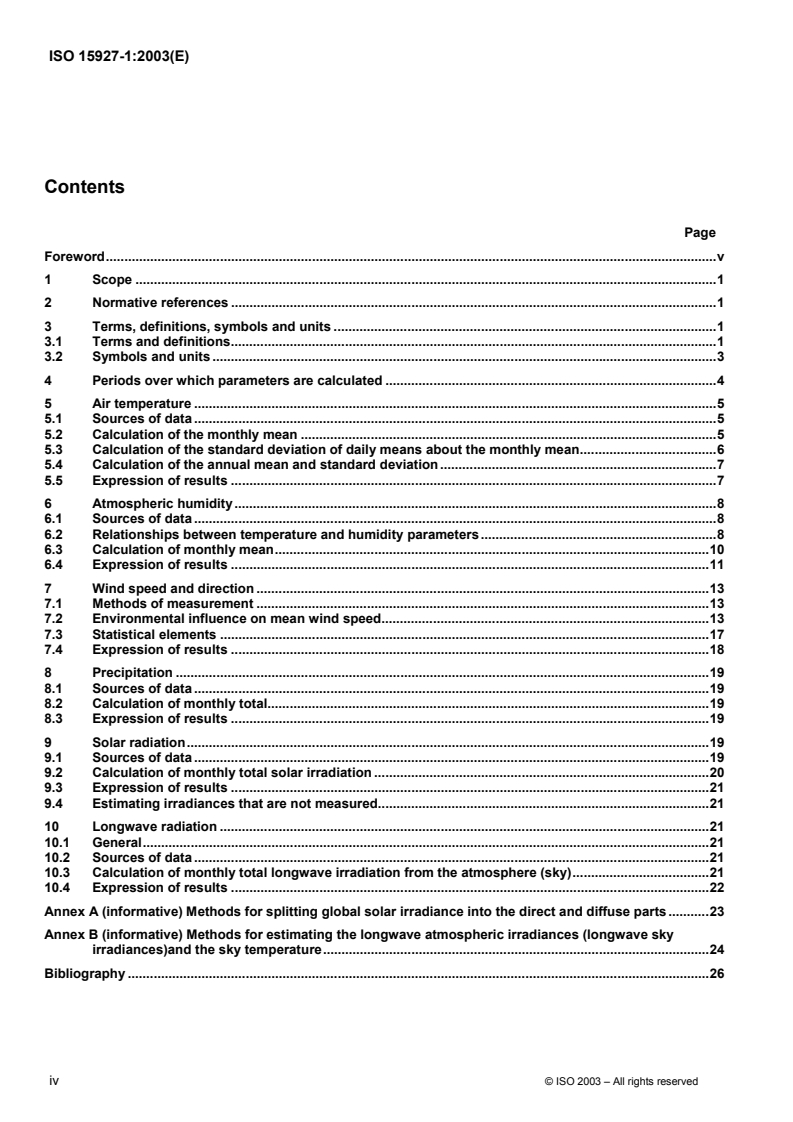

Contents
Page
Foreword.v
1 Scope .1
2 Normative references .1
3 Terms, definitions, symbols and units .1
3.1 Terms and definitions.1
3.2 Symbols and units .3
4 Periods over which parameters are calculated .4
5 Air temperature .5
5.1 Sources of data .5
5.2 Calculation of the monthly mean .5
5.3 Calculation of the standard deviation of daily means about the monthly mean.6
5.4 Calculation of the annual mean and standard deviation.7
5.5 Expression of results .7
6 Atmospheric humidity.8
6.1 Sources of data .8
6.2 Relationships between temperature and humidity parameters.8
6.3 Calculation of monthly mean.10
6.4 Expression of results .11
7 Wind speed and direction .13
7.1 Methods of measurement .13
7.2 Environmental influence on mean wind speed.13
7.3 Statistical elements .17
7.4 Expression of results .18
8 Precipitation .19
8.1 Sources of data .19
8.2 Calculation of monthly total.19
8.3 Expression of results .19
9 Solar radiation.19
9.1 Sources of data .19
9.2 Calculation of monthly total solar irradiation .20
9.3 Expression of results .21
9.4 Estimating irradiances that are not measured.21
10 Longwave radiation .21
10.1 General.21
10.2 Sources of data .21
10.3 Calculation of monthly total longwave irradiation from the atmosphere (sky).21
10.4 Expression of results .22
Annex A (informative) Methods for splitting global solar irradiance into the direct and diffuse parts.23
Annex B (informative) Methods for estimating the longwave atmospheric irradiances (longwave sky
irradiances)and the sky temperature.24
Bibliography .26
iv © ISO 2003 – All rights reserved

Foreword
This document (EN ISO 15927-1:2003) has been prepared by Technical Committee CEN/TC 89, “Thermal
performance of buildings and building components”, the secretariat of which is held by SIS, in collaboration with
Technical Committee ISO/TC 163, “Thermal performance and energy use in the built environment”,
Subcommittee SC 2 "Calculation methods".
This European Standard shall be given the status of a national standard, either by publication of an identical text
or by endorsement, at the latest by April 2004, and conflicting national standards shall be withdrawn at the latest
by April 2004.
This standard is one of a series of standards on calculation methods for the design and evaluation of the thermal
and moisture performance of buildings. EN ISO 15927, Hygrothermal performance of buildings – Calculation and
presentation of climatic data, consists of six parts:
Part 1: Monthly means of single meteorological elements;
Part 2: Data for design cooling loads and risk of overheating;
Part 3: Calculation of a driving rain index for vertical surfaces from hourly wind and rain data;
Part 4: Data for assessing the annual energy for heating and cooling;
Part 5: Winter external design air temperatures and related wind data;
Part 6: Accumulated temperature differences for assessing energy use in space heating.
Annexes A and B are informative.
This document includes a Bibliography.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Czech Republic, Denmark, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal,
Slovakia, Spain, Sweden, Switzerland and the United Kingdom.
1 Scope
This European Standard specifies procedures for calculating and presenting the monthly means of those
parameters of climatic data needed to assess some aspects of the thermal and moisture performance of
buildings. Numerical values should be obtained from the meteorological service in the relevant country.
This European Standard covers the following single climate variables:
air temperature;
atmospheric humidity;
wind speed;
precipitation;
solar radiation;
longwave radiation.
Meteorological instrumentation and methods of observation are not covered; these are specified by the World
Meteorological Organisation (WMO).
2 Normative references
This European Standard incorporates by dated or undated reference, provisions from other publications. These
normative references are cited at the appropriate places in the text, and the publications are listed hereafter. For
dated references, subsequent amendments to or revisions of any of these publications apply to this European
Standard only when incorporated in it by amendment or revision. For undated references the latest edition of the
publication referred to applies (including amendments).
World Meteorological Organisation: Guide to meteorological instruments and methods of observation. 6th Edition
WMO - No.8 1996.
3 Terms, definitions, symbols and units
3.1 Terms and definitions
For the purposes of this European Standard, the following terms and definitions apply.
3.1.1
mixing ratio
ratio of the mass of water vapour to the mass of dry air with which the water vapour is associated
3.1.2
water vapour pressure
part of the total atmospheric pressure exerted by water vapour
3.1.3
saturated vapour pressure over water
vapour pressure of moist air in equilibrium with a plane liquid water surface
3.1.4
relative humidity
ratio of the vapour pressure of moist air to the vapour pressure it would have if it were saturated
3.1.5
reference wind speed
wind speed measured at a height of 10 m above ground level in open country without nearby obstacles
3.1.6
gust speed
greatest instantaneous wind speed observed during the period over which the mean is calculated
3.1.7
solar irradiance
radiation power per area generated by the reception of solar radiation on a plane of any tilt and orientation
The following special quantities can be distinguished according to the conditions of reception:
3.1.7.1
global solar irradiance
irradiance generated by reception of solar radiation from the full hemisphere
NOTE According to the following definitions it is equal to the reception of direct solar and diffuse solar radiation on a
horizontal plane. In the case of tilted planes a portion of the ground reflected global solar radiation is also received.
3.1.7.2
direct solar irradiance
irradiance generated by the reception of solar radiation from a conical angle which surrounds concentrically the
apparent solar disk
NOTE 1 Also referred to as "beam solar radiation".
NOTE 2 The horizontal component of the direct solar irradiance is a part of the global solar irradiance.
NOTE 3 Any component of the direct solar irradiance is generated nearly exclusively from unscattered solar radiation.
NOTE 4 The diameter of the apparent solar disk corresponds to about 0,5 degrees; for technical reasons the available
radiometers receive the direct solar irradiance from solid angles around the solar disk which correspond mostly to field-of-view
angles between 3 and 6.
3.1.7.3
diffuse solar irradiance
irradiance generated by the reception of scattered solar radiation from the full sky hemisphere , with the exception
of that solid angle which is used to measure the direct solar irradiance
NOTE 1 Practical measurement requires a sun following disk, which permanently shades the receiver of the radiometer
with a ‘field of shade’ angle which equals the field of view angle used for measuring direct solar irradiance. This allows the
global irradiance to be calculated as the sum of diffuse solar and the horizontal component of the direct solar irradiance.
NOTE 2 The use of a ring to shade the sun along its daily path instead of a disk requires an equation to correct for the
corresponding losses of diffuse solar irradiance.
3.1.7.4
reflected solar irradiance
irradiance generated by reception of the rising reflected global radiation on a downward looking plane
NOTE 1 The ratio of reflected solar and global solar irradiance is called albedo.
NOTE 2 Part of the reflected global solar radiation is received on any tilted plane.
3.1.8
solar irradiation
radiant energy per area received from the sun on a plane of defined inclination and orientation during a given
period of time
NOTE The same components as indicated in 3.1.7 for irradiance can be distinguished.
3.1.9
longwave (terrestrial) radiation
radiation with wavelength greater than 3 m from surfaces at the ground and from the atmosphere
NOTE The exchange of longwave radiation occurs permanently between buildings, the ground and the atmosphere at
temperatures between 240 K and 340 K.
2 © ISO 2003 – All rights reserved

3.1.10
thermometer screen
white painted, wooden, plastic, or aluminium louvered enclosure, which allows a free flow of air over
thermometers while shielding them from solar radiation, longwave radiation and precipitation
3.2 Symbols and units
Symbol Quantity Unit
C roughness coefficient -
R
C topography coefficient -
T
D
wind direction from North
d number of days in a month -
m
d
number of days in a year -
y
G longwave irradiancefrom the atmosphere on a horizontal planeW/m
l,a
G solar irradiance W/m
s
G direct (beam) solar irradiance W/m
s,b
G diffuse solar irradiance W/m
s,d
G global solar irradiance W/m
s,g
G
reflected global solar irradiance Wm
s,r
H effective height of topographic feature m
H solar irradiation MJ/m
s
h number of hours in a month -
m
K terrain factor -
R
L actual length of downwind slope m
d
L effective length of upwind slope m
e
L actual length of upwind slope m
u
R
rainfall total (or equivalent amount of melted solid precipitation) mm
P total atmospheric pressure hPa
p
water vapour pressure hPa
hPa
p () saturated vapour pressure over water at temperature sat
s scale factor for topography coefficient -
T temperature K
v wind speed m/s
vˆ gust wind speed m/s
Symbol Quantity Unit
v reference mean wind speed m/s
r
v mean wind speed at a site m/s
s
x
mixing ratio g/kg
g/kg
x () saturated mixing ratio with respect to liquid water at temperature sat
y horizontal distance of site from crest of topographic feature m
z height above ground m
z minimum height m
min
z roughness height m
ratio of gas constant of dry air to gas constant of water vapour -
( = 0,62198)
air temperatureC
upwind slope of topographic feature -
relative humidity -
3.2.1 Subscripts
Subscript Meaning
a
atmosphere
dm mean over a day
dx maximum over a day
dn
minimum over a day
h values representative of an hour (either instantaneous measurements or the
mean of many readings in the hour)
ic inclination of a surface
mm
mean over a month
N values representative of a number of hours N (e.g. 3 h, 6 h or 12 h but less
than 24 h) (either instantaneous measurements or the mean of many
readings in the period)
l longwave
pq value exceeded for q % of the time
s solar
sd standard deviation
4 Periods over which parameters are calculated
The methods specified in clauses 5 to 9 can be used to calculate monthly means or totals from either individual
months (e.g. a January from a specified year) or from all the corresponding months from many years (e.g. all the
Januarys from a 30 year data set).
Calculations of the standard deviation of daily means or totals about the monthly or annual means or totals
(see 5.3 and 5.4) shall refer to a specified month or year.
4 © ISO 2003 – All rights reserved

The specified year or the multi-year period over which all parameters are calculated shall be quoted with the
values of the parameters.
5 Air temperature
5.1 Sources of data
The dry-bulb air temperature data used to calculate monthly means shall come from observations from a
thermometer screen fitted with louvers to allow a free flow of air.
5.2 Calculation of the monthly mean
5.2.1 From hourly data
The hourly temperature may be either: a) the mean of continuous measurements recorded during that hour or b)
measurements recorded at a particular moment within the hour (e.g. on the hour).
The monthly means shall be calculated as:
h
m
h
h1
(1)
mm
h
m
where
is the hourly temperature, in C;
h
h is the number of hours in the month under consideration.
m
5.2.2 From data measured at intervals of 3 h or 6 h
If dry-bulb outdoor air temperature data are available at intervals of 3 h or 6 h (each value may be either the mean
of continuous measurements during the interval or an instantaneous measurement taken on the interval), the
monthly mean is calculated from:
n
m
N
N1
(2)
mm
n
m
where
n = 8 d for data at three-hour intervals;
m m
= 4 d for data at six-hour intervals;
m
d is the number of days in the month under consideration.
m
5.2.3 From daily maximum and minimum data
If the only dry-bulb outdoor air temperatures available are the daily maximum and minimum for each day of the
month, the daily mean for each day is calculated as:
dn dx
(3)
dm
and the monthly means obtained as:
d
m
d m
d1
(4)
mm
d
m
where
d is the number of days in the month under consideration.
m
NOTE Daily means calculated from the daily maximum and minimum temperature will, in general, be different from those
calculated from hourly values. Most (95 %) of the differences lie between 1,0 C but they can range up to 2,0 C. Monthly
means calculated from daily maximum and minimum values will also differ from those calculated from hourly values, but in this
case 95 % of the differences lie between 0,2 C and the maximum difference lies between 0,25 C.
5.2.4 From instantaneous data at 07:30, 14:30 and 21:30 or at other similar times
If dry-bulb outdoor air temperature data are available only at 07:30, 14:30 and 21:30, or at other similar times, the
daily mean for each day is calculated using Equation (5), or the equivalent equation for the appropriate times.
207:3014:30 21:30
(5)
d m
and the monthly mean obtained from Equation (4).
5.3 Calculation of the standard deviation of daily means about the monthly mean
If not defined in 5.2.2, 5.2.3 or 5.2.4, the daily mean temperatures for each day in the month are calculated from
data measured at one, three or six hourly intervals using:
n
d
N
N1
(6)
d m
n
d
where
n = 24 for data at one-hour intervals;
d
= 8 for data at three-hour intervals;
= 4 for data at six-hour intervals;
or from daily maximum and minimum data using Equation (3) or at 07:30, 14:30 and 21:30 or similar times using
Equation (5).
Then the standard deviation of the daily means from the monthly mean is given by:
d d
mm
d
md m
d m
d 1 d1
(7)
sdm
d (d1)
m m
6 © ISO 2003 – All rights reserved

5.4 Calculation of the annual mean and standard deviation
The annual mean temperature shall be calculated from the daily means using:
d
y
d m
d1
(8)
ym
d
y
The standard deviation of the daily means from the annual mean shall be calculated by:
d
dyy
d
yd m
d m
d 1 d1
(9)
sd y
d (d1)
y y
5.5 Expression of results
Monthly mean values of the dry-bulb outdoor temperature shall be expressed to the nearest 0,1 C and the type of
data (i.e. hourly, daily, etc.) used for the monthly mean calculation shall be specified.
The following parameters shall be reported for each month:
a) the measurement dates from which the parameters are calculated;
b) the monthly means of the dry-bulb outdoor temperature;
c) the standard deviation of the daily mean dry-bulb temperature about the monthly mean;
and, when available:
d) the maximum value of the hourly dry-bulb outdoor temperatures;
e) the minimum value of the hourly dry bulb outdoor temperatures;
f) the values of the hourly dry-bulb outdoor temperature at the 1 %, 5 %, 10 %, 90 %, 95 % and 99 %
percentiles.
NOTE If four or more values of the dry-bulb outdoor temperature per day are available, provided that these values are
reasonably spread through the day, it is possible to estimate hourly values by linear or other interpolation of the raw data and
then calculate the statistical values specified in f).
These parameters summarised in b) to f) shall be presented in tabular form similar to the example shown in
Table 1.
Table 1 — Sample table of monthly and annual mean temperatures
JAN FEB MAR APR MAY JUN JUL AUG SEP OCT NOV DEC YEAR
5,7 5,4 6,2 8,1 10,4 13,1 14,1 14,7 13,0 10,9 8,1 6,2 9,7
mm
3,0 3,0 2,7 2,8 2,6 2,3 2,0 2,3 1,7 2,3 2,2 2,9 4,2
Sdm
-4,0 -1,7 -3,5 1,7 5,5 7,8 9,0 9,3 6,6 4,2 1,1 -0,8 -4,0min
-2,4 -1,1 -1,4 2,0 6,0 8,8 9,5 10,2 7,9 5,8 2,2 -0,6 -0,1p1
0,6 -0,1 2,0 3,5 7,0 9,8 10,6 11,6 10,5 7,2 3,9 0,4 2,5p5
1,4 0,5 3,4 4,2 7,6 10,2 11,5 12,3 11,0 8,2 5,0 1,9 4,3p10
9,4 9,0 9,2 11,3 13,7 16,1 16,7 17,1 15,3 13,9 10,6 9,5 15,0p90
10,1 9,4 11,0 12,4 15,9 17,2 17,3 19,3 15,9 14,9 11,1 10,2 16,0p95
10,9 9,9 15,8 15,0 18,7 20,3 18,7 23,4 16,7 16,3 12,2 11,5 18,4p99
11,1 10,3 18,9 16,5 23,0 21,6 19,7 25,6 17,5 16,8 13,9 11,8 25,6max
6 Atmospheric humidity
6.1 Sources of data
All humidity data used to calculate monthly means shall come from either
a) observations with mechanically ventilated wet and dry bulb thermometers; or
b) a chilled mirror dewpoint meter; or
c) a capacitance hygrometer; or
d) hair hygrometer.
Data derived from wet and dry bulb temperatures measured in a thermometer screen without mechanical
ventilation, as is the practice in many climatological stations, or from hair or similar hygrometers, are too imprecise
to be usable when calculating monthly means.
6.2 Relationships between temperature and humidity parameters
6.2.1 Saturated vapour pressure and temperature
The saturated vapour pressure is given as a function of temperature in Table 2.
8 © ISO 2003 – All rights reserved

Table 2 — Saturated vapour pressure in hPa as a function of temperature + T
T
C
+0 +1 +2 +3 +4 +5 +6 +7 +8 +9
C
-20 1,03 1,13 1,24 1,37 1,50 1,65 1,81 1,98 2,17 2,37
-10 2,59 2,83 3,09 3,38 3,68 4,01 4,37 4,75 5,17 5,62
0 6,11 6,56 7,05 7,57 8,13 8,72 9,35 10,01 10,72 11,47
10 12,27 13,12 14,02 14,97 15,98 17,04 18,17 19,37 20,63 21,96
20 23,37 24,86 26,42 28,08 29,82 31,66 33,59 35,63 37,78 40,03
30 42,41 44,90 47,52 50,27 53,16 56,19 59,37 62,71 66,21 69,87
Intermediate values may be found by linear interpolation.
NOTE Saturated vapour pressure can also be calculated using the empirical equations:
17,269
p6,105expfor  0 (10)
sat
237,3
21,875
p6,105expfor < 0 (11)
sat
265,5
6.2.2 Mixing ratio and vapour pressure
Vapour pressure is calculated from mixing ratio using
xP
p(12)
x
where P is the total atmospheric pressure measured at the site, in hPa.
6.2.3 Relative humidity
Relative humidity is calculated from dry-bulb temperature and vapour pressure using
p
(13)
p
sat
where the saturated vapour pressure is derived from temperature as specified in 6.2.1.
NOTE 1 Relative humidity is commonly expressed as a percent
...
