Standards Content (sample)

INTERNATIONAL ISO
STANDARD 15540
Second edition
2016-07-15
Ships and marine technology —
Fire resistance of non-metallic
hose assemblies and non-metallic
compensators — Test methods
Navires et technologie maritime — Résistance au feu des flexibles et
des compensateurs non métalliques — Méthodes d’essais
Reference number
ISO 15540:2016(E)
ISO 2016
---------------------- Page: 1 ----------------------
ISO 15540:2016(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2016, Published in Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form

or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior

written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of

the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2016 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 15540:2016(E)
Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction ..................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 Designation ................................................................................................................................................................................................................ 1

5 Test specimen and specimen preparation ................................................................................................................................. 2

6 Number of test specimen ............................................................................................................................................................................. 2

7 Test bench .................................................................................................................................................................................................................... 2

8 Test performance ................................................................................................................................................................................................. 2

8.1 Installation of test specimen ....................................................................................................................................................... 2

8.2 Burner width ............................................................................................................................................................................................ 3

8.3 Preparation ................................................................................................................................................................................................ 3

8.4 Measured values and measuring points ............................................................................................................................ 3

8.5 Temperature during flame application .............................................................................................................................. 4

8.6 Pressure during flame application ......................................................................................................................................... 4

8.7 Duration of test ....................................................................................................................................................................................... 4

8.8 Proof pressure application ........................................................................................................................................................... 5

9 Assessment ................................................................................................................................................................................................................. 5

10 Type test certificate ........................................................................................................................................................................................... 5

Annex A (normative) Type test certificate ...................................................................................................................................................... 6

© ISO 2016 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 15540:2016(E)

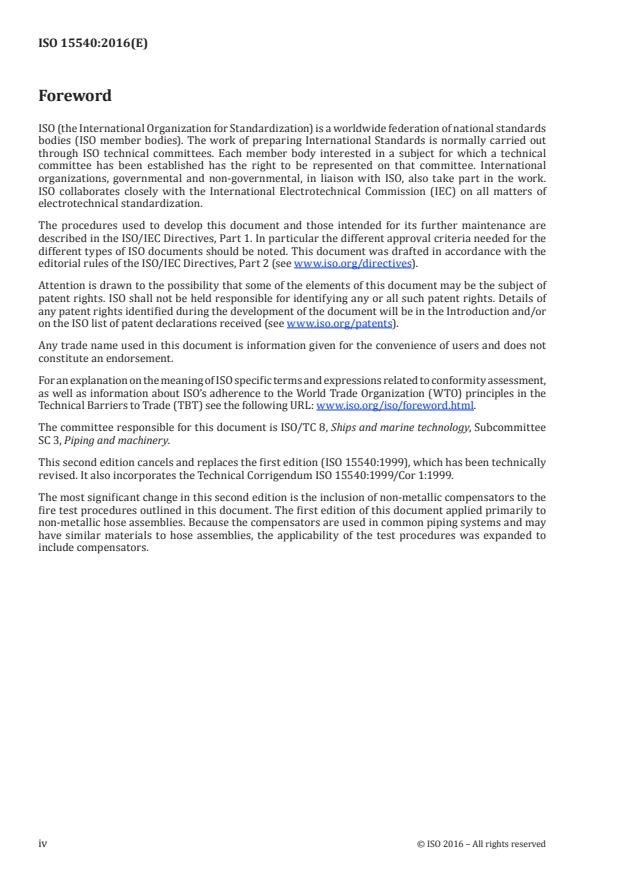

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www.iso.org/patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation on the meaning of ISO specific terms and expressions related to conformity assessment,

as well as information about ISO’s adherence to the World Trade Organization (WTO) principles in the

Technical Barriers to Trade (TBT) see the following URL: www.iso.org/iso/foreword.html.

The committee responsible for this document is ISO/TC 8, Ships and marine technology, Subcommittee

SC 3, Piping and machinery.

This second edition cancels and replaces the first edition (ISO 15540:1999), which has been technically

revised. It also incorporates the Technical Corrigendum ISO 15540:1999/Cor 1:1999.

The most significant change in this second edition is the inclusion of non-metallic compensators to the

fire test procedures outlined in this document. The first edition of this document applied primarily to

non-metallic hose assemblies. Because the compensators are used in common piping systems and may

have similar materials to hose assemblies, the applicability of the test procedures was expanded to

include compensators.
iv © ISO 2016 – All rights reserved
---------------------- Page: 4 ----------------------
ISO 15540:2016(E)
Introduction

The main objective of the test using the test bench described in this document is to determine whether

and for a safety period a non-metallic hose (made of rubber) assembly or non-metallic compensator

(bellow made of rubber) can be exposed to fire without becoming inoperable when subjected to the

design working pressure. Although the attacking fire is simulated such that it corresponds to a fire

occurring in practice, it cannot be assumed that the duration of fire resistance as recorded during that

test will also occur in the event of an actual fire, as the installation conditions, which greatly affect to

the duration of fire resistance, may vary from case to case.

When carried out using the test bench specified in ISO 15541, the test procedure according to this

document is intended to lead to results capable of being reproduced by testing the same size and type.

A specimen test certificate is specified in Annex A.
© ISO 2016 – All rights reserved v
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 15540:2016(E)
Ships and marine technology — Fire resistance of non-
metallic hose assemblies and non-metallic compensators
— Test methods
1 Scope

This document specifies a test procedure for determining the fire resistance of non-metallic hose

assemblies and non-metallic compensators with nominal diameter of up to 150 mm. It may be used for

larger sizes provided proper test bench conditions are obtained.

It serves for proving whether, after the period of fire effect on the test bench specified in ISO 15541,

hose assemblies and non-metallic compensators continue to be tight, even when subjected to proof

pressure.

Only water is permitted as a test medium. With a view to ensuring maximum safety for both the

operating personnel and the test bench in the event of damage to the hose or non-metallic compensator

during the test, the use of combustible test media is excluded.
2 Normative references
The fo
...

DRAFT INTERNATIONAL STANDARD
ISO/DIS 15540
ISO/TC 8/SC 3 Secretariat: ANSI
Voting terminates on:
Voting begins on:
2015-12-03 2016-03-03
Ships and marine technology — Fire resistance of
non-metallic hose assemblies and non-metallic
compensators — Test methods
Titre manque
ICS: 83.140.40; 47.020.30
THIS DOCUMENT IS A DRAFT CIRCULATED
FOR COMMENT AND APPROVAL. IT IS
THEREFORE SUBJECT TO CHANGE AND MAY
NOT BE REFERRED TO AS AN INTERNATIONAL
STANDARD UNTIL PUBLISHED AS SUCH.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL,
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
STANDARDS MAY ON OCCASION HAVE TO
BE CONSIDERED IN THE LIGHT OF THEIR
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
Reference number
NATIONAL REGULATIONS.
ISO/DIS 15540:2015(E)
RECIPIENTS OF THIS DRAFT ARE INVITED
TO SUBMIT, WITH THEIR COMMENTS,
NOTIFICATION OF ANY RELEVANT PATENT
RIGHTS OF WHICH THEY ARE AWARE AND TO
PROVIDE SUPPORTING DOCUMENTATION. ISO 2015
---------------------- Page: 1 ----------------------
ISO/DIS 15540:2015(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2015, Published in Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form

or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior

written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of

the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2015 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/DIS 15540
Contents Page

Foreword ............................................................................................................................................................ iv

Introduction ........................................................................................................................................................ iv

1 Scope ...................................................................................................................................................... 1

2 Normative references ............................................................................................................................ 1

3 Designation ............................................................................................................................................ 1

4 Test specimen and specimen preparation .......................................................................................... 2

5 Number of test specimen ...................................................................................................................... 2

6 Test bench .............................................................................................................................................. 2

7 Test performance ................................................................................................................................... 3

7.1 Installation of test specimen ................................................................................................................ 3

7.2 Burner width ........................................................................................................................................... 3

7.3 Preparation ............................................................................................................................................. 4

7.4 Measured values and measuring points .............................................................................................. 4

7.5 Temperature during flame application................................................................................................. 4

7.6 Pressure during flame application ....................................................................................................... 5

7.7 Duration of test ...................................................................................................................................... 5

7.8 Proof pressure application ................................................................................................................... 5

8 Assessment ............................................................................................................................................ 5

9 Type test certificate ............................................................................................................................... 5

Annex A (normative) Type test certificate ........................................................................................................ 6

Figures

Figure 1 — Test specimen arrangement (hose assembly) ............................................................................. 3

Figure 2 — Temperature measuring points ..................................................................................................... 4

Tables

Table 1 — Burner width...................................................................................................................................... 3

Table 2 — Temperatures .................................................................................................................................... 5

© ISO 2015 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/DIS 15540

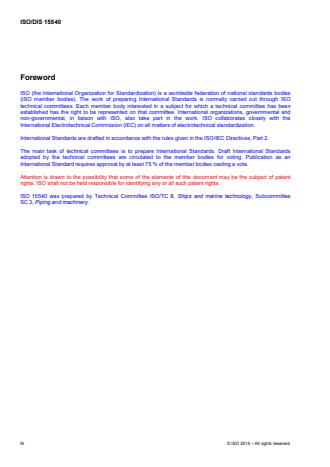

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies

(ISO member bodies). The work of preparing International Standards is normally carried out through ISO

technical committees. Each member body interested in a subject for which a technical committee has been

established has the right to be represented on that committee. International organizations, governmental and

non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the

International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.

International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.

The main task of technical committees is to prepare International Standards. Draft International Standards

adopted by the technical committees are circulated to the member bodies for voting. Publication as an

International Standard requires approval by at least 75 % of the member bodies casting a vote.

Attention is drawn to the possibility that some of the elements of this document may be the subject of patent

rights. ISO shall not be held responsible for identifying any or all such patent rights.

ISO 15540 was prepared by Technical Committee ISO/TC 8, Ships and marine technology, Subcommittee

SC 3, Piping and machinery.
iv © ISO 2015 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/DIS 15540
Introduction

The main objective of the test using the test bench described in this International Standard is to determine

whether and for a safety period a non-metallic hose (made of rubber) assembly or non-metallic compensator

(bellow made of rubber) can be exposed to fire without becoming inoperable when subjected to the design

working pressure. Although the attacking fire is simulated such that it corresponds to a fire occurring in

practice, it cannot be assumed that the duration of fire resistance as recorded during that test will also occur in

the event of an actual fire, as the installation conditions, which greatly affect to the duration of fire resistance,

may vary from case to case.

When carried out using the test bench specified in ISO 15541, the test procedure according to this

International Standard is intended to lead to results capable of being reproduced by testing the same size and

type.
A specimen test certificate is specified in Annex A.
© ISO 2015 – All rights reserved v
---------------------- Page: 5 ----------------------
DRAFT INTERNATIONAL STANDARD ISO/DIS 15540
Ships and marine technology — Fire resistance of non-metallic
hose assemblies and non-metallic compensators — Test
methods
1 Scope

This International Standard specifies a test procedure for determining the fire resistance of non-metallic hose

assemblies and non-metallic compensators with nominal diameter of up to 150 mm. It may be used for larger

sizes provided proper test bench conditions are obtained.

It serves for proving whether, after the period of fire effect on the test bench specified in ISO 15541, hose

assemblies and non-metallic compensators continue to be tight, even when subjected to proof pressure.

Only water is permitted as a test medium. With a view to ensuring maximum safety for both the operating

personnel and the test bench in the event of damage to the hose or non-metallic compensator during the test,

the use of combustible test media is excluded.
2 Normative references

The following referenced documents are indispensable for the application of this document. For dated

references, only the edition cited applies. For undated references, the latest edition of the referenced

document (including any amendments) applies.

ISO 15541, Ships and marine technology — Fire resistance of non-metallic hose assemblies and non-

metallic compensators — Requirements for the test bench
3 Designation
The designation of
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
