Ships and marine technology -- Fire resistance of non-metallic hose assemblies and non-metallic compensators -- Requirements for the test bench

ISO 15541:2016 specifies requirements for a test bench to determine the fire resistance of non-metallic hose assemblies and non-metallic compensators with nominal diameter up to 150 mm. It may be used for bigger sizes provided proper test bench conditions are obtained. During the exposure to flames, there are possible working pressures of up to 16 bar. The flame spread ability of non-metallic hose assemblies or non-metallic compensators cannot be tested with the test bench specified in this document. Only water is permitted as a test medium. With a view to ensuring maximum safety for both the operating personnel and the test bench in the event of damage of the non-metallic hose assembly or non-metallic compensator during the test, the use of combustible test media is excluded.

Navires et technologie maritime -- Résistance au feu des flexibles et des compensateurs non métalliques -- Exigences pour le banc d'essai

General Information

Status
Published
Publication Date
18-Jul-2016
Current Stage
9020 - International Standard under periodical review
Start Date
15-Jul-2021
Ref Project

RELATIONS

Buy Standard

Standard
ISO 15541:2016 - Ships and marine technology -- Fire resistance of non-metallic hose assemblies and non-metallic compensators -- Requirements for the test bench
English language
9 pages
sale 15% off
Preview
sale 15% off
Preview
Standard
ISO 15541:2016 - Ships and marine technology -- Fire resistance of non-metallic hose assemblies and non-metallic compensators -- Requirements for the test bench
English language
9 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

INTERNATIONAL ISO
STANDARD 15541
Second edition
2016-07-15
Ships and marine technology —
Fire resistance of non-metallic
hose assemblies and non-metallic
compensators — Requirements for the
test bench
Navires et technologie maritime — Résistance au feu des flexibles et
des compensateurs non métalliques — Exigences pour le banc d’essai
Reference number
ISO 15541:2016(E)
ISO 2016
---------------------- Page: 1 ----------------------
ISO 15541:2016(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2016, Published in Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form

or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior

written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of

the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2016 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 15541:2016(E)
Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction ..................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 Requirements .......................................................................................................................................................................................................... 2

4.1 Components of test bench ............................................................................................................................................................. 2

4.2 Burner chamber ..................................................................................................................................................................................... 3

4.2.1 General...................................................................................................................................................................................... 3

4.2.2 Burner ....................................................................................................................................................................................... 4

4.2.3 Exhaust trunk ..................................................................................................................................................................... 4

4.2.4 Coolant circuit .................................................................................................................................................................... 4

4.3 Aggregate box ........................................................................................................................................................................................... 4

4.4 Monitoring and recording ............................................................................................................................................................. 4

4.4.1 Control and adjustments ........................................................................................................................................... 4

4.4.2 Measurements, recording and indication ................................................................................................... 5

4.4.3 Safety facilities ................................................................................................................................................................... 6

4.5 Pressure-producing equipment ............................................................................................................................................... 6

Annex A (informative) Flame appearance ...................................................................................................................................................... 7

Bibliography ................................................................................................................................................................................................................................ 9

© ISO 2016 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 15541:2016(E)

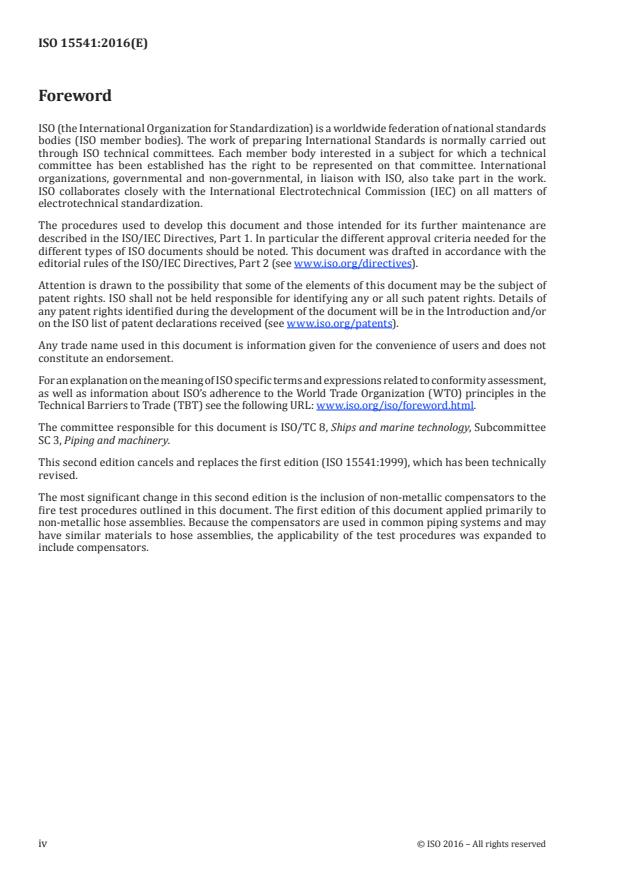

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www.iso.org/patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation on the meaning of ISO specific terms and expressions related to conformity assessment,

as well as information about ISO’s adherence to the World Trade Organization (WTO) principles in the

Technical Barriers to Trade (TBT) see the following URL: www.iso.org/iso/foreword.html.

The committee responsible for this document is ISO/TC 8, Ships and marine technology, Subcommittee

SC 3, Piping and machinery.

This second edition cancels and replaces the first edition (ISO 15541:1999), which has been technically

revised.

The most significant change in this second edition is the inclusion of non-metallic compensators to the

fire test procedures outlined in this document. The first edition of this document applied primarily to

non-metallic hose assemblies. Because the compensators are used in common piping systems and may

have similar materials to hose assemblies, the applicability of the test procedures was expanded to

include compensators.
iv © ISO 2016 – All rights reserved
---------------------- Page: 4 ----------------------
ISO 15541:2016(E)
Introduction

The main objective of the test using the test bench described in this document is to determine whether

and for a safety period a non-metallic hose assembly or non-metallic compensator can be exposed to

fire, without becoming inoperable, when subjected to the envisaged working pressure. Despite the

fact that the attacking fire is simulated so as to correspond to a fire occurring in practice, it cannot be

assumed that the duration of resistance to fire as recorded during that test will also occur in the event

of an actual fire, as the conditions of installation, which essentially affect to the duration of resistance

to fire, may vary from case to case.

Tests carried out using the test bench specified in this document are intended to lead to results capable

of being reproduced.
© ISO 2016 – All rights reserved v
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 15541:2016(E)
Ships and marine technology — Fire resistance of non-
metallic hose assemblies and non-metallic compensators
— Requirements for the test bench
1 Scope

This document specifies requirements for a test bench to determine the fire resistance of non-metallic

hose assemblies and non-metallic compensators with nominal diameter up to 150 mm. It may be used

for bigger sizes provided proper test bench conditions are obtained. During the exposure to flames,

there are possible working pressures of up to 16 bar.

The flame spread ability of non-metallic hose assemblies or non-metallic compensators cannot be

tested with the test bench specified in this document.

Only water is permitted as a test medium. With a view to ensuring maximum safety for both the

operating personnel and the test bench in the event of damage of the non-metallic hose assembly or

non-metallic compensator during the test, the use of combustible test media is excluded.

2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 15540:2016, Ships and marine technology — Fire resistance of non-metallic hose assemblies and non-

metallic compensators — Test methods
IEC 60
...

DRAFT INTERNATIONAL STANDARD
ISO/DIS 15541
ISO/TC 8/SC 3 Secretariat: ANSI
Voting terminates on:
Voting begins on:
2015-12-03 2016-03-03
Ships and marine technology — Fire resistance of
non-metallic hose assemblies and non-metallic
compensators — Requirements for the test bench
Titre manque
ICS: 47.020.30; 83.140.40
THIS DOCUMENT IS A DRAFT CIRCULATED
FOR COMMENT AND APPROVAL. IT IS
THEREFORE SUBJECT TO CHANGE AND MAY
NOT BE REFERRED TO AS AN INTERNATIONAL
STANDARD UNTIL PUBLISHED AS SUCH.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL,
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
STANDARDS MAY ON OCCASION HAVE TO
BE CONSIDERED IN THE LIGHT OF THEIR
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
Reference number
NATIONAL REGULATIONS.
ISO/DIS 15541:2015(E)
RECIPIENTS OF THIS DRAFT ARE INVITED
TO SUBMIT, WITH THEIR COMMENTS,
NOTIFICATION OF ANY RELEVANT PATENT
RIGHTS OF WHICH THEY ARE AWARE AND TO
PROVIDE SUPPORTING DOCUMENTATION. ISO 2015
---------------------- Page: 1 ----------------------
ISO/DIS 15541:2015(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2015, Published in Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form

or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior

written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of

the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2015 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/DIS 15541
Contents Page

Foreword ............................................................................................................................................................ iv

Introduction ........................................................................................................................................................ iv

1 Scope ...................................................................................................................................................... 1

2 Normative references ............................................................................................................................ 1

3 Terms and definitions ........................................................................................................................... 1

4 Requirements ......................................................................................................................................... 2

4.1 Components of test bench ................................................................................................................... 2

4.2 Burner chamber ..................................................................................................................................... 3

4.3 Aggregate box ........................................................................................................................................ 3

4.4 Monitoring and recording ..................................................................................................................... 4

4.5 Pressure-producing equipment ........................................................................................................... 5

Annex A (normative) Flame appearance ........................................................................................................... 6

Bibliography ........................................................................................................................................................ 8

Figures

Figure 1 — Diagram of test bench .................................................................................................................... 2

Figure A.1 — Arrangement of a burner chamber ............................................................................................ 6

Figure A.2 — Arrangement of a burner chamber ............................................................................................ 7

Tables

Table 1 — Parameter control and adjustment ranges ..................................................................................... 4

Table 2 — Parameter-recording requirements ................................................................................................. 4

© ISO 2015 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/DIS 15541
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies

(ISO member bodies). The work of preparing International Standards is normally carried out through ISO

technical committees. Each member body interested in a subject for which a technical committee has been

established has the right to be represented on that committee. International organizations, governmental and

non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the

International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.

International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.

The main task of technical committees is to prepare International Standards. Draft International Standards

adopted by the technical committees are circulated to the member bodies for voting. Publication as an

International Standard requires approval by at least 75 % of the member bodies casting a vote.

Attention is drawn to the possibility that some of the elements of this document may be the subject of patent

rights. ISO shall not be held responsible for identifying any or all such patent rights.

ISO 15541 was prepared by Technical Committee ISO/TC 8, Ships and marine technology, Subcommittee

SC 3, Piping and machinery.
iv © ISO 2015 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/DIS 15541
Introduction

The main objective of the test using the test bench described in this International Standard is to determine

whether and for a safety period a non-metallic hose assembly or non-metallic compensator can be exposed to

fire, without becoming inoperable, when subjected to the envisaged working pressure. Despite the fact that

the attacking fire is simulated so as to correspond to a fire occurring in practice, it cannot be assumed that the

duration of resistance to fire as recorded during that test will also occur in the event of an actual fire, as the

conditions of installation, which essentially affect to the duration of resistance to fire, may vary from case to

case.

Test carried out using the test bench specified in this International Standard are intended to lead to results

capable of being reproduced.
© ISO 2015 – All rights reserved v
---------------------- Page: 5 ----------------------
DRAFT INTERNATIONAL STANDARD ISO/DIS 15541
Ships and marine technology — Fire resistance of non-metallic
hose assemblies and non-metallic compensators —
Requirements for the test bench
1 Scope

This International Standard specifies requirements for a test bench to determine the fire resistance of non-

metallic hose assemblies and non-metallic compensators with nominal diameter up to 150 mm. It may be

used for bigger sizes provided proper test bench conditions are obtained. During the exposure to flames, there

are possible working pressures of up to 16 bar.

The flame spread ability of non-metallic hose assemblies or non-metallic compensators cannot be tested with

the test bench specified in this International Standard.

Only water is permitted as a test medium. With a view to ensuring maximum safety for both the operating

personnel and the test bench in the event of damage of the non-metallic hose assembly or non-metallic

compensator during the test, the use of combustible test media is excluded.
2 Normative references

The following referenced documents are indispensable for the application of this document. For dated

references, only the edition cited applies. For undated references, the latest edition of the referenced

document (including any amendments) applies.

ISO 15540:2015, Ships and marine technology — Fire resistance of non-metallic hose assemblies and non-

metallic compensators — Test methods

IEC 60051-1:1997, Direct acting indicating analogue electrical measuring instruments and their accessories —

Part 1: Definitions and general requirements common to all parts
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
fire resistance

ability of an element of building construction, component or structure, to fulfill for a stated period of time the

required stability, integrity, thermal insulation and/or other expected duty specified, in a standard fire

resistance test
© ISO 2015 – All rights reserved
---------------------- Page: 6 ----------------------
ISO/DIS 15541
4 Requirements
4.1 Components of test bench
The test bench shall consist of the following par
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
