Overview

ISO/IEC/IEEE 21451-2:2010 specifies a digital smart transducer interface for connecting sensors and actuators to microprocessors. It defines the Transducer Electronic Data Sheet (TEDS) structure and data formats, an electrical interface, and the read/write logic to access TEDS. The standard describes how a wide variety of transducers can present identification and metadata to a host microprocessor or NCAP (Network Capable Application Processor). It does not prescribe signal conditioning, signal conversion, or the application-level use of TEDS data.

Key topics and requirements

  • Transducer Electronic Data Sheet (TEDS): standardized data formats and record structures that describe transducer identity, calibration, and operational metadata.
  • Transducer-to-microprocessor communication: definition of a digital electrical interface and the logical read/write operations used to access TEDS information from a microprocessor host.
  • Interoperability focus: enables plug-and-play discovery of sensors and actuators by providing machine-readable metadata at the transducer level.
  • Scope limitations: explicitly excludes specification of analog signal conditioning, A/D conversion methods, and higher-level application usage of TEDS content.
  • Support for diverse transducers: covers general-purpose requirements to accommodate a wide variety of sensor and actuator types.

Applications and practical value

  • Facilitates plug-and-play sensor and actuator integration in embedded systems, instrumentation, and industrial controllers by providing standardized metadata and access methods.
  • Streamlines device identification, calibration tracking, and configuration for system commissioning, automated testing, and maintenance.
  • Useful for designing sensor interfaces and firmware that must read/write TEDS and enable interoperable smart transducer deployments.
  • Supports modular architectures where microprocessors or NCAP devices discover transducer capabilities and parameters automatically, improving deployability in measurement, automation, and embedded IoT edge systems.

Who would use this standard

  • Sensor and smart actuator manufacturers implementing TEDS formats to ensure interoperability.
  • Embedded systems and firmware engineers designing microprocessor interfaces that access transducer metadata.
  • System integrators and test engineers who require reliable, standardized metadata for instrument calibration, diagnostics, and asset management.
  • Standards engineers and product managers evaluating compatibility with the ISO/IEC/IEEE 21451 (IEEE 1451) family.

Related standards

  • Part of the ISO/IEC/IEEE 21451 (IEEE 1451) family addressing smart transducer interfaces. ISO/IEC/IEEE 21451-2:2010 aligns with earlier IEEE Std 1451.2 work and complements other parts of the 21451 series that address network and system-level aspects.

Keywords: ISO/IEC/IEEE 21451-2, IEEE 1451, TEDS, smart transducer, sensor interface, digital interface, communication protocol, microprocessor, NCAP, smart sensor.

Standard

ISO/IEC/IEEE 21451-2:2010 - Information technology -- Smart transducer interface for sensors and actuators

English language
116 pages
sale 15% off
Preview
sale 15% off
Preview

Get Certified

Connect with accredited certification bodies for this standard

BSI Group

BSI (British Standards Institution) is the business standards company that helps organizations make excellence a habit.

UKAS United Kingdom Verified

NYCE

Mexican standards and certification body.

EMA Mexico Verified

Sponsored listings

Frequently Asked Questions

ISO/IEC/IEEE 21451-2:2010 is a standard published by the International Organization for Standardization (ISO). Its full title is "Information technology — Smart transducer interface for sensors and actuators — Part 2: Transducer to microprocessor communication protocols and Transducer Electronic Data Sheet (TEDS) formats". This standard covers: ISO/IEC/IEEE 21451-2:2010 defines a digital interface for connecting transducers to microprocessors. It describes a Transducer Electronic Data Sheet (TEDS) and its data formats. It defines an electrical interface, read and write logic functions to access the TEDS, and a wide variety of transducers. ISO/IEC/IEEE 21451-2:2010 does not specify signal conditioning, signal conversion, or how the TEDS data is used in applications.

ISO/IEC/IEEE 21451-2:2010 defines a digital interface for connecting transducers to microprocessors. It describes a Transducer Electronic Data Sheet (TEDS) and its data formats. It defines an electrical interface, read and write logic functions to access the TEDS, and a wide variety of transducers. ISO/IEC/IEEE 21451-2:2010 does not specify signal conditioning, signal conversion, or how the TEDS data is used in applications.

ISO/IEC/IEEE 21451-2:2010 is classified under the following ICS (International Classification for Standards) categories: 35.040 - Information coding; 35.040.50 - Automatic identification and data capture techniques. The ICS classification helps identify the subject area and facilitates finding related standards.

ISO/IEC/IEEE 21451-2:2010 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

Standards Content (Sample)

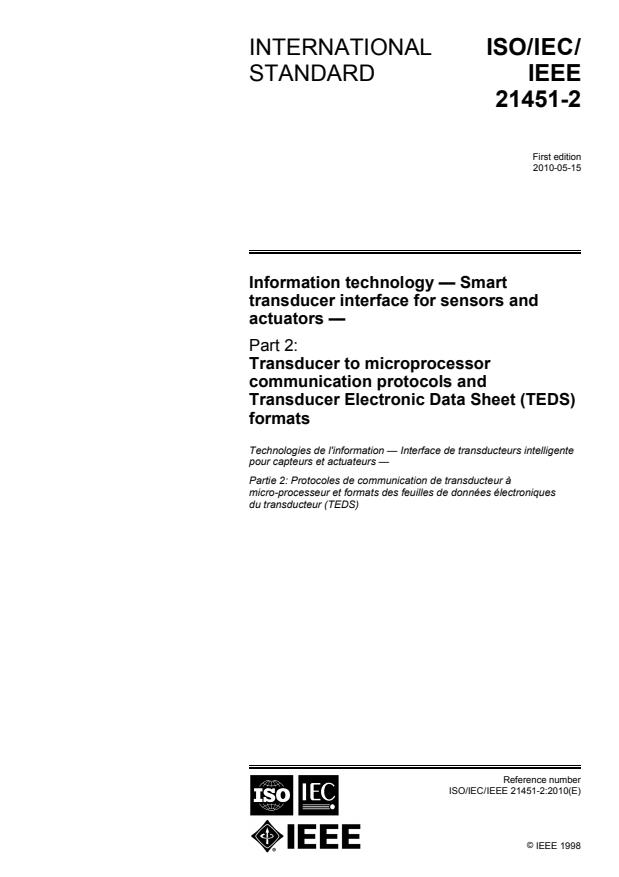

INTERNATIONAL ISO/IEC/
STANDARD IEEE
21451-2
First edition
2010-05-15
Information technology — Smart
transducer interface for sensors and
actuators —
Part 2:
Transducer to microprocessor
communication protocols and
Transducer Electronic Data Sheet (TEDS)
formats
Technologies de l'information — Interface de transducteurs intelligente
pour capteurs et actuateurs —
Partie 2: Protocoles de communication de transducteur à
micro-processeur et formats des feuilles de données électroniques
du transducteur (TEDS)
Reference number
©
IEEE 1998

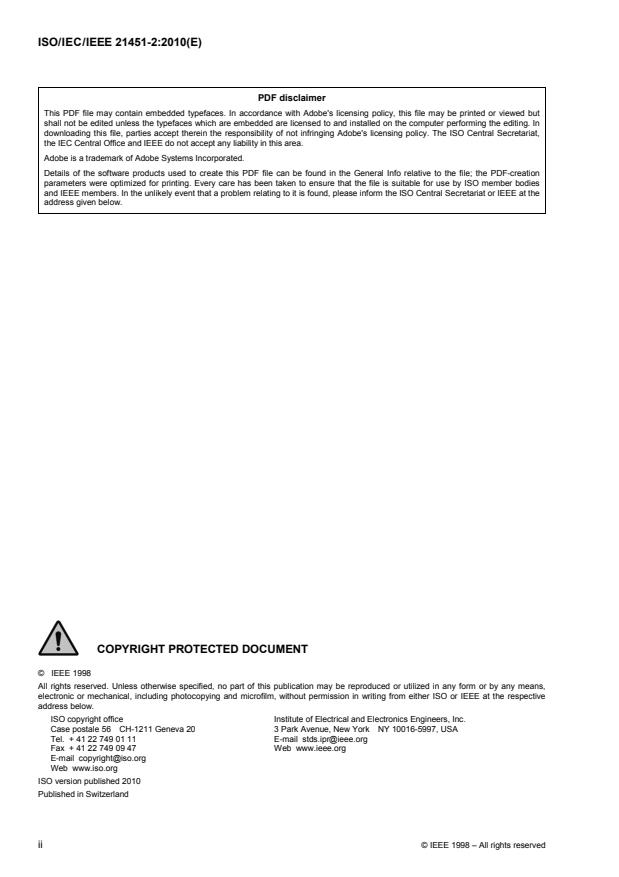

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat,
the IEC Central Office and IEEE do not accept any liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies
and IEEE members. In the unlikely event that a problem relating to it is found, please inform the ISO Central Secretariat or IEEE at the
address given below.
©  IEEE 1998
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO or IEEE at the respective
address below.
ISO copyright office Institute of Electrical and Electronics Engineers, Inc.
Case postale 56  CH-1211 Geneva 20 3 Park Avenue, New York  NY 10016-5997, USA
Tel. + 41 22 749 01 11 E-mail stds.ipr@ieee.org
Fax + 41 22 749 09 47 Web www.ieee.org
E-mail copyright@iso.org
Web www.iso.org
ISO version published 2010
Published in Switzerland
ii © IEEE 1998 – All rights reserved

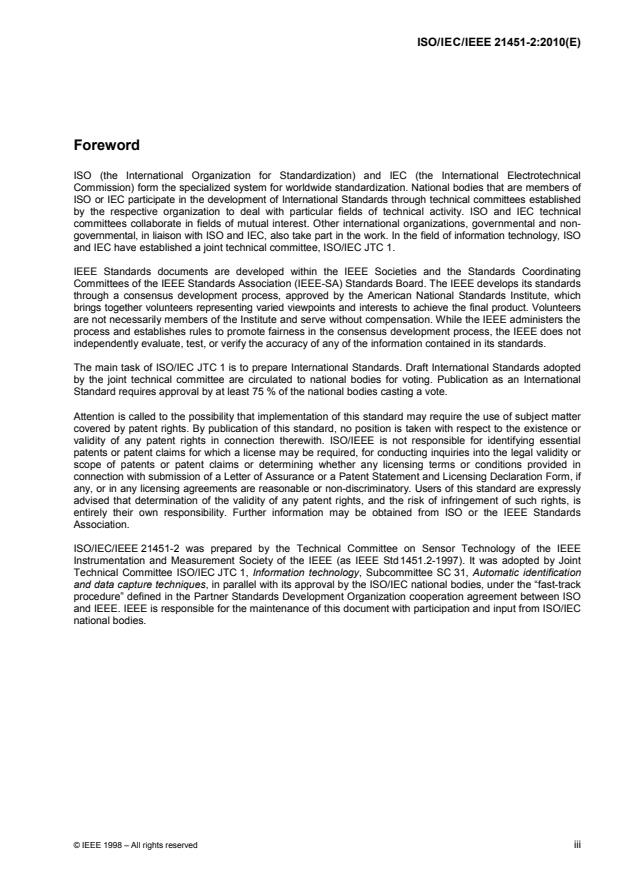

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees established
by the respective organization to deal with particular fields of technical activity. ISO and IEC technical
committees collaborate in fields of mutual interest. Other international organizations, governmental and non-
governmental, in liaison with ISO and IEC, also take part in the work. In the field of information technology, ISO
and IEC have established a joint technical committee, ISO/IEC JTC 1.
IEEE Standards documents are developed within the IEEE Societies and the Standards Coordinating
Committees of the IEEE Standards Association (IEEE-SA) Standards Board. The IEEE develops its standards
through a consensus development process, approved by the American National Standards Institute, which
brings together volunteers representing varied viewpoints and interests to achieve the final product. Volunteers
are not necessarily members of the Institute and serve without compensation. While the IEEE administers the
process and establishes rules to promote fairness in the consensus development process, the IEEE does not
independently evaluate, test, or verify the accuracy of any of the information contained in its standards.
The main task of ISO/IEC JTC 1 is to prepare International Standards. Draft International Standards adopted
by the joint technical committee are circulated to national bodies for voting. Publication as an International
Standard requires approval by at least 75 % of the national bodies casting a vote.
Attention is called to the possibility that implementation of this standard may require the use of subject matter
covered by patent rights. By publication of this standard, no position is taken with respect to the existence or
validity of any patent rights in connection therewith. ISO/IEEE is not responsible for identifying essential
patents or patent claims for which a license may be required, for conducting inquiries into the legal validity or
scope of patents or patent claims or determining whether any licensing terms or conditions provided in
connection with submission of a Letter of Assurance or a Patent Statement and Licensing Declaration Form, if
any, or in any licensing agreements are reasonable or non-discriminatory. Users of this standard are expressly
advised that determination of the validity of any patent rights, and the risk of infringement of such rights, is
entirely their own responsibility. Further information may be obtained from ISO or the IEEE Standards
Association.
ISO/IEC/IEEE 21451-2 was prepared by the Technical Committee on Sensor Technology of the IEEE
Instrumentation and Measurement Society of the IEEE (as IEEE Std 1451.2-1997). It was adopted by Joint
Technical Committee ISO/IEC JTC 1, Information technology, Subcommittee SC 31, Automatic identification
and data capture techniques, in parallel with its approval by the ISO/IEC national bodies, under the “fast-track
procedure” defined in the Partner Standards Development Organization cooperation agreement between ISO
and IEEE. IEEE is responsible for the maintenance of this document with participation and input from ISO/IEC
national bodies.
© IEEE 1998 – All rights reserved iii

(blank page)
iv © IEEE 1998 – All rights reserved

��������������������
�������������������������������������
������������������������������������
�����������������������������
�������������!������"������
������������"���������#�����$����
%��#�&�’������
�������������������������������������������(
�������������
������������������������������������
������������� �������
© IEEE 1998 – All rights reserved v

�����������������������)
������������������ !!!�"#$$$%��������&��������������
�����������������������������
����$’�����������
���������� ���!�
����$’�����������
"###���������������������$�%��&’���$��(#��)
’������"����������������������������������������)
*�������+��,��+����+���
����())������������������)
*�������
����������������
vi © IEEE 1998 – All rights reserved

IEEE Standard for a Smart Transducer
Interface for Sensors and Actuators—
Transducer to Microprocessor
Communication Protocols and
Transducer Electronic Data Sheet
(TEDS) Formats
Sponsor
TC-9, Committee on Sensor Technology
of the
IEEE Instrumentation and Measurement Society
Approved 16 September 1997
IEEE Standards Board
Abstract: A digital interface for connecting transducers to microprocessors is defined. A TEDS and
its data formats are described. An electrical interface, read and write logic functions to access the
TEDS and a wide variety of transducers are defined. This standard does not specify signal condi-
tioning, signal conversion, or how the TEDS data is used in applications.
Keywords: communication protocol, digital interface, microprocessor, NCAP, sensor interface,
smart actuator, smart sensor, smart sensor interface, smart transducer, smart transducer interface,
STIM, TEDS, 1451
The Institute of Electrical and Electronics Engineers, Inc.
345 East 47th Street, New York, NY 10017-2394, USA
Copyright © 1998 by the Institute of Electrical and Electronics Engineers, Inc.
All rights reserved. Published 1998. Printed in the United States of America.
ISBN 1-55937-963-4
No part of this publication may be reproduced in any form, in an electronic retrieval system or otherwise, without the prior
written permission of the publisher.
© IEEE 1998 – All rights reserved vii

���������������������������������������������������������������������������������������������
�������������������������������������������������������������������������������������������
���������������������� �������������������������������������������������� ����������������������
������������������������������������������������!������������������"��������������������������������
�����������������������������������������������!����������������������������������������������������
���������������������
#�������������������������������������������� ����!������������������������������������������
���������������������������������������$�����$��������$���������$����%��$���������������������������
����������������������������������������������������&����������$����������������!��������������
���������������������������������������������"���������������������������������������������������
��������������������������������������������������������������������������������������������������
"�������������������������������’�����������������������������’���������(����������������������
�����’����������������������������������’����$�����������������������������������������������$
����������������������������$�����������������)����������������������������������#���������������������
����%���������������������������������������������������������������������
�����������������������������������������������������������������������������$��������������
�������������’����������������������������������������������������������������������������������
���������������������!�$�����������������������������������������������
���������������*�+������������,��������������������������������������������������������������������
��������������������’����������������(���������������������������������������������������������������
����$�����������������������������������������������������������������������������������������������
���������������������������������������������$������������������������������������������������������
���������������������������������������������������������&��������������$����������������������������
����������������������������������������������������������������������������������������������
�����������������,�������!�������������������������������������������������������������������
���������������
����������������������������,������������������������������������������������*
���������$���������������������
