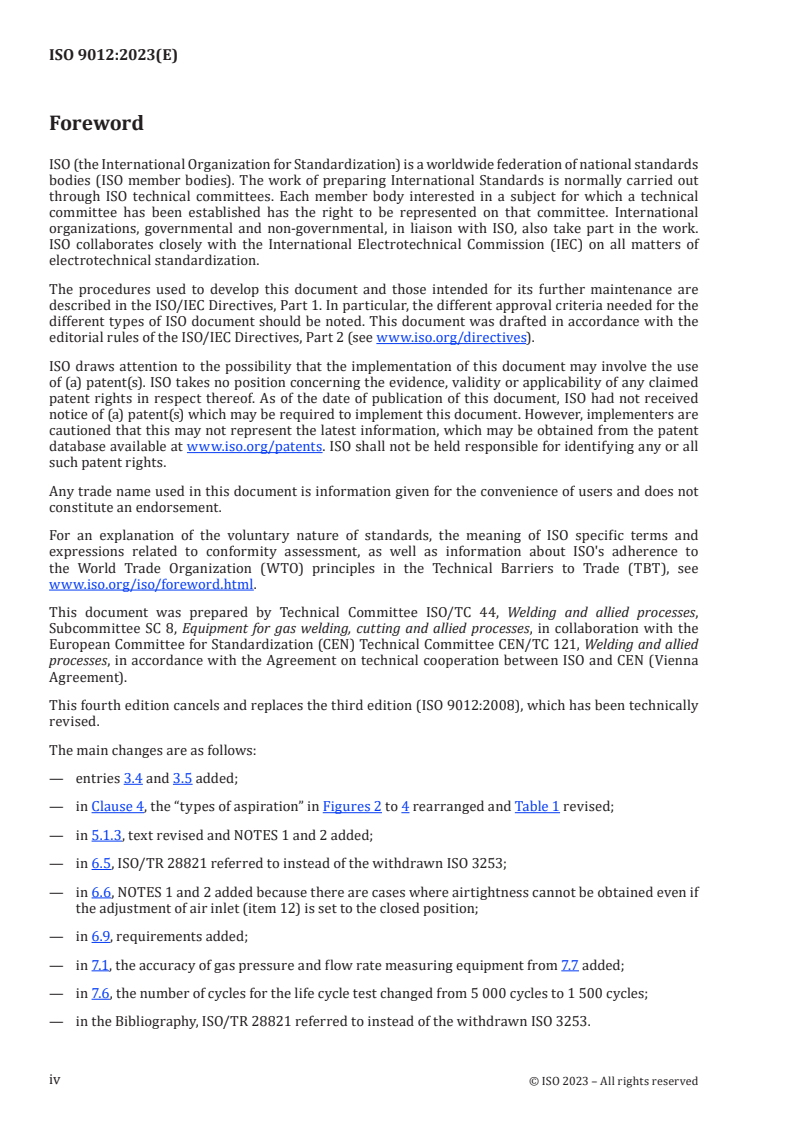

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO document should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use
of (a) patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed
patent rights in respect thereof. As of the date of publication of this document, ISO had not received
notice of (a) patent(s) which may be required to implement this document. However, implementers are
cautioned that this may not represent the latest information, which may be obtained from the patent
database available at www.iso.org/patents. ISO shall not be held responsible for identifying any or all
such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 44, Welding and allied processes,
Subcommittee SC 8, Equipment for gas welding, cutting and allied processes, in collaboration with the
European Committee for Standardization (CEN) Technical Committee CEN/TC 121, Welding and allied
processes, in accordance with the Agreement on technical cooperation between ISO and CEN (Vienna
Agreement).
This fourth edition cancels and replaces the third edition (ISO 9012:2008), which has been technically
revised.
The main changes are as follows:
— entries 3.4 and 3.5 added;
— in Clause 4, the “types of aspiration” in Figures 2 to 4 rearranged and Table 1 revised;
— in 5.1.3, text revised and NOTES 1 and 2 added;
— in 6.5, ISO/TR 28821 referred to instead of the withdrawn ISO 3253;
— in 6.6, NOTES 1 and 2 added because there are cases where airtightness cannot be obtained even if
the adjustment of air inlet (item 12) is set to the closed position;
— in 6.9, requirements added;
— in 7.1, the accuracy of gas pressure and flow rate measuring equipment from 7.7 added;
— in 7.6, the number of cycles for the life cycle test changed from 5 000 cycles to 1 500 cycles;
— in the Bibliography, ISO/TR 28821 referred to instead of the withdrawn ISO 3253.
iv
Any feedback or questions on this document should be directed to the user’s national standards
body. A complete listing of these bodies can be found at www.iso.org/members.html. Official
interpretations of ISO/TC 44 documents, where they exist, are available from this page:
https://committee.iso.org/sites/tc44/home/interpretation.html.
v
INTERNATIONAL STANDARD ISO 9012:2023(E)
Gas welding equipment — Air-aspirated hand blowpipes —
Specifications and tests
1 Scope
This document specifies requirements and test methods for air-aspirated hand blowpipes.
This document applies to blowpipes for brazing, soldering, heating, fusion and other allied thermal
processes which use a fuel gas and aspirated air (injector-type blowpipes) and are intended for manual
use.
This document is applicable to:
— air-aspirated hand blowpipes which are fed with a fuel gas in the gaseous phase, at a controlled
pressure by a regulator, through a gas supply hose;
— air-aspirated hand blowpipes which are fed with a liquefied fuel gas in the gaseous phase at the
container pressure, through a gas supply hose;
— so-called liquid-phase blowpipes which are fed with a fuel gas in the liquid phase, and where thermal
evaporation takes place within the blowpipe.
It does not apply to blowpipes in which the fuel gas leaves the injector in the liquid phase, or to so-called
“cartridge” blowpipes where the gas supply is fixed directly onto the blowpipe and possibly constitutes
the shank.
NOTE Figures 1 to 4 are given for guidance only, to facilitate the explanation of the terms. They do not
specify the construction details, which are left to the discretion of the manufacturer.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 554, Standard atmospheres for conditioning and/or testing — Specifications
ISO 9090, Gas tightness of equipment for gas welding and allied processes
ISO 9539, Gas welding equipment — Materials for equipment used in gas welding, cutting and allied
processes
ISO 10225, Gas welding equipment — Marking for equipment used for gas welding, cutting and allied
processes
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
...
