ISO 6199:2005
(Main)Micrographics — Microfilming of documents on 16 mm and 35 mm silver-gelatin type microfilm — Operating procedures
Micrographics — Microfilming of documents on 16 mm and 35 mm silver-gelatin type microfilm — Operating procedures
ISO 6199:2005 specifies procedures that enable a camera operator to produce microfilm of appropriate quality of presentation and legibility, capable of yielding scanned images of acceptable quality. ISO 6199:2005 specifies methods for microfilming documents on 16 mm and 35 mm silver-gelatin microfilm, including orientation of images on microfilm, use of non-image areas and information required to facilitate identification of the microfilm. ISO 6199:2005 applies to microfilming using rotary and planetary cameras. This International Standard does not apply to the filming of technical drawings, maps and plans and newspapers, for which specific International Standards exist.
Micrographie — Microfilmage des documents sur microfilms gélatino-argentiques de 16 mm et 35 mm — Modes opératoires
General Information
Relations
Standards Content (Sample)

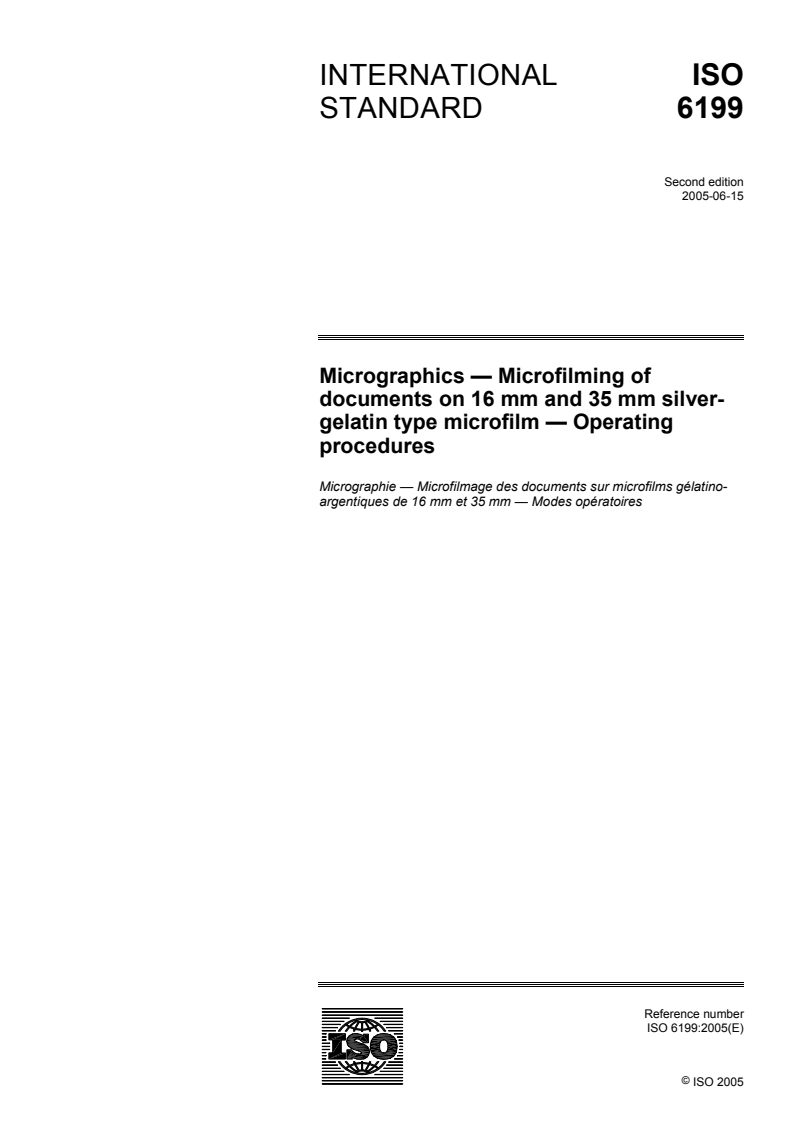

INTERNATIONAL ISO
STANDARD 6199
Second edition
2005-06-15
Micrographics — Microfilming of
documents on 16 mm and 35 mm silver-
gelatin type microfilm — Operating
procedures
Micrographie — Microfilmage des documents sur microfilms gélatino-
argentiques de 16 mm et 35 mm — Modes opératoires
Reference number
©
ISO 2005
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.
© ISO 2005
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2005 – All rights reserved

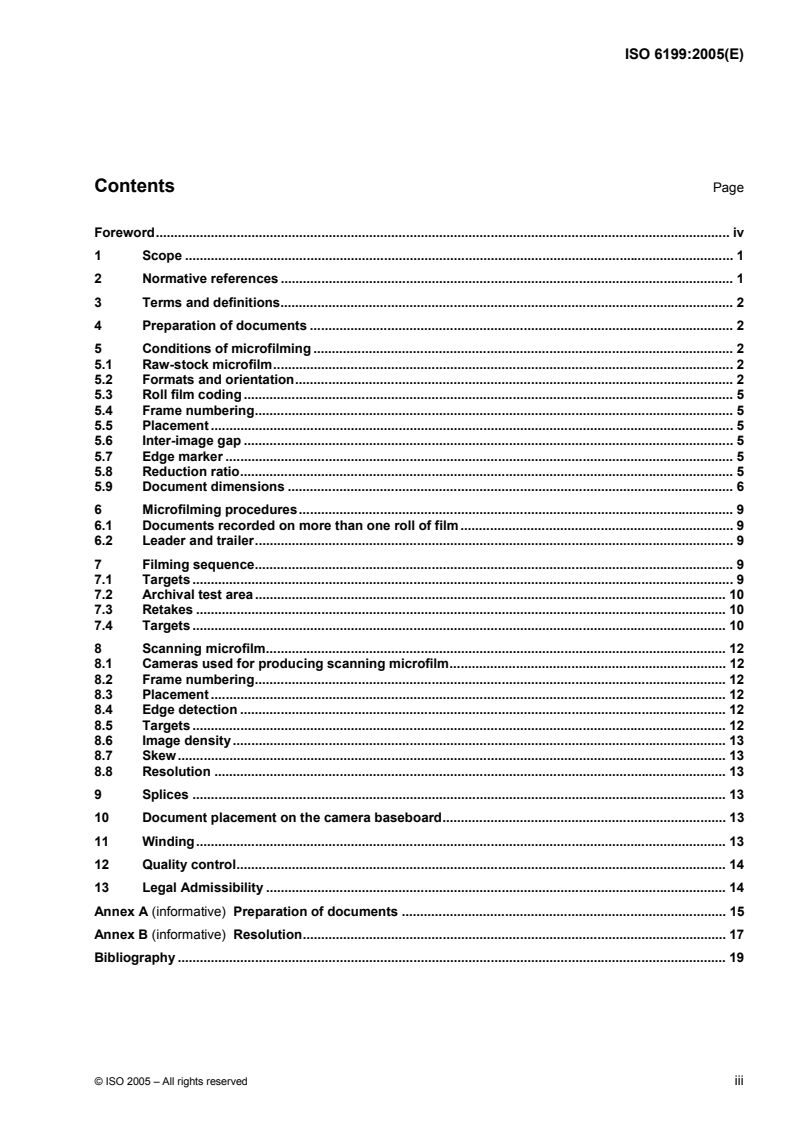

Contents Page
Foreword. iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions. 2
4 Preparation of documents . 2
5 Conditions of microfilming . 2
5.1 Raw-stock microfilm. 2
5.2 Formats and orientation. 2
5.3 Roll film coding . 5
5.4 Frame numbering. 5
5.5 Placement . 5
5.6 Inter-image gap . 5
5.7 Edge marker . 5
5.8 Reduction ratio. 5
5.9 Document dimensions . 6
6 Microfilming procedures. 9
6.1 Documents recorded on more than one roll of film . 9
6.2 Leader and trailer. 9
7 Filming sequence. 9
7.1 Targets . 9
7.2 Archival test area. 10
7.3 Retakes . 10
7.4 Targets . 10
8 Scanning microfilm. 12
8.1 Cameras used for producing scanning microfilm. 12
8.2 Frame numbering. 12
8.3 Placement . 12
8.4 Edge detection . 12
8.5 Targets . 12
8.6 Image density. 13
8.7 Skew. 13
8.8 Resolution . 13
9 Splices . 13
10 Document placement on the camera baseboard. 13
11 Winding. 13
12 Quality control. 14
13 Legal Admissibility . 14
Annex A (informative) Preparation of documents . 15
Annex B (informative) Resolution. 17
Bibliography . 19

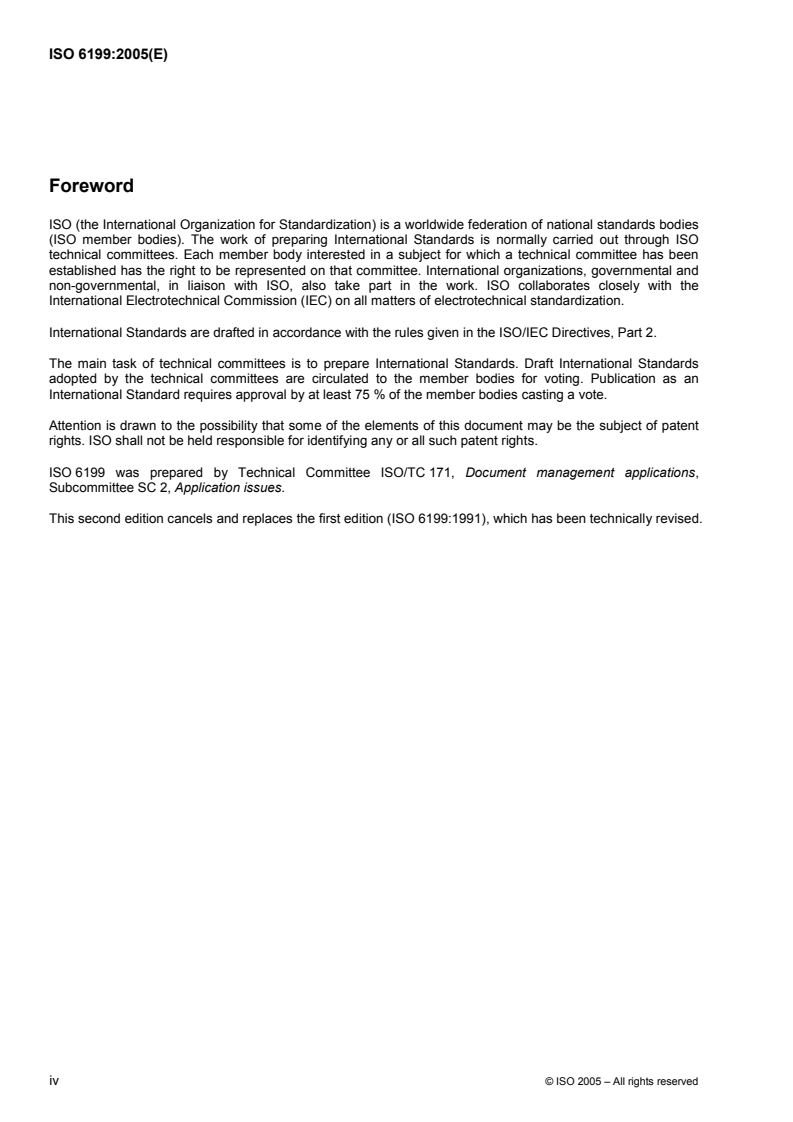

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 6199 was prepared by Technical Committee ISO/TC 171, Document management applications,
Subcommittee SC 2, Application issues.
This second edition cancels and replaces the first edition (ISO 6199:1991), which has been technically revised.
iv © ISO 2005 – All rights reserved
INTERNATIONAL STANDARD ISO 6199:2005(E)
Micrographics — Microfilming of documents on 16 mm and
35 mm silver-gelatin type microfilm — Operating procedures
1 Scope
This International Standard specifies procedures that enable a camera operator to produce microfilm of
appropriate quality of presentation and legibility, capable of yielding scanned images of acceptable quality.
This International Standard specifies methods for microfilming documents on 16 mm and 35 mm silver-gelatin
microfilm, including orientation of images on microfilm, use of non-image areas and information required to
facilitate identification of the microfilm.
This International Standard applies to microfilming using rotary and planetary cameras.
This International Standard does not apply to the filming of technical drawings, maps and plans and
newspapers, for which specific International Standards exist [1-3].
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
1)
ISO 3334:— , Micrographics — ISO resolution test chart No. 2 — Description and use
ISO 6148:2001, Photography — Micrographic films, spools and cores — Dimensions
ISO 6196 (parts 1 to 8 and 10), Micrographics — Vocabulary
ISO 6200:1999, Micrographics — First generation silver-gelatin microforms of source documents — Density
specifications and method of measurement
ISO 9878:1990, Micrographics — Graphical symbols for use in microfilming
ISO/TR 10200:1990, Legal admissibility of microforms
ISO 10550:1994, Micrographics — Planetary camera systems — Test target for checking performance
ISO 10594, Micrographics — Rotary camera systems — Test target for checking performance
ISO 11962:2002, Micrographics — Image mark (blip) used with 16 mm and 35 mm roll microfilm
ISO 18906:2000, Imaging materials — Photographic films — Specifications for safety film
1) To be published. (Revision of ISO 3334:1989)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 6196 and the following apply.
3.1
inter-image gap
inter-frame gap
distance, measured along the long edge of a roll microfilm, between the trailing edge of one microimage and
the leading edge of the following microimage
3.2
scanning microfilm
microfilm intended to be used for scanner input
4 Preparation of documents
Documents to be microfilmed shall be examined carefully, defects remedied where appropriate, foreign bodies
(e.g. fasteners) removed and pages arranged in the required order.
Documents to be microfilmed shall be examined to ensure that their dimensions are within those acceptable to
the microfilming system.
Appropriate targets shall be added to each batch of documents during the preparation stage.
Annex A gives more details on the preparation of documents prior to microfilming.
5 Conditions of microfilming
5.1 Raw-stock microfilm
Raw-stock microfilm shall comply with the requirements of ISO 6148 and ISO 18906.
5.2 Formats and orientation
5.2.1 Formats
The formats commonly used in roll microfilm are shown in Figure 1.
The dimensions for the placement of the microimages on the film are listed in Table 1.
Table 1 — Dimensions of frames for unperforated film without document marks
(see Figure 1)
Values in millimetres
Dimension Measure 16 mm film 35 mm film
a
a max. image width 14,92 33,00
c min. inter-image gap 1,00 2,00
d min. side margin 0,50 0,97
e min. side margin 0,50 0,97
b
f min. centre margin 0,50 0,97
NOTE Film width (e.g. a + 2d) shall be in accordance with ISO 6148. Image areas
are smaller.
a
For some applications, this figure may change in accordance with the relevant
International Standard.
b
For all formats except simplex.
2 © ISO 2005 – All rights reserved
Alternate orientation for documents with right to left scripts
Preferred orientation for documents with horizontal and right to left scripts
Figure 1 — Roll microfilm formats
NOTE 1 On the duplex format, the image orientation of one row (front) is controlled by the orientation of the text on the
original page, and the image orientation of the opposite row (back) is controlled by the image orientation of the above
mentioned row.
NOTE 2 The duo duplex format is used primarily in banking applications.
a
Front and back of first document
b
Ascending order
c
First (or last) document
d
Ascending (or descending) order
Figure 1 (continued)
4 © ISO 2005 – All rights reserved
5.2.2 Orientation
Where microimages are recorded in simplex format, horizont
...
