ISO 10924-5:2016
(Main)Road vehicles — Circuit breakers — Part 5: Circuit breakers with bolt with rated voltage of 450 V
Road vehicles — Circuit breakers — Part 5: Circuit breakers with bolt with rated voltage of 450 V
ISO 10924-5:2016 specifies circuit breakers with rated voltage of 450 V for use in road vehicles. It establishes, for this circuit breaker type, the rated current, test procedures, performance requirements and dimensions. ISO 10924-5:2016 is intended to be used in conjunction with ISO 10924‑1 and with ISO 10924‑2. The numbering of its clauses corresponds to that of ISO 10924‑1 whose requirements are applicable, except where modified by requirements particular to this part of ISO 10924. ISO 10924-5:2016 is applicable to circuit breakers with a rated voltage of 450 V d.c., a current rating of no greater than 300 A and a breaking capacity of 6 000 A.
Véhicules routiers — Coupe-circuits — Partie 5: Coupe circuit moyen à boulon avec une tension nominale de 450 V
General Information
Relations
Standards Content (Sample)
FINAL
INTERNATIONAL ISO/FDIS
DRAFT
STANDARD 10924-5
ISO/TC 22/SC 32
Road vehicles — Circuit breakers —
Secretariat: JISC
Voting begins
Part 5:
on: 2015-10-16
Circuit breakers with tabs with rated
Voting terminates
voltage of 450 V
on: 2015-12-16
Véhicules routiers — Coupe-circuits —
Partie 5: Coupe circuit moyen à pattes avec une tension nominale de 9
450 V
RECIPIENTS OF THIS DRAFT ARE INVITED TO
SUBMIT, WITH THEIR COMMENTS, NOTIFICATION
OF ANY RELEVANT PATENT RIGHTS OF WHICH
THEY ARE AWARE AND TO PROVIDE SUPPOR TING
DOCUMENTATION.
IN ADDITION TO THEIR EVALUATION AS
Reference number
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO-
ISO/FDIS 10924-5:2015(E)
LOGICAL, COMMERCIAL AND USER PURPOSES,
DRAFT INTERNATIONAL STANDARDS MAY ON
OCCASION HAVE TO BE CONSIDERED IN THE
LIGHT OF THEIR POTENTIAL TO BECOME STAN-
DARDS TO WHICH REFERENCE MAY BE MADE IN
©
NATIONAL REGULATIONS. ISO 2015
ISO/FDIS 10924-5:2015(E)
© ISO 2015, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2015 – All rights reserved
ISO/FDIS 10924-5:2015(E)
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Marking, labelling and colour coding . 1
5 Tests and requirements . 2
5.1 General . 2
5.1.1 General test conditions . 2
5.1.2 Test sequence plan . 2
5.1.3 Test cable sizes . 3
5.2 Voltage drop . 4
5.2.1 Purpose . 4
5.2.2 Tests . 4
5.2.3 Requirements . 4
5.3 Maximum housing temperature . 5
5.4 Environmental conditions . 5
5.5 Operating time-rating . 5
5.5.1 Purpose . 5
5.5.2 Tests . 5
5.5.3 Requirements . 5
5.6 Current steps . 5
5.7 No current trip and reset temperature . 6
5.8 Absolute breaking capacity . 6
5.8.1 Tests . 6
5.8.2 Requirements . 6
5.9 Breaking capacity . 6
5.9.1 Tests . 6
5.9.2 Requirements . 6
5.10 Strength of terminals . 7
5.10.1 Tests . 7
5.10.2 Requirements . 7
5.11 Endurance . 7
5.11.1 Tests . 7
5.11.2 Requirements . 7
5.12 Dielectric strength. 7
5.12.1 Tests . 7
5.12.2 Requirement . 7
5.13 Pulse test . 7
5.13.1 Purpose . 7
5.13.2 Test . 8
5.13.3 Requirement . 8
6 Dimensions and designation example . 9
Bibliography .10
ISO/FDIS 10924-5:2015(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical
Barriers to Trade (TBT) see the following URL: Foreword - Supplementary information.
The committee responsible for this document is ISO/TC 22, Road vehicles, Subcommittee SC 32, Electrical
and electronic components and general system aspects.
ISO 10924 consists of the following parts, under the general title Road vehicles — Circuit breakers:
— Part 1: Definitions and general test requirements
— Part 2: User’s guide
— Part 3: Miniature circuit breakers with tabs (Blade type), Form CB11
— Part 4: Medium circuit breakers with tabs (Blade type), Form CB 15
— Part 5: Circuit breakers with rated voltage of 450 V
iv © ISO 2015 – All rights reserved
FINAL DRAFT INTERNATIONAL STANDARD ISO/FDIS 10924-5:2015(E)
Road vehicles — Circuit breakers —
Part 5:
Circuit breakers with tabs with rated voltage of 450 V
1 Scope
This part of ISO 10924 specifies circuit breakers with rated voltage of 450 V for use in road vehicles. It
establishes, for this circuit breaker type, the rated current, test procedures, performance requirements
and dimensions.
This part of ISO 10924 is intended to be used in conjunction with ISO 10924-1 and with ISO 10924-2.
The numbering of its clauses corresponds to that of ISO 10924-1 whose requirements are applicable,
except where modified by requirements particular to this part of ISO 10924.
This part of ISO 10924 is applicable to circuit breakers with a rated voltage of 450 V d.c., a current
rating of no greater than 200 A and a breaking capacity of 6 000 A.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 10924–1, Road vehicles — Circuit breakers — Part 1: Definitions and general test requirements
ISO 6722–1, Road vehicles — 60 V and 600 V single-core cables — Part 1: Dimensions, test methods and
requirements for copper conductor cables
ISO 8820–7, Road vehicles — Fuse-links — Part 7: Fuse-links with tabs (Type G) with rated voltage of 450 V
ISO 8820–8, Road vehicles — Fuse-links — Part 8: Fuse-links with bolt-in contacts (Type H and J) with
rated voltage of 450 V
ISO 16750–4, Road vehicles — Environmental conditions and testing for electrical and electronic
equipment — Part 4: Climatic loads
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 10924-1 apply.
4 Marking, labelling and colour coding
See ISO 10924-1 and Table 1.
ISO/FDIS 10924-5:2015(E)
Table 1 — Colour code
Rated current, I
R
Colo
...

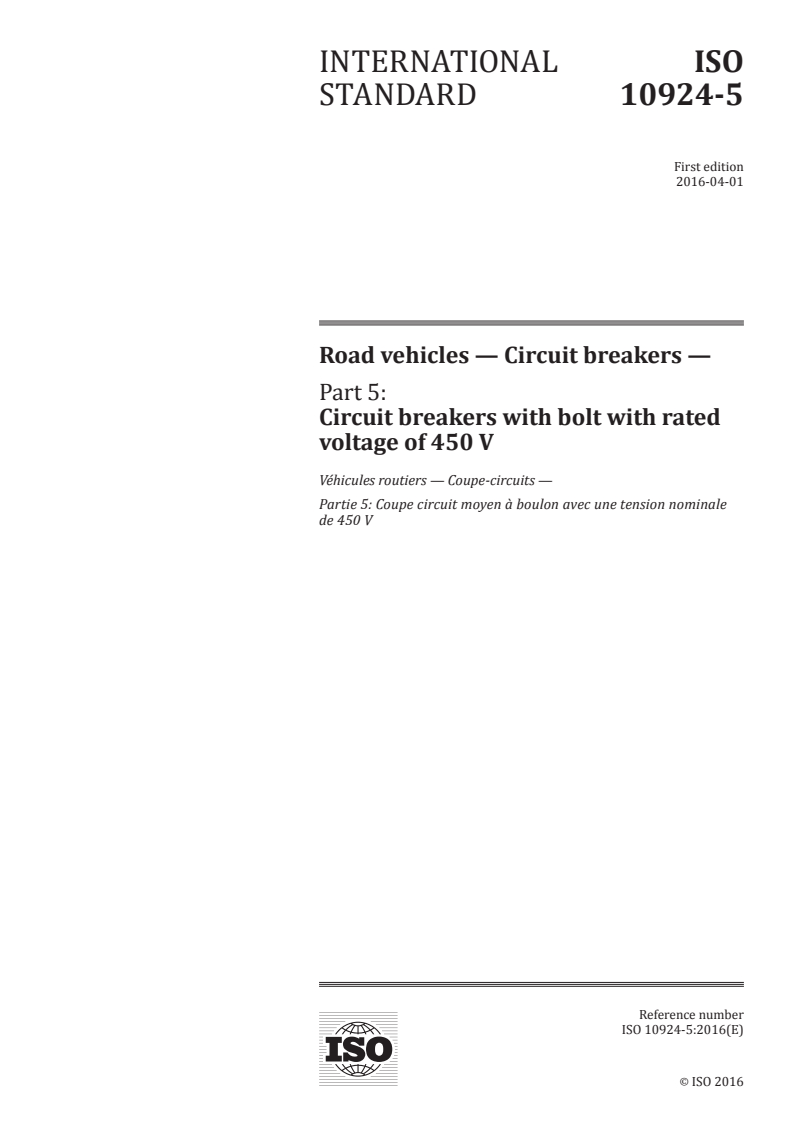

INTERNATIONAL ISO
STANDARD 10924-5
First edition
2016-04-01
Road vehicles — Circuit breakers —
Part 5:
Circuit breakers with bolt with rated
voltage of 450 V
Véhicules routiers — Coupe-circuits —
Partie 5: Coupe circuit moyen à boulon avec une tension nominale
de 450 V
Reference number
©
ISO 2016
© ISO 2016, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2016 – All rights reserved

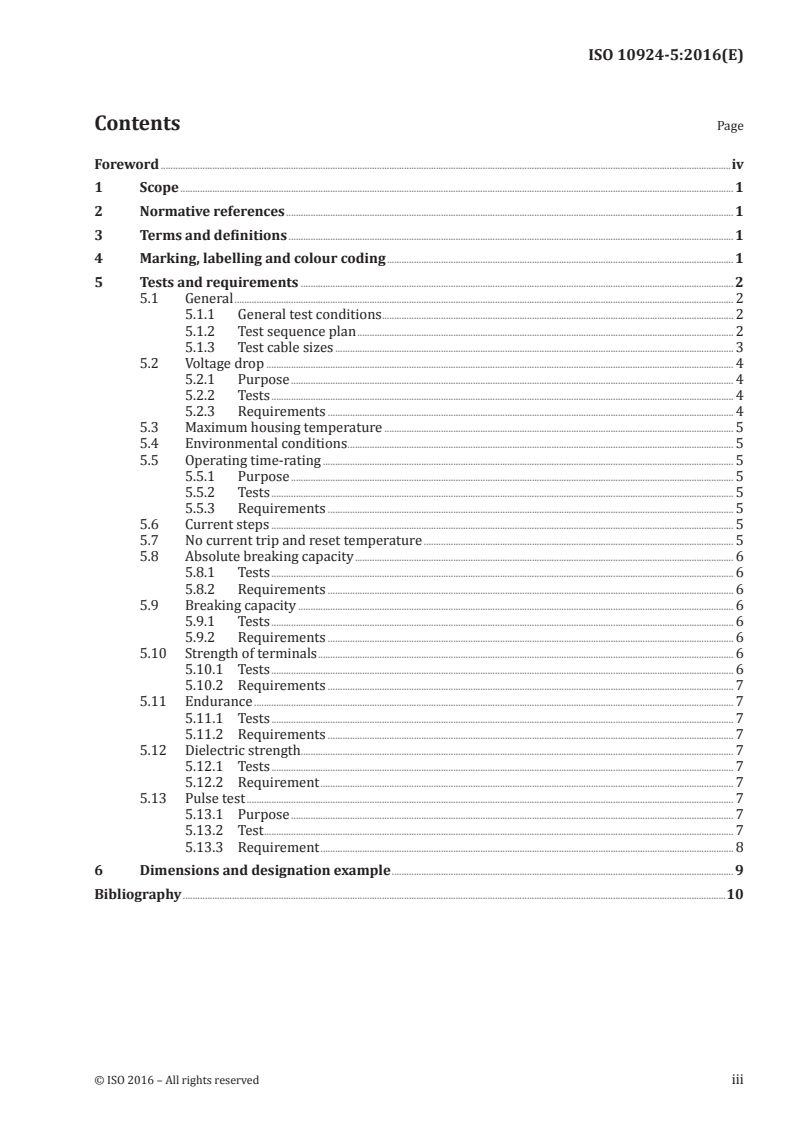

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Marking, labelling and colour coding . 1
5 Tests and requirements . 2
5.1 General . 2
5.1.1 General test conditions . 2
5.1.2 Test sequence plan . 2
5.1.3 Test cable sizes . 3
5.2 Voltage drop . 4
5.2.1 Purpose . 4
5.2.2 Tests . 4
5.2.3 Requirements . 4
5.3 Maximum housing temperature . 5
5.4 Environmental conditions . 5
5.5 Operating time-rating . 5
5.5.1 Purpose . 5
5.5.2 Tests . 5
5.5.3 Requirements . 5
5.6 Current steps . 5
5.7 No current trip and reset temperature . 5
5.8 Absolute breaking capacity . 6
5.8.1 Tests . 6
5.8.2 Requirements . 6
5.9 Breaking capacity . 6
5.9.1 Tests . 6
5.9.2 Requirements . 6
5.10 Strength of terminals . 6
5.10.1 Tests . 6
5.10.2 Requirements . 7
5.11 Endurance . 7
5.11.1 Tests . 7
5.11.2 Requirements . 7
5.12 Dielectric strength. 7
5.12.1 Tests . 7
5.12.2 Requirement . 7
5.13 Pulse test . 7
5.13.1 Purpose . 7
5.13.2 Test . 7
5.13.3 Requirement . 8
6 Dimensions and designation example . 9
Bibliography .10

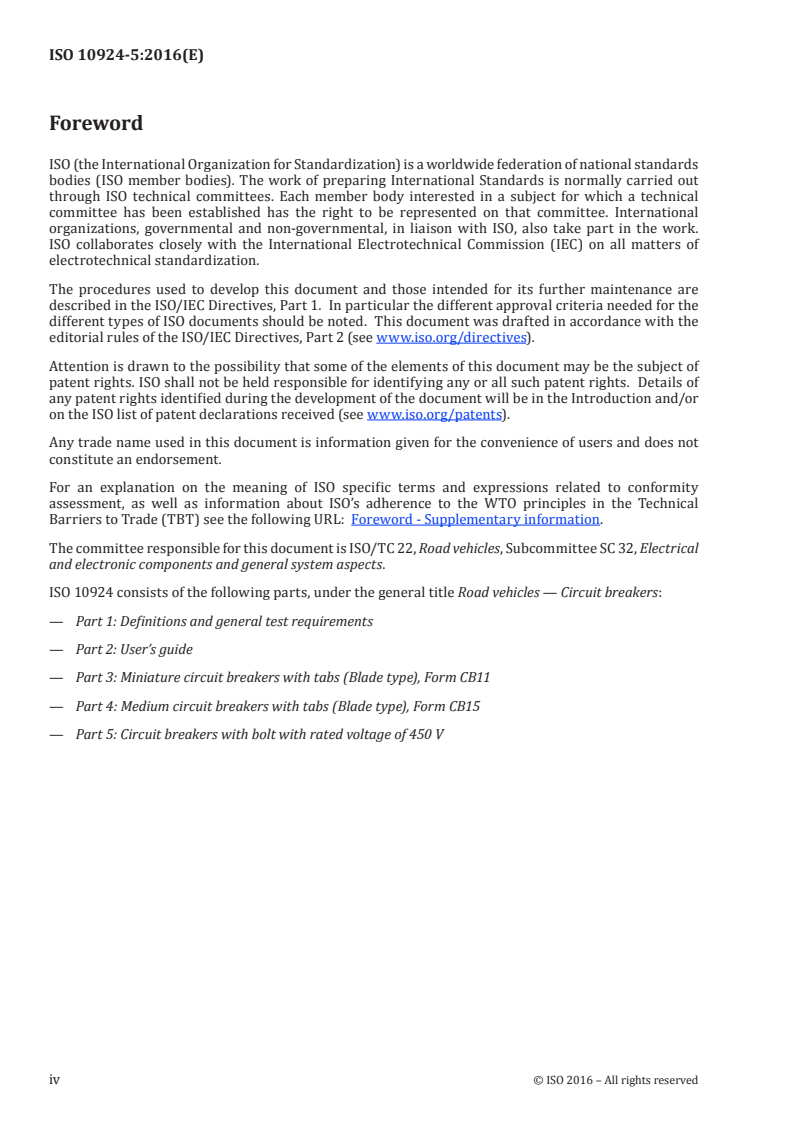

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical
Barriers to Trade (TBT) see the following URL: Foreword - Supplementary information.
The committee responsible for this document is ISO/TC 22, Road vehicles, Subcommittee SC 32, Electrical
and electronic components and general system aspects.
ISO 10924 consists of the following parts, under the general title Road vehicles — Circuit breakers:
— Part 1: Definitions and general test requirements
— Part 2: User’s guide
— Part 3: Miniature circuit breakers with tabs (Blade type), Form CB11
— Part 4: Medium circuit breakers with tabs (Blade type), Form CB15
— Part 5: Circuit breakers with bolt with rated voltage of 450 V
iv © ISO 2016 – All rights reserved
INTERNATIONAL STANDARD ISO 10924-5:2016(E)
Road vehicles — Circuit breakers —
Part 5:
Circuit breakers with bolt with rated voltage of 450 V
1 Scope
This part of ISO 10924 specifies circuit breakers with rated voltage of 450 V for use in road vehicles. It
establishes, for this circuit breaker type, the rated current, test procedures, performance requirements
and dimensions.
This part of ISO 10924 is intended to be used in conjunction with ISO 10924-1 and with ISO 10924-2.
The numbering of its clauses corresponds to that of ISO 10924-1 whose requirements are applicable,
except where modified by requirements particular to this part of ISO 10924.
This part of ISO 10924 is applicable to circuit breakers with a rated voltage of 450 V d.c., a current
rating of no greater than 300 A and a breaking capacity of 6 000 A.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 6722–1, Road vehicles — 60 V and 600 V single-core cables — Part 1: Dimensions, test methods and
requirements for copper conductor cables
ISO 8820–7, Road vehicles — Fuse-links — Part 7: Fuse-links with tabs (Type G) with rated voltage of 450 V
ISO 8820–8, Road vehicles — Fuse-links — Part 8: Fuse-links with bolt-in contacts (Type H and J) with
rated voltage of 450 V
ISO 10924–1, Road vehicles — Circuit breakers — Part 1: Definitions and general test requirements
ISO 16750–4, Road vehicles — Environmental conditions and testing for electrical and electronic
equipment — Part 4: Climatic loads
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 10924-1 apply.
4 Marking, labelling and colour coding
See ISO 10924-1 and Table 1.
Table 1 — Colour code
Rated current, I
R
Colour code
A
15 blue
20 yellow
25 white (natural)
30 green
40 orange
50 red
60 blue
70 brown
80 black
100 blue
120 white
150 orange
200 blue
250 pink
300 grey
5 Tests and requirements
5.1 General
5.1.1 General test conditions
In addition to carrying out the test procedures in accordance with ISO 10924-1, the following criteria
shall apply.
— Tests shall be performed following the test sequences in Table 2.
— The test fixture for electrical tests shall be designed in accordance with ISO 8820-7 and ISO 8820-8.
The connection resistance shall be 1 mΩ max. to ensure the proper function of the test fixt
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
