Electrical requirements for lifts, escalators and moving walks

This document specifies the immunity performance criteria and test levels for apparatus used in lifts, escalators and moving walks which are intended to be permanently installed in buildings including the basic safety requirements in regard to their electromagnetic environment. These levels represent essential EMC requirements. This document refers to EM conditions as existing in residential, office and industrial buildings. This document addresses commonly known EMC related hazards and hazardous situations relevant to lifts, escalators and moving walks when they are used as intended and under the conditions foreseen by the lift installer or escalator and/or moving walk manufacturer. It is assumed that no ports connected to safety circuit only are rated at currents greater than 100 amps. It is assumed that mobile telephones and radio transmitters used at frequencies and power of that stated in Table 1 are not placed within 200 mm distance from safety circuit(s). However: — performance criteria and test levels for apparatus/assembly of apparatus used in general function circuits do not cover situations with an extremely low probability of occurrence; — this document does not apply to other apparatus already proven to be in conformity to the EMC national regulation, and not related to the safety of the lift, escalator or moving walk, such as lighting apparatus, communication apparatus, etc. This document does not apply to electromagnetic environments such as: — radio transmitter stations; — railways and metros; — heavy industrial plant; — electricity power stations; which need additional investigations. This document is not applicable to apparatus which were manufactured before the date of its publication.

Exigences électriques pour ascenseurs, escaliers mécaniques et trottoirs roulants

General Information

Status
Published
Publication Date
12-Jan-2021
Current Stage
5060 - Close of voting Proof returned by Secretariat
Start Date
09-Dec-2020
Completion Date
08-Dec-2020
Ref Project

RELATIONS

Buy Standard

Standard
ISO 8102-2:2021 - Electrical requirements for lifts, escalators and moving walks
English language
16 pages
sale 15% off
Preview
sale 15% off
Preview
Draft
ISO/FDIS 8102-2 - Electrical requirements for lifts, escalators and moving walks
English language
16 pages
sale 15% off
Preview
sale 15% off
Preview
Draft
ISO/DIS 8102-2 - Electrical requirements for lifts, escalators and moving walks
English language
18 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

INTERNATIONAL ISO
STANDARD 8102-2
First edition
2021-01
Electrical requirements for lifts,
escalators and moving walks —
Part 2:
Electromagnetic compatibility with
regard to immunity
Exigences électriques pour ascenseurs, escaliers mécaniques et
trottoirs roulants —
Partie 2: Compatibilité électromagnétique en ce qui concerne
l'immunité
Reference number
ISO 8102-2:2021(E)
ISO 2021
---------------------- Page: 1 ----------------------
ISO 8102-2:2021(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2021

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2021 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 8102-2:2021(E)

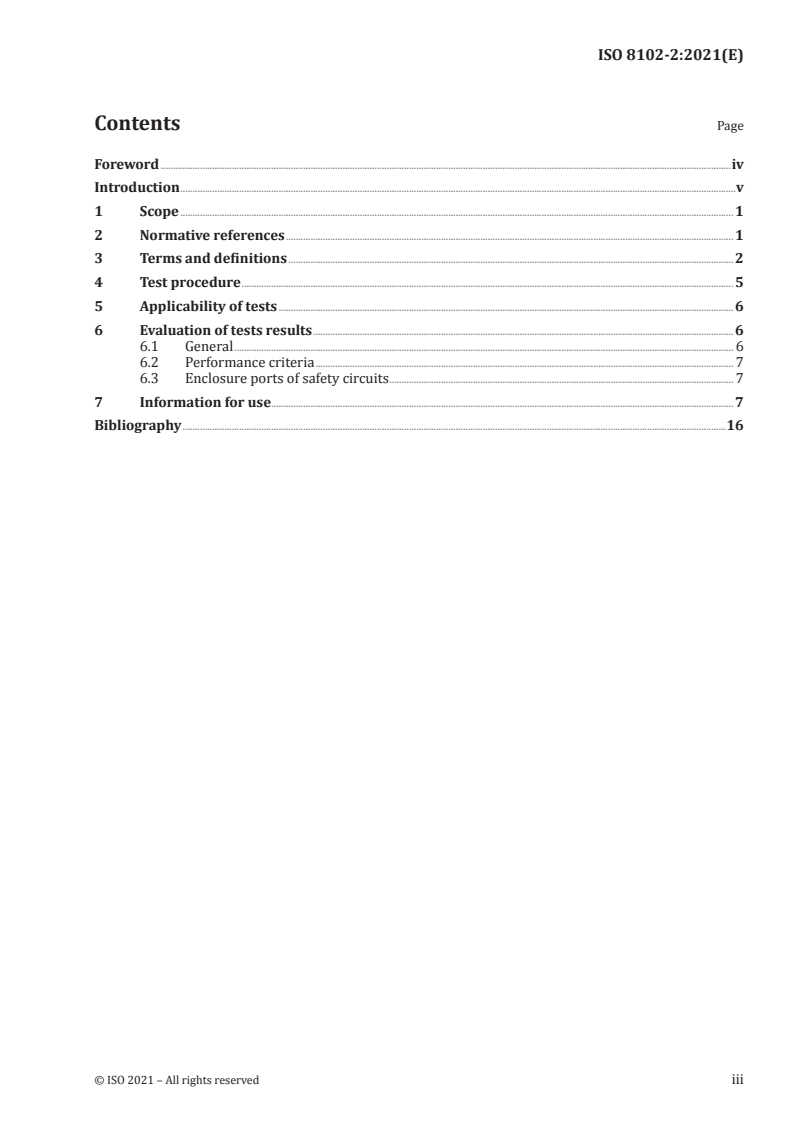

Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction ..................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 2

4 Test procedure ........................................................................................................................................................................................................ 5

5 Applicability of tests ......................................................................................................................................................................................... 6

6 Evaluation of tests results ........................................................................................................................................................................... 6

6.1 General ........................................................................................................................................................................................................... 6

6.2 Performance criteria .......................................................................................................................................................................... 7

6.3 Enclosure ports of safety circuits ............................................................................................................................................ 7

7 Information for use ............................................................................................................................................................................................ 7

Bibliography .............................................................................................................................................................................................................................16

© ISO 2021 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 8102-2:2021(E)

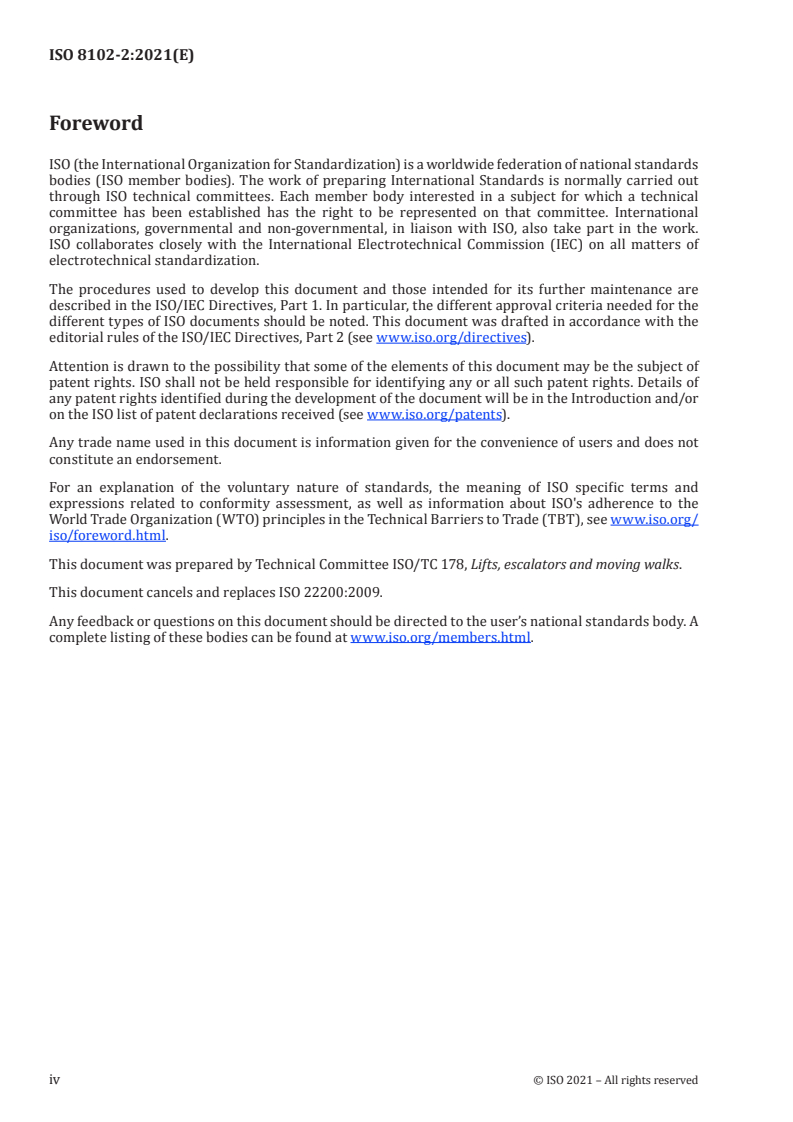

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/ patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/

iso/ foreword .html.

This document was prepared by Technical Committee ISO/TC 178, Lifts, escalators and moving walks.

This document cancels and replaces ISO 22200:2009.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO 2021 – All rights reserved
---------------------- Page: 4 ----------------------
ISO 8102-2:2021(E)
Introduction
This document is a type-C standard as stated in ISO 12100.

This document is of relevance, in particular, for the following stakeholder groups representing the

market players with regard to machinery safety:
— machine manufacturers (small, medium and large enterprises);

— health and safety bodies (regulators, accident prevention organisations, market surveillance etc.)

Others can be affected by the level of machinery safety achieved with the means of the document by the

above-mentioned stakeholder groups:
— machine users/employers (small, medium and large enterprises);

— machine users/employees (e.g. trade unions, organizations for people with special needs);

— service providers, e. g. for maintenance (small, medium and large enterprises);

— consumers (in case of machinery intended for use by consumers).

The above-mentioned stakeholder groups have been given the possibility to participate at the drafting

process of this document.

The machinery concerned and the extent to which hazards, hazardous situations or hazardous events

are covered are indicated in the Scope of this document.

When requirements of this type-C standard are different from those which are stated in type-A or

type-B standards, the requirements of this type-C standard take precedence over the requirements of

the other standards for machines that have been designed and built according to the requirements of

this type-C standard.
This document is based on European Standard EN 12016:2013.

The requirements of this document have been specified so as to ensure a level of electromagnetic

immunity which will allow minimal disturbance to the product family.

Two levels of immunity are given which have been selected such that the immunity levels for safety

circuit apparatus are higher than the immunity levels for general function apparatus. The higher levels

cover the possibility for example of disturbances emanating from hand-held transmitters in close

proximity to safety circuit apparatus.

However, neither level covers cases where an extremely low probability of occurrence exists.

Test levels and immunity performance criteria are defined for:

— apparatus which are safety components or are used in conjunction with safety components, (safety

circuits);
— apparatus used in general function circuits.

The immunity levels given are on the basis that equipment of the product family range is installed both

indoor and outdoor in all types of building and, generally, is connected to a low voltage system.

Due to the size of an installed lift, it becomes impracticable to test the total assembly either in a test

laboratory or in situ where the uncontrolled environment can also influence the test procedures and

results. This applies also to measurements within the car. Similar considerations regarding dimensions

apply equally to the testing of escalators and moving walks.
The following explains the rationale to the revisions of this document.

— New performance criterion C has been specified for voltage dip and voltage interruption.

© ISO 2021 – All rights reserved v
---------------------- Page: 5 ----------------------
ISO 8102-2:2021(E)

— Because of extension of operating frequencies in the digital mobile telephone services and wireless

communication systems, new requirements have been added on radio frequency electromagnetic

field to cover up to 2 655 MHz.

— For the evaluation of test results regarding the radio equipment as defined by national regulations

used in apparatus/assembly of apparatus, the exclusion band defined by the standards applies for

that specific radio equipment.

— In addition, the uncontrolled operation of radio transmitter used in combined apparatus/assembly

of apparatus is not allowed.
The related EMC product family standard for emission is ISO 8102-1.
vi © ISO 2021 – All rights reserved
---------------------- Page: 6 ----------------------
INTERNATIONAL STANDARD ISO 8102-2:2021(E)
Electrical requirements for lifts, escalators and moving
walks —
Part 2:
Electromagnetic compatibility with regard to immunity
1 Scope

This document specifies the immunity performance criteria and test levels for apparatus used in lifts,

escalators and moving walks which are intended to be permanently installed in buildings including

the basic safety requirements in regard to their electromagnetic environment. These levels represent

essential EMC requirements.

This document refers to EM conditions as existing in residential, office and industrial buildings.

This document addresses commonly known EMC related hazards and hazardous situations relevant to

lifts, escalators and moving walks when they are used as intended and under the conditions foreseen

by the lift installer or escalator and/or moving walk manufacturer.

It is assumed that no ports connected to safety circuit only are rated at currents greater than 100 amps.

It is assumed that mobile telephones and radio transmitters used at frequencies and power of that

stated in Table 1 are not placed within 200 mm distance from safety circuit(s).
However:

— performance criteria and test levels for apparatus/assembly of apparatus used in general function

circuits do not cover situations with an extremely low probability of occurrence;

— this document does not apply to other apparatus already proven to be in conformity to the EMC

national regulation, and not related to the safety of the lift, escalator or moving walk, such as lighting

apparatus, communication apparatus, etc.
This document does not apply to electromagnetic environments such as:
— radio transmitter stations;
— railways and metros;
— heavy industrial plant;
— electricity power stations;
which need additional investigations.

This document is not applicable to apparatus which were manufactured before the date of its

publication.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

© ISO 2021 – All rights reserved 1
---------------------- Page: 7 ----------------------
ISO 8102-2:2021(E)

IEC 60050-161:1990+A1: 2019, International Electrotechnical Vocabulary (IEV) — Part 161:

Electromagnetic compatibility

IEC 61000-4-2:2008, Electromagnetic Compatibility (EMC) — Part 4-2: Testing and measurement

techniques; Electrostatic discharge immunity test

IEC 61000-4-3:2020, Electromagnetic compatibility (EMC) — Part 4-3: Testing and measurement

techniques - Radiated, radio-frequency, electromagnetic field immunity test

IEC 61000-4-4:2012, Electromagnetic compatibility (EMC) — Part 4-4: Testing and measurement

techniques — Electrical fast transient/burst immunity test

IEC 61000-4-5:2014+A1: 2017, Electromagnetic compatibility (EMC) — Part 4-5: Testing and measurement

techniques — Surge immunity test

IEC 61000-4-6:2013, Electromagnetic compatibility (EMC) — Part 4-6: Testing and measurement

techniques — Immunity to conducted disturbances, induced by radio-frequency fields

IEC 61000-4-11:2020, Electromagnetic compatibility (EMC) — Part 4-11: Testing and measurement

techniques – Voltage dips, short interruptions and voltage variations immunity tests for equipment with

input current up to 16 A per phase

IEC 61000-6-1:2016, Electromagnetic compatibility — Part 6-1: Generic standards – Immunity for

residential, commercial and light-industrial environments

IEC 61000-6-2:2016, Electromagnetic compatibility (EMC) — Part 6-2: Generic standards – Immunity for

industrial environments

CISPR 32:2015+A1: 2019, Information technology equipment — Radio disturbance characteristics — Limits

and methods of measurement

CISPR 35:2016, Electromagnetic compatibility of multimedia equipment - Immunity requirements

3 Terms and definitions

For the purpose of this document, the terms and definitions given in IEC 61000-6-1:2016,

IEC 61000-6-2:2016 and the following apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1
assembly of apparatus
arrangement of interconnected apparatus, which can be tested together
Note 1 to entry: See Figure 1 and Figure 2 as examples.
3.2
apparatus
assembly of components with an intrinsic function as defined by its manufacturer
Note 1 to entry: See Figure 1 and Figure 2 as examples.
2 © ISO 2021 – All rights reserved
---------------------- Page: 8 ----------------------
ISO 8102-2:2021(E)
Key
assembly of apparatus
1 machinery space 7 landings
2 main control/ control cabinet 8 system boundary
3 machine 9 AC – and/or DC power ports
4 door control 10 main switch
5 lift car 11 output power port

6 apparatus installed at the landing (e.g. push 12 ports for monitoring and remote alarm systems

buttons, indicators)
Figure 1 — EMC example (immunity) for lift systems
© ISO 2021 – All rights reserved 3
---------------------- Page: 9 ----------------------
ISO 8102-2:2021(E)
Key
assembly of apparatus
1 control panels 6 machine
2 machinery space (see 4 to 10) 7 AC – and/or DC power ports
3 system boundary 8 main switch
4 machinery space 9 output power port
5 main control/control cabinet 10 ports for monitoring
NOTE the machinery space can also be an external room.
Figure 2 — EMC example (immunity) for escalator and moving walk systems
3.3
enclosure port

physical boundary of apparatus/assembly of apparatus through which electromagnetic fields can

radiate or impinge
Note 1 to entry: See Figure 3 as example.
3.4
general function circuit
circuitry used in apparatus which does not incorporate safety circuits
Note 1 to entry: See Figure 1 to Figure 3.
4 © ISO 2021 – All rights reserved
---------------------- Page: 10 ----------------------
ISO 8102-2:2021(E)
3.5
port

particular interface of specified apparatus/assembly of apparatus with the external electromagnetic

environment
Note 1 to entry: See Figure 3 as an example.
Key
1 AC power port
2 DC power port
3 enclosure port
4 apparatus/assembly of apparatus
5 ground port
6 signal/control port
7 machine/motor port
Figure 3 — Examples of ports
3.6
system

lift, escalator or moving walk comprising assembly of apparatus with electrical and electronic

equipment and interconnections
Note 1 to entry: See Figure 1 and Figure 2 as examples.
4 Test procedure

4.1 The tests shall be carried out as stated in IEC 61000-4-2:2008, IEC 61000-4-3:2020+A2:2010,

IEC 61000-4-4:2012, IEC 61000-4-5:2014+A1:2017, IEC 61000-4-6:2013, IEC 61000-4-11:2020, as

appropriate (see Table 1 to Table 7).

An attempt shall be made to maximize susceptibility by varying the position of the test sample in the

test facility.

4.2 Travelling cables or any other cables likely to be more than 5 m long shall be represented by a

sample of at least 5 m long connected to the relevant port for the purpose of testing for susceptibility.

4.3 It is not always possible to measure the immunity levels for every function of the apparatus/

assembly of apparatus. In such cases, the most critical period of operation shall be selected.

4.4 The test shall be carried out under a single set of environmental conditions within the specified

operating range of temperature, humidity, air pressure and supply voltage, unless otherwise indicated in

the standards referred to in 4.1.
4.5 All tests shall be carried out in well-defined and reproducible conditions.
© ISO 2021 – All rights reserved 5
---------------------- Page: 11 ----------------------
ISO 8102-2:2021(E)

4.6 To facilitate testing, assemblies of apparatus may be tested together. However, where apparatus

contain safety circuits, the tests shall prove that the safety circuits comply with the immunity

requirements for all circuits and specific requirements for safety circuits.

This does not imply that those parts of the whole assembly, which are general function circuits, need to

comply with the safety circuit requirements.

4.7 Tests shall be carried out at the following ports of the apparatus or assembly of apparatus where

they exist:
— enclosure port (see Table 1);

— ports for signal and control lines not crossing system boundaries (see Table 2);

— ports for monitorin
...

FINAL
INTERNATIONAL ISO/FDIS
DRAFT
STANDARD 8102-2
ISO/TC 178
Electrical requirements for lifts,
Secretariat: AFNOR
escalators and moving walks —
Voting begins on:
2020-10-13
Part 2:
Voting terminates on:
Electromagnetic compatibility with
2020-12-08
regard to immunity
Exigences électriques pour ascenseurs, escaliers mécaniques et
trottoirs roulants —
Partie 2: Compatibilité électromagnétique en ce qui concerne
l'immunité
RECIPIENTS OF THIS DRAFT ARE INVITED TO
SUBMIT, WITH THEIR COMMENTS, NOTIFICATION
OF ANY RELEVANT PATENT RIGHTS OF WHICH
THEY ARE AWARE AND TO PROVIDE SUPPOR TING
DOCUMENTATION.
IN ADDITION TO THEIR EVALUATION AS
Reference number
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO-
ISO/FDIS 8102-2:2020(E)
LOGICAL, COMMERCIAL AND USER PURPOSES,
DRAFT INTERNATIONAL STANDARDS MAY ON
OCCASION HAVE TO BE CONSIDERED IN THE
LIGHT OF THEIR POTENTIAL TO BECOME STAN-
DARDS TO WHICH REFERENCE MAY BE MADE IN
NATIONAL REGULATIONS. ISO 2020
---------------------- Page: 1 ----------------------
ISO/FDIS 8102-2:2020(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2020

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2020 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/FDIS 8102-2:2020(E)
Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction ..................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 2

4 Test procedure ........................................................................................................................................................................................................ 5

5 Applicability of tests ......................................................................................................................................................................................... 6

6 Evaluation of tests results ........................................................................................................................................................................... 6

6.1 General ........................................................................................................................................................................................................... 6

6.2 Performance criteria .......................................................................................................................................................................... 7

6.3 Enclosure ports of safety circuits ............................................................................................................................................ 7

7 Information for use ............................................................................................................................................................................................ 7

Bibliography .............................................................................................................................................................................................................................16

© ISO 2020 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/FDIS 8102-2:2020(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/ patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/

iso/ foreword .html.

This document was prepared by Technical Committee ISO/TC 178, Lifts, escalators and moving walks.

This document cancels and replaces ISO 22200:2009.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO 2020 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/FDIS 8102-2:2020(E)
Introduction
This document is a type-C standard as stated in ISO 12100.

This document is of relevance, in particular, for the following stakeholder groups representing the

market players with regard to machinery safety:
— machine manufacturers (small, medium and large enterprises);

— health and safety bodies (regulators, accident prevention organisations, market surveillance etc.)

Others can be affected by the level of machinery safety achieved with the means of the document by the

above-mentioned stakeholder groups:
— machine users/employers (small, medium and large enterprises);

— machine users/employees (e.g. trade unions, organizations for people with special needs);

— service providers, e. g. for maintenance (small, medium and large enterprises);

— consumers (in case of machinery intended for use by consumers).

The above-mentioned stakeholder groups have been given the possibility to participate at the drafting

process of this document.

The machinery concerned and the extent to which hazards, hazardous situations or hazardous events

are covered are indicated in the Scope of this document.

When requirements of this type-C standard are different from those which are stated in type-A or

type-B standards, the requirements of this type-C standard take precedence over the requirements of

the other standards for machines that have been designed and built according to the requirements of

this type-C standard.
This document is based on European Standard EN 12016:2013.

The requirements of this document have been specified so as to ensure a level of electromagnetic

immunity which will allow minimal disturbance to the product family.

Two levels of immunity are given which have been selected such that the immunity levels for safety

circuit apparatus are higher than the immunity levels for general function apparatus. The higher levels

cover the possibility for example of disturbances emanating from hand-held transmitters in close

proximity to safety circuit apparatus.

However, neither level covers cases where an extremely low probability of occurrence exists.

Test levels and immunity performance criteria are defined for:

— apparatus which are safety components or are used in conjunction with safety components, (safety

circuits);
— apparatus used in general function circuits.

The immunity levels given are on the basis that equipment of the product family range is installed both

indoor and outdoor in all types of building and, generally, is connected to a low voltage system.

Due to the size of an installed lift, it becomes impracticable to test the total assembly either in a test

laboratory or in situ where the uncontrolled environment can also influence the test procedures and

results. This applies also to measurements within the car. Similar considerations regarding dimensions

apply equally to the testing of escalators and moving walks.
The following explains the rationale to the revisions of this document.

— New performance criterion C has been specified for voltage dip and voltage interruption.

© ISO 2020 – All rights reserved v
---------------------- Page: 5 ----------------------
ISO/FDIS 8102-2:2020(E)

— Because of extension of operating frequencies in the digital mobile telephone services and wireless

communication systems, new requirements have been added on radio frequency electromagnetic

field to cover up to 2 655 MHz.

— For the evaluation of test results regarding the radio equipment as defined by national regulations

used in apparatus/assembly of apparatus, the exclusion band defined by the standards applies for

that specific radio equipment.

— In addition, the uncontrolled operation of radio transmitter used in combined apparatus/assembly

of apparatus is not allowed.
The related EMC product family standard for emission is ISO 8102-1.
vi © ISO 2020 – All rights reserved
---------------------- Page: 6 ----------------------
FINAL DRAFT INTERNATIONAL STANDARD ISO/FDIS 8102-2:2020(E)
Electrical requirements for lifts, escalators and moving
walks —
Part 2:
Electromagnetic compatibility with regard to immunity
1 Scope

This document specifies the immunity performance criteria and test levels for apparatus used in lifts,

escalators and moving walks which are intended to be permanently installed in buildings including

the basic safety requirements in regard to their electromagnetic environment. These levels represent

essential EMC requirements.

This document refers to EM conditions as existing in residential, office and industrial buildings.

This document addresses commonly known EMC related hazards and hazardous situations relevant to

lifts, escalators and moving walks when they are used as intended and under the conditions foreseen

by the lift installer or escalator and/or moving walk manufacturer.

It is assumed that no ports connected to safety circuit only are rated at currents greater than 100 amps.

It is assumed that mobile telephones and radio transmitters used at frequencies and power of that

stated in Table 1 are not placed within 200 mm distance from safety circuit(s).
However:

— performance criteria and test levels for apparatus/assembly of apparatus used in general function

circuits do not cover situations with an extremely low probability of occurrence;

— this document does not apply to other apparatus already proven to be in conformity to the EMC

national regulation, and not related to the safety of the lift, escalator or moving walk, such as lighting

apparatus, communication apparatus, etc.
This document does not apply to electromagnetic environments such as:
— radio transmitter stations;
— railways and metros;
— heavy industrial plant;
— electricity power stations;
which need additional investigations.

This document is not applicable to apparatus which were manufactured before the date of its

publication.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

© ISO 2020 – All rights reserved 1
---------------------- Page: 7 ----------------------
ISO/FDIS 8102-2:2020(E)

IEC 60050-161:1990+A1: 2017, International Electrotechnical Vocabulary — Chapter 161: Electromagnetic

compatibility

IEC 61000-4-2:2008, Electromagnetic Compatibility (EMC) — Part 4-2: Testing and measurement

techniques; Electrostatic discharge immunity test

I EC 61000 - 4 -3:2006 +A 1: 2007, Electromagnetic compatibility (EMC) — Part 4-3: Testing and measurement

techniques; Radiated, radio-frequency, electromagnetic field immunity test 2)

IEC 61000-4-4:2012, Electromagnetic compatibility (EMC) — Part 4-4: Testing and measurement

techniques — Electrical fast transient/burst immunity test

IEC 61000-4-5:2014+A1: 2017, Electromagnetic compatibility (EMC) — Part 4-5: Testing and measurement

techniques — Surge immunity test

IEC 61000-4-6:2013, Electromagnetic Compatibility (EMC) — Part 4-6: Testing and measurement

techniques — Immunity to conducted disturbances, induced by radio-frequency fields

I EC 610 0 0 - 4 -11:20 0 4 +A 1: 2017, Electromagnetic Compatibility (EMC) — Part 4-11: Testing and

measurement techniques — Voltage dips, short interruptions and voltage variations immunity tests

IEC 61000-6-1:2005, Electromagnetic compatibility — Part 6-1: Generic standards — Immunity for

residential, commercial and light-industrial environments

IEC 61000-6-2:2005, Electromagnetic Compatibility (EMC) — Part 6-2: Generic standards — Immunity for

industrial environments

CISPR 32:2015, modified, Information technology equipment - Radio disturbance characteristics - Limits

and methods of measurement

CISPR 24:2010+A1: 2015, Information technology equipment - Immunity characteristics - Limits and

methods of measurement
3 Terms and definitions

For the purpose of this document, the terms and definitions given in IEC 61000-6-1:2005,

IEC 61000-6-2:2005 and the following apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1
assembly of apparatus
arrangement of interconnected apparatus, which can be tested together
Note 1 to entry: See Figure 1 and Figure 2 as examples.
3.2
apparatus
assembly of components with an intrinsic function as defined by its manufacturer
Note 1 to entry: See Figure 1 and Figure 2 as examples.
2 © ISO 2020 – All rights reserved
---------------------- Page: 8 ----------------------
ISO/FDIS 8102-2:2020(E)
Key
assembly of apparatus
1 machinery space 7 landings
2 main control / control cabinet 8 system boundary
3 machine 9 AC – and/or DC power ports
4 door control 10 main switch
5 lift car 11 output power port

6 apparatus installed at the landing (e.g. push 12 ports for monitoring and remote alarm systems

buttons, indicators)
Figure 1 — EMC example (immunity) for lift systems
© ISO 2020 – All rights reserved 3
---------------------- Page: 9 ----------------------
ISO/FDIS 8102-2:2020(E)
Key
assembly of apparatus
1 control panels 6 machine
2 machinery space (see 4 to 10) 7 AC – and/or DC power ports
3 system boundary 8 main switch
4 machinery space 9 output power port
5 main control/control cabinet 10 ports for monitoring
NOTE the machinery space can also be an external room.
Figure 2 — EMC example (immunity) for escalator and moving walk systems
3.3
enclosure port

physical boundary of apparatus/assembly of apparatus through which electromagnetic fields can

radiate or impinge
Note 1 to entry: See Figure 3 as example.
3.4
general function circuit
circuitry used in apparatus which does not incorporate safety circuits
Note 1 to entry: See Figure 1 to Figure 3.
4 © ISO 2020 – All rights reserved
---------------------- Page: 10 ----------------------
ISO/FDIS 8102-2:2020(E)
3.5
port

particular interface of specified apparatus/assembly of apparatus with the external electromagnetic

environment
Note 1 to entry: See Figure 3 as an example.
Key
1 AC power port
2 DC power port
3 enclosure port
4 apparatus/assembly of apparatus
5 ground port
6 signal/control port
7 machine/motor port
Figure 3 — Examples of ports
3.6
system

lift, escalator or moving walk comprising assembly of apparatus with electrical and electronic

equipment and interconnections
Note 1 to entry: See Figure 1 and Figure 2 as examples.
4 Test procedure

4.1 The tests shall be carried out as stated in IEC 61000-4-2:2008, IEC 61000-4-3:2006+A1:

2007+A2: 2010, IEC 61000-4-4:2012, IEC 61000-4-5:2014+A1:2017, IEC 61000-4-6:2013,

IEC 61000-4-11:2004+A1:2017, as appr opriate (see Table 1 to Table 7).

An attempt shall be made to maximize susceptibility by varying the position of the test sample in the

test facility.

4.2 Travelling cables or any other cables likely to be more than 5 m long shall be represented by a

sample of at least 5 m long connected to the relevant port for the purpose of testing for susceptibility.

4.3 It is not always possible to measure the immunity levels for every function of the apparatus/

assembly of apparatus. In such cases, the most critical period of operation shall be selected.

4.4 The test shall be carried out under a single set of environmental conditions within the specified

operating range of temperature, humidity, air pressure and supply voltage, unless otherwise indicated in

the standards referred to in 4.1.
4.5 All tests shall be carried out in well-defined and reproducible conditions.
© ISO 2020 – All rights reserved 5
---------------------- Page: 11 ----------------------
ISO/FDIS 8102-2:2020(E)

4.6 To facilitate testing, assemblies of apparatus may be tested together. However, where apparatus

contain safety circuits, the tests shall prove that the safety circuits comply with the immunity

requirements for all circuits and specific requirements for safety circuits.
This does not imply tha
...

DRAFT INTERNATIONAL STANDARD
ISO/DIS 8102-2
ISO/TC 178 Secretariat: AFNOR
Voting begins on: Voting terminates on:
2018-04-23 2018-07-16
Electrical requirements for lifts, escalators and moving
walks —
Part 2:
Electromagnetic compatibility with regard to immunity

Exigences électriques pour ascenseurs, escaliers mécaniques et trottoirs roulants —

Partie 2: Compatibilité électromagnétique en ce qui concerne l'immunité
ICS: 91.140.90
THIS DOCUMENT IS A DRAFT CIRCULATED
FOR COMMENT AND APPROVAL. IT IS
THEREFORE SUBJECT TO CHANGE AND MAY
NOT BE REFERRED TO AS AN INTERNATIONAL
STANDARD UNTIL PUBLISHED AS SUCH.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL,
This document is circulated as received from the committee secretariat.
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
STANDARDS MAY ON OCCASION HAVE TO
BE CONSIDERED IN THE LIGHT OF THEIR
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
Reference number
NATIONAL REGULATIONS.
ISO/DIS 8102-2:2018(E)
RECIPIENTS OF THIS DRAFT ARE INVITED
TO SUBMIT, WITH THEIR COMMENTS,
NOTIFICATION OF ANY RELEVANT PATENT
RIGHTS OF WHICH THEY ARE AWARE AND TO
PROVIDE SUPPORTING DOCUMENTATION. ISO 2018
---------------------- Page: 1 ----------------------
ISO/DIS 8102-2:2018(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2018

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2018 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/DIS 8102-2:2018(E)
Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction ..................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 2

3 Terms and definitions ..................................................................................................................................................................................... 2

4 Test procedure ........................................................................................................................................................................................................ 5

5 Applicability of tests ......................................................................................................................................................................................... 6

6 E valuation of tests results ........................................................................................................................................................................... 7

6.1 Introduction .............................................................................................................................................................................................. 7

6.2 Performance criteria .......................................................................................................................................................................... 7

6.3 Enclosure ports of safety circuits ............................................................................................................................................ 7

7 Documentation for the installer of the apparatus/assembly of apparatus ............................................7

Bibliography .............................................................................................................................................................................................................................18

© ISO 2018 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/DIS 8102-2:2018(E)
Foreword

(ISO member bodies). The work of preparing International Standards is normally carried out through

ISO technical committees. Each member body interested in a subject for which a technical committee

has been established has the right to be represented on that committee. International organizations,

governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates

closely with the International Electrotechnical Commission (IEC) on all matters of electrotechnical

standardization. International Standards are drafted in accordance with the rules given in the ISO/IEC

Directives, Part 2. The main task of technical committees is to prepare International Standards. Draft

International Standards adopted by the technical committees are circulated to the member bodies

for voting. Publication as an International Standard requires approval by at least 75 % of the member

bodies casting a vote. Attention is drawn to the possibility that some of the elements of this document

may be the subject of patent rights. ISO shall not be held responsible for identifying any or all such

patent rights. ISO 8102-2:2017 supersedes ISO 22200:2009. ISO 8102-2 was prepared by Technical

Committee ISO/TC 178, Lifts, escalators and moving walks. This third edition cancels and replaces the

second edition (ISO 22200:2009), which has been technically revised.
iv © ISO 2018 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/DIS 8102-2:2018(E)
Introduction

ISO 8102-2 is a type-C standard as stated in ISO 12100-1. When provisions of a type-C standard are

different from those which are stated in type-A or type-B standards, the provisions of the type-C

standard take precedence over the provisions of the other standards for machines that have been

designed and built according to the provisions of the type-C standard. This International Standard (3

edition) is based upon the European Standard EN 12016:2013. The requirements of this International

Standard have been specified so as to ensure a level of electromagnetic immunity which will allow

minimal disturbance to the product family. Two levels of immunity are given which have been selected

such that the immunity levels for safety circuit apparatus are higher than the immunity levels for general

function apparatus. The higher levels cover the possibility for example of disturbances emanating from

hand-held transmitters in close proximity to safety circuit apparatus. Neither level, however, covers

cases where an extremely low probability of occurrence exists.
Test levels and immunity performance criteria are defined for:

— apparatus which are safety components or are used in conjunction with safety components, (safety

circuits);
— apparatus used in general function circuits.

The immunity levels given are on the basis that equipment of the product family range is installed both

indoor and outdoor in all types of building and, generally, is connected to a low voltage system. Due to

the size of an installed lift, it becomes impracticable to test the total assembly either in a test laboratory

or in situ where the uncontrolled environment may also influence the test procedures and results.

This applies also to measurements within the car. Similar considerations regarding dimensions apply

equally to the testing of escalators and moving walks.

The following explains the rationale to the revisions of this International Standard.

— New performance criterion C has been specified for voltage dip and voltage interruption.

— Because of extension of operating frequencies in the digital mobile telephone services and wireless

communication systems, new requirements have been added on radio frequency electromagnetic

field to cover up to 2 655 MHz.

— For the evaluation of test results regarding the Radio equipment as defined by National Regulation

used in apparatus/assembly of apparatus, the exclusion band defined by the standards applies for

that specific radio equipment.

— In addition, the uncontrolled operation of radio transmitter used in combined apparatus/assembly

of apparatus is not allowed.
ISO 8102-2:2017 supersedes ISO 22200:2009.
The Introduction for ISO 22200:2009 edition was as follows:

ISO 22200:2009 is based upon and contains no technical deviations from EN 12016:2004, except that

the most recent specified radio frequency limits have been taken into account.

It is known that in the field of electromagnetic compatibility (EMC) provision, technology changes often

require amendments to standards. It can be expected that radio frequency (RF) field ranges above 500

MHz for communications technology will continue to be introduced into the market. This International

Standard has been prepared with the assumption that equipment utilizing frequencies above 500 MHz

is not used in close proximity (200 mm) to lift, escalator and moving walk controls.

New technology equipment operating in high radio frequency (RF) field ranges will steadily be

introduced into the market.
a) Important changes
© ISO 2018 – All rights reserved v
---------------------- Page: 5 ----------------------
ISO/DIS 8102-2:2018(E)

— As a result of harmonization with the latest EN standard, the following new requirements have been

established with this International Standard.

— Change of the term “installation” to “system”. The scope of the standard is applicable to the apparatus

and assembly of apparatus of lifts and escalators and assembly into systems.

— New requirements for radio frequency electromagnetic field above 500 MHz, which have been

extended to cover digital mobile telephone services up to 2 170 MHz.
— New requirements for surge testing on safety circuits.

— New requirements for radio frequency electromagnetic fields regarding safety circuits.

— New requirement to address the possible effects of mobile telephones or radio transmitters.

— Advanced requirements for several environmental phenomena considering the progress in EMC

technology and the results of the EN 12016:2004 risk assessment.

— New requirements for immunity to mains power supply voltage interruptions and voltage dips.

b) Environmental issues

1) Lifts, escalators and moving walks are systems whose component apparatus/assembly of

apparatus are distributed (and some of which move) throughout the building. The definition, in

terms of the EMC, of the use of the building (residential or industrial) cannot be predetermined

or assumed to be fixed. Therefore, to cover requirements in all cases, no differentiation

between environments was made and a single set of limits has been maintained.

2) Severe electromagnetic environments have not been considered. Examples of these are: radio

transmitter stations, railways and metros, heavy industrial plants and electricity power

stations. Additional tests and immunity measurements may need to be taken on apparatus to

be used in these environments.

3) The levels of immunity and the resultant performance criteria, which are given in this

International Standard, reflect the fact that lifts, escalators and moving walks are deemed to

consist of selfcontained subsystems and apparatus (e.g. machine room and lift car). The related

EMC product family standard for emission is ISO 8102-1.
vi © ISO 2018 – All rights reserved
---------------------- Page: 6 ----------------------
DRAFT INTERNATIONAL STANDARD ISO/DIS 8102-2:2018(E)
Electrical requirements for lifts, escalators and moving
walks —
Part 2:
Electromagnetic compatibility with regard to immunity
1 Scope

This International Standard specifies the immunity performance criteria and test levels for apparatus

used in lifts, escalators and moving walks which are intended to be permanently installed in buildings

including the basic safety requirements in regard to their electromagnetic environment. These levels

represent essential EMC requirements.

The standard refers to EM conditions as existing in residential, office and industrial buildings.

This standard addresses commonly known EMC related hazards and hazardous situations relevant to

lifts, escalators and moving walks when they are used as intended and under the conditions foreseen

by the lift installer or escalator and/or moving walk manufacturer.

It is assumed that no ports connected to safety circuit only are rated at currents greater than 100 amps.

It is assumed that mobile telephones and radio transmitters used at frequencies and power of that

stated in
Table 1 are not placed within 200 mm distance from safety circuit(s).
However:

— performance criteria and test levels for apparatus/assembly of apparatus used in general function

circuits do not cover situations with an extremely low probability of occurrence;

— this standard does not apply to other apparatus already proven to be in conformity to the EMC

National Regulation, and not related to the safety of the lift, escalator or moving walk, such as

lighting apparatus, communication apparatus, etc.
This standard does not apply to electromagnetic environments such as:
— radio transmitter stations;
— railways and metros;
— heavy industrial plant;
— electricity power stations
which need additional investigations.

This standard is not applicable to apparatus which were manufactured before the date of its publication.

© ISO 2018 – All rights reserved 1
---------------------- Page: 7 ----------------------
ISO/DIS 8102-2:2018(E)
2 Normative references

The following documents, in whole or in part, are normatively referenced in this document and are

indispensable for its application. For dated references, only the edition cited applies. For undated

references, the latest edition of the referenced document (including any amendments) applies.

1) This document is currently impacted by IEC 60050-161:1990/A1: 1997 and IEC 60050-

161:1990/A2: 1998.
2) This document is currently impacted by IEC 61000-4-3:2006/A2: 2010.

CISPR 22:2008, modified, Information technology equipment - Radio disturbance characteristics - Limits

and methods of measurement

CISPR 24:2010, Information technology equipment - Immunity characteristics - Limits and methods of

measurement

IEC 60050-161:1990, International Electrotechnical Vocabulary — Chapter 161: Electromagnetic

compatibility 1)

IEC 61000-4-2:2008, Electromagnetic Compatibility (EMC) — Part 4-2: Testing and measurement

techniques; Electrostatic discharge immunity test

IEC 61000-4-3:2006, Electromagnetic compatibility (EMC) — Part 4-3: Testing and measurement

techniques; Radiated, radio-frequency, electromagnetic field immunity test 2)

IEC 61000-4-4:2012, Electromagnetic compatibility (EMC) — Part 4-4: Testing and measurement

techniques — Electrical fast transient/burst immunity test

IEC 61000-4-5:2005, Electromagnetic compatibility (EMC) — Part 4-5: Testing and measurement

techniques — Surge immunity test

IEC 61000-4-6:2008, Electromagnetic Compatibility (EMC) — Part 4-6: Testing and measurement

techniques — Immunity to conducted disturbances, induced by radio-frequency fields

IEC 61000-4-11:2004, Electromagnetic Compatibility (EMC) — Part 4-11: Testing and measurement

techniques — Voltage dips, short interruptions and voltage variations immunity tests

IEC 61000-6-1:2005, Electromagnetic compatibility — Part 6-1: Generic standards — Immunity for

residential, commercial and light-industrial environments

IEC 61000-6-2:2005, Electromagnetic Compatibility (EMC) — Part 6-2: Generic standards — Immunity for

industrial environments
3 Terms and definitions

For the purpose of this document, the terms and definitions given in IEC 61000-6-1, IEC 61000-6-2,

IEC 60050-161 and the following apply
3.1
assembly of apparatus
arrangement of interconnected apparatus, which can be tested together
Note 1 to entry: See Figure 1 and Figure 2 as examples.
3.2
apparatus
assembly of components with an intrinsic function as defined by its manufacturer
Note 1 to entry: See Figure 1 and Figure 2 as examples.
2 © ISO 2018 – All rights reserved
---------------------- Page: 8 ----------------------
ISO/DIS 8102-2:2018(E)
Key
assembly of apparatus
1 machinery space 7 landings
2 main control / control cabinet 8 system boundary
3 machine 9 AC – and/or DC power ports
4 door control 10 main switch
5 lift car 11 output power port

6 apparatus installed at the landing (e.g. push 12 ports for monitoring and remote alarm systems

buttons, indicators)
Figure 1 — EMC example (immunity) for lift systems
© ISO 2018 – All rights reserved 3
---------------------- Page: 9 ----------------------
ISO/DIS 8102-2:2018(E)
Key
assembly of apparatus
1 control panels 6 machine
2 machinery space (see 4 to 10) 7 AC – and/or DC power ports
3 system boundary 8 main switch
4 machinery space 9 output power port
5 main control/control cabinet 10 ports for monitoring
NOTE the machinery space can also be an external room.
Figure 2 — EMC example (immunity) for escalator and moving walk systems
3.3
enclosure port

physical boundary of apparatus/assembly of apparatus through which electromagnetic fields may

radiate or impinge
Note 1 to entry: See Figure 3 as example.
3.4
general function circuit

circuitry used in apparatus which does not incorporate safety circuits (see Figure 1 to Figure to 3)

4 © ISO 2018 – All rights reserved
---------------------- Page: 10 ----------------------
ISO/DIS 8102-2:2018(E)
3.5
port

particular interface of specified apparatus/assembly of apparatus with the external electromagnetic

environment
Note 1 to entry: See Figure 3 as an example.
Key
1 AC power port
2 DC power port
3 enclosure port
4 apparatus/assembly of apparatus
5 ground port
6 signal/control port
7 machine/motor port
Figure 3 — Examples of ports
3.6
safety circuit

circuit containing contacts and/or electronic components forming an electric safety device as defined

in national lift norms which causes any of the following actions:

a) removal of power from machine motor and brake (traction lifts), respectively, from motor and/or

involved valve(s) (hydraulic lifts);
b) blocking (prevention) of automatic operation of lift;
c) limit of travel range;

d) interruption of supply circuit to the coil of the contactor used as main switch ;

e) other actions prescribed by national lift norms to be safety circuit related
3.7
system

lift escalator or moving walk comprising assembly of apparatus with electrical and electronic equipment

and interconnections
Note 1 to entry: See Figure 1 and Figure 2 as examples.
4 Test procedure

4.1 The tests shall be carried out as stated in IEC 61000-4-2:2008, IEC 61000-4-3:2006, IEC 61000-4-

4:2012, IEC 61000-4-5:2005, IEC 61000-4-6:2008, IEC 61000-4-11:2004, as appropriate (see Table 1 to

Table 7). An attempt shall be made to maximize susceptibility by varying the position of the test sample

in the test facility.
© ISO 2018 – All rights reserved 5
---------------------- Page: 11 ----------------------
ISO/DIS 8102-2:2018(E)

4.2 Travelling cables or any other cables likely to be more than 5 m long shall be represented by a

sample of at least 5 m long connected to the relevant port for the purpose of testing for susceptibility.

4.3 It is not always possible to measure the immunity levels for every function of the apparatus/assembly

of apparatus. In such cases, the most critical period of operation shall be selected.

4.4 The test shall be carried out under a single set of environmental conditions within the specified

operating range of temperature, humidity, air pressure and supply voltage, unless otherwise indicated in

the standards referred to in 4.1.
4.5 All tests shall be carried out in well-defined and reproducible conditions .
4.6 To facilitate testing, assemblies of apparatus may be tested toge
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
